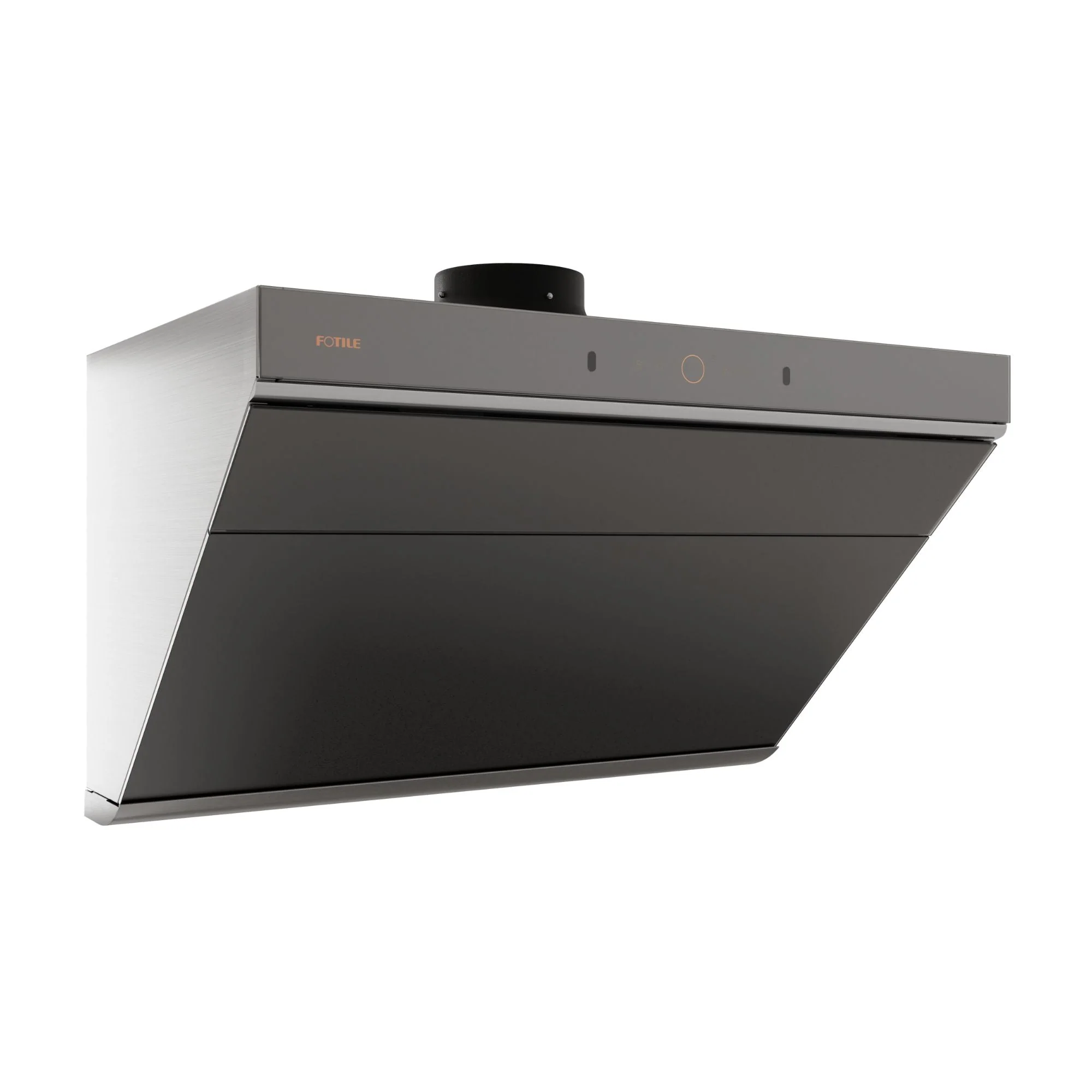

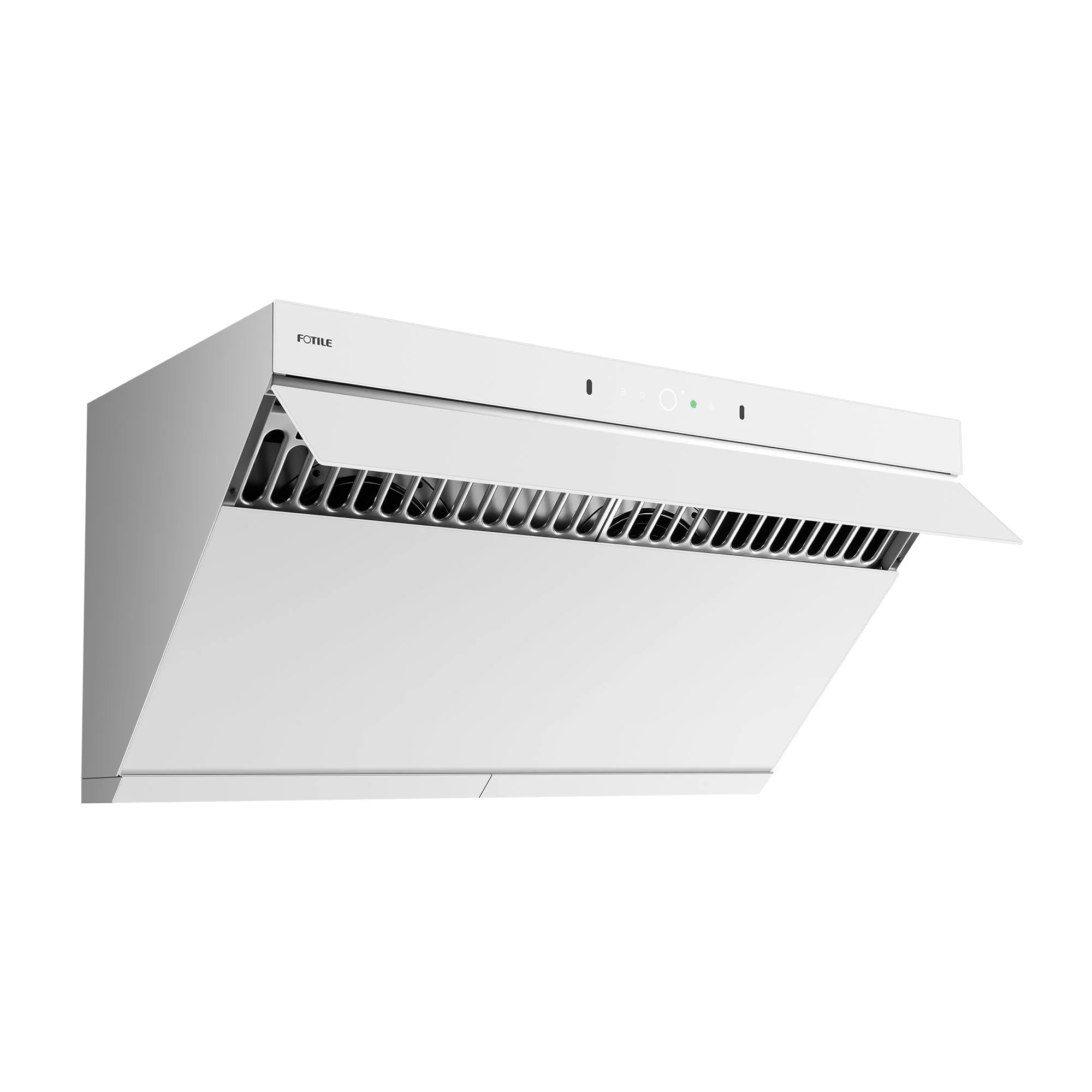

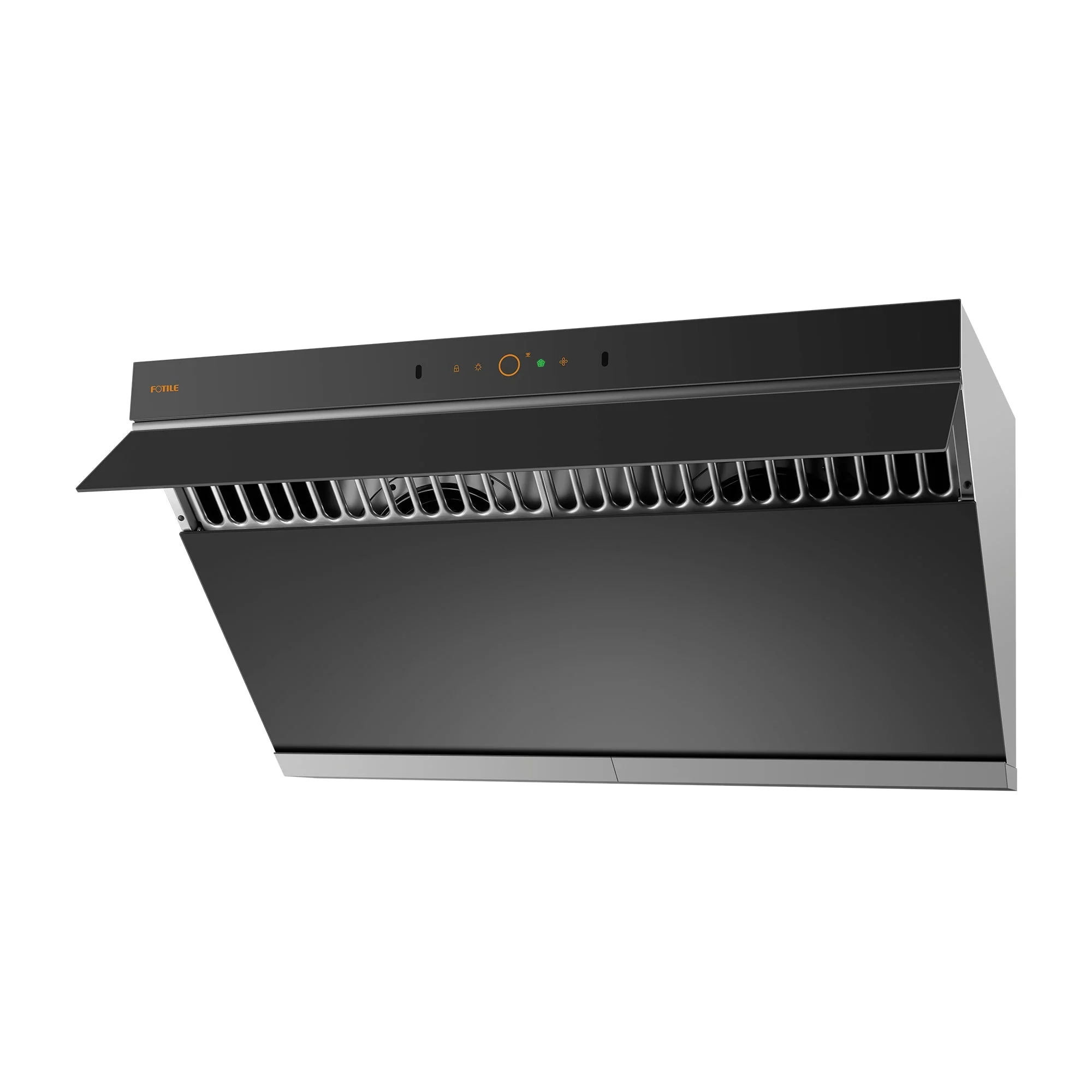

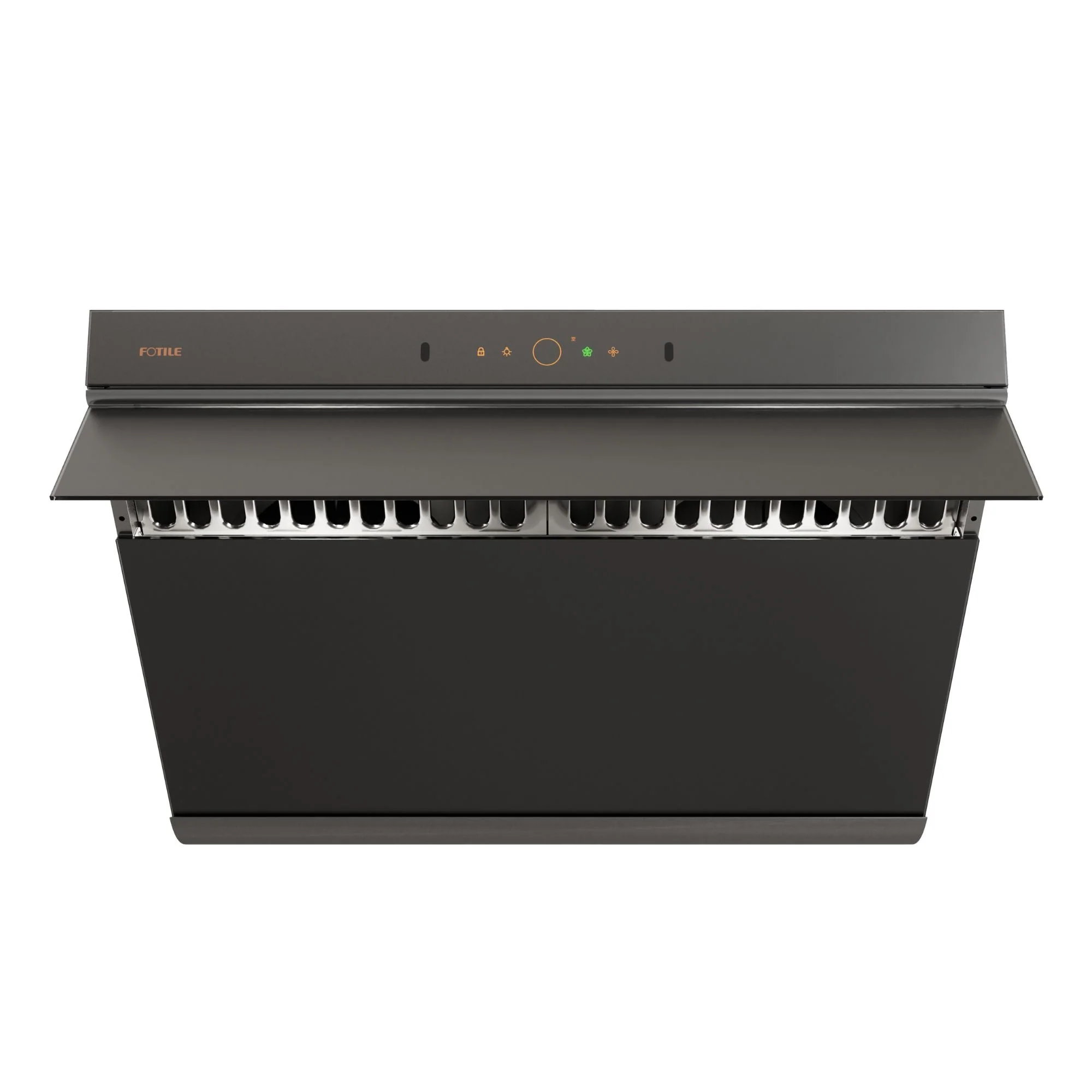

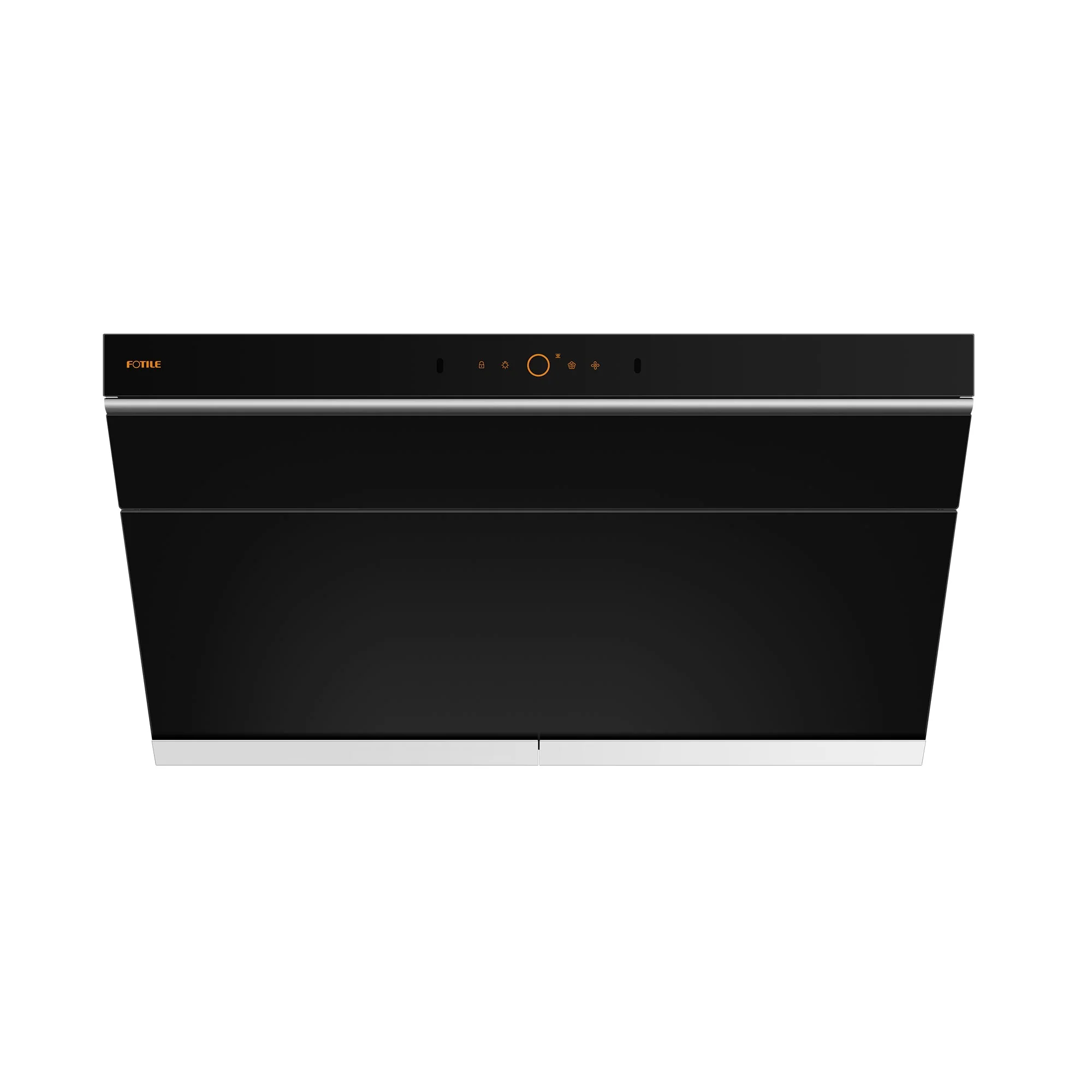

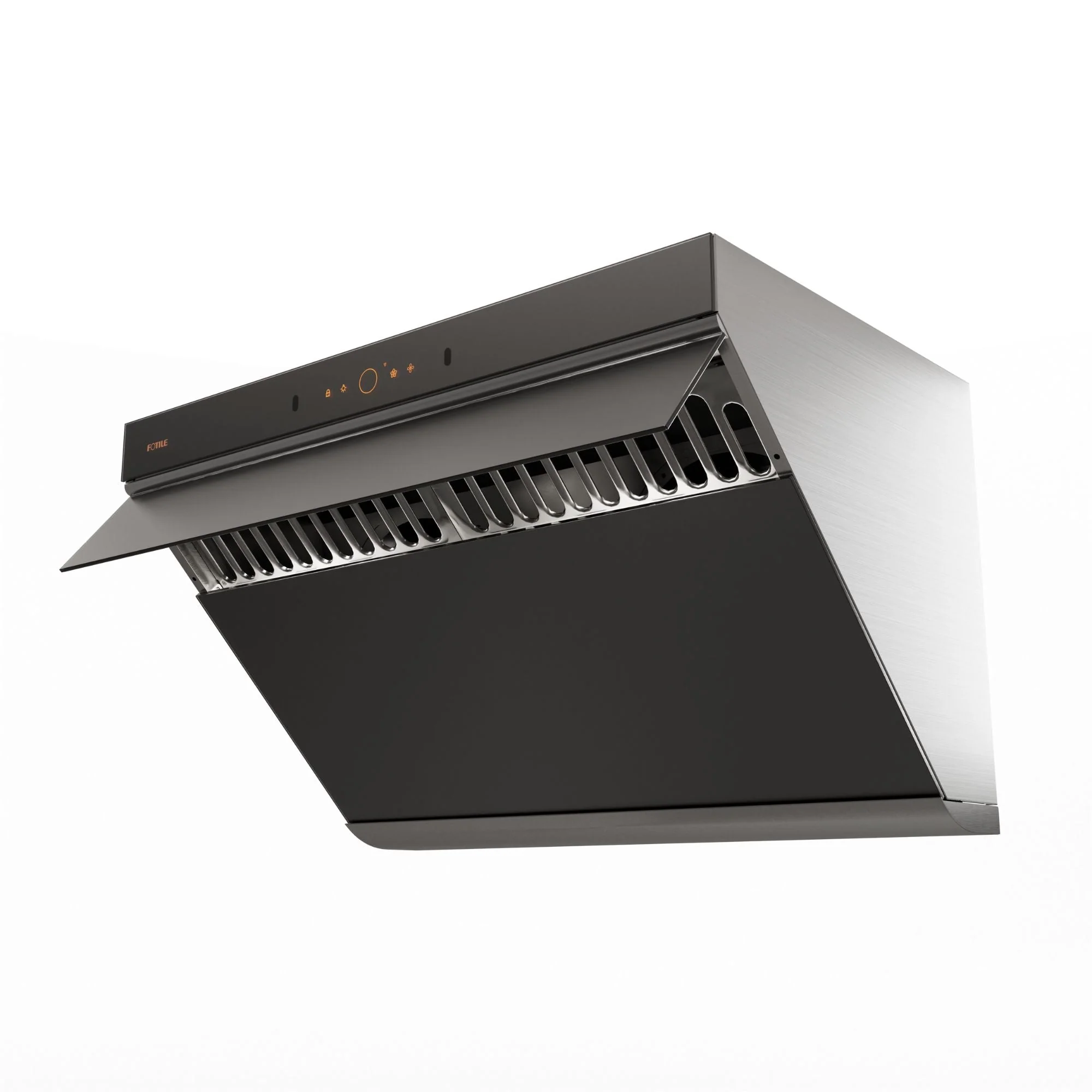

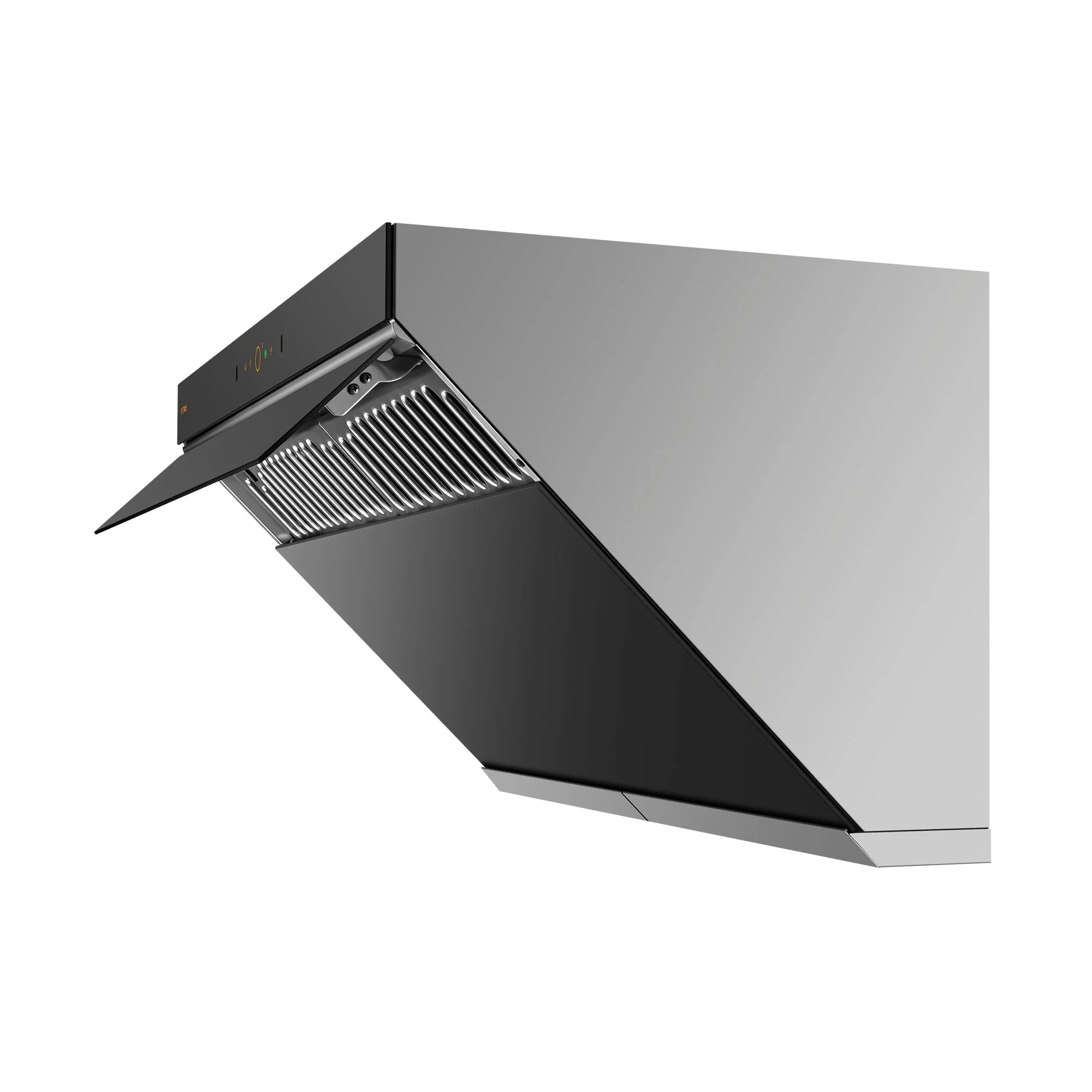

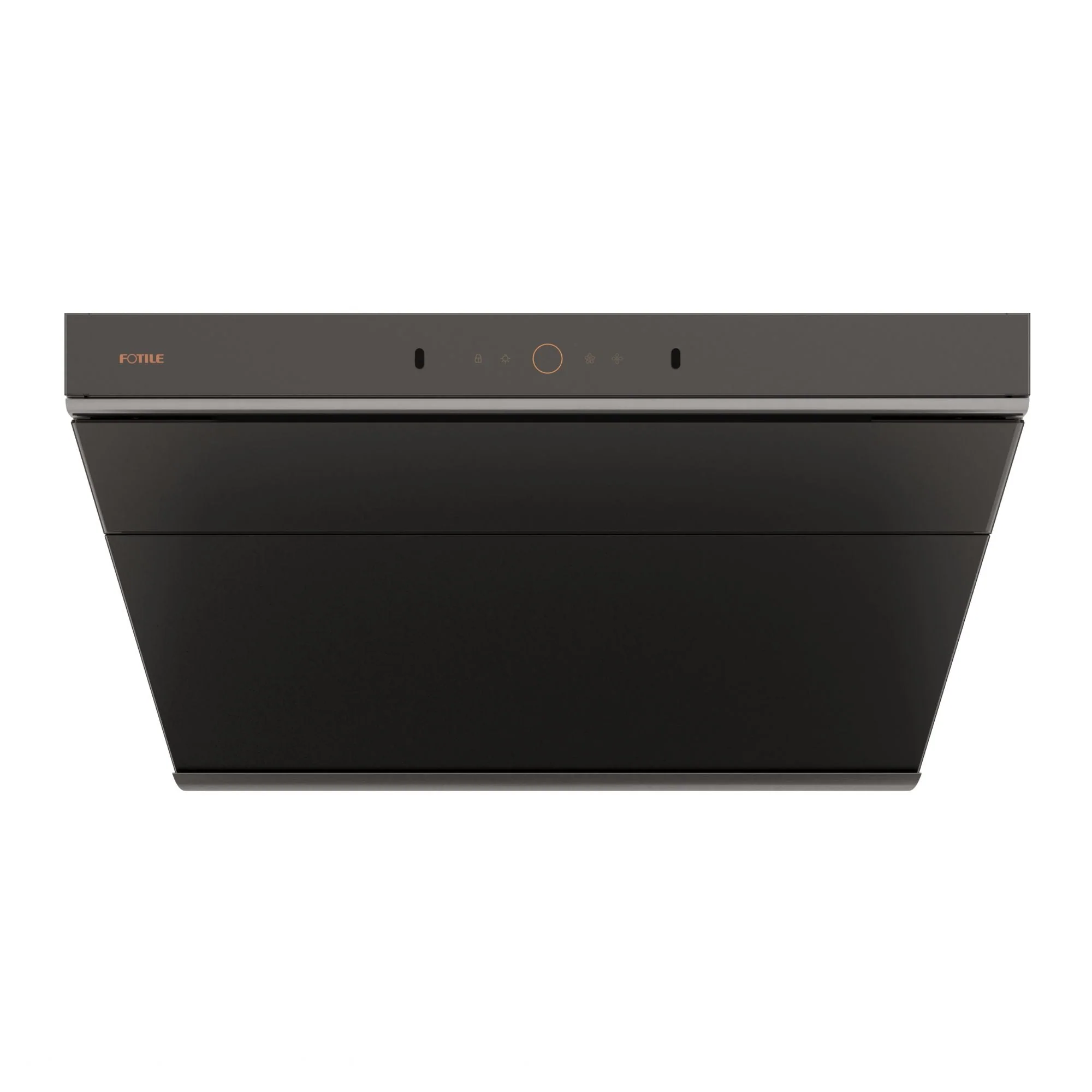

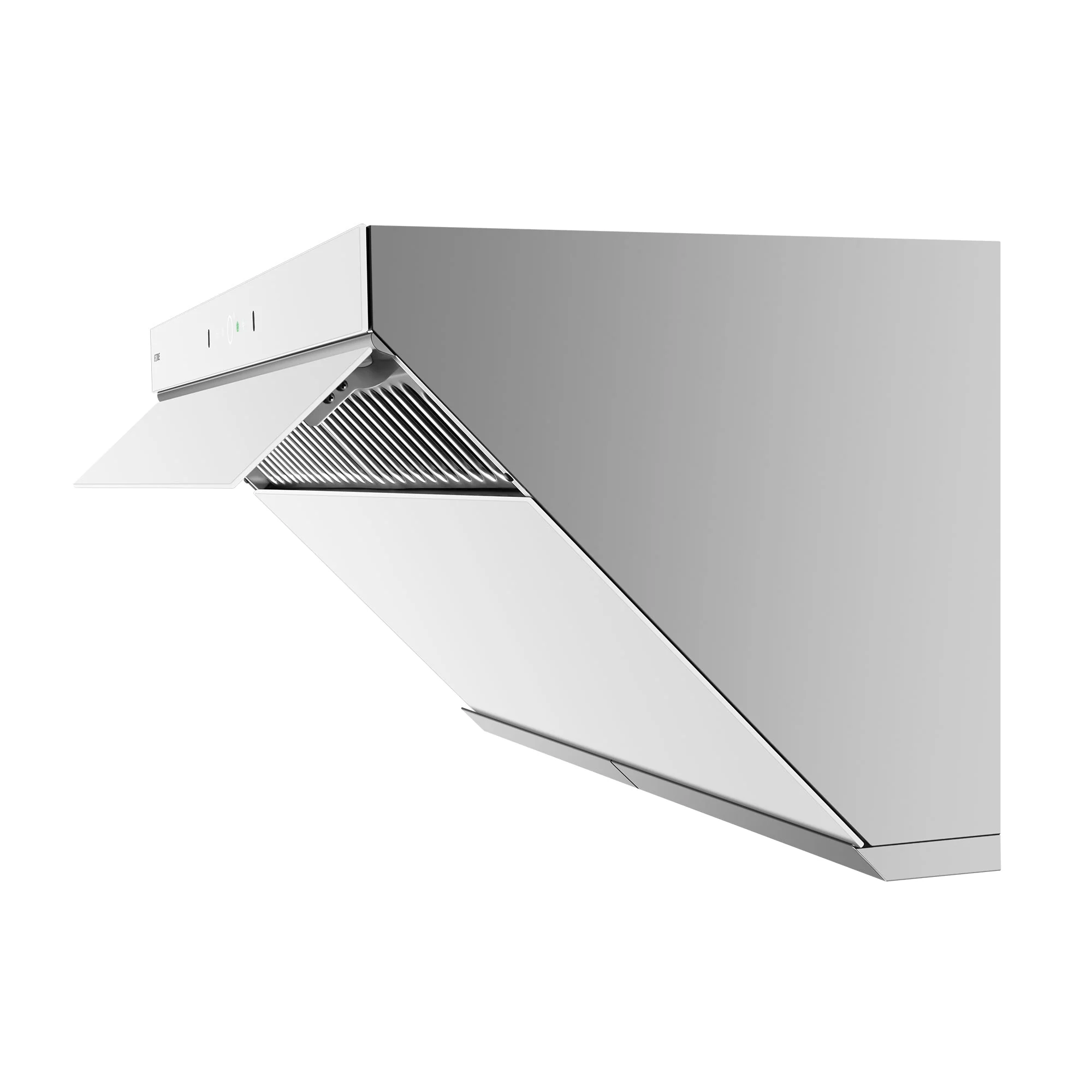

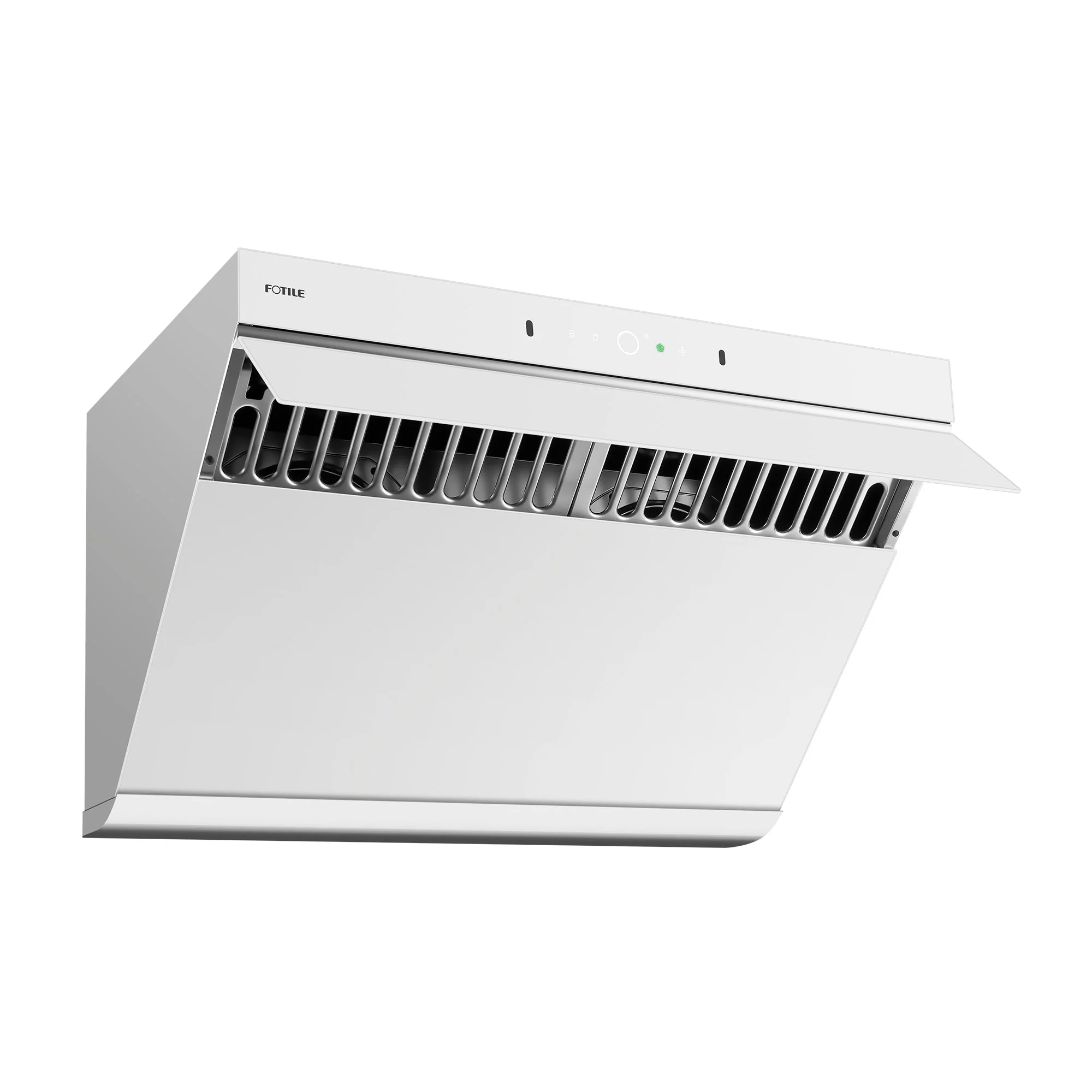

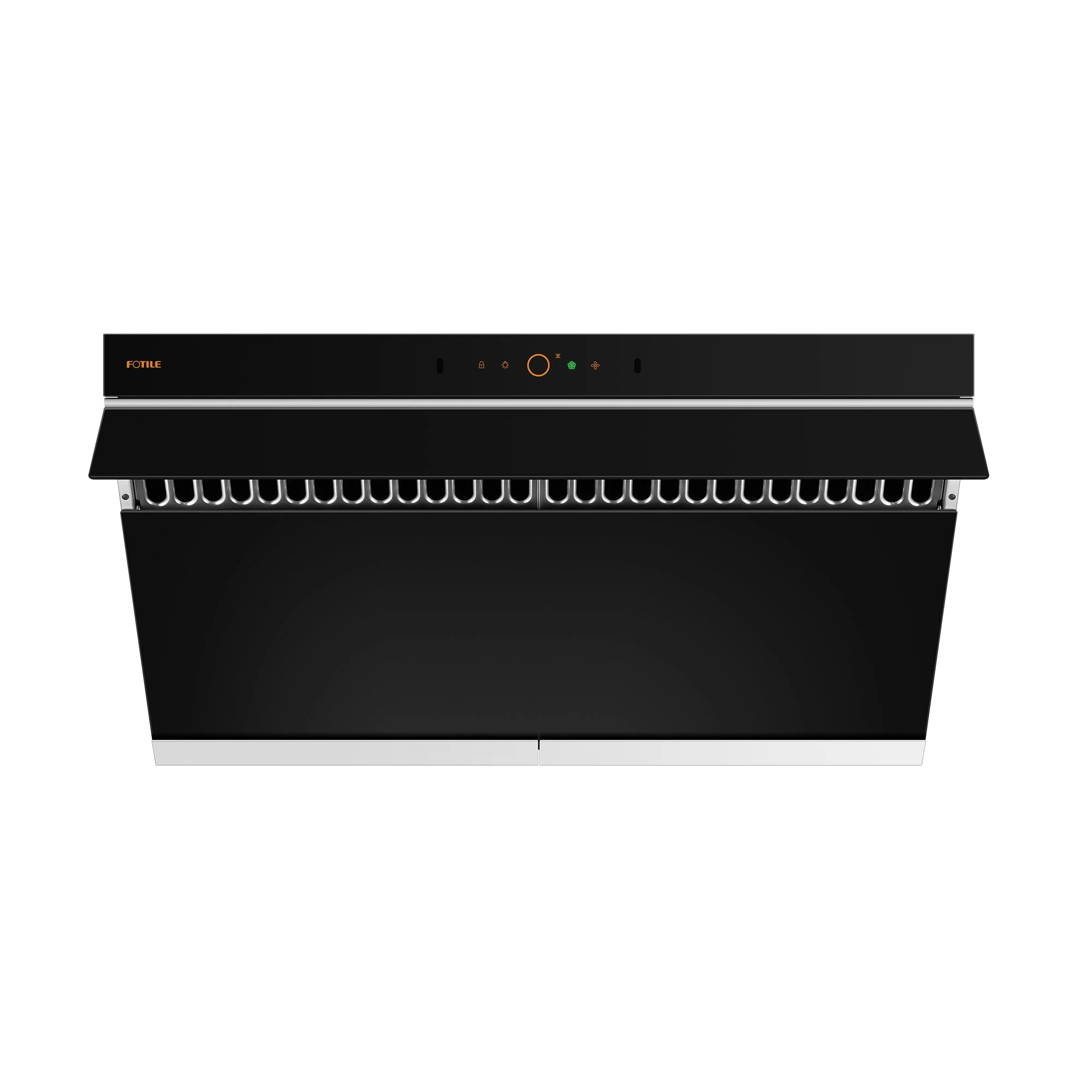

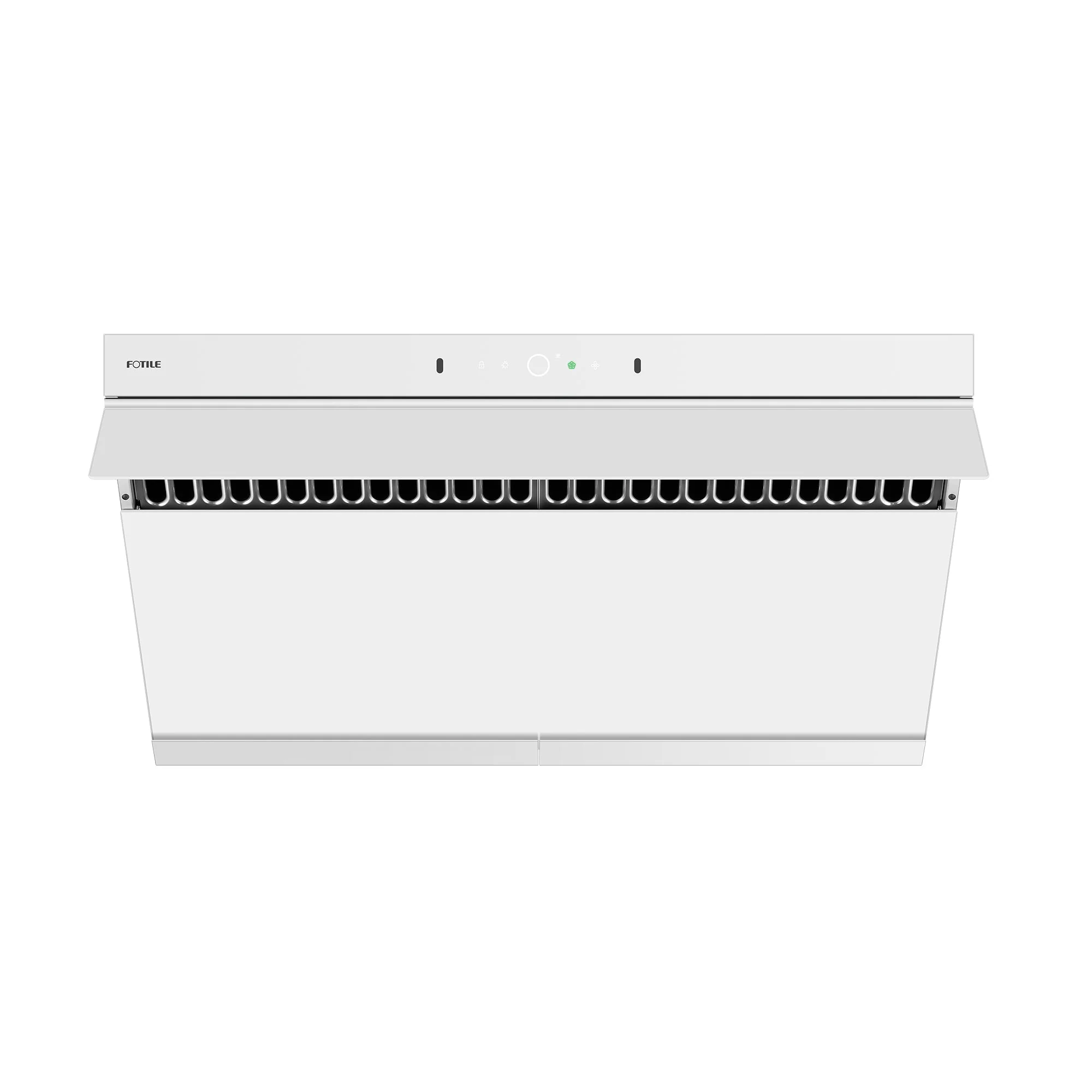

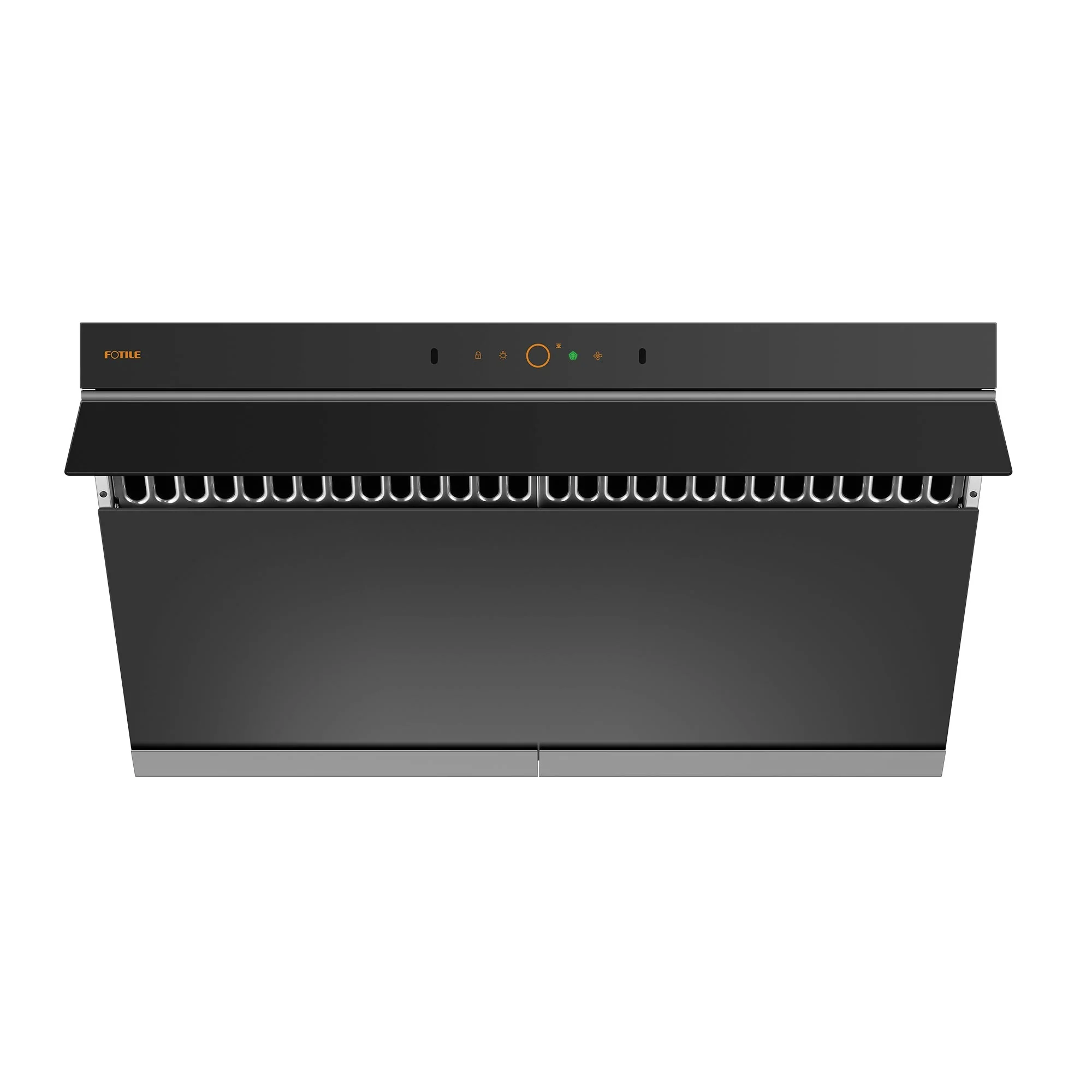

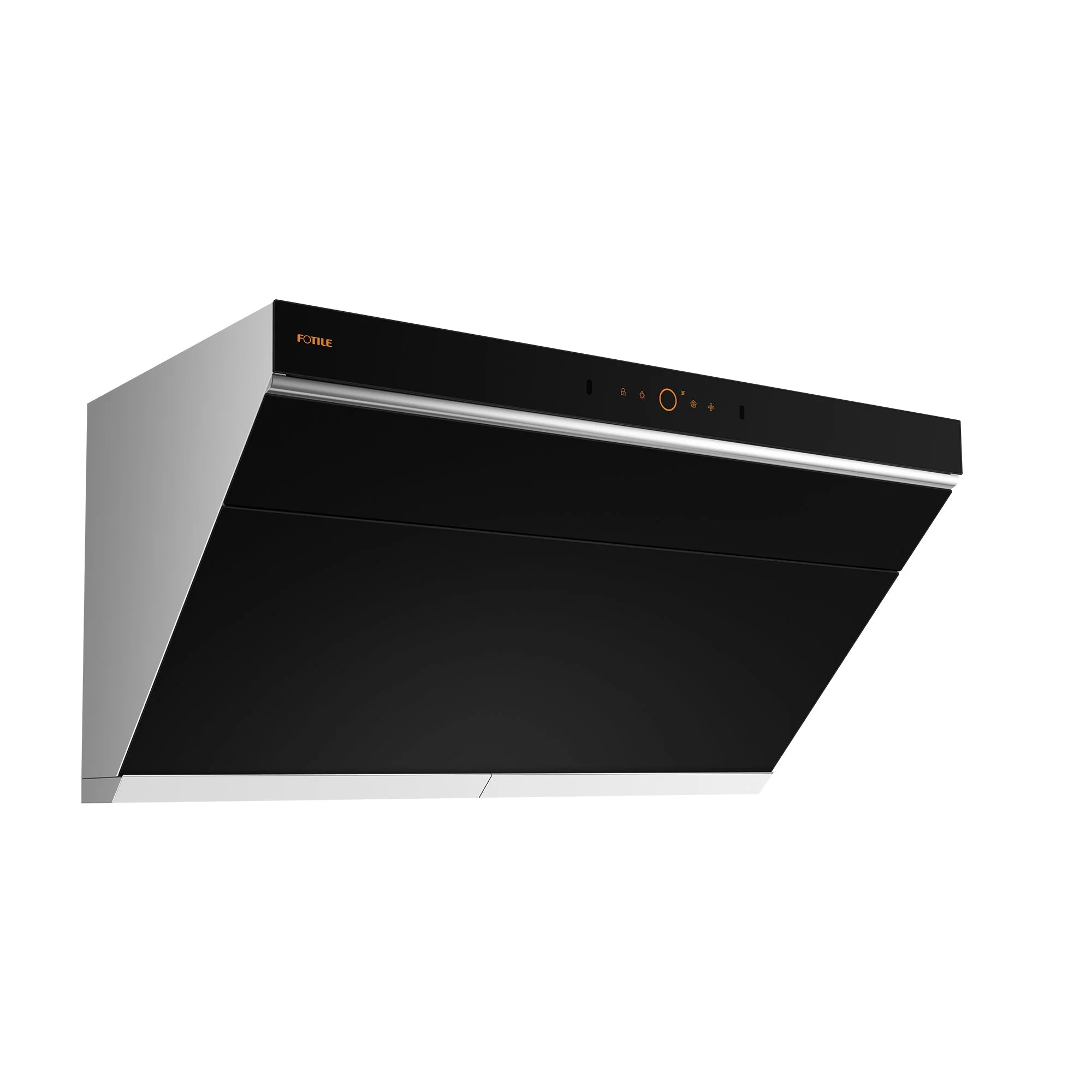

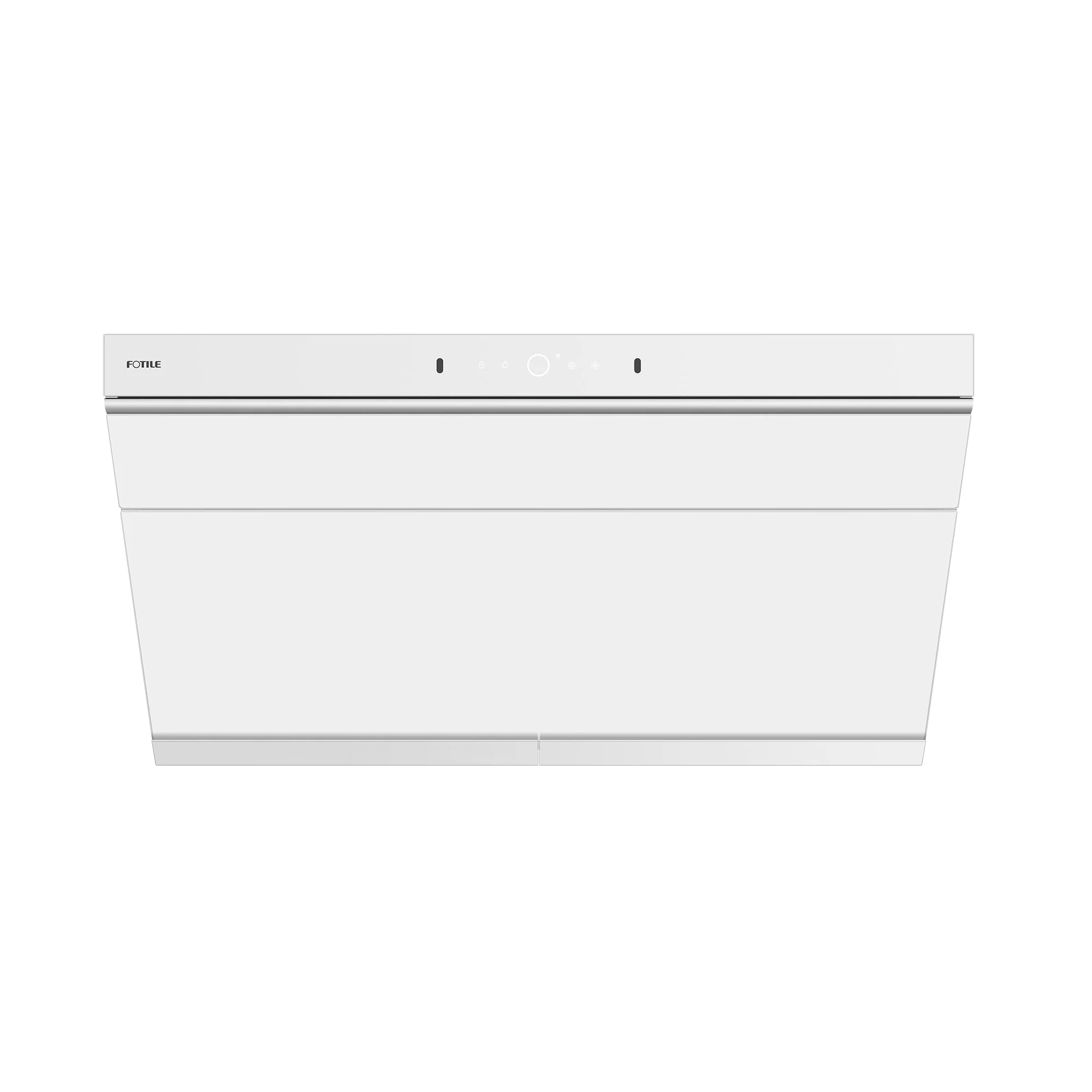

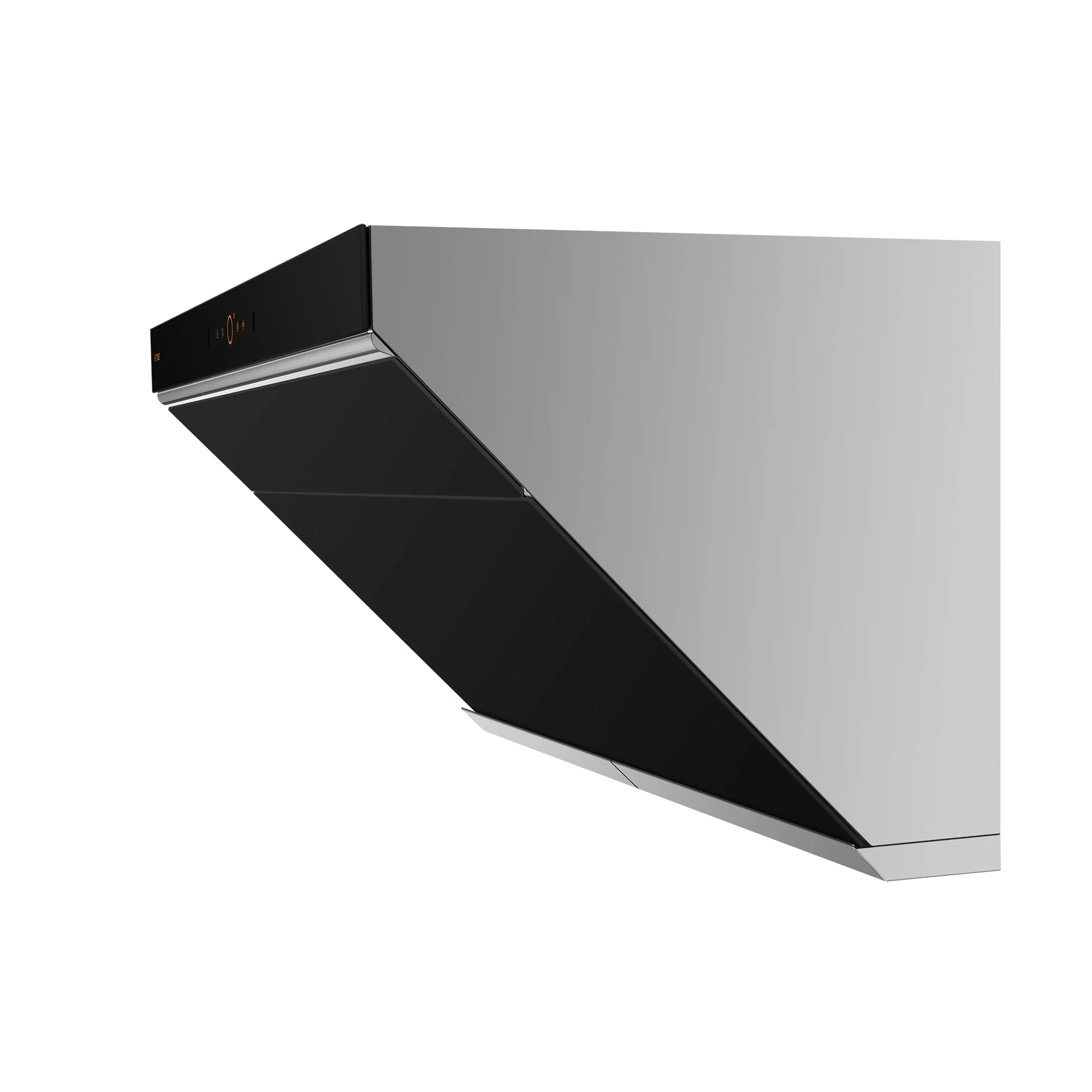

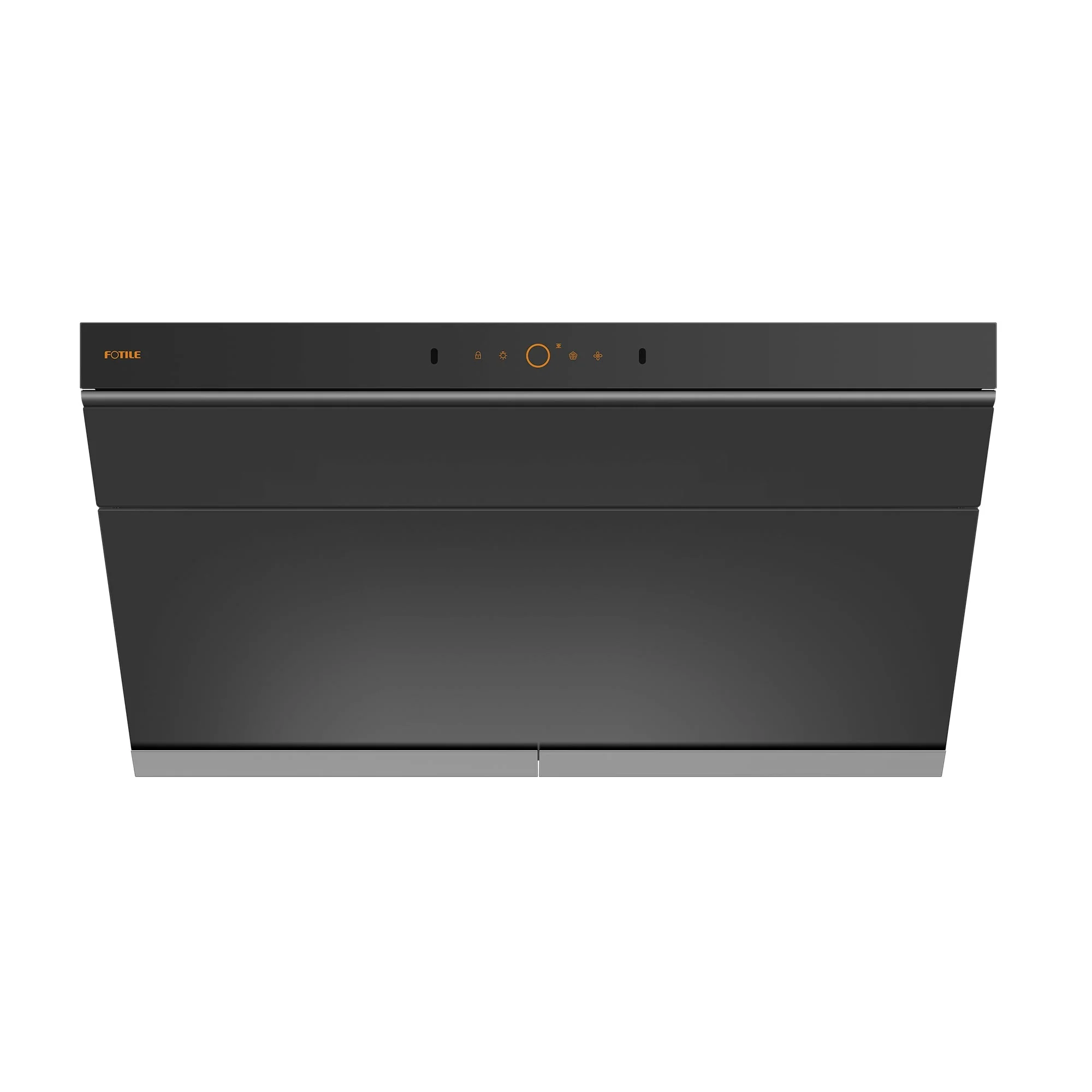

Fotile Prestige Slant Vent Range Hood with 1100 CFM Performance Series (JQG7507 / JQG9007)

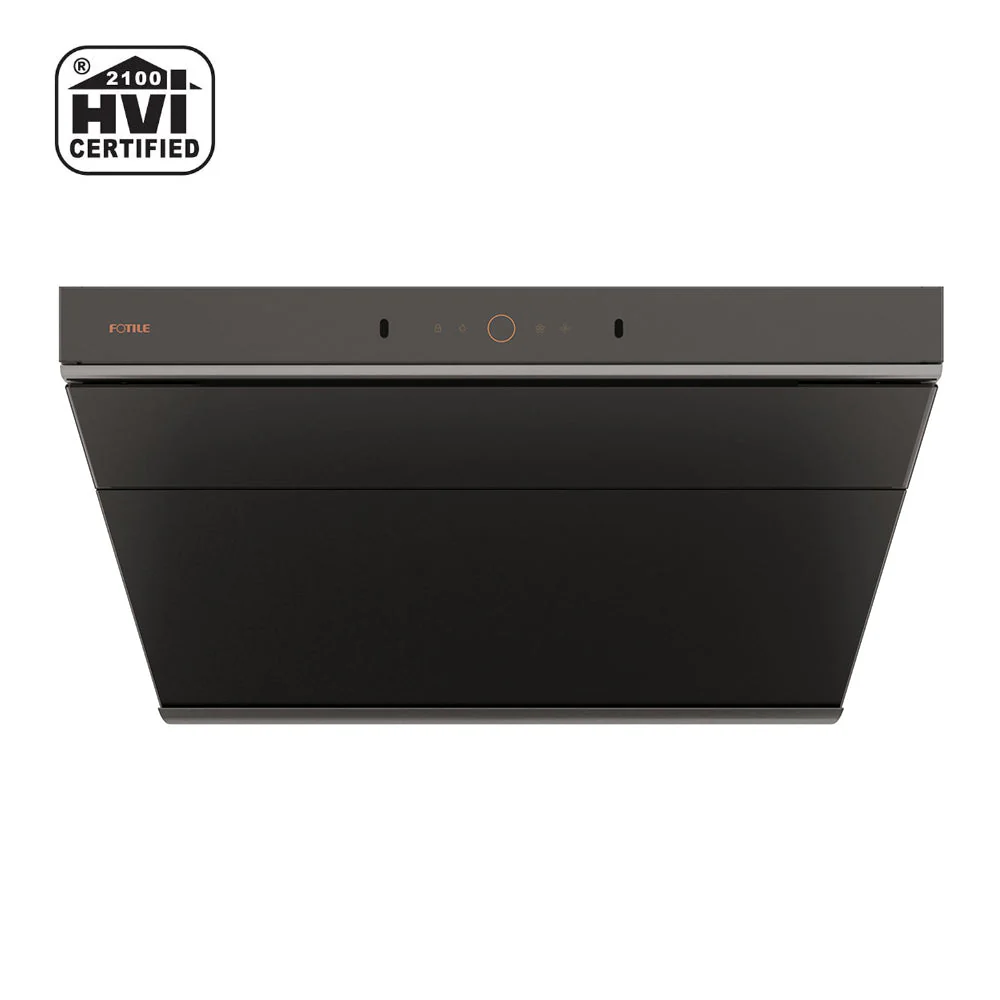

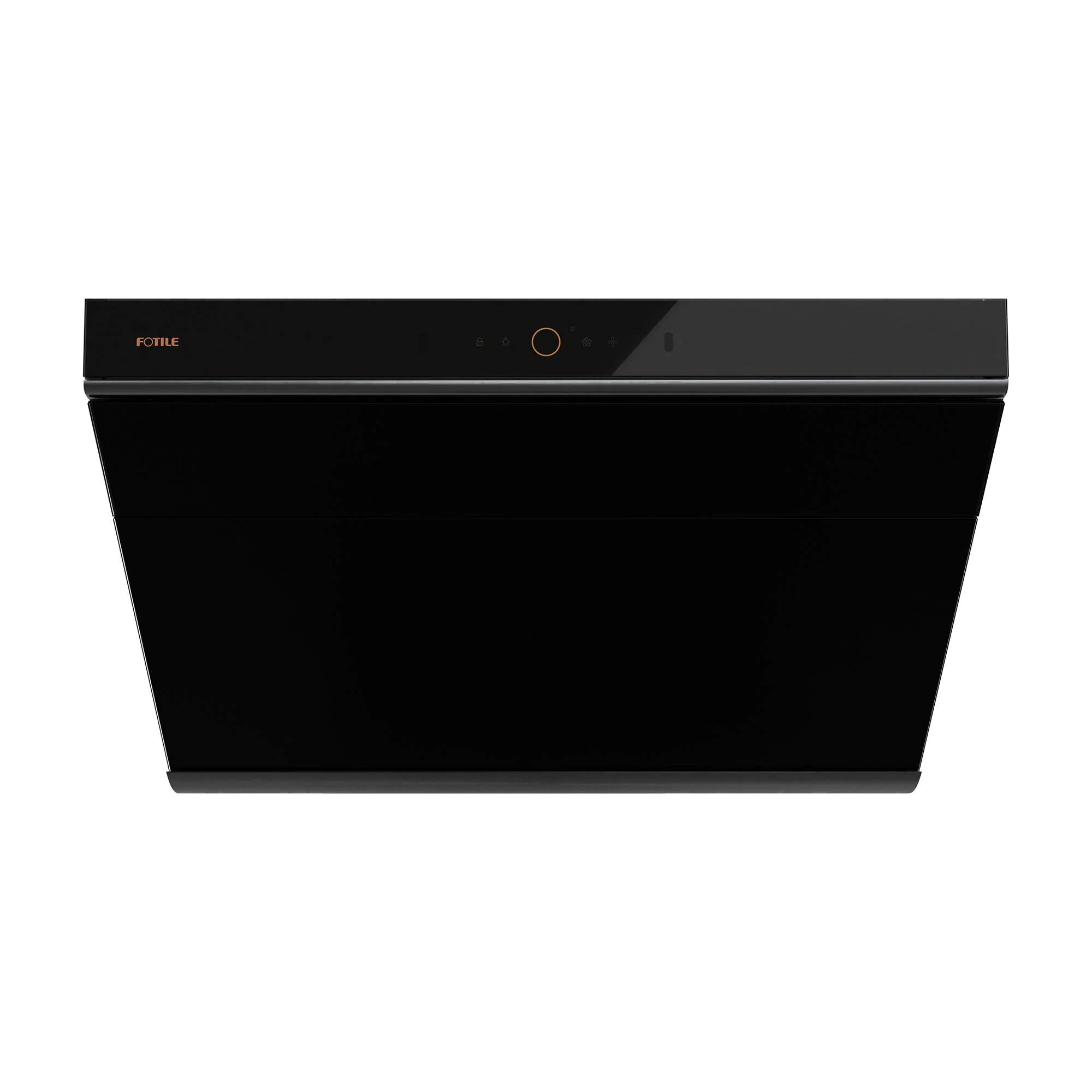

Discover the perfect blend of artistry and high-performance kitchen technology with the FOTILE Moonshadow Grey Range Hood. Inspired by the timeless elegance of Chinese ink paintings, this range hood introduces the revolutionary Moonshadow Grey hue, a color meticulously crafted through advanced digital analysis of heirloom artworks.

Equipped with cutting-edge AG glass technology, it reduces glare, softens light, and enhances the overall cooking experience. "AG" stands for Anti-glare, a characteristic that is central to its functionality. This isn't your typical glass. AG glass undergoes a rigorous 12-step processing regimen, ensuring that every inch of its surface is uniformly smooth and embellished with fine crystal particles. Its anti-glare, smudge-resistant surface, coupled with exceptional durability, ensures that your kitchen remains both stylish and functional.

Features

• Powerful Dual DC Motors - Stronger Yet Quiet This range hood is part of FOTILE's latest Slant Vent family, offering 1100 CFM (100 CFM more power than JQG7505). It utilizes Dual DC Motors for increased extraction rate and maintains low noise levels at 38dB.
• Motion Activation - Wave your hand to power on or off, activating the range hood without physical contact. Default 5-minute delay shut-off, with the option for immediate shutdown
• Stir-fry Mode - Stir Fry Mode with Additional Boost of Power for Heavy Smoke & Odor Cooking. This range hood is ideal for heavy smoke and odor, ensuring a clean kitchen environment regardless of what you're cooking, from meat to fish to vegetables.
• Sync Connect with Cooktops - The range hood’s automatic activation powers on at the third fan level with LED lights, syncing with your cooktop’s switch knob. Effortlessly control the range hood’s operation using any cooktop knob. The Prestige Performance Slant Vent Range Hood’s simple setup addresses the common issue of forgetting to turn on the range hood.


Note: FOTILE Equivalent CFM is a higher CFM rating due to our filterless technology that combines WhisPower Motors and Capture-Shield design. By utilizing this technology, FOTILE applies the Coanda Effect by accelerating smoke extraction and grease separation, and increasing our Capture Efficiency. This enables FOTILE to cover a larger cooktop surface (6-7.2 sq.ft.) and achieve a 95% oil filtration rate, and 98% odor reduction rate, keeping your kitchen smoke free and smelling fresh.

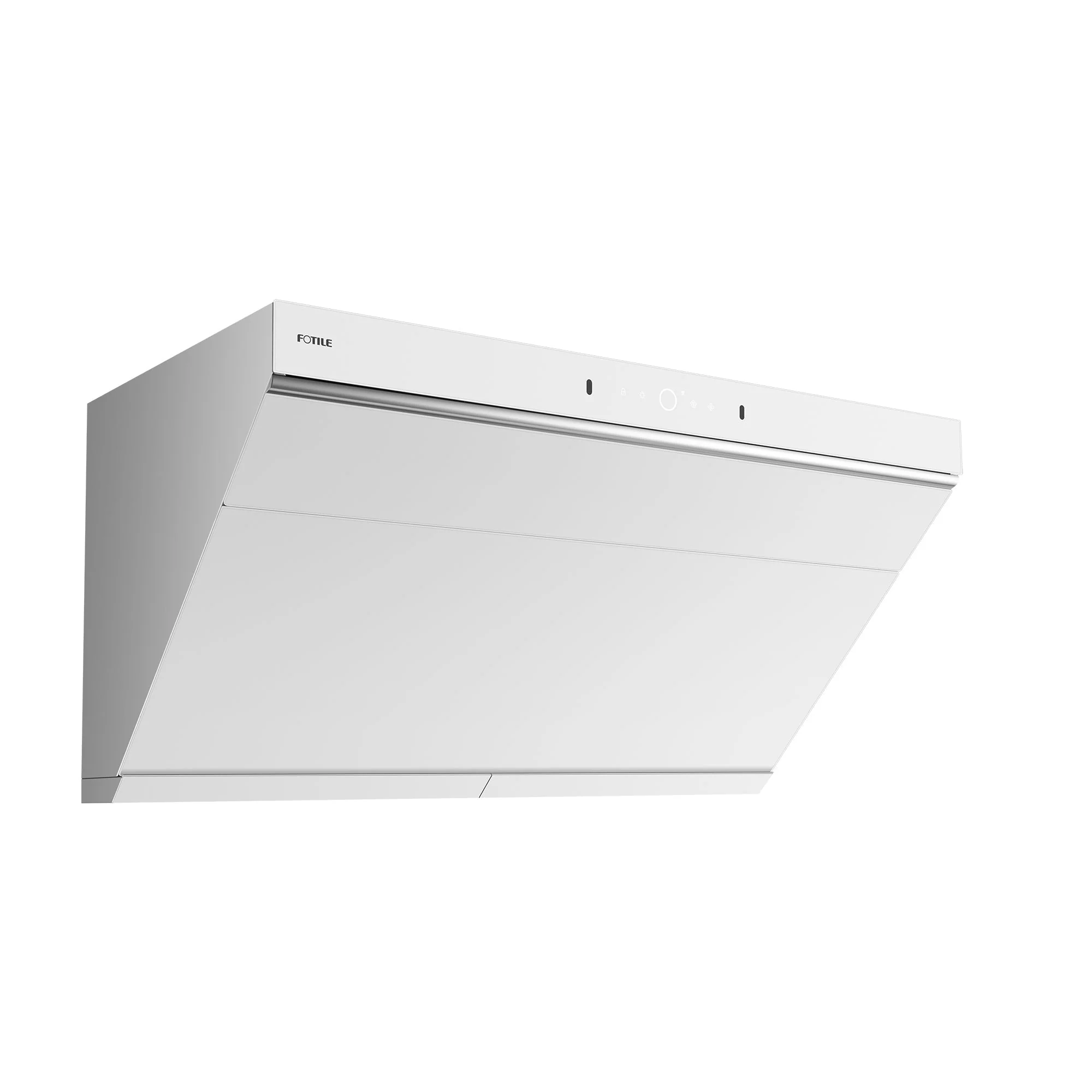

Product Dimensions	JQG7507/JQG7507-W: 29 7/8" x 18 7/16" x 17 7/16"  JQG9007/JQG9007-Y: 35 7/8"  x 18 7/16" x 17 7/16"
Certification	ETL, FCC
Power Supply(V/Hz)	120V / 60Hz
Max Static Pressure(Pa)	540 Pa
Speed Setting	4
MAX. EQUIV.CFM	1100 CFM*
CFM (CEC)	230 / 420 / 520 / 580
Noise Level(sones)	1.2 / 4 / 6.5 / 7.5
Noise Level(dB)	38.5 / 48.2 / 54.0 / 56.5
Illumination(W)	3W × 2 （LED)
Input Power	210W
Motor	Dual DC Motors
Oil Cup	One Oversized Oil Cup
Oil Filter	Removable & Dishwasher Safe

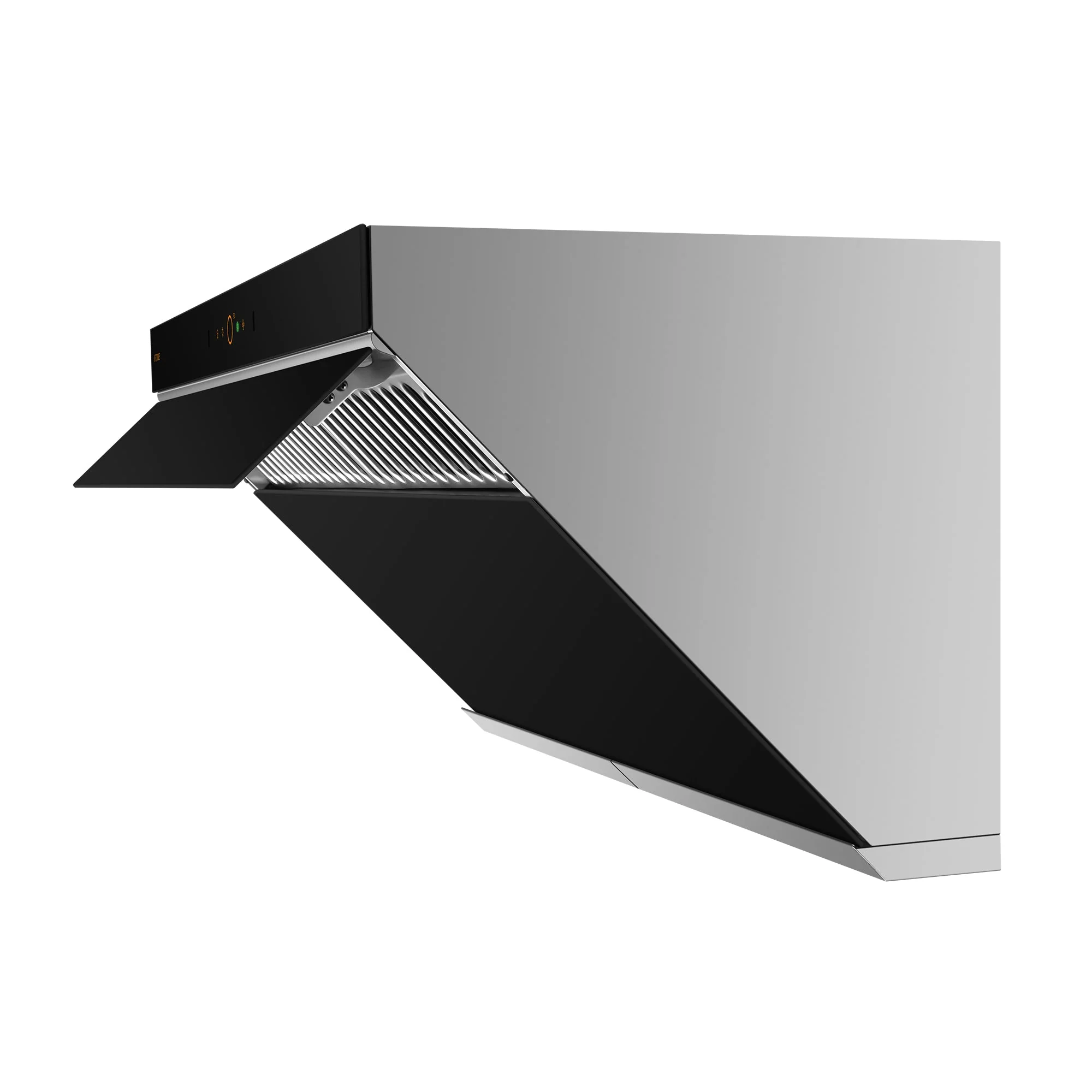

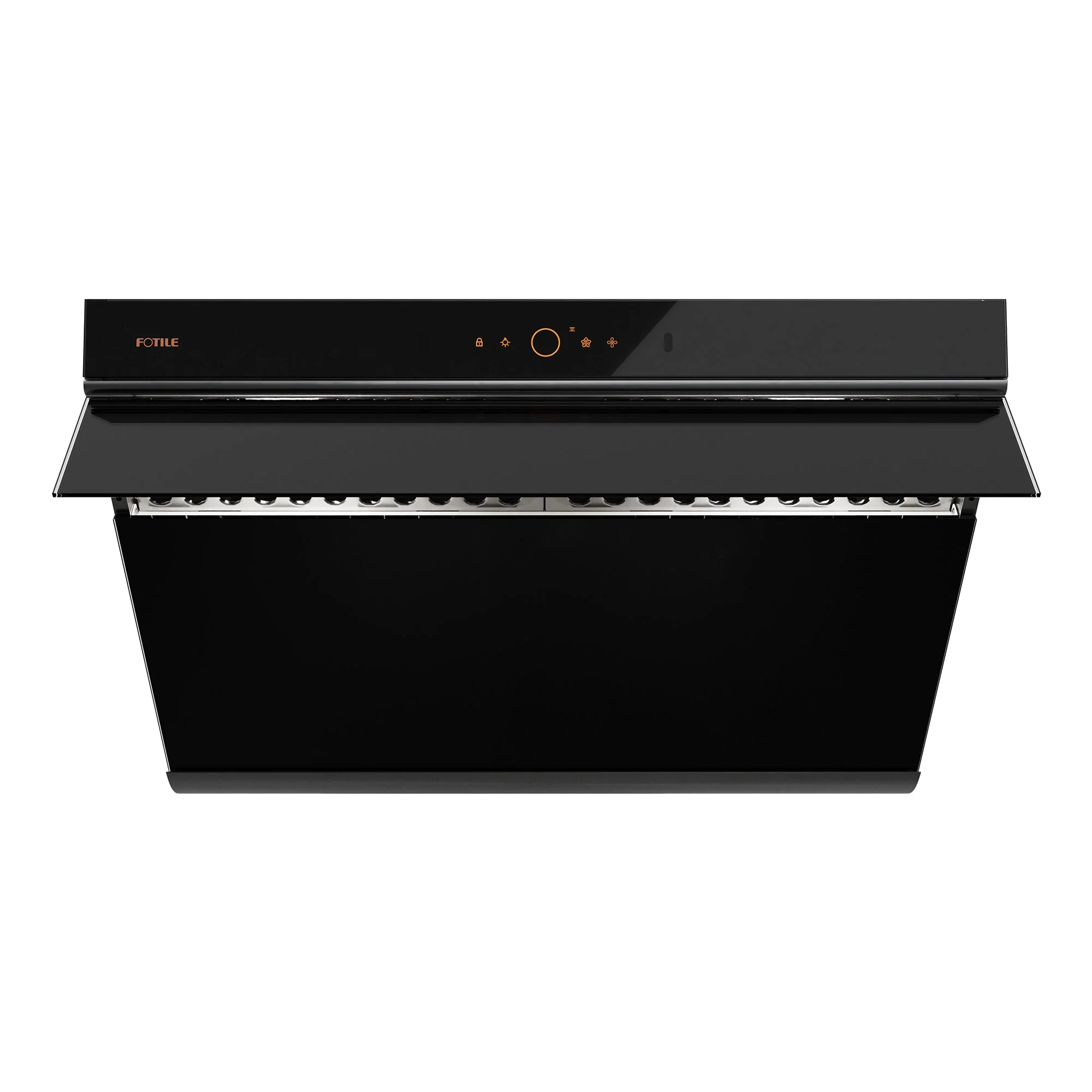

Capture Shield	Auto
Control Type	Touch + Motion
Delay Shutoff	5 min.
Screen Lock	Y
Boost	Y
Oil Filtration Rate	95%
Odor Elimination Rate	98%
Installation	Under Cabinet / Wall Mount
Duct Type	Vertical
