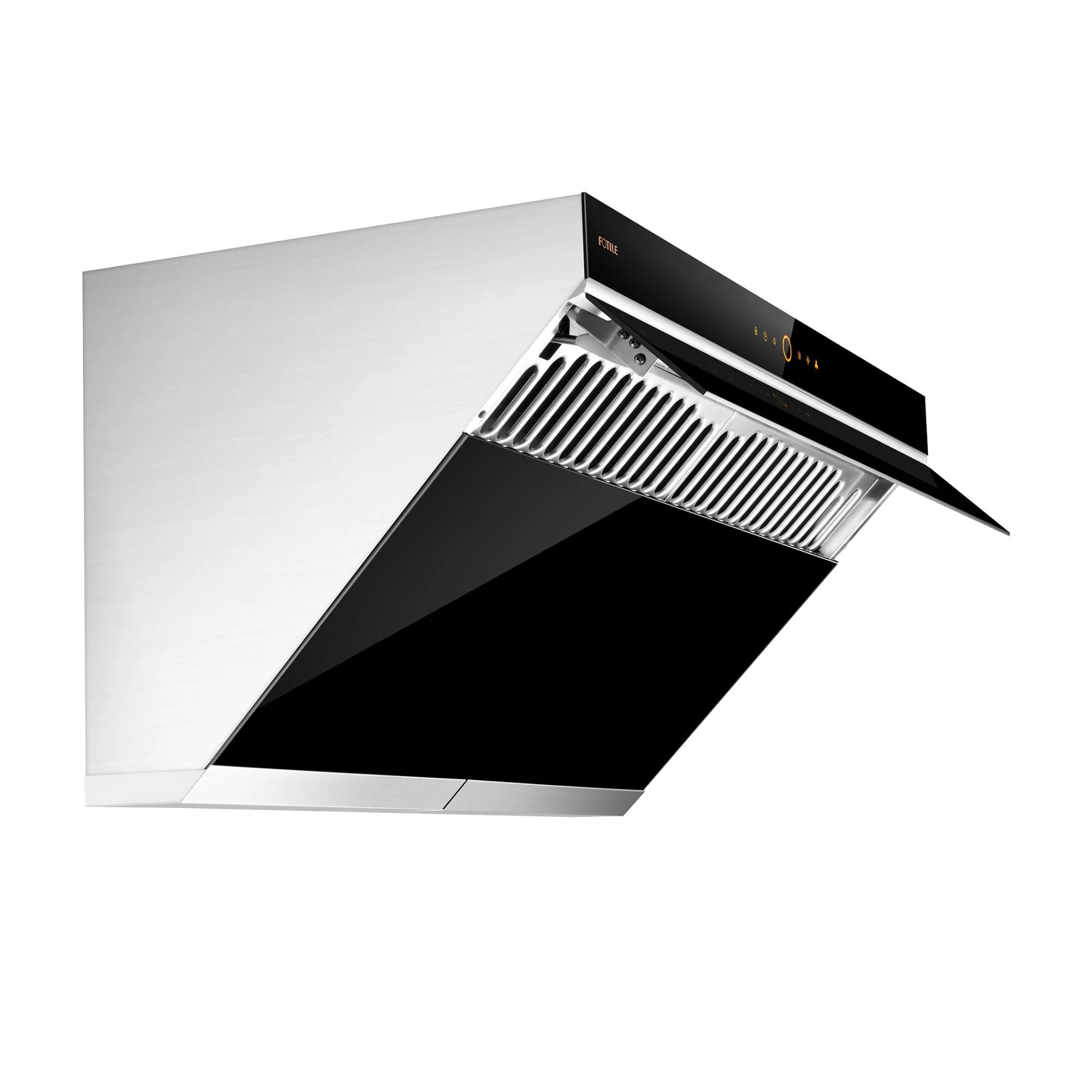

Fotile Slant Vent Series 1000 CFM Under-Cabinet/Wall Mount (JQG7505 / JQG9006)

FOTILE JQG7505 and  JQG9006 Slant Vent Range Hoods are both powerful and sleek looking. With versatile mounting options whether under cabinet or wall mount, the powerful certified Range Hoods offer superior smoke, grease, and odor extraction due to its unique design, dual DC centrifugal motors, and a 90 degree angle automatic open Capture Shield. Not only do they offer excellent venting performance, they are also exceptionally quiet so you can have a casual conversation as you are preparing a meal. Best of all, you can operate this range hood using touch free motion gesture control for easy and safe operation. Available in Onyx Black Tempered Glass and White SCHOTT Glass.

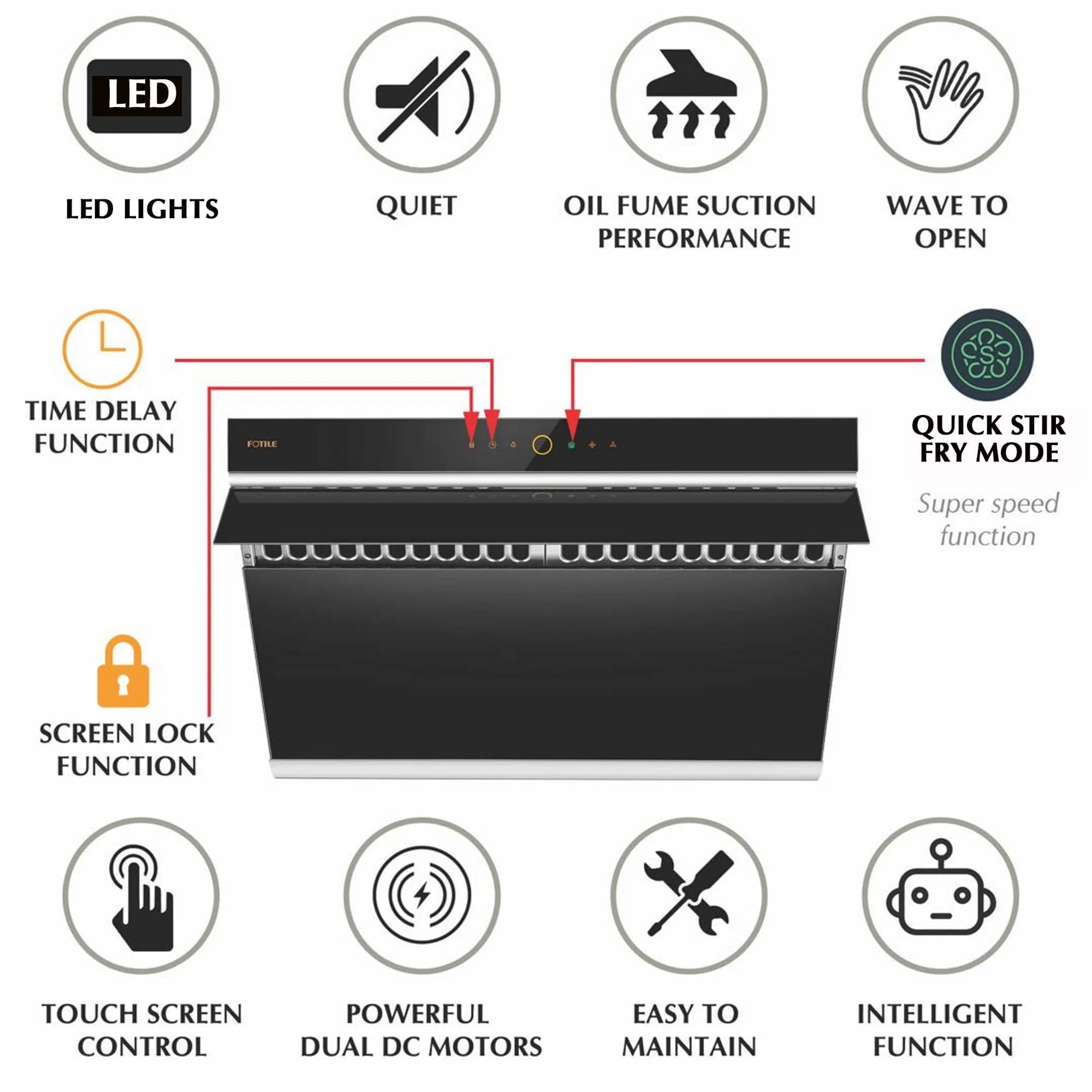

Features

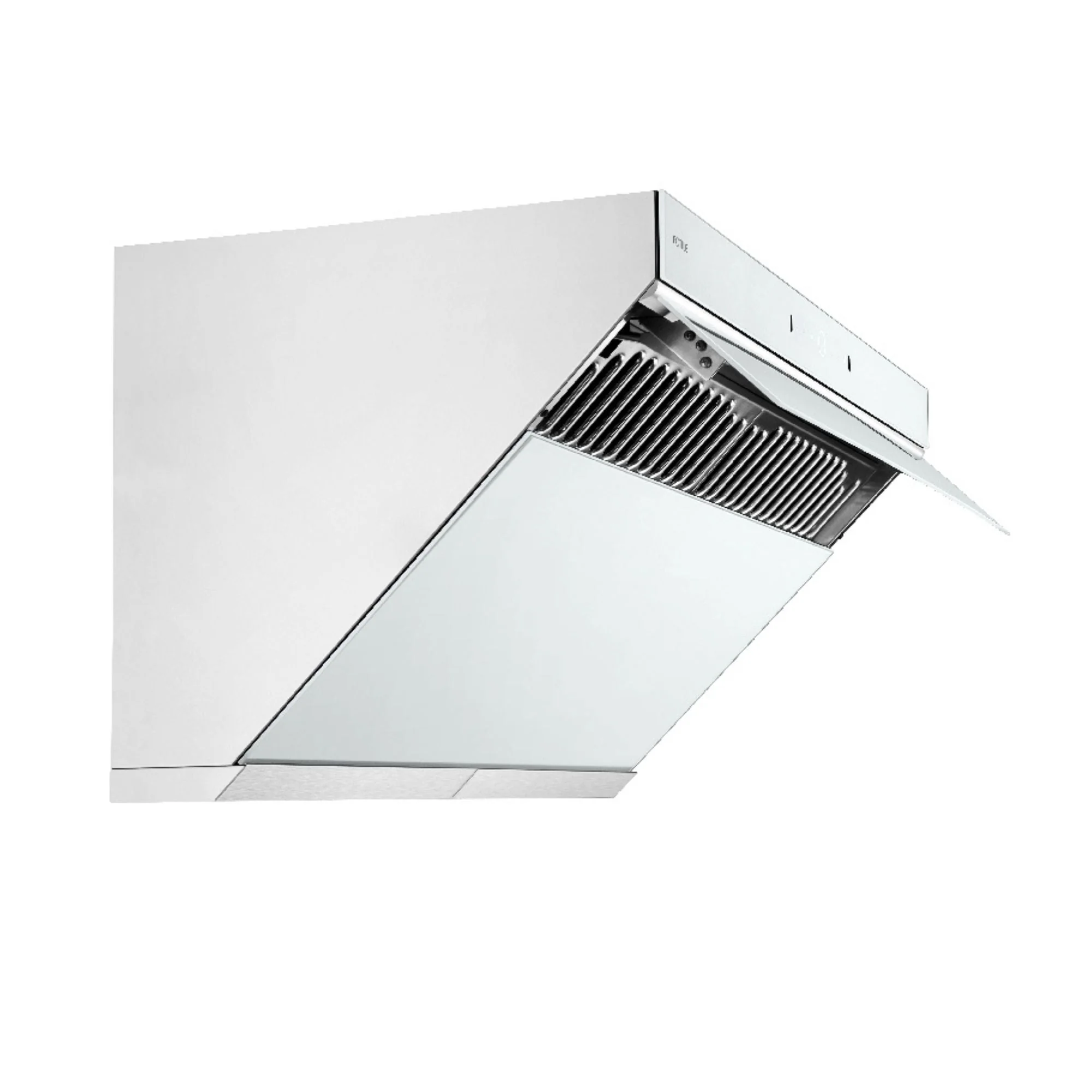

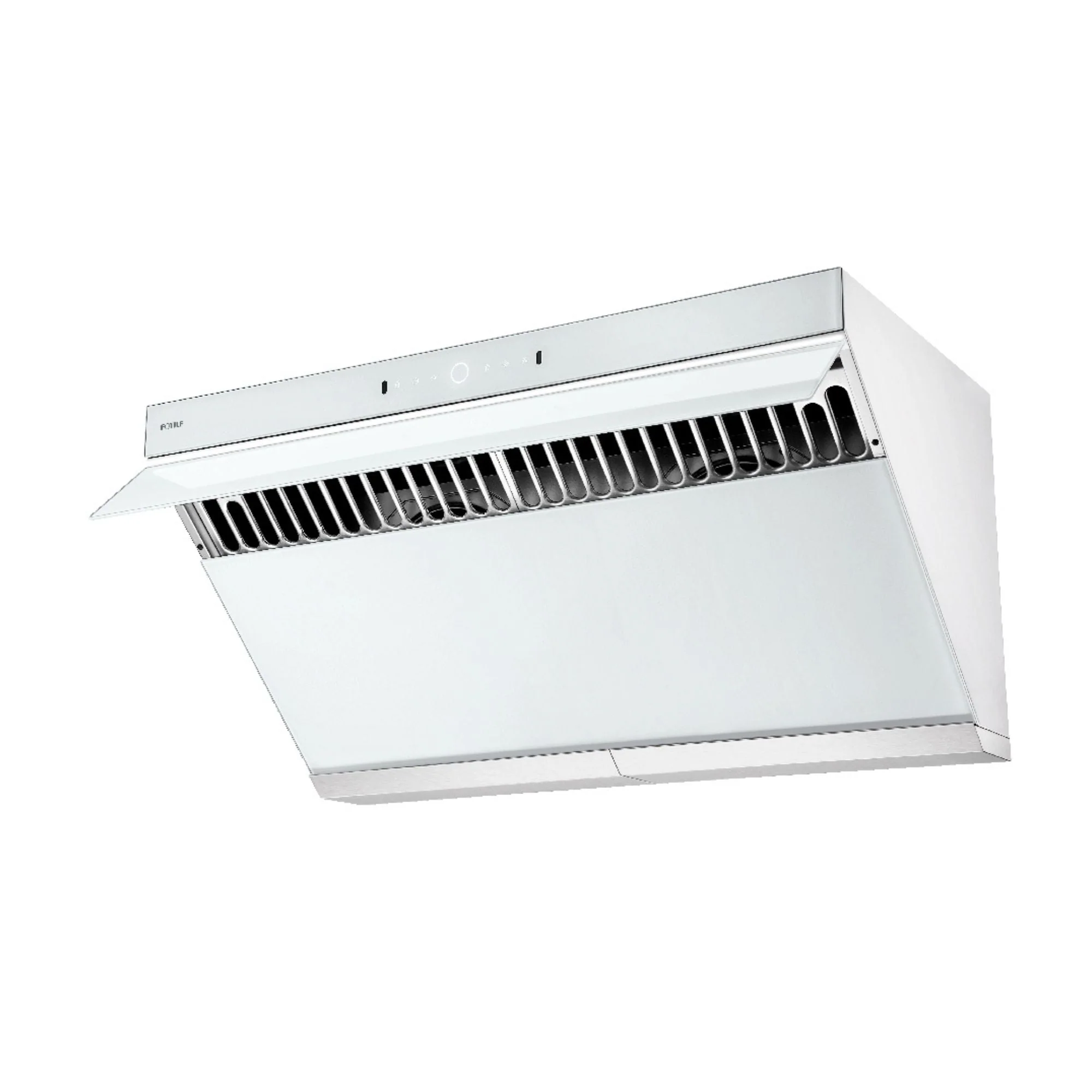

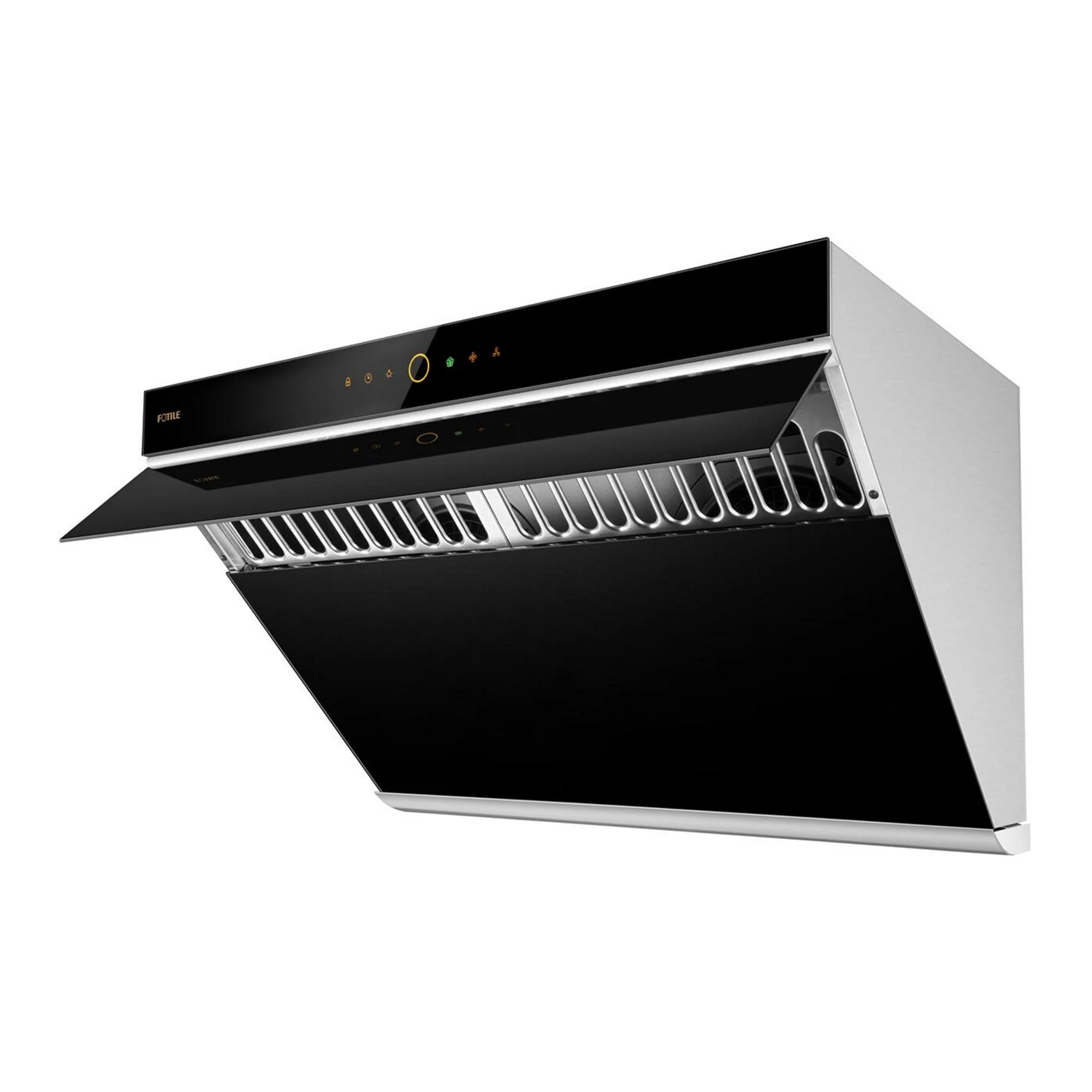

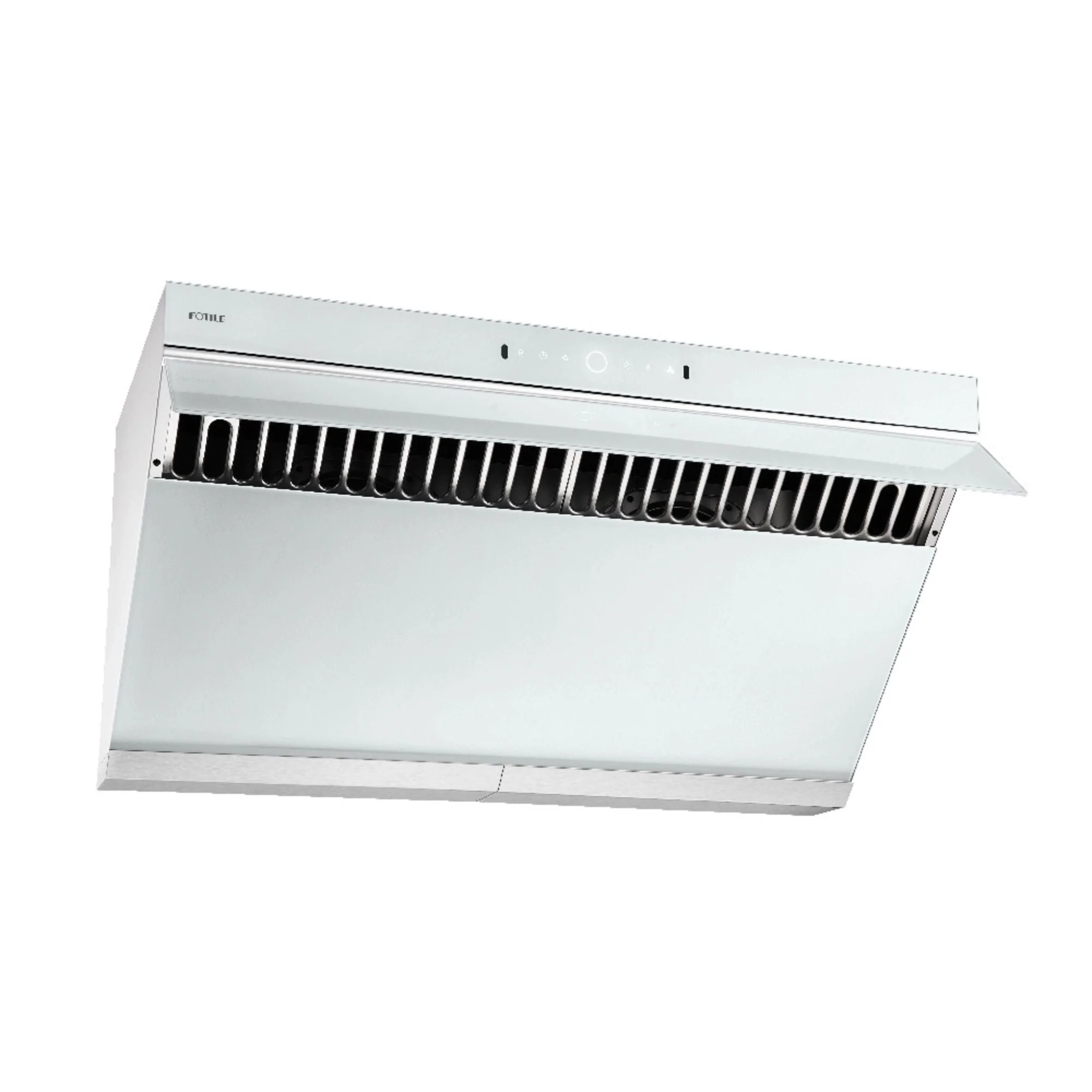

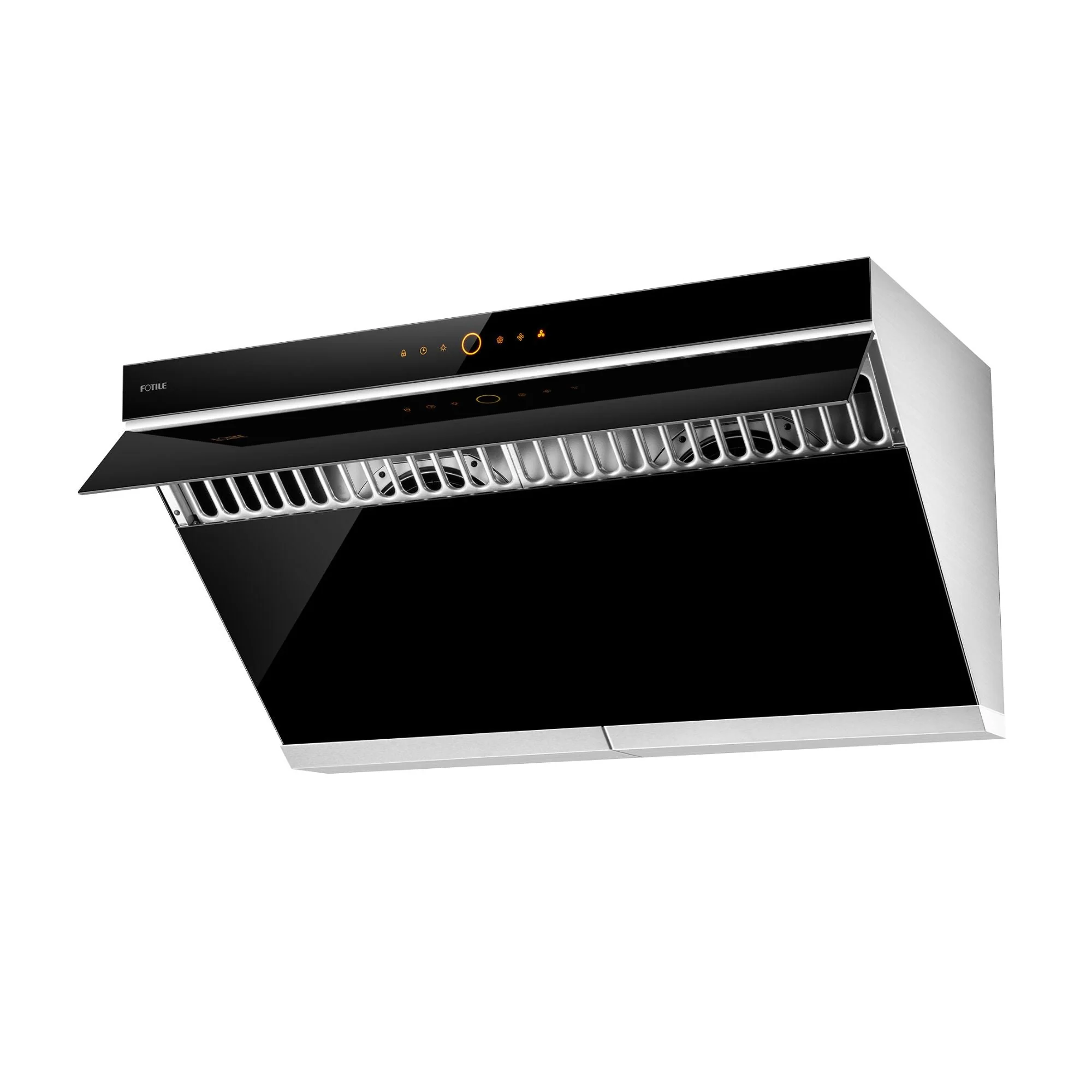

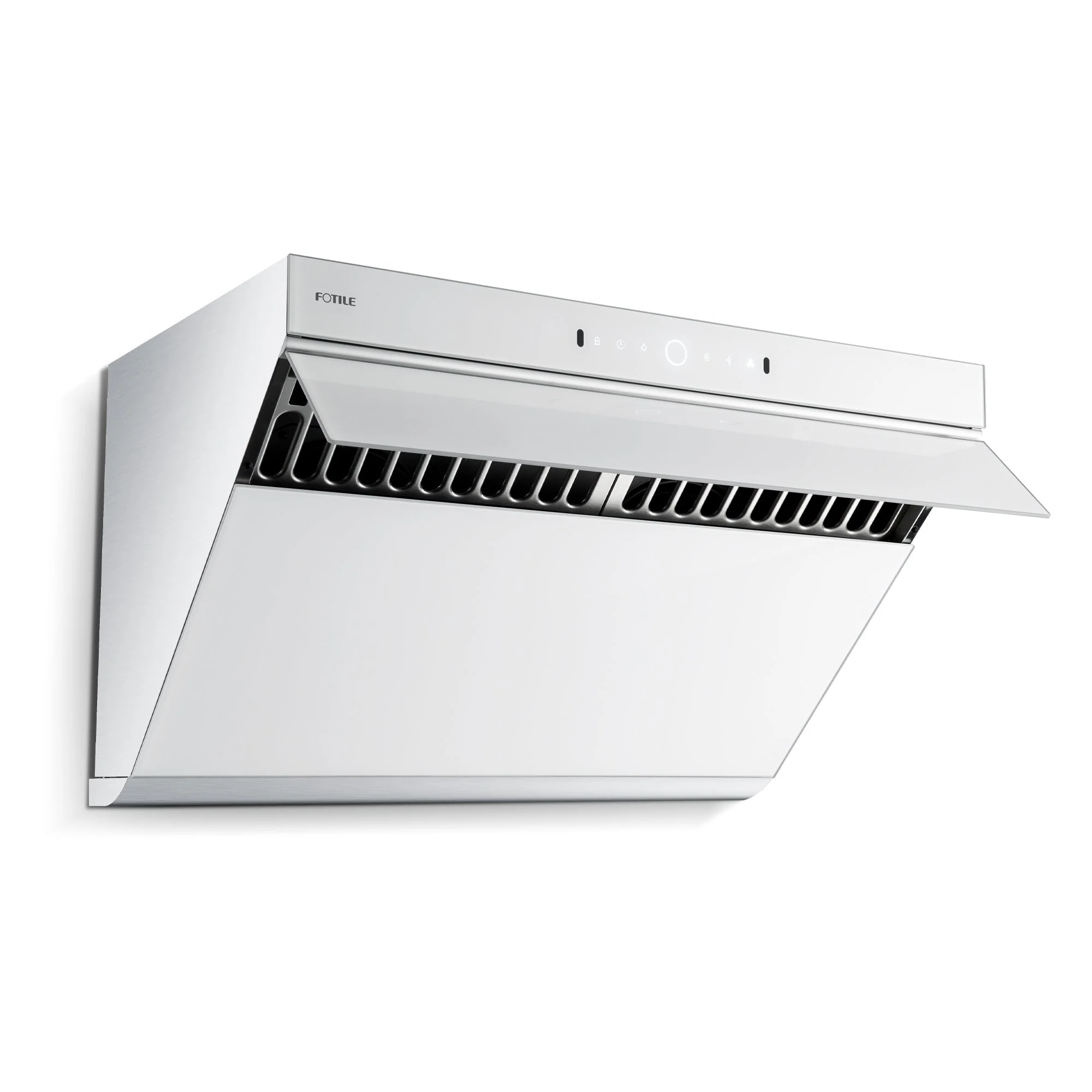

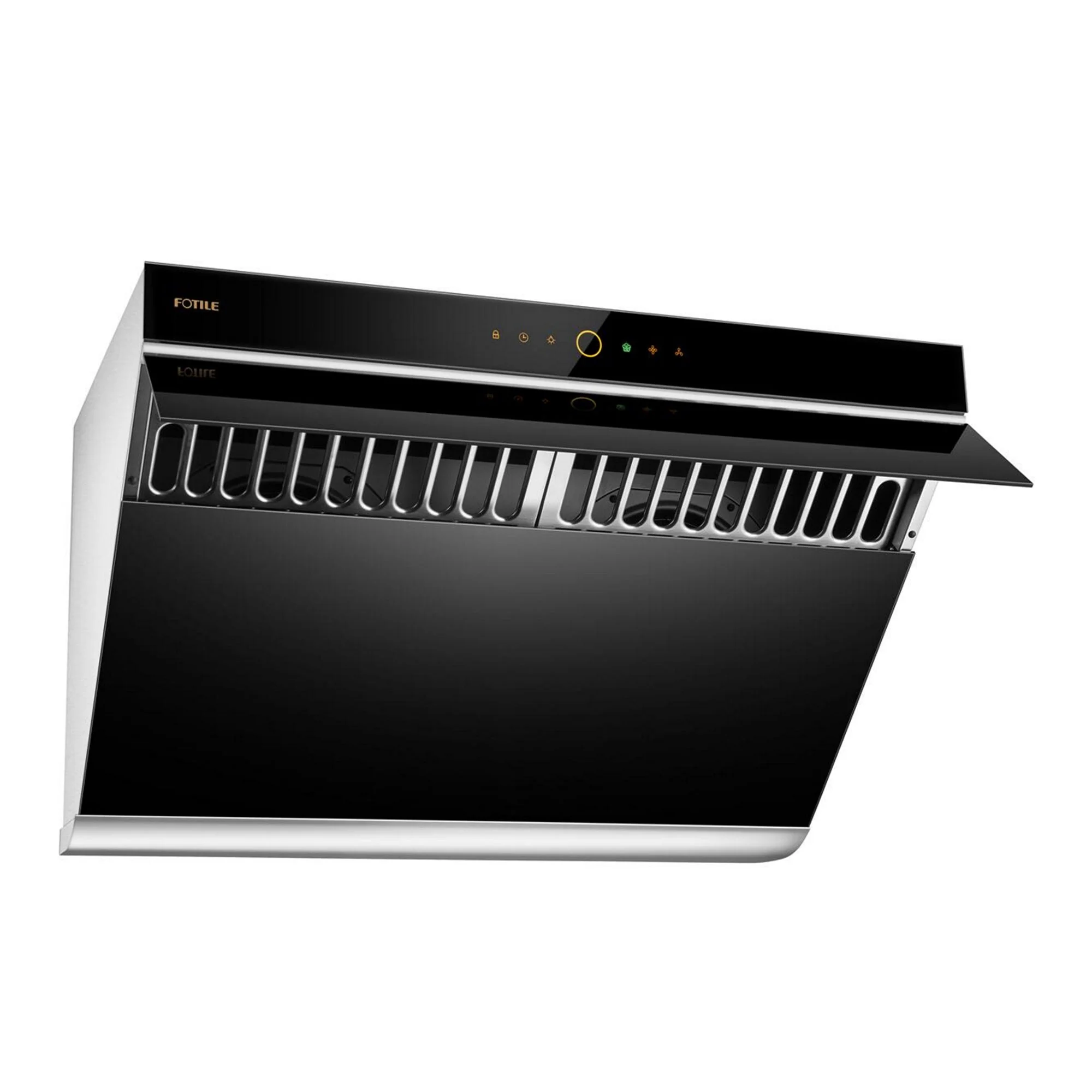

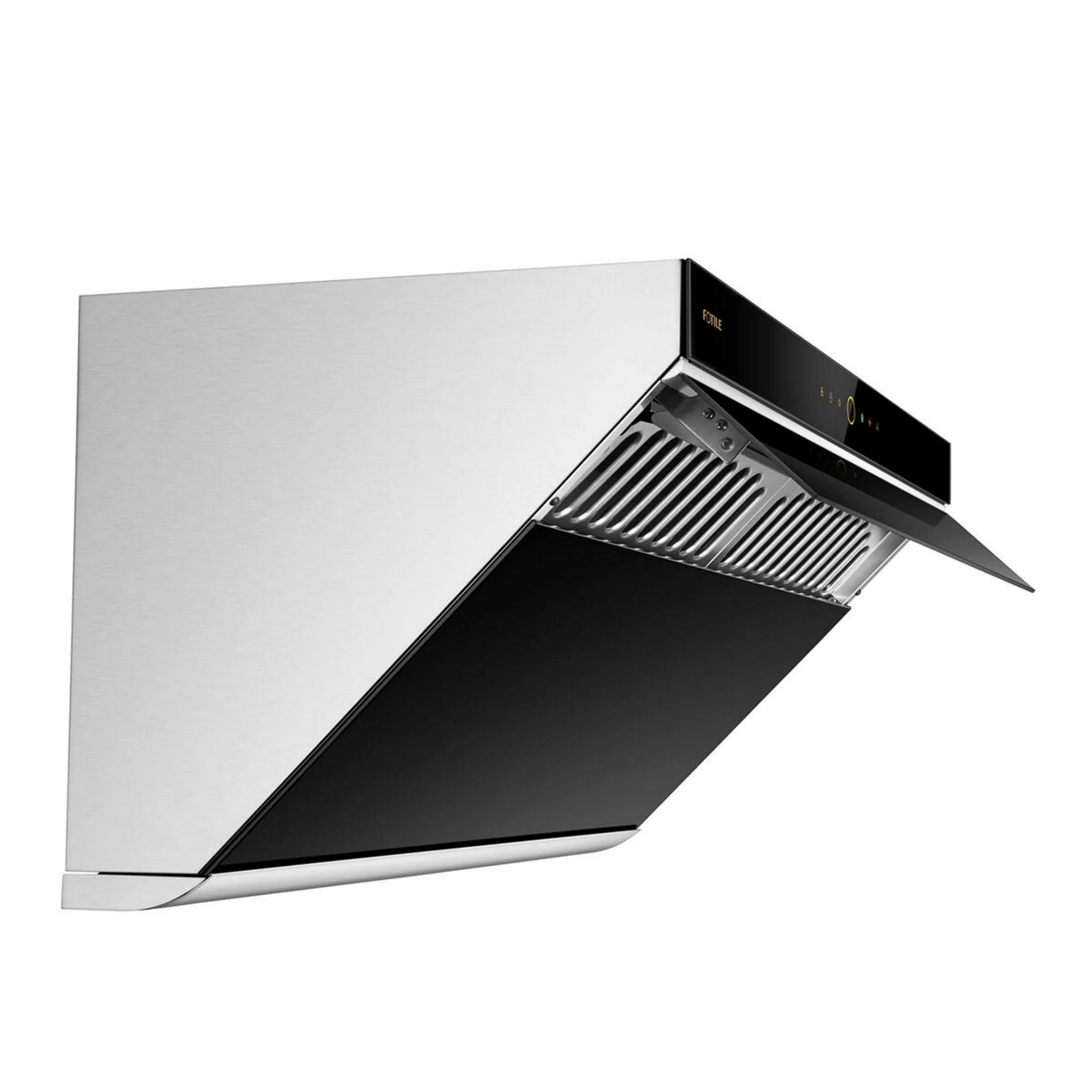

• 90°Automatic Open Capture Shield to Prevent Smoke From Spreading

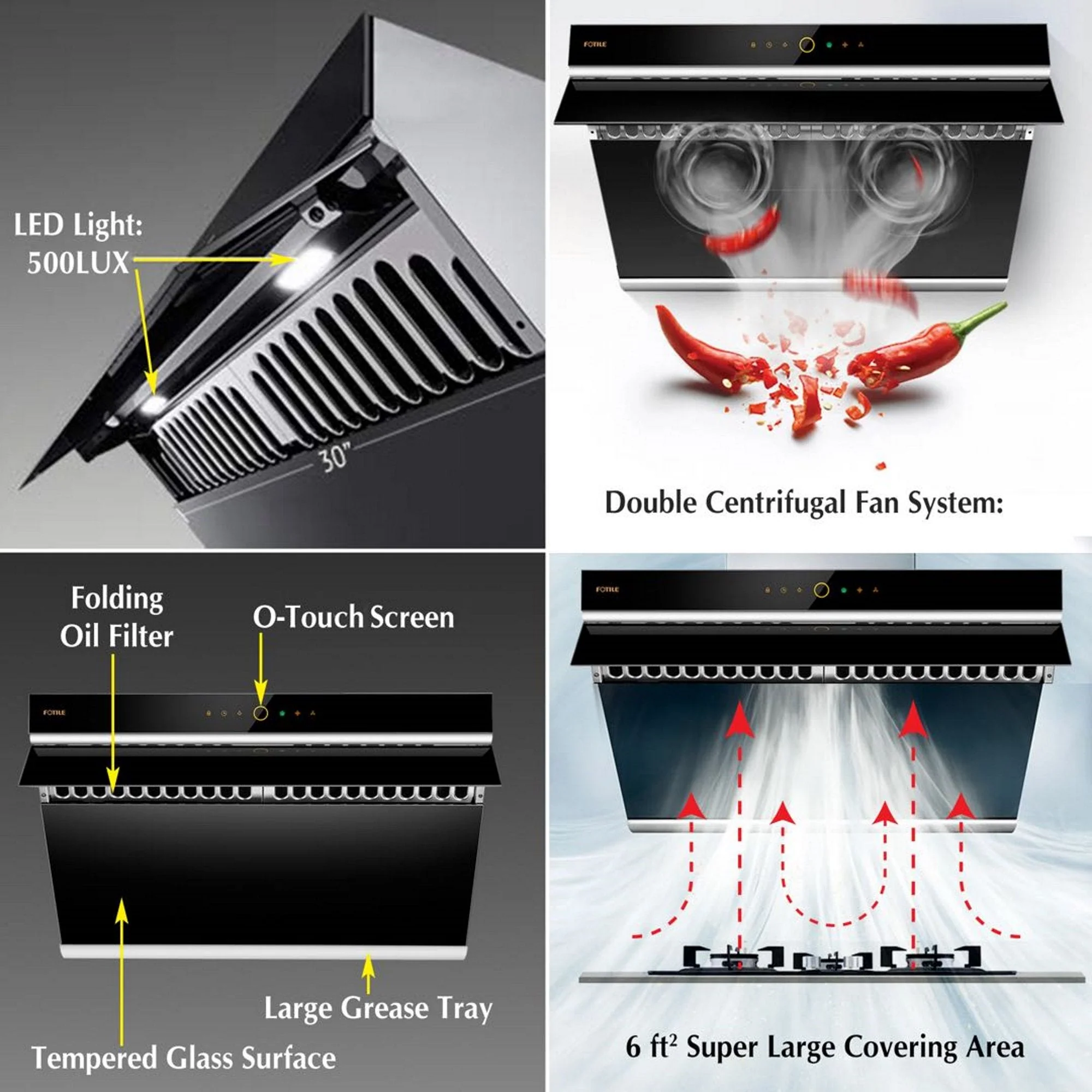

• Dual DC Motors for Smoother and Stronger Ventilation

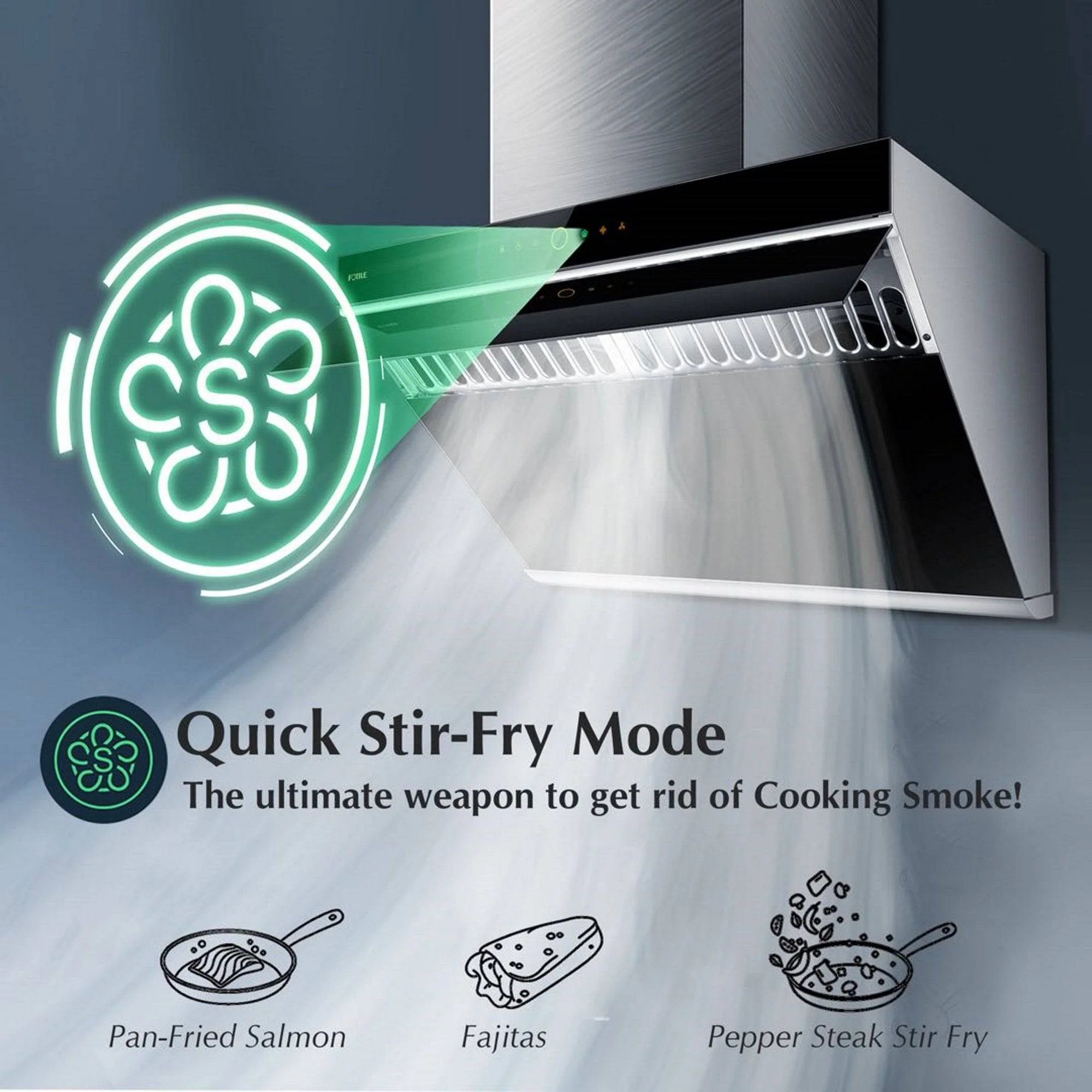

• Stir-fry Mode to Provide Instant Powerful Extraction Power

• Motion Detection for Hands Free Operation
• Extra Wide Smoke Inlet - Covers 6 ft ² of Cooking Area (5-6 Burners)

• Auto Delay Shutoff - Extracts Lingering Odors After Cooking

• Powerful LED Light - Lights Up Your Cooktop
  Large Oil Collection Cup
  Detachable and Easy to Clean

Certification	ETL，HVI，CEC

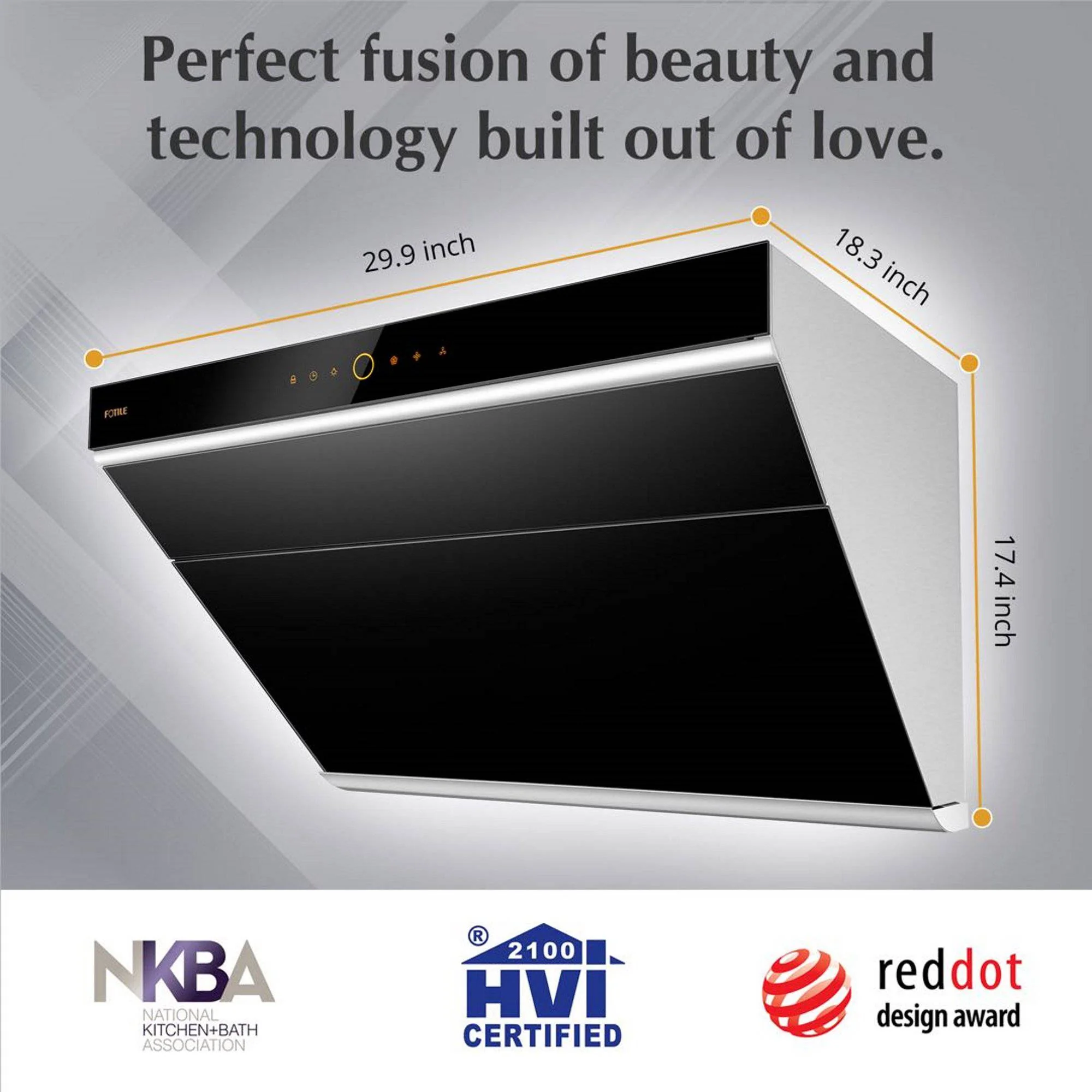

Width(inch)	JQG7505: 29 7/8 JQG9006: 35 7/8

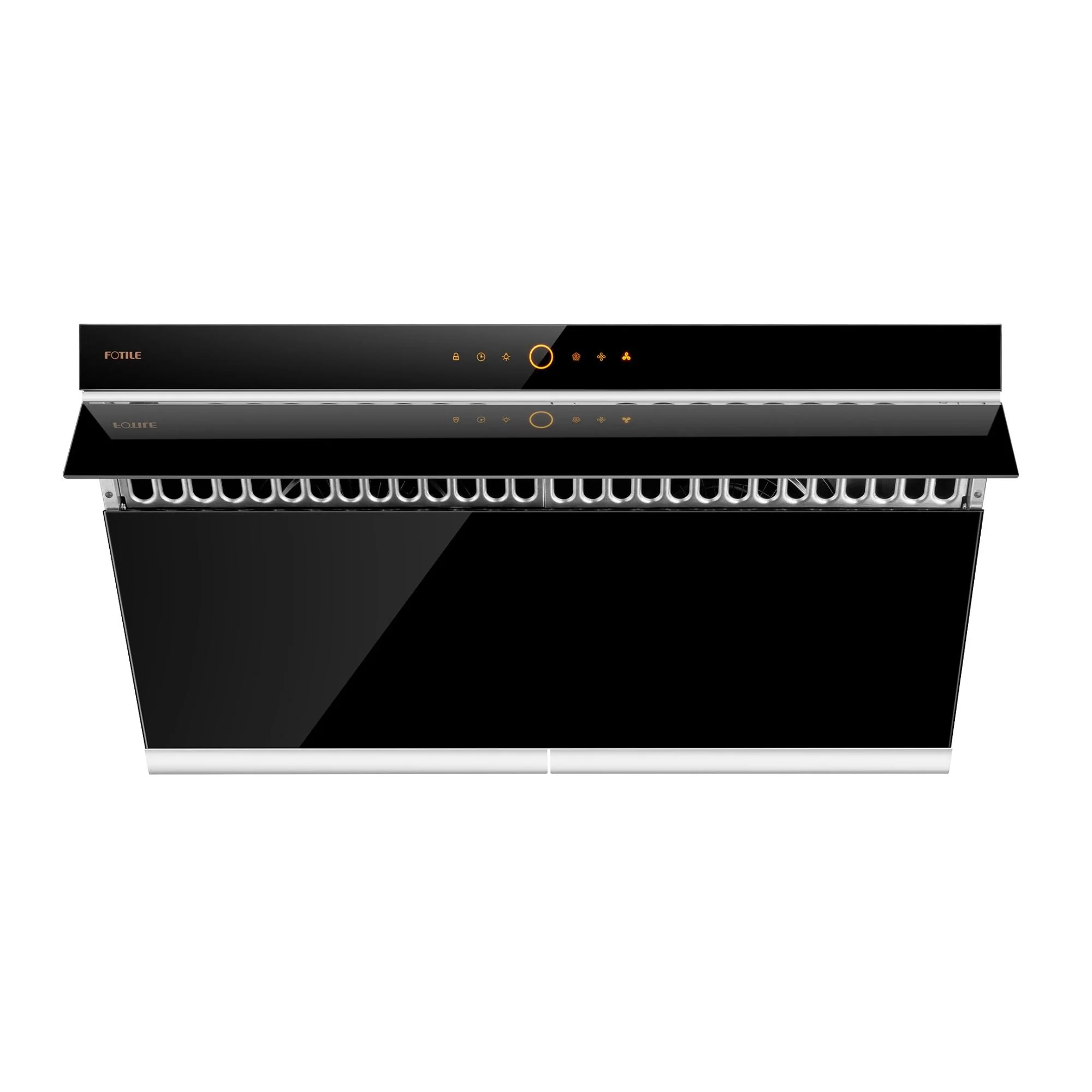

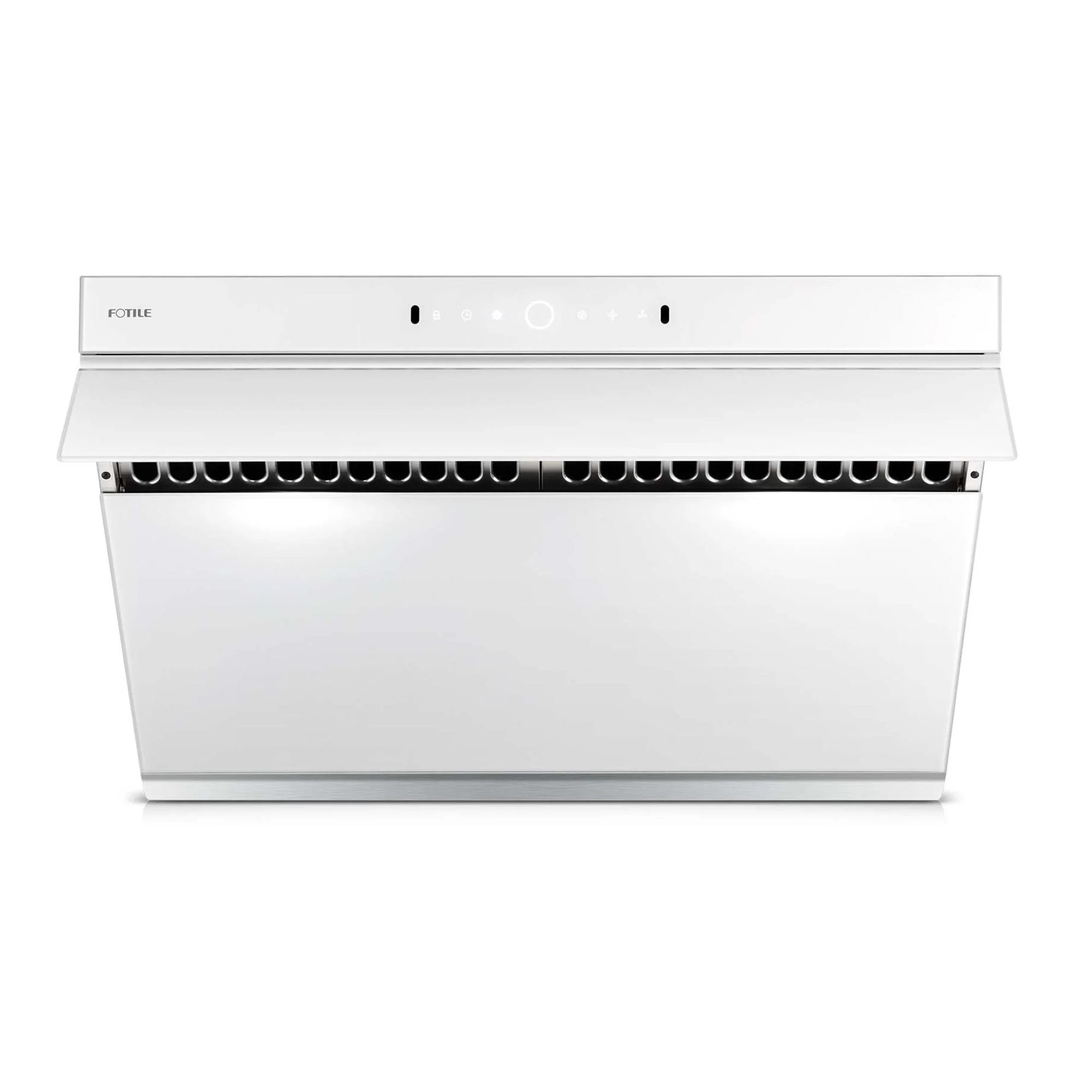

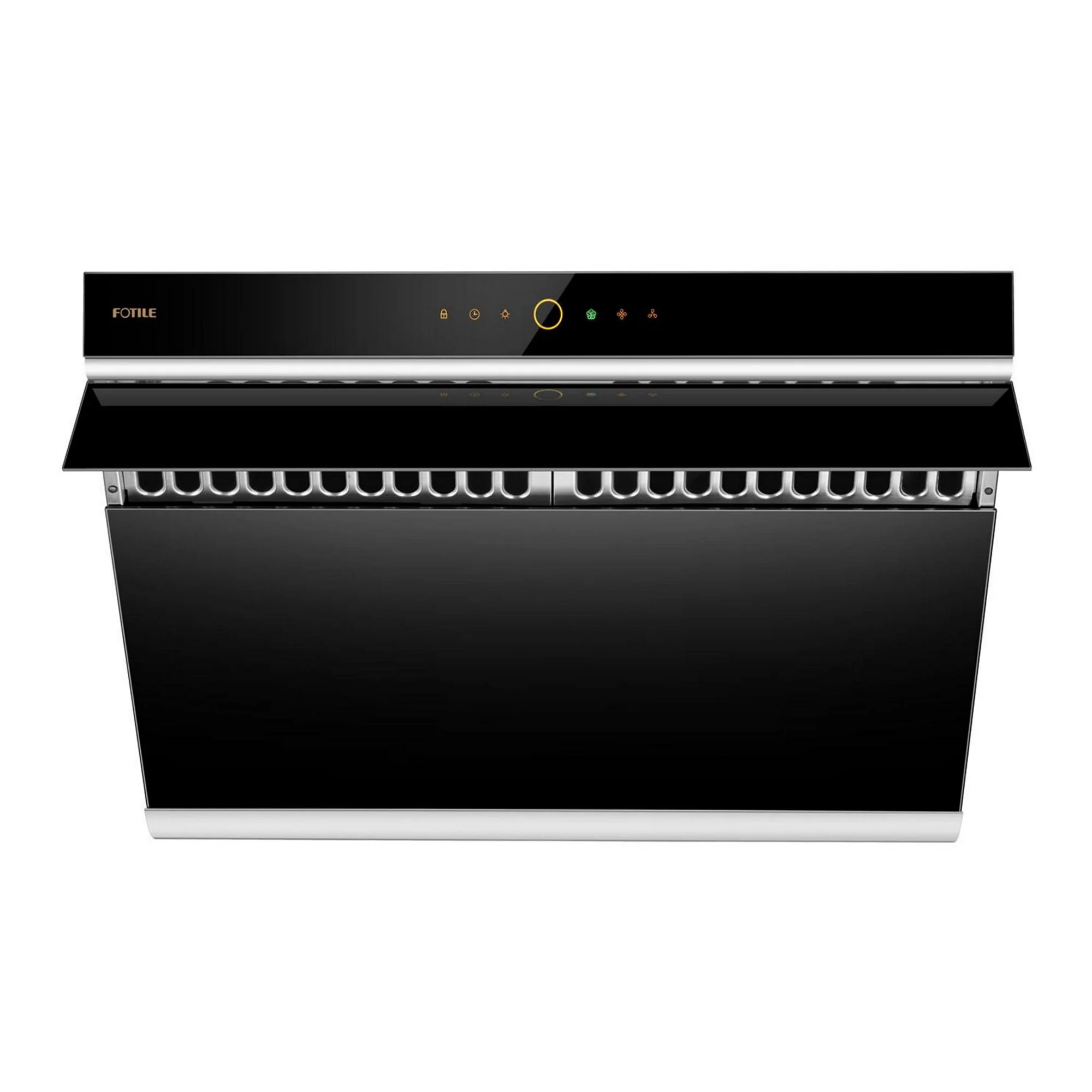

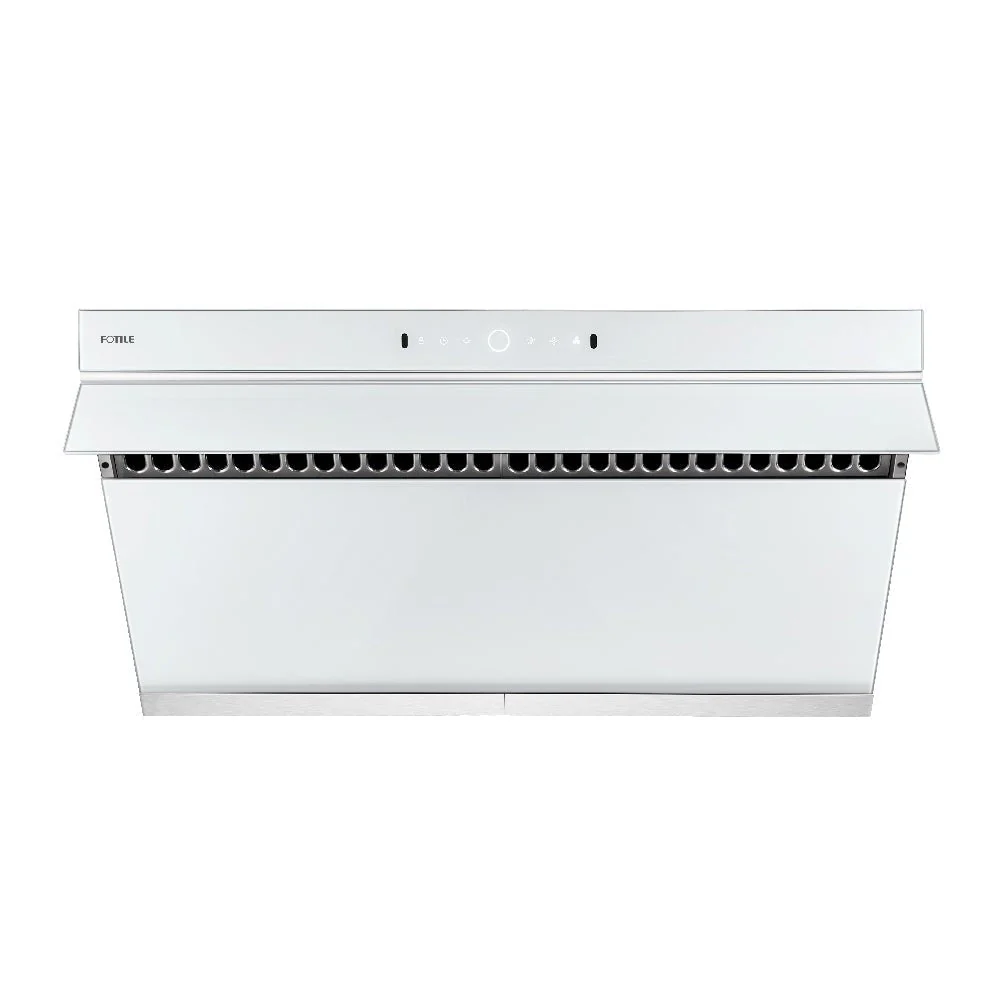

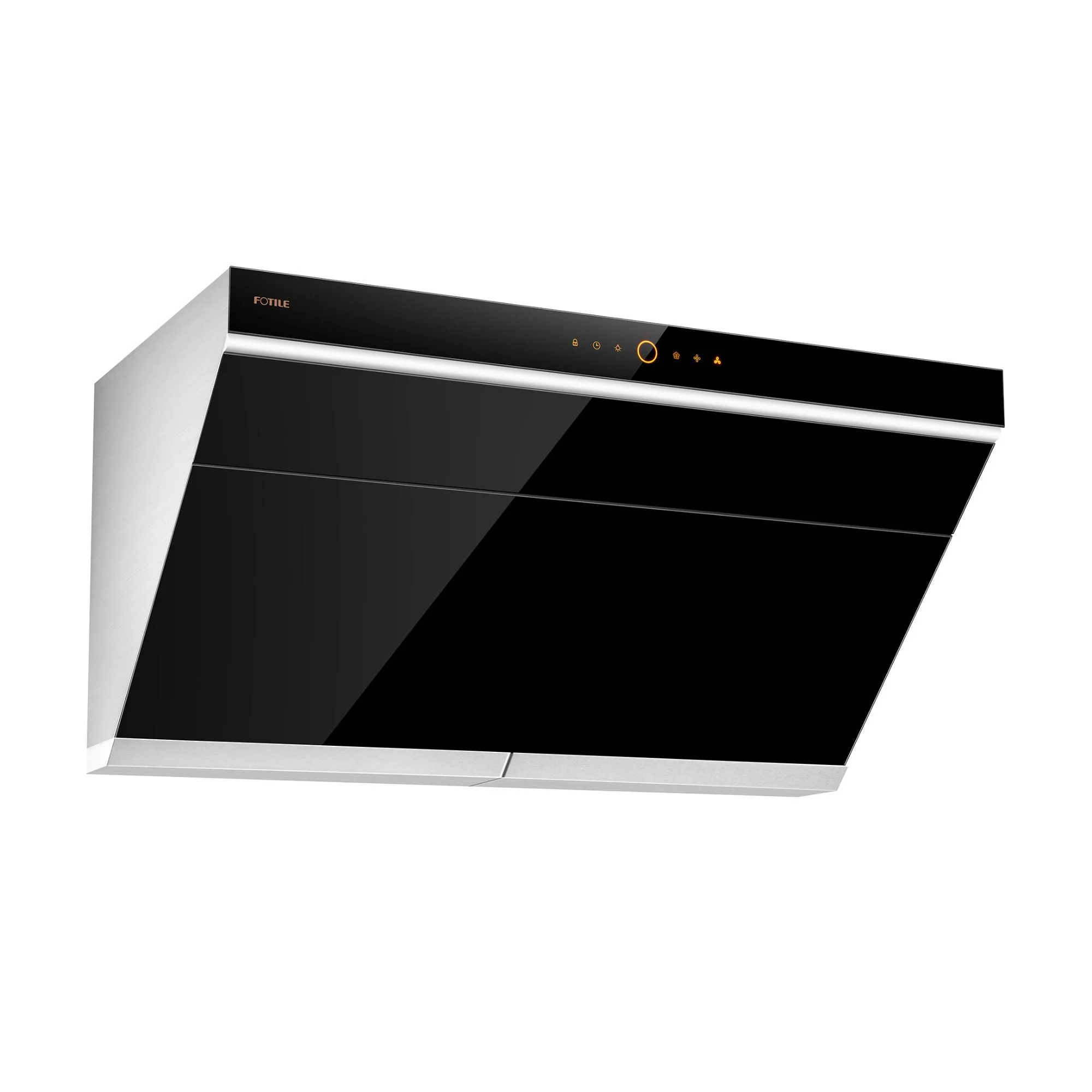

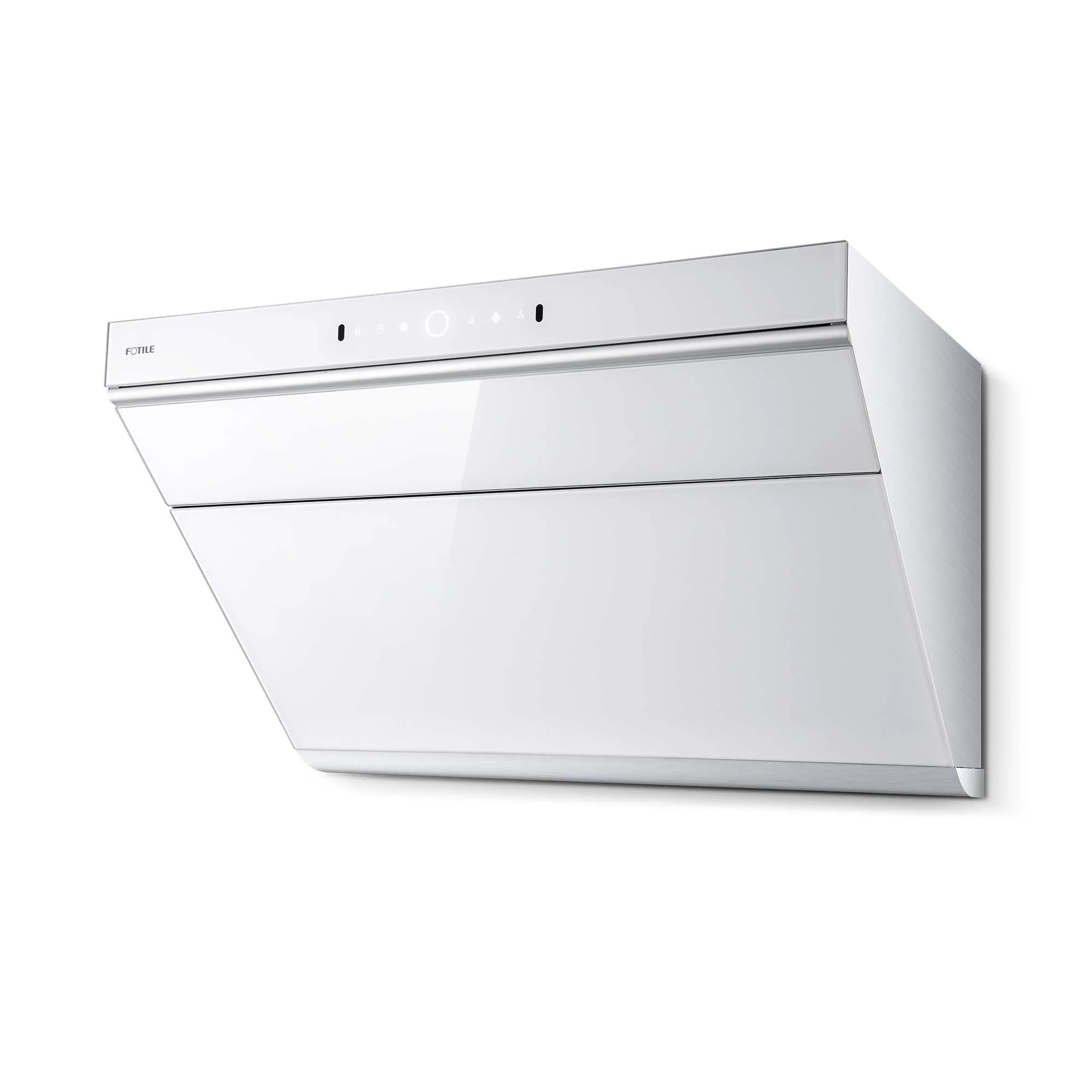

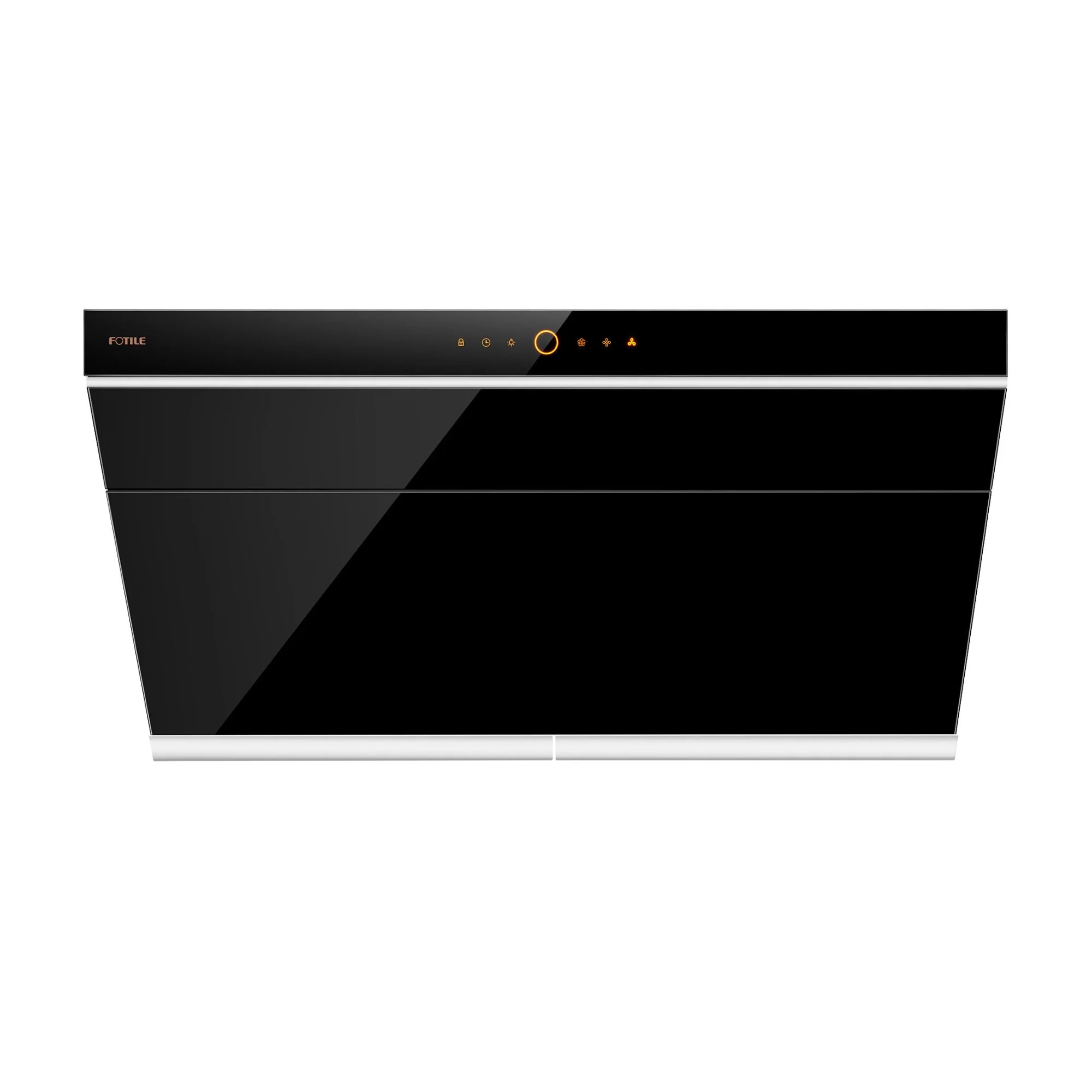

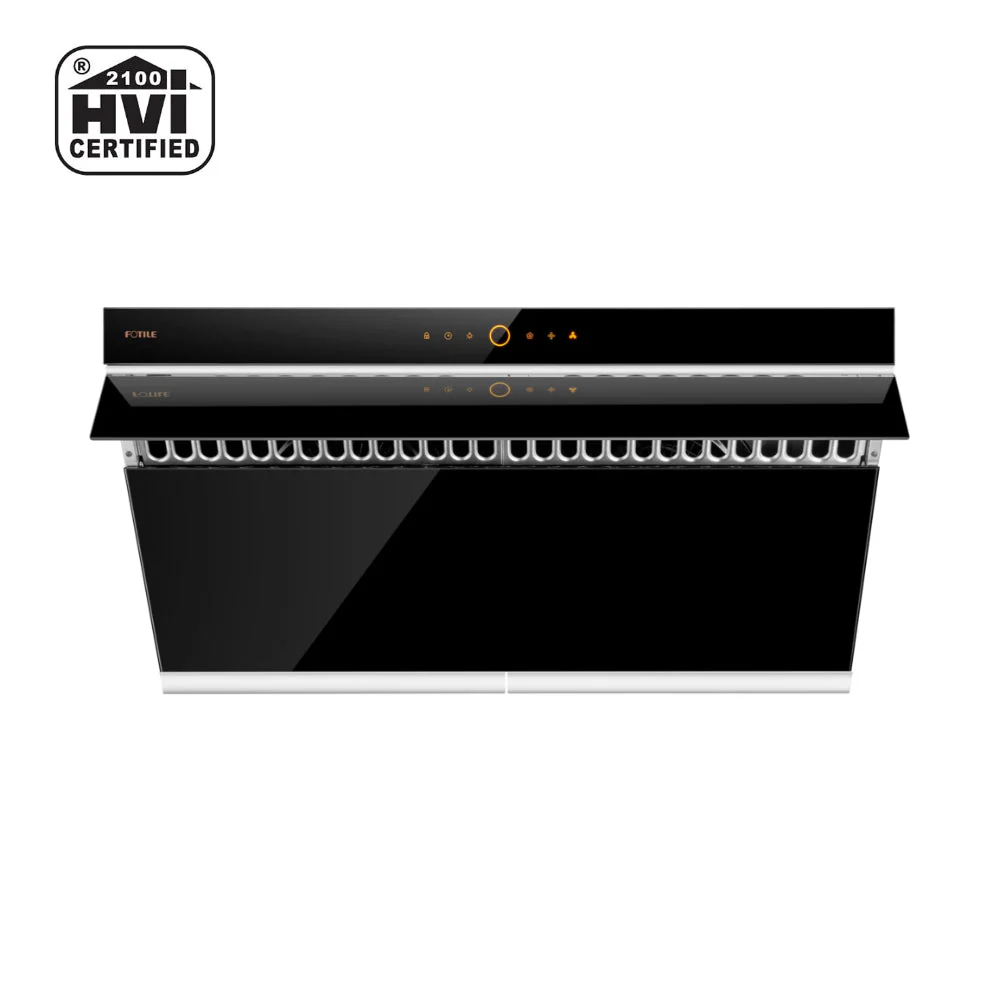

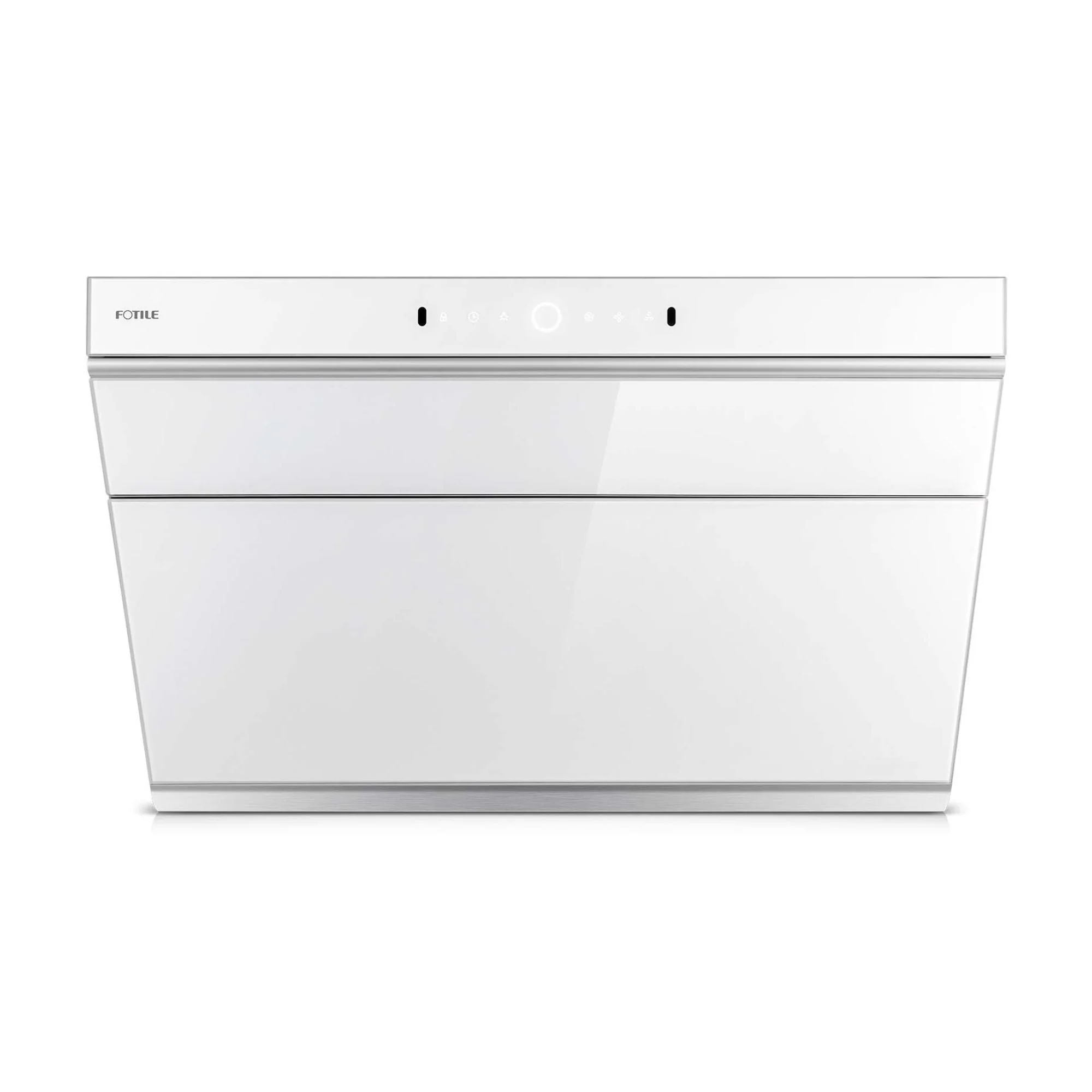

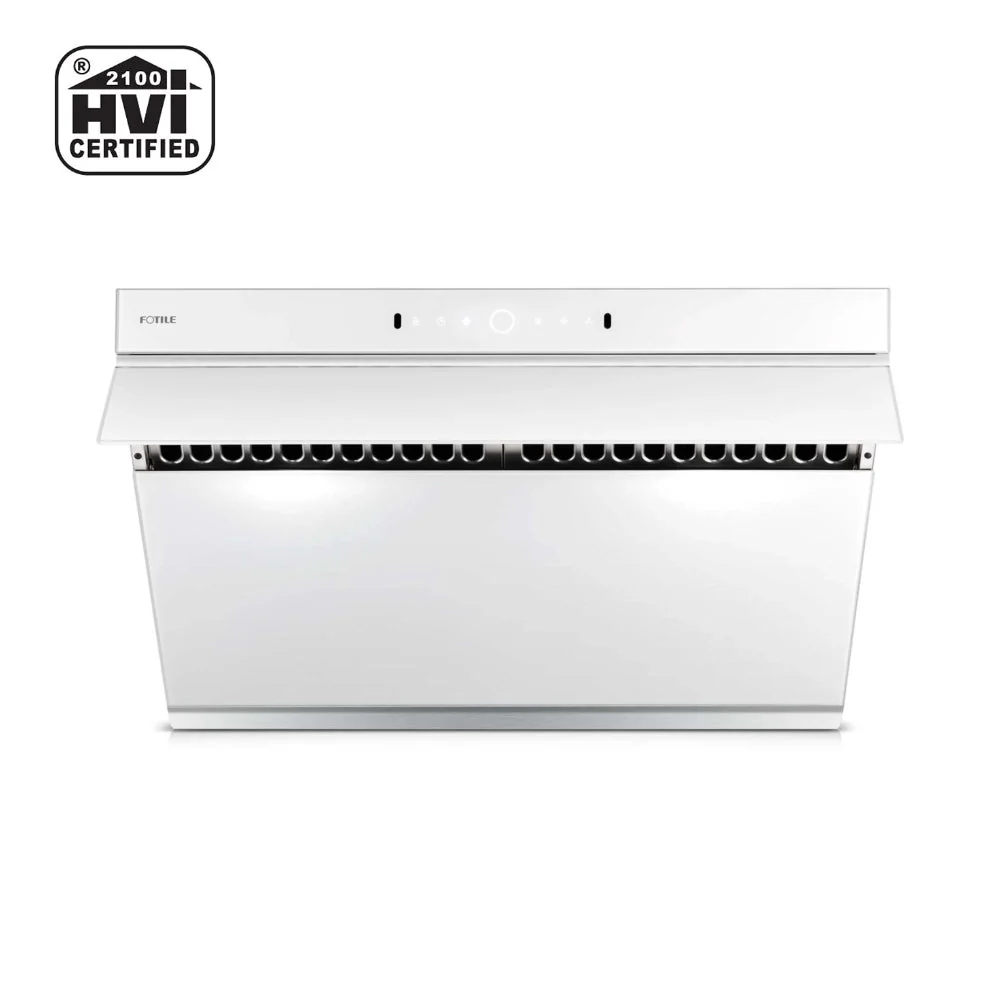

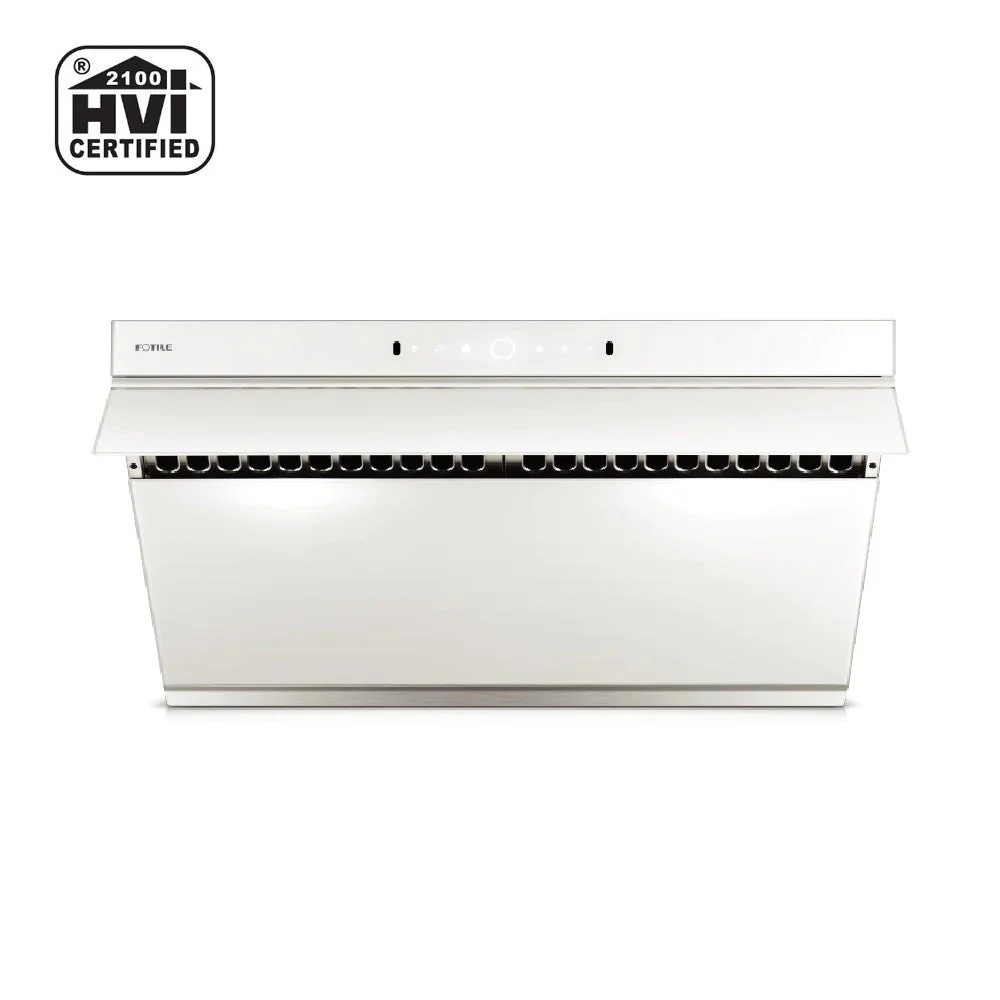

Material	Onyx Black Tempered Glass | Schott White Glass

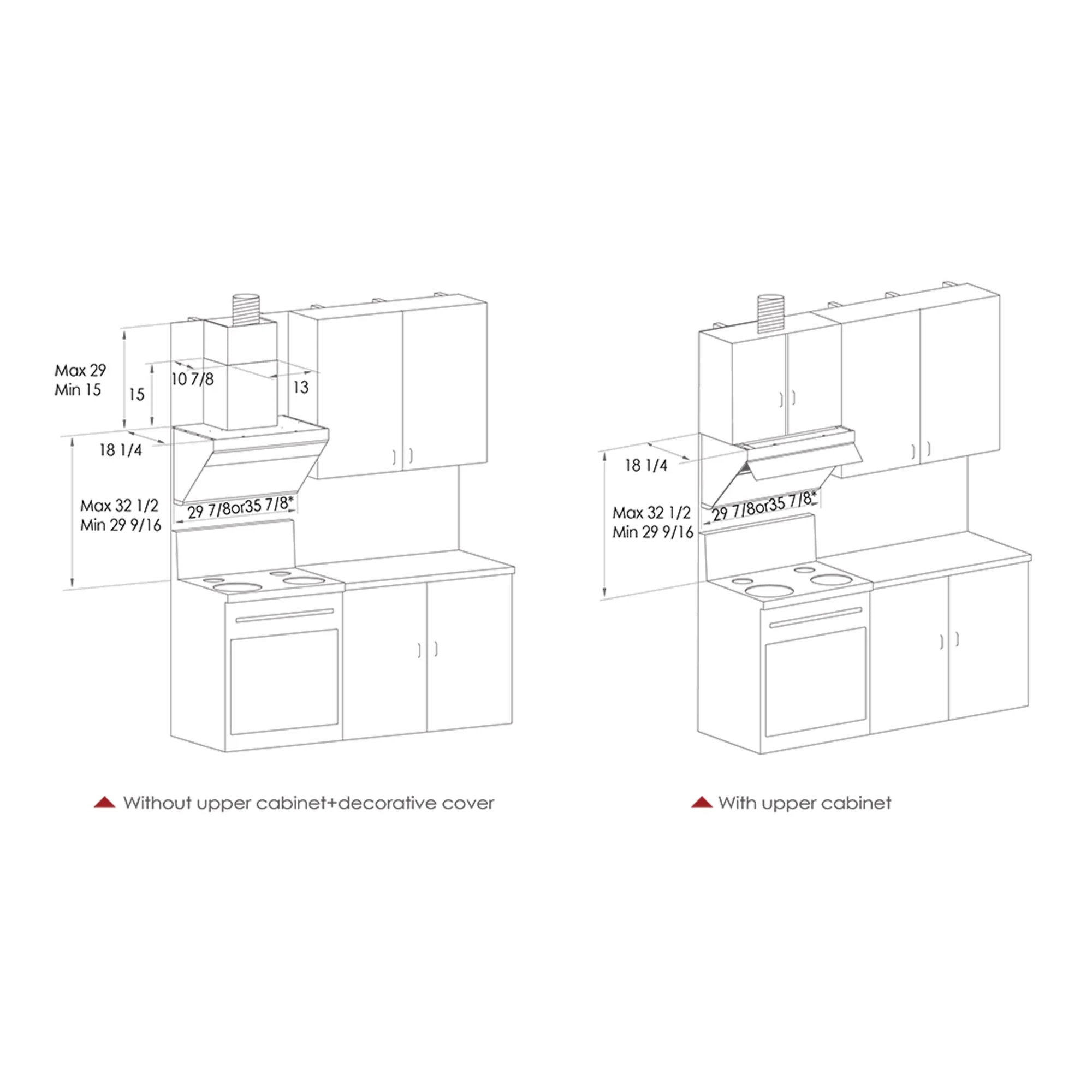

Installation	Under Cabinet/Wall Mount (Decorative Cover Required)
Speed Setting	4
CFM(HVI)	220 / 410 / 520 / 580
Max Static Pressure(Pa)	540
Power Supply(V/Hz)	120/60
Noise Level(sones)	1.2 / 4 / 6.5 / 7.5
Noise Level(dB)	JQG7505: 38.5 / 48.3 / 54.0 / 56.5 JQG9006: 37.8 / 48.5 / 54.1 / 56.6
Illumination(W)	3W × 2 （LED)
Motor	Dual DC Motors
Operation Type	JQG7505: Touch + Motion JQG9006: Motion Activation & Touchscreen
Delay Shutoff	2 min
Screen Lock	Y
Grease Filtration Rate	95%
Odor Reduction Rate	98%
Warranty	Labor: 2 Years ｜ Parts: 5 Years(Limited) Motors: Lifetime Limited Warranty
