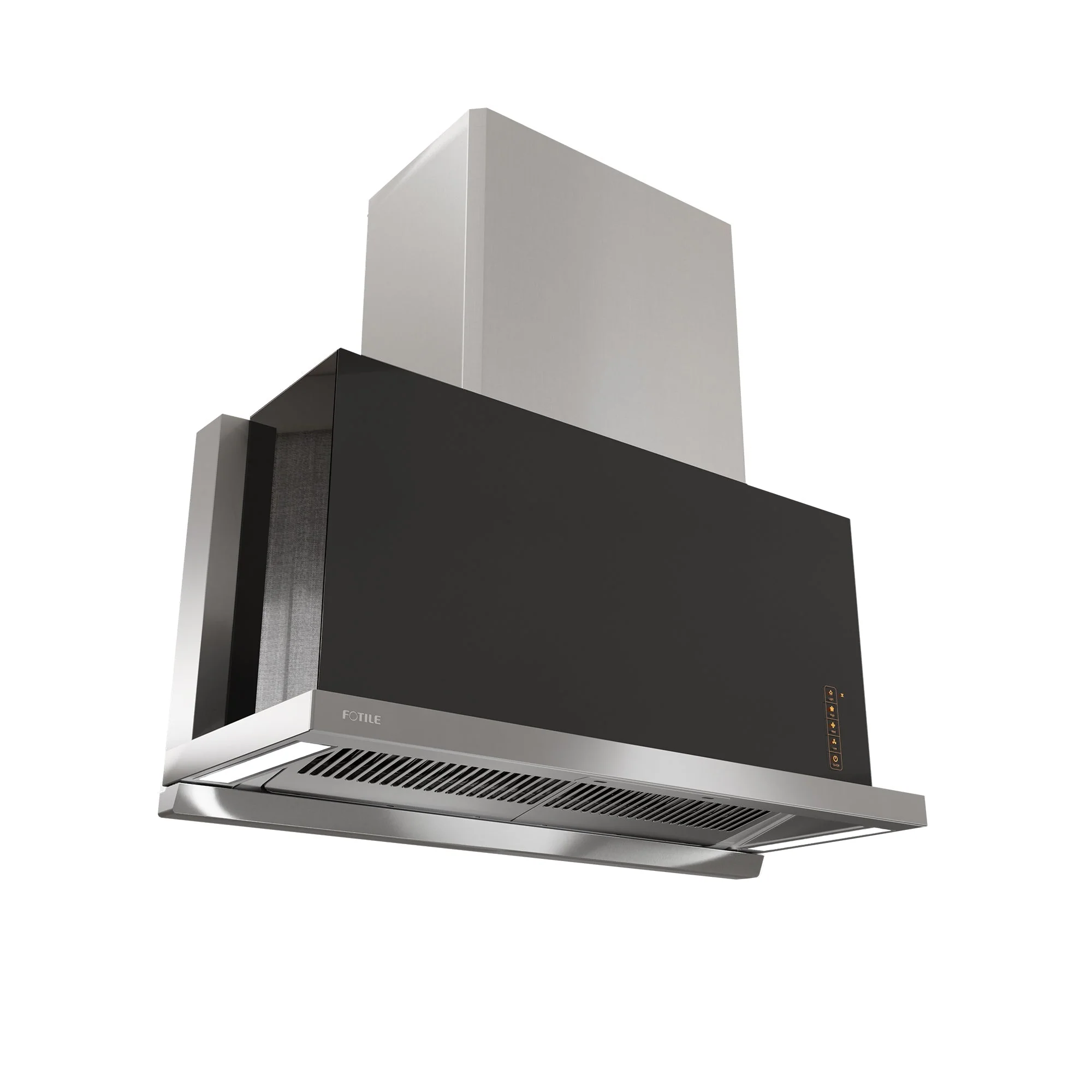

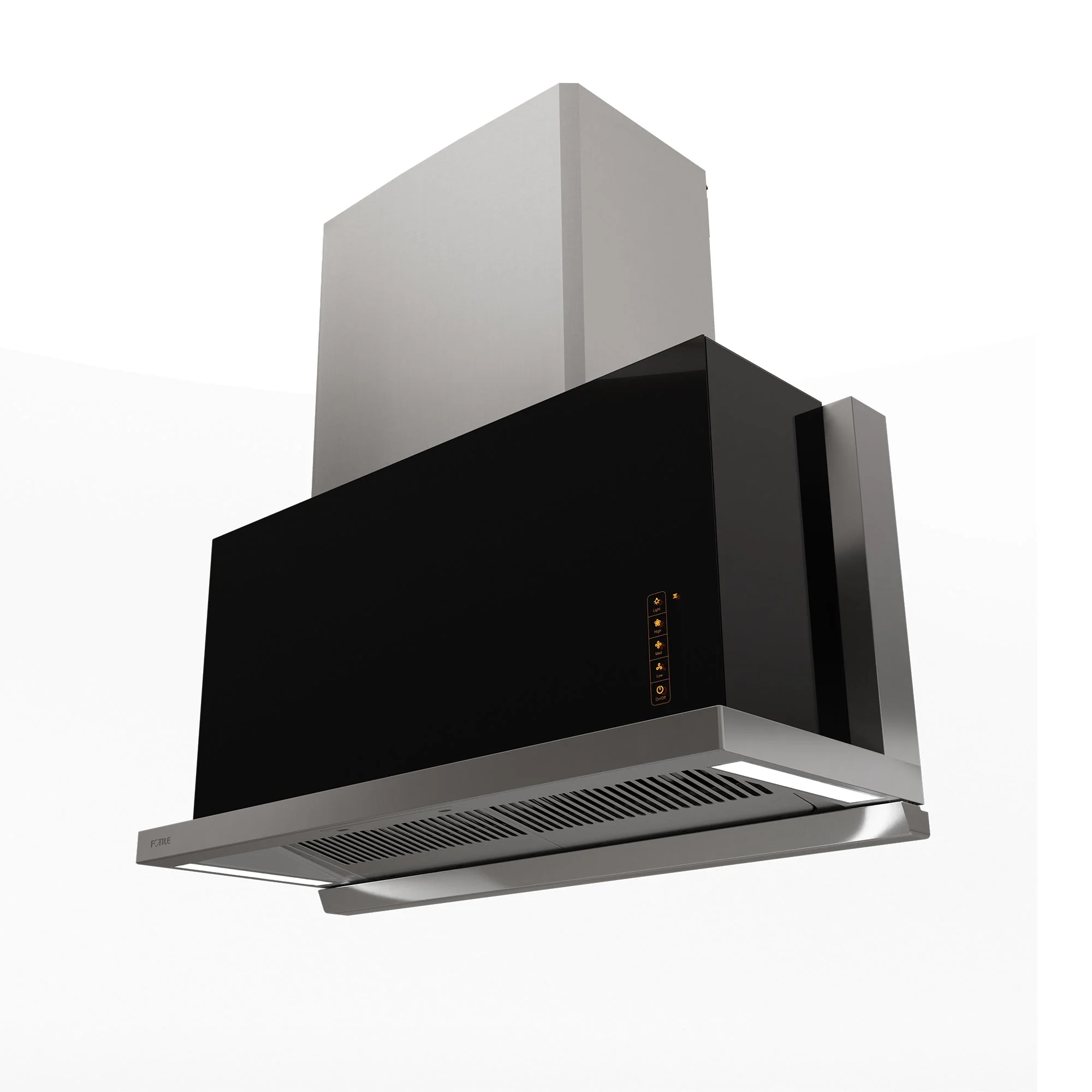

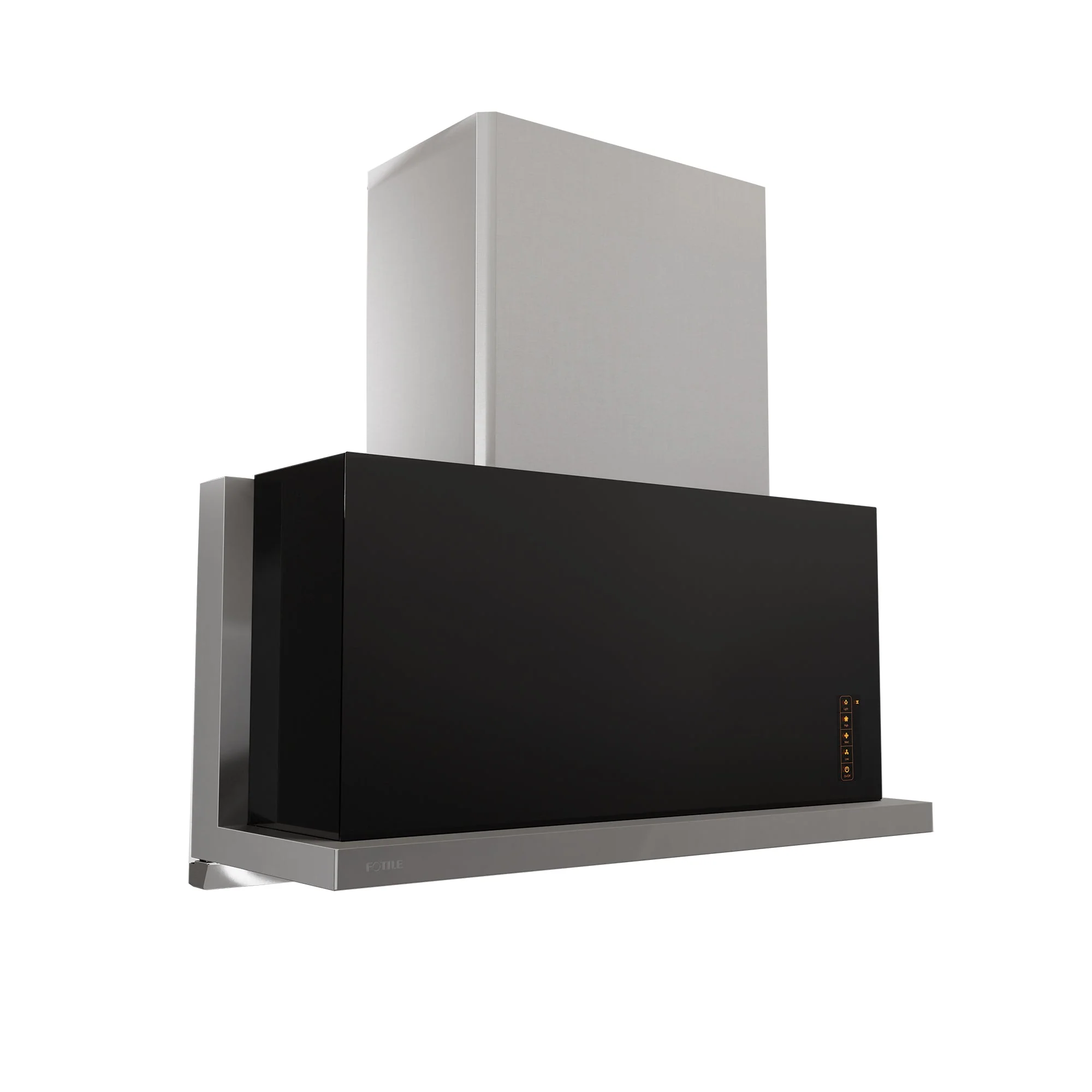

Fotile 36-Inch Insert Hood (BIG3610)

Fotile 36" Insert Range Hood Available at Home Outlet Direct.

Highlights

• Permanent Magnet Synchronous Motor (PMSM) - Higher performing motor compared to other DC motors. Providing higher torque, efficiency, & reliability.
• Automatic Height Adjustment - Dynamically lower or rise the Capture Shield to improve overall cooking conditions

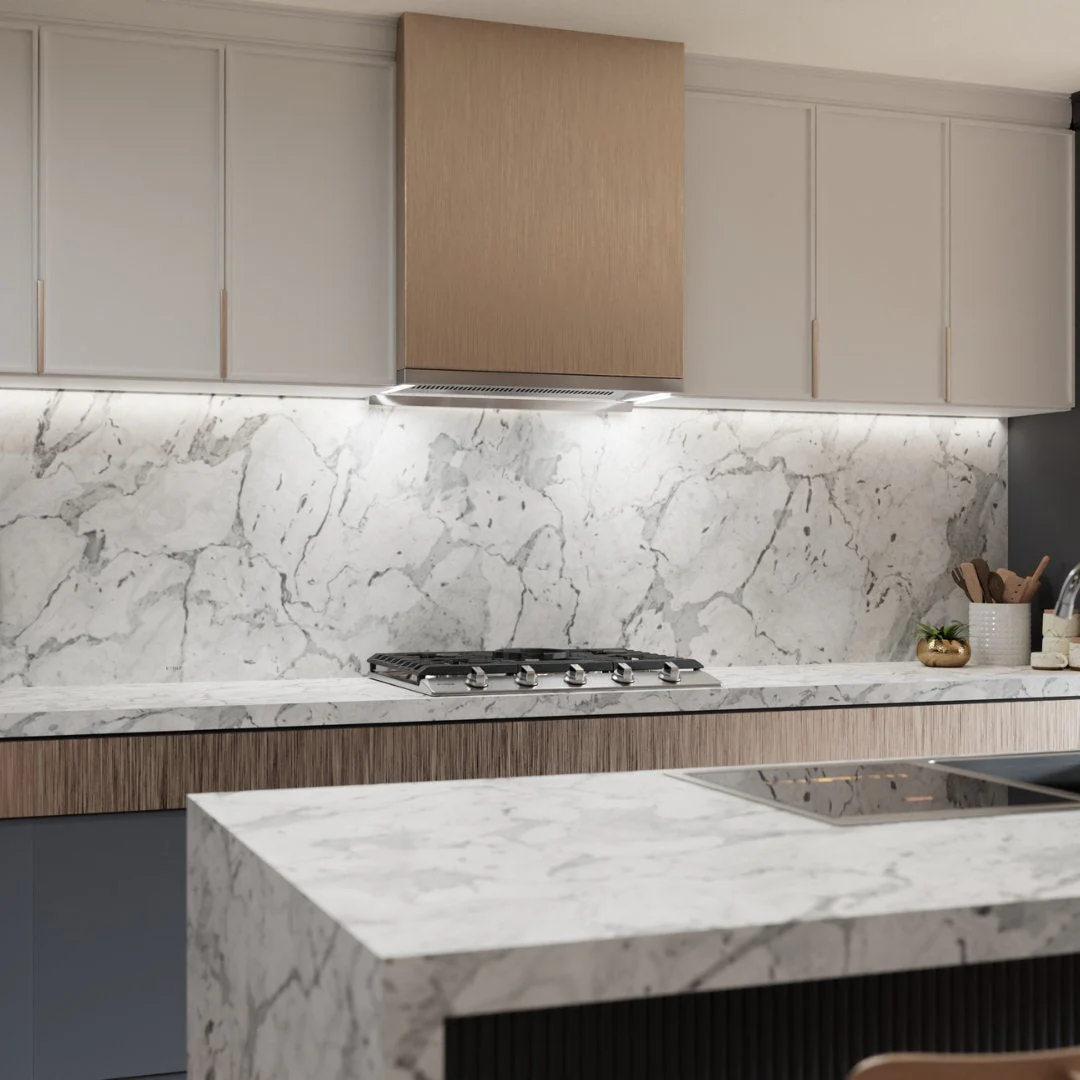

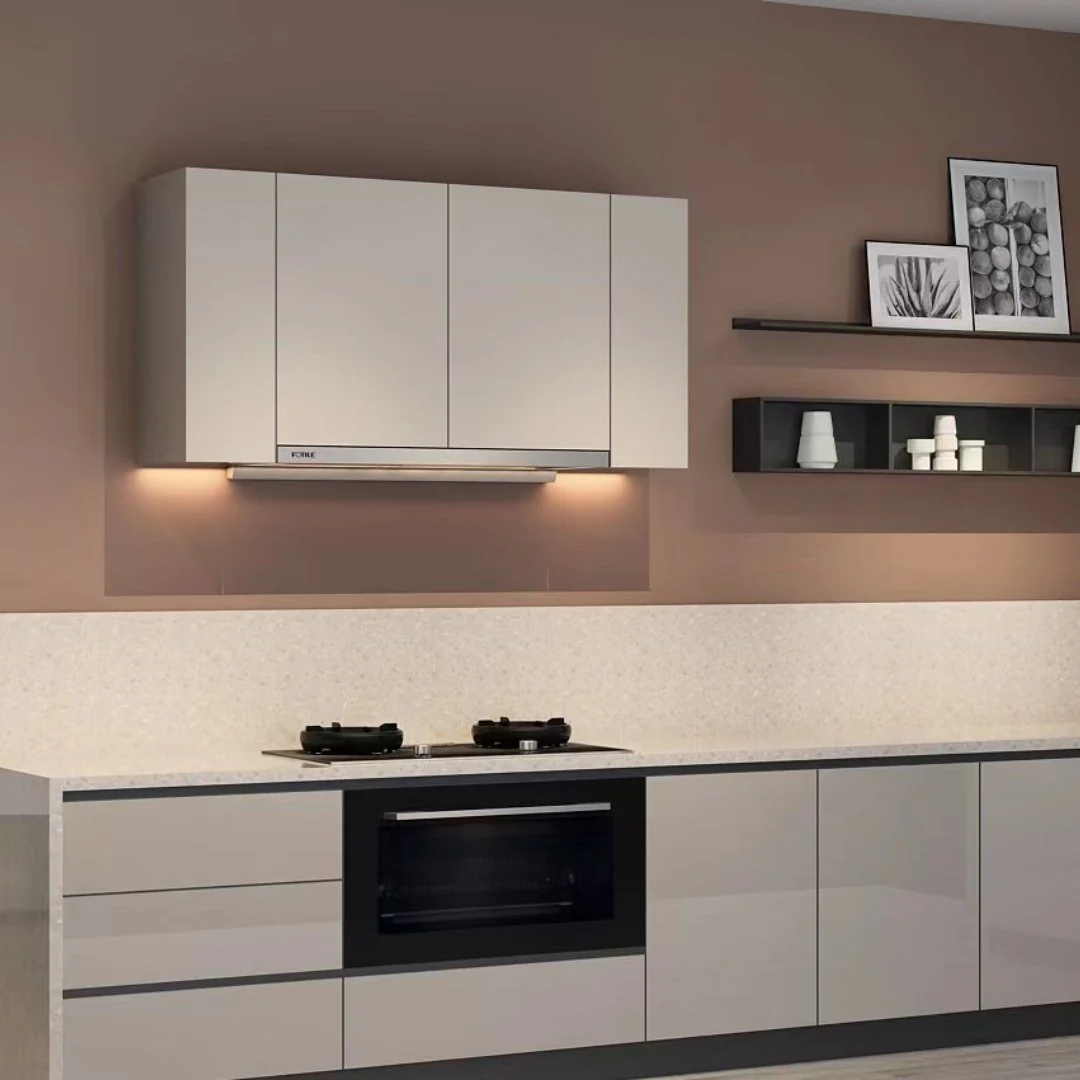

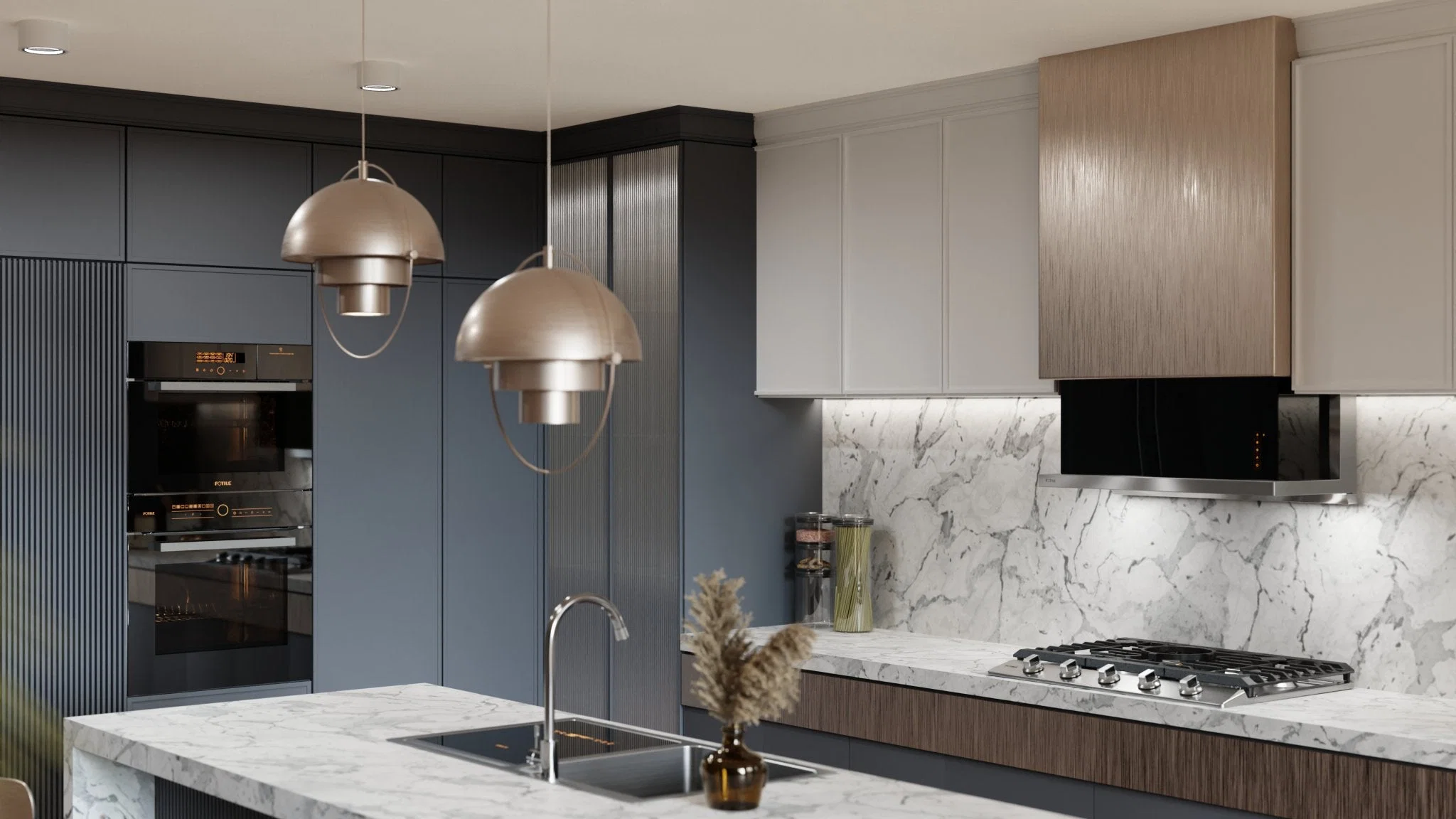

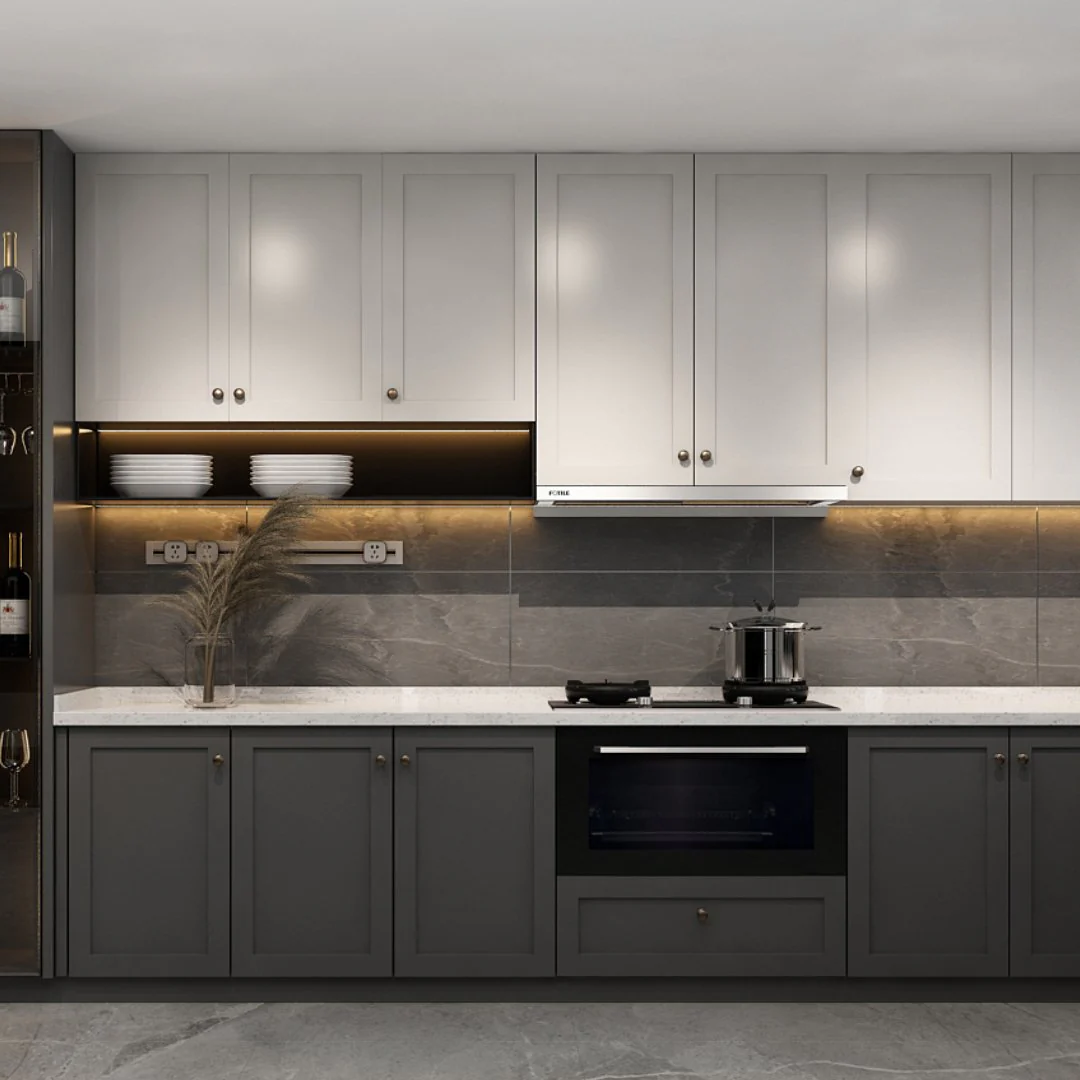

• Versatile Installation - The built-in design offers a hidden appearance when not in use, providing a high-end and unobtrusive look to your kitchen

• Motion Activation - Effortlessly summoned design activated by motion or a wave.
• Sync Function with Cooktops - Simplifies cooking tasks for quicker and more convenient operation. Pairing is a seamless process, ensuring a stable connection.

Features:

• Powerful PMSM Motor
• Max. EQUIV. CFM: 1200
• Auto Height Adjustment
• Boost Mode
• Motion Gesture Touch Free Operation
• Screen Lock Function
• Elegance In Motion: PMSM (Permanent Magnet Synchronous Motor) - Experience superior performance with our PMSM motor, surpassing conventional asynchronous DC motors.
• Versatile Installation - An integrated range hood that seamlessly incorporates components and appliances into its design, offering a sleek and modern aesthetic with clean lines and a cohesive appearance.

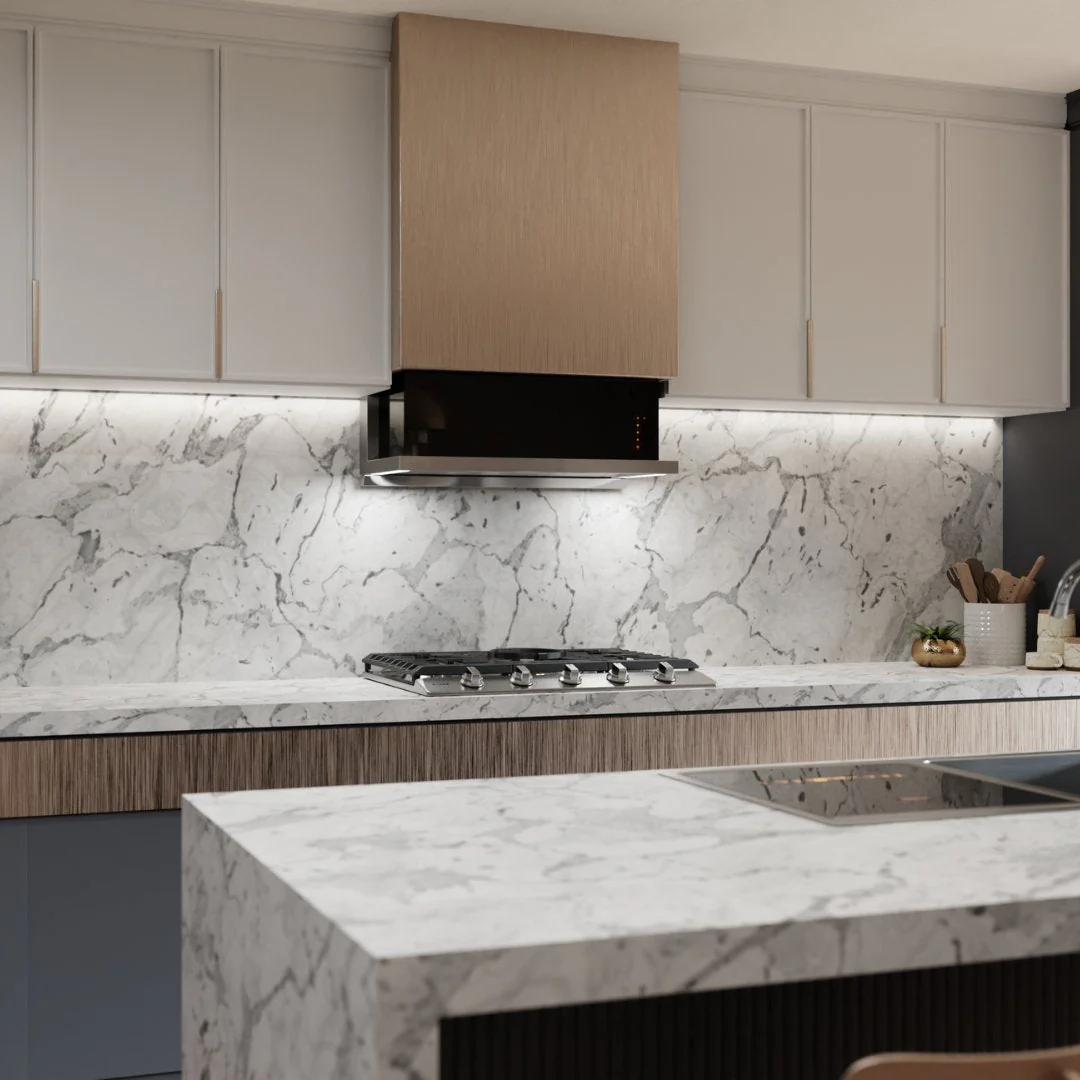

• Auto Height Adjust & Motion Activation - The BIG3610 gracefully adjusts its Capture Shield, providing chefs greater control over their environment. This enhancement aims to promote overall health and well-being.

• Sync Function with Select Cooktops - Simplifies cooking tasks for quicker and more convenient operation. Pairing is a seamless process, ensuring a stable connection.
• Large Capacity Oil Cup - Spacious Oil Cup for Effortless Management: Streamlined, drip-free design ensures a cleaner and easily maintainable cooking area.
• Downward Facing LED Lights - Maintain adequate illumination without causing glare or discomfort.
• Advanced Capture Shield - Refined smoke and grease capture technology. The capture shield adjusts to the optimal height for enhanced proximity to cooking gas, ensuring a clean and healthy culinary environment.
• Polished Stainless Steel Design - Elevate kitchen aesthetics with a sleek and sophisticated appearance. Avoid compromises—seamless perfection for an impeccable kitchen look.
• Sturdy Glide Rail - Our lifting guide is engineered to endure over 50,000 cycles. With daily use of 10 times, it reliably meets your needs for more than 13 years.

*FOTILE Equivalent CFM is a higher CFM rating due to our filterless technology that combines WhisPower Motors and Capture-Shield design. By utilizing this technology, FOTILE applies the Coanda Effect by accelerating smoke extraction and grease separation, and increasing our Capture Efficiency. This enables FOTILE to cover a larger cooktop surface (7.2 sq.ft.) and achieve a 95% oil filtration rate, and 97% odor reduction rate, keeping your kitchen smoke free and smelling fresh.

Product Dimensions	35 1/8" W x 13 5/8" D x 24 13/16 - 34 11/16" H
Certification	CSA, HVI, FCC, CEC
Power Supply(V/Hz)	120V/60Hz
Max Static Pressure(Pa)	1000Pa
Speed Setting	3
Max. Equiv. CFM	1200 CFM
Noise Level(dB)	34 / 44.1 / 52.7
Illumination(W)	3W × 2 （LED)
Input Power	300W
Motor	DC Motor
Oil Cup	One Oversized Oil Cup
Oil Filter	Removable & Dishwasher Free
Control Type	Touch + Motion
Delay Shutoff	5 Min
Oil Filtration Rate	95%
Odor Elimination Rate	97%
Installation	Insert
Duct Type	Vertical
Net Weight (lb)	101.4lbs
Gross Weight (lb)	118.4lbs
Packing-Box Size(WxDxH) (inch)	41 15/16 x 29 3/4 x 20 5/16
