The Story
The Victory Classic comes with a 600 CFM rust/oil-resistant, all metal, fully enclosed motor and a high temperature (600C) fiberglass sleeve for all wires making it one of the most reliable motors on the market. The stainless steel chimney cover also accommodates 8'-9' ceilings (with an option for 10' ceilings) to fit most kitchens.
Highlights
- Quiet Operation – Enjoy the silence of clean air
- Replaceable Filters – Easy to replace filters
- Lifetime Warranty – Lifetime motor & 5 year parts
- Powerful Internal Blower – Includes 600 CFM Motor
Features

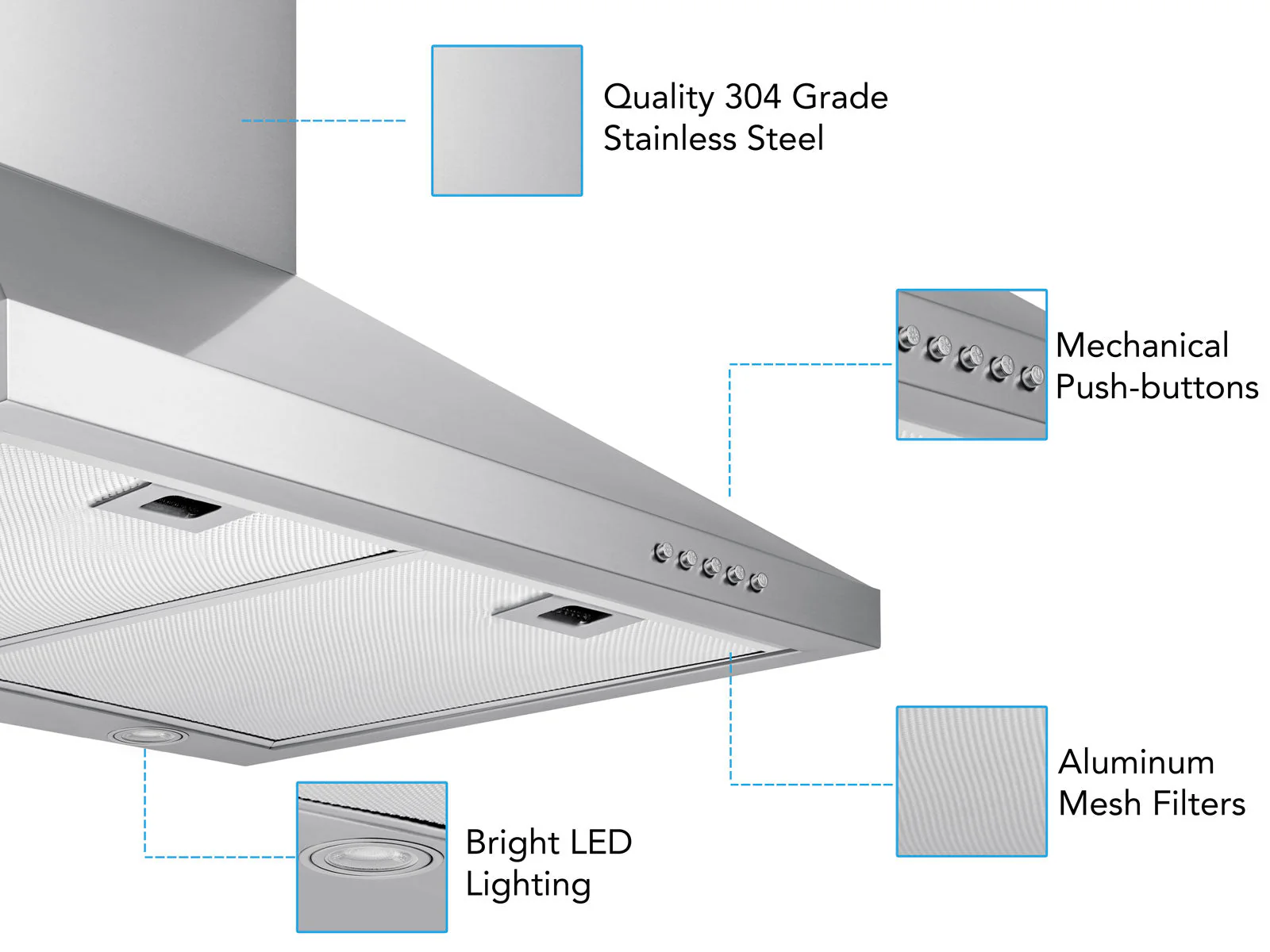

- All-Metal Impeller with LIFETIME Warranty – Reliable motor with a Lifetime Warranty. The ultimate choice for long-lasting performance. It’s true that what’s inside matters most.
- Fully Mechanical – Enjoy Unbeatable Reliability with long-lasting push button controls. A simple switch that keeps life going strong.
- Bright LED Lighting – Discover the Long-lasting Brilliance of easily replaceable LED lights. Illuminate your world for those special moments.
-
Assembled in Canada
-
600 CFM Metal Blower
-
3 Speed Push Button Controls
-
Two LED Lights (On/Off)
-
6" Round Duct
-
Adjustable Chimney Covers for 8'-9' Ceilings
-
Made with 304 Grade (19 Gauge) Stainless Steel
-
Aluminum Mesh Filters
-
1.0 - 6.0 Sones (Noise Rating)
- Lifetime Blower Warranty + 5 Year Parts
| Dimensions | 19 1/2" W x 19 3/4" D |
| Body | Stainless Steel |
| Power Rating | 120V/60Hz (USA & Canada standard) |
| General Input Power | 120W + # of light x Voltage of light |
| Motor Input Power | 120 W |
| Motor Revolution | 800 RPM (±10%) to 1300 RPM (±10%) |
| Levels Of Speed Control | 3 Levels |
| Maximum Airflow | 600 CFM |
| Air Pressure | 150 Pa (200 Pa Maximum) |
| Noise Level (dB / Sone) | Approx 35 / 0.7 to 67 / 6.5 (Lowest to Highest Speed) |
| Motor Type | Single Chamber Ultra Quiet |
| Fan Type | Centrifugal / Sirocco |
| Control Type | 3 Speed Mechanical Push Button Switches |
| Filtration Type | Aluminium Filter |
| Illumination | 2 x 35W GU10 Halogen, 120V (12V LED Optional) |
| Ducting Size | Top 6” Round |
| Warranty | 1 YEAR (parts warranty) |
| Installation Guide & User Manual |

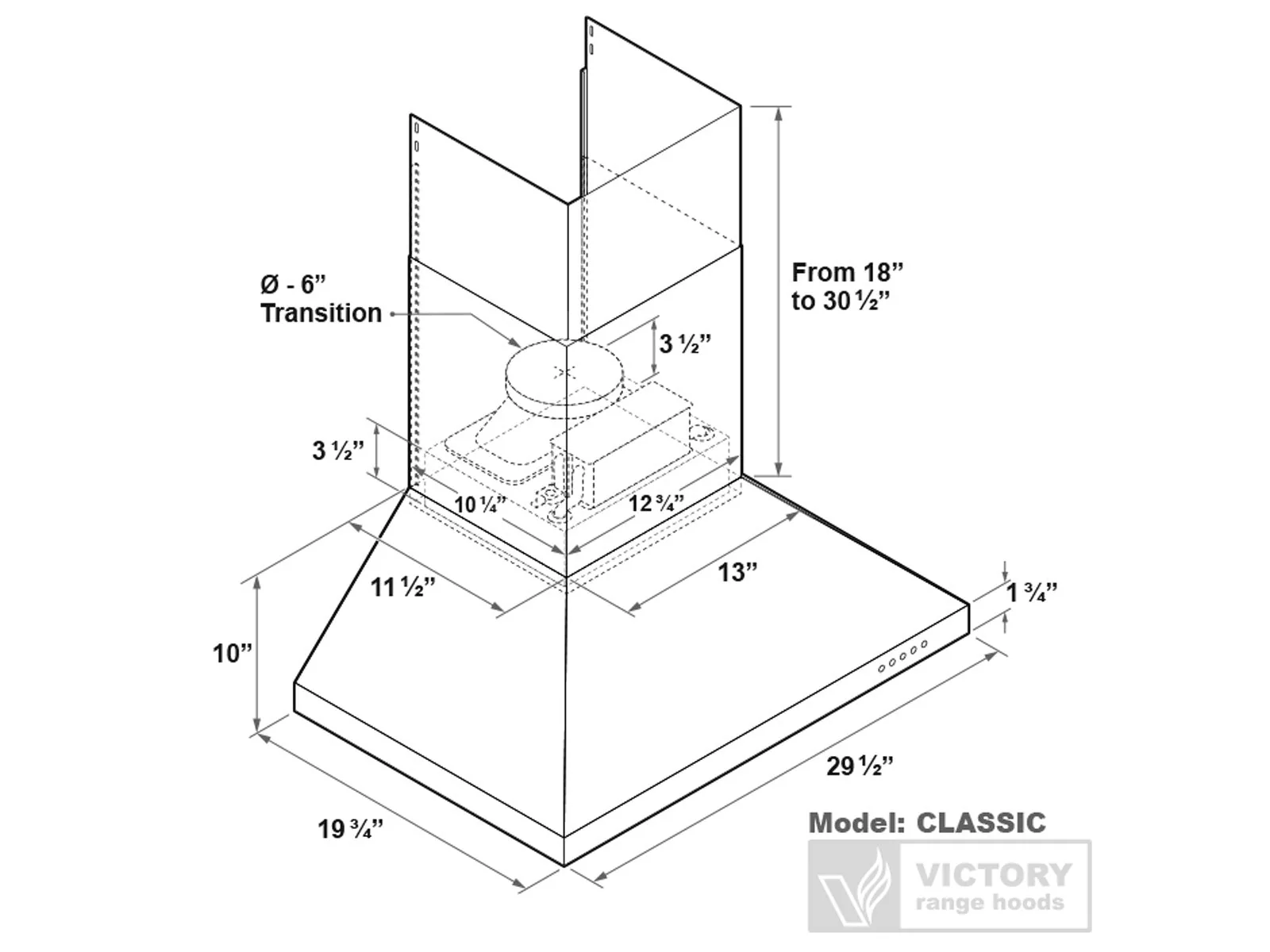

| Dimensions Diagram |
