Pioneer Copper Piping Line Set Kit for Mini Split Installation
HomeStore

Pioneer Copper Piping Line Set Kit for Mini Split Installation

Pioneer Copper Piping Line Set Kit for Mini Split Installation

Select Diameter
Select Length
From $31.50

Original: $90.00

-65%
Pioneer Copper Piping Line Set Kit for Mini Split Installation—

$90.00

$31.50

The Story

Connect your indoor and outdoor units securely with a copper piping kit line set for mini split installation. Copper tube kits offer long-term durability that allows you to install them and forget about them as you enjoy the benefits of your new heating and cooling system.

Our kits come equipped with all the essentials for mini split piping, from nonadhesive wrapping tape to copper pre-flared refrigerant pipes that reduce the risks of rusting and future maintenance requirements. Shop Pioneer’s copper piping kit lineset for mini split installations and pair your heat pump with quality components that maximizes its performance.

Features

  • Highest Quality Full Copper Piping Kit Set.
  • Compliance with ASTM-B280 Standard (USA-Canada).
  • Dehydrated Soft Drawn Copper Tubes.
  • Three Layer Water Proof P.E. Insulation.
  • Brass Flare Nuts, on ready formed flare ends.
  • Matching Length 16 Gauge 4 Lead Signal Cable set.
  • Plastic dust caps, to keep clean during installation.
  • Wall Sleeve/Liner with Cap.
  • Wall Filler Putty.
  • Non Adhesive Wrapping Tape.

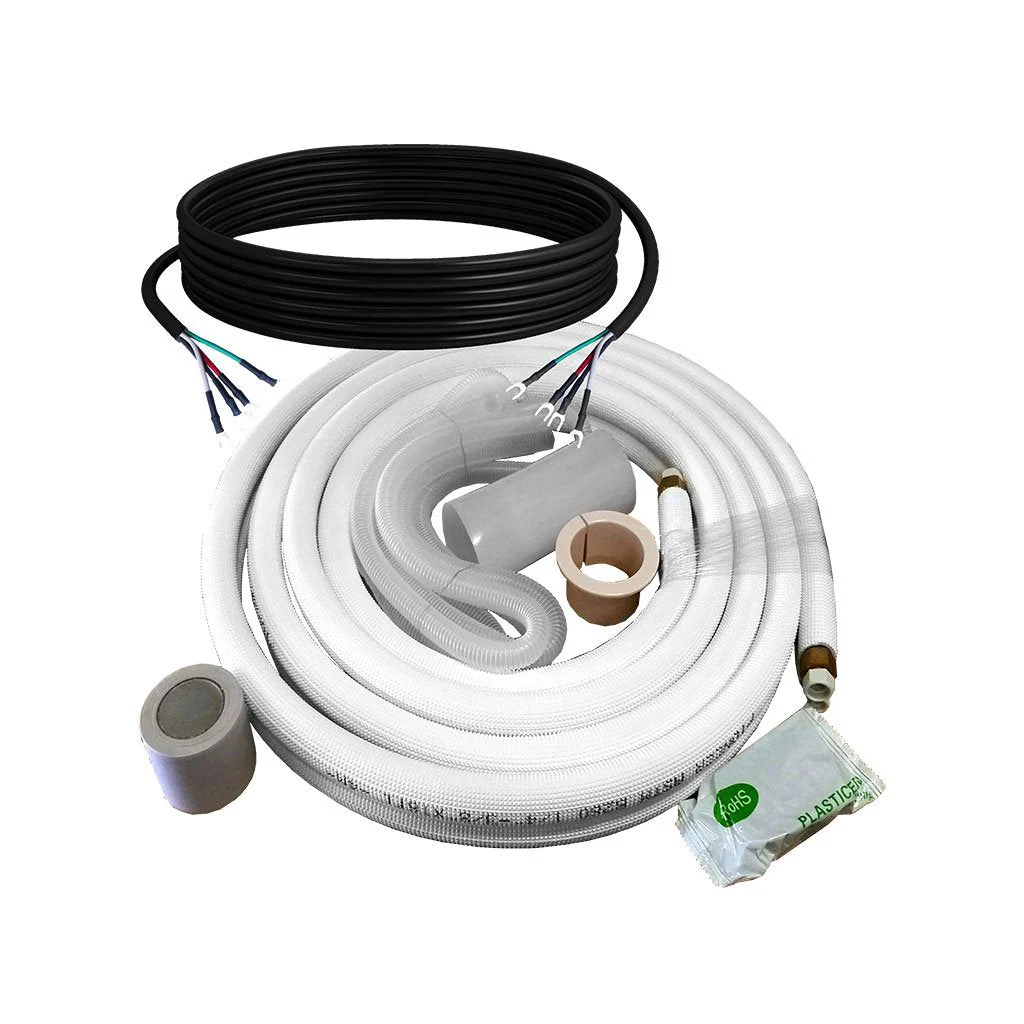

Pioneer’s Copper Tubing Kits Include

  • Copper pipes
  • 3 layer insulation
  • Brass flare nuts
  • Includes the following:
    • Insulated pre-flared copper refrigerant pipes (length and diameter as chosen)
    • 4 lead communication wire between indoor and outdoor unit (same length as chosen)
    • 10 ft. condensate drain hose
    • Wall passage sleeve with cap and putty
    • Non-adhesive wrapping tape (2" wide, 50' length)

Diameter Selection Guide (FOR WYS-20 and WYS-22 SERIES)

9,000 BTU Models (except for WYS009AMFI22RL) 1/4"-3/8"
12,000-18,000 BTU Models (as well as WYS009AMFI22RL) 1/4"-1/2"
24,000 BTU and Above Models 3/8"-5/8"

Diameter Selection Guide (FOR DIAMANTE/WYT-19 SERIES)

9,000 BTU - 18,000 BTU 1/4"-3/8"
24,000 BTU 1/4"-1/2"
36,000 BTU  1/4"-5/8"

Diameter Selection Guide (FOR DIAMANTE ULTRA/WYT-22 SERIES)

9,000 BTU - 12,000 BTU 1/4"-3/8"
18,000 BTU 1/4"-1/2"
24,000 BTU  1/4"-5/8"

Diameter Selection Guide (FOR HYPERFORMANCE WYF-25 SERIES)

9,000 BTU - 12,000 BTU 1/4"-3/8"
18,000 BTU 1/4"-1/2"
24,000 BTU 3/8"-5/8"

Wrench/Tool Sizes Needed

The corresponding Wrench/Tool sizes needed to turn the flare nuts of the line-sets are as follows:

Line Diameter
Wrench Size
1/4"
5/8"
3/8"
13/16"
1/2"
15/16"
5/8"
1-1/16"
3/4"
1-5/16"

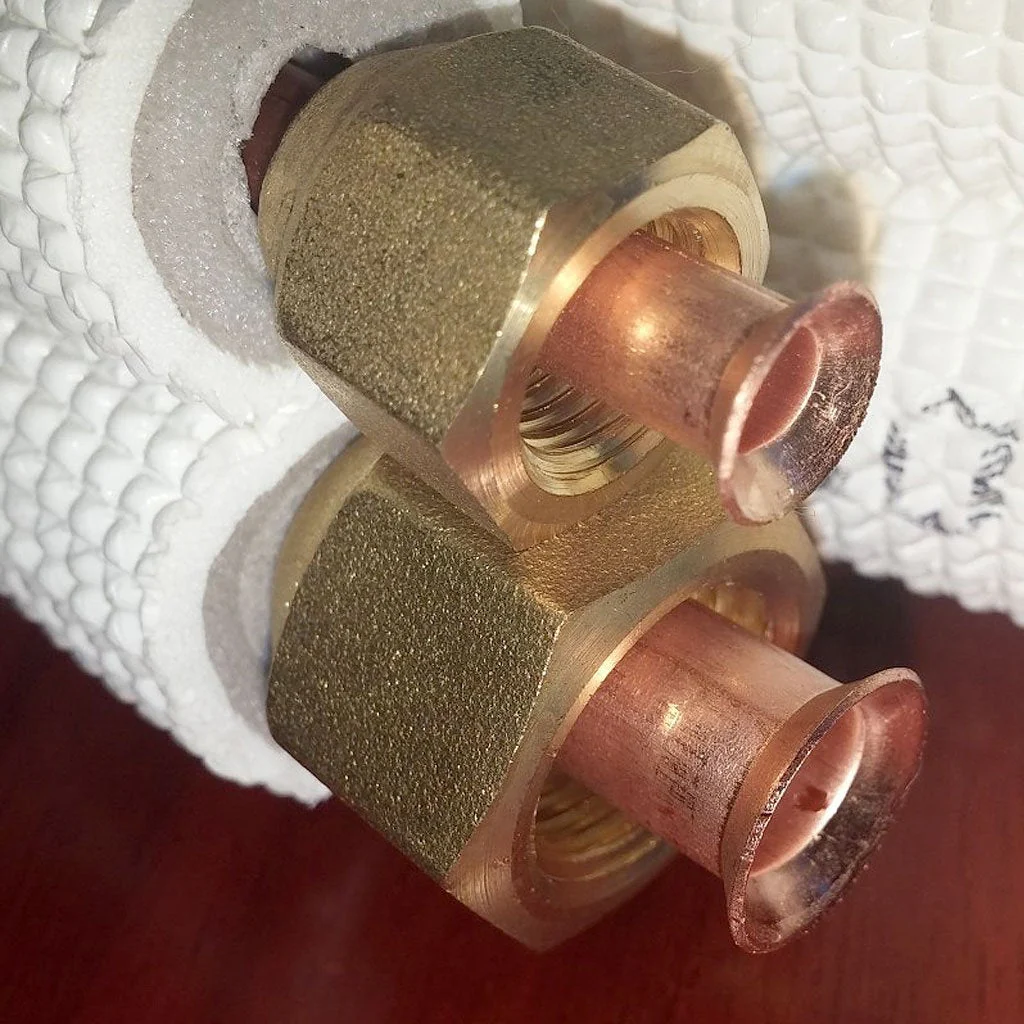

Pioneer Copper Piping Line Set Kit for Mini Split Installation - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

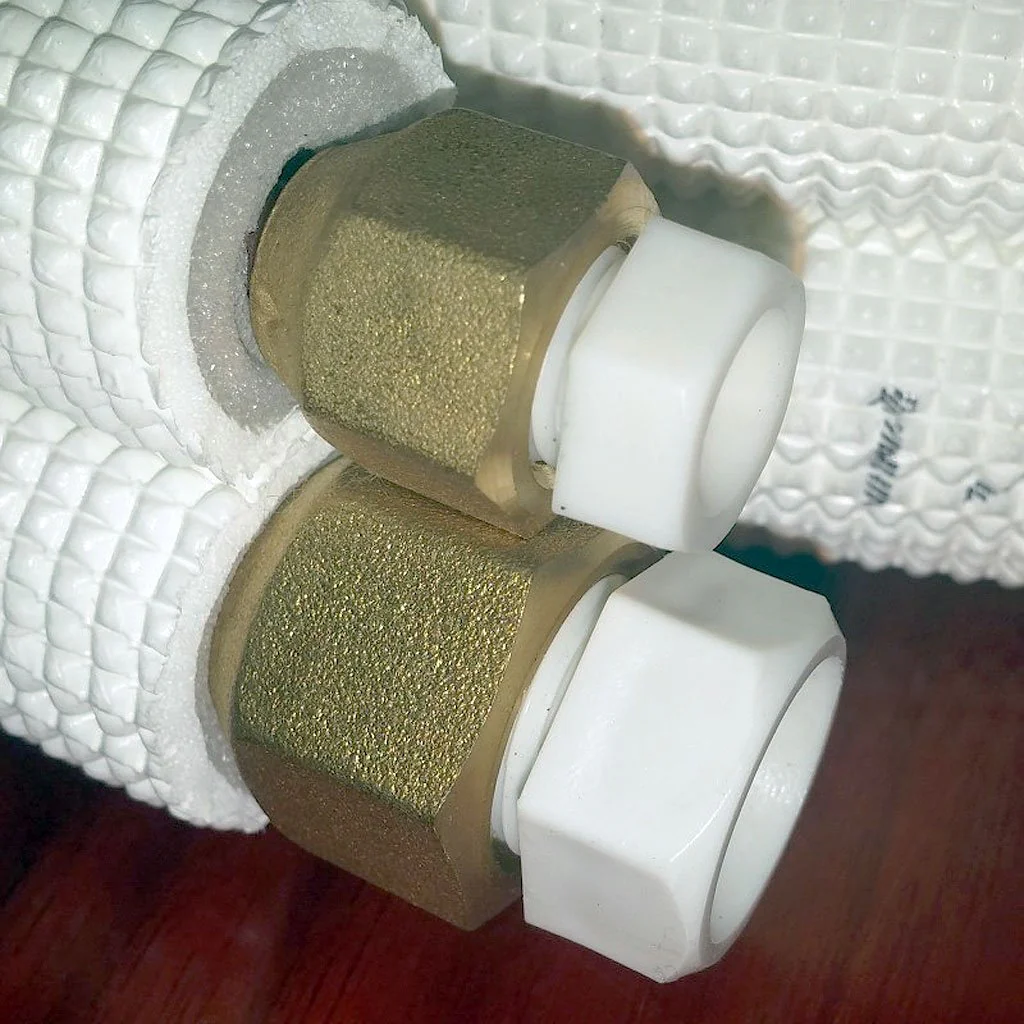

Pioneer Copper Piping Line Set Kit for Mini Split Installation - Image 3
