DoorBird 2-Wire Ethernet PoE Converter A1071

DoorBird 2-Wire Ethernet PoE Converter A1071 (423860360)

The DoorBird 2-Wire Ethernet PoE Converter is probably the world‘s smallest and most powerful converter. It allows you to transfer network data (Ethernet) and power (PoE) with a simple two-wire cable over long distances. For example; existing buildings with a simple two-wire bell wire can be equipped with network technology without having to retrofit any network cables.

Highlights

• Ethernet including PoE over 2 wires
• Robust housing
• Transmission range: 80 m / 262 ft
• Up to 60 Mbit/s

Features

• Use of existing cabling
• Only a two-wire cable required for both data transmission and power supply (PoE)
• Compact design, robust housing
• Easy and fast installation

Dimensions	33 x 25 x 88 mm (H x W x D) 1,30 x 0,98 x 3,46 in (H x W x D)
Power supply	PoE-Switch or PoE-Injector (IEEE 802.3 af), not included
Operating conditions	-25 to 55°C / -13 to 131°F
Speed	Up to 60 mbit/s at maximum transmission range
Latency	-0.01 ms
Connectors	1x RJ45 jack (10/100 Base-T), 2x screw terminals
PoE	PoE 802.3 af/at Mode-A and PoE +, up to 30 W
Data line pair	1/2 (+), 3/6 (-)
Range	80 meters / 262 feet with unshielded two-wire cable

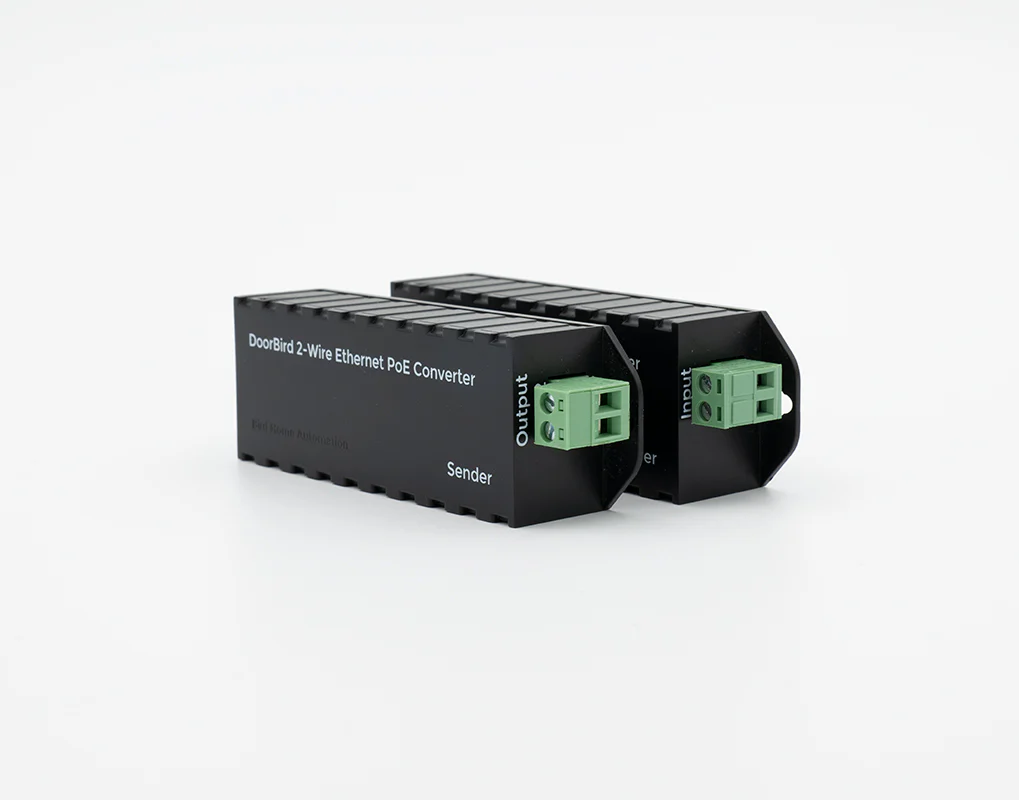

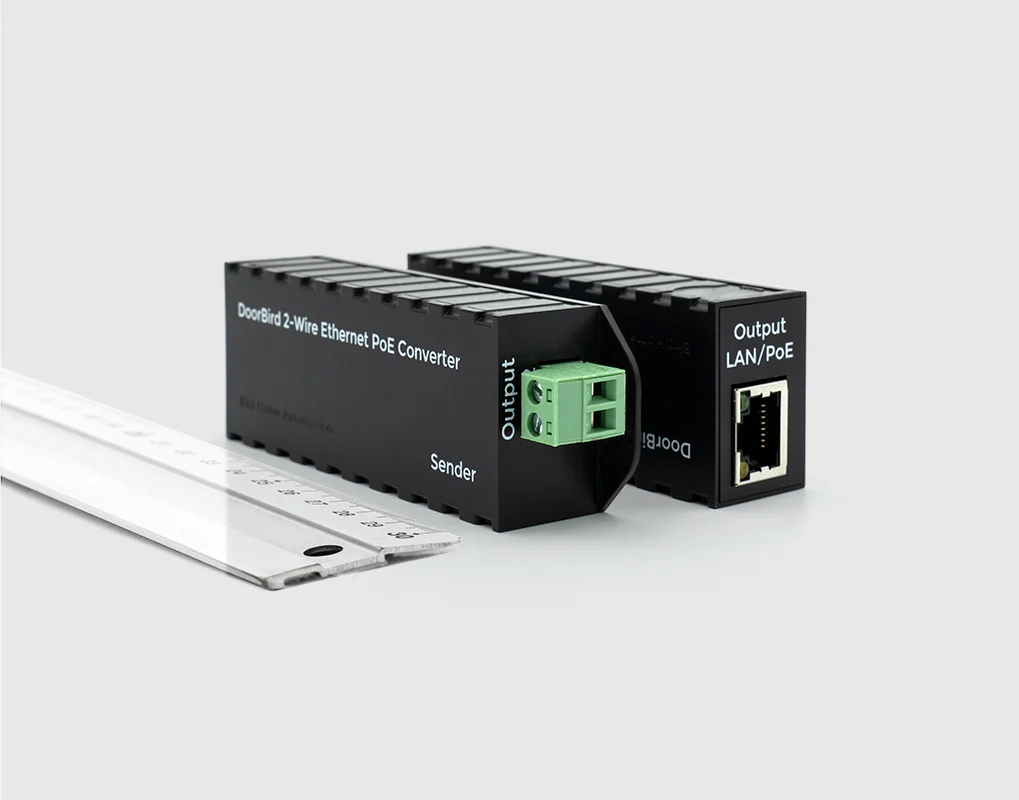

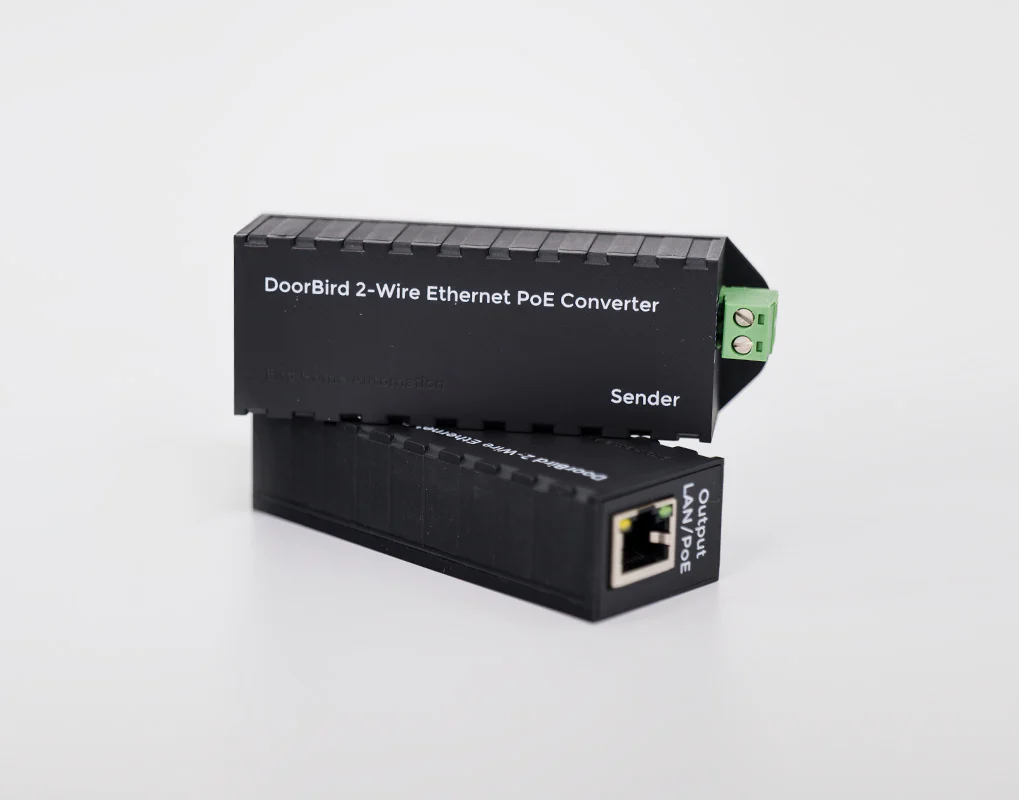

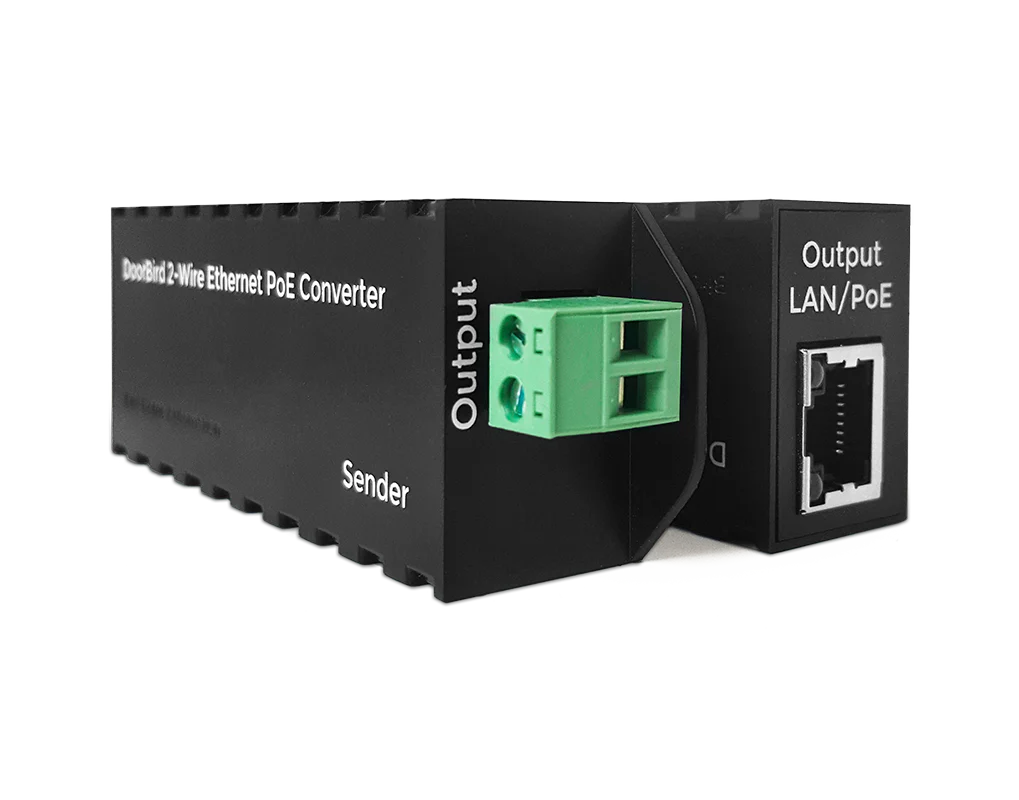

Scope of delivery	1 x DoorBird 2-Wire Ethernet PoE Converter Sender 1 x DoorBird 2-Wire Ethernet PoE Converter Receiver 1 x DIN-Rail adapter
Required accessories	2 x Network cable, IEEE 802.3 af PoE Switch or PoE Injector, e.g. DoorBird Gigabit PoE Injector, D-Link DGS-1008P or TPLink TL-PoE150S Compatible with all DoorBird IP Video Door Stations.
Approvals	CE, FCC, RoHS, IP50
Weather-proof	No
Weight	140g
