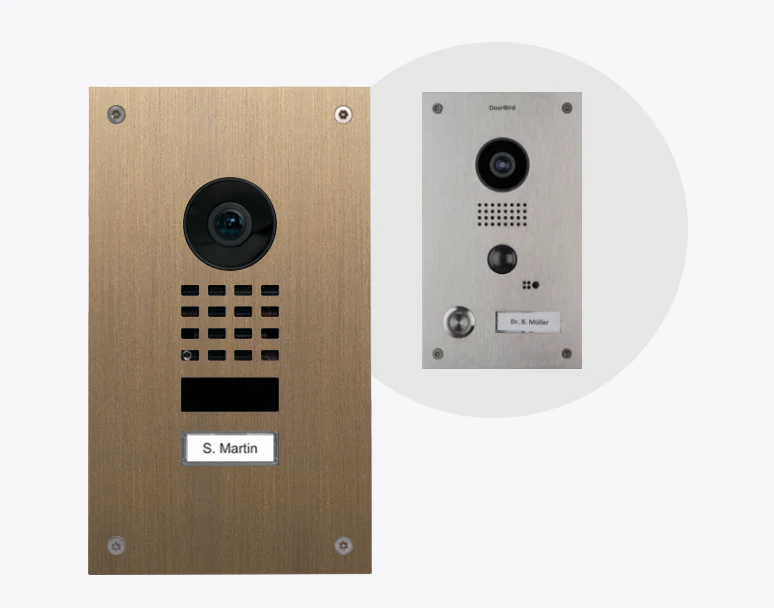

DoorBird D1101UV IP Video Door Station in Real Burnished Brass

DoorBird D1101UV IP Video Door Station in Real Burnished Brass

Upgrade for DoorBird D201/D202 to D11x Technology

Real burnished brass
(GTIN/EAN: 4260423880382, P/N: 423880382)

Highlights

• LAN connection (PoE capable)
• 2-way audio
• Ultra-wide angle lens, 1080p, night vision, IR LEDs
• 4D motion sensor, RFID reader
• 1 freely configurable bistable switching relay

Features

• Open API
  Local interface for integration with third-party systems and SIP
• Video and audio call
  On smartphones, tablets (iOS, Android), IP and landline phones (SIP)
• Smart Transmission Mode (STM)
  Real-time audio / video communication, optimized for mobile devices via WiFi, 3G, 4G, 5G
• Smart Home & NVR compatible
  Control4, Loxone, Crestron, Synology, AVM FRITZ!Fon, URC, QNAP, RTI, ELAN, Fibaro, Bang & Olufsen and others
• Microphone
  Clear voice transmission
• Automatic door buzzer
  For use in medical offices and office environments
• Free visitor history
  Store still images for free, optional video recording available
• Individual action schedules, e.g.:
  Switch relay 1 for automatic door release Mon-Fri from 9 am until 4 pm when the call button is pressed
  4D motion sensor switches on external lamp between 9 pm and 6 am
• Geofencing
  Automatic door and gate opening when returning home
• Night vision
  With Infrared LEDs
• HDTV Video
  Ultra wide-angle, hemispheric lens, 180°
• Light sensor
  For night vision mode
• One freely configurable bistable latching relay
  Control one door or one gate via App
  Status configurable via App: temporary or permanent circuit
• Easy self-install
  Quick installation via QR code scan
• Call button
  With backlit nameplate
• Motion sensor with 4D technology
  Distance up to 6 m (19.7 ft) adjustable via App (interval: 1 m/ 3.3 ft)
• Noise reduction and echo cancellation (AEC, ANR)
• Easy connection to the network
  Connection via a network cable or bell wire via 2-Wire Ethernet PoE Converter “DoorBird A1071” (PoE, network data)
• Bluetooth low Energy (BLE)
  Supports A8007 Bluetooth Remote Control
  For access control, compatible external sensors and smart locks

Front panel	3 mm (0.12 in) Available in brushed stainless steel V2A / V4A and with Bronze-Finish, V4A
Mounting housing (backbox)	Not included, use of an already installed D201/ D202 housing is assumed.
Call Button	Illuminated
Nameplate	Plastic Metal cover plate and engraving available separately
Power supply	15 V DC (max. 15 W) or Power ov
Weight	778 g
Connectors	LAN/PoE (T+, T-, R+, R-) Bistable latching relay, max. 1-24 V DC/AC, 1 A, e.g. for electric door opener External input for external door opener button  15 V DC input (+, -), max. 15 W
Protection Class	IP65, IK08
Approvals	CE, FCC, IC, UKCA, RoHS, REACH, WEEE, IEC/EN 62368, IEC/EN 62471
Dimensions	215 x 125 x 28 mm (H x W x D) 8.46 x 4.92 x 1.10 in (H x W x D)
Operating conditions	-25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing)
Scope of delivery	1x Main Electrical Unit 1x Front panel 1x Power supply unit (mains adaptor) with up to 4 country-specific outlet adaptors (110 - 240 V AC to 15 V DC) 1x Screwdriver 1x Quickstart guide with Digital Passport 1x Installation manual 1x Small parts
