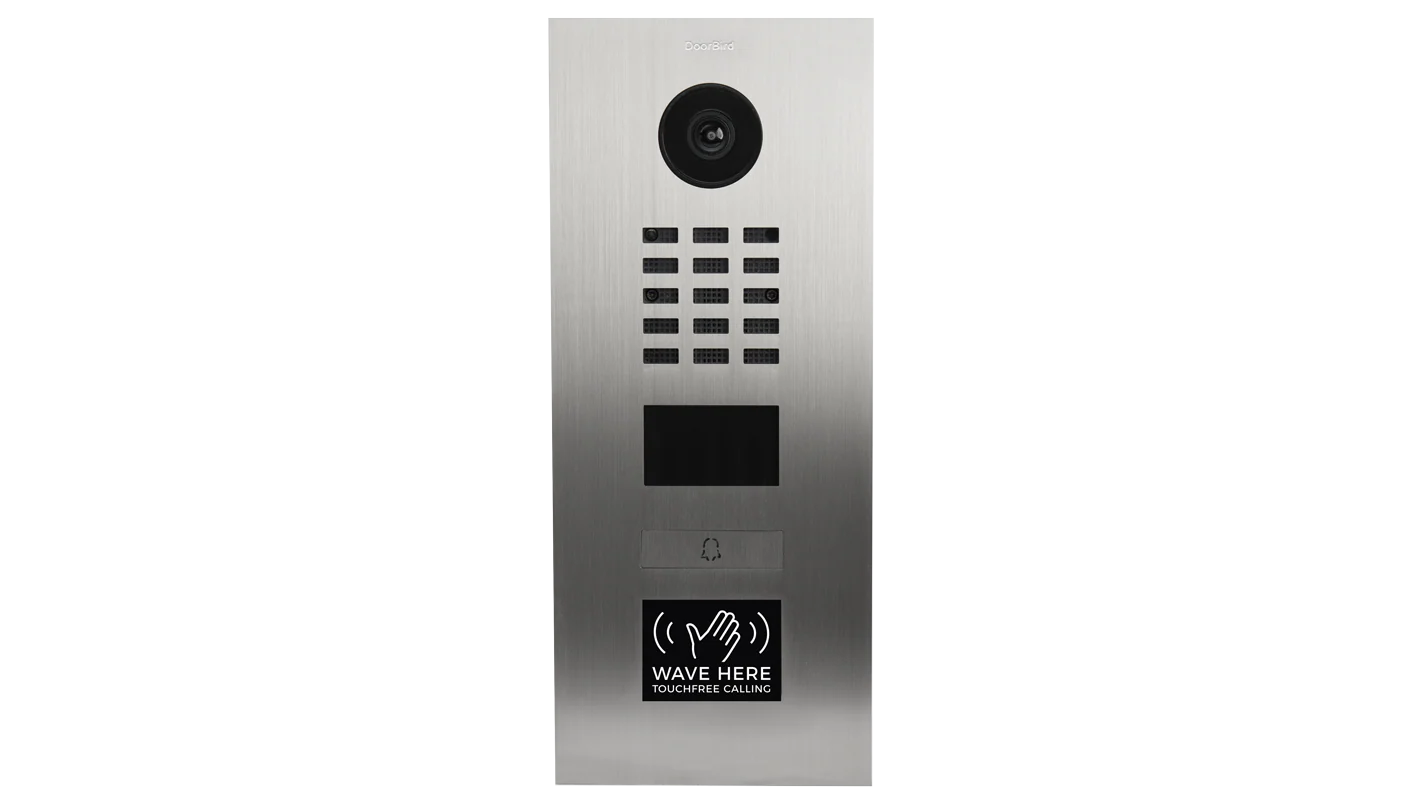

DoorBird D2101TFV Flush Mount IP Video Door Station, 1 Call Button in Stainless Steel V2A

DoorBird D2101TFV Flush Mount IP Video Door Station, 1 Call Button in Stainless Steel V2A

For entrances with a high level of foot traffic, 1 contactless call button module, 1 call button

Stainless steel V2A, brushed
(GTIN/EAN: 4260423867932, P/N: 423867932)

Highlights

• With contactless call button module
• Surface- and flush-mount possible, housings sold separately
• LAN connection (PoE capable)
• 2-way audio
• Ultra-wide angle lens, 720p, night vision, 12 IR LEDs
• 4D motion sensor, RFID reader
• 2 freely configurable bistable switching relays

Features

• Open API - Local interface for integration with third-party systems and SIP
• Video and audio call - On smartphones, tablets (iOS, Android), IP and landline phones (SIP)
• Smart Transmission Mode (STM) - Real-time audio / video communication, optimized for mobile devices via WiFi, 3G, 4G, 5G
• Smart Home & NVR compatible
  Control4, Loxone, Crestron, Synology, AVM FRITZ!Fon, URC, QNAP, RTI, ELAN, Fibaro, Bang & Olufsen and others
• Automatic door buzzer - For use in medical offices and office environments
• Free visitor history - Store still images for free, optional video recording available
• Individual action schedules, e.g.:
  RFID card “abc” has only access on Wednesday from 9 am until 11 am
  4D motion sensor switches on external lamp between 9 pm and 6 am
• Geofencing - Automatic door and gate opening when returning home
• Night vision - With 12 Infrared LEDs
• HDTV Video - Ultra wide-angle, hemispheric lens, 180°
• Light sensor - For night vision mode
• Microphone - Clear voice transmission
• Noise reduction and echo cancellation (AEC, ANR)
• RFID reader - Configurable remotely via App (e.g. time frame)

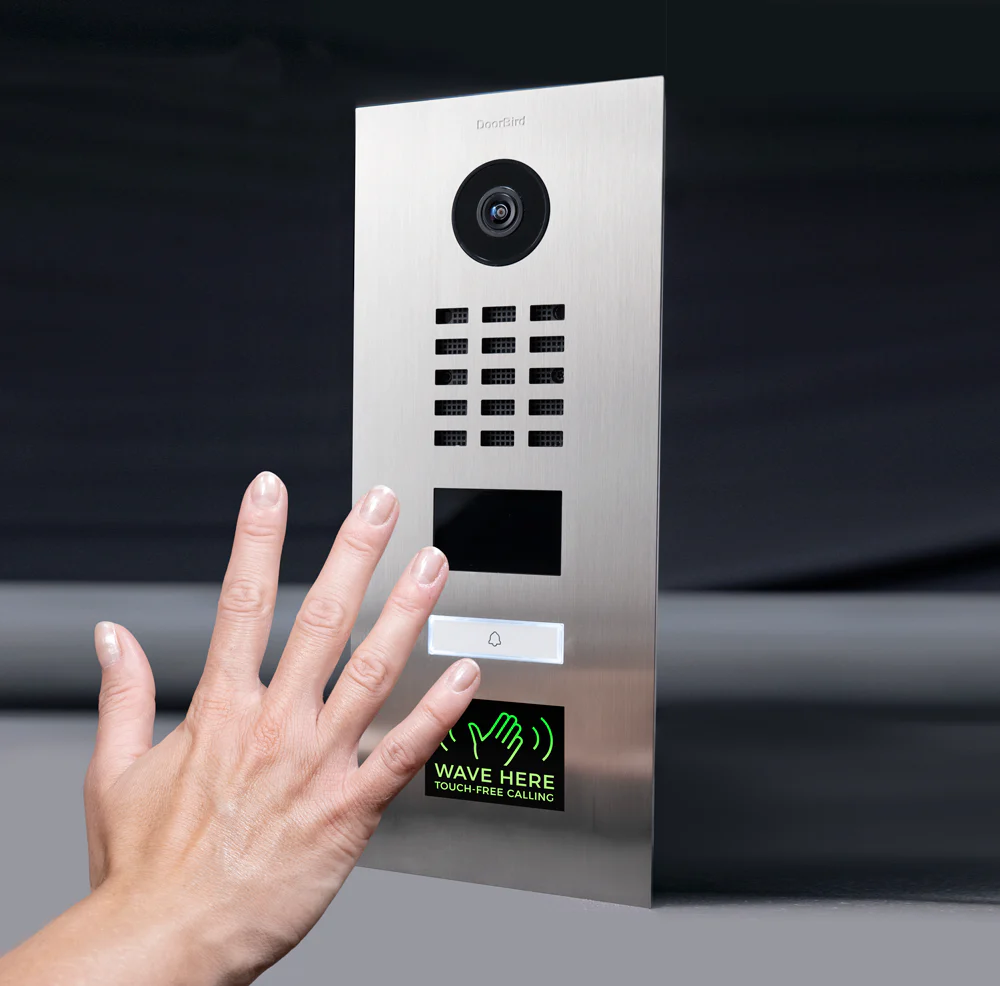

• Contactless call button
  High-end radar motion sensor for reliable detection at close range
  Personalised events (e.g. door opened, door bell push notification, SIP etc.)
• Motion sensor with 4D technology - Distance up to 10 m (32.8 ft) adjustable via App (interval: 1 m/ 3.3 ft)
• Call button - With backlit nameplate
• Easy connection to the network
  Connection via a network cable or bell wire via 2-Wire Ethernet PoE Converter “DoorBird A1071” (PoE, network data)
• Two freely configurable bi-stable switching relays
  Two doors or gates can be controlled via App
  Status configurable via App: temporary or permanent circuit

Front Panel	3 mm (0.12 in) For further information on materials and colours see the materials table on the product page in the online shop.
Mounting Type	Flush or surface mount Mounting backing case available separately Please note: To ensure optimal operation of the contactless call button module, weatherproof mounting is recommended. In rare cases, the sensor can be triggered by heavy rain falling directly on the sensor surface
Power supply	15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
Call Button	Illumination As parallel call option to contactless call button module. (Please note: Station features 1 call option. Call button and contactless call module are switched on together and can be assigned to a single action)
Nameplate	Stainless steel, bell symbol.Engravable name sign available separately
Contactless Call Button Module	High-end radar motion sensor for reliable detection at close range Two-colour backlight (colour changes to green when motion detected) Individual events (e.g. open door, push notification, SIP etc.) Interchangeable text fields in 5 languages (DE, EN, ES, FR, IT) included
Weight	1818 g
Connectors	RJ45, for LAN/PoE Bistable self-latching relay #1, max. 24 V DC/AC, 1 Ampere, e.g. for electrical door opener Bistable self-latching relay #2, max. 24 V DC/AC, 1 Ampere, e.g. for electrical door opener External input for external door opening button 15 V DC input (-/+), max. 15 W Relay can be extended/replaced with DoorBird I/O Door Controller.
Protection Class	IP65, IK08
Approvals	CE, FCC, IC, UKCA, RoHS, REACH, WEEE, IEC/EN 62368, IEC/EN 62471
Dimensions	313 x 131 x 48.75 mm (H x W x D) 12.32 × 5.16 × .92 in (L × W × H)
Operating conditions	-25 °C to +55 °C / -13 °F to 131 °F Relative air humidity 10% to 85% (non-condensing)
Scope of delivery	1x main electrical unit 1x front cover 1x name sign for one call button, stainless steel, bell symbol 1x RFID key fob 1x screwdriver 1x quick-start guide with Digital Passport 1x installation manual 1x set of hardware 4x sensor field cover in German, Spanish, French and Italian; (English preinstalled)
