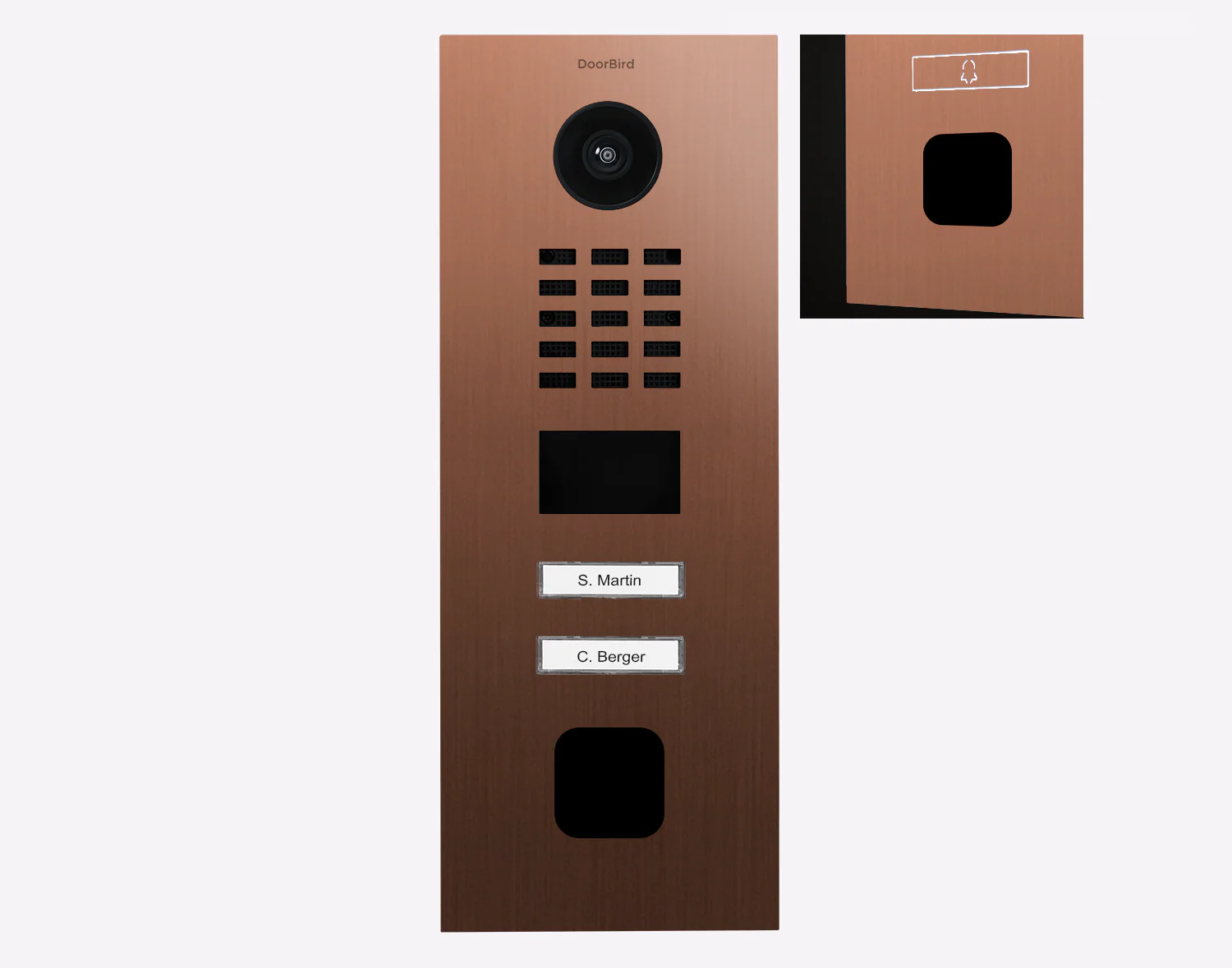

DoorBird D2102FV EKEY Sline IP Video Door Station, 2 Call Buttons in Bronze

DoorBird D2102FV EKEY Sline IP Video Door Station, 2 Call Buttons in Bronze

For multi-tenant buildings and businesses with 2 units, 2 call buttons

Bronze-finish as PVD coating, stainless steel, brushed
(GTIN/EAN: 4260423903029, P/N: 423903029)

Highlights

• Surface- and flush-mount possible, housings sold separately
• With cut-out for ekey sLine module (fingerprint reader not included in delivery)
• LAN connection (PoE capable)
• 2-way audio
• Ultra-wide angle lens, 720p, night vision, 12 IR LEDs
• 4D motion sensor, RFID reader
• 2 freely configurable bistable switching relays

Features

• Open API
  Local interface for integration with third-party systems and SIP
• Video and audio call
  On smartphones, tablets (iOS, Android), IP and landline phones (SIP)
• Smart Transmission Mode (STM)
  Real-time audio / video communication, optimized for mobile devices via WiFi, 3G, 4G, 5G
• Smart Home & NVR compatible
  Control4, Loxone, Crestron, Synology, AVM FRITZ!Fon, URC, QNAP, RTI, ELAN, Fibaro, Bang & Olufsen and others
• Automatic door buzzer
  For use in medical offices and office environments
• Individual action schedules, e.g.:
  RFID card “abc” has only access on Wednesday from 9 am until 11 am
  4D motion sensor switches on external lamp between 9 pm and 6 am
• Geofencing
  Automatic door and gate opening when returning home
• Night vision
  With 12 Infrared LEDs
• HDTV Video
  Ultra wide-angle, hemispheric lens, 180°
• Light sensor
  For night vision mode
• Microphone
  Clear voice transmission
• Noise reduction and echo cancellation (AEC, ANR)
• RFID reader
  Configurable remotely via App (e.g. time frame)
• Motion sensor with 4D technology
  Distance up to 10 m (32.8 ft) adjustable via App (interval: 1 m/ 3.3 ft)
• Call button
  With backlit nameplate
• Easy connection to the network
  Connection via a network cable or bell wire via 2-Wire Ethernet PoE Converter “DooBird A1071” (PoE, network data)
• Two freely configurable bi-stable switching relays
  Two doors or gates can be controlled via App
  Status configurable via App: temporary or permanent circuit
• Integration option for ekey sLine fingerprint reader
  Front panel prepared for ekey sLine, not included in delivery

Front panel	3 mm (0.12 in) For further materials and colours see material board and Online Shop
Mounting type	Flush- or surface-mounted, mounting housing sold separately
Power Supply	15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
Nameplate	Illuminated
Weight	D2101FV ekey sLine: 1381 g D2102FV ekey sLine: 1381 g
Connectors	• RJ45, for LAN/PoE • Bi-stable latching relay #1, max. 24 V DC / AC, 1 Ampere, e.g. for electric door opener • Bi-stable latching relay #2, max. 24 V DC / AC, 1 Ampere, e.g. for electric door opener • External input for external door opener button (potential-free) • 15 V DC input (+, -), max. 15 W • Relays can be expanded / detached with DoorBird I/O Door Controller
Protection Class	IP65, IK08
Approvals	CE, FCC, IC, UKCA, RoHS, REACH, WEEE, IEC/EN 62368, IEC/EN 62471
Dimensions	313 x 351,5 x 48,75 mm (H x W x D) 12.32 x 13.83 x 1.92 in (H x W x D)
Operating conditions	-25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing)
Scope of delivery	1x Main Electrical Unit 1x Front panel 1x Nameplate for 1 call button, stainless steel, bell symbol (D2101FV ekey sLine) 1x RFID key fob 1x Screwdriver 1x Quickstart guide with Digital Passport 1x Installation manual 1x Small parts
