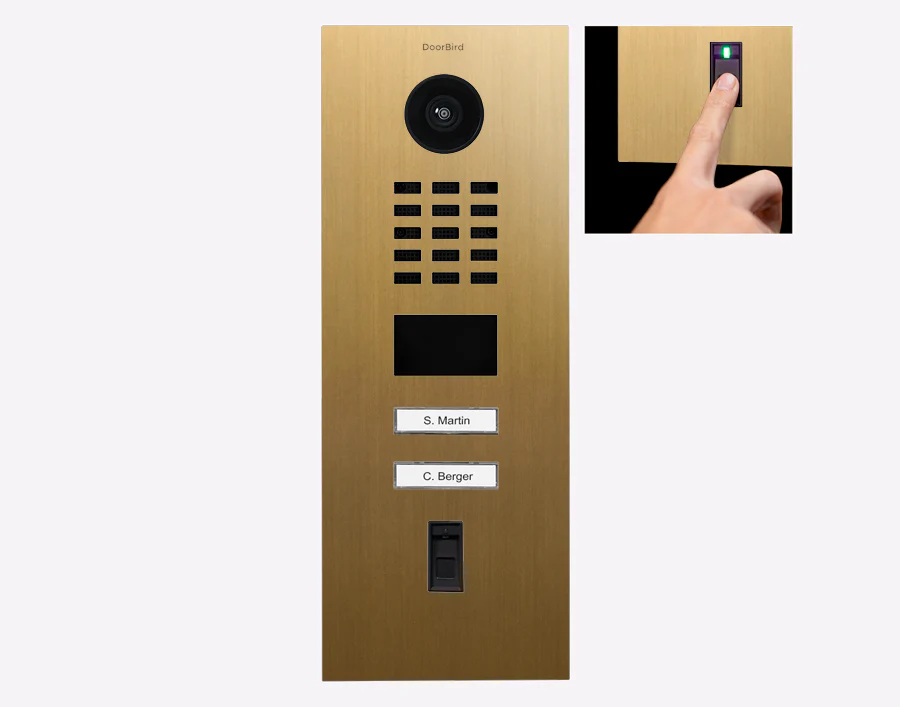

DoorBird D2102FV Fingerprint 50 IP Video Door Station, 2 Call Button in Gold

DoorBird D2102FV Fingerprint 50 IP Video Door Station, 2 Call Button in Gold

For multi-tenant buildings and businesses with 2 units, 2 call buttons

Gold-finish as PVD coating, stainless steel, brushed
(GTIN/EAN: 4260423896659, P/N: 423896659)

Highlights

• Surface- and flush-mount possible, housings sold separately
• LAN connection (PoE capable)
• 2-way audio
• Ultra-wide angle lens, 720p, night vision, 12 IR LEDs
• 4D motion sensor, RFID reader
• Fingerprint sensor by Fingerprint Cards AB
• 2 freely configurable bistable switching relays

Features

• Open API
  Local interface for integration with third-party systems and SIP
• Video and audio call
  On smartphones, tablets (iOS, Android), IP and landline phones (SIP)
• Smart Transmission Mode (STM)
  Real-time audio / video communication, optimized for mobile devices via WiFi, 3G, 4G, 5G
• Smart Home & NVR compatible
  Control4, Loxone, Crestron, Synology, AVM FRITZ!Fon, URC, QNAP, RTI, ELAN, Fibaro, Bang & Olufsen and others
• Automatic door buzzer
  For use in medical offices and office environments
• Individual action schedules, e.g.:
  RFID card “abc” has only access on Wednesday from 9 am until 11 am
  4D motion sensor switches on external lamp between 9 pm and 6 am
• Geofencing
  Automatic door and gate opening when returning home
• Night vision
  With 12 Infrared LEDs
• HDTV Video
  Ultra wide-angle, hemispheric lens, 180°
• Light sensor
  For night vision mode
• Microphone
  Clear voice transmission
• Noise reduction and echo cancellation (AEC, ANR)
• RFID reader
  Configurable remotely via App (e.g. time frame)
• Motion sensor with 4D technology
  Distance up to 10 m (32.8 ft) adjustable via App (interval: 1 m/ 3.3 ft)
• Call button
  With backlit nameplate
• Easy connection to the network
  Connection via a network cable or bell wire via 2-Wire Ethernet PoE Converter “DooBird A1071” (PoE, network data)
• Two freely configurable bi-stable switching relays
  Two doors or gates can be controlled via App
  Status configurable via App: temporary or permanent circuit

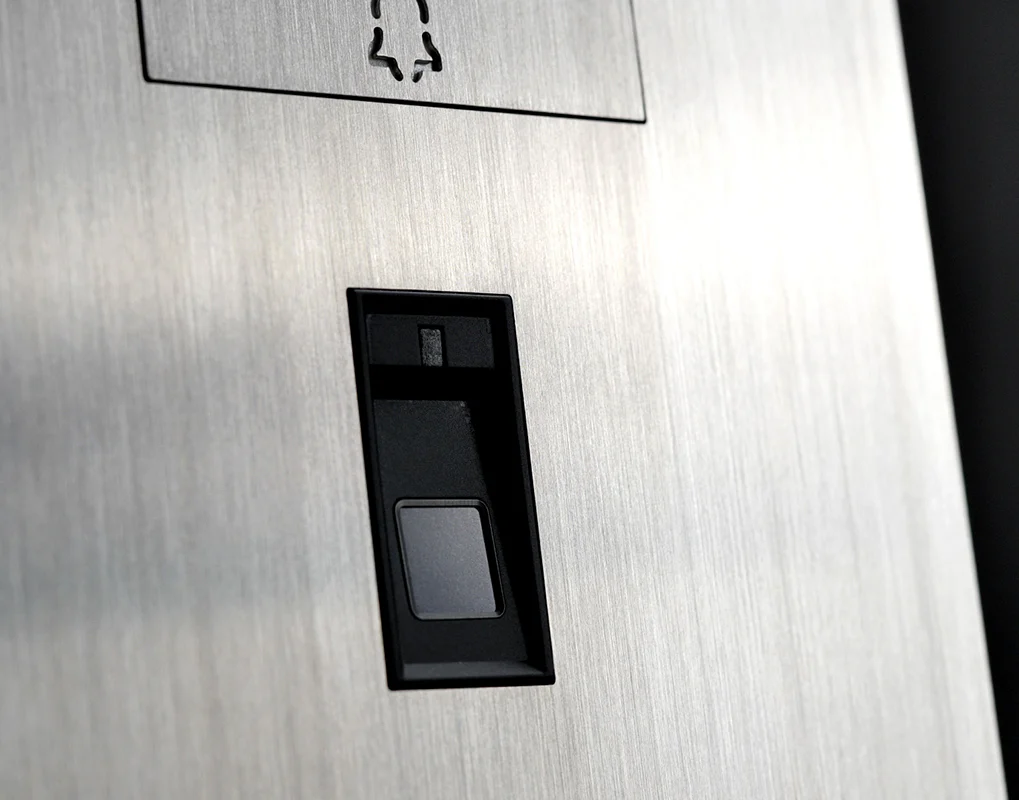

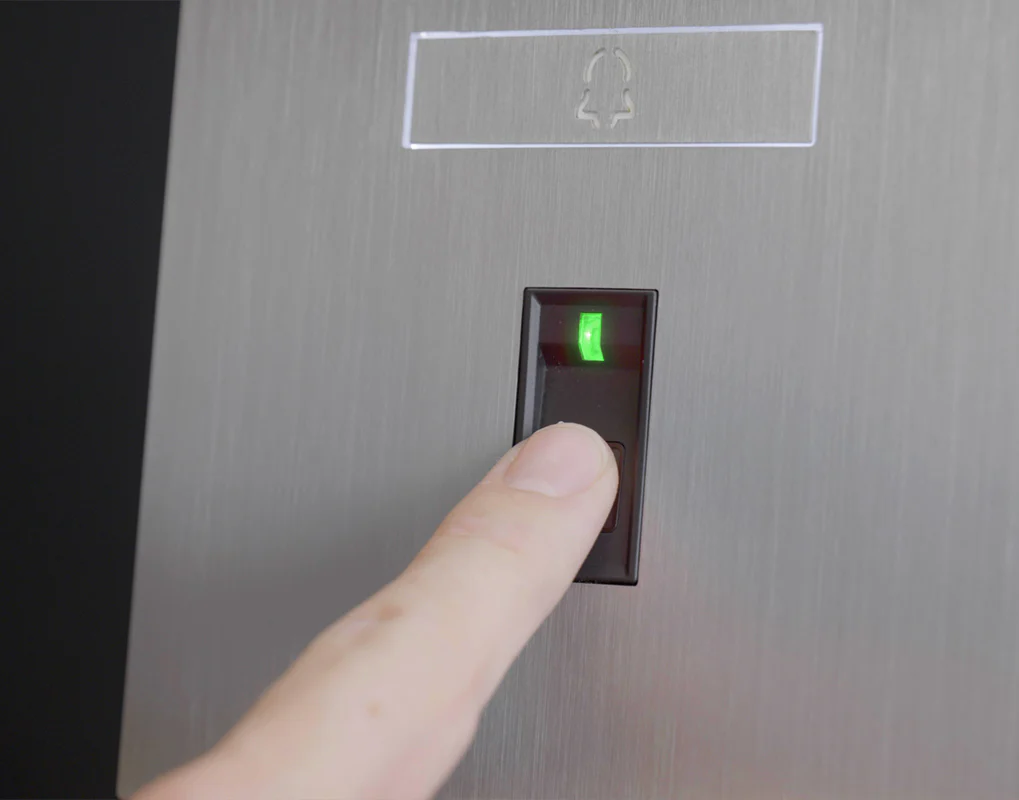

• Fingerprint reader
  Supported number of fingerprints: 50
  Status LED (RGB)
  Touch sensor

Front panel	3 mm (0.12 in) For further materials and colours see material board and Online Shop.
Mounting type	Flush- or surface-mounted, mounting housing sold separately
Power Supply	15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
Nameplate	Illuminated
Connectors	Configurable via App • Individual events (e.g. switch a relay, HTTP(s) request) • Individual schedules • 50 fingerprints manageable •Event history Multicolored Status LED •Normal mode: –Green + success sound: successfully authenticated –Red + error sound: unrecognized fingerprint (e.g. unknown fingerprint or wet touch sensor field - dry it with a tissue) –Pink: Manipulation prevention (too many failed attempts, locked out for min. 30 seconds) •Enrollment mode: –Blue: wait for finger to touch –Green + no sound: scan step successful –Green + success sound: entire scan step successful (enrollment done) –LED goes off: Timeout during enrollment •Start-up mode: –Yellow: Hardware test successful –Red: Hardware test not successful (broken)
Weight	1430 g
Connections	• RJ45, for LAN/PoE • Bi-stable latching relay #1, max. 24 V DC / AC, 1 A, e.g. for electric door opener • Bi-stable latching relay #2, max. 24 V DC / AC, 1 A, e.g. for electric door opener • External input for external door opener button • 15 V DC input (+, -), max. 15 W • Relays can be expanded / detached with DoorBird I/O Door Controller
Protection Class	IP65, IK08
Approvals	CE, FCC, IC, UKCA, RoHS, REACH, WEEE, IEC/EN 62368, IEC/EN 62471
Dimensions	351,5 x 131 x 49,6 mm (H x W x D) 13.84 x 5.16 x 1.95 in (H x W x D)
Operating conditions	-25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing)
Scope of delivery	1x Main Electrical Unit 1x Front panel 1x RFID key fob 1x Screwdriver 1x Quickstart guide with Digital Passport 1x Installation manual 1x Small parts
