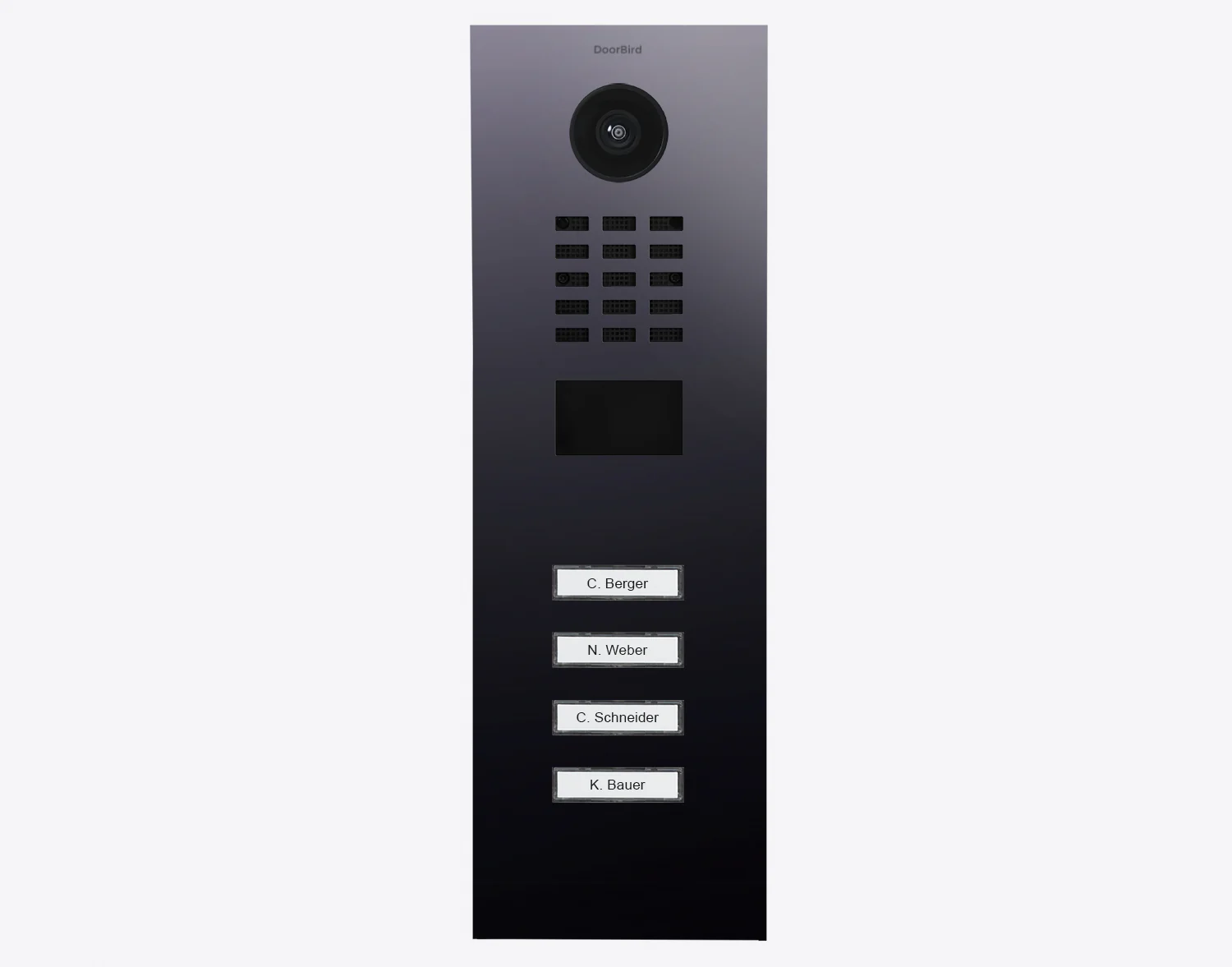

DoorBird D2104V IP Video Door Station, 4 Call Buttons in Titanium
For multi-tenant buildings and businesses with 4 units, 4 call buttons
Titanium-finish as PVD coating, stainless steel V4A, high-gloss polished
(GTIN/EAN: 4260423886414, P/N: 423886414)
Highlights
- Surface- and flush-mount possible, housings sold separately
- LAN connection (PoE capable)
- 2-way audio
- Ultra-wide angle lens, 720p, night vision, 12 IR LEDs
- 4D motion sensor, RFID reader
- 2 freely configurable bistable switching relays
Features
- Open API: Local interface for integration with third-party systems and SIP
- Video and audio call: On smartphones, tablets (iOS, Android), IP and landline phones (SIP)
- Smart Transmission Mode (STM): Real-time audio / video communication, optimized for mobile devices via WiFi, 3G, 4G, 5G
- Smart Home & NVR compatible: Control4, Loxone, Crestron, Synology, AVM FRITZ!Fon, URC, QNAP, RTI, ELAN, Fibaro, Bang & Olufsen and others
- Automatic door buzzer: For use in medical offices and office environments
- Individual action schedules, e.g.: RFID card “abc” has only access on Wednesday from 9 am until 11 am. 4D motion sensor switches on external lamp between 9 pm and 6 am
- Geofencing: Automatic door and gate opening when returning home
- Night vision: With 12 Infrared LEDs
- HDTV Video: Ultra wide-angle, hemispheric lens, 180°
- Light sensor: For night vision mode
- Microphone: Clear voice transmission
- Noise reduction and echo cancellation (AEC, ANR)
- RFID reader: Configurable remotely via App (e.g. time frame)
- Motion sensor with 4D technology: Distance up to 10 m (32.8 ft) adjustable via App (interval: 1 m/ 3.3 ft)
- Call button: With backlit nameplate
- Easy connection to the network: Connection via a network cable or bell wire via 2-Wire Ethernet PoE Converter “DoorBird A1071” (PoE, network data)
- Two freely configurable bi-stable switching relays: Two doors or gates can be controlled via App. Status configurable via App: temporary or permanent circuit
|
Front Panel |
3 mm (0.12 in) |
|
Mounting Type |
Flush- or surface-mounted, mounting housing sold separately |
|
Call Button |
Illuminated |
|
Nameplate |
Plastic. Engravable metal nameplate sold separately |
|
Power supply |
15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A) |
|
Weight |
1208 g |
|
Connectors |
• RJ45, for LAN/PoE • Bistable latching relay #1, max. 24 V DC / AC, 1 Ampere, e.g. for electric door opener • Bistable latching relay #2, max. 24 V DC / AC, 1 Ampere, e.g. for electric door opener • External input for external door opener button • 15 V DC input (+, -), max. 15 W • Relays can be expanded / detached with DoorBird I/O Door Controller |
|
Weatherproof |
Yes, IP65 |
|
Approvals |
IP65, CE, FCC, IC, RoHS, IK08, REACH, IEC/EN 62368, IEC/EN 62471 |
|
Dimensions |
403 x 131 x 45,75 mm (H x W x D) 15.87 x 5.16 x 1.80 in (H x W x D)
|
|
Operating conditions |
-25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non condensing) |
|
Scope of delivery |
1x Main Electrical Unit 1x Front panel 1x RFID key fob 1x Screwdriver 1x Quickstart guide with Digital Passport 1x Installation manual 1x Small parts |
| DoorBird Brochure |
| Data Sheet |
| App User Manual |
| Materials Guide |
| Installation Manual |
| Notes for Flush Mounting |
| Multi-Tenant Installation Sketch |
