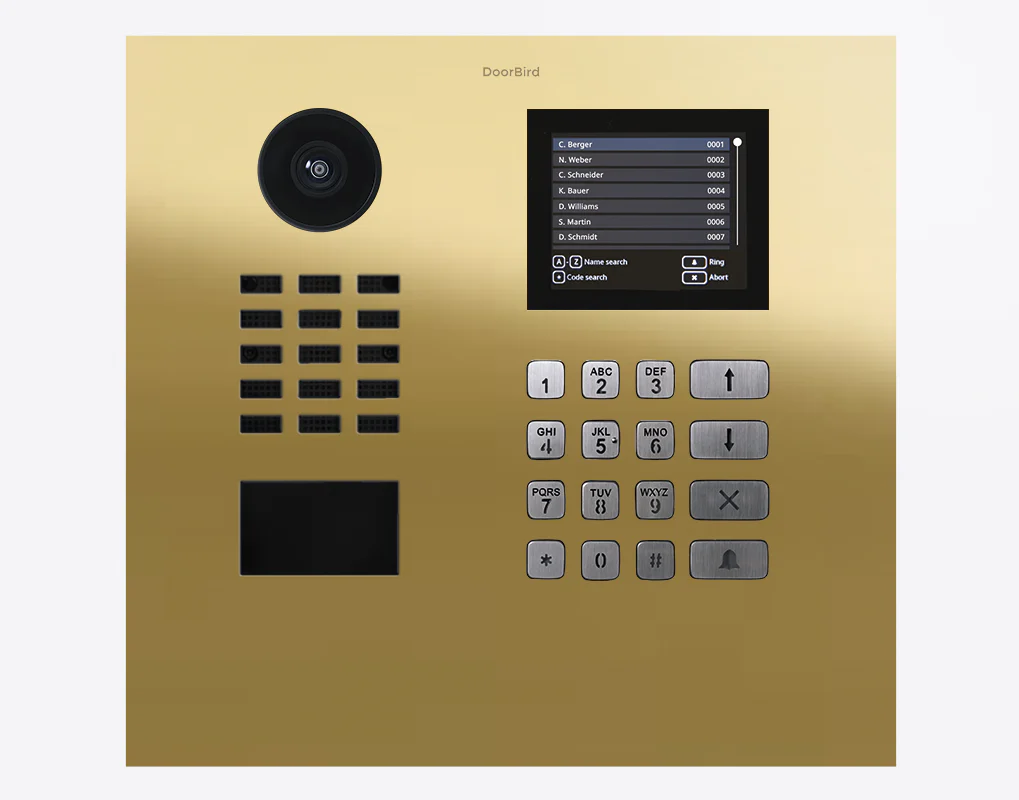

DoorBird D21DKH IP Video Door Station, Multi Tenant Residences Up to 500 Units in Brass

DoorBird D21DKH IP Video Door Station, Multi Tenant Residences Up to 500 Units in Brass

For multi-tenant residences and buildings with up to 500 units

Brass-finish as PVD coating, stainless steel V4A, high-gloss polished
(GTIN/EAN: 4260423888494, P/N: 423888494)

Highlights

• Surface- and flush-mount possible, housings sold separately
• LAN connection (PoE capable)
• 2-way audio
• Ultra-wide angle lens, 720p, night vision, 12 IR LEDs
• 4D motion sensor, RFID reader

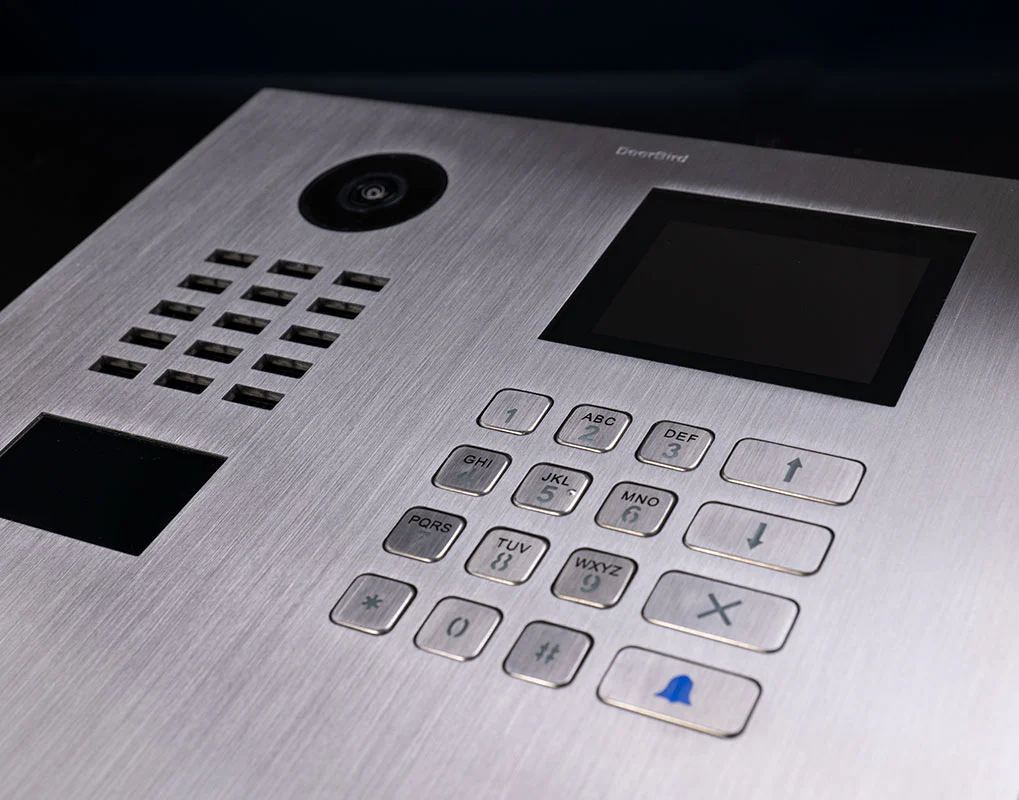

• Keypad, display module
• 2 freely configurable bistable switching relays

Features

• Open API
  Local interface for integration with third-party systems and SIP
• Video and audio call
  On smartphones, tablets (iOS, Android), IP and landline phones (SIP)
• Smart Transmission Mode (STM)
  Real-time audio / video communication, optimized for mobile devices via WiFi, 3G, 4G, 5G
• Smart Home & NVR compatible
  Control4, Loxone, Crestron, Synology, AVM FRITZ!Fon, URC, QNAP, RTI, ELAN, Fibaro, Bang & Olufsen and others
• Automatic door buzzer
  For use in medical offices and office environments
• Individual action schedules, e.g.:
  RFID card “abc” has only access on Wednesday from 9 am until 11 am
• Geofencing
  Automatic door and gate opening when returning home
• Night vision
  With 12 Infrared LEDs
• HDTV Video
  Ultra wide-angle, hemispheric lens, 180°
• Light sensor
  For night vision mode
• Microphone
  Clear voice transmission
• Noise reduction and echo cancellation (AEC, ANR)
• RFID reader
  Configurable remotely via App (e.g. time frame)
• Easy connection to the network
  Connection via a network cable or bell wire via 2-Wire Ethernet PoE Converter “DooBird A1071” (PoE, network data)
• Two freely configurable bi-stable switching relays
  Two doors or gates can be controlled via App
  Status configurable via App: temporary or permanent circuit
• Keypad Module
  Configurable via App
  Up to 500 individual PIN codes
  Individual events (e.g. trigger a relay, HTTP(s) request)

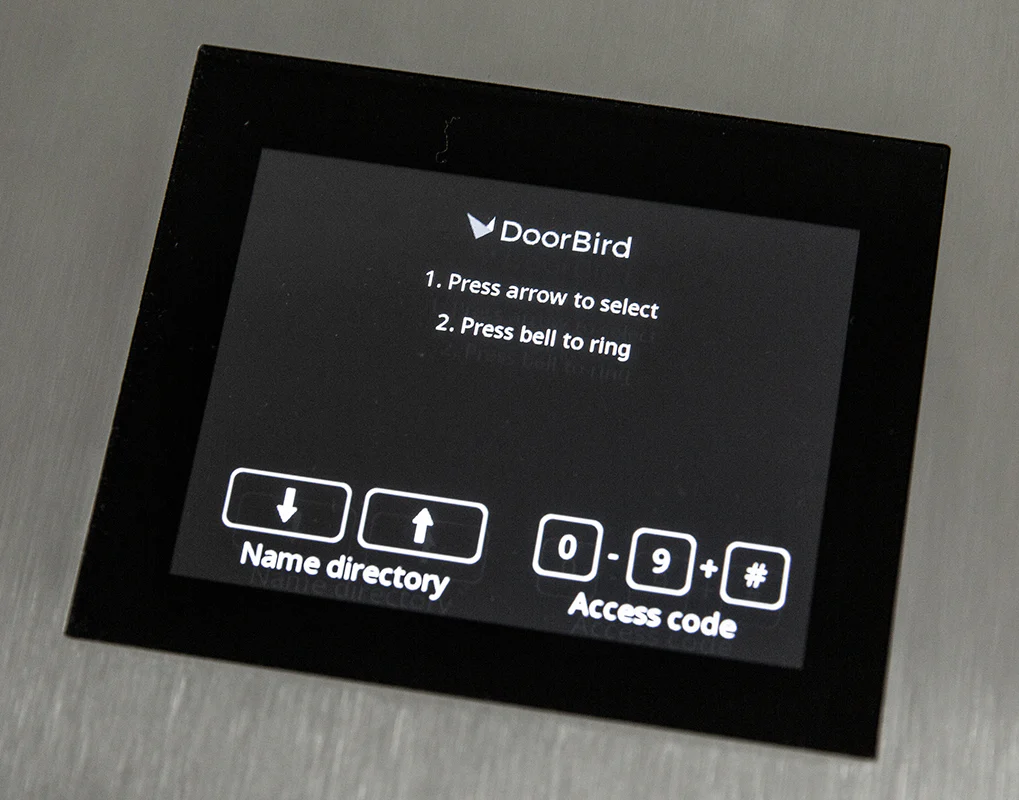

• Display Module
  Distance sensitivity on/off
  Individually configurable, e.g.: display of the resident directory, welcome message

How Does It Work?

Imagine, you are not at home and your children have locked themselves out or the courier wants to deliver a parcel. With DoorBird this is no longer a problem. Every time someone rings the doorbell you will get a push notification on your smartphone or tablet. Via the DoorBird App you can talk to visitors and also see them live in HD quality. You will never miss a visitor again. With DoorBird you are on the move and yet at home, even if a burglar rings at the door to check if someone is at home

Smart Home Starts At The Front Door

DoorBird is the smart solution for your house entrance. Simply connect your DoorBird IP Video Door Station to your smartphone and talk to your visitor – anywhere you are. The IP Video Door Station can be used as a stand-alone unit or can be integrated into an existing Smart Home platform. Even existing classic installations such as an electric door opener can still be used and controlled via the DoorBird App.

Quality Made In Germany

All DoorBird products are designed, developed and produced by Bird Home Automation Group in Berlin, Germany. We manufacture all products with the greatest care and precision, and deliver them to our customers all over the world.

Front cover	3 mm (0.12 in) For further materials and colours see material board and Online Shop.
Mounting	Flush or surface mount, Mounting backing case available separately
Power supply	15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
Display Module	3.5“ LCD (no touch function), illuminated, for the display of a 2-line free text and the name directory (max. 500 entries)
Keypad Module	16 keys, illuminated, configurable via App, e.g. • Individual PIN codes • Individual events (e.g. switch a relay, push notification, SIP call [audio/ video], HTTP(s) request) • Individual schedules • Up to 500 PIN codes manageable
Weight	2180 g
Connections	• RJ45, for LAN/PoE • Bistable latching relay #1, max. 24 V DC / AC, 1 Ampere, e.g. for electric door opener • Bistable latching relay #2, max. 24 V DC / AC, 1 Ampere, e.g. for electric door opener • External input for external door opener button • 15 V DC input (+, -), max. 15 W • Relays can be expanded / detached with DoorBird I/O Door Controller
Protection class	IP65, IK08
Approvals	CE, FCC, IC, UKCA, RoHS, REACH, WEEE, IEC/EN 62368, IEC/EN 62471
Dimensions	256 x 275.25 x 48.75 mm (H x W x D) 10.08 x 10.13 x 1.92 in (H x W x D)
Operating conditions	-25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing)
Scope of delivery	1x Main Electrical Unit 1x Front panel 1x RFID key fob 1x Screwdriver 1x Quickstart guide with Digital Passport 1x Installation manual 1x Small parts
