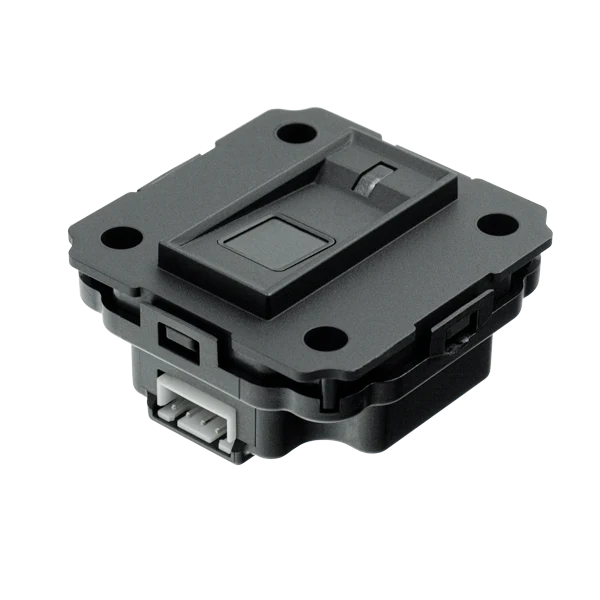

Doorbird Fingerprint Reader Module 50 for Doorbird D11X And D21X

Doorbird Fingerprint Reader Module 50 for Doorbird D11X And D21X (423872325)

DoorBird cooperates only with the best of its class: Our fingerprint reader is equipped with the technology of Fingerprint Cards AB (Fingerprints) – the world’s leading biometrics company, with its roots in Sweden. Fingerprints technology is found in hundreds of millions of devices and applications, and is used billions of times every day, providing safe and convenient identification and authentication with a human touch.

Features

• Touch sensor
• Configurable via App or web-based dashboard
• Status LED (RGB)
• Fully integrated into DoorBird IP Video Door Stations
• 1,000 times more secure than a 4-digit keypad PIN code
• Manipulation prevention system
• Event history with time stamp
• No more misplaced, forgotten, lost or stolen keys possible
• No unauthorized use of PIN codes or RFID key fobs possible, a fingerprint is unique per person
• Personalized time frames and actions
• Supported number of fingerprints (template storage): 50
• Compatible with DoorBird IP Video Door Stations of the D21x and D11x series



Fingerprint Reader Module 50	Configurable via App Individual events (e.g. switch a relay, HTTP(s) request)  Individual schedules 50 fingerprints manageable Event history   Multicolored Status LED (RGB) Normal mode: Green + success sound: successfully authenticated Red + error sound: unrecognized fingerprint (e.g. unknown fingerprint or wet touch sensor field - dry it with a tissue) Pink: Manipulation prevention (too many failed attempts, locked out for min. 30 seconds) Enrollment mode: Blue: wait for finger to touch Green + no sound: scan step successful Green + success sound: entire scan step successful (enrollment done) LED goes off: Timeout during enrollment  Start-up mode: Yellow: Hardware test successful Red: Hardware test not successful (broken)
Weight	350 g
Dimensions	49,3 x 50,3 x 24,5 mm (H x W x D) 1.94 x 1.98 x 0.96 in (H x W x D)
Operating conditions	-25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing)
Scope of delivery	1x Fingerprint Reader Module 50 2x sealing gasket for mounting on front panel (2 and 3 mm)
