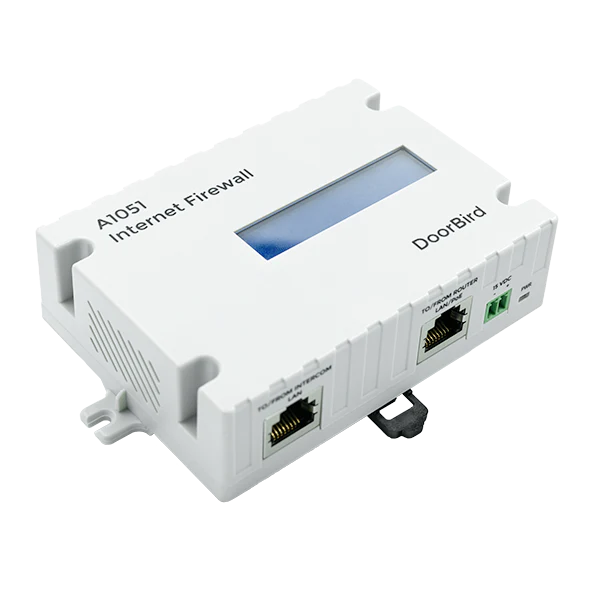

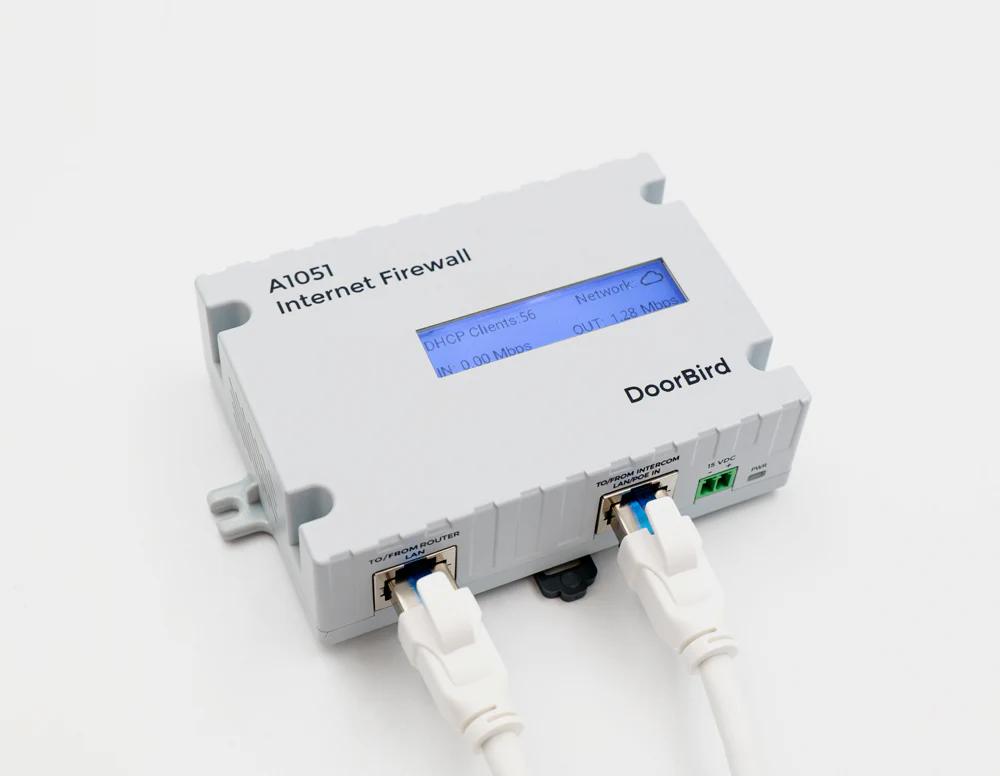

DoorBird Internet Firewall A1051 (423872103)
Effective protection for your building network
(GTIN/EAN: 4260423872103, P/N: 423872103)
The DoorBird A1051 Internet Firewall effectively protects your internal door
communication network from unauthorized access from inside and outside.

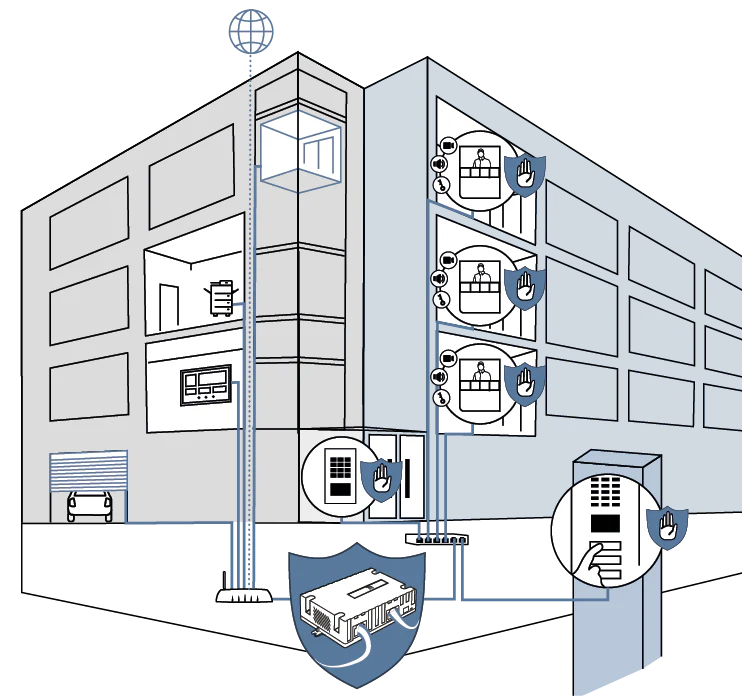

The product can be easily installed on site between the internet router and the
network cabling for your DoorBird door communication system. It is preconfigured
and instantly ready for use (plug & play). The Internet Firewall filters traffic and
only allows DoorBird door communication products to connect to the network.
Attackers attempting to use the network connection of the door station or the
indoor stations are securely blocked from gaining access to the internet.
Features
- Effective protection against network attackers from the outside and the inside
- Easy installation and configuration
- Integrated status display
- Compatible with smart home systems
- Flexibly adaptable to individual network requirements (IP whitelist)
| Dimensions |
|
| Power supply |
15 V DC or Power over Ethernet (PoE IEEE 802.3 af or higher) Note: PoE switch, PoE injector, or network adapter not included in scope of delivery |
| Power consumption | 1 W |
| Operating conditions | 0°C to +55°C / 32°F to 131°F Relative air humidity 0 % to 85 % (non-condensing) |
| Protection class | IP 30 |
| Mounting |
|
| Certification | CE, FCC, IC, RoHS, WEEE, UKCA |
| Connections & interface | 2× RJ45 port (10/100 Base-T)
|
| Display | LCD status display
|
| Functions |
Network filter: Actively filters network traffic and blocks unauthorized access DHCP server: Integrated DHCP server (10.223.x.x), up to 1,000 devices IP whitelist: Approval of IP addresses or domains, such as for control functions of smart home systems |
| System requirements |
Mobile devices: Latest iOS on iPhone/iPad, latest Android on smartphone/tablet Internet: High-speed landline Broadband internet connection, DSL, cable or glass fiber, no SOCKS or proxy server Network: Ethernet network with DHCP Compatible with all DoorBird IP video door stations and DoorBird peripheral devices |
| Scope of delivery |
|
| Weight | 155 g |
| EAN | 4260423872103 |
| Recommended accessories | Power adapter: (GTIN/EAN: 4260423867314, P/N: 423867314) |
| Datasheet |
| App User Manual |
