Original: $436.99
-65%$436.99
$152.95The Story

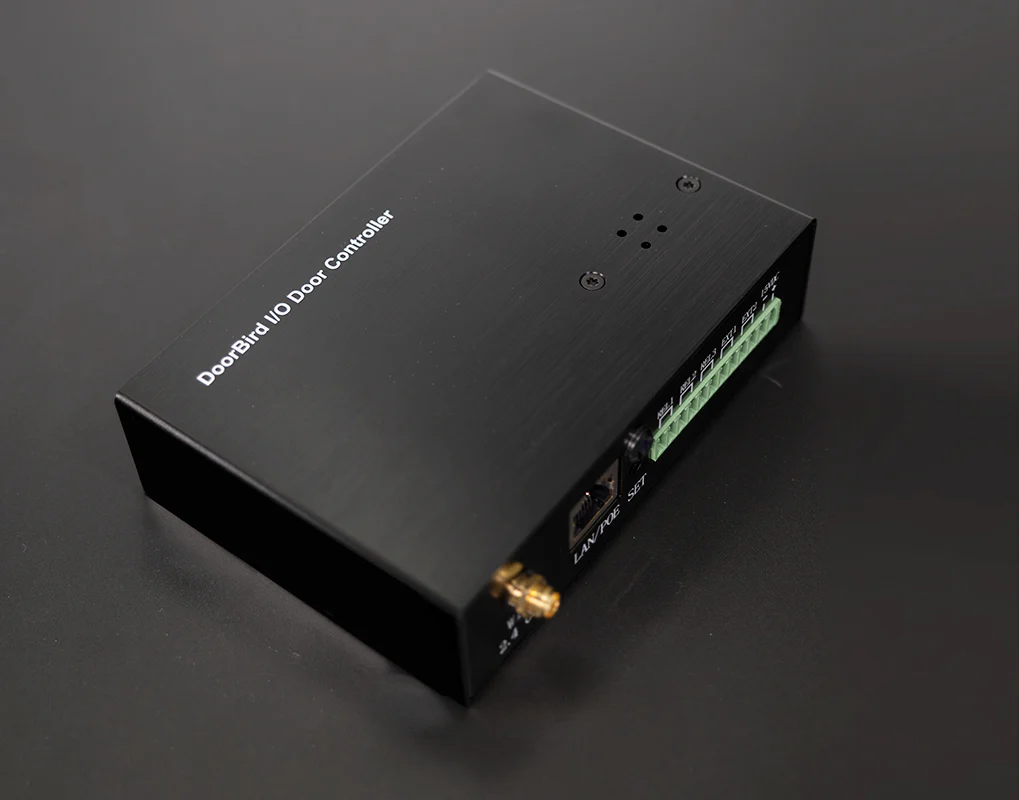

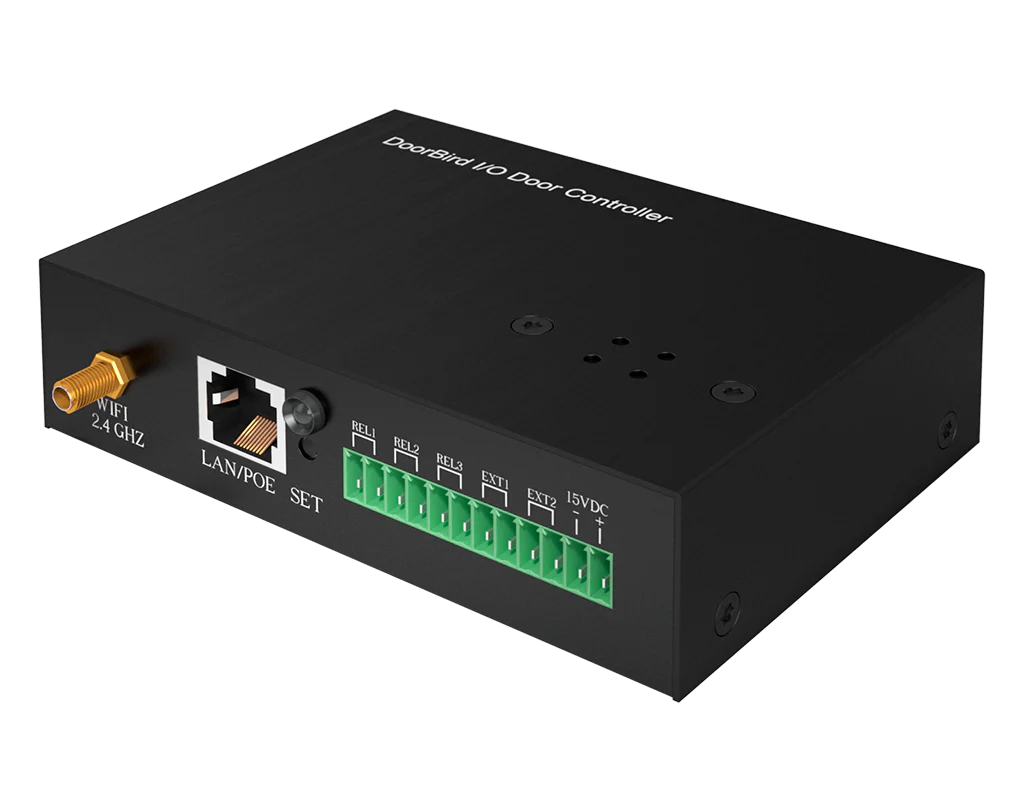

DoorBird IP I/O Door Controller A1081 (423860346)
For tamperproof control of up to 3 doors or gates
(GTIN/EAN: 4260423860346, P/N: 423860346)
Highlights
- Supports WiFi, Ethernet, PoE
- Encryption based on banking standards
- Monitoring of 2 external sensors
- 3 freely configurable, bistable switching relays
- Mounting on walls, ceilings and in control cabinets
Features
- Tamperproof control of up to three doors or gates
- Encryption based on banking standard
- Monitoring of two external sensors
- Three freely configurable, bi-stable switching relays (permanently open, permanently closed, toggle)
- The switching relays keep their state even in the case of loss of power
- Wireless network, Ethernet, PoE
- Alarm notification via push notification on smartphone and tablet
- Can be mounted on walls, ceilings or in control cabinets
| Dimensions | 122 x 86 x 32 mm (L x W x H) 4.8 x 3.39 x 1.26 in (L x W x H) |
| Power supply | 15 V DC or power over Ethernet (PoE 802.3af mode A) |
| Operating conditions | -5 to 55°C / -23 to 131°F Humidity 10 to 85 % RH (non condensing) |
| Connectors | SMA, RJ45 (10/100 Base-T) for LAN/PoE, 12-pin screw terminal for • 15 V DC input (+, -) • Bi-stable latching relay #1, max. 24 V DC / AC, 1 Ampere • Bi-stable latching relay #2, max. 24 V DC / AC, 1 Ampere • Bi-stable latching relay #3, max. 24 V DC / AC, 1 Ampere • External input 1 (potential-free) • External input 2 (potential-free) |
| WiFi |
2.4 GHz, 802.11 b/g/n, external antenna |
| PoE | IEEE 802.3 af/at (Mode-A) |
| System requirements |
Mobile end device: latest iOS on iPhone/iPad, latest Android on smartphone/tablet Internet: High-speed landline broadband Internet connection, DSL, cable or fiber, no socks or proxy server Network: 802.11 b/g/n 2.4 GHz or Ethernet Network, with DHCP Compatible with all DoorBird IP Video Door Stations. |
| Scope of delivery |
1 x I/O Door Controller 1 x Network Cable 1 x Power supply unit (mains adaptor) with four country-specific adaptors (110 - 240 V AC to 15 V DC) 1 x DIN-Rail adapter 1 x Drilling template 1 x Small parts 1 x Installation manual |
| Approvals |
CE, FCC, UL, RoHS, IP50 |
| Weather-proof |
No |
| Weight |
174 g |
| DoorBird Brochure |
| Data Sheet |
| App User Manual |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
DoorBird IP I/O Door Controller A1081 (423860346)
For tamperproof control of up to 3 doors or gates
(GTIN/EAN: 4260423860346, P/N: 423860346)
Highlights
- Supports WiFi, Ethernet, PoE
- Encryption based on banking standards
- Monitoring of 2 external sensors
- 3 freely configurable, bistable switching relays
- Mounting on walls, ceilings and in control cabinets
Features
- Tamperproof control of up to three doors or gates
- Encryption based on banking standard
- Monitoring of two external sensors
- Three freely configurable, bi-stable switching relays (permanently open, permanently closed, toggle)
- The switching relays keep their state even in the case of loss of power
- Wireless network, Ethernet, PoE
- Alarm notification via push notification on smartphone and tablet
- Can be mounted on walls, ceilings or in control cabinets
| Dimensions | 122 x 86 x 32 mm (L x W x H) 4.8 x 3.39 x 1.26 in (L x W x H) |
| Power supply | 15 V DC or power over Ethernet (PoE 802.3af mode A) |
| Operating conditions | -5 to 55°C / -23 to 131°F Humidity 10 to 85 % RH (non condensing) |
| Connectors | SMA, RJ45 (10/100 Base-T) for LAN/PoE, 12-pin screw terminal for • 15 V DC input (+, -) • Bi-stable latching relay #1, max. 24 V DC / AC, 1 Ampere • Bi-stable latching relay #2, max. 24 V DC / AC, 1 Ampere • Bi-stable latching relay #3, max. 24 V DC / AC, 1 Ampere • External input 1 (potential-free) • External input 2 (potential-free) |
| WiFi |
2.4 GHz, 802.11 b/g/n, external antenna |
| PoE | IEEE 802.3 af/at (Mode-A) |
| System requirements |
Mobile end device: latest iOS on iPhone/iPad, latest Android on smartphone/tablet Internet: High-speed landline broadband Internet connection, DSL, cable or fiber, no socks or proxy server Network: 802.11 b/g/n 2.4 GHz or Ethernet Network, with DHCP Compatible with all DoorBird IP Video Door Stations. |
| Scope of delivery |
1 x I/O Door Controller 1 x Network Cable 1 x Power supply unit (mains adaptor) with four country-specific adaptors (110 - 240 V AC to 15 V DC) 1 x DIN-Rail adapter 1 x Drilling template 1 x Small parts 1 x Installation manual |
| Approvals |
CE, FCC, UL, RoHS, IP50 |
| Weather-proof |
No |
| Weight |
174 g |
| DoorBird Brochure |
| Data Sheet |
| App User Manual |
