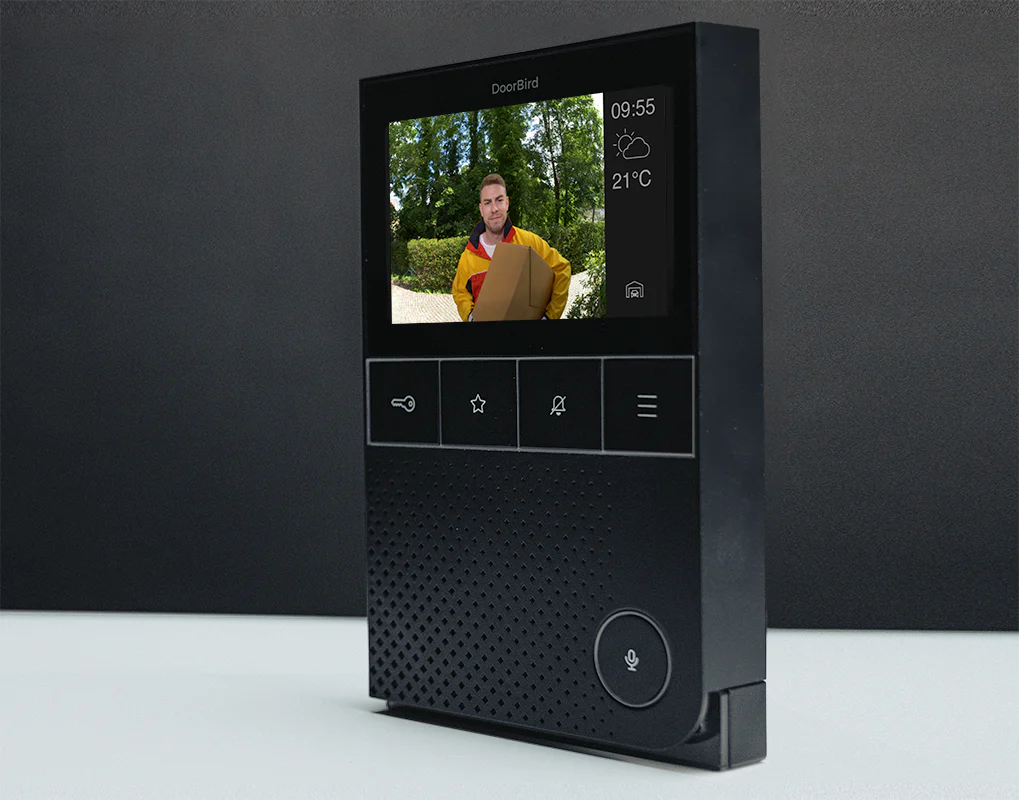

DoorBird A1101 IP Video Indoor Station in Black

DoorBird A1101 IP Video Indoor Station in Black

For door communication in single-family residences and apartment buildings

Polycarbonate, black
(GTIN/EAN: 4260423872677, P/N: 423872677)

Highlights

• WiFi / LAN connection (PoE capable)
• 4“ True Color Touch Display
• 2-way HD Audio, up to 102 dB
• Room to room communication
• SIP support
• Home and building automation control
• 3 freely configurable bistable switching relays

Features

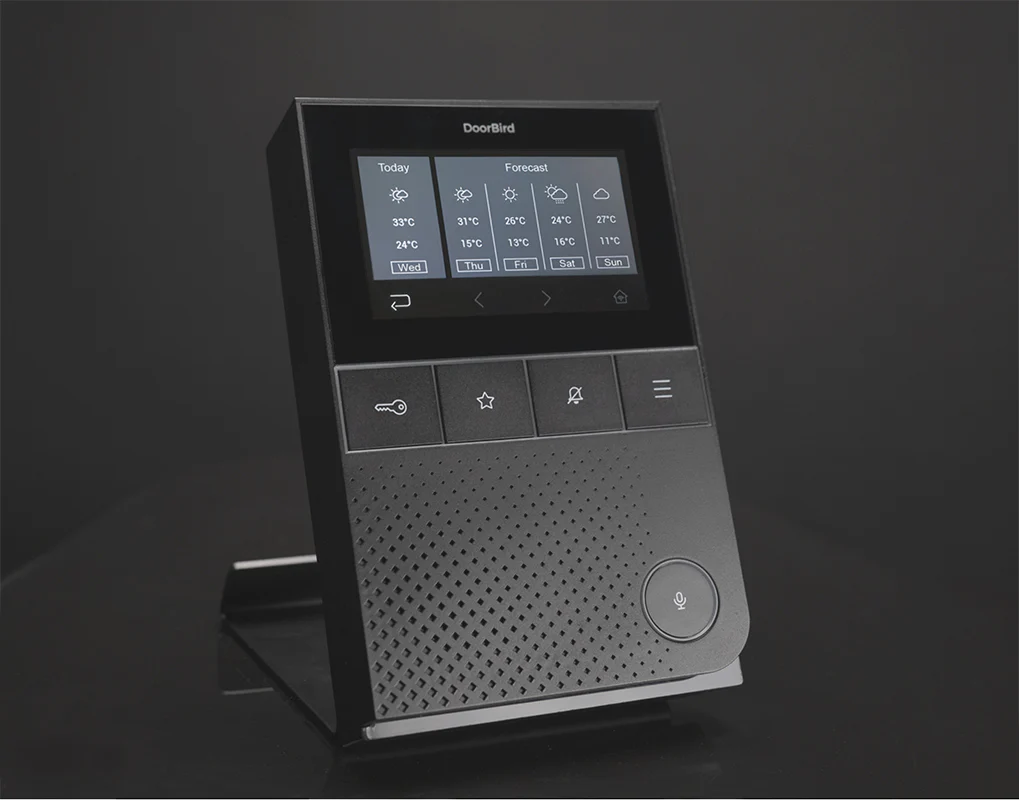

• Benefits via IP : Door opener and elevator control, Visitor history (free Cloud Recording), Room to room communication when using several Indoor Stations, SIP support, e.g. for concierge or facility manager calls, Weather forecast display, Home and building automation control (IP, TCP, HTTPS, relays etc.) and Configurable via the DoorBird App worldwide

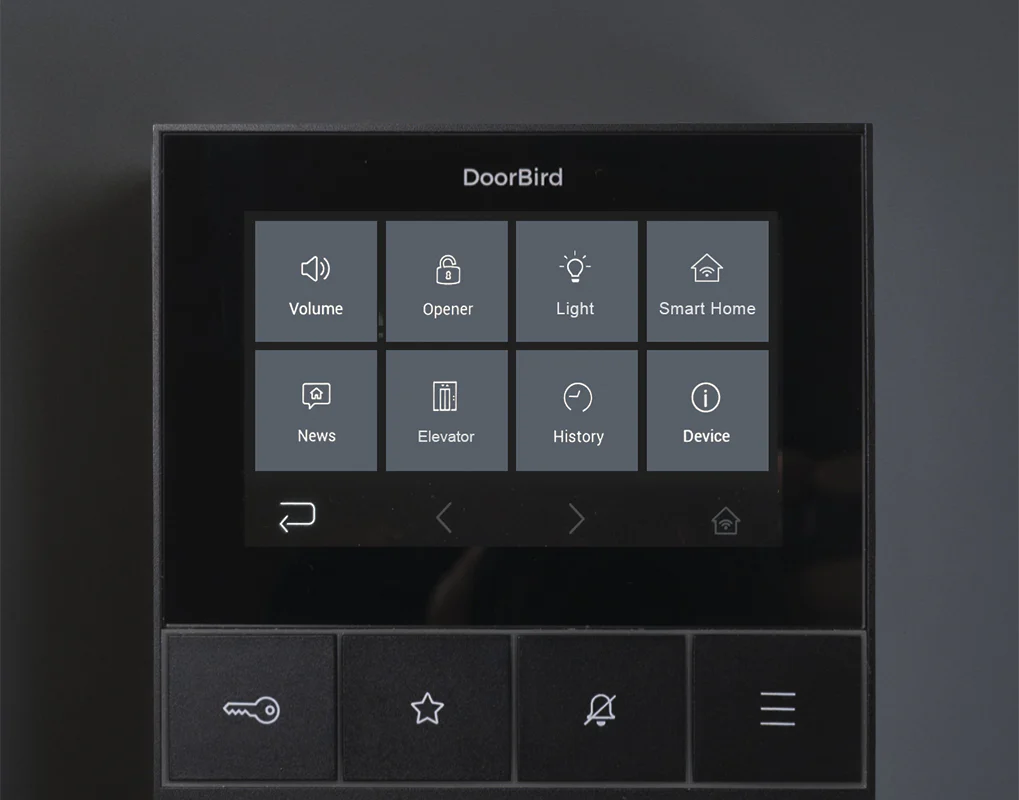

• Intuitive User Interface: 4“ True Color Touch Display, and Scratch-resistant tempered Gorilla® glass
• Two-way Audio Communication: HD Audio, up to 102 dB, and More than 50 doorbell sounds available
• Compact Housing: 5 hardware buttons for main functions, and Configurable RGB LED status bar
• WiFi enabled: Works within a WiFi network, Connection via POE or Ethernet possible
• Further Options: Automatic door opening system, e.g. for offices

Material	Polycarbonate, white Available in white and black
Mounting type	Surface-mounted, Table Stand ”A8003“ sold separately
Power supply	15 - 48 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
Weight	430g
Connectors	• LAN/PoE (T+, T-, R+, R-) • Digital input (0 V, 0 A (NO)) #1,  e.g. for storey-call button • Digital input (0 V, 0 A (NO)) #2,  e.g. for second storey-call button • Bi-stable latching relay #1, max. 24 V DC / AC, 1 Ampere,  e.g. for electric door opener or  elevator • Bi-stable latching relay # 2, max. 24 V DC / AC, 1 Ampere,  e.g. for electric door opener or elevator • Bi-stable latching relay # 3, max. 24 V DC / AC, 1 Ampere,  e.g. for electric door opener or elevator • 15 - 48 V DC input (+, -), max. 15
Power consumptions	5W
Power consumptions	CE, FCC, IC, RoHS, IP50
Dimensions	179.5 x 115 x 25 mm (H x W x D) 7.07 x 4.53 x 0.98 in (H x W x D)
Operating conditions	0 to +55°C / 32 to 131°F Humidity 0 % to 85 % (non condensing)
Scope of delivery	1x IP Video Indoor Station 1x Mounting bracket 1x RJ45 Adapter 1x Power supply unit (main adaptor)  with up to four country-specific adaptors  (100 - 240 V AC to 15 V DC) 1x Quickstart guide with Digital Passport 1x Installation manual 1x Small parts
