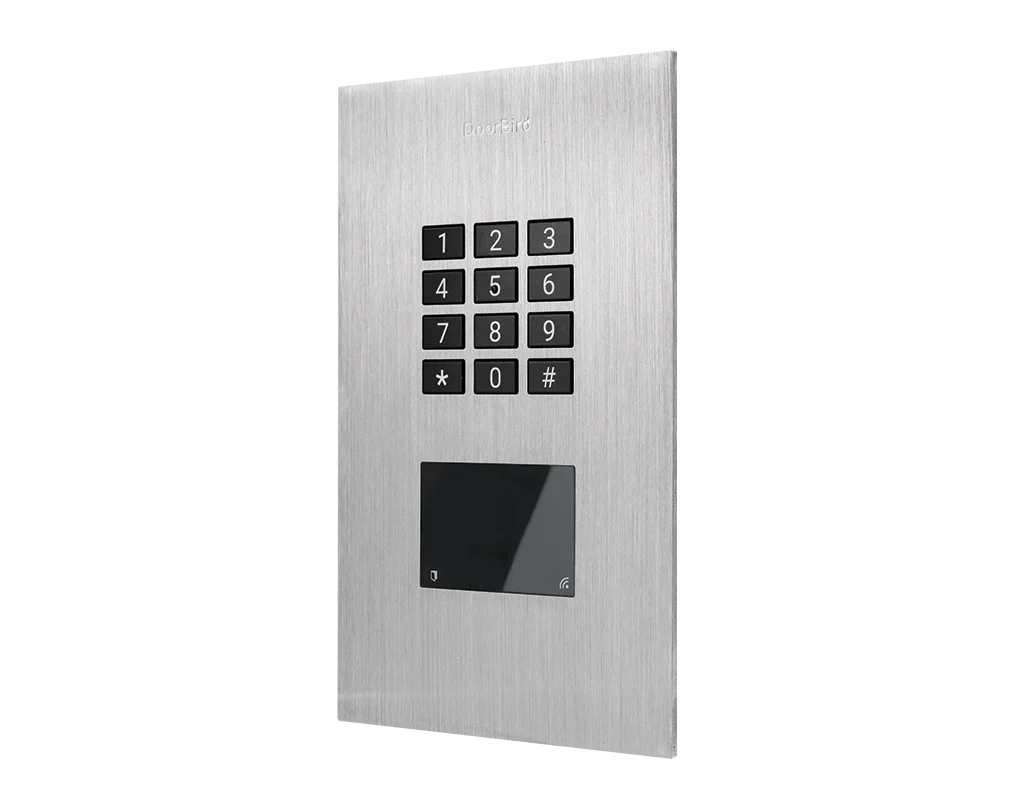

DoorBird A1121 Retrofit IP Access Control Device in Stainless Steel V4A

DoorBird A1121 Retrofit IP Access Control Device in Stainless Steel V4A

Multi-technology access control system and stand-alone solution for back and side doors, garages, storage and packing rooms, bicycle and machine rooms

Stainless steel V4A (salt-water and grinding dust resistant), brushed
(GTIN/EAN: 4260423872097, P/N: 423872097)

Highlights

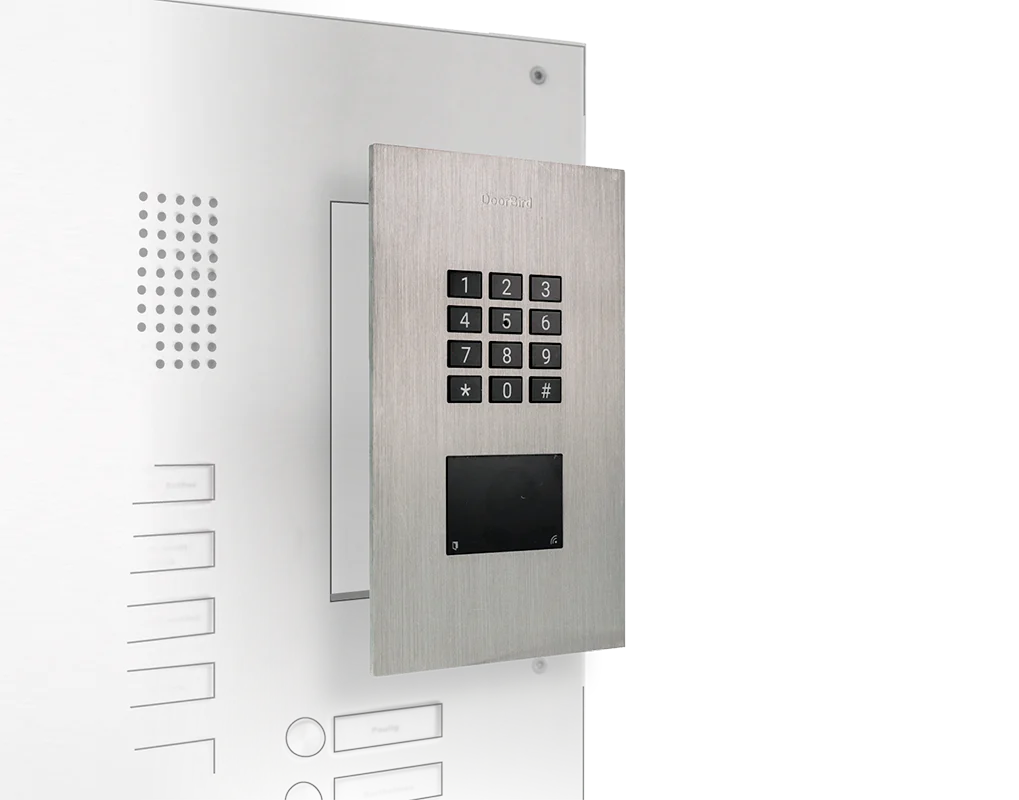

• For retrofit installations with existing front panel
• WiFi / LAN connection (PoE capable)
• Keypad
• 125 KHz and 13.56 MHz RFID reader
• Tamper sensor
• Wiegand interface
• 2 freely configurable bistable switching relays

Features

• Three separate access control devices combined:
  Keypad
  RFID Reader
  Bluetooth low Energy (BLE)
• Keypad Module
  Configurable via App
  Up to 500 individual PIN codes
  Individual events (e.g. trigger a relay, HTTP(s) request)
• RFID sensor
  125 KHz
  13.56 MHZ
• Bluetooth low Energy (BLE) - For access control, compatible external sensors and smart locks
• WiFi-capable
• Two freely configurable bistable switching relay
• Wiegand interface
• Manipulation sensor

Front panel	3 mm (0.12 in) For further materials and colours see material board and Online Shop.
Mounting type	Retrofit Version. Surface-mounted and flush-mounted version sold separately
Power supply	15 - 48 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
Keypad module	12 keys, illuminated, configurable via App, e.g. Individual PIN codes Individual events (e.g. switch a relay, HTTP(s) request) Individual schedules Up to 500 PIN codes manageable
Tamper Sensor	Integrated
Weight	515 g
Connectors	LAN/PoE (T+, T-, R+, R-)  2 x Bistable latching relay (potential-free), max. 1-24 V DC/AC, 1 A, e.g. for electric door opener 15 – 48 V DC input (+, -), max. 15 W  Wiegand
Weatherproof	Yes, IP65
Approvals	IP65, CE, FCC, IC, RoHS, REACH, IEC/EN 62368
Dimensions	168 x 102 x 28 mm (H x W x D) 6.61 x 4.01 x 1.10 in (H x W x D
Operating conditions	-25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing)
Scope of delivery	1x Main Electrical Unit 1x Front panel 1x Power supply unit (mains adaptor) with up to 4 country-specific outlet adaptors (110 - 240 V AC to 15 V DC) 1x RJ45 adapter 1x Screwdriver 1x Quickstart guide with Digital Passport 1x Installation manual 1x Small parts
