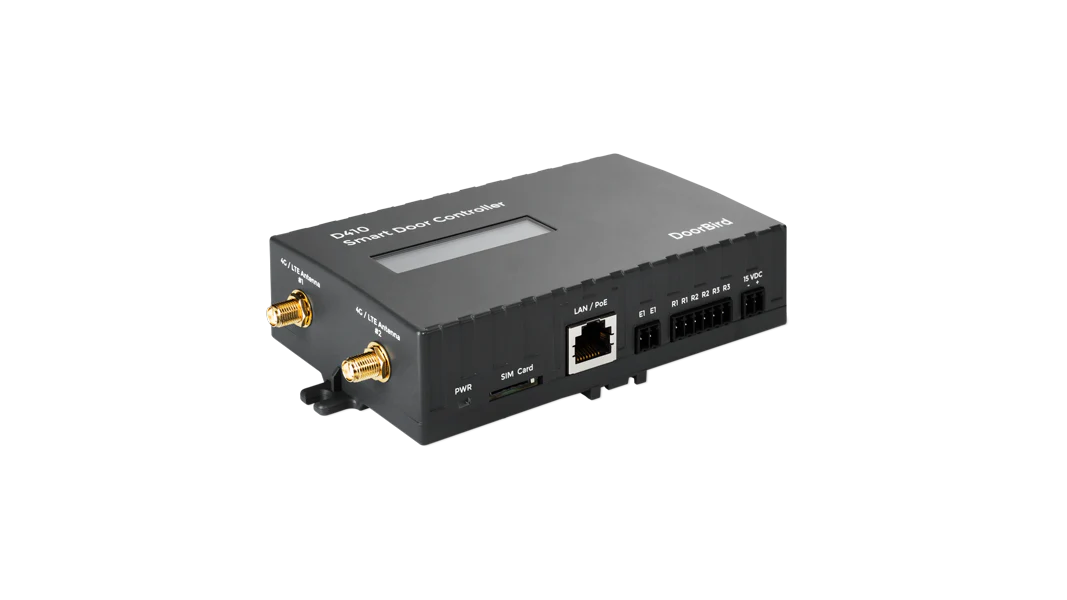

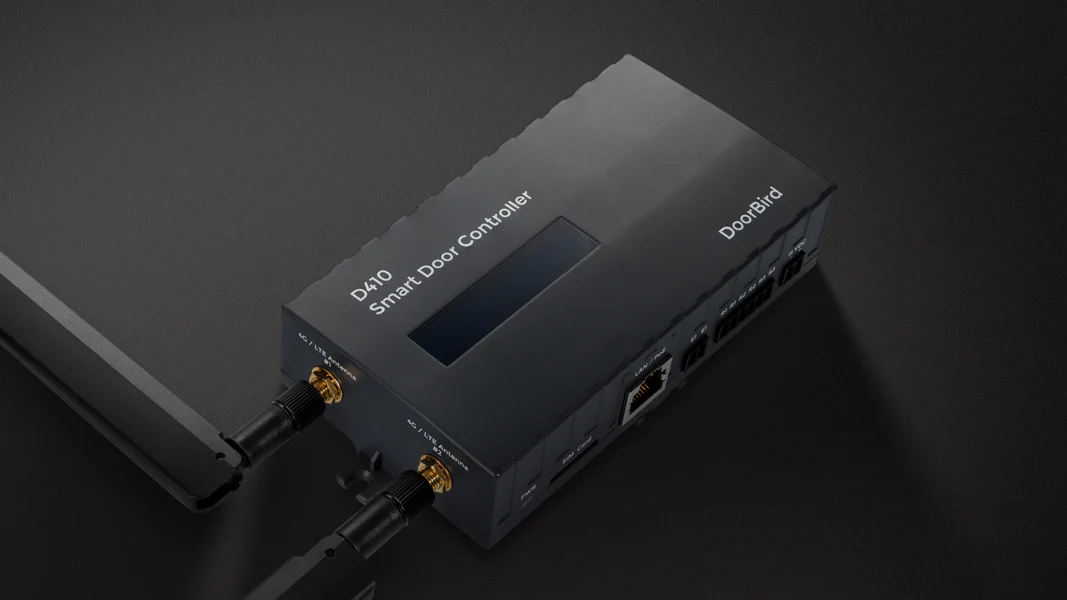

DoorBird Smart Door Controller LTE/4G I/O Control Device

DoorBird Smart Door Controller D410 LTE/4G I/O Control Device

LTE/4G I/O Control Device
(GTIN/EAN: 4260423898257, P/N: 423898257)

Features

• Upgrade of existing doorbell and intercom systems
• Access Control via DoorBird App and A8007 Bluetooth Keyfob remote
• Easy installation and setup for existing properties and new construction
• Increased security through encrypted communication
• Quick and easy management via mobile device and/or web browser
• Management of permissions and authorizations in real time
• Full key control and maximum flexibility
• Tested for EU countries, United Kingdom, Norway, Switzerland, North America (AT&T and T-Mobile with data only SIM plan)
• Access Control and much more - via DoorBird App and A8007 Bluetooth Keyfob Remote

• Upgrade of existing doorbell and intercom systems - Easy installation and setup via app
• LTE/4G Internet - No additional network cabling necessary
  Micro SIM with 1GB data rate monthly recommended
• High level of security through encrypted communication - Encryption according to banking standard
• Quick and easy remote management via app and web - Permissions and authorization individually configurable
  Full key control and maximum flexibility
  No written records necessary
  Conventional keys can continue to be used
• 3x relays / 1x input - Programming of individual actions and follow-up actions
  Opening of doors, gates, and barriers
  Control of light and elevator and much more
• Compatible with Bluetooth Keyfob Remote control A8007, I/O door controller A1081

Dimensions	130 x 71,40 x 34,20 mm (H x W x D) 5.12 x 2.81 x 1.35 in (H x W x D)
Power supply	15 V DC or Power over Ethernet (PoE IEEE 802.3 af or higher)
Power consumption	2 W
Operating conditions	0°C to +55°C / 32°F to 131°F Relative air humidity 0% to 85% (non-condensing)
Protection class	IP 30
Mounting	Top-hat rail / DIN rail  Wall mounting
Approvals	CE, FCC, IC, RoHS, WEEE, UKCA

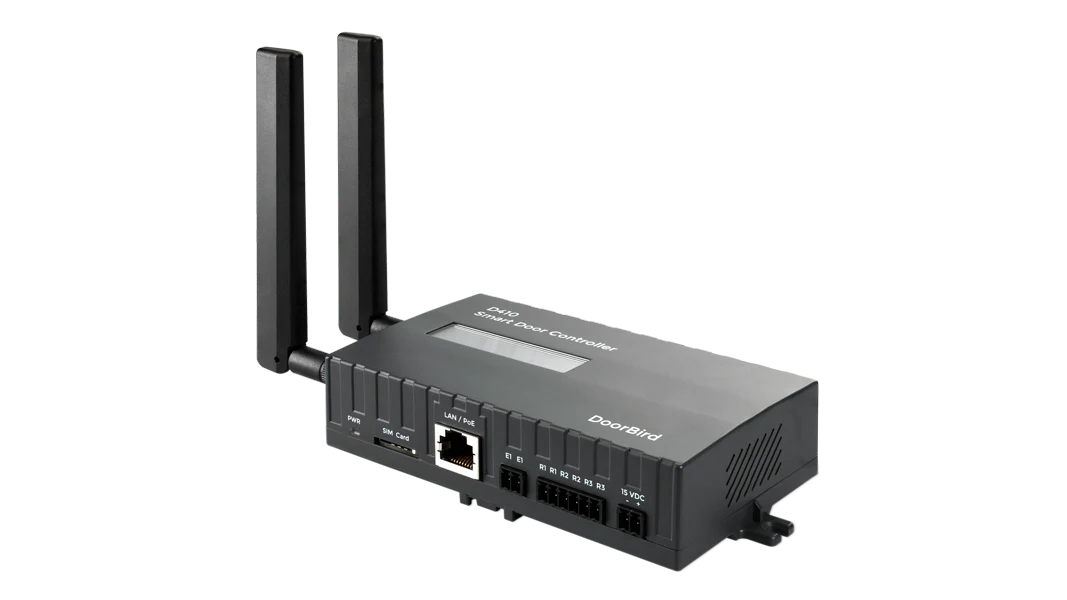

Connectors & interface	2x SMA connectors for antennas Micro SD slot for SIM card (SIM Card not included) RJ45 port LAN/PoE (10/100 Base-T)  3x screw terminal connection sockets ̵Input E1 ̵Relay R1, R2, R3 (bistable switching relay, max. 24V DC/AC, 1A) ̵15 V DC input (-/+)

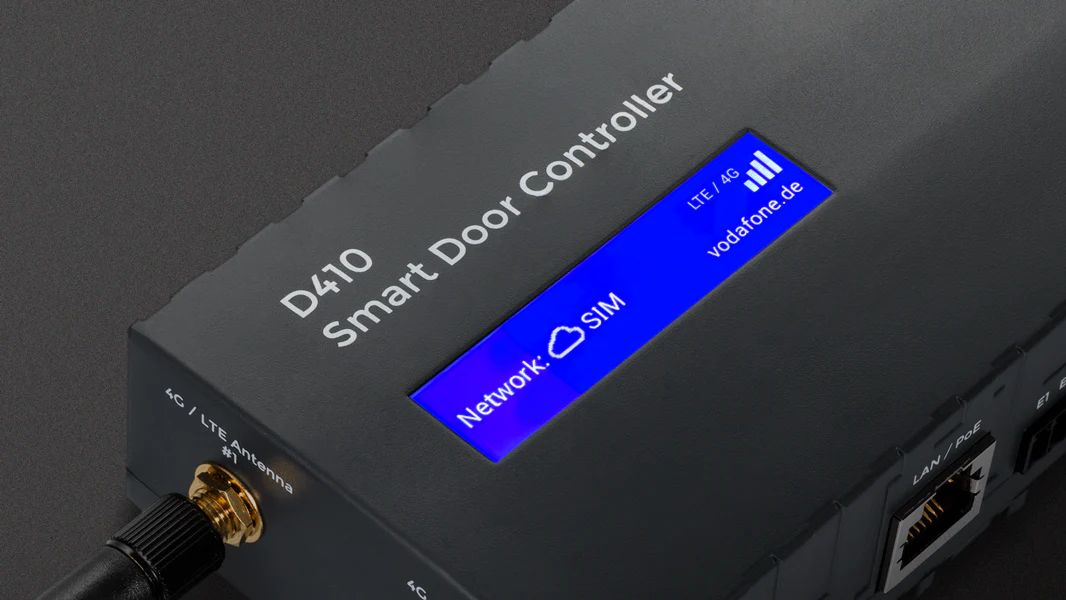

Display	LCD status display Backlight (blue) Network status indicator PWR LED
LTE/4G	Quectel LTE EM05-G category 4 modem FDD band B1/B2/B3/B4/B5/B7/B8/ B12/B13/B14/ B18/B19/B20/B25/ B26/B28/B66/B71  TDD band B38/B39/B40/B41 WCDMA band B1/B2/B4/B5/B6/B8/B19  Micro SIM, which is at least enabled for LTE/4G and Internet use Tested for EU countries, United Kingdom, Norway, Switzerland, North America (AT&T and T-Mobile with data only SIM plan
Bluetooth	Bluetooth 5.0 2.4 GHz (compatible with Bluetooth Keyfob Remote Control A8007)
System requirement	Mobile end device: latest iOS on iPhone/iPad, latest Android on smartphone/tablet Internet LTE/4G: Micro SIM Card for LTE/4G or WCDMA/3G and Internet use. Sufficient credit/ data rate (1 GB per month recommended). Your Provider supports IoT devices. Data only SIM plan recommended. USA: AT&T and T-Mobile with data only SIM plan. Device is within the coverage area of your mobile operator
Scope of delivery	1x Smart Door Controller 2x 4G/LTE antenna 1x installation manual 1x Quickstart Guide with Digital Passport 1x Small Parts 1x Power supply unit (mains adapter) with up to four country-specific adapters (110 - 240 V AC to 15 V DC)
Weight	222 g
EAN	4260423898257
