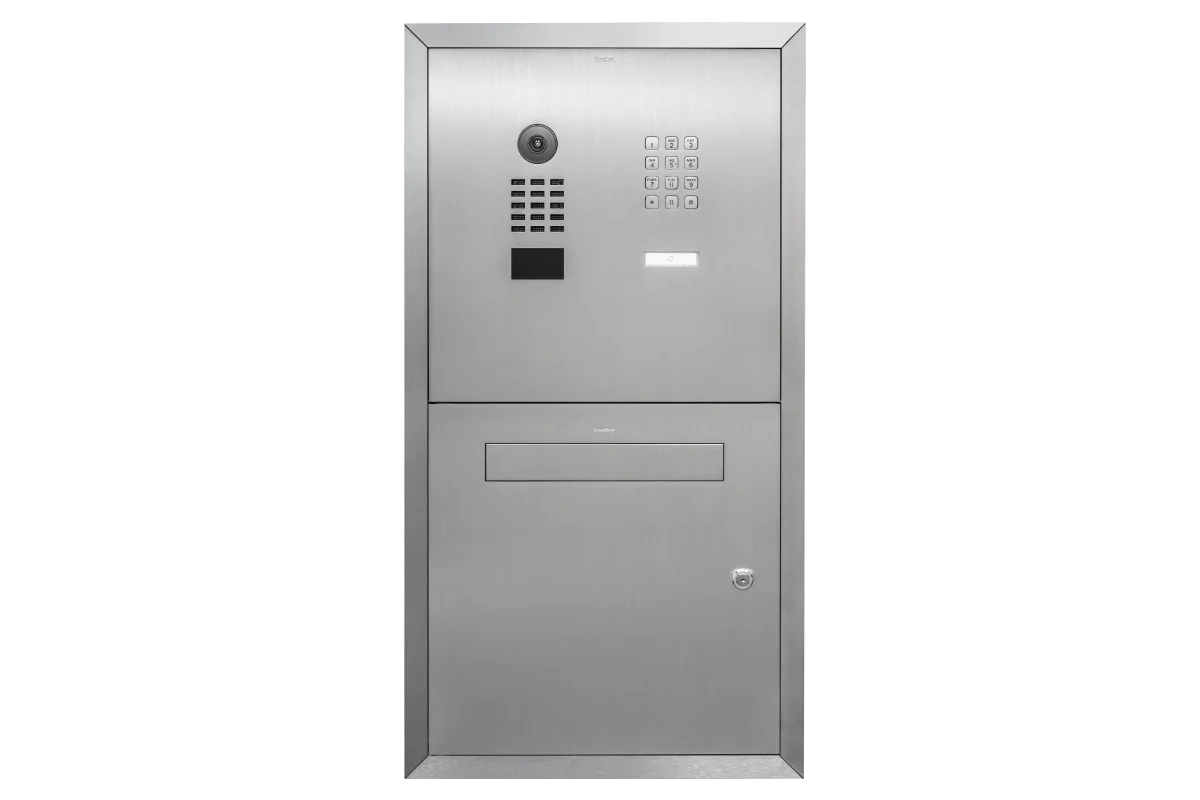

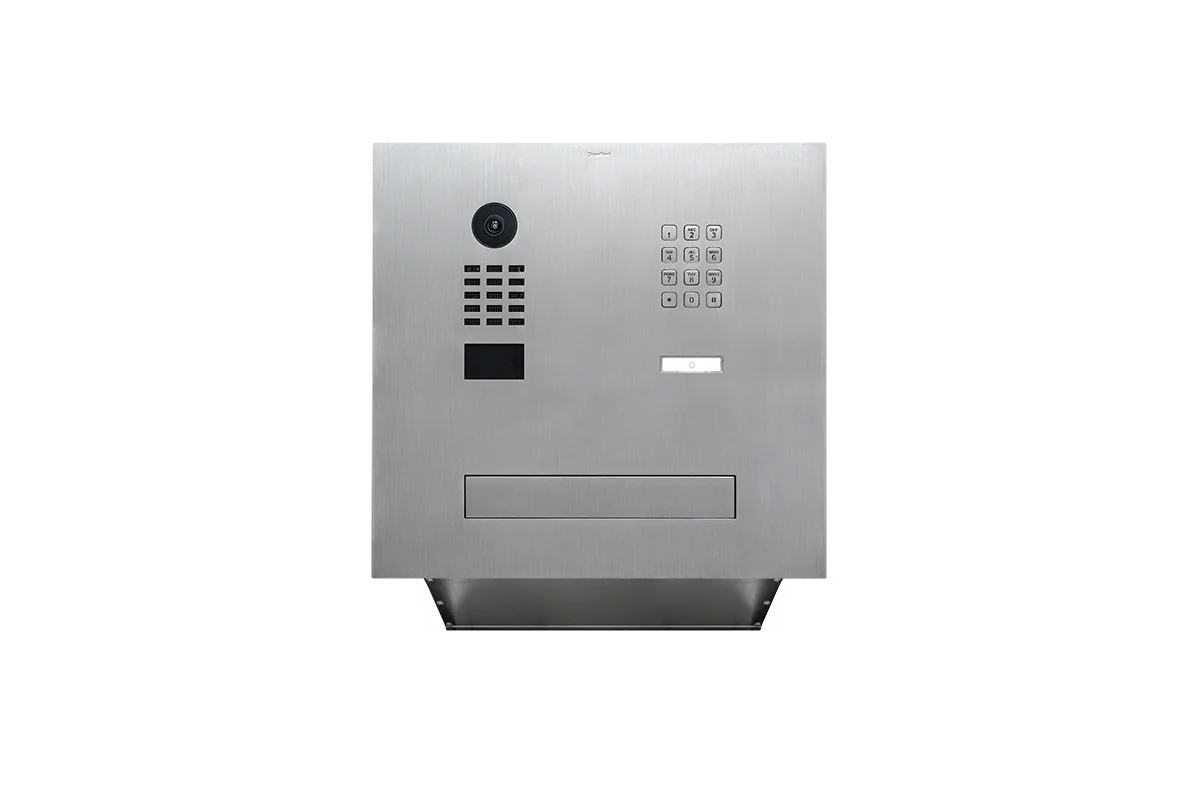

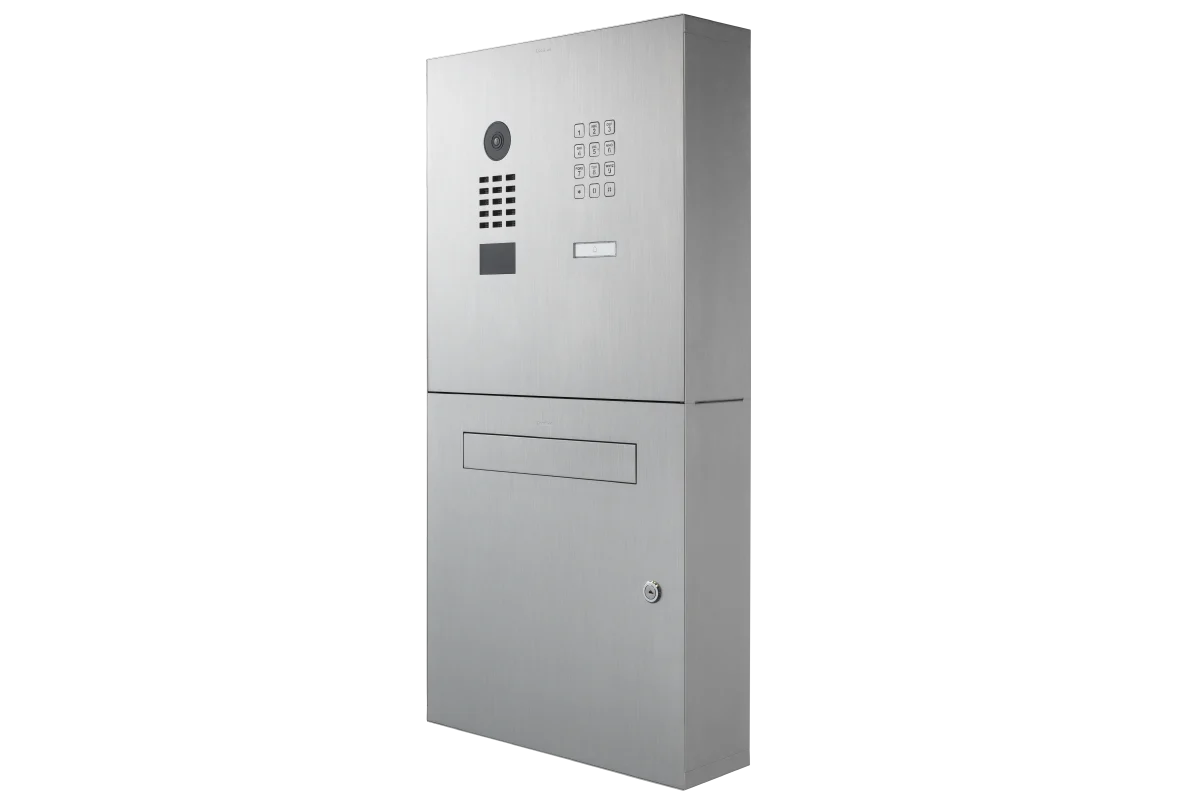

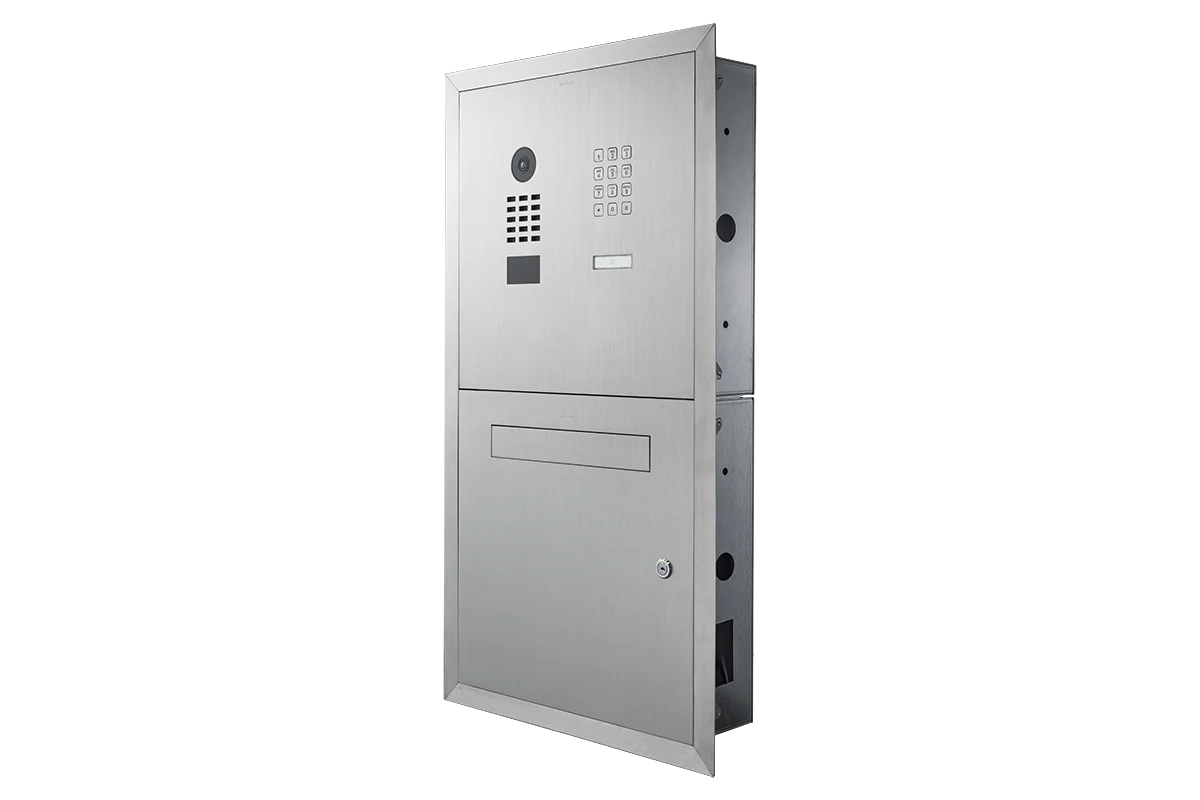

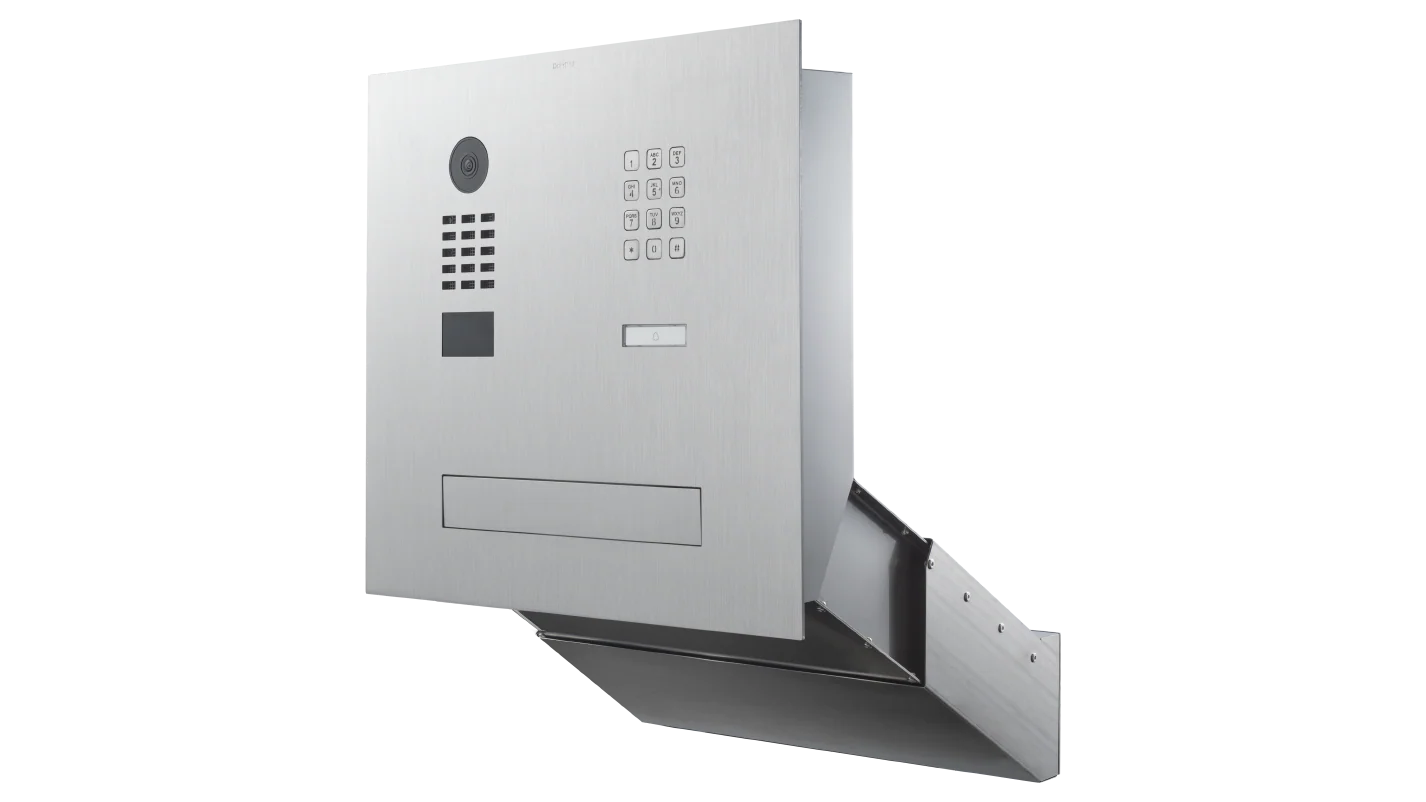

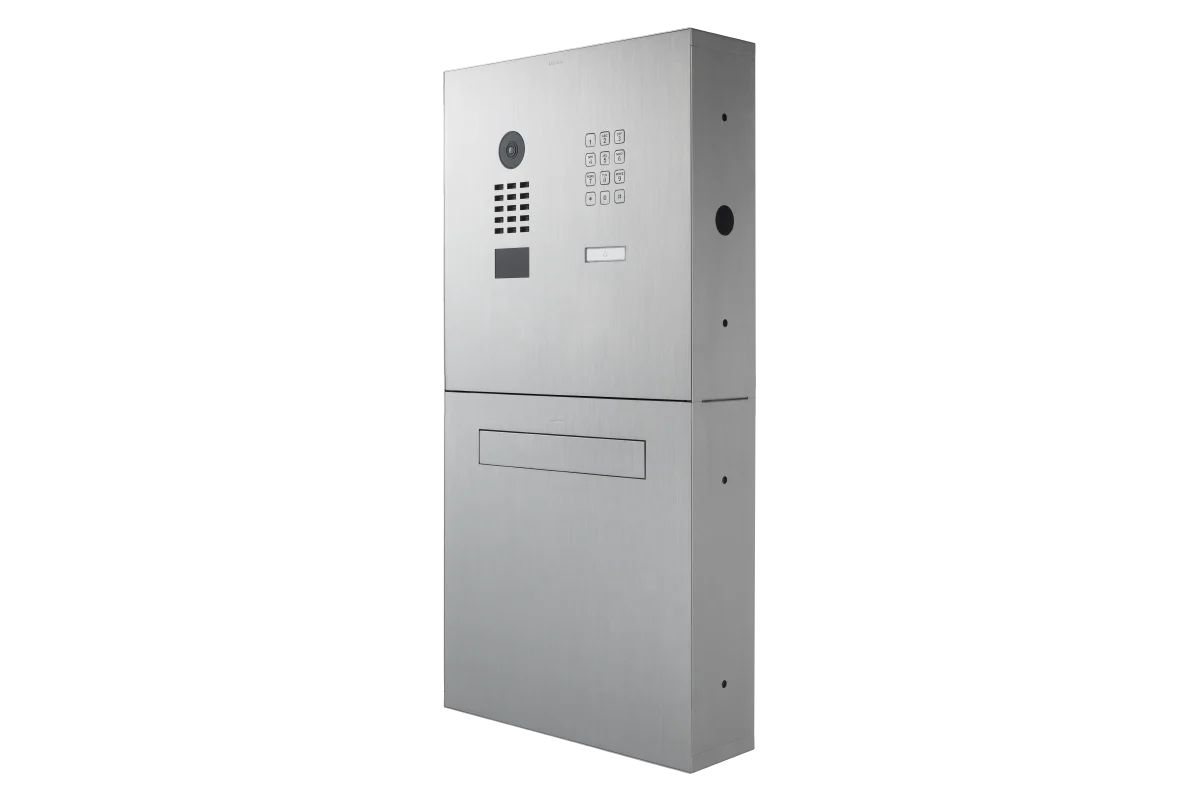

DoorBird Surface-Mounted Letterbox with D2101KH IP Video Door Station, 1 Keypad, 1 Call Button

DoorBird Surface-Mounted Letterbox with D2101KH IP Video Door Station, 1 Keypad, 1 Call Button

Letterbox system with D2101KH IP Video Door Station, 1 keypad, 1 call button
(GTIN/EAN: 4260423900257, P/N: 423900257)

Highlights

• Letterbox flap
• Surface-mounted cover
• Keypad included
• LAN connection (PoE capable)
• 2-way audio
• Ultra-wide angle lens, 720p, night vision, 12 IR LEDs
• 4D motion sensor, RFID reader
• 2 freely configurable bistable switching relay

Features

• Open API - Local interface for integration with third-party systems and SIP
• Video and audio call - On smartphones, tablets (iOS, Android), IP and landline phones (SIP)
• Smart Transmission Mode (STM) - Real-time audio / video communication, optimized for mobile devices via WiFi, 3G, 4G, 5G
• Smart Home & NVR compatible - Control4, Loxone, Crestron, Synology, AVM FRITZ!Fon, URC, QNAP, RTI, ELAN, Fibaro, Bang & Olufsen and others
• Automatic door buzzer - For use in medical offices and office environments
• Free visitor history - Store still images for free, optional video recording available
• Individual action schedules, e.g.: - RFID card “abc” has only access on Wednesday from 9 am until 11 am
  4D motion sensor switches on external lamp between 9 pm and 6 am
• Geofencing - Automatic door and gate opening when returning home
• Night vision - With 12 Infrared LEDs
• HDTV Video - Ultra wide-angle, hemispheric lens, 180°
• Light sensor - For night vision mode
• Microphone - Clear voice transmission
• Noise reduction and echo cancellation (AEC, ANR)
• RFID reader - Configurable remotely via App (e.g. time frame)
• Motion sensor with 4D technology - Distance up to 10 m (32.8 ft) adjustable via App (interval: 1 m/ 3.3 ft)
• Call button - With backlit nameplate
• Easy connection to the network - Connection via a network cable or bell wire via 2-Wire Ethernet PoE Converter “DoorBird A1071” (PoE, network data)
• Two freely configurable bi-stable switching relays
  Two doors or gates can be controlled via App
  Status configurable via App: temporary or permanent circuit
• Keypad Module
  Configurable via App
  Up to 500 individual PIN codes
  Individual events (e.g. trigger a relay, HTTP(s) request)
• Surface-mounted letterbox - with panels
• Material - stainless steel V4A (resistant to saltwater and airborne rust), brushed
• Flap - Flush-mounted letter insertion flap without nameplate
• Surrounding panel
  2x Surrounding panel V4A for surface mounting (single C-profile)
  4x Surrounding panel V4A for surface mounting (single L-profile)
