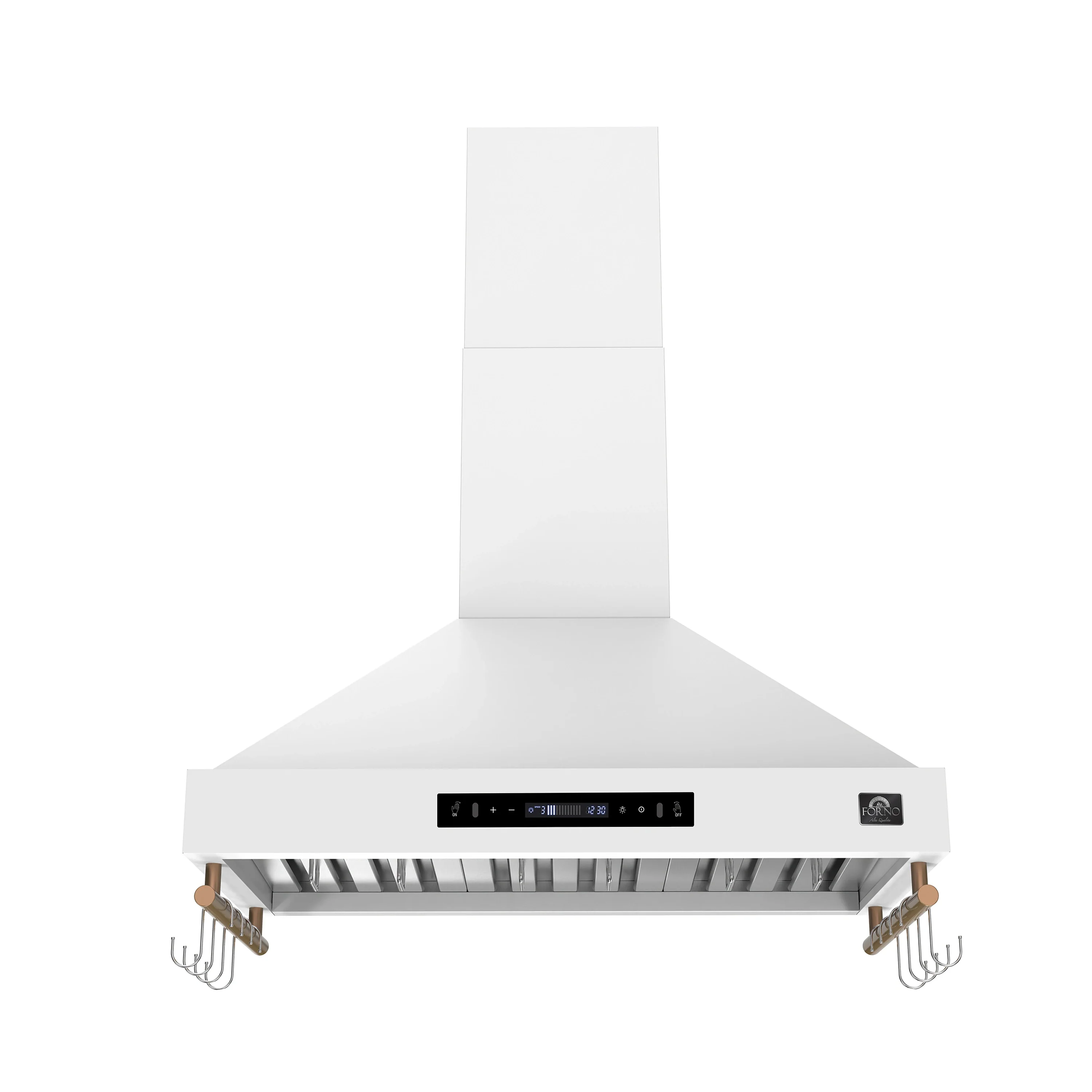

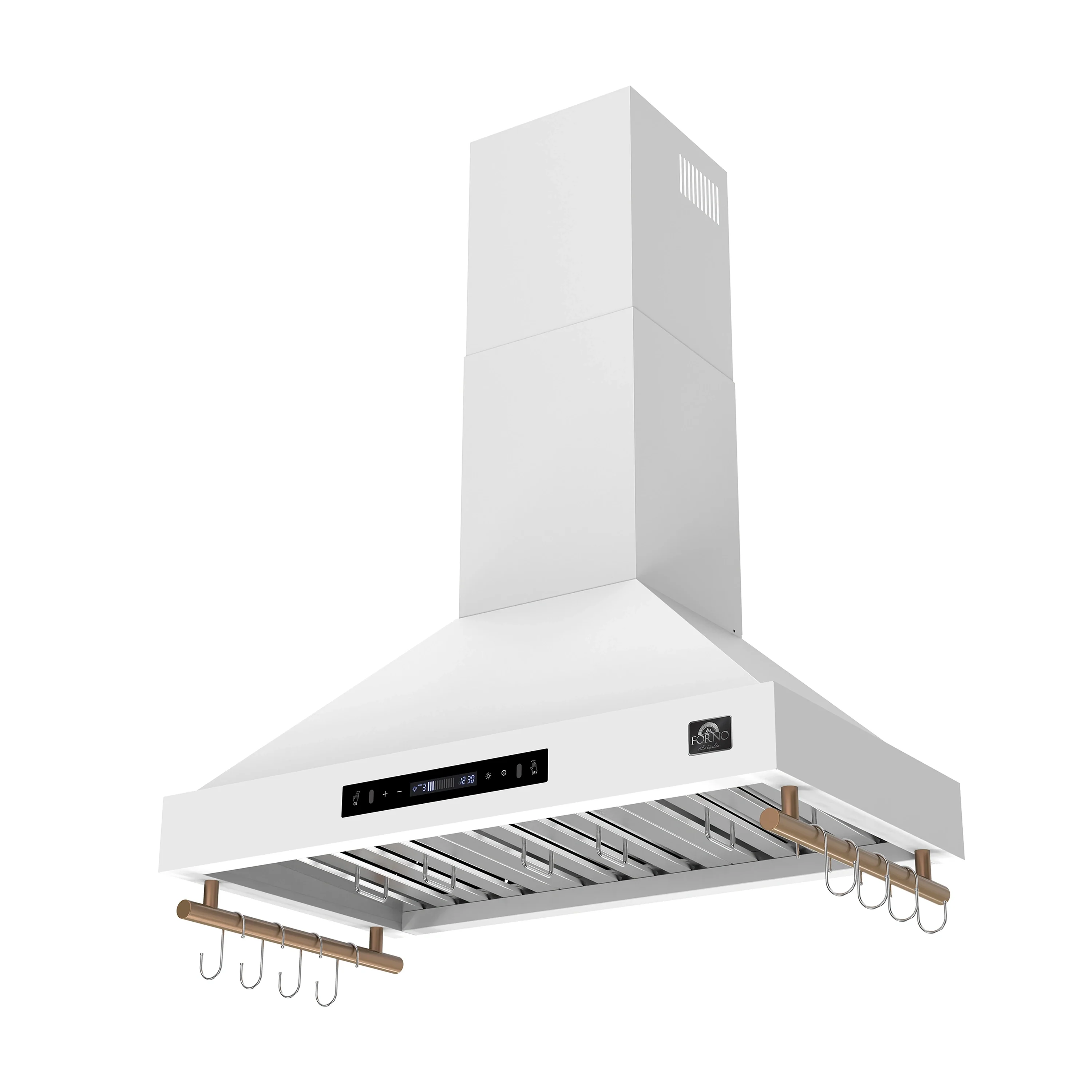

Forno Venezia 36-Inch Wall-Mounted Range Hood in White with Antique Brass Trim (FRHWM5503-36WHT)

The Forno Venezia 36 Inch Wall-Mounted Range Hood in White with Touch Controls and Baffle Filters offers powerful ventilation with three adjustable airflow speeds and convenient touch controls. Designed for flexibility, it features adjustable height, an automatic shut-off with delay timer, and dishwasher-safe baffle filters for easy maintenance. Ideal for modern kitchens, this stainless steel range hood combines performance and style with energy-efficient lighting and a sleek touch control panel, perfect for any cooking setup.

Highlights

• 3-speed fan for powerful kitchen ventilation

• Automatic and delay shut-off functions

• Modern white finish for a clean look
• 36 inch wall-mounted range hood with adjustable height

• Touch control panel with LED lighting

• Dishwasher-safe stainless steel baffle filters

Features

• 3-Speed Ventilation Fan: Choose between 3 powerful airflow speeds to handle light simmering to high-heat cooking.

• Delay Shut-Off Timer: Keeps air circulating after cooking to clear lingering smoke, steam, and odors.

• Modern White Finish: Offers a clean, bright look that enhances contemporary kitchen designs.

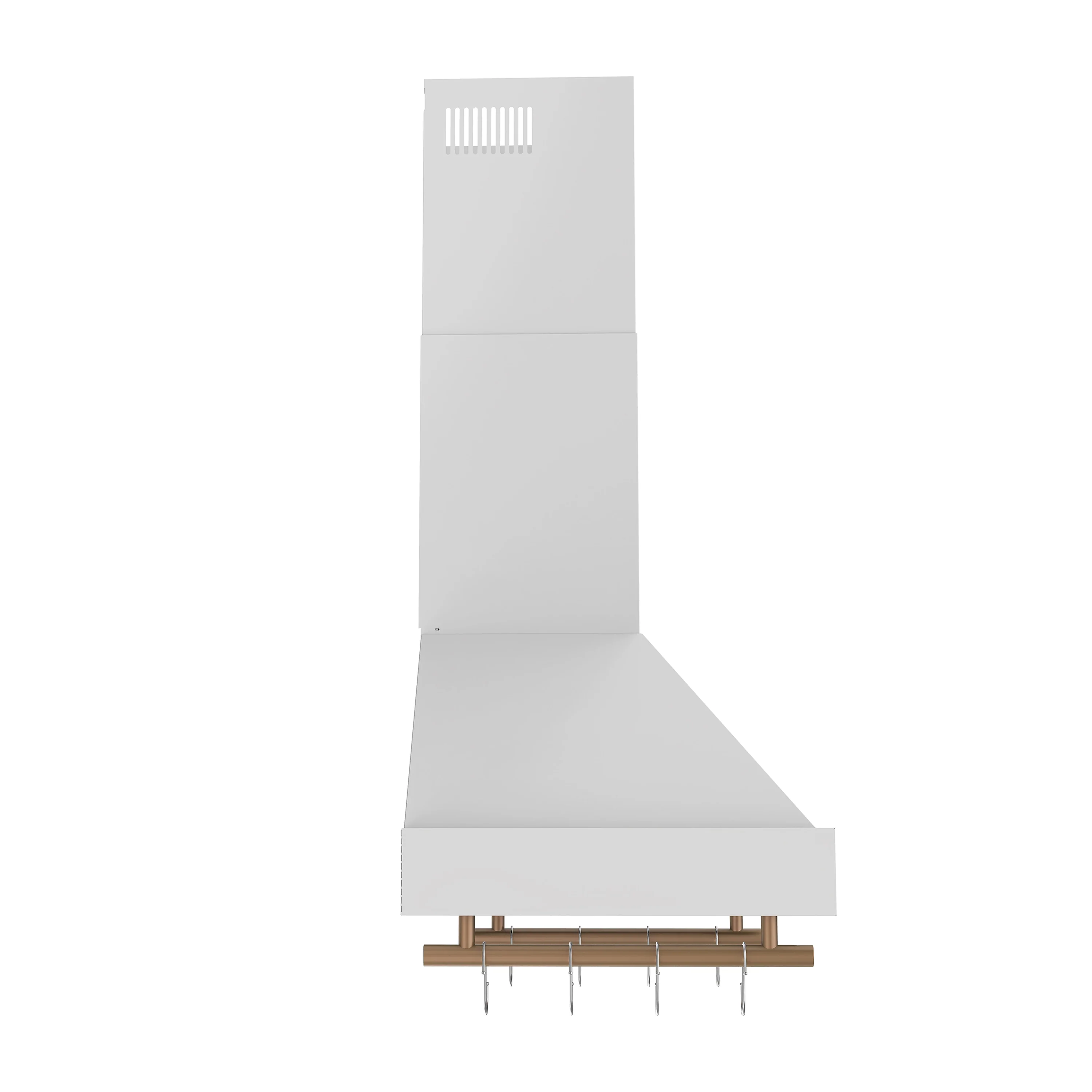

• Adjustable Height for Custom Installation: Flexible installation with adjustable chimney height to suit various ceiling configurations.

• Quiet Operation: Engineered for quieter performance, even at higher speeds, so you can cook without distraction.
• Automatic Shut-Off Function: Built-in auto shut-off improves safety and energy efficiency by turning off the range hood after a set time.

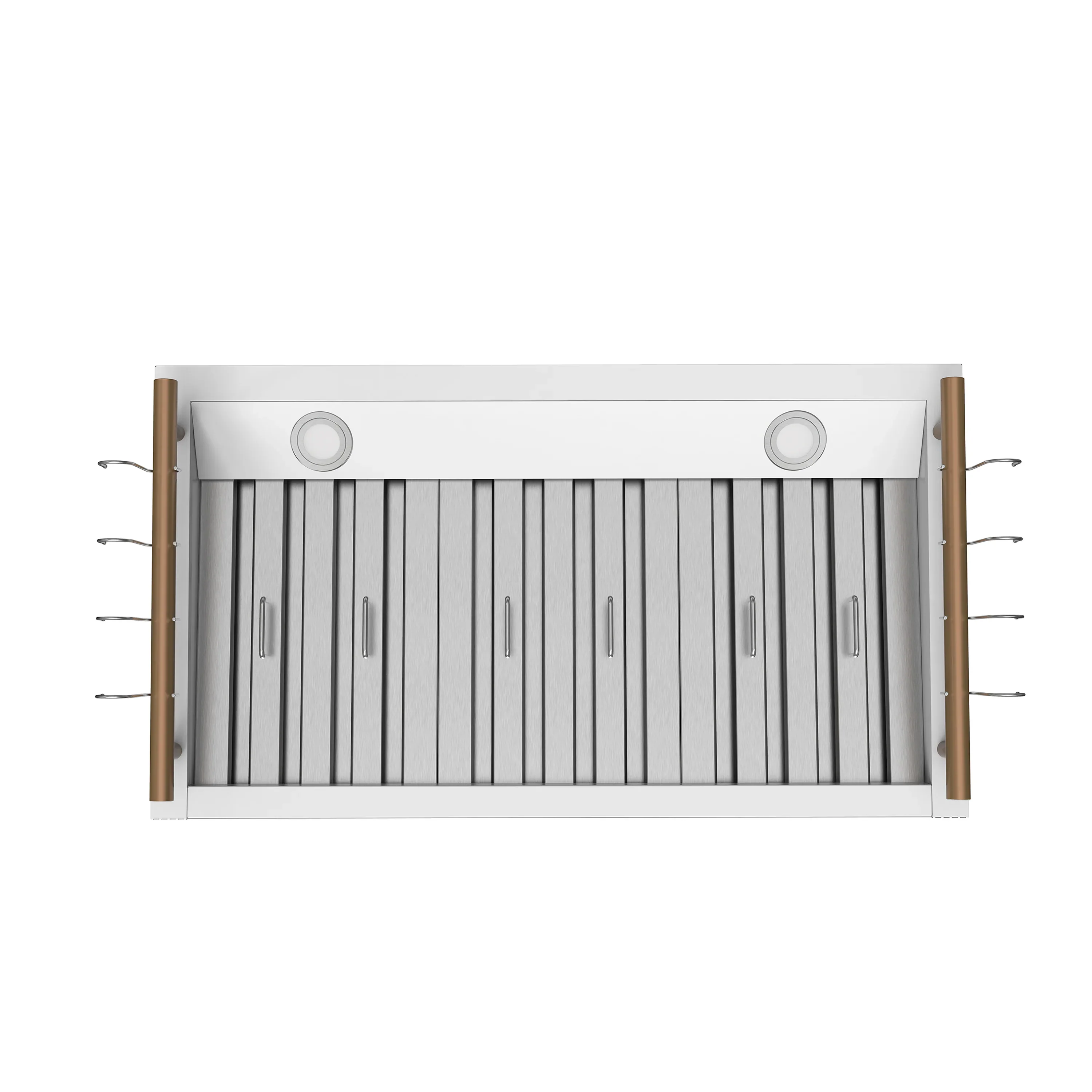

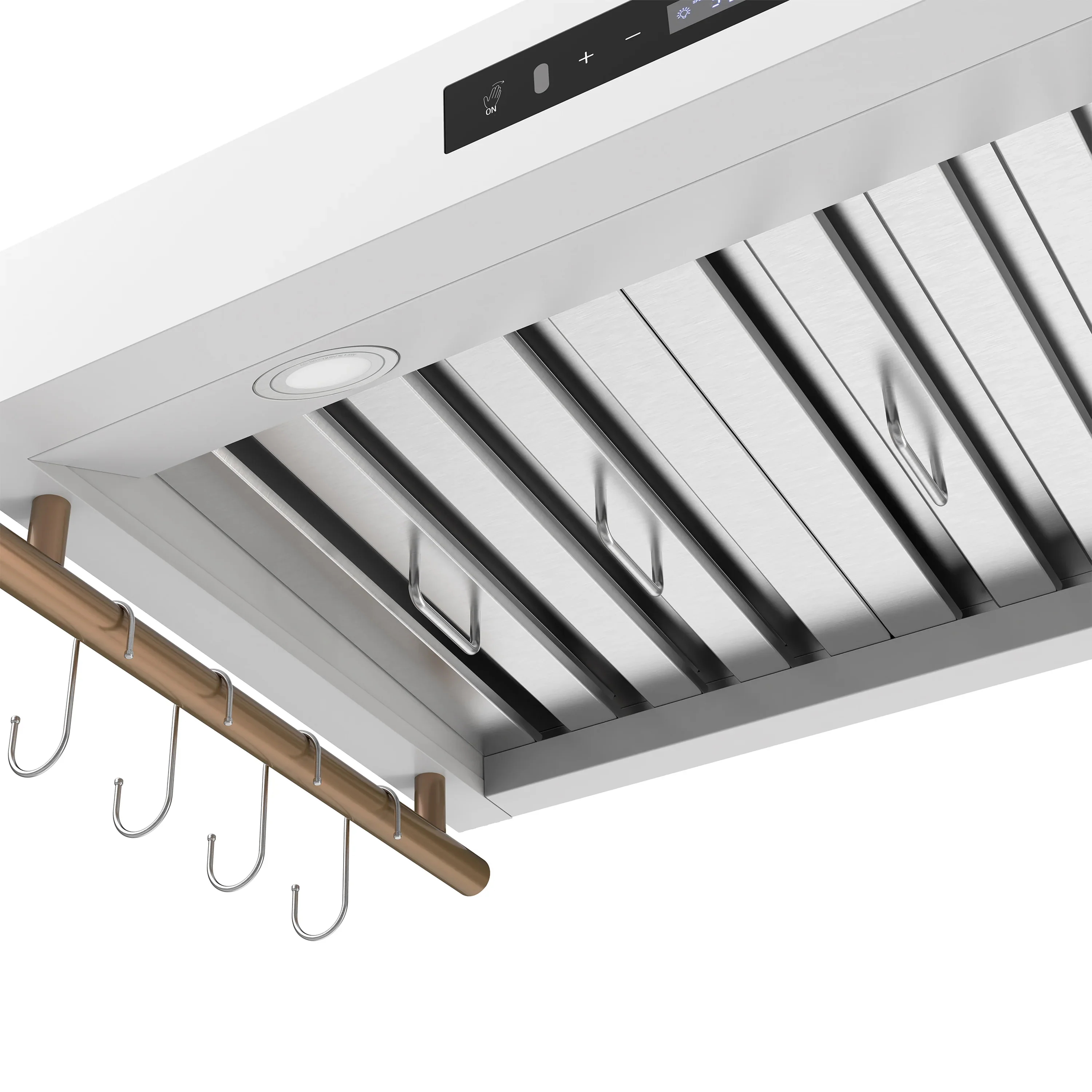

• Dishwasher-Safe Baffle Filters: Durable stainless steel baffle filters capture grease efficiently and are easy to clean in the dishwasher.
• Efficient Ventilation System: Powerful extraction helps reduce airborne grease, smoke, and odors for a cleaner kitchen environment.
• Compatible with Ducted Installation: Ideal for homes with external ventilation setups, ensuring efficient air removal.

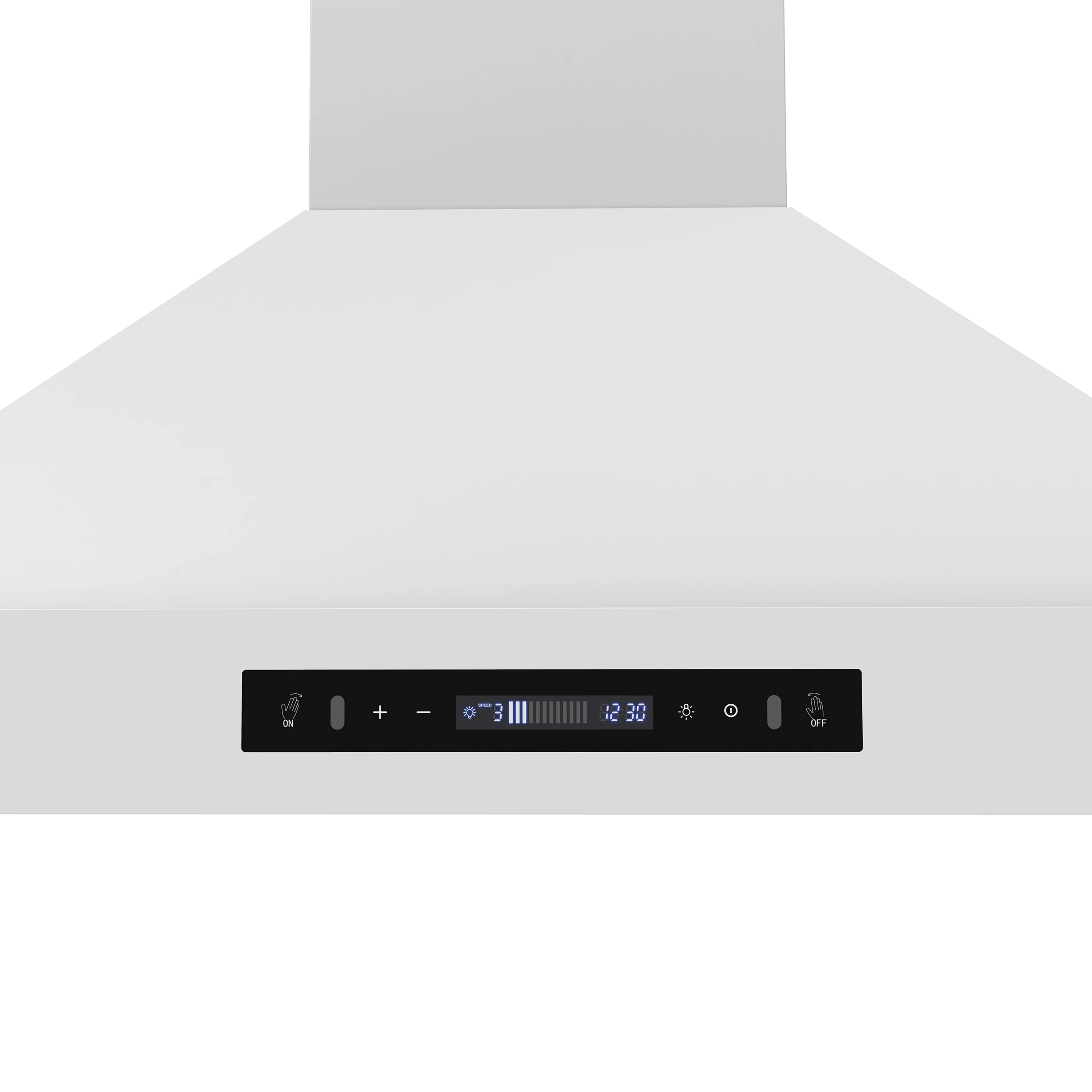

• Touch Control Panel: Sleek touch controls allow you to easily adjust fan speeds and lighting with just a tap.

Weight & Dimensions
Product Dimensions W x D x H (inches)	35.2” x 19.7” x 47.4"
Cutout dimensions W x D x H (inch)	35.2" x 11.2" x 43"
Product Overall Weight (lbs)	33.60
Technical Information
Color/Finish	Shinning White
Dishwasher Safe Filters	Yes
Control Location	Front
Clock	Yes
Primary Material	Iron
Display Type	LED

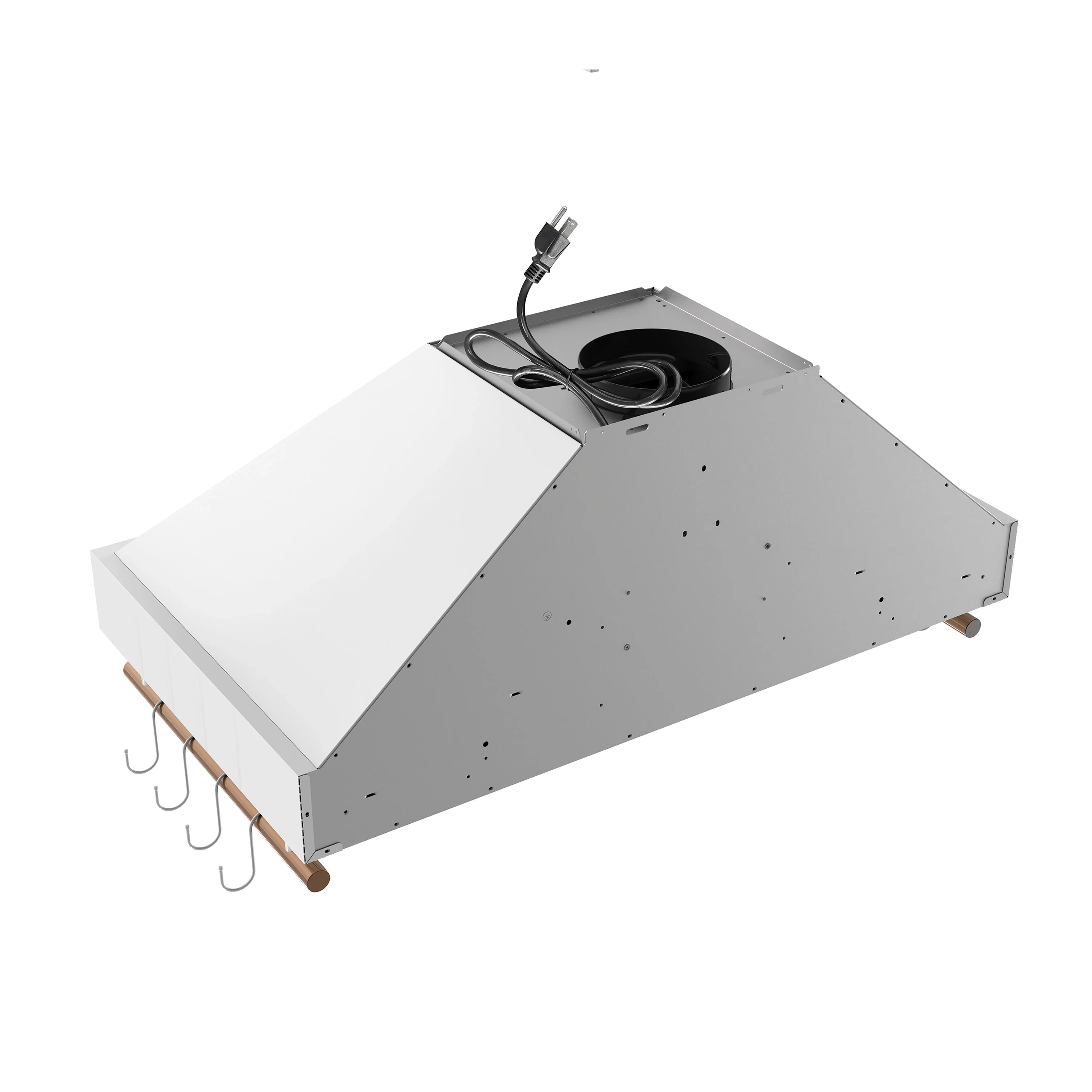

Power Cord Location	Top
Decibel Speed 3 (dB)	58.30
Decibel Speed 2 (dB)	53.10
Decibel Speed 1 (dB)	44.30
Bulb Type	LED
Bulb Wattage	1.50
Motor(s) Power (Watts)	190
Duct length (inch)	78.74
Minimum Height from Cooktop	25.60
Minimum Decibel (dB)	44.30
Minimum Product Height (IN)	43.00
Maximum Decibel (dB)	58.30
RPM Speed 3	1671
RPM Speed 2	1312
RPM Speed 1	889
Air Flow Speed 3	629
Air Flow Speed 2	484
Air Flow Speed 1	321
CFM speed 3	370
CFM speed 2	285
CFM speed 1	188
Range Hood Shape	Pyramid
Number of Lights	2
Clean Filter Alert	No
Remote Control	No
Number of light settings	1
Power off Function	Yes
Power off Information	5 minutes
Reversible Blower	No
Heat Sensors	No
Chimney Short Kit	No
Crown Molding	No
Rangehood Chimney	Yes
Chimney Extension Kit	No
Backsplash Included	No
Hardware Finish	White
Speed Control Type	Touch
Duct Type	6-in Round
Speed Control	3
Damper	Yes
Damper Type	6-in Round
Filter Material	Stainless Steel
Removable Grease Filter	Yes
Air Discharge Direction	Vertically Upward
Filter Type	Baffle
Charcoal Filters	Yes
Vent Style	External

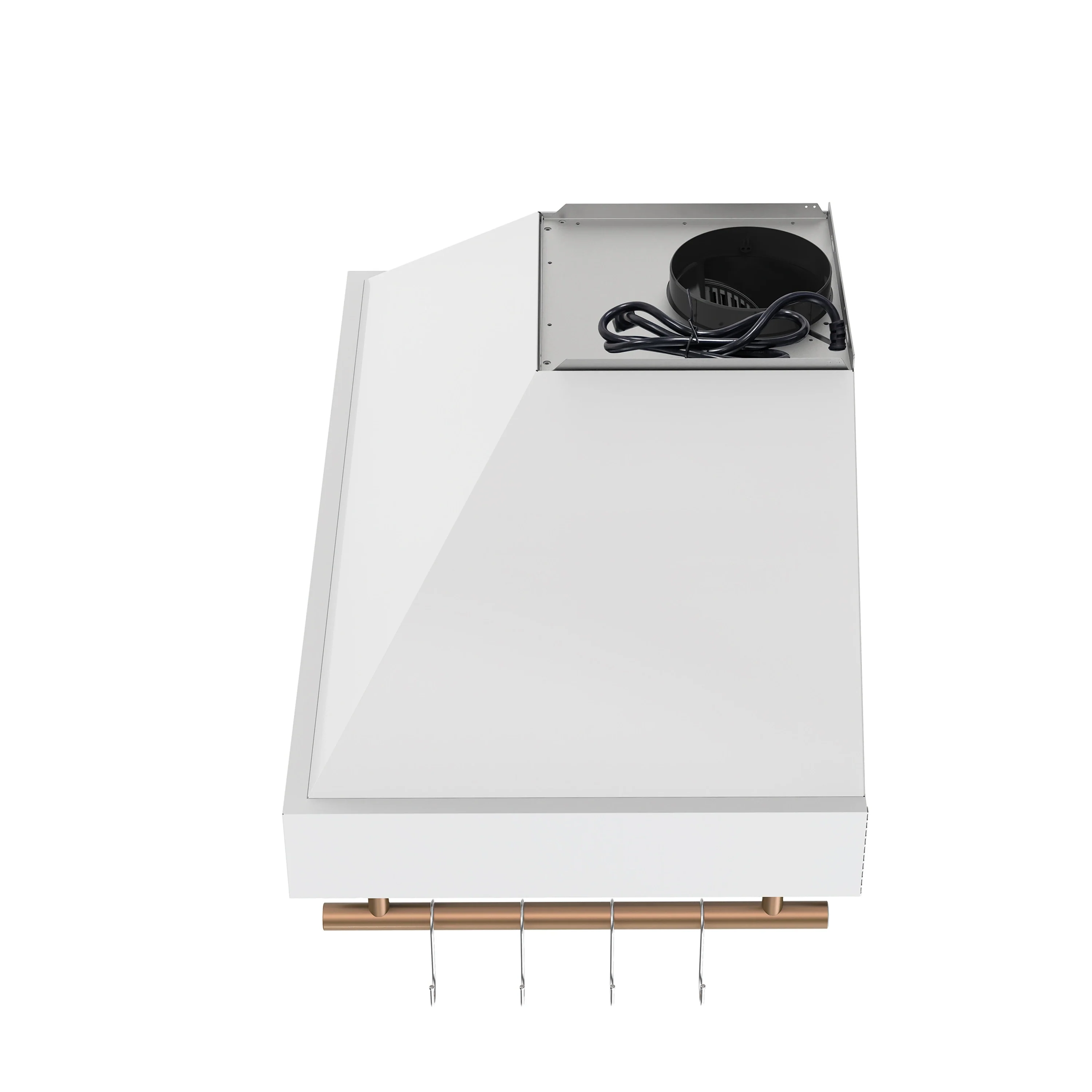

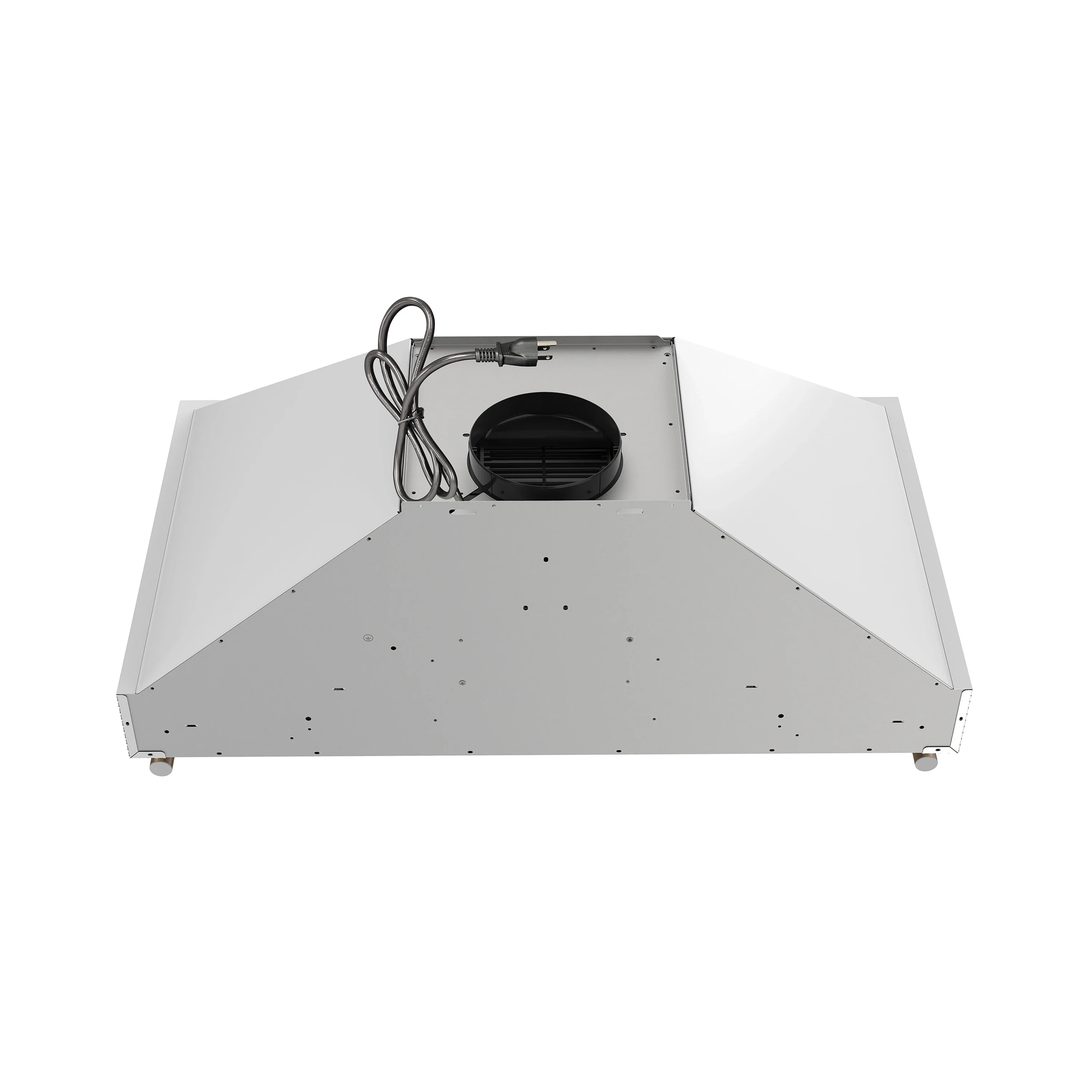

Exhaust Vent Location	Top
Vent Type	Ducted
Blower Material	Polypropylene
Number of exhaust Vent	1
Fingerprint-Resistant	No
Number of Blower(s)	1
Certification
Safety Listing	cETLus safety listing
ISTA 6A	Yes
Warranty
Commercial Warranty	No
Warranty on Parts	2 Years
Warranty Type	Limited
Warranty on Labor	2 Years
Warranty Length (Years)	2 Years
