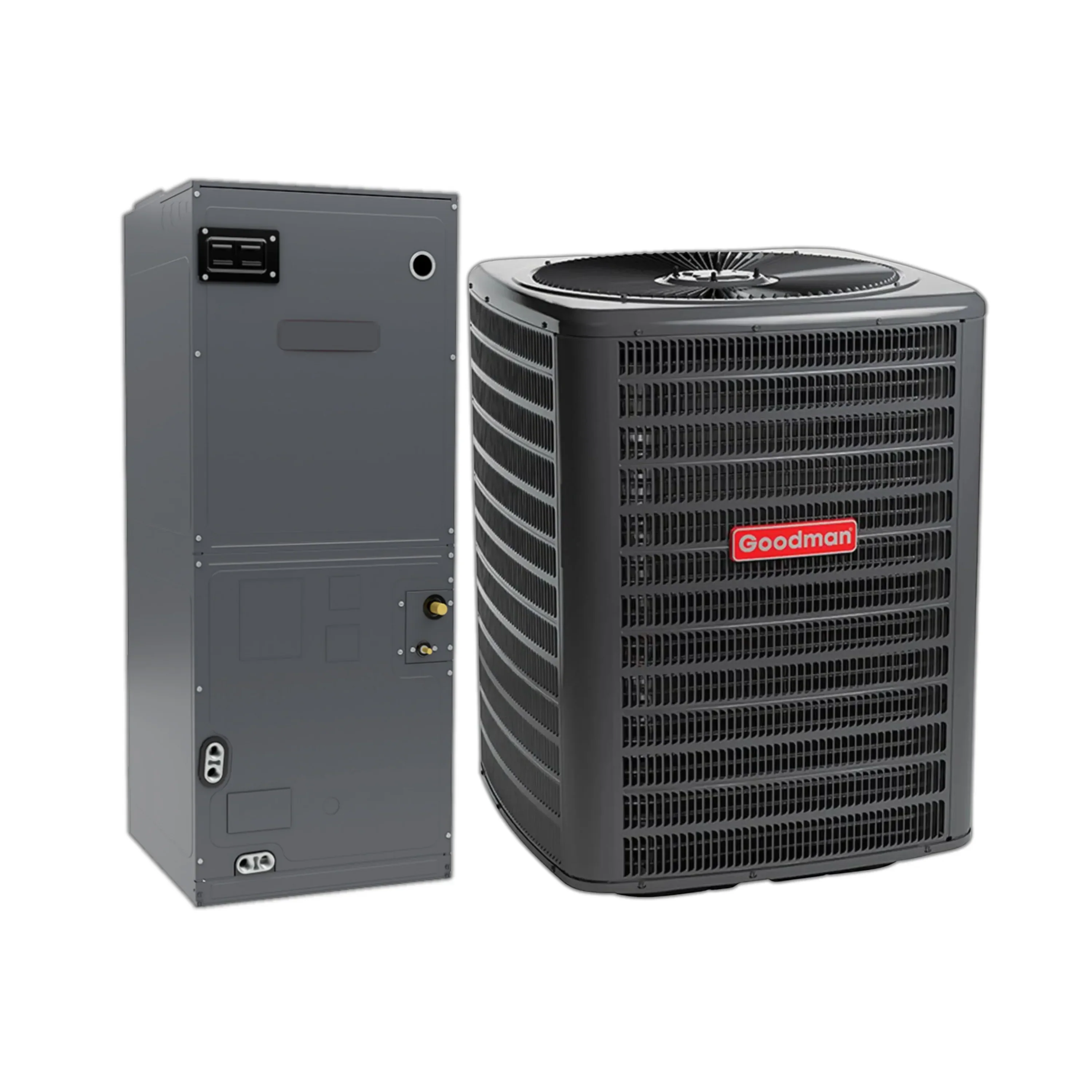

Goodman 2.5 Ton 14.3 SEER2 Central Air Conditioner Condenser with Multi-Position Air Handler

The Goodman GLXS4M Split System Air Conditioner delivers 14.3 SEER2 efficiency with R-32 refrigerant at 2.5 Ton capacity. Features single-stage cooling and durable powder-painted cabinet with easy service access. Optimized for next-generation R-32 refrigerant with lower GWP. AHRI Certified and ETL Listed.

• Removable grille-style top design compliant with UL 60335-2-40
• Venturi for increased velocity of airflow
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Wire fan discharge grille
• Steel louver coil guard
• Top and side maintenance access
• Single-panel access to controls with space provided for field-installed accessories
• When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

• High-Efficiency Scroll Compressor
• Factory-installed filter drier
• Fully charged for 15’ of tubing length
• 5mm diameter copper tube/enhanced aluminum fin coil
• Service valves with sweat connections and easy-to-access gauge ports
• Enclosed contactor with lug connection
• Ground lug connection
• High-pressure switch
• AHRI Certified
• ETL Listed

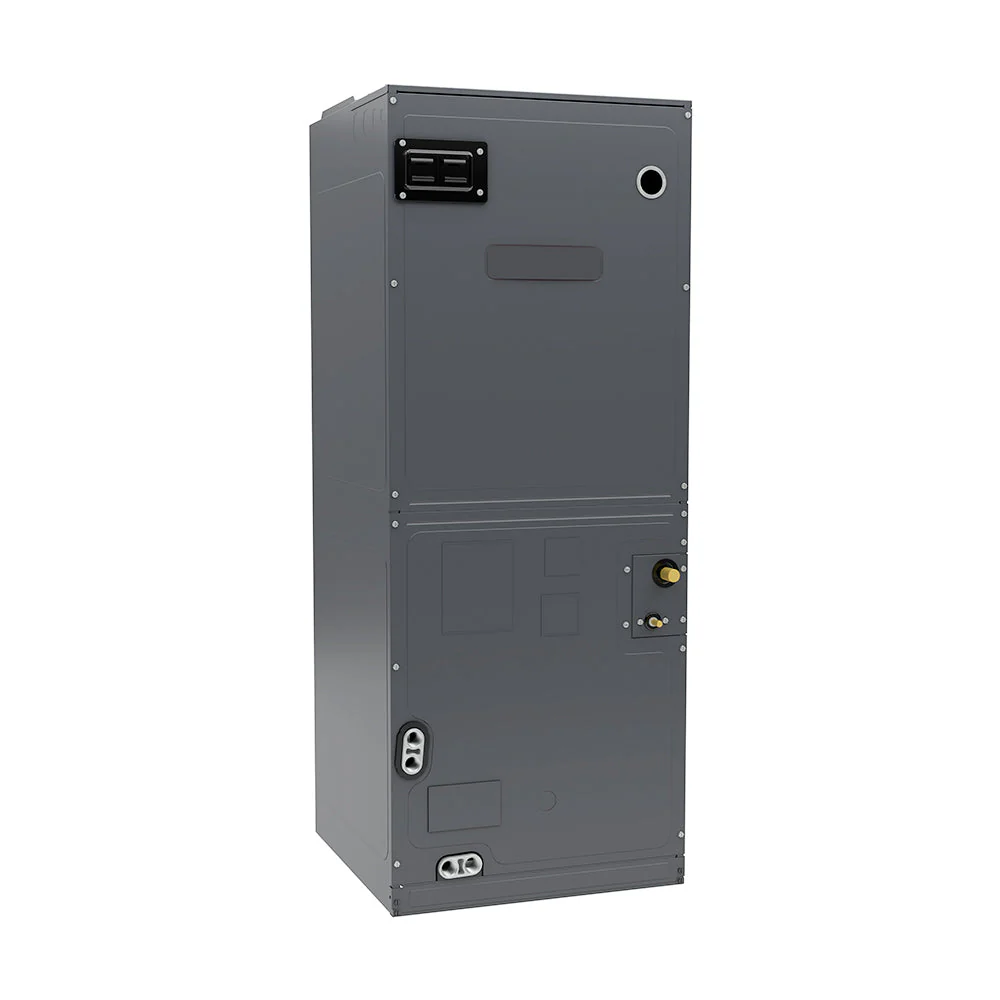

The Goodman AMVT Air Handler delivers premium indoor comfort with variable-speed ECM blower motor and integrated ComfortBridge Technology for intelligent system communication. Featuring factory-installed TXVs for both cooling and heat pump applications, this unit provides improved humidity control and constant CFM across varying static pressure conditions. Optimized for R-32 refrigerant with factory-installed leak detection sensor, the rigid SmartFrame cabinet offers horizontal or vertical installation flexibility with a compact 21" depth for easier attic access. ASHRAE 193 tested for low cabinet air leakage with galvanized, leather grain-embossed finish.

• Internal factory-installed thermal expansion valves for cooling and heat pump applications
• Variable-speed ECM blower motor
• Integrated communicating ComfortBridge Technology
• Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application.
• Auto configuration of the airflow and tonnage in communicating mode
• Provides constant CFM over a wide range of static pressure conditions independent of duct system
• CFM indicator
• Fault recall of six most recent faults
• Provides adjustable low CFM for efficient fan-only operation
• 10. Improved humidity and comfort control
• 1Built-in compatibility with multi-stage heat pump and cooling applications
• 1Optimized for R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.

• Rigid SmartFrame™ cabinet
• Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193
• Horizontal or vertical configuration capabilities
• 21" depth for easier attic access
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Screw-less sides and back helps to reduce condensation when installed in humid locations
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• 10 .Glue-less cabinet insulation retention
