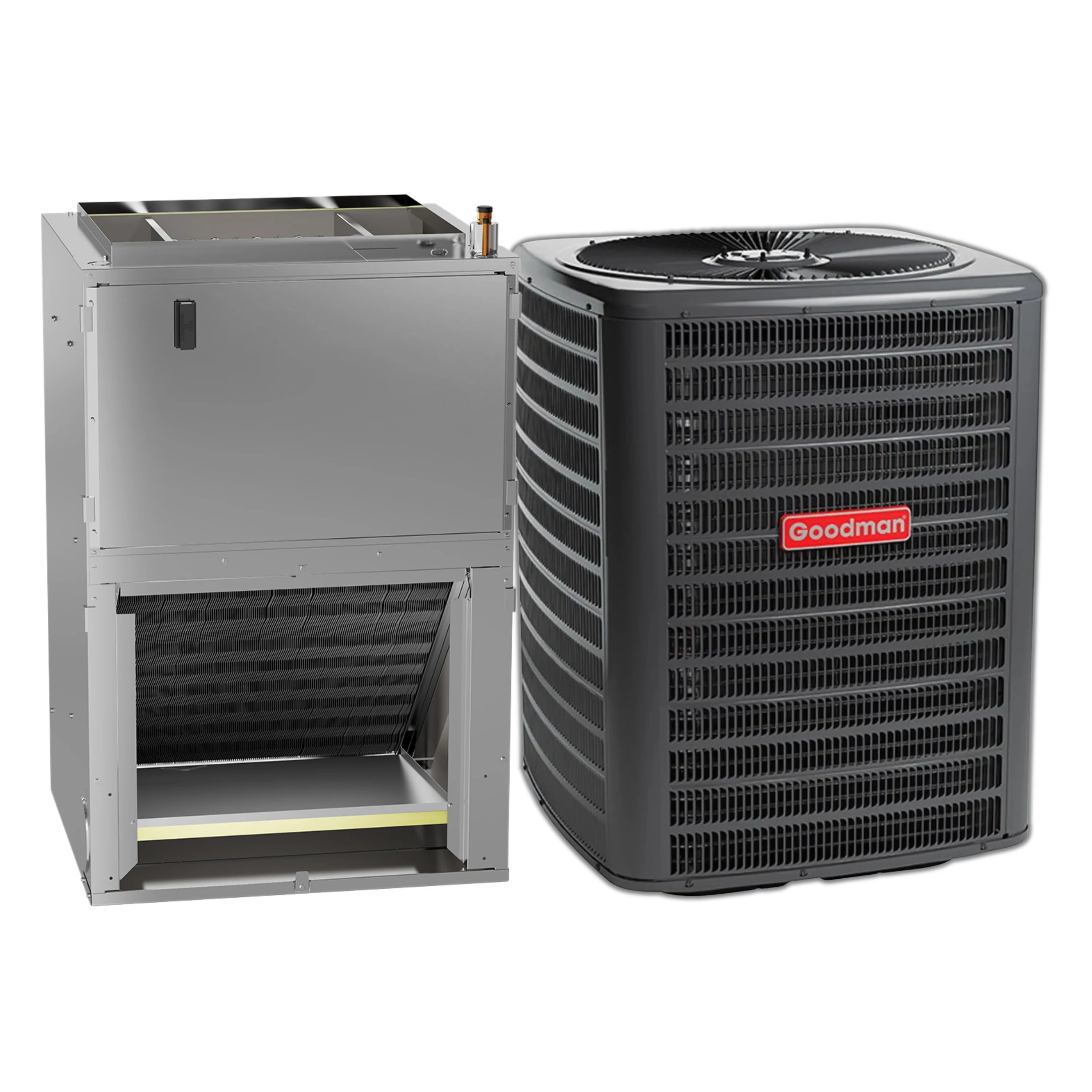

Goodman 2.5 Ton 14.3 SEER2 R-32 Heat Pump Condenser & Air Handler with 10kW Heat Kit

The Goodman GLZSM4 is a 2.5 Ton split system heat pump delivering up to 15.2 SEER2 / 14.3 SEER2 / 7.8 HSPF2 efficiency with SmartShift technology for quiet, reliable defrost. Features a high-efficiency compressor, enhanced aluminum fin coils, and single-speed PSC condenser fan motor. Ships fully charged for 15' of tubing length. Built in a heavy-gauge galvanized steel cabinet. AHRI Certified and ETL Listed.

• High-efficiency compressor
• SmartShift® technology to ensure quiet reliable defrost
• Enhanced aluminum fin coil- 5 mm diameter on 1.5T-3.5 Ton
• Enhanced aluminum fin coil with 7mm diameter copper tubes in 4.0- to 5.0-ton
• Single-speed PSC condenser fan motor
• Factory-installed bi-flow liquid-line filter drier
• Factory-installed suction-line accumulator
• Factory-installed compressor crankcase heater
• Factory-installed high-capacity muffler
• High- and low-pressure switches
• Service valves with sweat connections and easy access to gauge ports
• Fully charged for 15’ of tubing length
• Fully enclosed contractor with lug connection
• Ground lug connection
• Capacitors with extended life
• AHRI Certified
• ETL Listed

• Removable grille-style top design compliant with UL 60335-2-40
• Steel louver coil guard
• Heavy-gauge galvanized-steel cabinet
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Top and side maintenance access
• When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available).

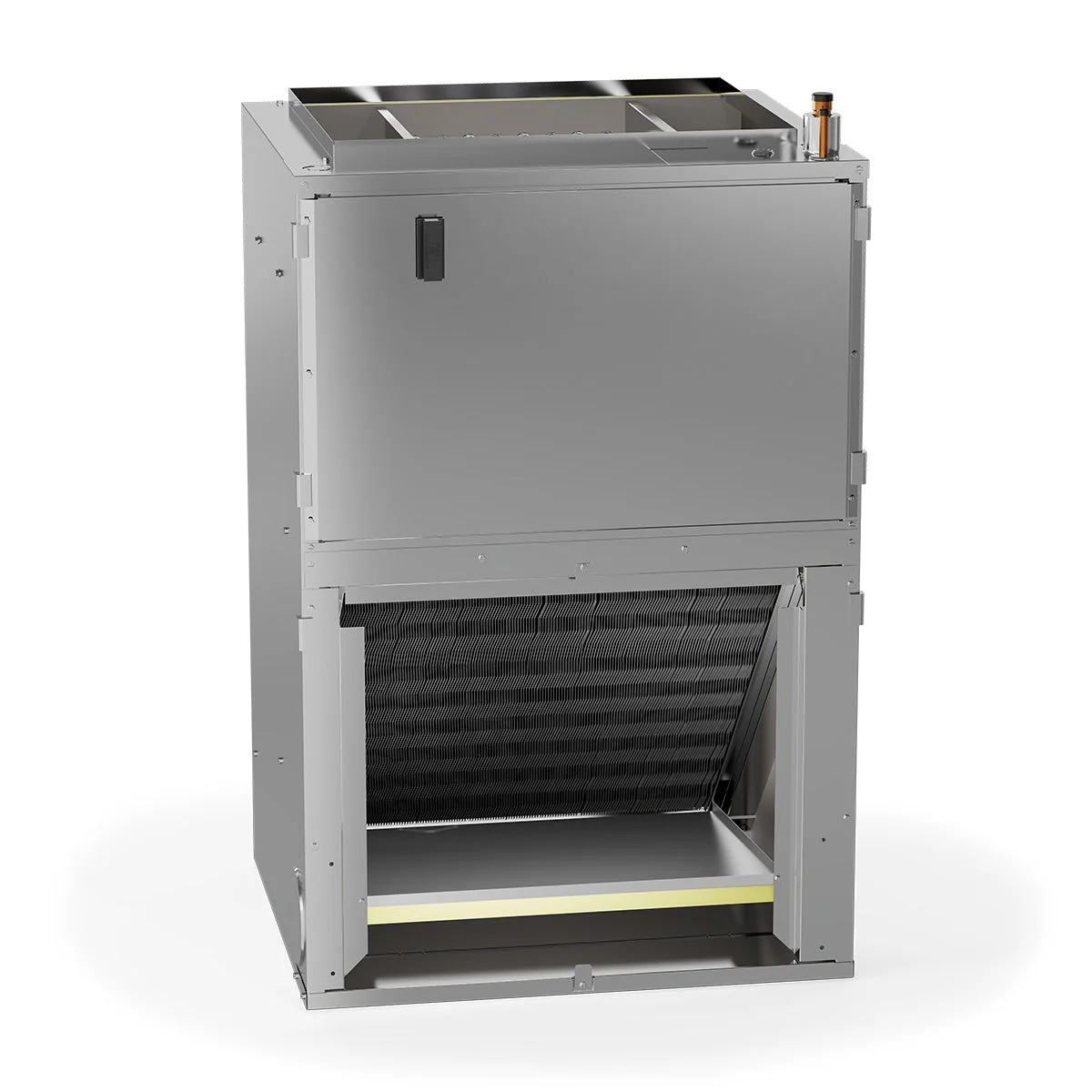

The Goodman AMST multi-position air handler is designed for ducted mini-split applications. Features flexible installation options with multi-position capability. Provides quiet, efficient air distribution when paired with Goodman mini-split outdoor units. Ideal for applications requiring traditional ducted airflow in a mini-split system.

• AWST Models: Equipped wit a fully adjustable TXV
• Direct-drive, multi-speed motors allows air volume variation for heating/cooling
• Direct-drive, multi-speed motors allows air volume variation for heating/cooling
• Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
• Aluminum tubing coils on all models
• Factory-installed pull-type disconnect
• Thermoplastic drain pan with bottom primary and secondary drain connections
• AHRI Certified and ETL Listed
• Optimized for use with R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.

• Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
• Built-in filter rack (filter included)
• Large chassis (2-1/2 and 3 ton units), front return only
• Small chassis (1-1/2 and 2 ton units), front or bottom return
• Wall-hanging bracket provided
