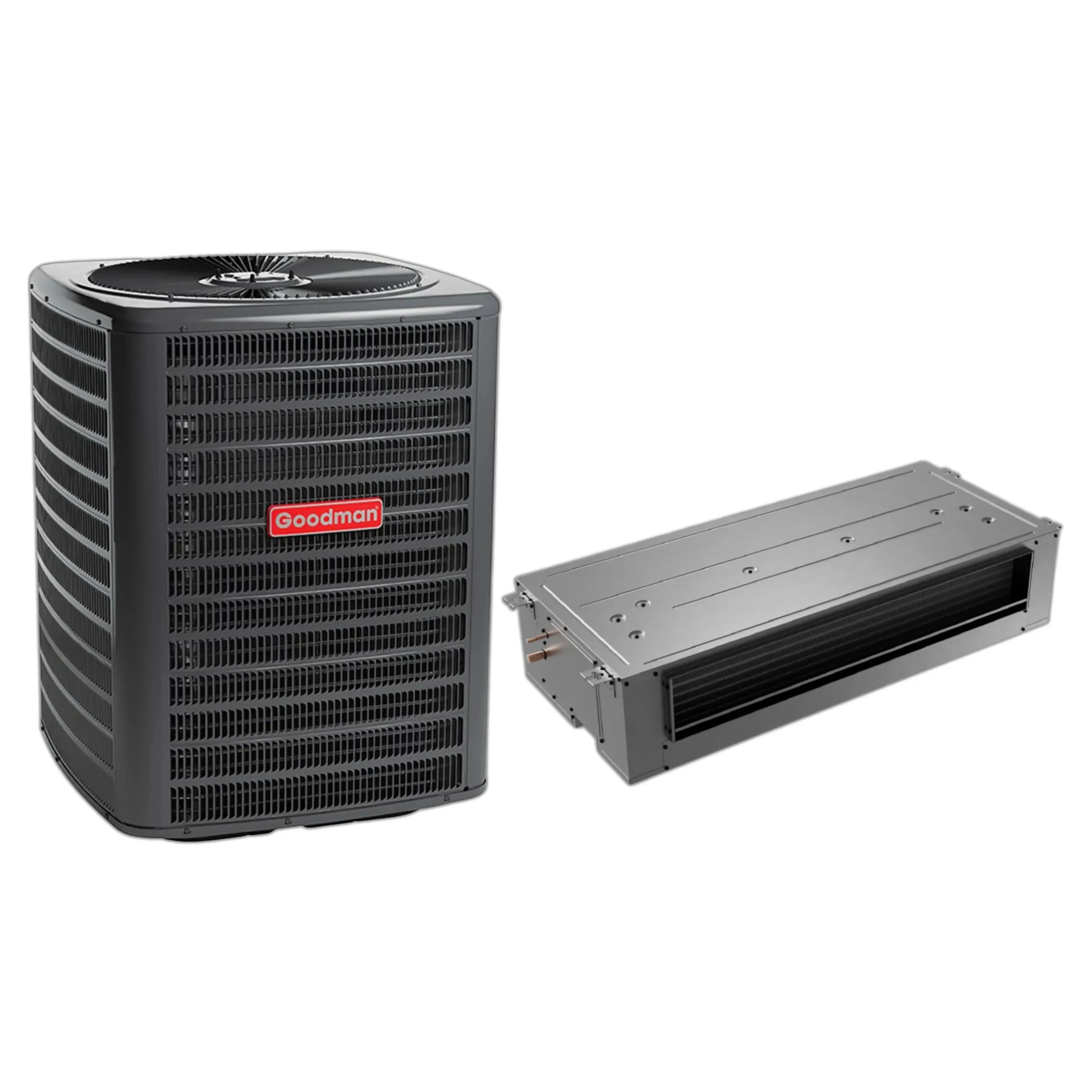

Goodman 2.5 Ton 14.5 SEER2 Central Air Conditioner Condenser with Ceiling Mounted Air Handler & 8kW Heat Kit

The Goodman GLXS5B Split System Air Conditioner delivers 15.2 SEER2 efficiency with R-32 refrigerant at 2.5 Ton capacity. Features single-stage cooling and durable powder-painted cabinet with easy service access. Optimized for next-generation R-32 refrigerant with lower GWP. AHRI Certified and ETL Listed.

• High-efficiency scroll compressor
• Factory-installed filter drier
• Fully charged for 15’ of tubing length
• Copper tube/enhanced aluminum fincoil -5mm diameter on 1.5-3.0T
• Service valves with sweat connectionsand easy-to-access gauge ports
• Enclosed contactor with lug connection
• Ground lug connection
• High-pressure switch
• AHRI Certified
• ETL Listed

• Removable grille-style top designcompliant with UL 60335-2-40
• Heavy-gauge galvanized-steel cabinet
• Attractive Architectural Gray powder-paintfinish with 500-hour salt-spray approval
• Steel louver coil guard
• Single-panel access to controls with spaceprovided for field-installed accessories
• When properly anchored, meets the 2023 FloridaBuilding Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)

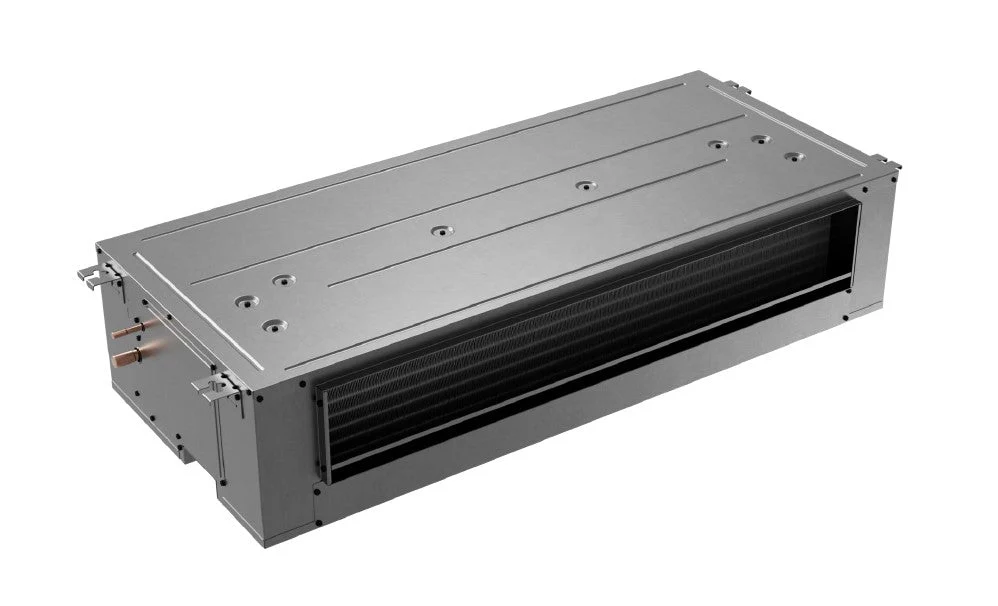

The Goodman ACST Air Handler provides reliable 2.5 Ton capacity with a multi-speed ECM motor for efficient, quiet operation. Features a factory-installed TXV, all-aluminum evaporator coil, and electric heat options from 5-10 kW for year-round comfort. Built with durable galvanized-steel construction and optimized for R-32 refrigerant with integrated leak detection sensor. AHRI Certified and ETL Listed.

• Factory installed TXV for heat pump and cooling-only applications
• All-Aluminum tube/aluminum fin coil
• Direct-drive, resilient-mount, multi-speed motor
• Sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 and 10 kW
• High-efficiency evaporator coil
• Quiet operation
• AHRI Certified
• Suitable for both front and bottom return
• Factory installed casing
• UL 2-40 cerified
• 10. ETL Listed
• 1Suitable for free-return installation (non-ducted return air)
• 1Galvanized-steel construction
• 1Factory-installed pull-type disconnect
• 1Easy service access
• 1Optimized for use with R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.

• Primary/secondary drain connection in a high-temperature plastic drain pan
• Suitable for free-return installation (non-ducted return air)
• Galvanized-steel construction
• Factory-installed pull-type disconnect
• Easy service access
• Suitable for both front and bottom return
• Factory installed casing
