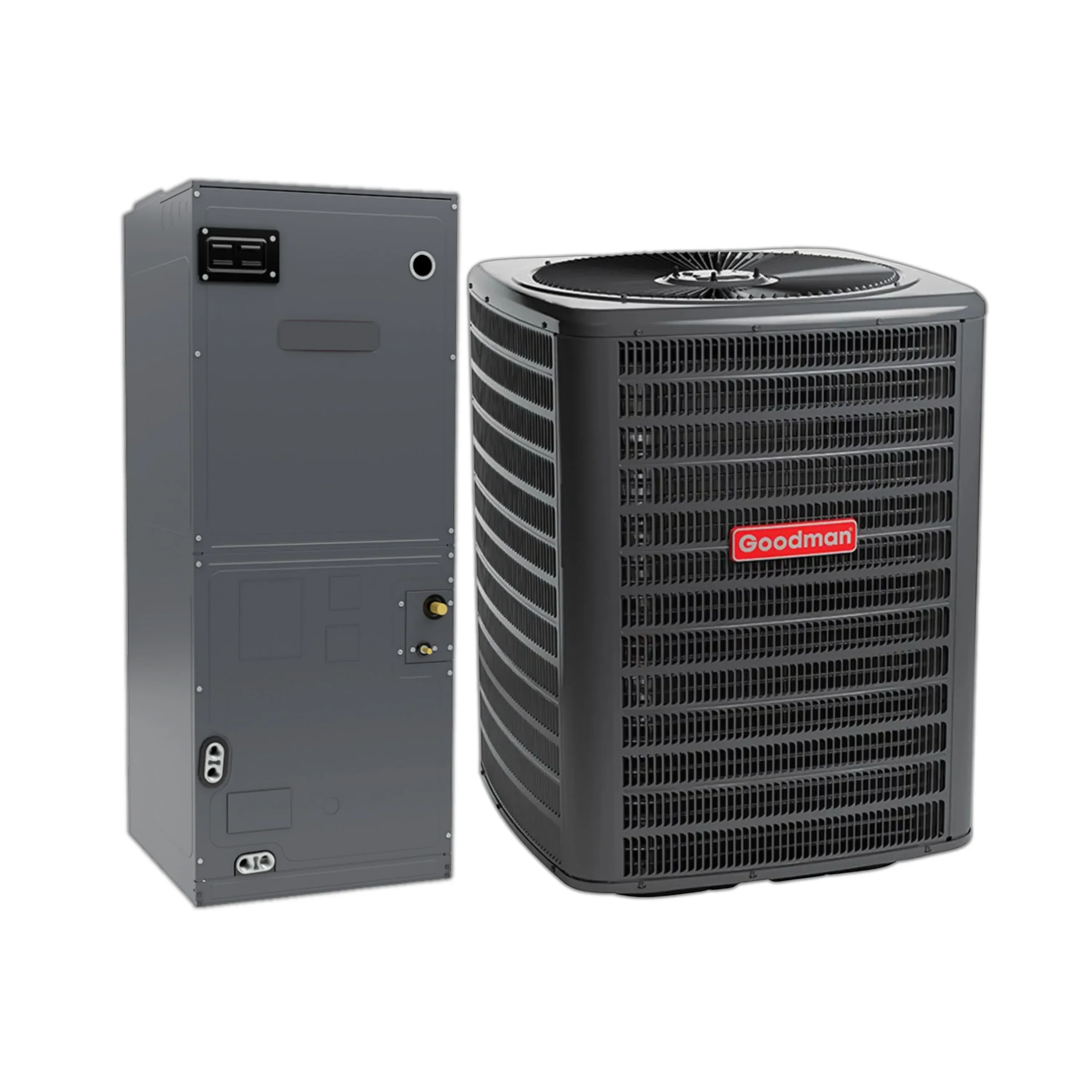

Goodman 2.5 Ton 14.5 SEER2 Central Air Conditioner Condenser with Multi-Position Air Handler

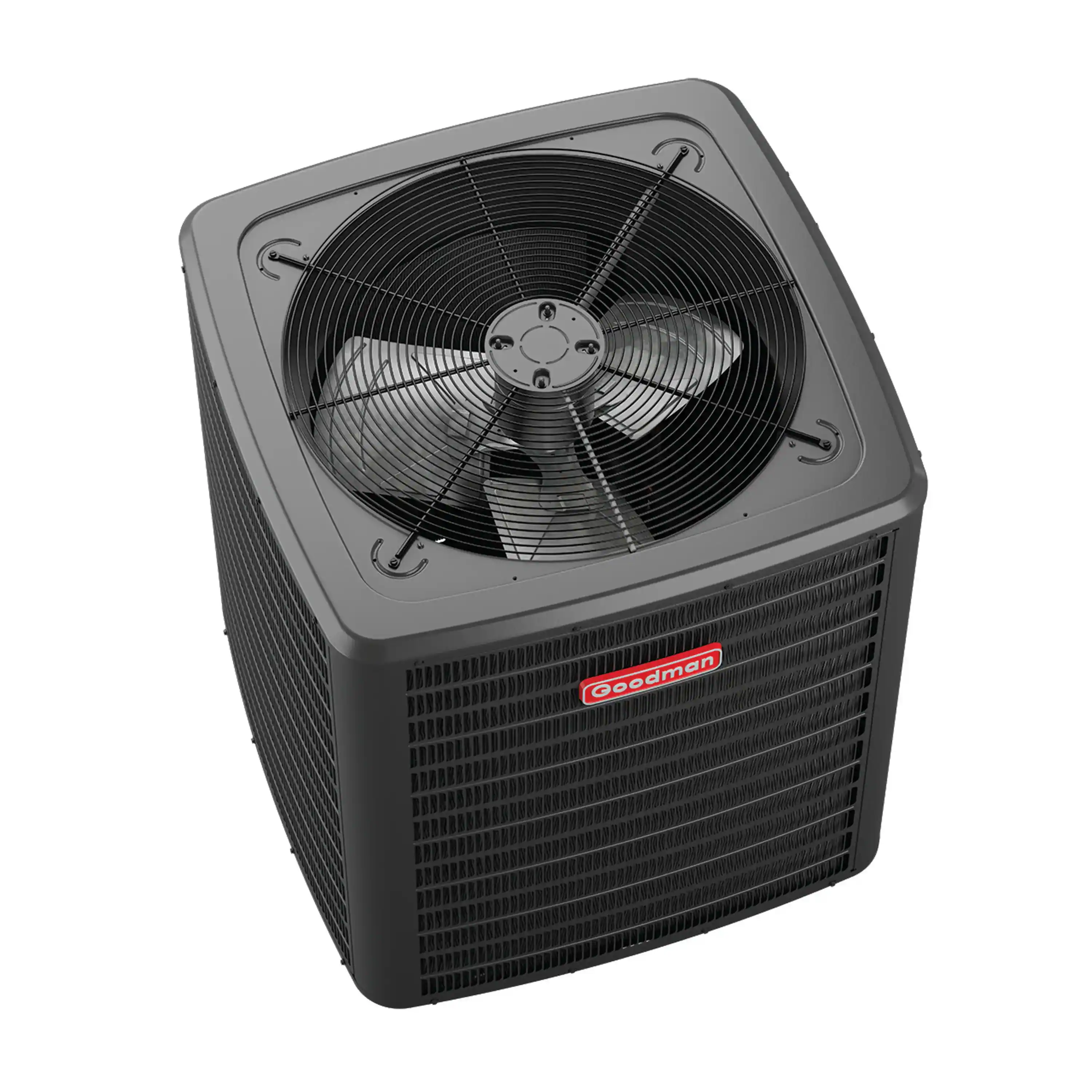

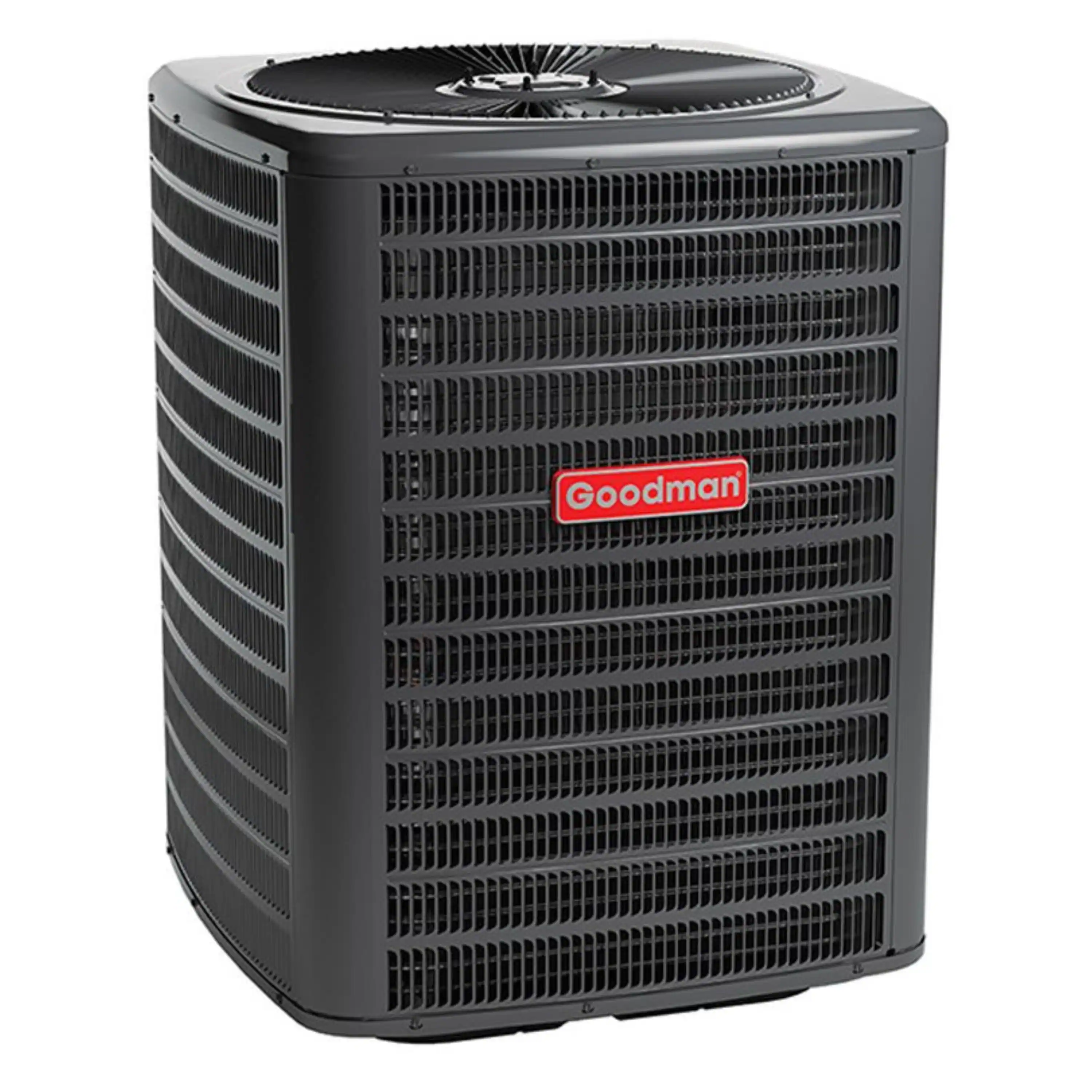

The Goodman GLXS5B Split System Air Conditioner delivers 15.2 SEER2 efficiency with R-32 refrigerant at 2.5 Ton capacity. Features single-stage cooling and durable powder-painted cabinet with easy service access. Optimized for next-generation R-32 refrigerant with lower GWP. AHRI Certified and ETL Listed.

• High-efficiency scroll compressor
• Factory-installed filter drier
• Fully charged for 15’ of tubing length
• Copper tube/enhanced aluminum fincoil -5mm diameter on 1.5-3.0T
• Service valves with sweat connectionsand easy-to-access gauge ports
• Enclosed contactor with lug connection
• Ground lug connection
• High-pressure switch
• AHRI Certified
• ETL Listed

• Removable grille-style top designcompliant with UL 60335-2-40
• Heavy-gauge galvanized-steel cabinet
• Attractive Architectural Gray powder-paintfinish with 500-hour salt-spray approval
• Steel louver coil guard
• Single-panel access to controls with spaceprovided for field-installed accessories
• When properly anchored, meets the 2023 FloridaBuilding Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)

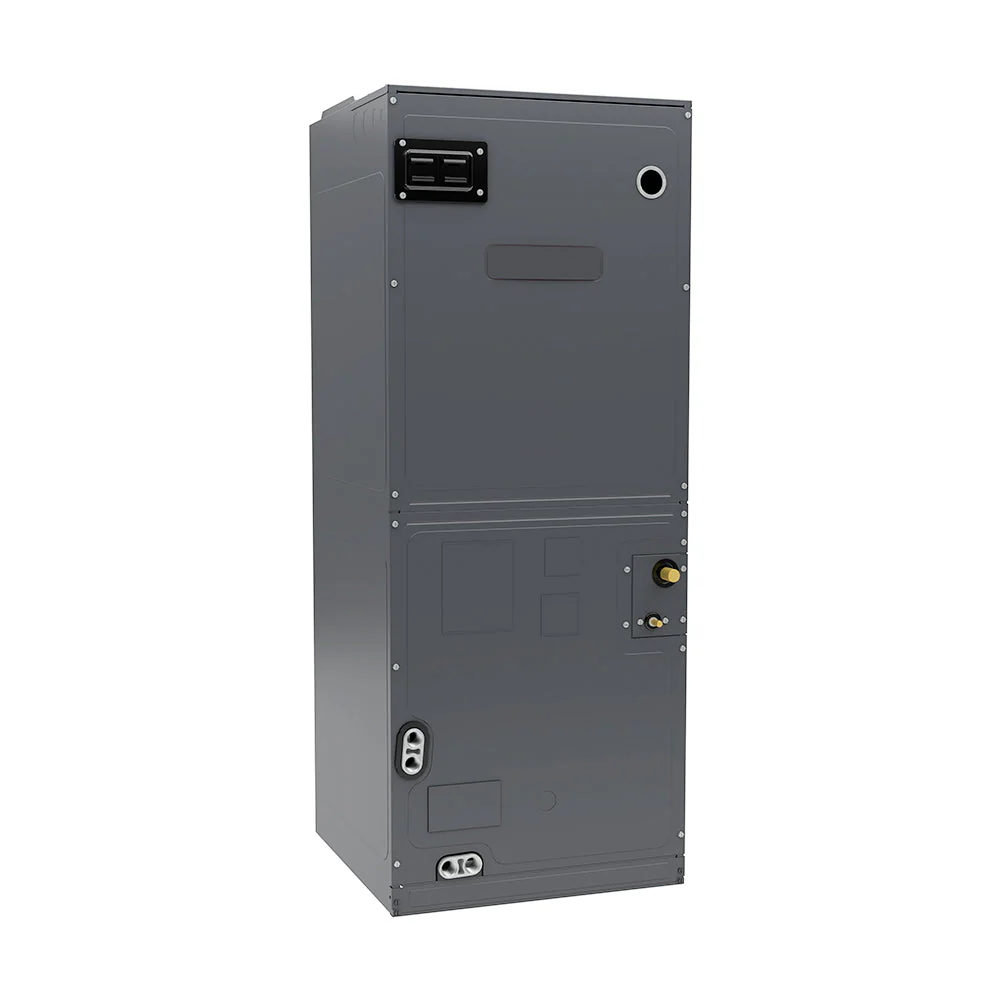

The Goodman AMVT 3 Ton Air Handler combines variable-speed ECM technology with ComfortBridge communicating capability for precise comfort control. Factory-installed TXVs and auto-configuration of airflow and tonnage simplify installation while the CFM indicator and fault recall features enhance diagnostics via Bluetooth-enabled CoolCloud app. Built with a rigid SmartFrame cabinet featuring foil-faced insulation and thermoplastic drain pan, this unit is optimized for R-32 refrigerant with integrated leak detection for A2L safety compliance.

• Internal factory-installed thermal expansion valves for cooling and heat pump applications
• Variable-speed ECM blower motor
• Integrated communicating ComfortBridge Technology
• Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application.
• Auto configuration of the airflow and tonnage in communicating mode
• Provides constant CFM over a wide range of static pressure conditions independent of duct system
• CFM indicator
• Fault recall of six most recent faults
• Provides adjustable low CFM for efficient fan-only operation
• 10. Improved humidity and comfort control
• 1Built-in compatibility with multi-stage heat pump and cooling applications
• 1Optimized for R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.

• Rigid SmartFrame™ cabinet
• Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193
• Horizontal or vertical configuration capabilities
• 21" depth for easier attic access
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Screw-less sides and back helps to reduce condensation when installed in humid locations
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• 10 .Glue-less cabinet insulation retention
