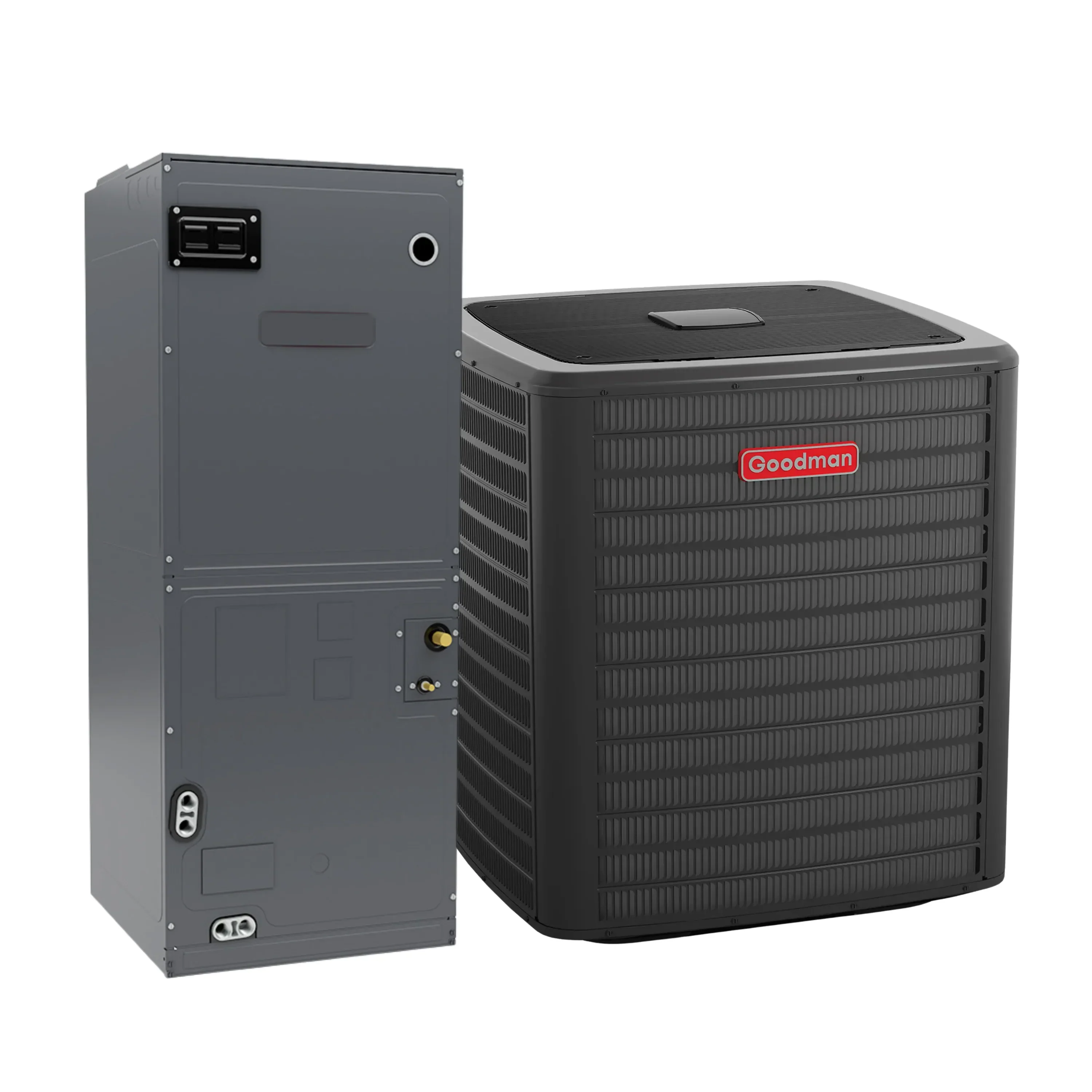

Goodman 3.5 Ton 17.2 SEER2 R-32 Heat Pump Condenser & Variable-Speed Air Handler with 10kW Heat Kit

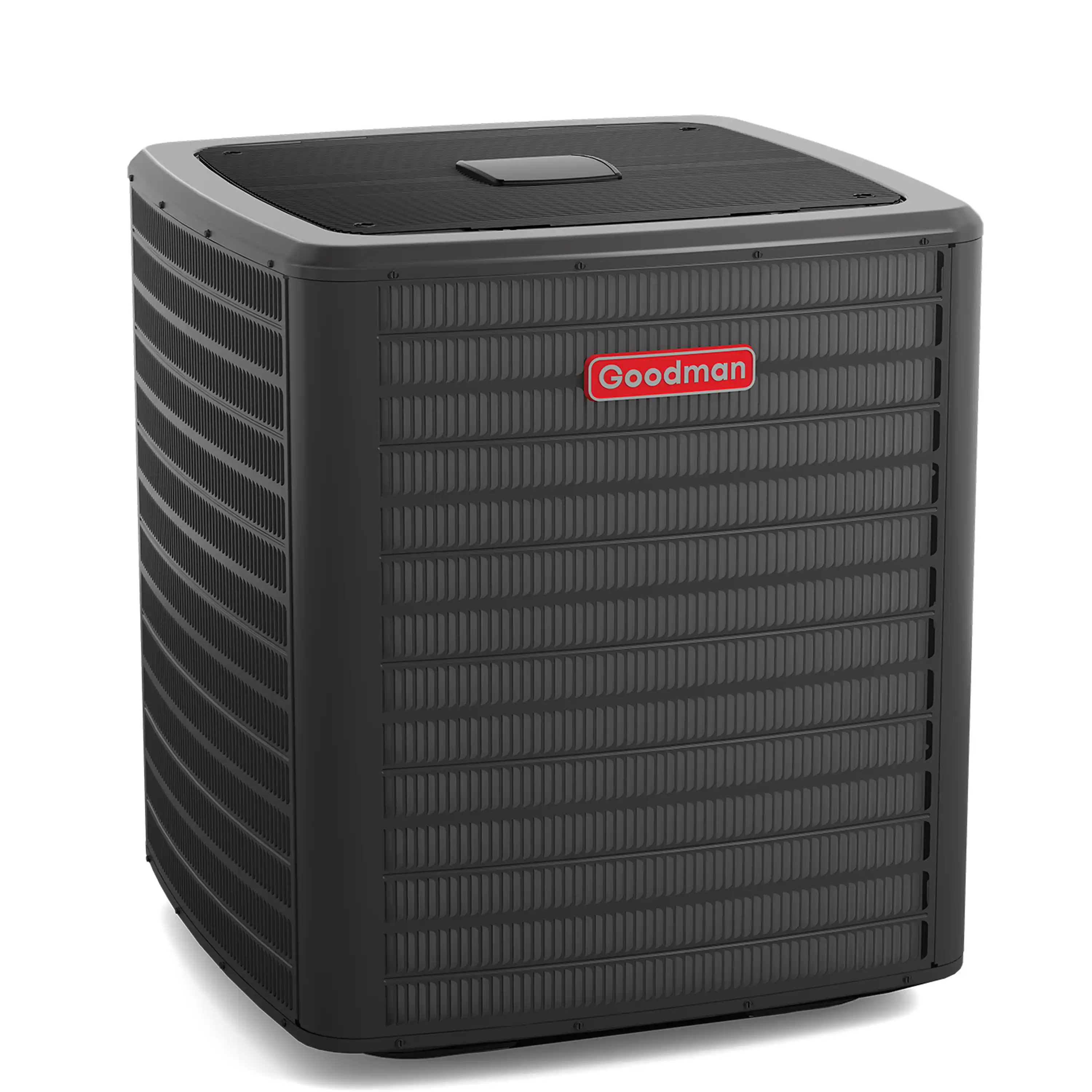

The Goodman GLZT7C is a premium 3 Ton split system heat pump delivering 17.2 SEER2 / 8.1 HSPF2 efficiency with two-stage operation and ComfortBridge technology. Features a Two-Stage Copeland UltraTech scroll compressor, two-speed ECM condenser fan motor, and ComfortAlert built-in diagnostics. Compatible with CoolCloud app via Bluetooth. Built in a heavy-gauge galvanized steel cabinet. AHRI Certified and ETL Listed.

• Two-Stage Copeland® UltraTech scroll compressor
• High-density foam compressor sound blanket
• Integrated communicating ComfortBridge™ technology
• Commissioning and diagnostics via indoor board Bluetooth with the CoolCloud™ phone and tablet application
• ComfortAlert™ built in diagnostics
• Copper tube/enhanced aluminum fin coil- 5mm on 2.0-3.0T
• Copper tube/enhanced aluminum fin coil - 7mm on 4.0-5.0T
• Efficient, two-speed ECM condenser fan motor
• Simple low-voltage wiring to outdoor unit in communicating mode
• Diagnostic indicator lights and storage of six fault codes
• Color-coded terminal strip for non-communicating set-up
• High- and low-pressure switches
• Time-delay technology with short-cycle protection to ensure quiet, reliable defrost
• Factory-installed bi-flow liquid-line filter drier
• Factory-installed suction-line accumulator
• Factory-installed compressor crankcase heater
• Factory-installed high-capacity muffler
• Factory-installed coil and ambient temperature sensors
• AHRI Certified
• ETL Listed

• Grille-style sound control top design
• Custom Nickel Gray powder-paint finish
• 500-hour salt-spray tested
• Wire fan discharge grille
• Steel louver coil guard
• Single panel access to controls with space provided for field-installed accessories
• Sweat connection service valves with easy access to gauge ports
• When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

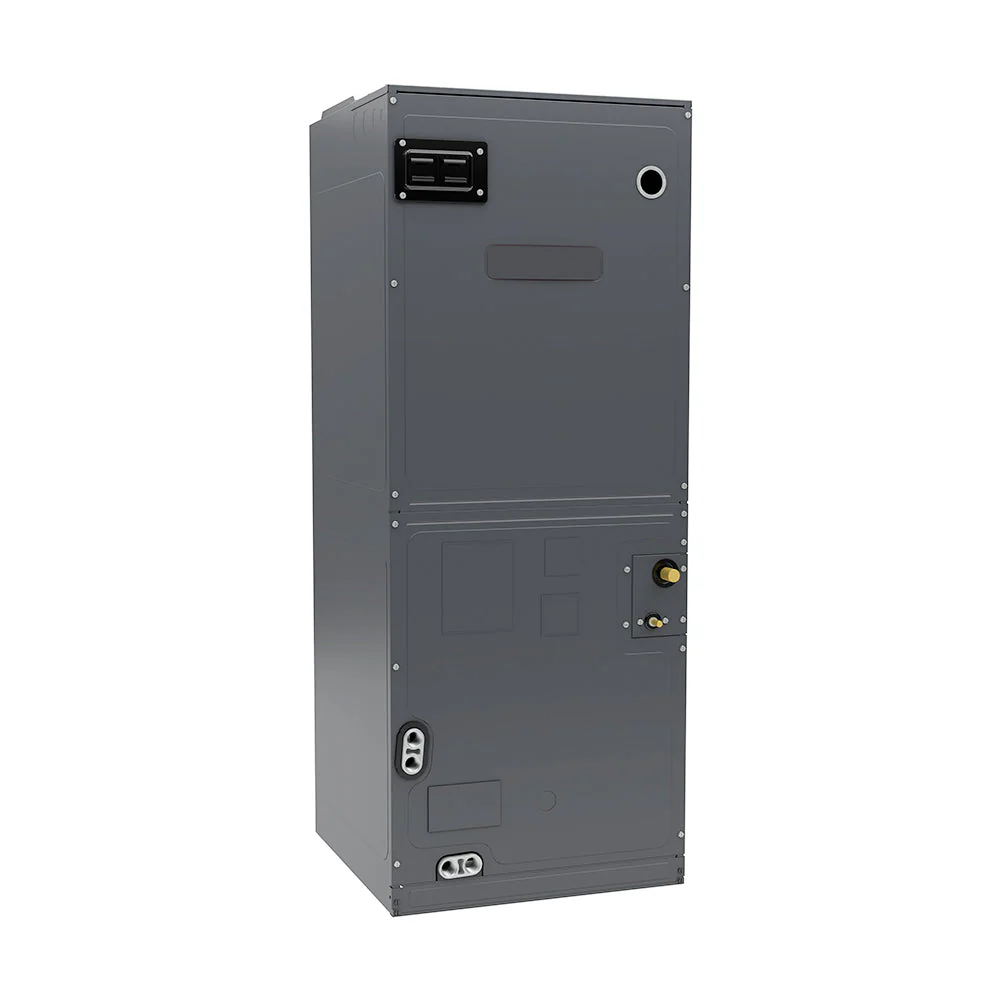

The Goodman AMVT 3.5 Ton Air Handler features variable-speed ECM blower motor technology for efficient, quiet operation with improved humidity and comfort control. Integrated ComfortBridge Technology enables smart communication with compatible systems, while factory-installed TXVs support both cooling and heat pump applications. The rigid SmartFrame cabinet with galvanized finish offers flexible horizontal or vertical installation, and R-32 refrigerant optimization with factory-installed leak detection sensor ensures safe, environmentally responsible operation.

• Internal factory-installed thermal expansion valves for cooling and heat pump applications
• Variable-speed ECM blower motor
• Integrated communicating ComfortBridge Technology
• Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application.
• Auto configuration of the airflow and tonnage in communicating mode
• Provides constant CFM over a wide range of static pressure conditions independent of duct system
• CFM indicator
• Fault recall of six most recent faults
• Provides adjustable low CFM for efficient fan-only operation
• 10. Improved humidity and comfort control
• 1Built-in compatibility with multi-stage heat pump and cooling applications
• 1Optimized for R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.

• Rigid SmartFrame™ cabinet
• Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193
• Horizontal or vertical configuration capabilities
• 21" depth for easier attic access
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Screw-less sides and back helps to reduce condensation when installed in humid locations
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• 10 .Glue-less cabinet insulation retention
