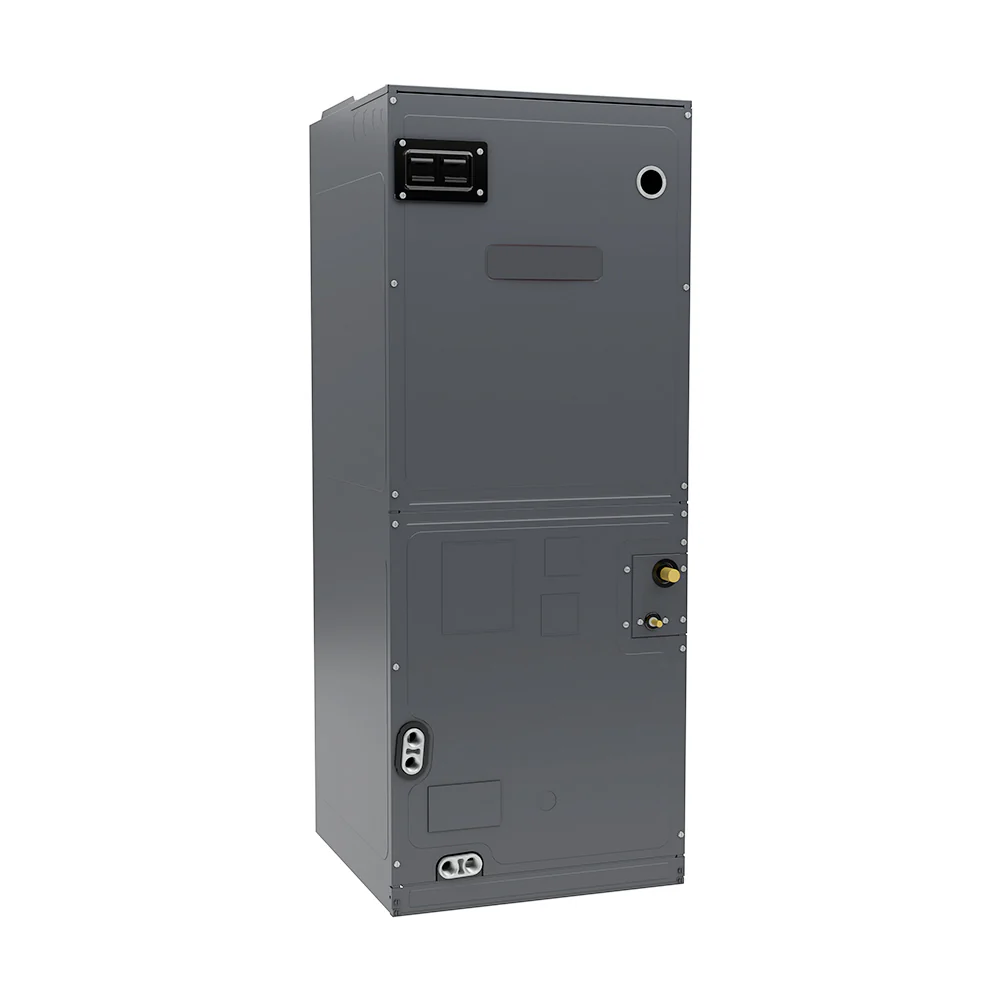

Goodman AMST Ducted Multi-position Air Handler, Nine Speed ECM Motor, 5 Ton, 24-5/8 in Cabinet with TXV Expansion, (AMST60DU1300)

The Goodman AMVT multi-position air handler is designed for ducted mini-split applications with variable-speed technology. Features flexible multi-position installation options for versatile applications. Provides quiet, efficient air distribution when paired with Goodman mini-split outdoor units. Ideal for applications requiring traditional ducted airflow with enhanced comfort control.

Features

• Internal factory-installed thermal expansion valves for cooling and heat pump applications

• Direct drive, multi-speed ECM blower motor

• All-aluminum evaporator coil

• Coil mounting track for quick repositioning

• Optimized for use with R-32 refrigerant

• Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193

• Cabinet air leakage less than 1.4%  at 0.5 inch H₂O when tested in  accordance with ASHRAE standard 193

• AHRI certified; ETL listed

• UL 60335 2-40 Compliant

• Factory installed R32 sensor designed for lifespan of coil

• Rigid SmartFrame™ cabinet

• Horizontal or vertical configuration capabilities

• 21" depth for easier attic access

• DecaBDE-free thermoplastic drain pan with secondary drain connections

• Screw-less sides and back helps to reduce condensation when installed in humid locations

• Foil-faced insulation covers the internal casing to reduce cabinet condensation

• Galvanized, leather grain-embossed finish

• Glue-less cabinet insulation retention

• Tool-less filter access

• Field Installed 3 kW – 25 kW electric heater kits available
