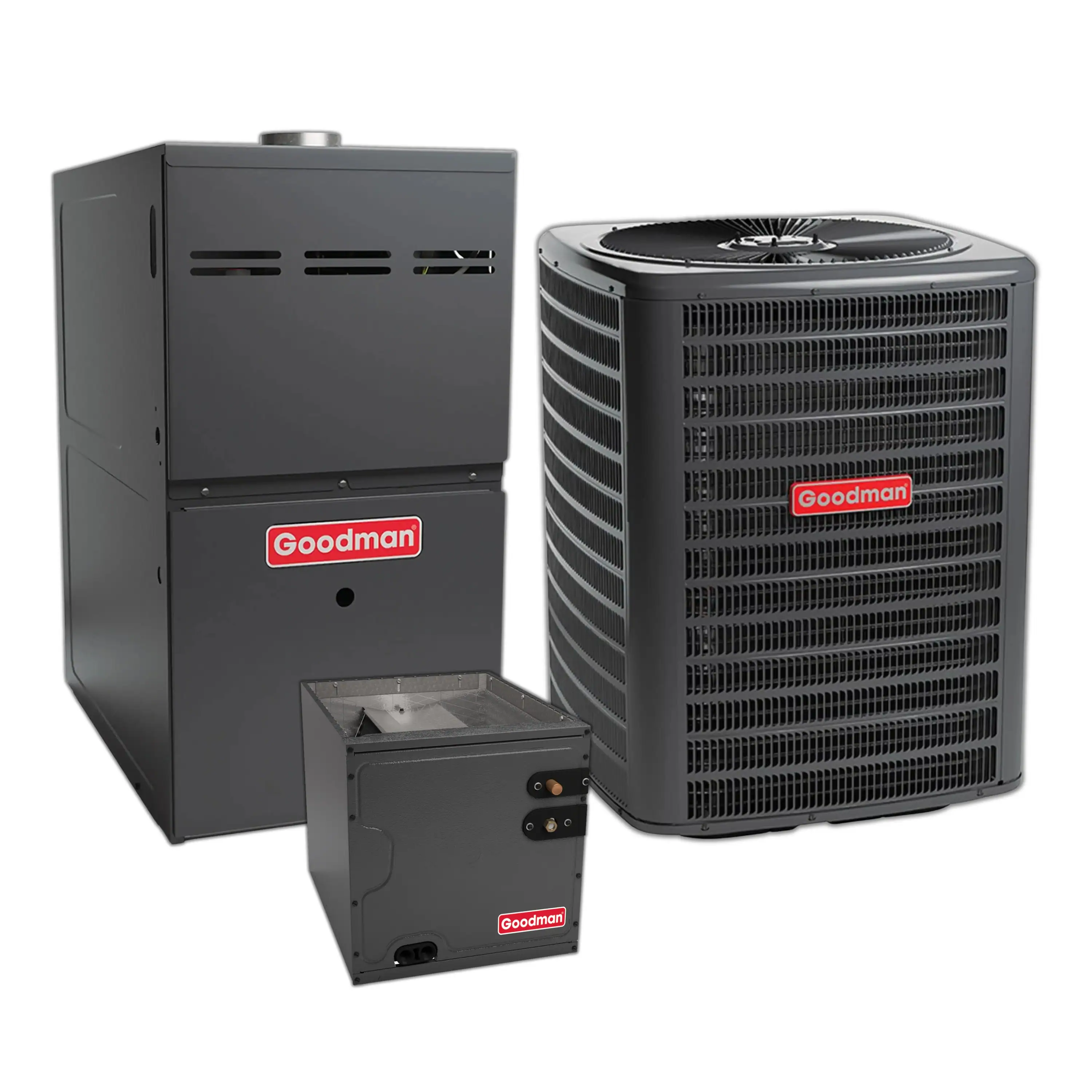

Goodman 3.0 Ton 14.3 SEER2 Central Air Conditioner, 80% AFUE 80K BTU Gas Furnace and Evaporator Coil

The Goodman GLXS4B Split System Air Conditioner delivers 14.3 SEER2 efficiency with R-32 refrigerant at 3 Ton capacity. Features single-stage cooling and durable powder-painted cabinet with easy service access. Optimized for next-generation R-32 refrigerant with lower GWP. AHRI Certified and ETL Listed.

• Energy-Efficienct Compressor
• Fully charged for 15' of tubing length
• Copper tube/ enhanced aluminum fin coil-5mm diameter
• Factory-installed filter drier
• Sweat connection service valves with easy access to gauge ports
• Enclosed contactor with lug connection
• High-pressure switch
• Capacitors with extended life
• AHRI Certified
• ETL Listed

• Removable grille-style top designcompliant with UL 60335-2-40
• Venturi for increased velocity of airflow
• Attractive Architectural Gray powder-paintfinish with 500-hour salt-spray approval
• Wire fan discharge grille
• Steel louver coil guard
• Top and side maintenance access
• Single-panel access to controls with space provided for field-installed accessories
• When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

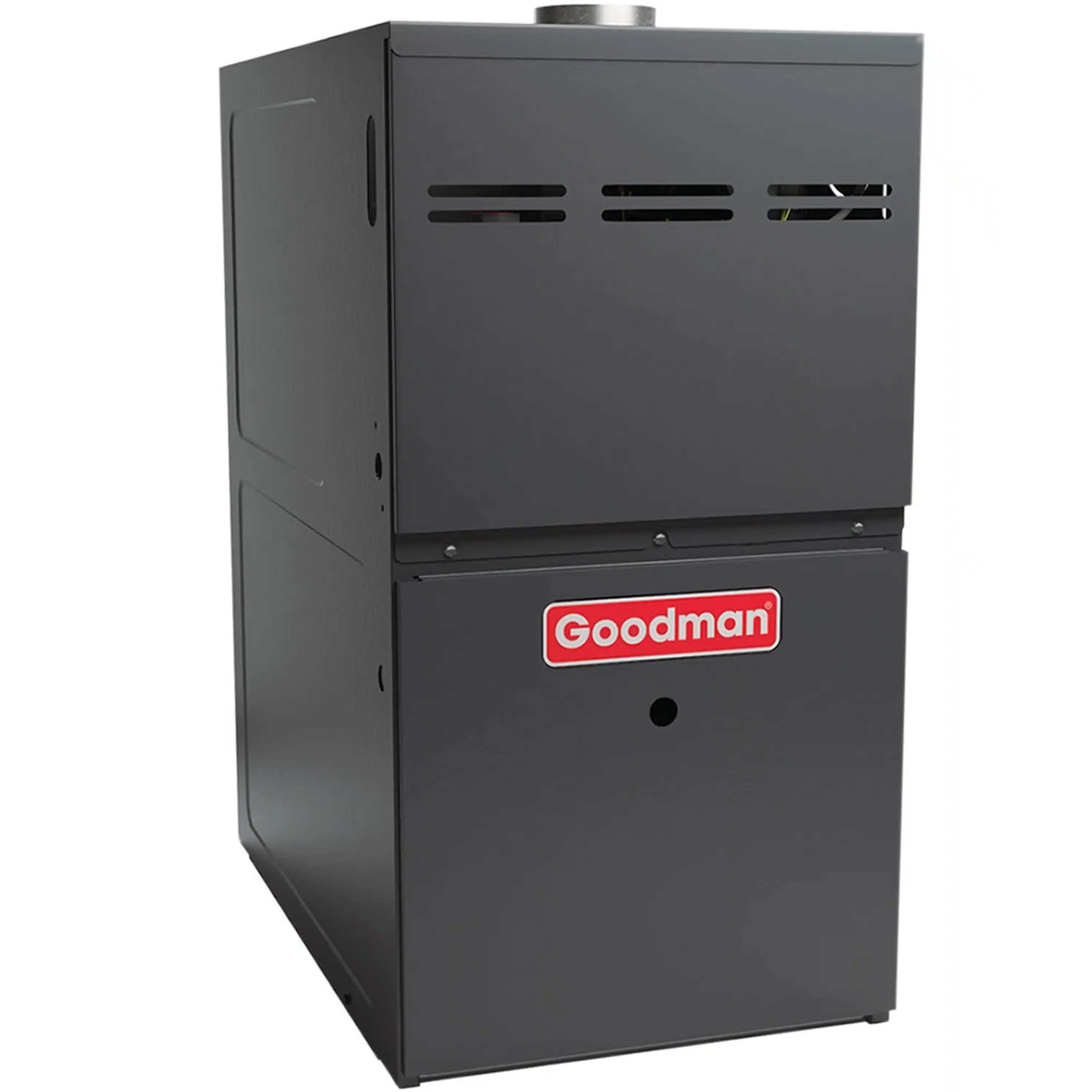

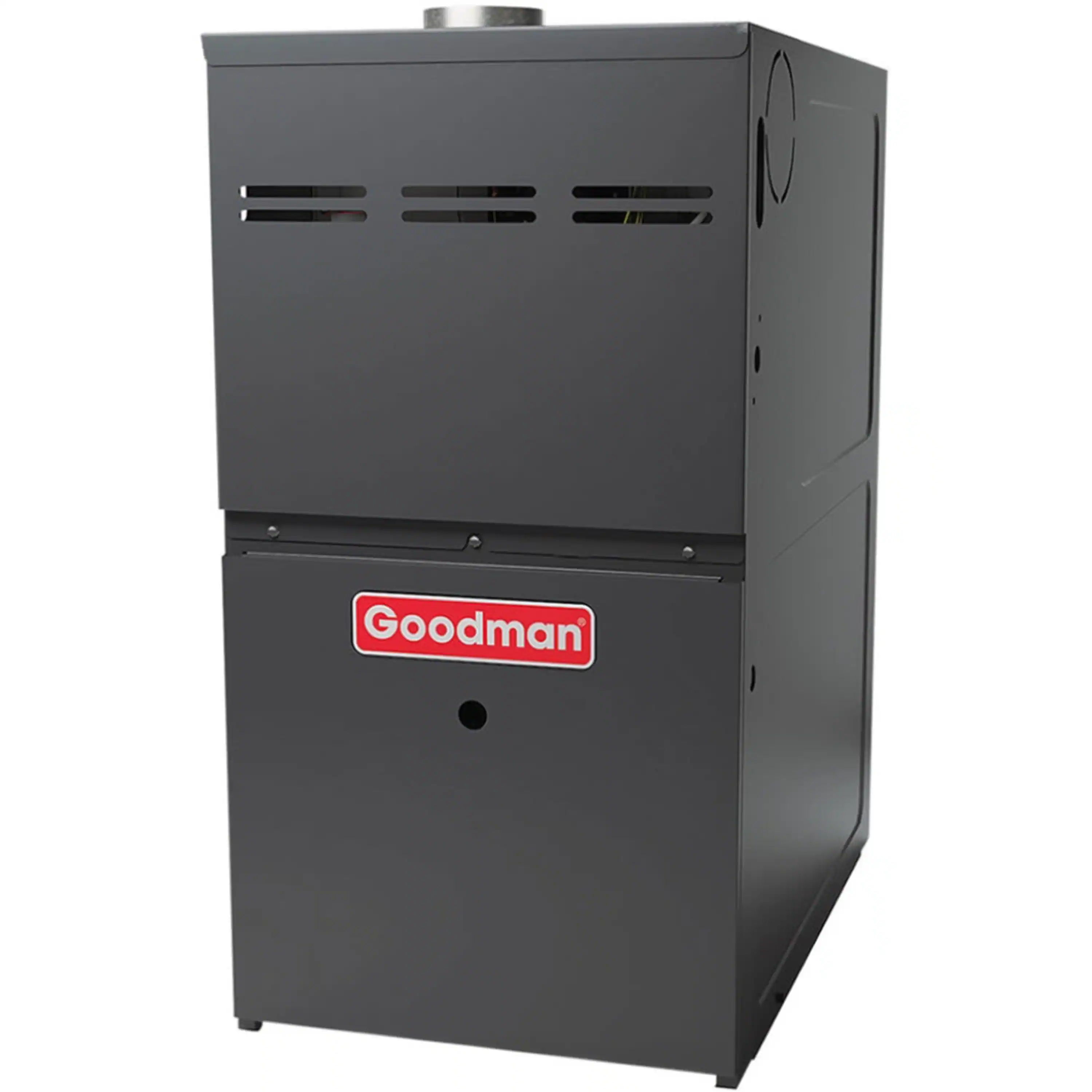

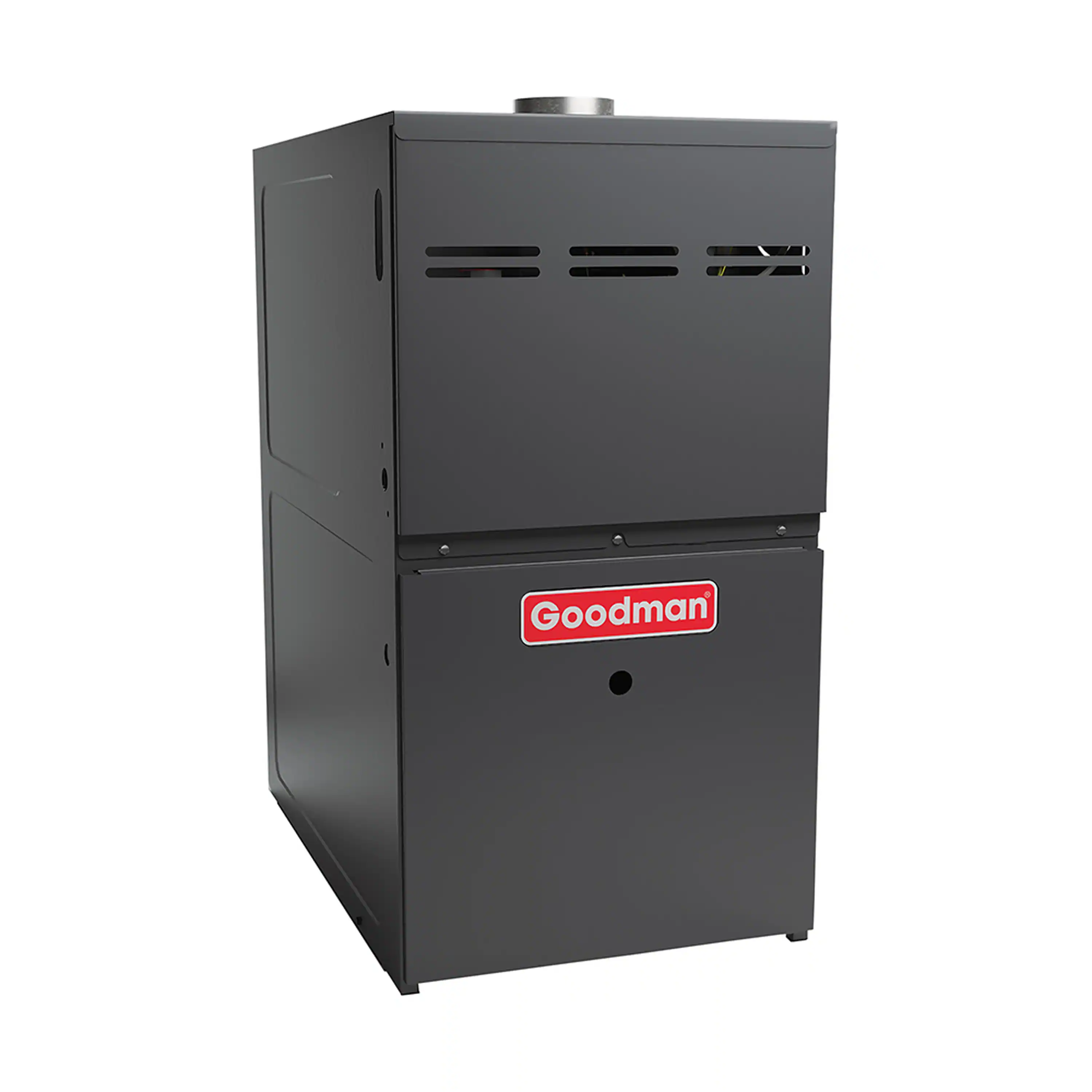

The Goodman GRVT80 Gas Furnace delivers 80% AFUE efficiency with a variable-speed ECM blower and two-stage gas valve for quiet, consistent heating at 80,000 BTUH. Features ComfortBridge™ communicating technology and heavy-duty aluminized-steel tubular heat exchanger. Multi-position upflow/horizontal installation.

• Heavy-dutyluminized-steel tubular heat exchanger
• Efficientnd quiet variable-speed Blower
• ComfortBridge™ Communicating System compatible
• Commissioningnd diagnostics via on board Bluetooth with the CoolCloud™ phonend tabletpplication
• Silicon Nitride igniter
• Two-Stage gas valve

• Multi-position installation: upflow, horizontal left or right
• Convenient left or right connection for gasnd electrical service
• Cabinetir leakage (Qleak) less than or equal to 2%
• Fully insulated heat exchangernd blower section
• Bottom or side returnirpplications
• Heavy-gage steel cabinet with durable finish

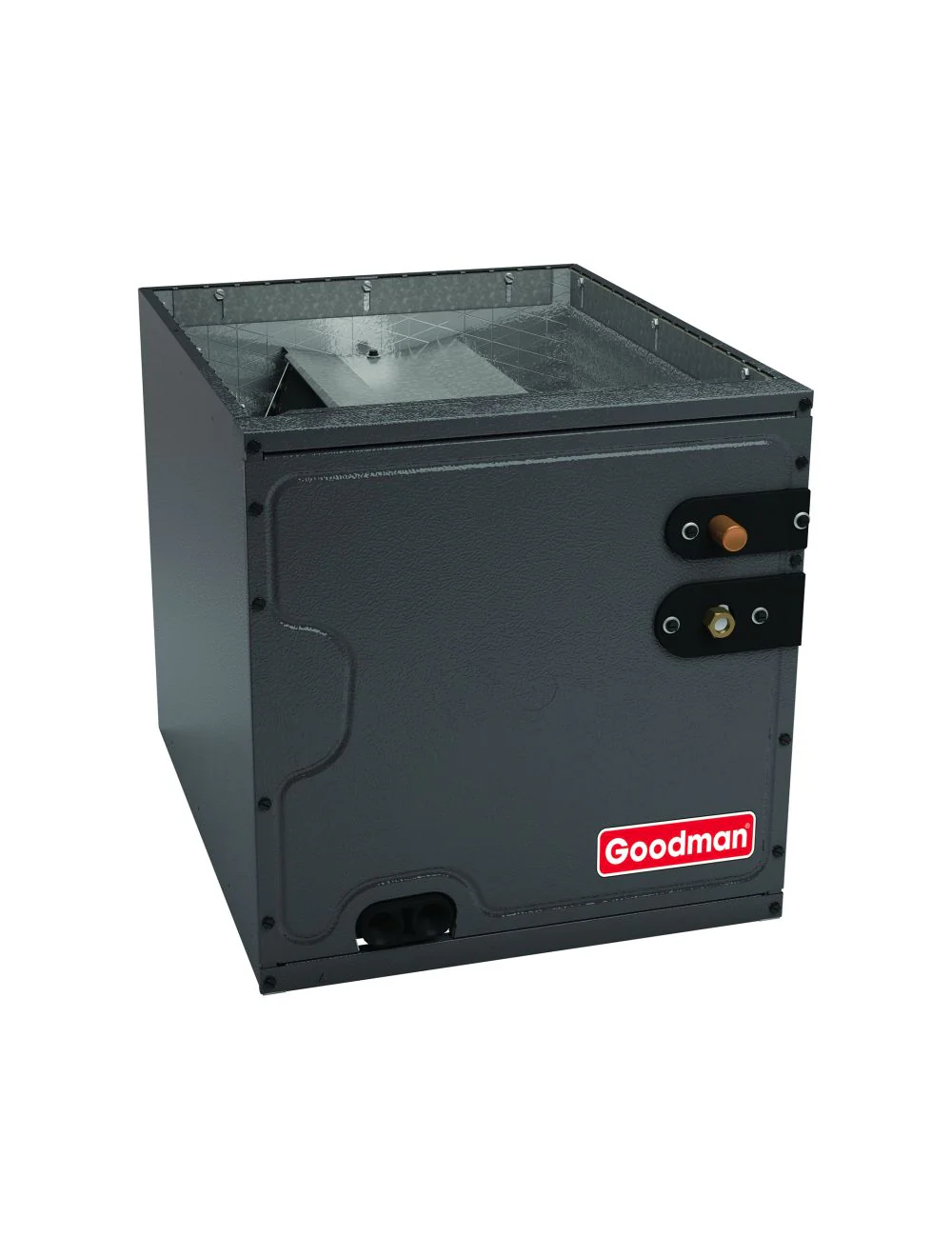

The Goodman CAPTA AlumaFin7 evaporator coil is a 3 Ton all-aluminum coil optimized for R-32 refrigerant with upflow/downflow application. Features factory-installed thermal expansion valves, R-32 sensor, and 21" depth for easier attic access. Includes rust-resistant UV-resistant thermoplastic drain pan with secondary drain connections. Galvanized leather grain-embossed finish. AHRI Certified and ETL Listed.

• All-Aluminum evaporator coil
• Optimized for use with R-32 refrigerant including circuits and manifolds
• R-32 sensor designed for the life span of the coil
• Factory-installed thermal expansion valves for cooling and heat pump applications
• Standardized copper suction tube stub length
• Check flowrator for cooling and heat pump applications
• Vertical application
• 21" depth for easier attic access
• Single front access panel
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Rust resistant, thermoplastic drain pan featuring a low water-retention design
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
• UV-resistant drain pan
• AHRI certified
• ETL Listed
