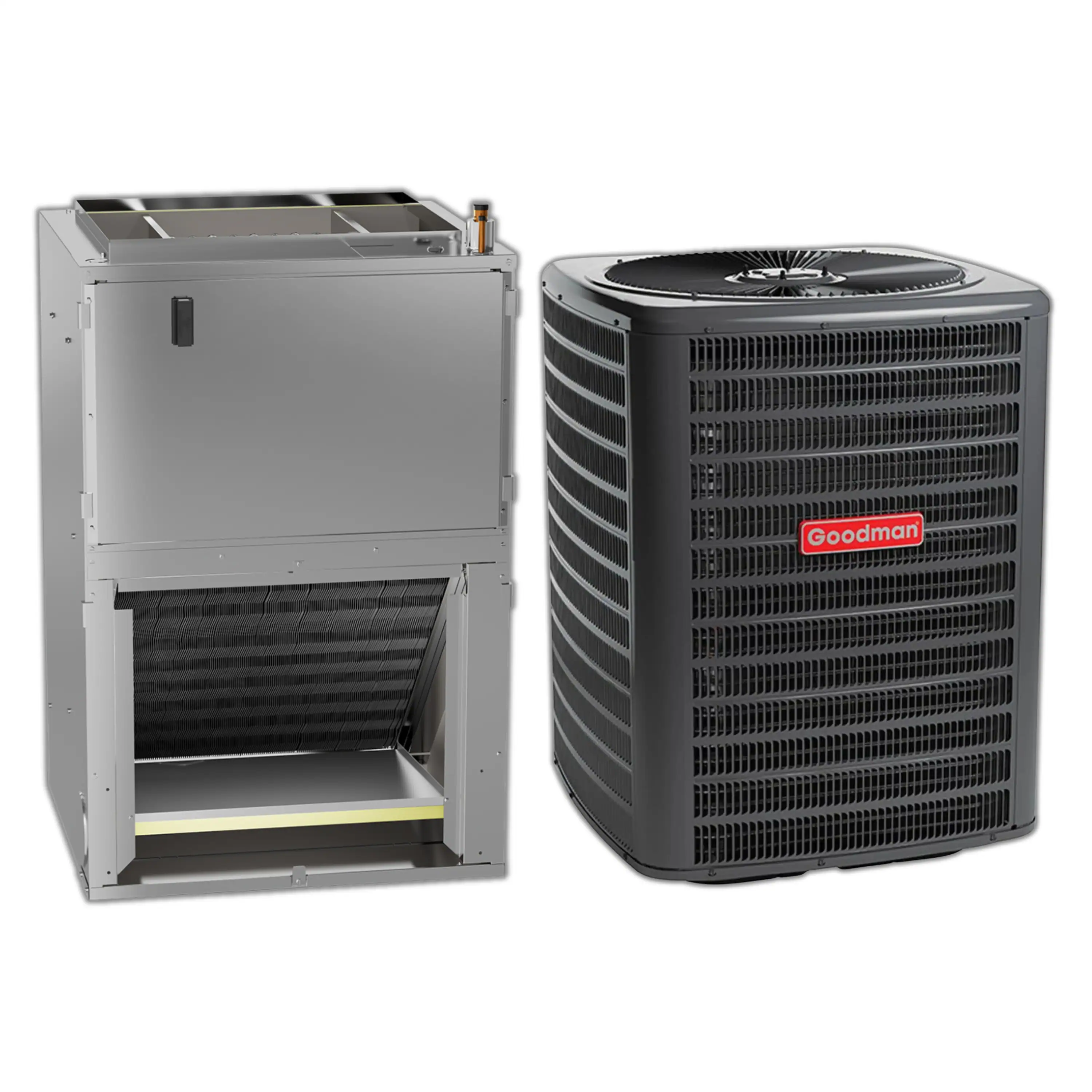

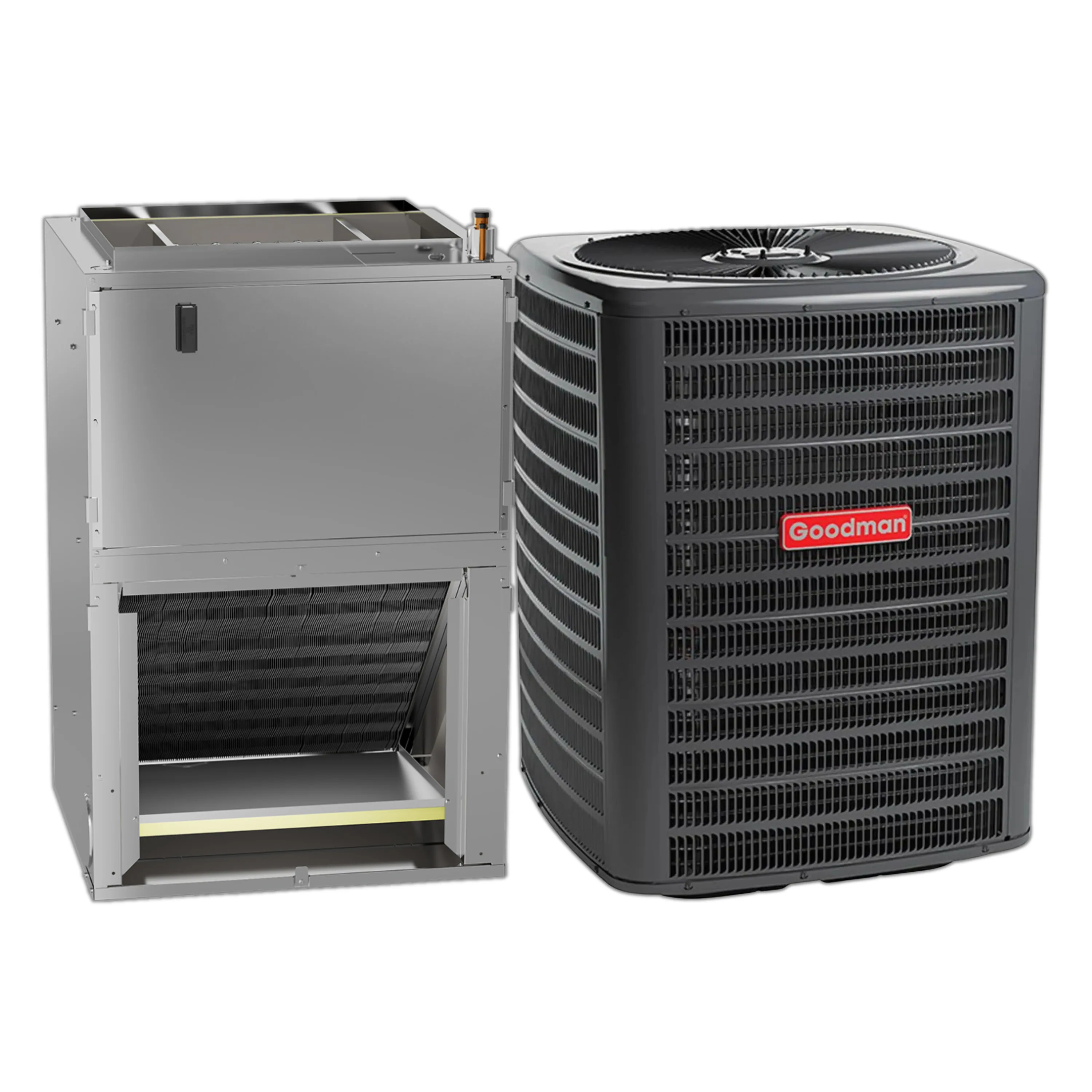

Goodman 2.5 Ton 15.2 SEER2 Central Air Conditioner and Air Handler

The Goodman GLXS4M Split System Air Conditioner delivers 14.3 SEER2 efficiency with R-32 refrigerant at 2.5 Ton capacity. Features single-stage cooling and durable powder-painted cabinet with easy service access. Optimized for next-generation R-32 refrigerant with lower GWP. AHRI Certified and ETL Listed.

• Removable grille-style top design compliant with UL 60335-2-40
• Venturi for increased velocity of airflow
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Wire fan discharge grille
• Steel louver coil guard
• Top and side maintenance access
• Single-panel access to controls with space provided for field-installed accessories
• When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

• High-Efficiency Scroll Compressor
• Factory-installed filter drier
• Fully charged for 15’ of tubing length
• 5mm diameter copper tube/enhanced aluminum fin coil
• Service valves with sweat connections and easy-to-access gauge ports
• Enclosed contactor with lug connection
• Ground lug connection
• High-pressure switch
• AHRI Certified
• ETL Listed

The Goodman AWST wall-mounted mini-split air handler provides quiet, ductless climate control for single-zone applications. Features a sleek, compact design perfect for individual room comfort. Designed for easy installation and operation with a wireless remote control. Compatible with Goodman mini-split outdoor units for efficient heating and cooling.

• AWST Models: Equipped wit a fully adjustable TXV
• Direct-drive, multi-speed motors allows air volume variation for heating/cooling
• Direct-drive, multi-speed motors allows air volume variation for heating/cooling
• Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
• Aluminum tubing coils on all models
• Factory-installed pull-type disconnect
• Thermoplastic drain pan with bottom primary and secondary drain connections
• AHRI Certified and ETL Listed
• Optimized for use with R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.

• Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
• Built-in filter rack (filter included)
• Large chassis (2-1/2 and 3 ton units), front return only
• Small chassis (1-1/2 and 2 ton units), front or bottom return
• Wall-hanging bracket provided
