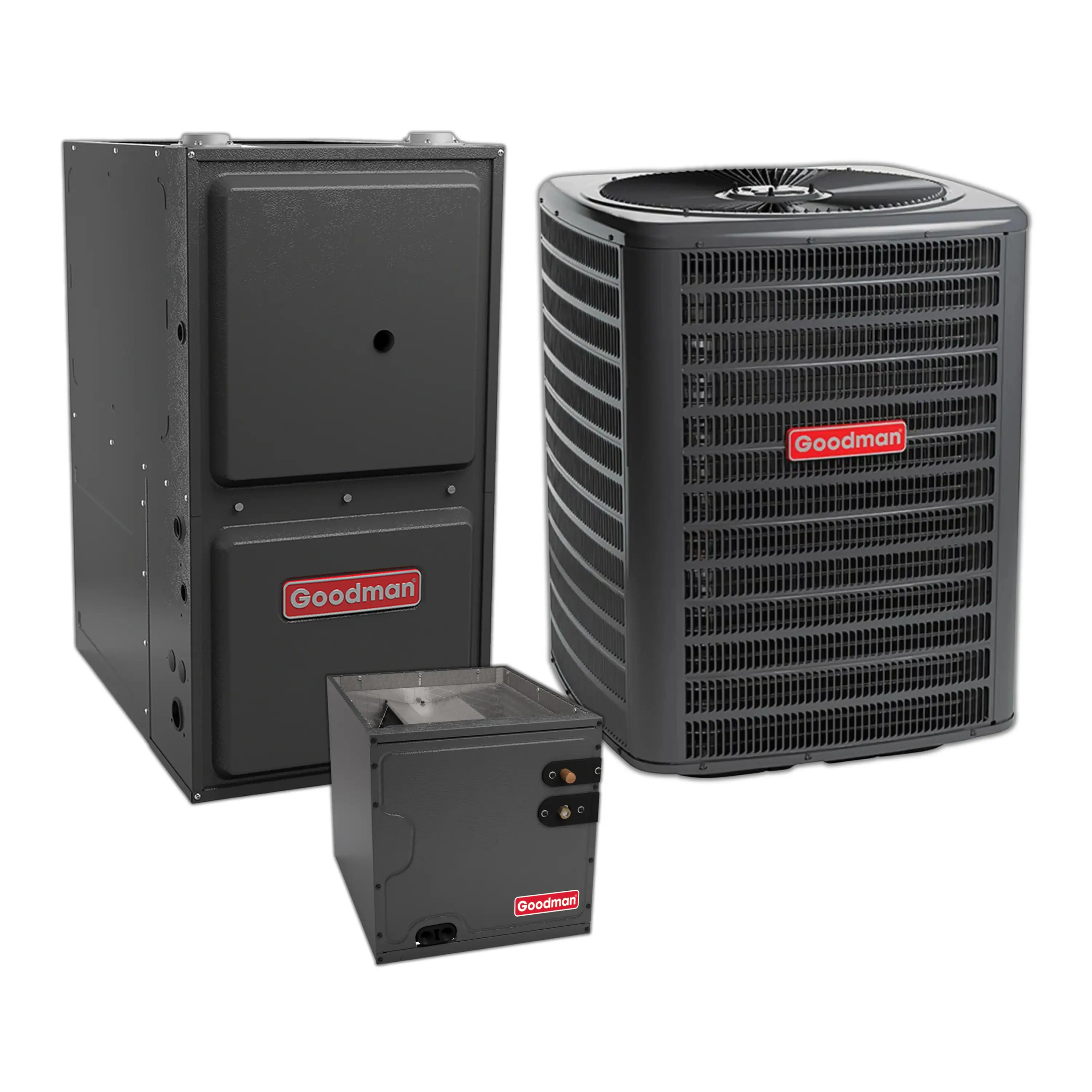

Goodman 2.5 Ton 15.2 SEER2 Central Air Conditioner, 96% AFUE 40K BTU Gas Furnace and Evaporator Coil

The Goodman GLXS5B Split System Air Conditioner delivers 15.2 SEER2 efficiency with R-32 refrigerant at 2.5 Ton capacity. Features single-stage cooling and durable powder-painted cabinet with easy service access. Optimized for next-generation R-32 refrigerant with lower GWP. AHRI Certified and ETL Listed.

• High-efficiency scroll compressor
• Factory-installed filter drier
• Fully charged for 15’ of tubing length
• Copper tube/enhanced aluminum fincoil -5mm diameter on 1.5-3.0T
• Service valves with sweat connectionsand easy-to-access gauge ports
• Enclosed contactor with lug connection
• Ground lug connection
• High-pressure switch
• AHRI Certified
• ETL Listed

• Removable grille-style top designcompliant with UL 60335-2-40
• Heavy-gauge galvanized-steel cabinet
• Attractive Architectural Gray powder-paintfinish with 500-hour salt-spray approval
• Steel louver coil guard
• Single-panel access to controls with spaceprovided for field-installed accessories
• When properly anchored, meets the 2023 FloridaBuilding Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)

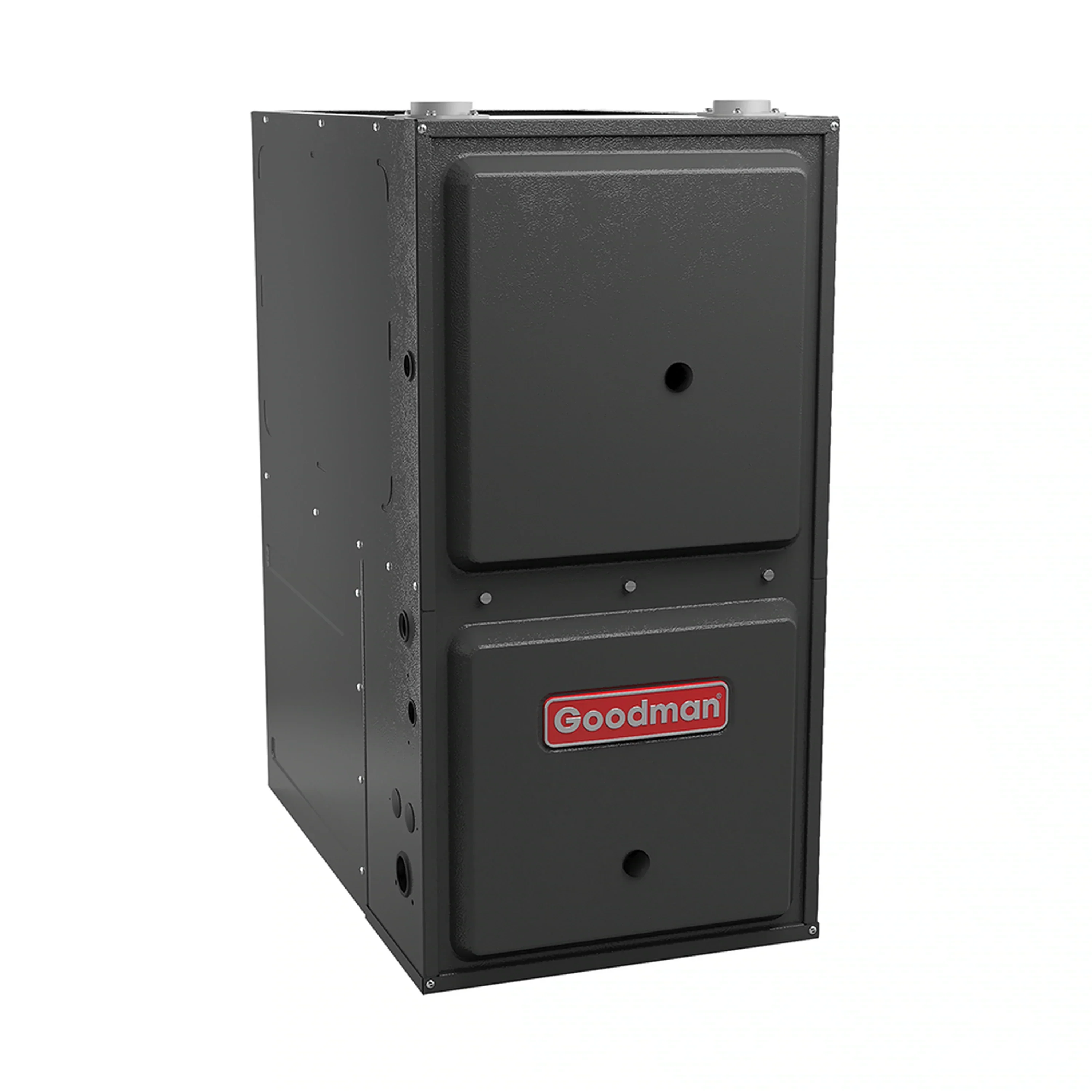

The Goodman GR9S96_U Gas Furnace delivers 96% AFUE efficiency with a multi-speed ECM blower motor and single-stage gas valve at 40,000 BTUH. Compliant with California SCAQMD Rule 1111 Ultra-Low NOx 14 ng/J emissions standard and eligible for SCAQMD Clean Air Furnace Rebate. Multi-position upflow/horizontal installation.

• Heavy-duty aluminized-steel tubular heat exchangerStainless-steel sloped secondary heat exchangerSilicon Nitride igniterColor-coded low-voltage terminalsMulti-speed ECM blower motor with continuous fan speedFault code LED OutputAHRI Certified - ETL ListedEnergy StarSingle-Stage gas Valve10. Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers1Low constant fan speed circulates air throughout the home1High static1All models comply with California Ultra-Low N0x 14 ng/J

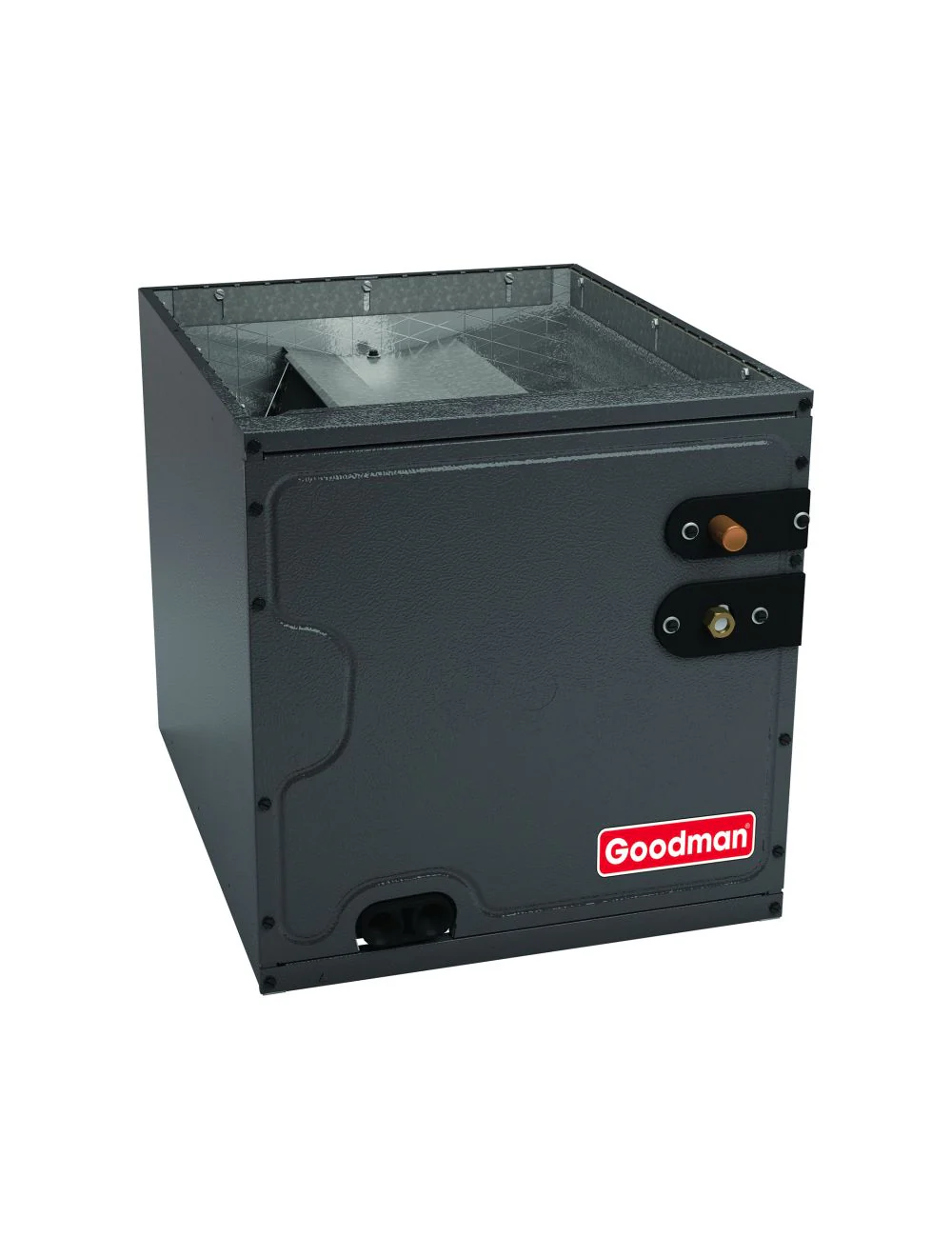

The Goodman CAPTA AlumaFin7 evaporator coil is a 3 Ton all-aluminum coil optimized for R-32 refrigerant with upflow/downflow application. Features factory-installed thermal expansion valves, R-32 sensor, and 21" depth for easier attic access. Includes rust-resistant UV-resistant thermoplastic drain pan with secondary drain connections. Galvanized leather grain-embossed finish. AHRI Certified and ETL Listed.

• All-Aluminum evaporator coil
• Optimized for use with R-32 refrigerant including circuits and manifolds
• R-32 sensor designed for the life span of the coil
• Factory-installed thermal expansion valves for cooling and heat pump applications
• Standardized copper suction tube stub length
• Check flowrator for cooling and heat pump applications
• Vertical application
• 21" depth for easier attic access
• Single front access panel
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Rust resistant, thermoplastic drain pan featuring a low water-retention design
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
• UV-resistant drain pan
• AHRI certified
• ETL Listed
