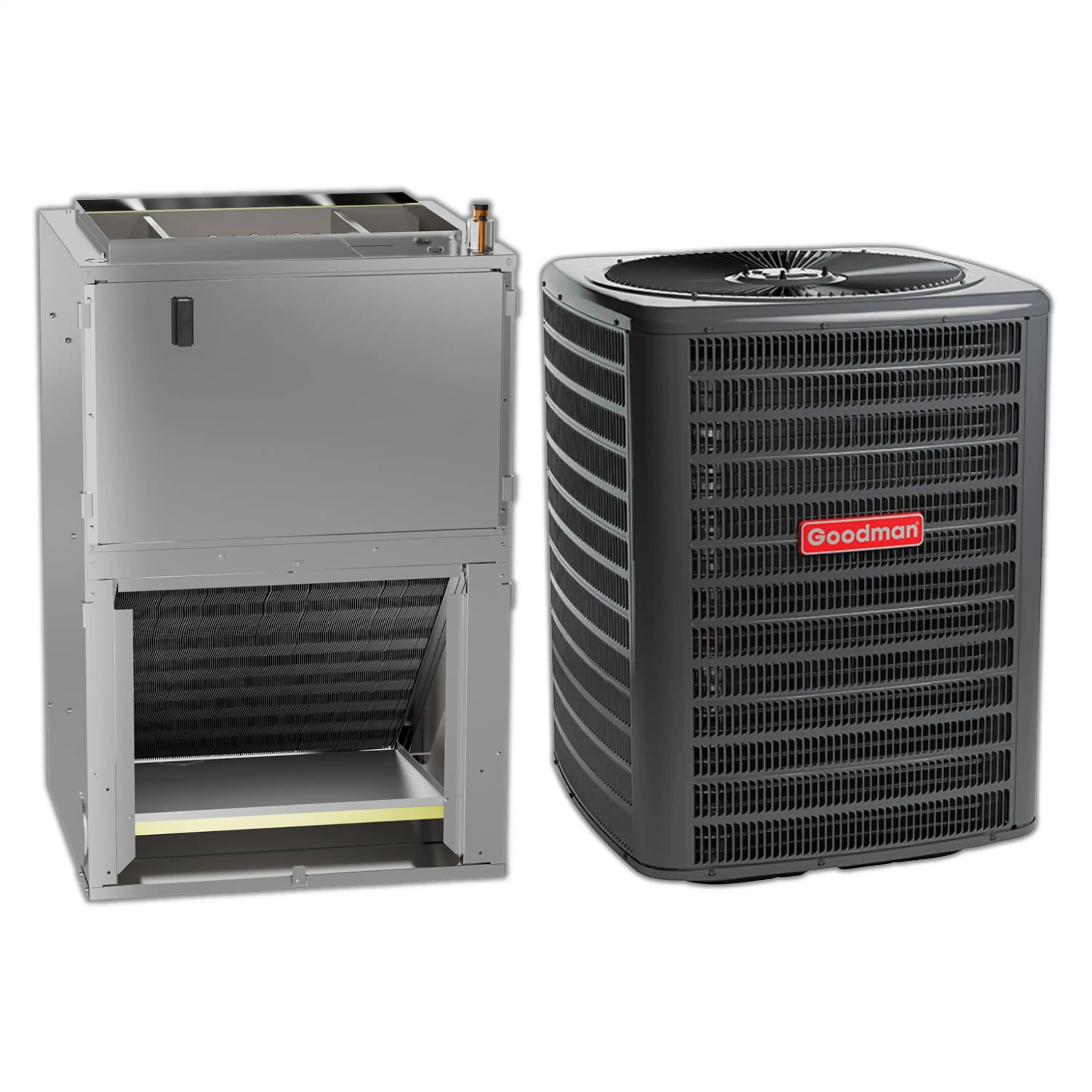

Goodman 2.0 Ton 14.5 SEER2 Heat Pump and Air Handler

The Goodman GLZS4B is a 2 Ton split system heat pump delivering 14.3 SEER2 / 7.8 HSPF2 efficiency with SmartShift technology for quiet, reliable defrost. Features a high-efficiency compressor, factory-installed components, and enhanced aluminum fin coils with 5mm copper tubes. Built in a heavy-gauge galvanized steel cabinet with Architectural Gray finish. Meets 2023 Florida Building Code when properly anchored. AHRI Certified and ETL Listed.

• High-Efficiency Compressor
• SmartShift technology to ensure quiet reliable defrost
• Factory-installed bi-flow liquid line filter drier
• Factory-installed suction-line accumulator
• Factory-installed compressor crankcase heater
• Factory-installed high-capacity muffler
• Enhanched aluminum fin coil with 5mm diameter coper tubes in 1.5 -to 3.5 ton
• Enhanched aluminum fin coil with 7mm diameter coper tubes in 4.0 -to 5.0 ton
• High and low-pressure switches
• Fully charged for 15’ of tubing length
• Service valves with sweat connections and easy-to-access gauge ports
• Fully enclosed contactor with lug connection
• Ground lug connection
• Single-speed PSC condenser fan motor
• Capacitor with extended life
• AHRI Certified
• ETL Listed

• Removable grille style top design compliant with UL 60335-2-40
• Steel louver coil guard
• Heavy-gauge galvanized-steel cabinet
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Top and side maintenance access
• When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available

The Goodman AWST wall-mounted mini-split air handler provides quiet, ductless climate control for single-zone applications. Features a sleek, compact design perfect for individual room comfort. Designed for easy installation and operation with a wireless remote control. Compatible with Goodman mini-split outdoor units for efficient heating and cooling.

• AWST Models: Equipped wit a fully adjustable TXV
• Direct-drive, multi-speed motors allows air volume variation for heating/cooling
• Direct-drive, multi-speed motors allows air volume variation for heating/cooling
• Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
• Aluminum tubing coils on all models
• Factory-installed pull-type disconnect
• Thermoplastic drain pan with bottom primary and secondary drain connections
• AHRI Certified and ETL Listed
• Optimized for use with R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.

• Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
• Built-in filter rack (filter included)
• Large chassis (2-1/2 and 3 ton units), front return only
• Small chassis (1-1/2 and 2 ton units), front or bottom return
• Wall-hanging bracket provided
