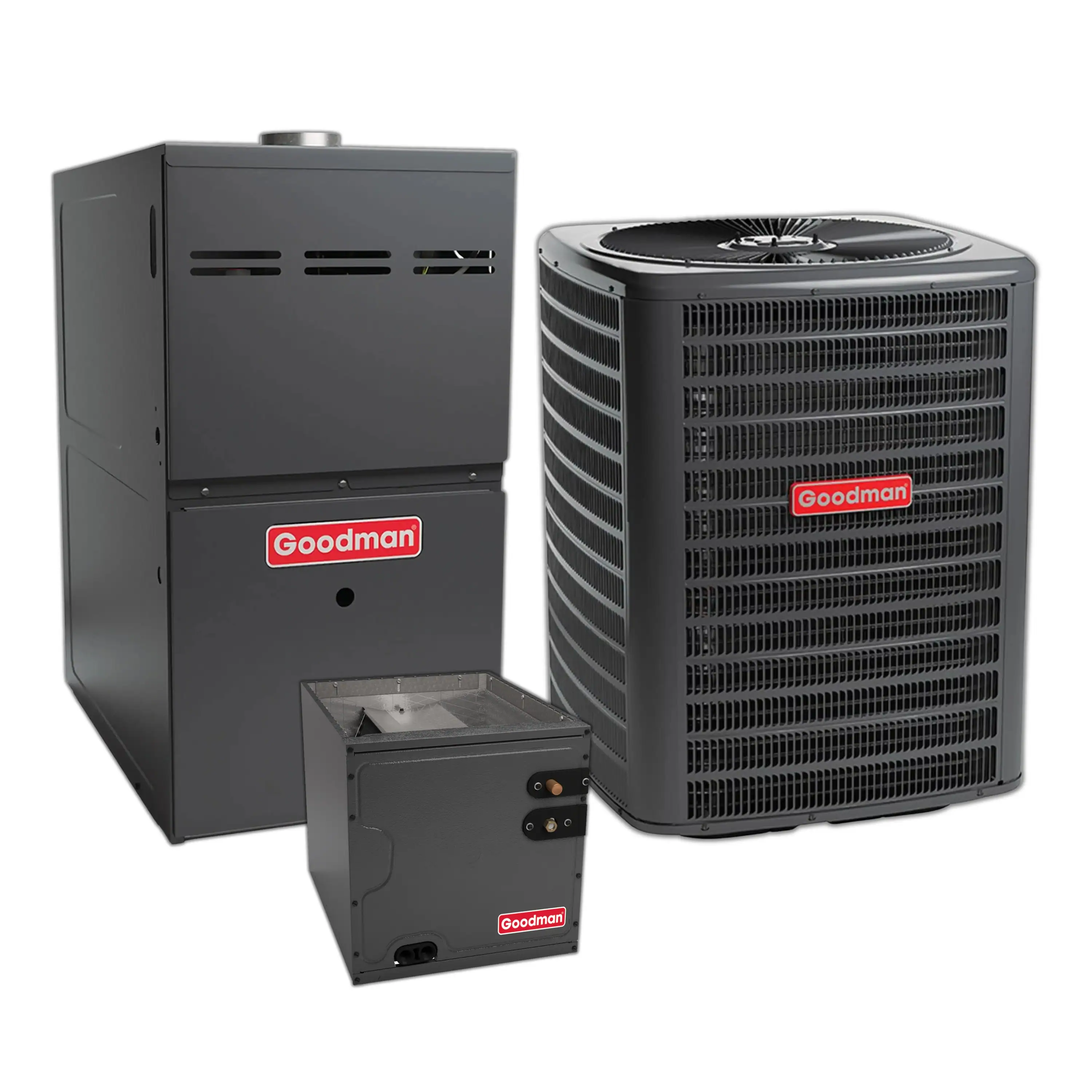

Goodman 3.0 Ton 14.3 SEER2 Heat Pump, 80% AFUE 80K BTU Gas Furnace and Evaporator Coil

The Goodman GLZS4B is a 3 Ton split system heat pump delivering 14.3 SEER2 / 7.8 HSPF2 efficiency with SmartShift technology for quiet, reliable defrost. Features a high-efficiency compressor, factory-installed components, and enhanced aluminum fin coils with 5mm copper tubes. Built in a heavy-gauge galvanized steel cabinet with Architectural Gray finish. Meets 2023 Florida Building Code when properly anchored. AHRI Certified and ETL Listed.

• High-Efficiency Compressor
• SmartShift technology to ensure quiet reliable defrost
• Factory-installed bi-flow liquid line filter drier
• Factory-installed suction-line accumulator
• Factory-installed compressor crankcase heater
• Factory-installed high-capacity muffler
• Enhanched aluminum fin coil with 5mm diameter coper tubes in 1.5 -to 3.5 ton
• Enhanched aluminum fin coil with 7mm diameter coper tubes in 4.0 -to 5.0 ton
• High and low-pressure switches
• Fully charged for 15’ of tubing length
• Service valves with sweat connections and easy-to-access gauge ports
• Fully enclosed contactor with lug connection
• Ground lug connection
• Single-speed PSC condenser fan motor
• Capacitor with extended life
• AHRI Certified
• ETL Listed

• Removable grille style top design compliant with UL 60335-2-40
• Steel louver coil guard
• Heavy-gauge galvanized-steel cabinet
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Top and side maintenance access
• When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available

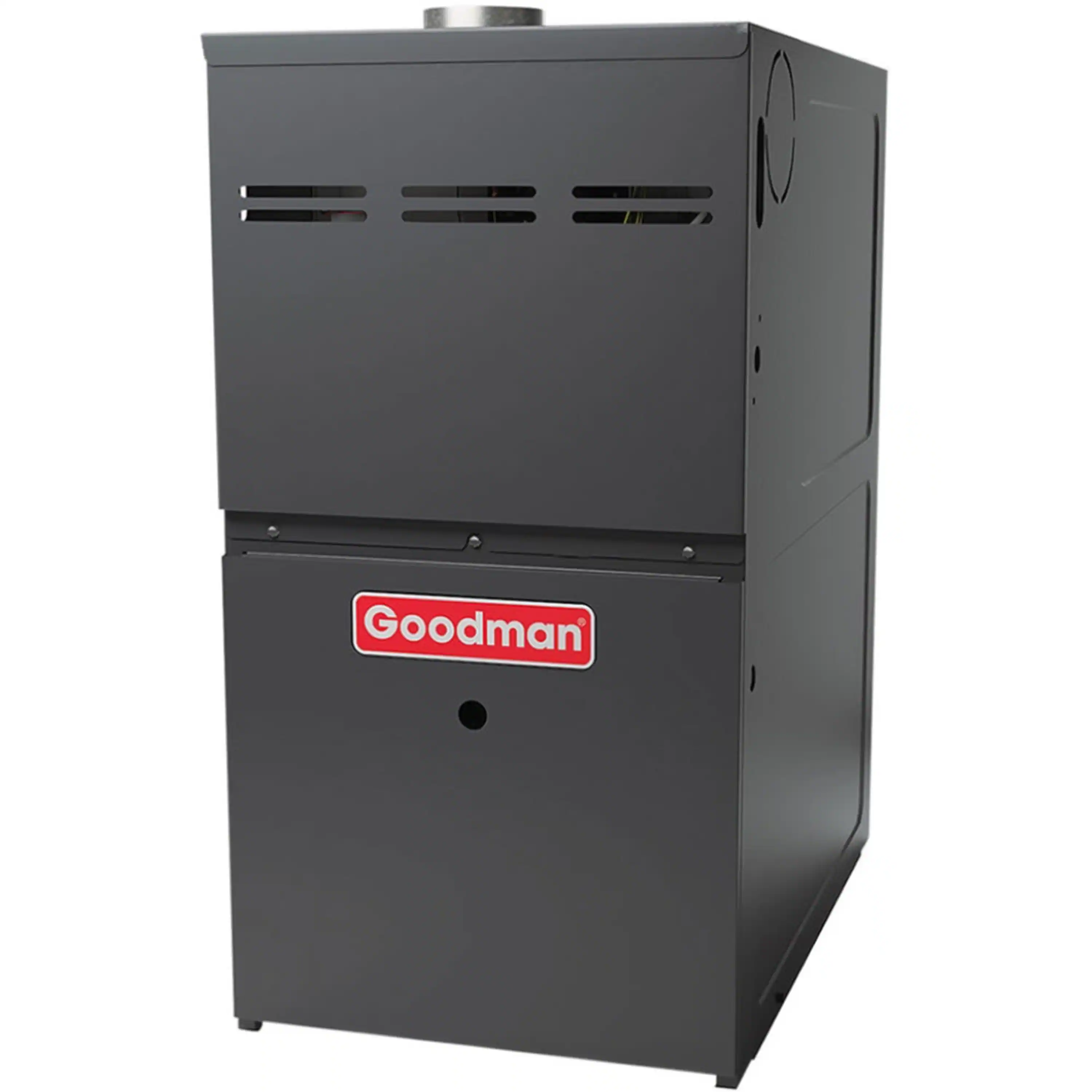

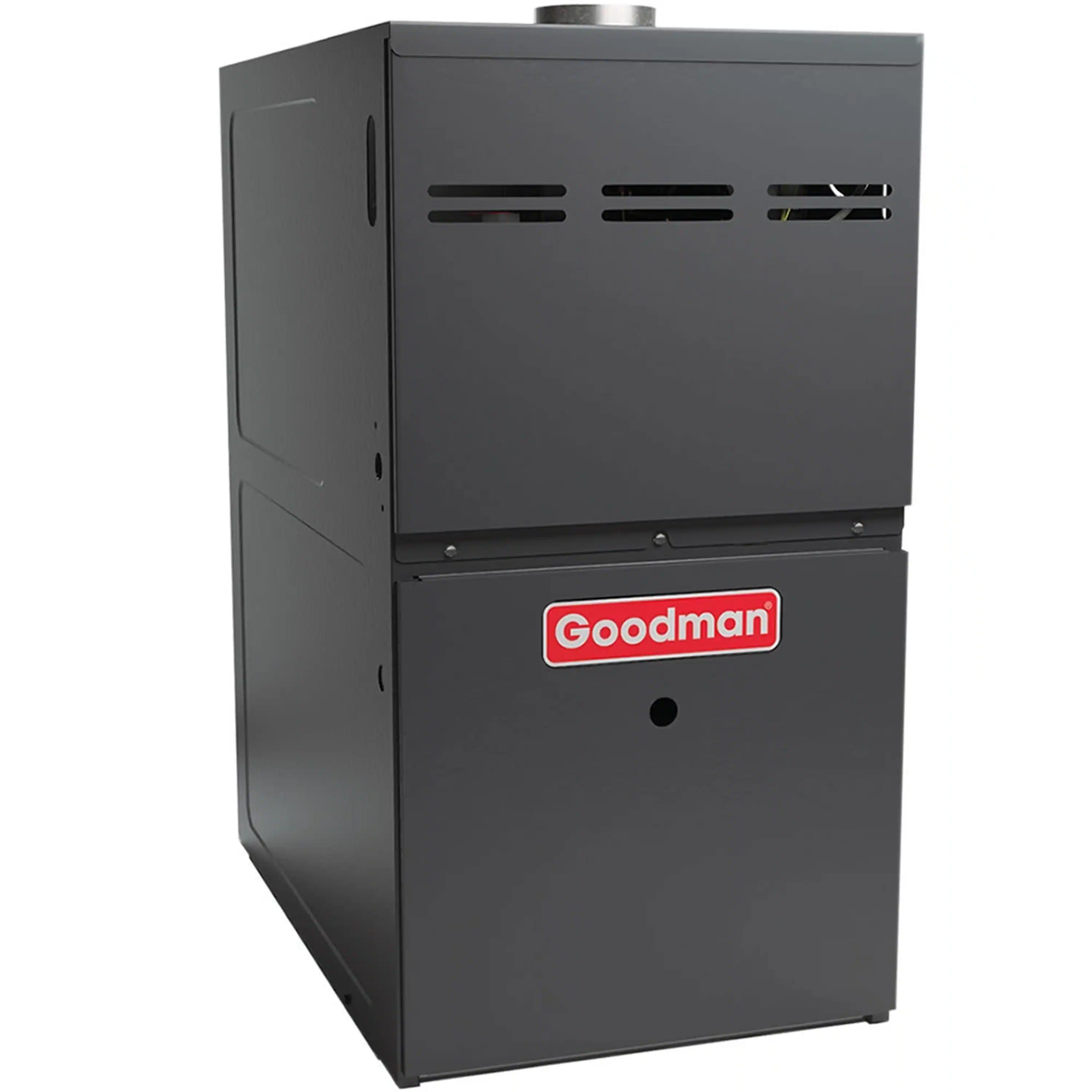

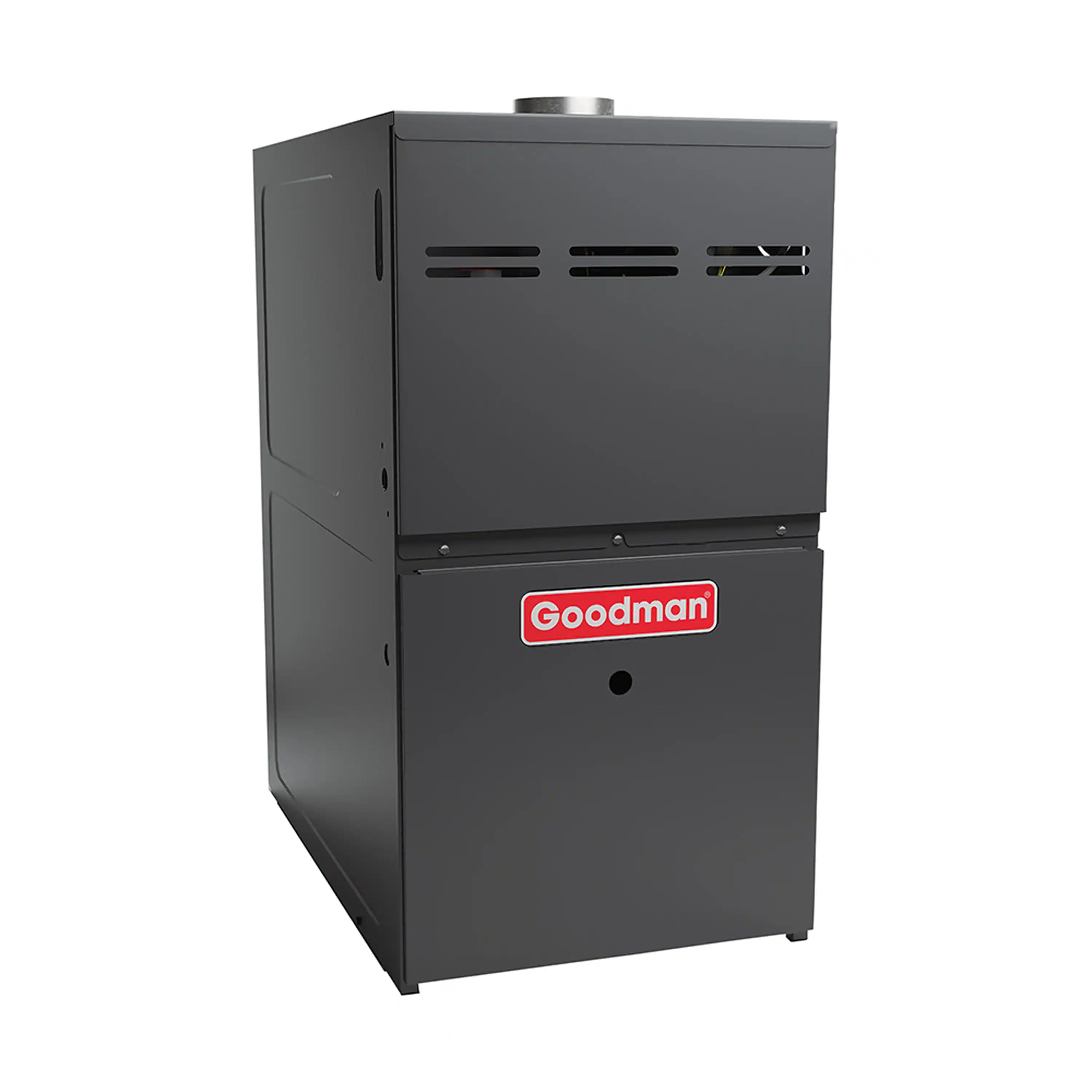

The Goodman GR9S80 Gas Furnace delivers 80% AFUE efficiency with a multi-speed ECM blower motor and single-stage gas valve for reliable heating at 80,000 BTUH. Features heavy-duty aluminized-steel tubular heat exchanger, Silicon Nitride igniter, and color-coded low-voltage terminals. Multi-position upflow/horizontal installation.

• Heavy-dutyluminized-steel tubular heat exchanger
• "Silicon Nitride igniter"
• Color-coded low-voltage terminals
• Multi-speed ECM blower motor with continuous fan speed
• Fault code LED Output
• Single-Stage gas Valve
• Single-speed inducer draft blower

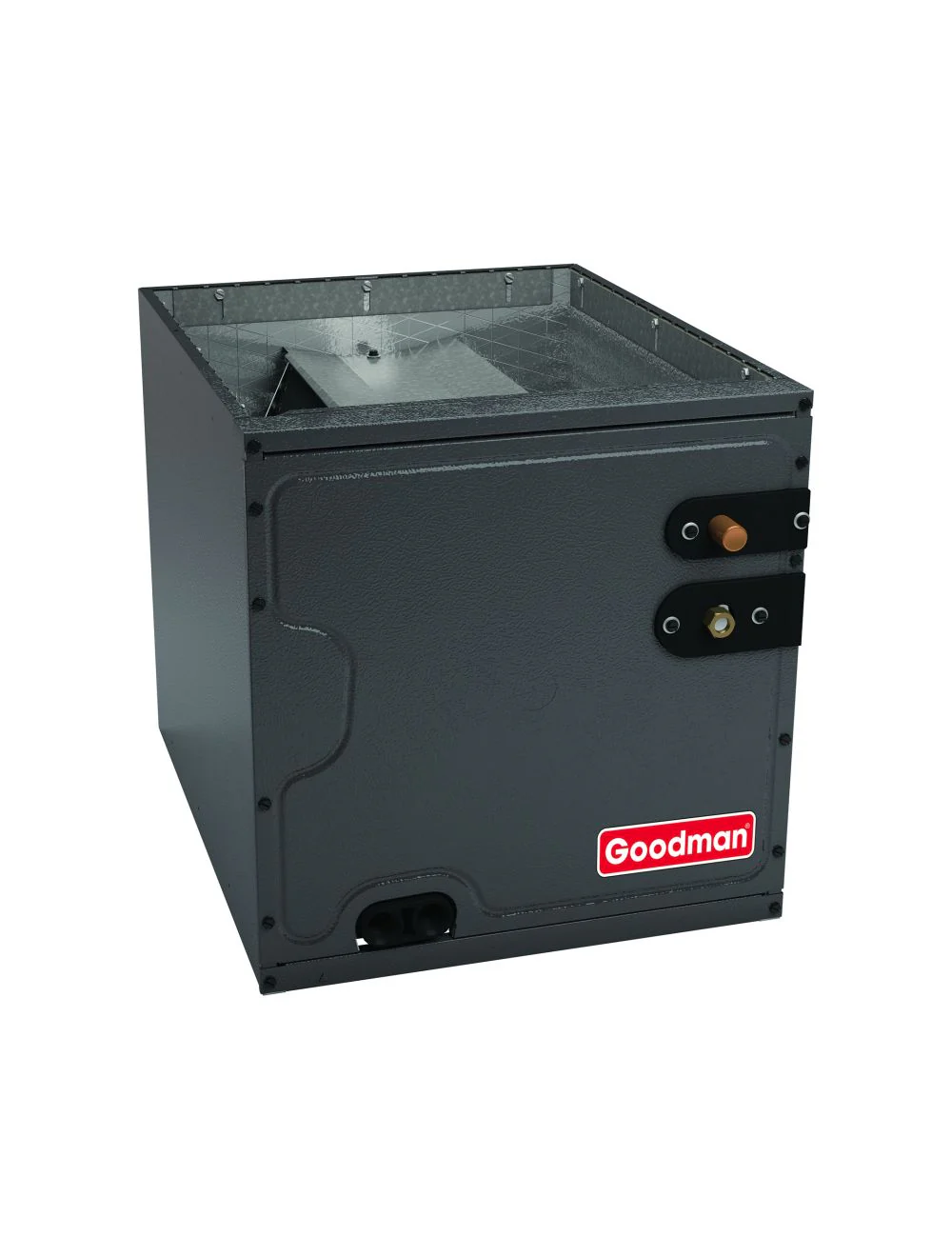

The Goodman CAPTA AlumaFin7 evaporator coil is a 3 Ton all-aluminum coil optimized for R-32 refrigerant with upflow/downflow application. Features factory-installed thermal expansion valves, R-32 sensor, and 21" depth for easier attic access. Includes rust-resistant UV-resistant thermoplastic drain pan with secondary drain connections. Galvanized leather grain-embossed finish. AHRI Certified and ETL Listed.

• All-Aluminum evaporator coil
• Optimized for use with R-32 refrigerant including circuits and manifolds
• R-32 sensor designed for the life span of the coil
• Factory-installed thermal expansion valves for cooling and heat pump applications
• Standardized copper suction tube stub length
• Check flowrator for cooling and heat pump applications
• Vertical application
• 21" depth for easier attic access
• Single front access panel
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Rust resistant, thermoplastic drain pan featuring a low water-retention design
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
• UV-resistant drain pan
• AHRI certified
• ETL Listed
