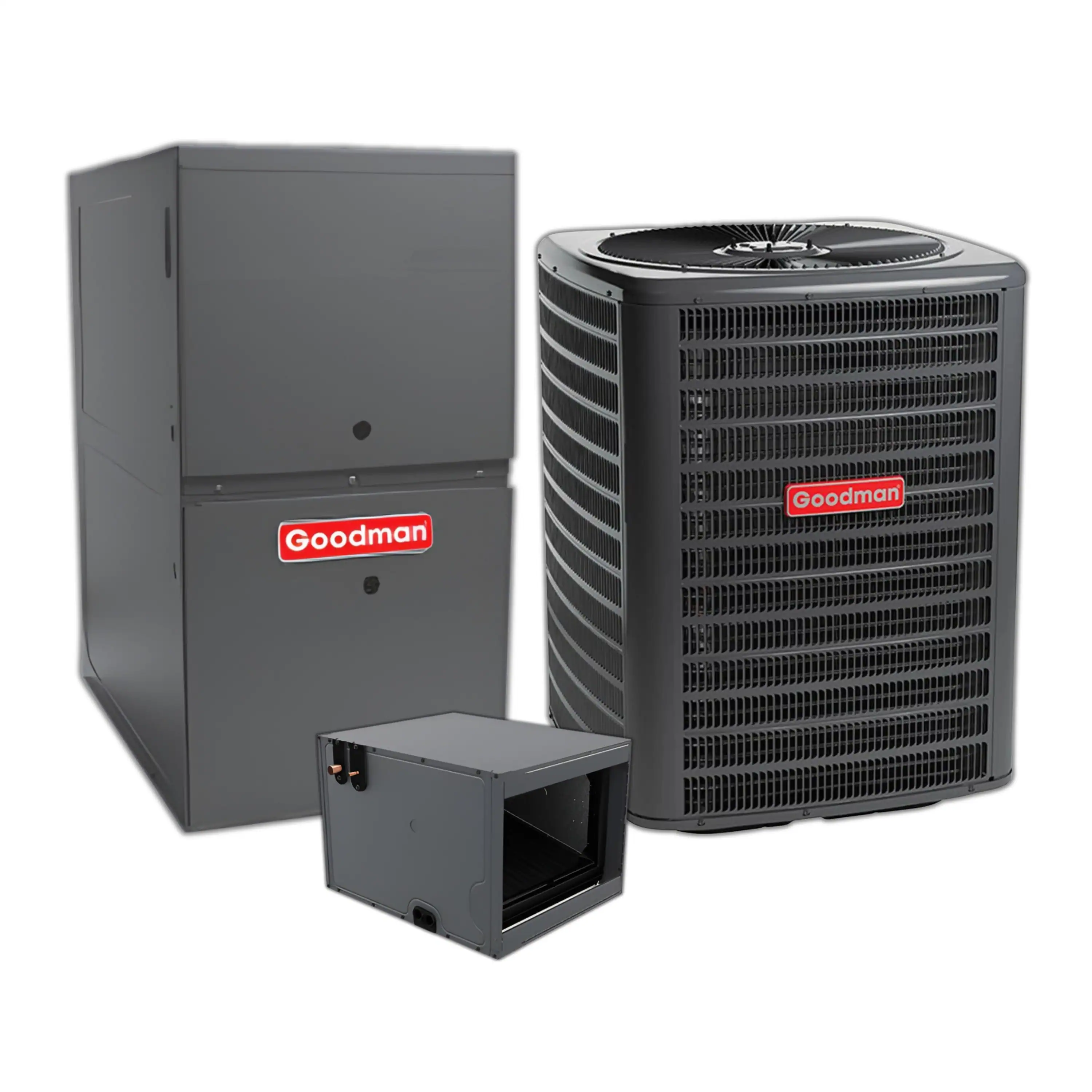

Goodman 3.0 Ton 15.2 SEER2 Heat Pump, 80% AFUE 100K BTU Gas Furnace and Evaporator Coil

The Goodman GLZS5B is a 3 Ton split system heat pump delivering 15.2 SEER2 / 7.8 HSPF2 efficiency with SmartShift technology for quiet, reliable defrost. Features a high-efficiency scroll compressor, enhanced aluminum fin coils, and factory-installed components. Ships fully charged and includes single-speed PSC condenser fan motor. Built in a heavy-gauge galvanized steel cabinet with Architectural Gray finish. AHRI Certified and ETL Listed.

• High-efficiency scroll compressor
• SmartShift® technology to ensure quiet reliable defrost
• Enhanced aluminum fin with coil-5mm diameter copper tubes in 1.5T-3.5T
• Enhanced aluminum fin coil with 7mm diameter copper tubes 4.0-5.0 ton
• Single-speed PSC condenser fan motor
• Factory-installed suction-line accumulator
• Factory-installed compressor crankcase heater
• Factory-installed high-capacity muffler
• High- and low-pressure switches
• Service valves with sweat connections and easy access to gauge ports
• Fully charged for 15’ of tubing length
• Fully enclosed contactor
• Ground lug connection
• Capacitor with extended life
• AHRI Certified
• ETL Listed

• Removable grille style top design compliant with UL 60335-2-40
• Steel louver coil guard
• Heavy-gauge galvanized-steel cabinet
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Top and side maintenance access
• Single panel access to controls with space provided for field-installed accessories
• When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

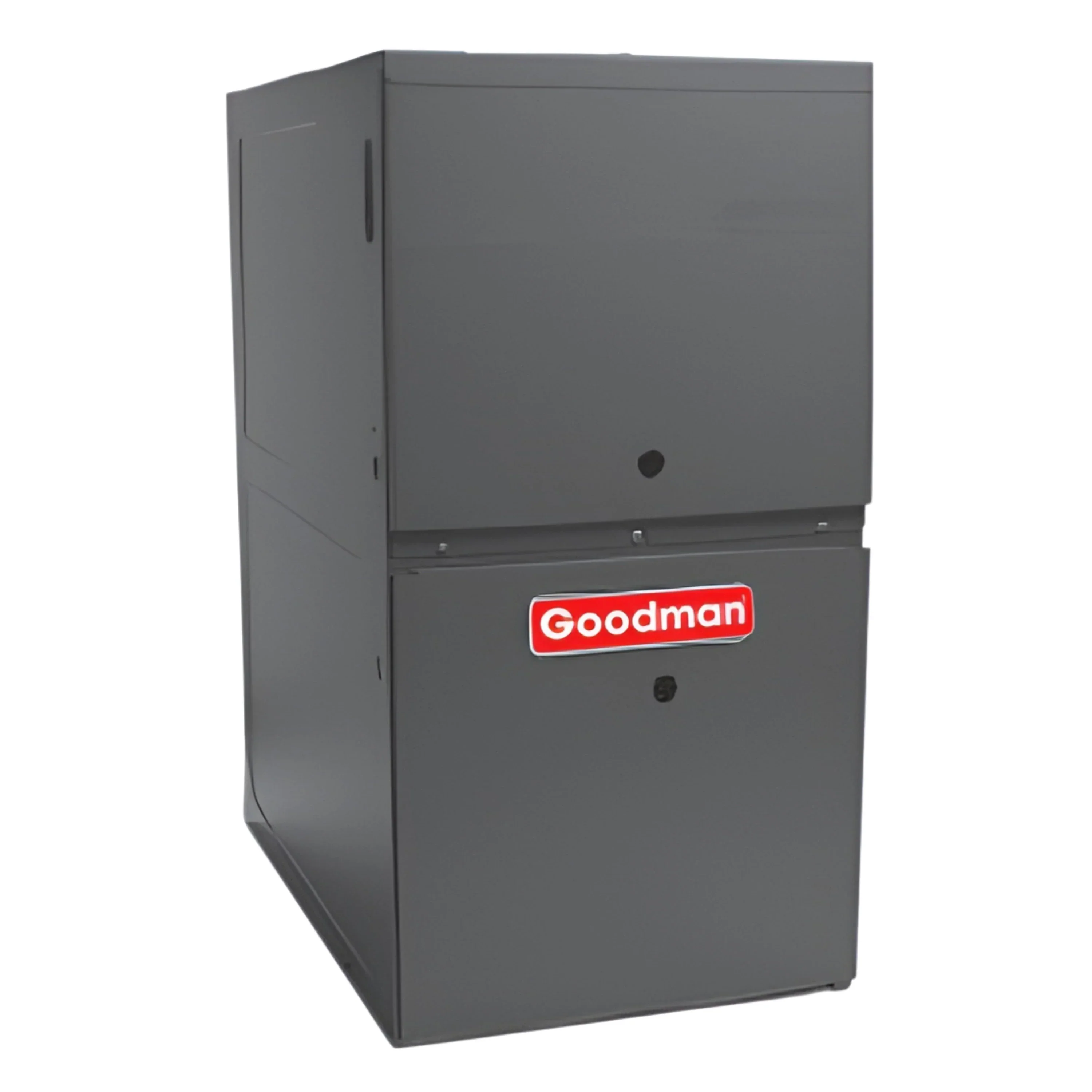

The Goodman GD9T80 Gas Furnace delivers 80% AFUE efficiency with a multi-speed ECM blower motor and two-stage gas valve for consistent heating at 100,000 BTUH. Features heavy-duty aluminized-steel tubular heat exchanger, Silicon Nitride igniter, and furnace control board with self-diagnostics. California Low NOx compliant at 40 ng/J. Multi-position downflow/horizontal installation.

• Heavy-dutyluminized-steel tubular heat exchanger
• "Silicon Nitride igniter"
• Color-coded low-voltage terminals
• Two-Stage gas valve
• Multi-speed ECM blower motor with continuous fan speed
• Fault code LED Output
• Two-stage gas valve
• Furnace control board with self-diagnosticsnd provisions for electronicir cleanernd 120-volt or 24-volt humidifiers

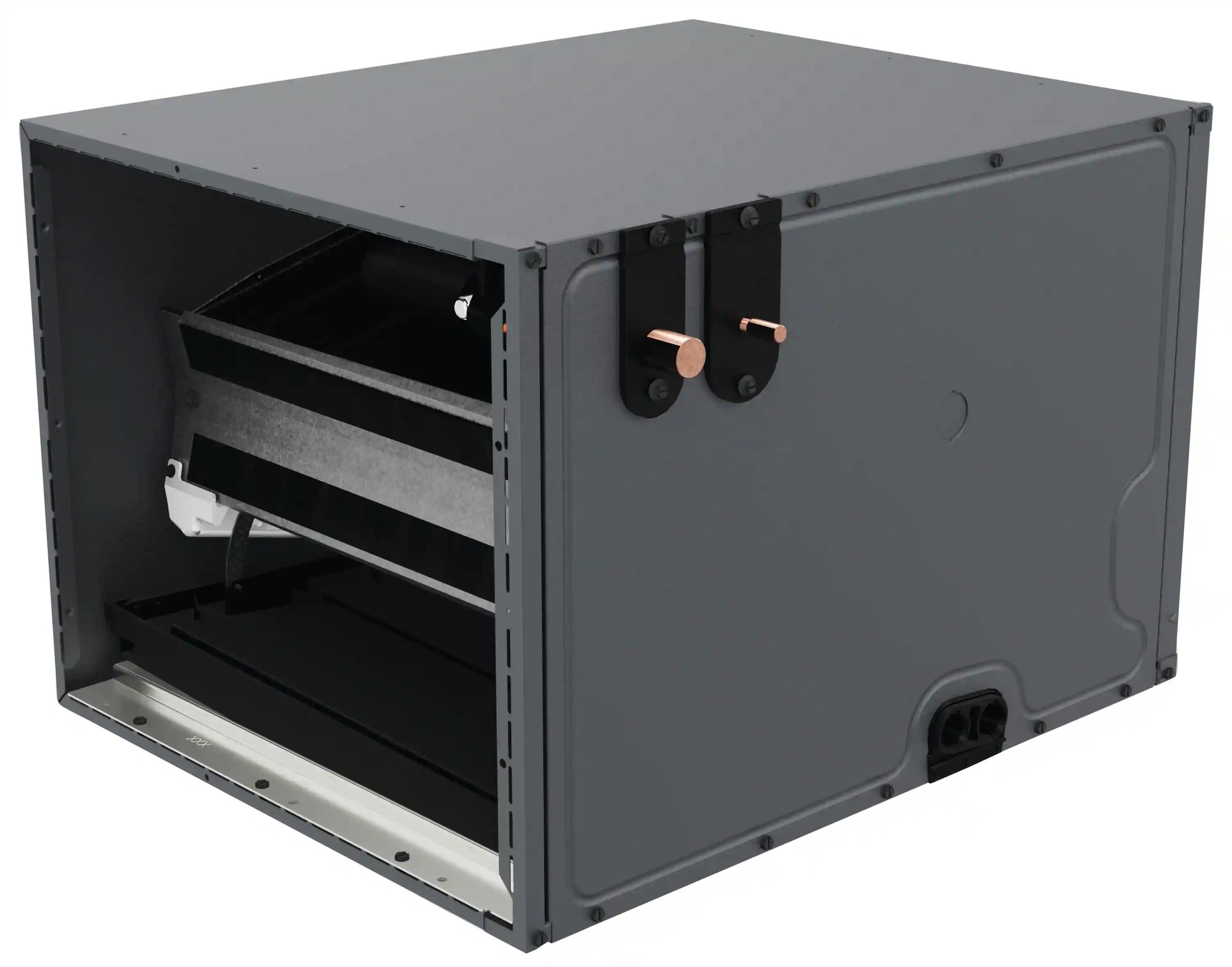

The Goodman CHPTA AlumaFin7 horizontal evaporator coil is an all-aluminum coil optimized for R-32 refrigerant with horizontal A application. Features factory-installed thermal expansion valves, R-32 sensor, and 21" depth for easier attic access. Includes rust-resistant UV-resistant thermoplastic drain pan with secondary drain connections. Galvanized leather grain-embossed finish. AHRI Certified and ETL Listed.

• All-Aluminum evaporator coil
• Optimized for use with R-32 refrigerant including circuits and manifold including circuits and manifolds
• R-32 sensor designed for the life span of the coil
• Factory-installed thermal expansion valves for cooling and heat pump applications
• Standardized copper suction tube stub length
• Check flowrator for cooling and heat pump applications
• Horizontal application
• 21" depth for easier attic access
• Single front access panel
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Rust resistant, thermoplastic drain pan featuring a low water-retention design
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
• UV-resistant drain pan
• AHRI certified
• ETL Listed

• Single front access panelFoil-faced insulation covers the internal casing to reduce cabinet condensationGalvanized, leather grain-embossed finish
