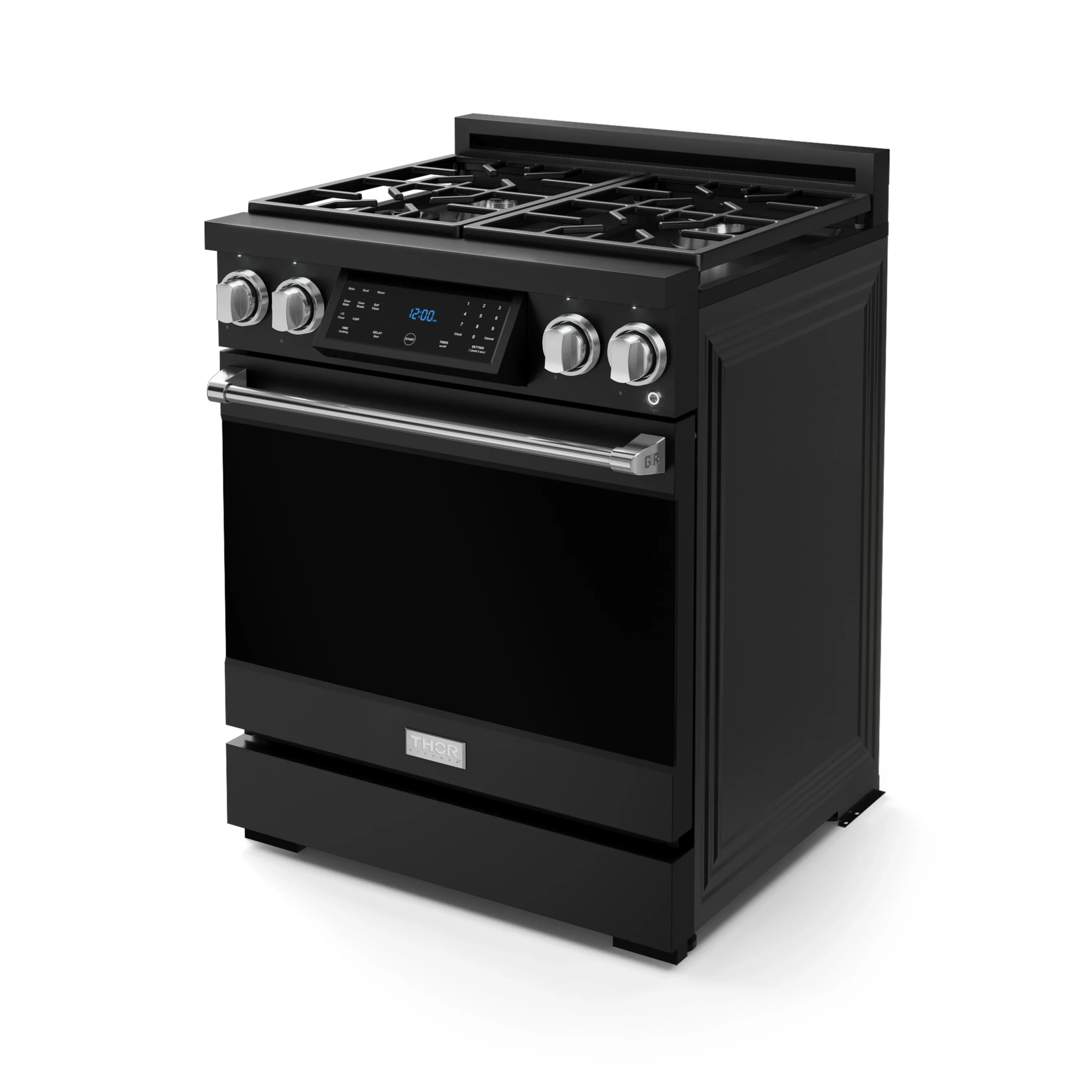

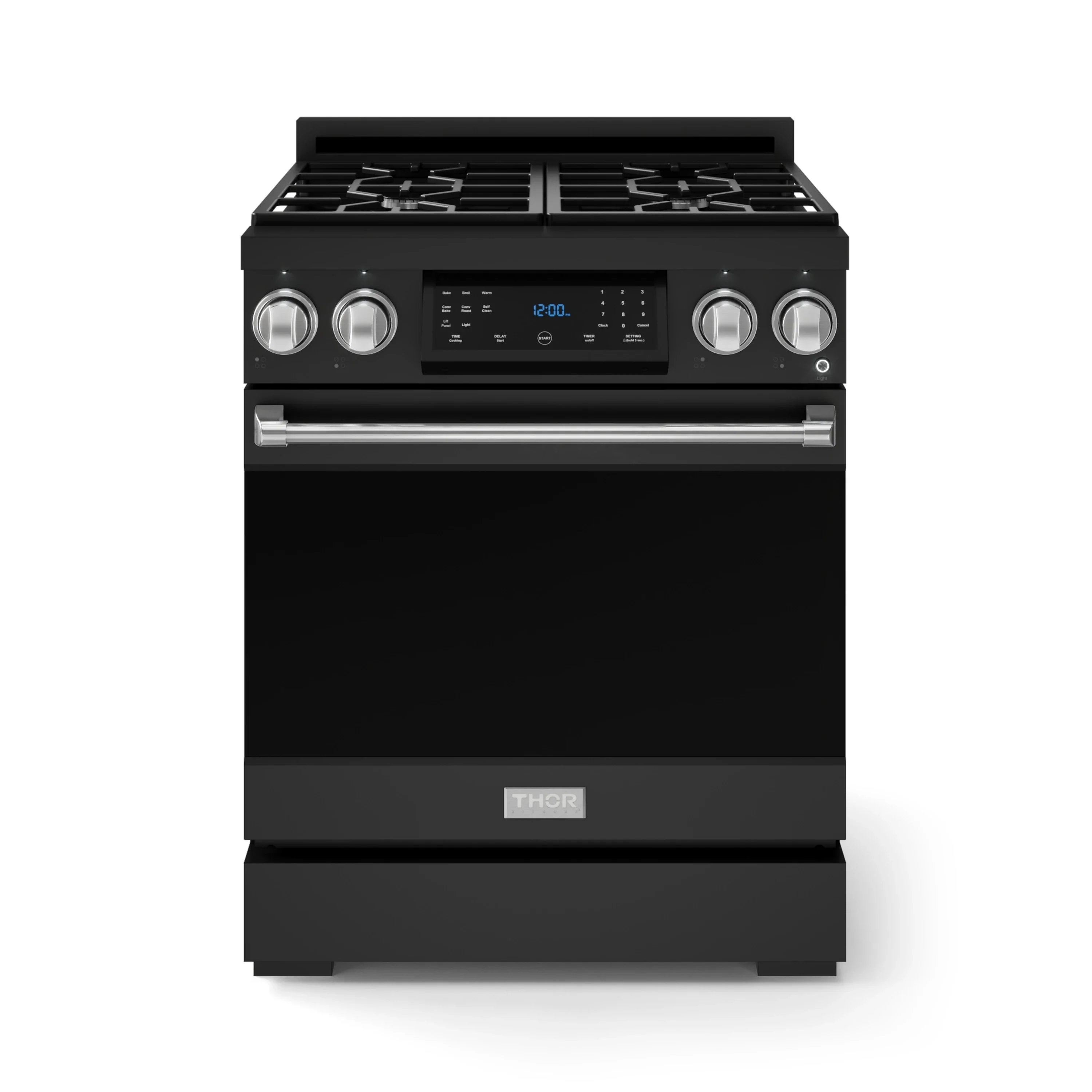

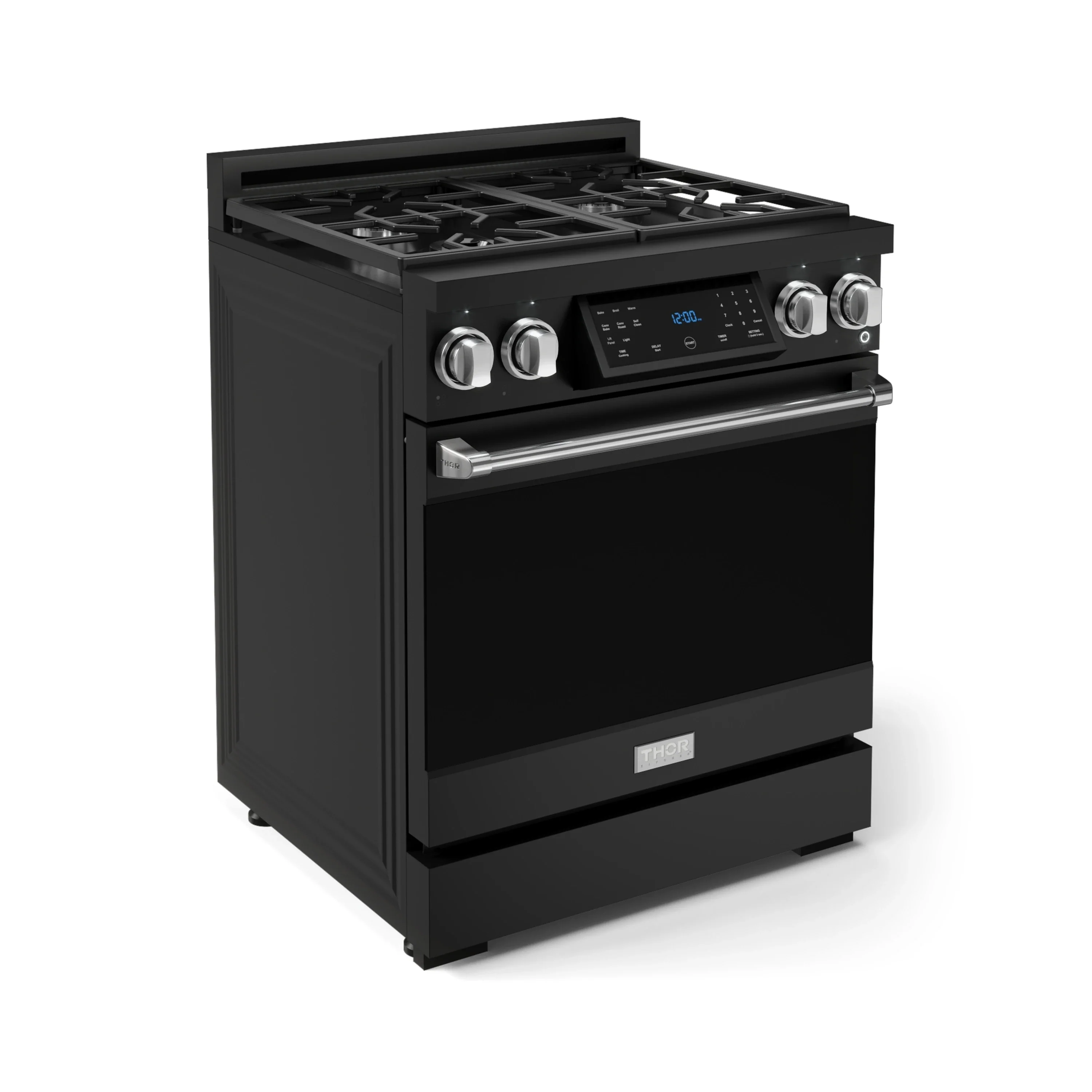

Gordon Ramsay by Thor Kitchen 30-Inch Professional Propane Gas Range with Tilt Panel Touch Control and 4.55 Cu. Ft. Self Clean Oven in Black with Stainless Steel Trim (RSG30BLP-SS)

Designed for chefs who demand precision and power. With high-output burners, even heat distribution, and intuitive controls, this 30 Inch Gas range in Black elevates your cooking experience. Built for durability and performance, it brings restaurant-grade quality to your home kitchen, making every meal exceptional.

Features

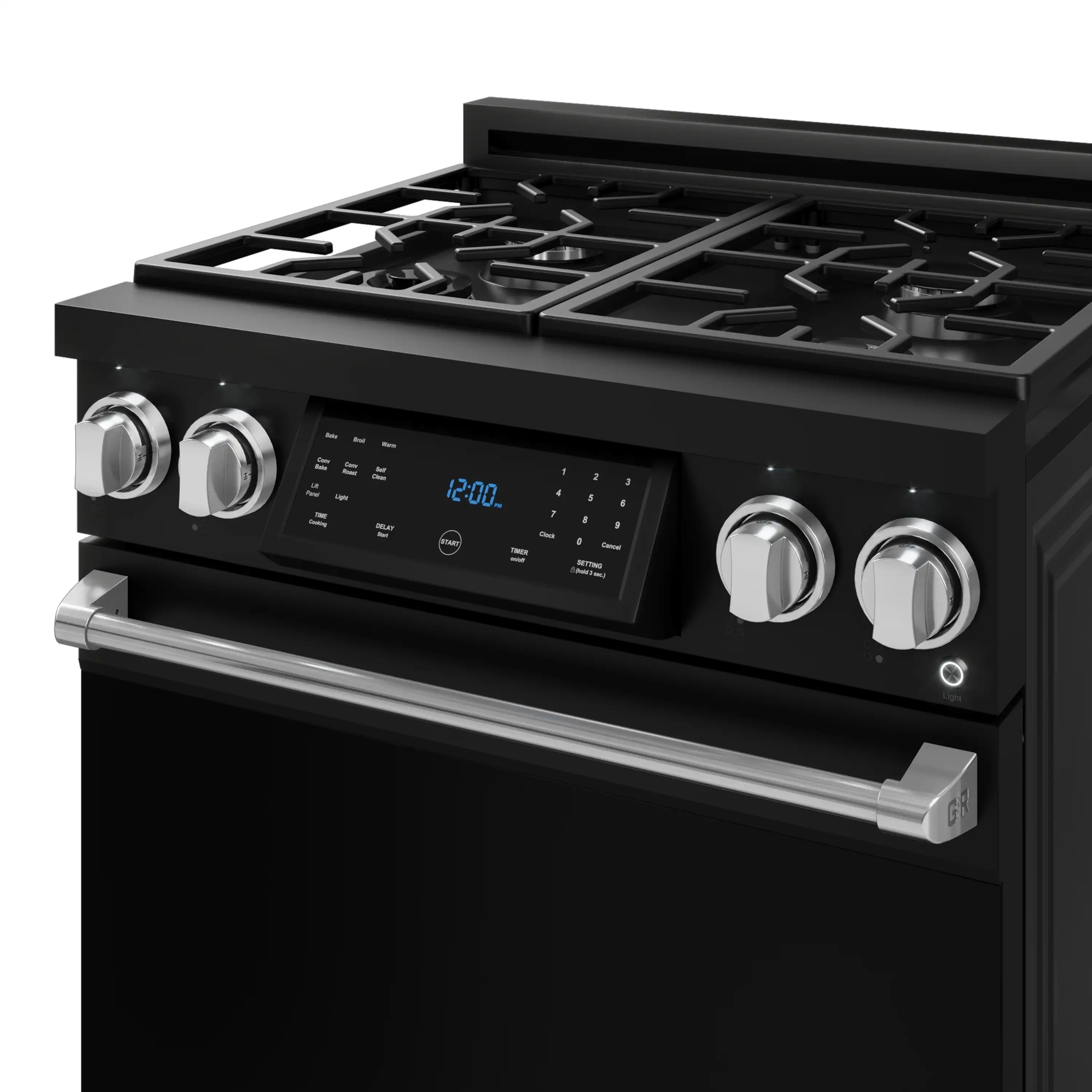

• Tilt Panel Touch Control - A tilt panel touch control is an adjustable control panel that tilts for optimal viewing and ease of use.

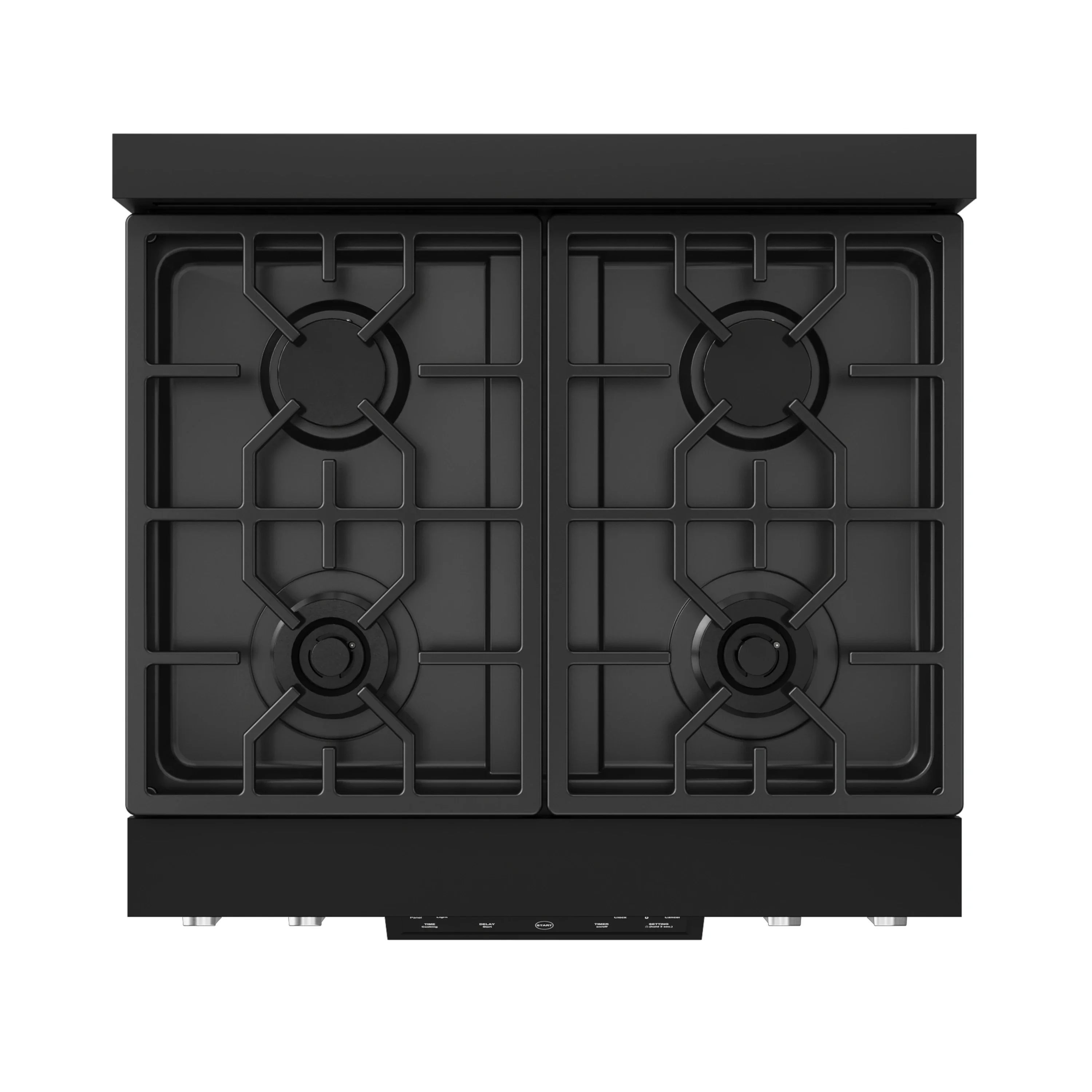

• Continuous Cooking Grate - The continuous grate design allows easy movement of pots and pans across the cooktop.
• High-Performance Dual Burners -  Featuring a maximum output of 15,000 BTU for powerful cooking and a minimum of 650 BTU for precise, gentle simmering.
• White Projector Light on Panel - The panel is illuminated by a white
  projector light, ensuring easy visibility and a modern look.
• Commercial Convection Fan -  For even heat distribution within the oven.

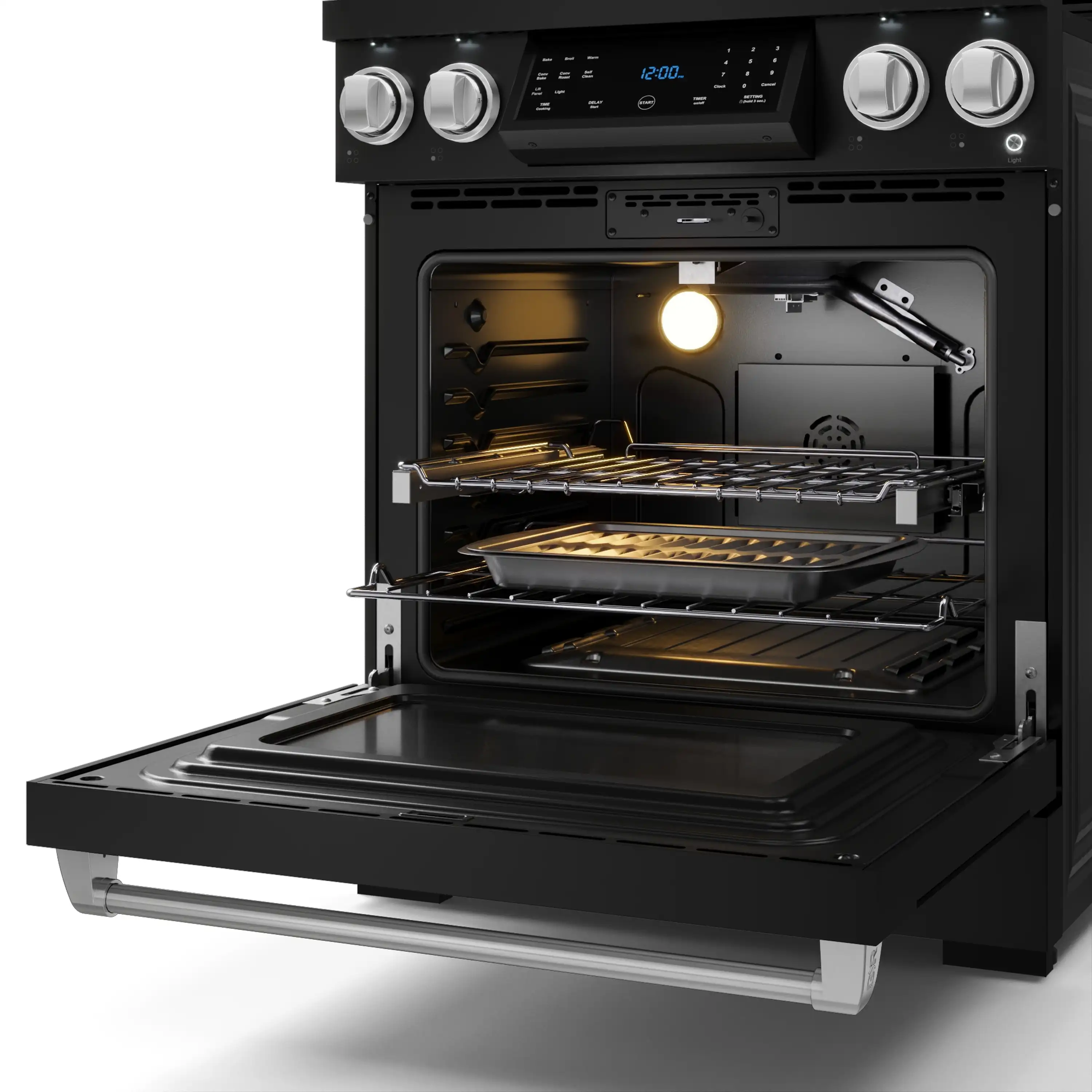

• Telescopic Racks - Telescopic racks use ball bearing rack guides for an effortless glide in and out of the oven and adjusts to fit different rack support levels.
• Powerful Broil Burner - The oven broiler features a 10,000 BTU tube for quick and efficient broiling.
• Powerful Bake Burner - The powerful bake burner provides 18,500 BTUs of consistent heat for even baking.
• Adjustable 3-Inch Feet with Decorative Leg Cover - The range includes 3-inch adjustable feet with a square decorative cover for the front legs.

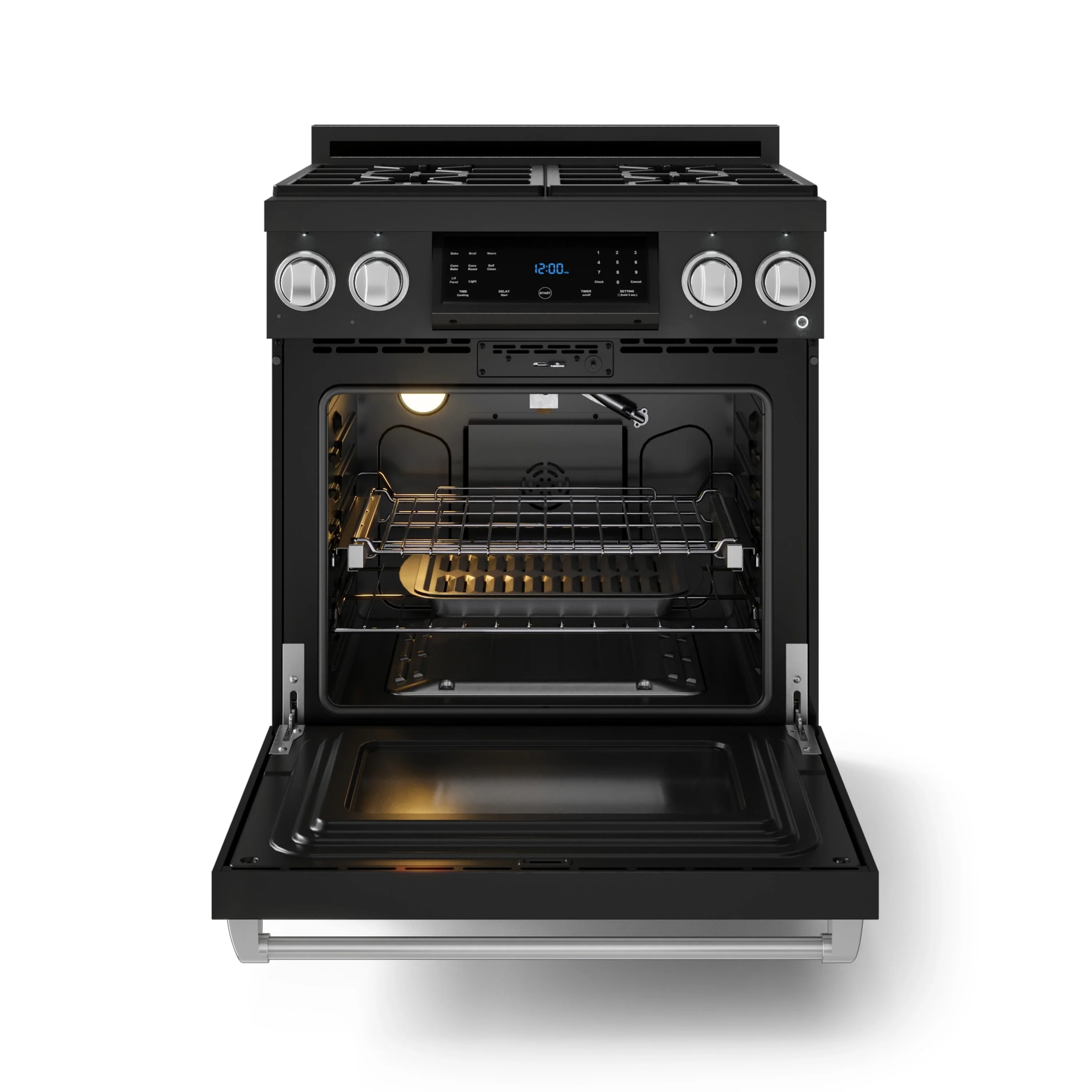

• Panoramic Viewing Window - Take a look inside the oven through the
  panoramic viewing window for a full, clear view of your dishes as they
  cook, allowing you to monitor progress without opening the door.

Product Dimensions & Weights
Product Dimensions (WxDxH)	29 7/8” x 29 3/4” x 40 7/16”

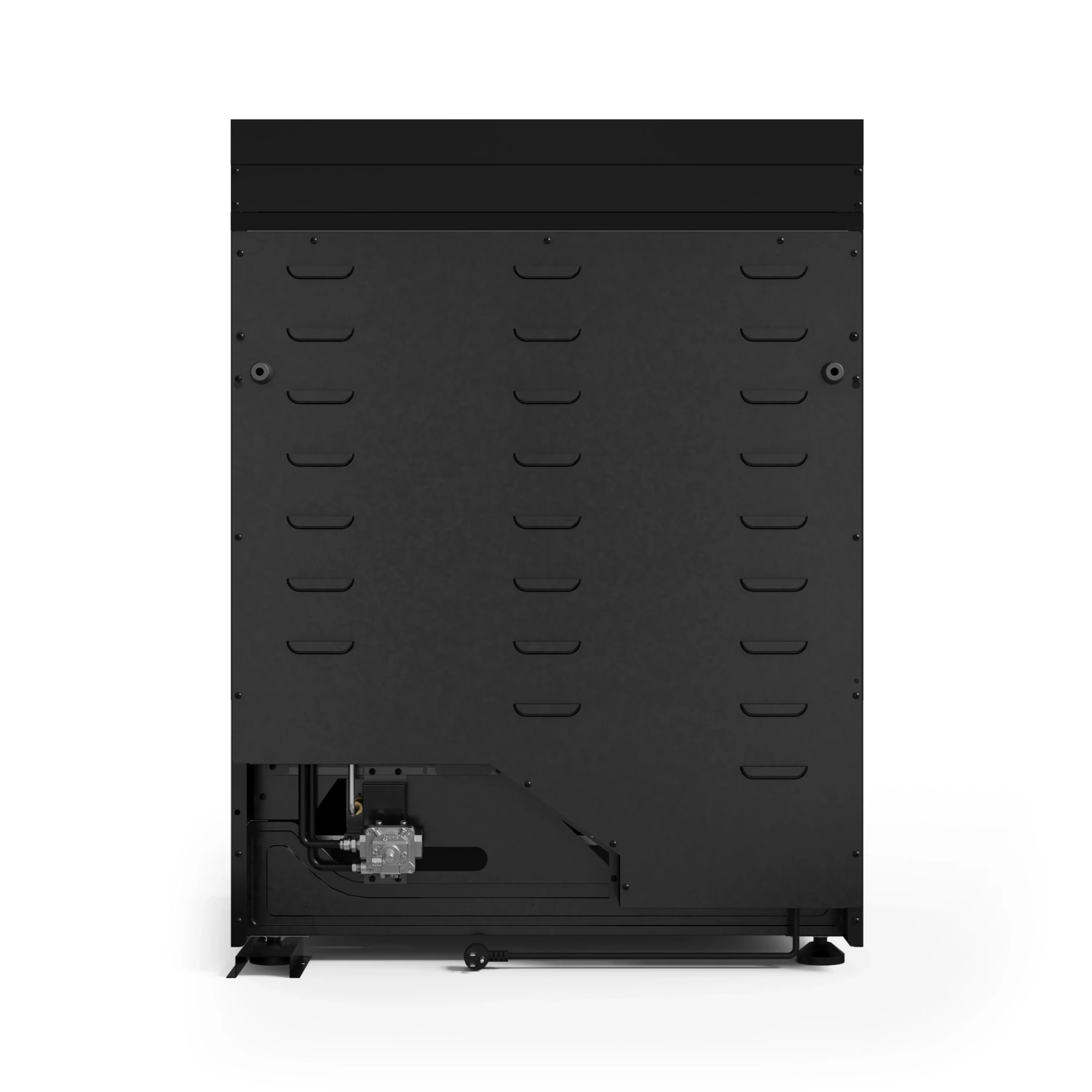

Rubber Spacer Depth (Install On Back Panel)	3/4”
Product Height (From Bottom To Top Of Back Splash)	40 7/16”
Product Height (From Bottom To Top Of Side Panel)	36”
Product Depth (From Back Panel To Handle)	29”
Product Depth (From Back Panel To Bullnose)	27 1/2”
Product Depth (From Back Panel To Control Panel)	26 3/8”
Product Depth (From Back Panel To Side Panel Front)	24”
Cutout Dimensions (WxDxH)	30” x 24 3/4” x 36”- 37”
Adjustable Height	1”
Net Weight	212 lbs
Package Dimensions (WxDxH)	32” x 32” x 47 1/2”
Gross Weight	256 lbs
Technical Details
Fuel Type	Natural Gas (RSG30B-SS) Liquid Propane (RSG30BLP-SS)
Construction	Freestanding
Burner Type	Sealed Burners
Type of Grate	Continuous
Max BTU	15,000 BTU
Amperage	15A
Volts	120V
Frequency	60Hz
Control Type	Knob / Touch Screen
Panel light	Yes
Plug Type	US 3-prong
Power Cord Length	59”
Cooktop Performance
Total Number Of Cooktop Burners	4
(1) Front Left Burner	15,000 BTU
(2) Front Right Burner	15,000 BTU
(3) Rear Left Burner	12,000 BTU
(4) Rear Right Burner	12,000 BTU
Oven
Oven Capacity	4.55 cu. ft.
Oven Control Features	Light On/ Off, Clock & Kitchen Timer, Time Cooking, Delay Start, Self clean, Control Lock Capability, Sabbath Mode C° or F° Programmable
Oven Cooking Modes	Bake, Conv Bake, Conv Roast, Broil, Keep Warm, Fast Preheat
Bake Burner	18,500 BTU
Broil Burner	10,000 BTU
Convection	Commercial Convection
Oven Lights	Yes
Oven Racks (Standard)	1
Oven Racks (Telescopic)	1
Baking Sheet Size	Fits 23” x 16” Baking Sheet
Self Clean	Yes
Sabbath Mode	Yes
Air Fry	No
Oven Internal Width	23 3/4''
Oven Internal Depth	19 1/2''
Oven Internal Height	18''
Accessories Included	1 Standard Oven Rack 1 Telescopic rack 1 Broiler Pan Set
Accessories (Optional)	Island Trim Reversible Cast Iron Griddle and Grill Plate (RG1022) Wok Ring (WK01)
