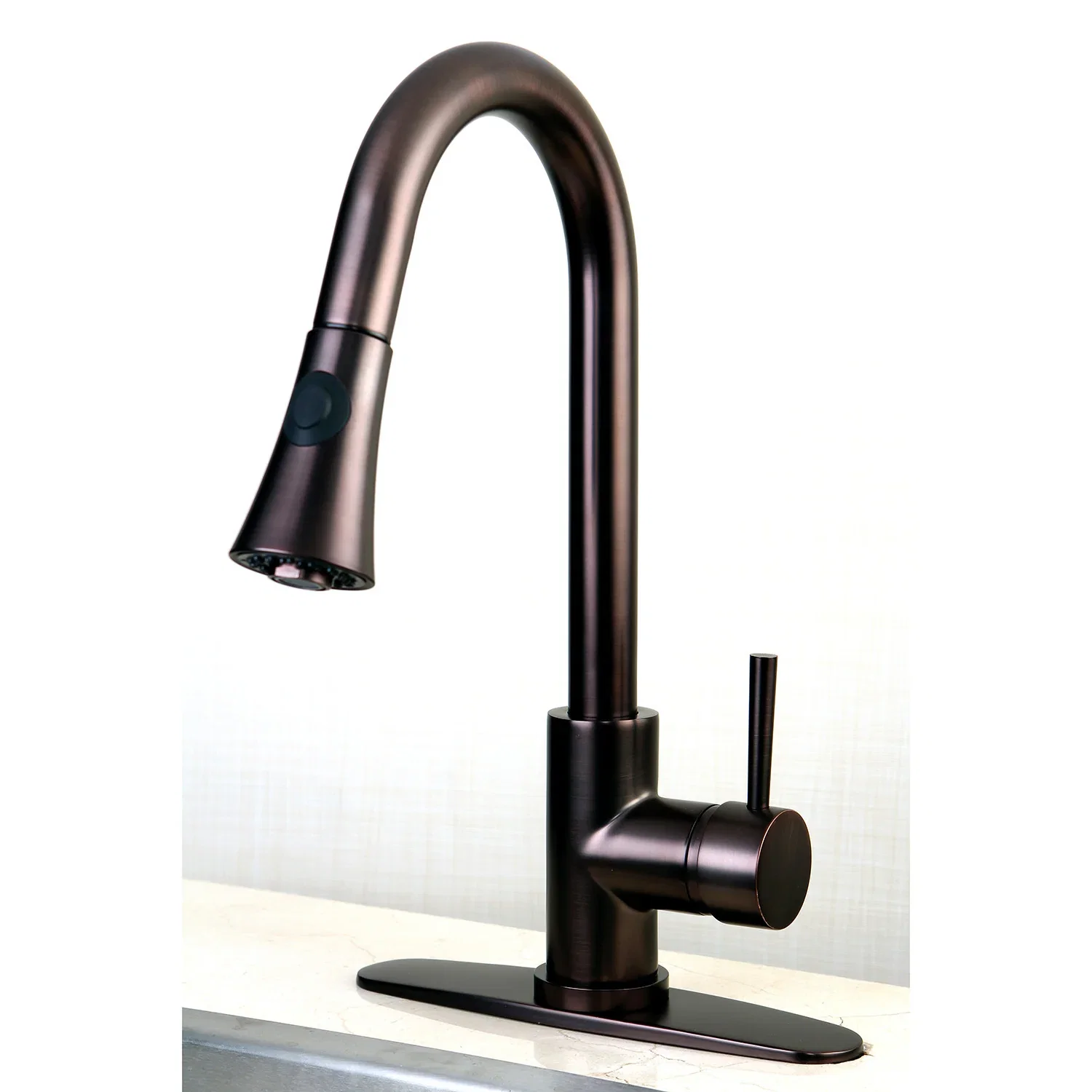

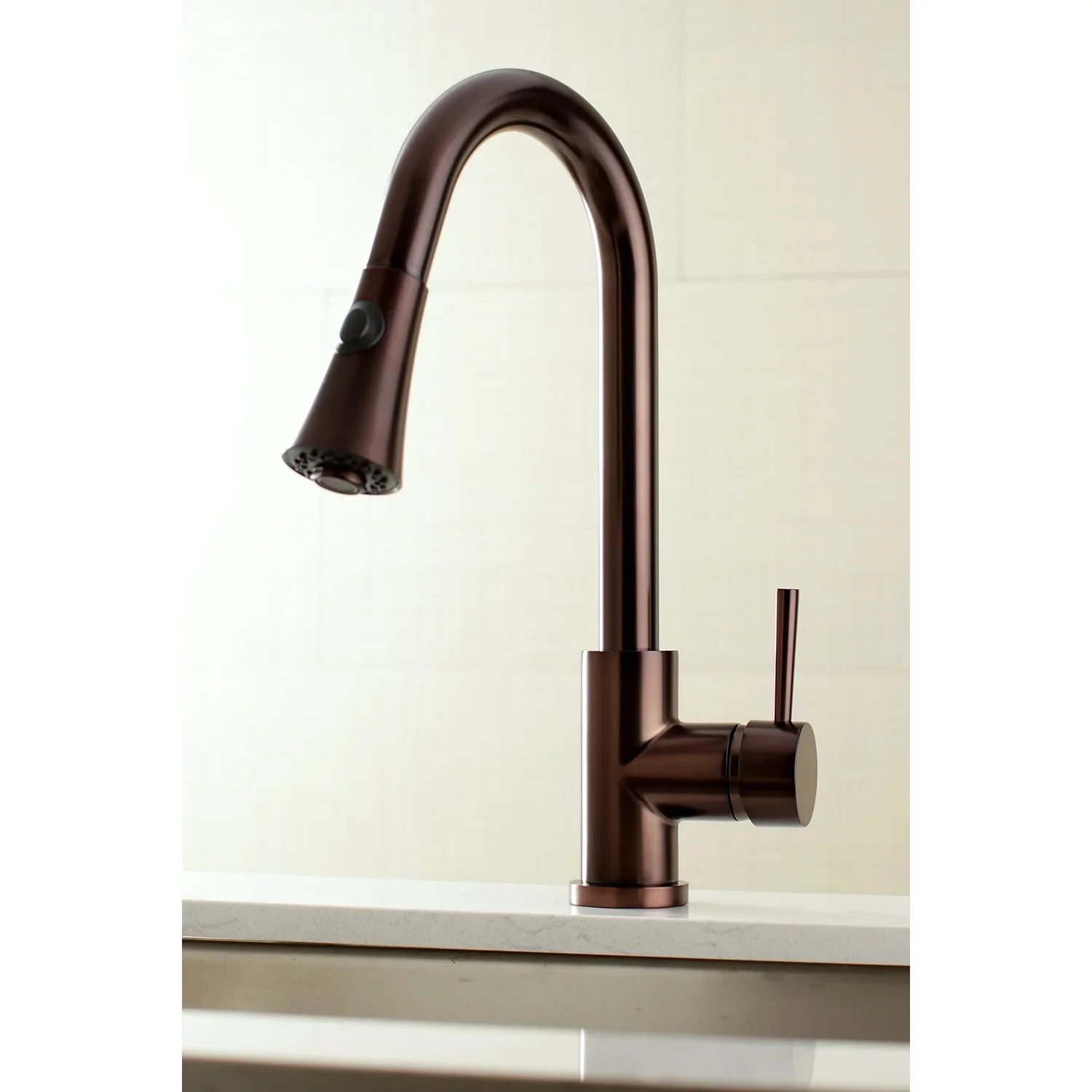

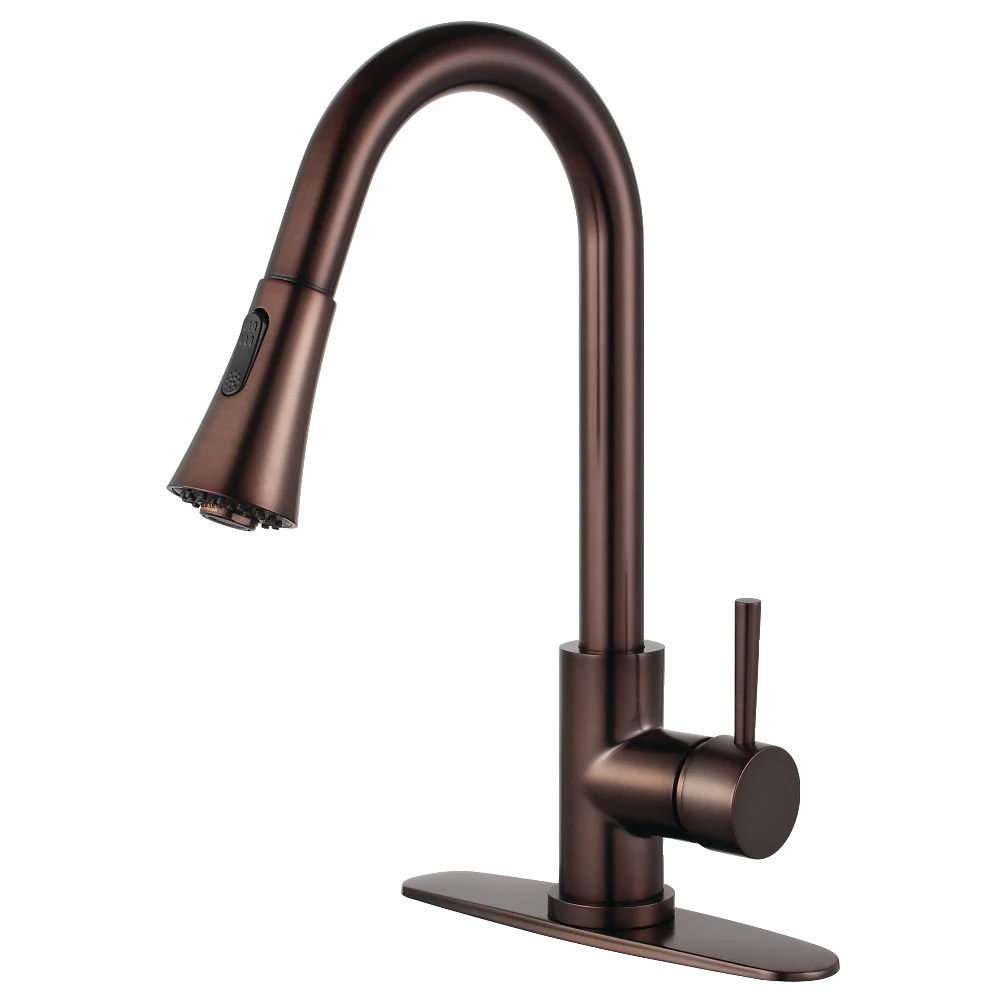

Kingston Brass Gourmetier Concord Single-Handle Pull-Down Kitchen Faucet, Oil Rubbed Bronze (LS8725DL)

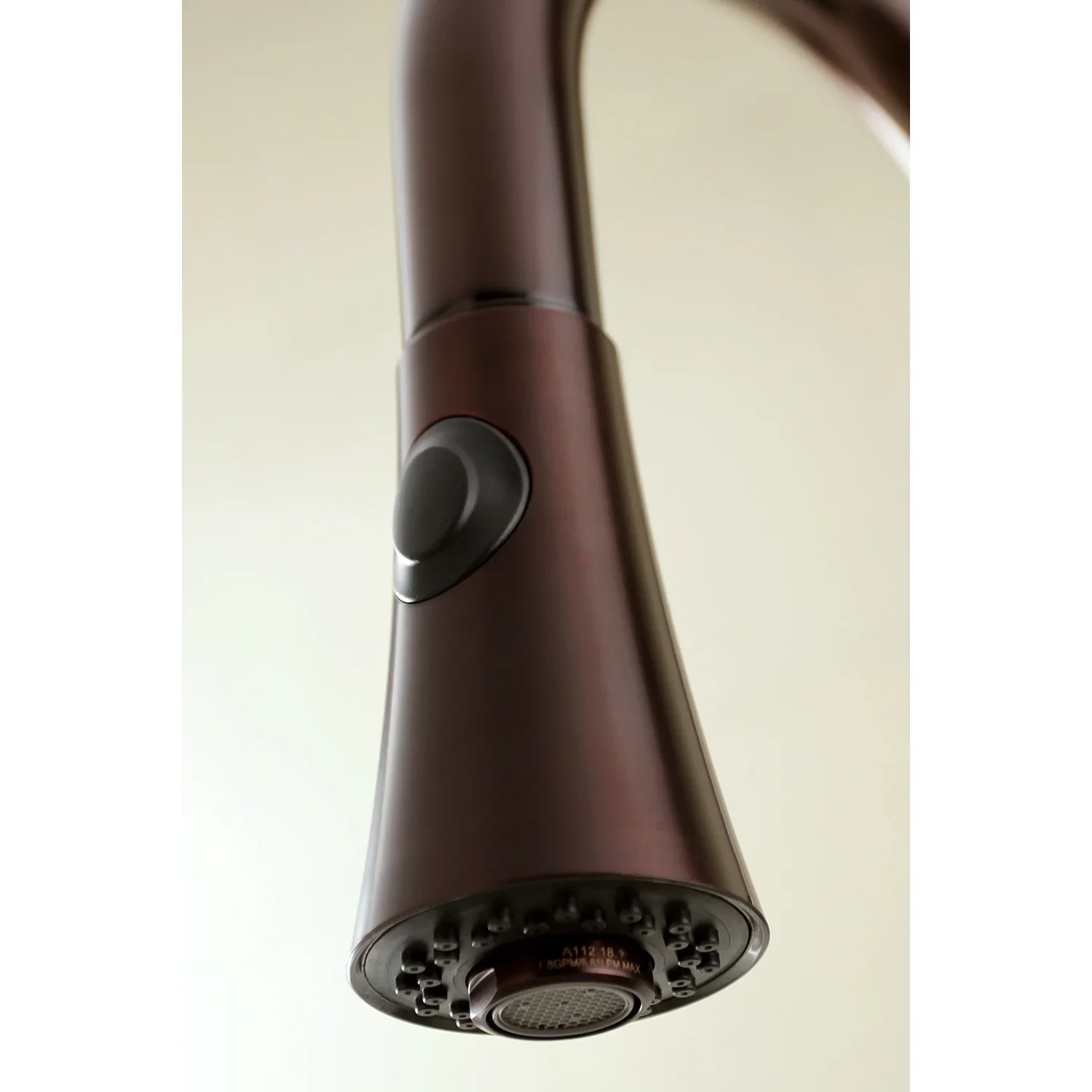

This faucet boasts bold, sleek design with its cylindrical styling. Designed for optimum versatility and functionality, modern day technology is provided for a state-of-the-art product. The Concord single-handle pull-down kitchen faucet features a high arching spout to easily clean larger dishes, swivel ability to reach any area in and around your sink, and a dual function pull-down sprayer to tackle tough messes. Matching accessories are available for use.

Features

• Item weight: 6.43 lbs.
• Solid brass construction for durability
• Deck mount 1-hole installation with 9-13/16" (249.24 mm) deck plate
• Drip-free ceramic disc cartridge
• 1/2-14 NPSM connection
• 1.8 GPM/6.8 LPM spout flow rate at 60 PSI
• 8-1/2" (215.9 mm) spout reach
• 8-3/8" (212.85 mm) spout clearance
• 16-1/4" (412.75 mm) spout height

Finish	Oil Rubbed Bronze
Mounting Type	Deck Mount
Installation Type	Deck Mount
Material	Brass;Stainless Steel
ADA	Yes
Faucet Holes	1 or 3
Faucet Centers	0 or 4
Max Deck Thickness	2.81
Drain Included	No
Handles Included	Yes
Number of Handles	1

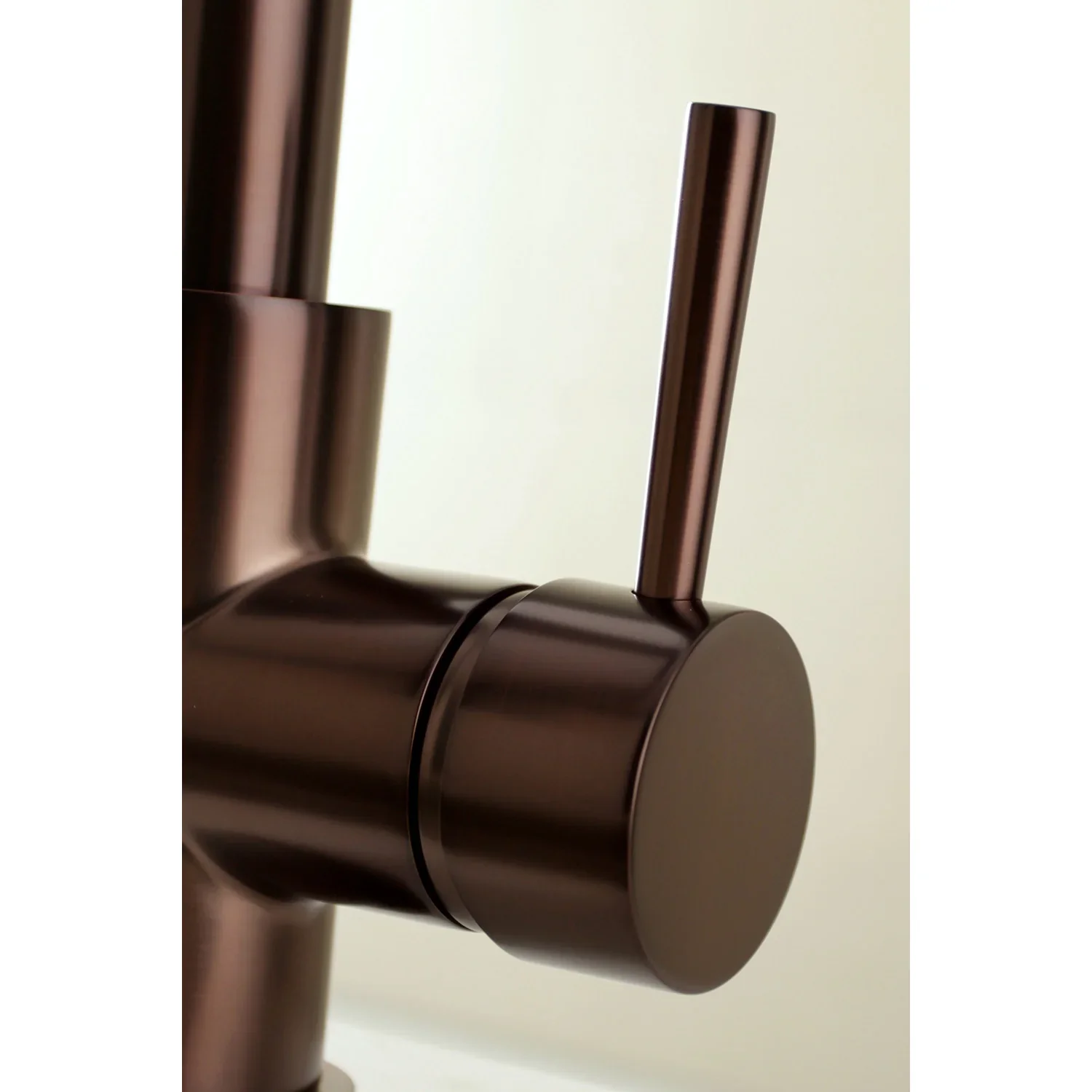

Handle Style	Lever
Spout Flow Rate (GPM)	1.8
Hose Included	Yes
Pullout Spray	No
Pulldown Spray	Yes
Sidespray	no
Valve Type	Ceramic Disc Cartridge
Item Length (Inch)	16.19
Item Width (Inch)	9.94
Item Height (Inch)	2.5
Item Weight (lbs)	6.43
CEC Certified	Yes
DOE Certified	Yes
Low Lead Compliant	Yes
UPC/CUPC Certified	Yes
Prop 65 Label	Yes

Explosion Chart

Measurement Chart

Installation Chart
