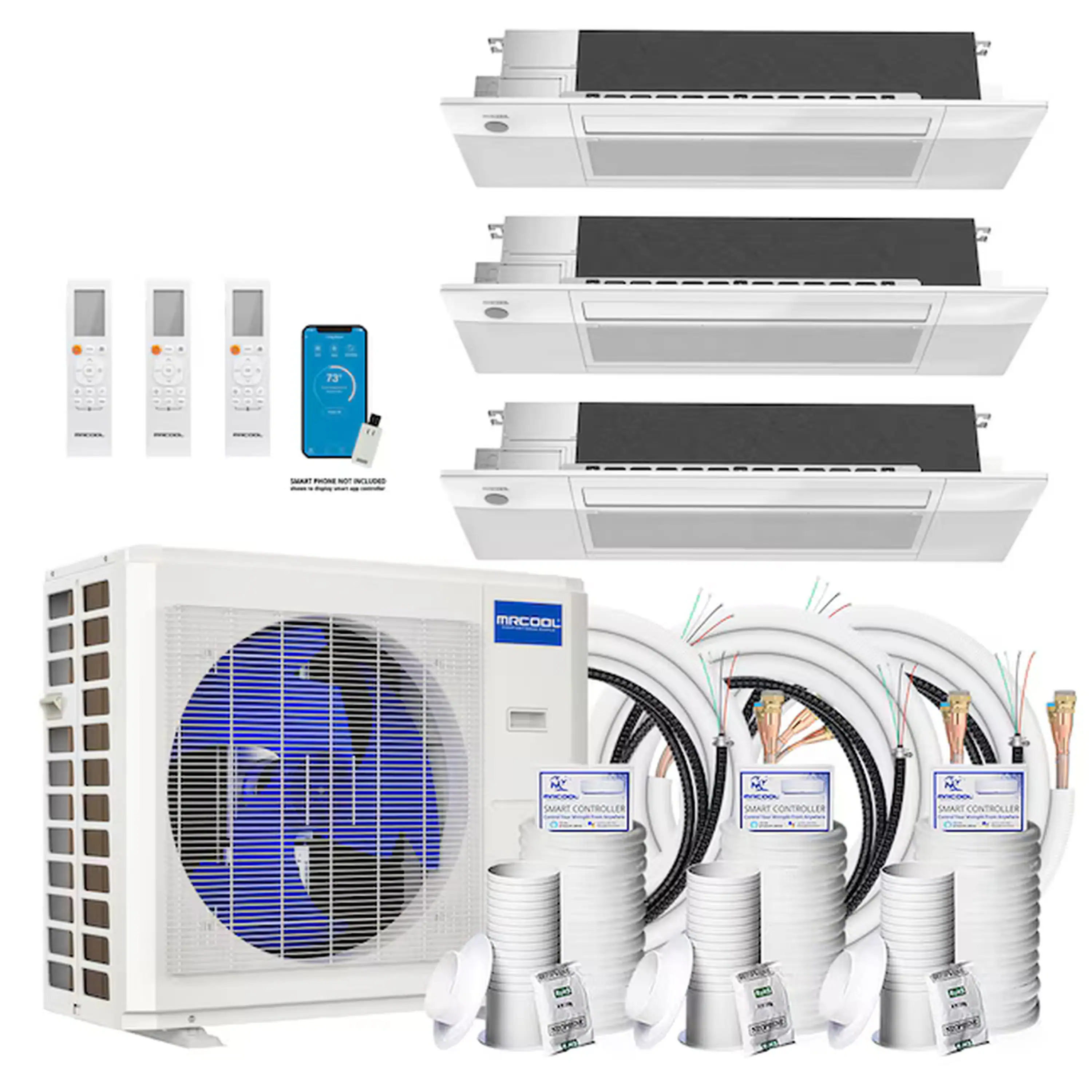

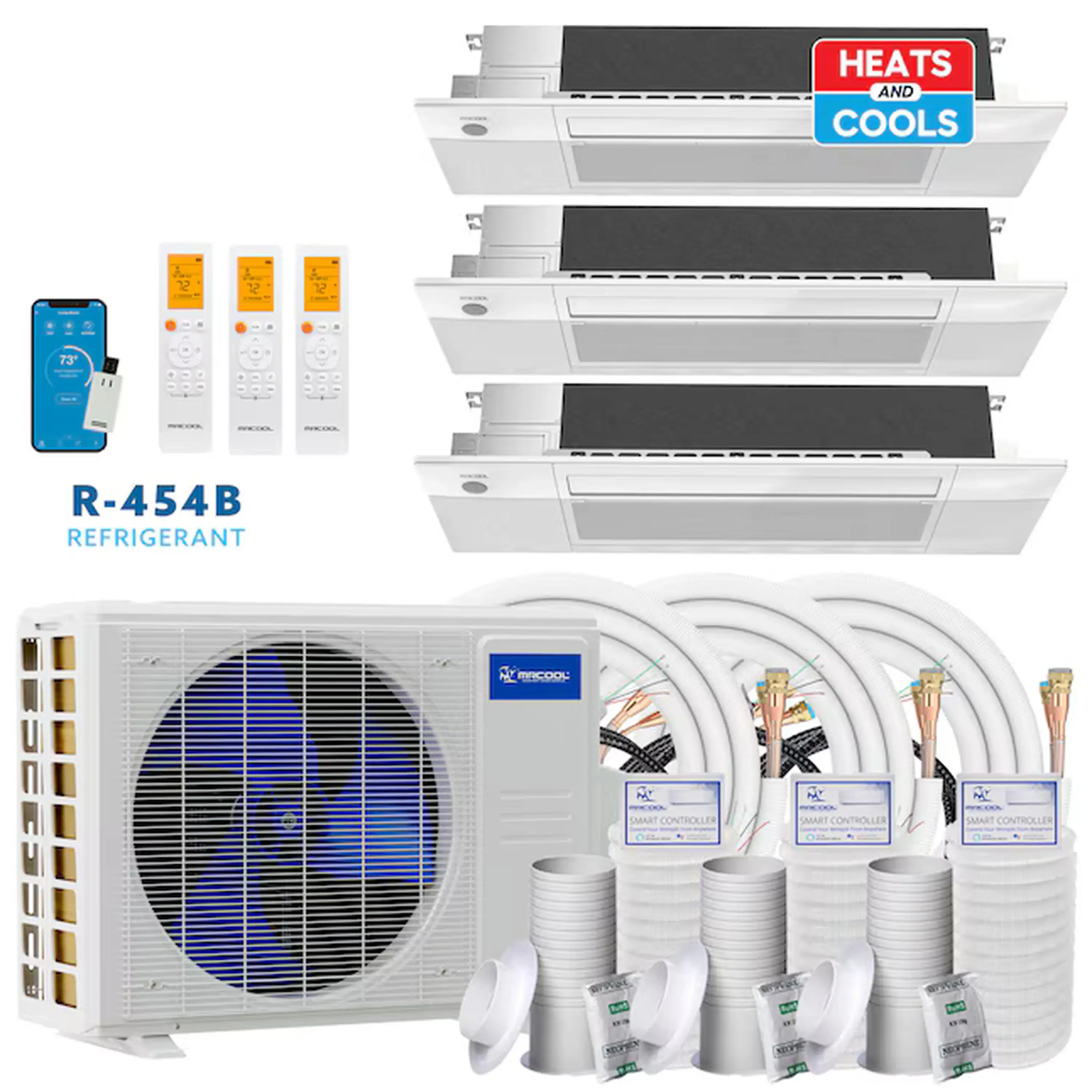

MRCOOL DIY 5th Gen 27,000 BTU 3-Zone Ductless Mini Split Air Conditioner and Heat Pump with 6K+9K+12K BTU Ceiling Cassette Indoor Units

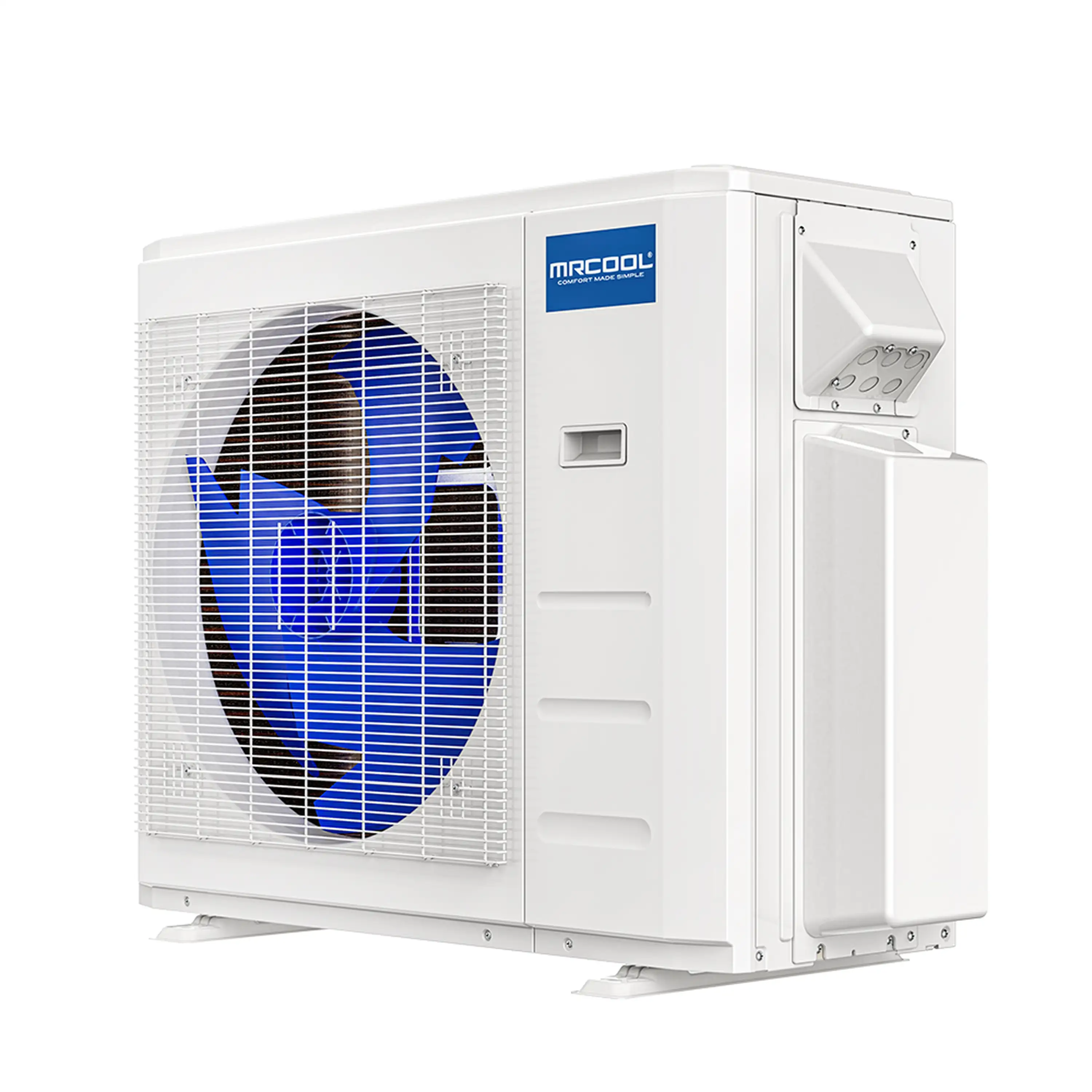

If you’re in need of comfort, our new 5th Generation MRCOOL® DIY® 27k BTU Multi-Zone Ductless Mini Split Condenser is the perfect solution! The acronym in the name is true - you can install this system on your own, without the assistance of an HVAC professional! You’ll save money in more ways than one, too, due to the incredible efficiency of this system, which attains a SEER2 rating of 23 and a HSPF2-4 rating of 9.5.

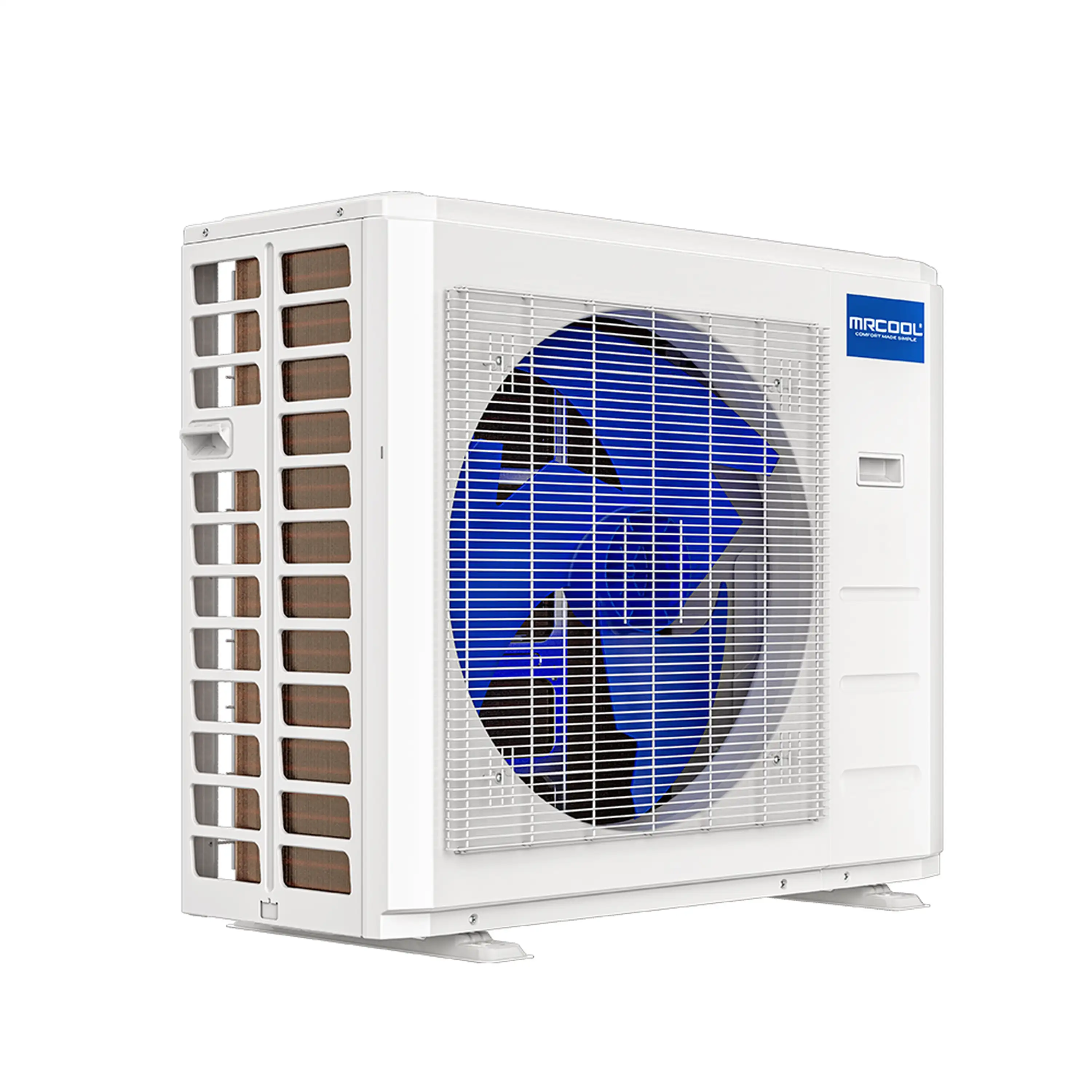

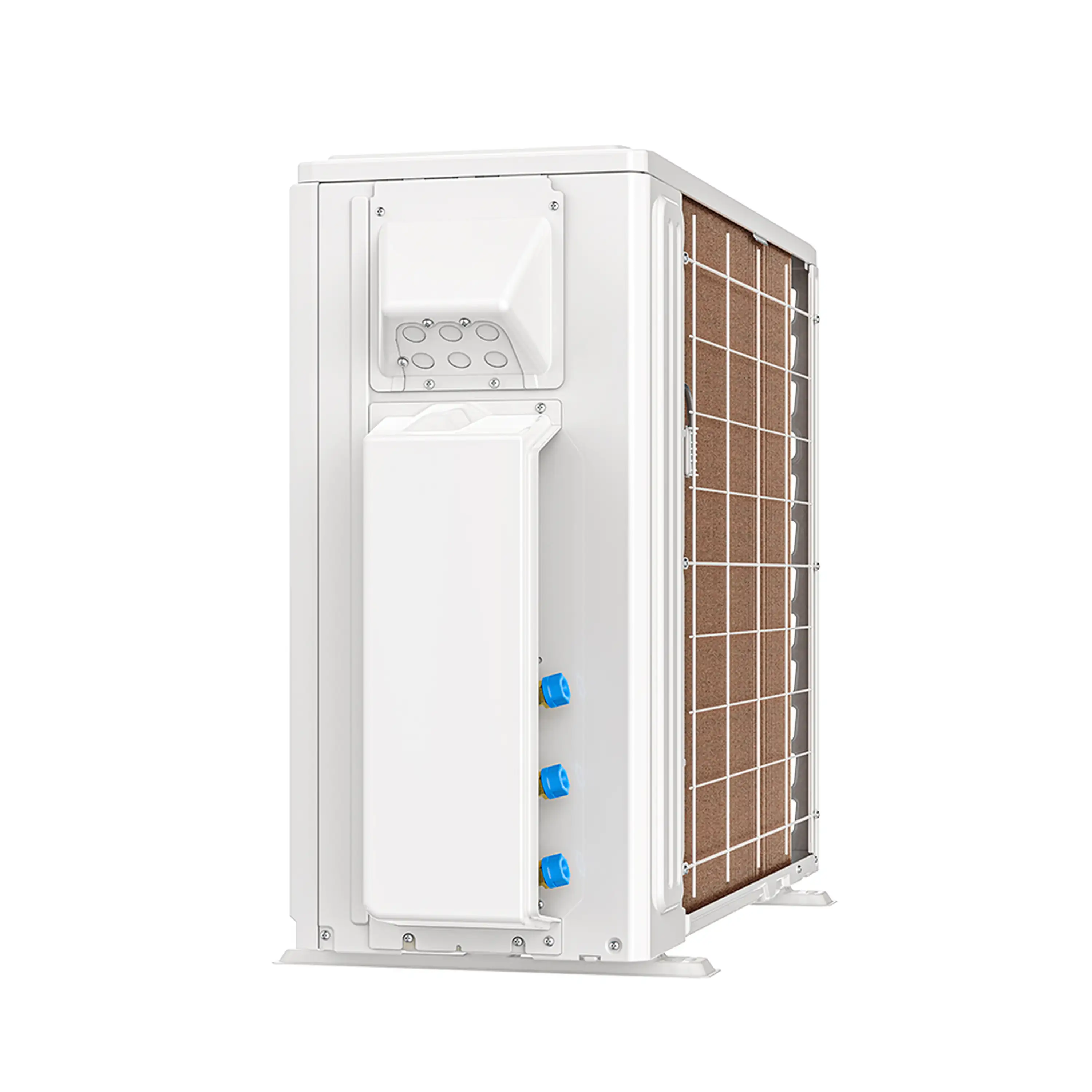

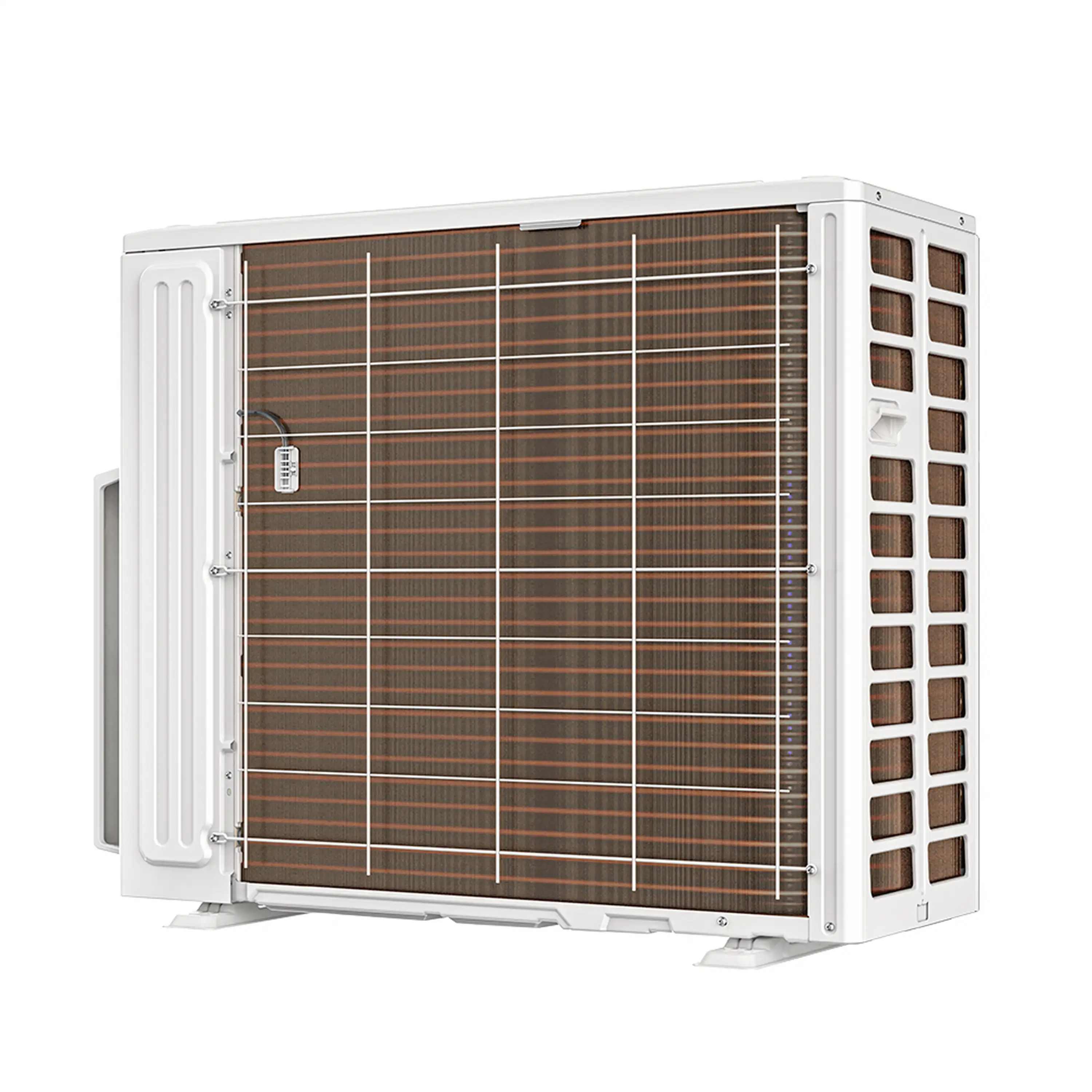

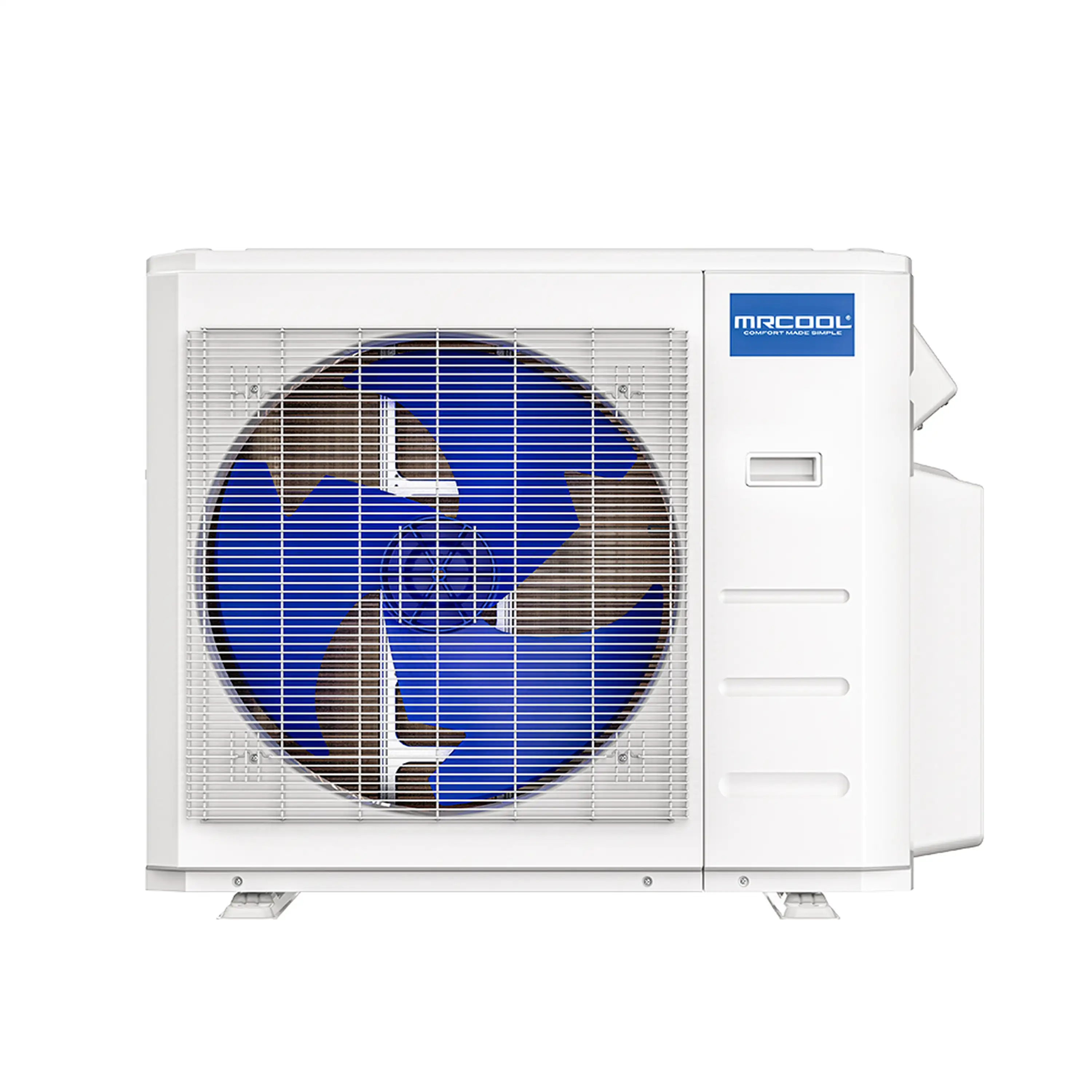

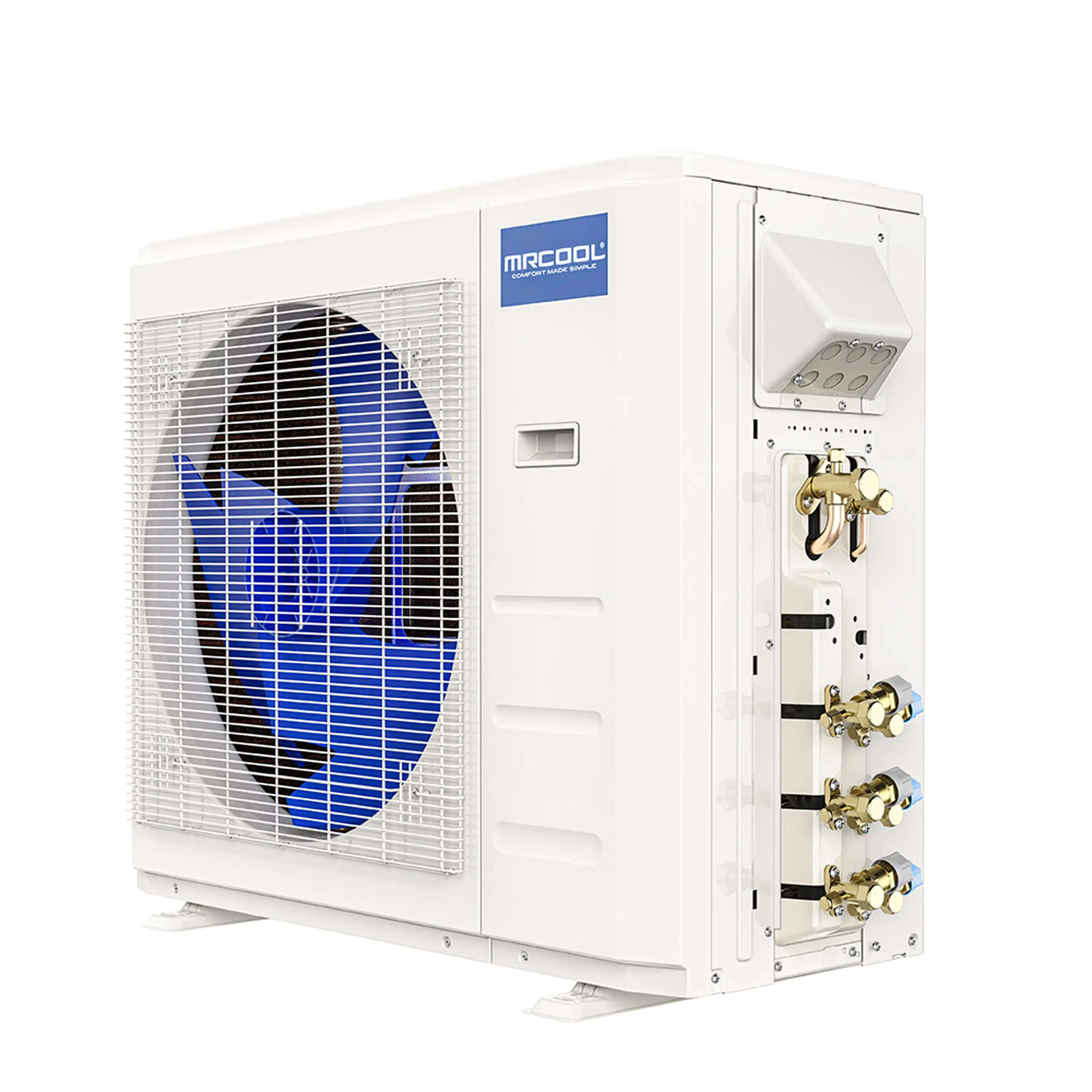

This condenser in particular is able to support up to 4 air handlers, meaning it can provide heat and air conditioning to four separate spaces equalling a total of 1,000 to 1,200 square feet. This system is unique because it utilizes special, patented Quick Connect® line sets that are pre-charged with R-454B, which is a newer refrigerant that allows the system to be even more sustainable and efficient than its previous generation. These line sets essentially link to the fittings of the condenser and the air handler, making the installation process a breeze.

Once installed, this condenser will be able to do more than you expect! Our SmartHVAC app gives you the opportunity to integrate the system with your phone and Amazon Alexa or Google Home, which will let you control your comfort using just your voice. The app also gives you the ability to customize your comfort with a range of features, from setting schedules to monitoring the system’s energy use. You deserve to have your comfort meet your standards, and this unit can do that for you. Should something happen to the system, we’ve got your back. The DIY® series boasts one of the foremost warranties in the HVAC industry - a 5 year parts warranty, a 7 year compressor warranty, and a Limited Lifetime Replacement warranty if you enroll in the MRCOOL® Care Program. Get the best for your home and install a DIY®!

Features

• Intertek listed 5031495

• Easy DIY installation

• Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.

• Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.

• The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.

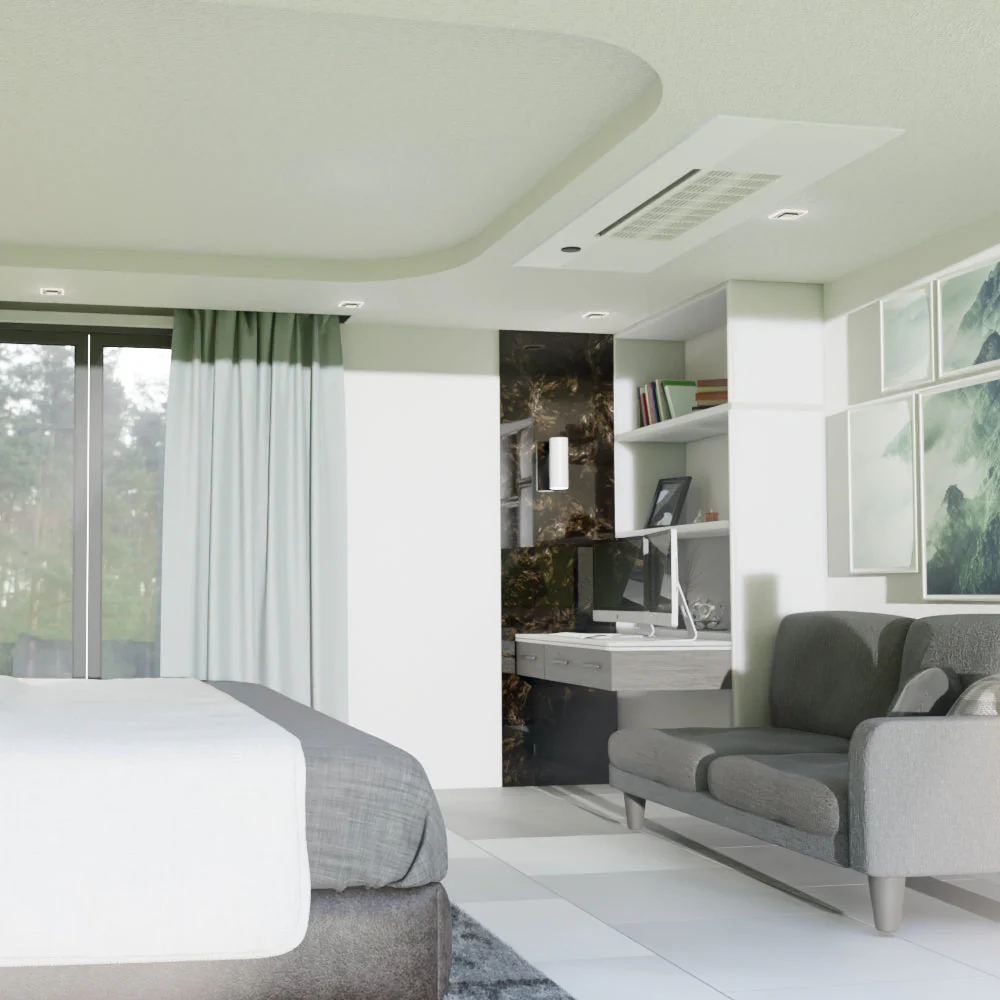

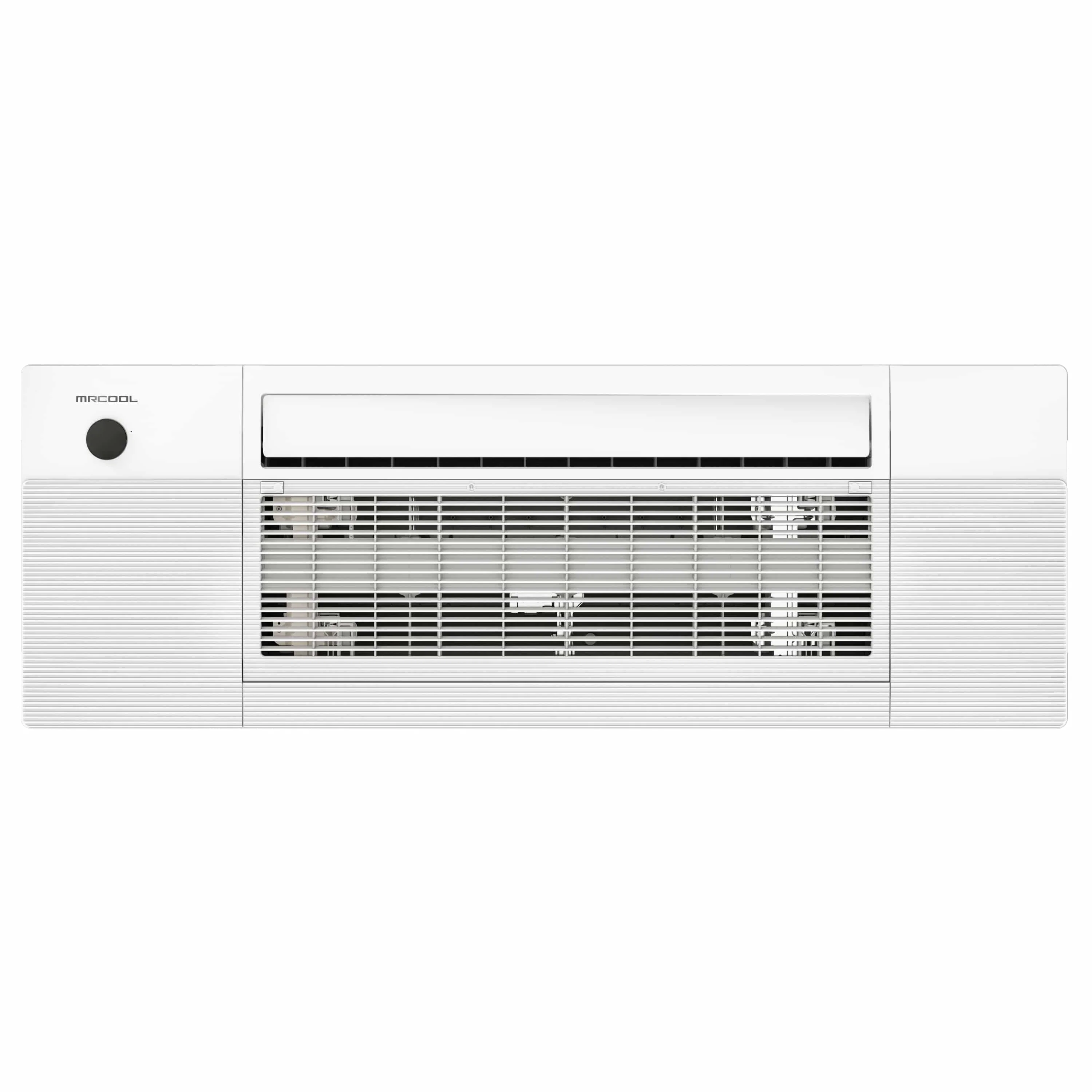

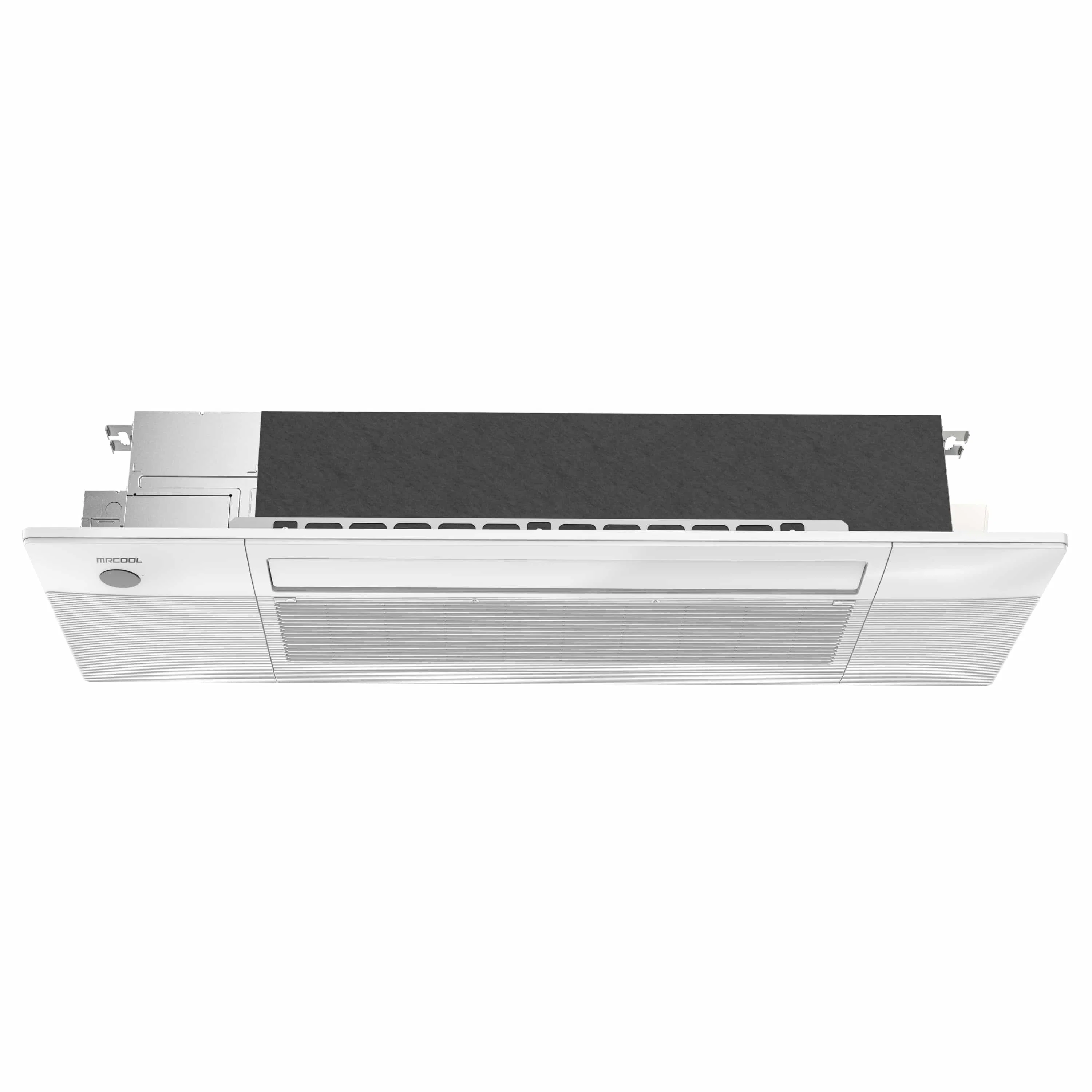

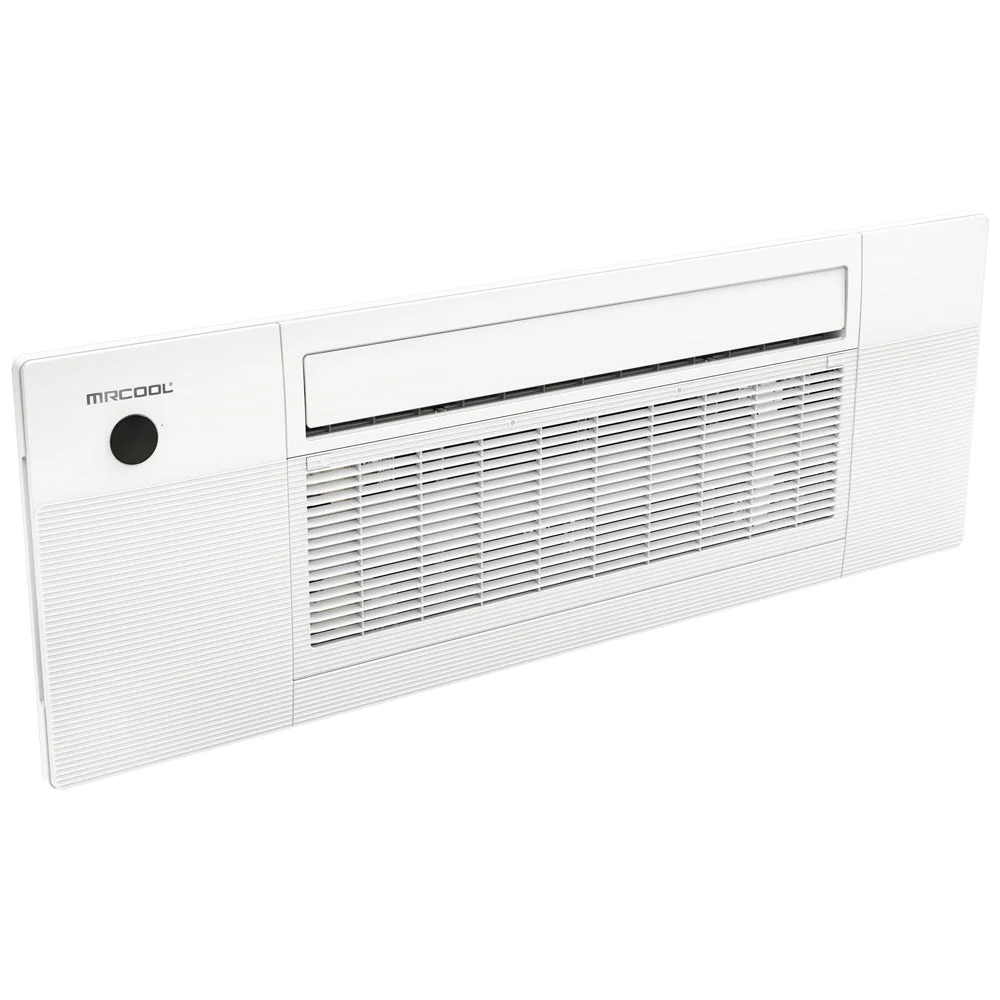

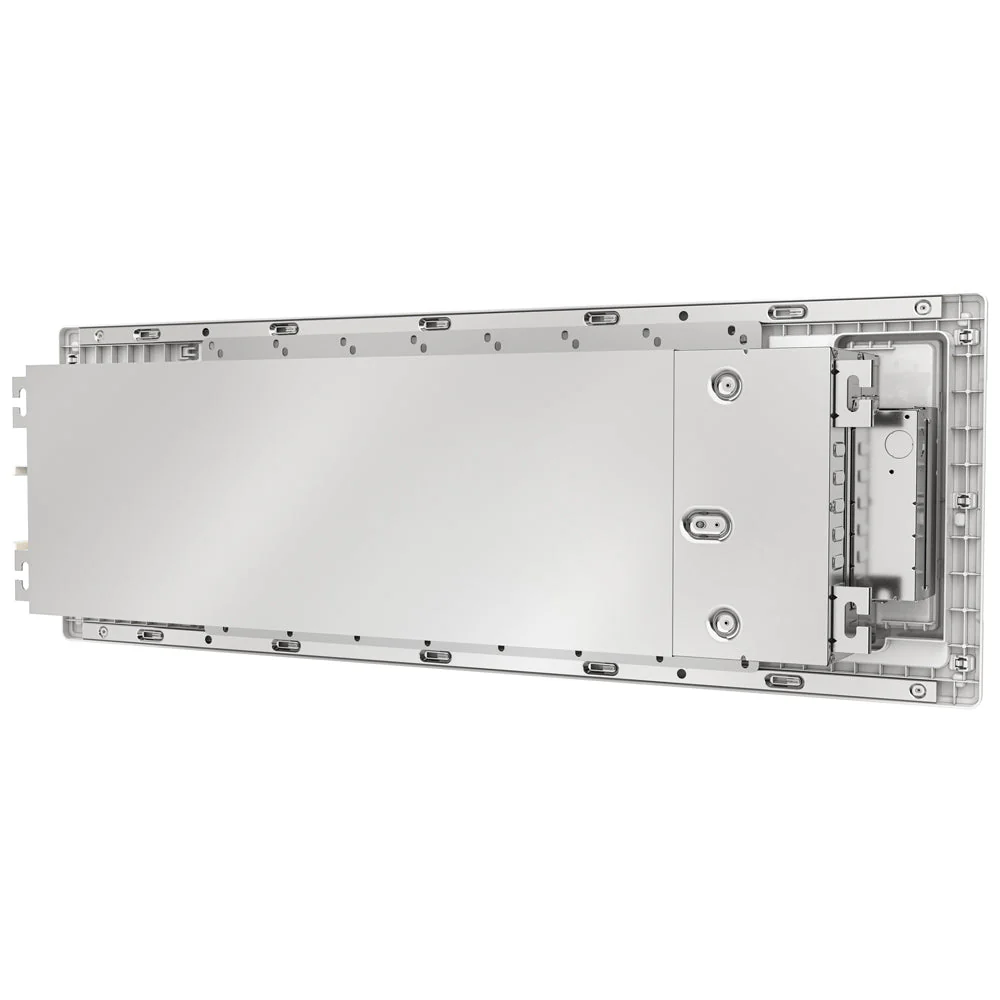

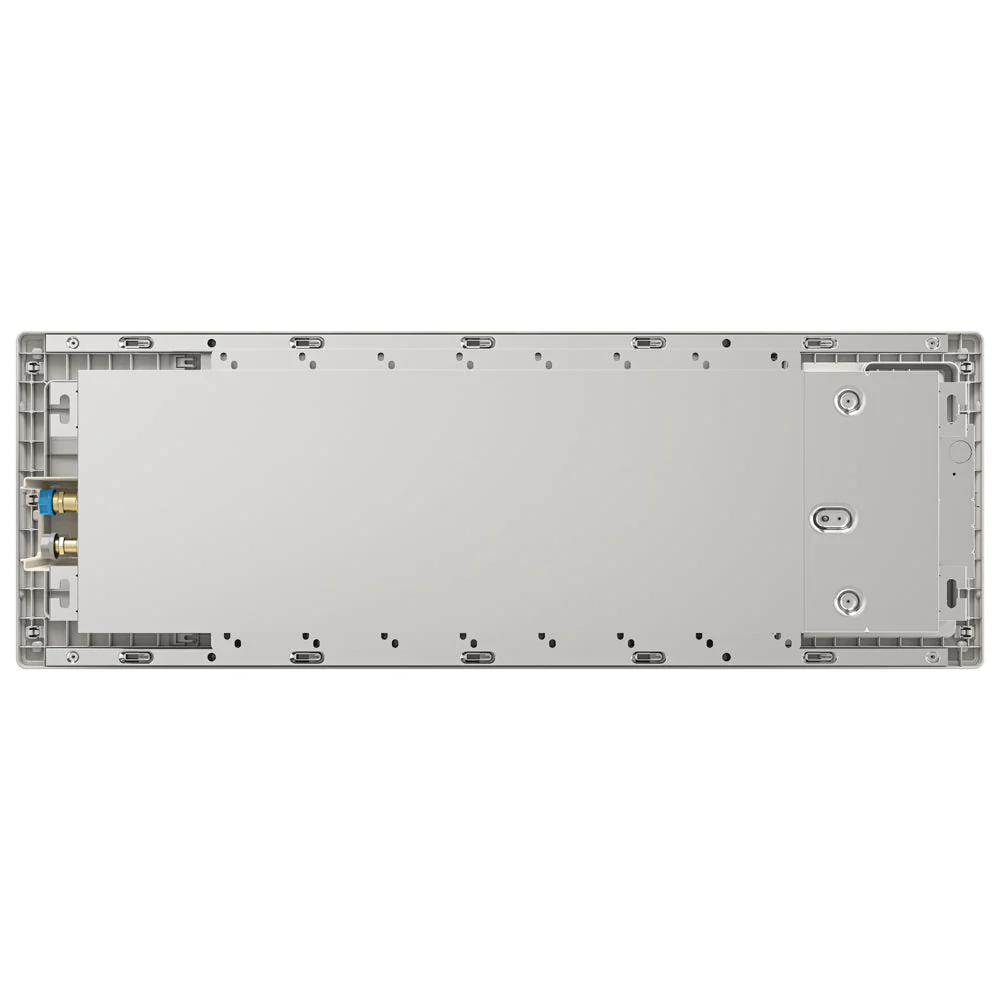

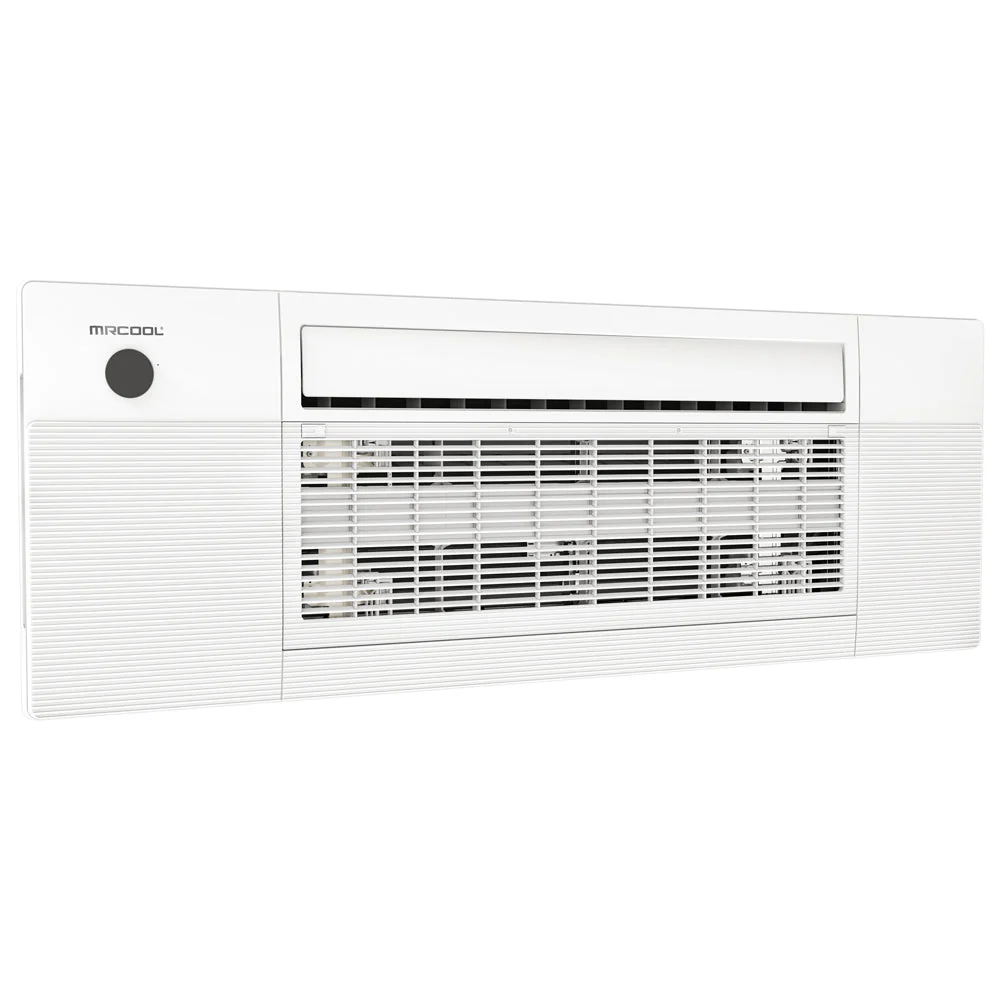

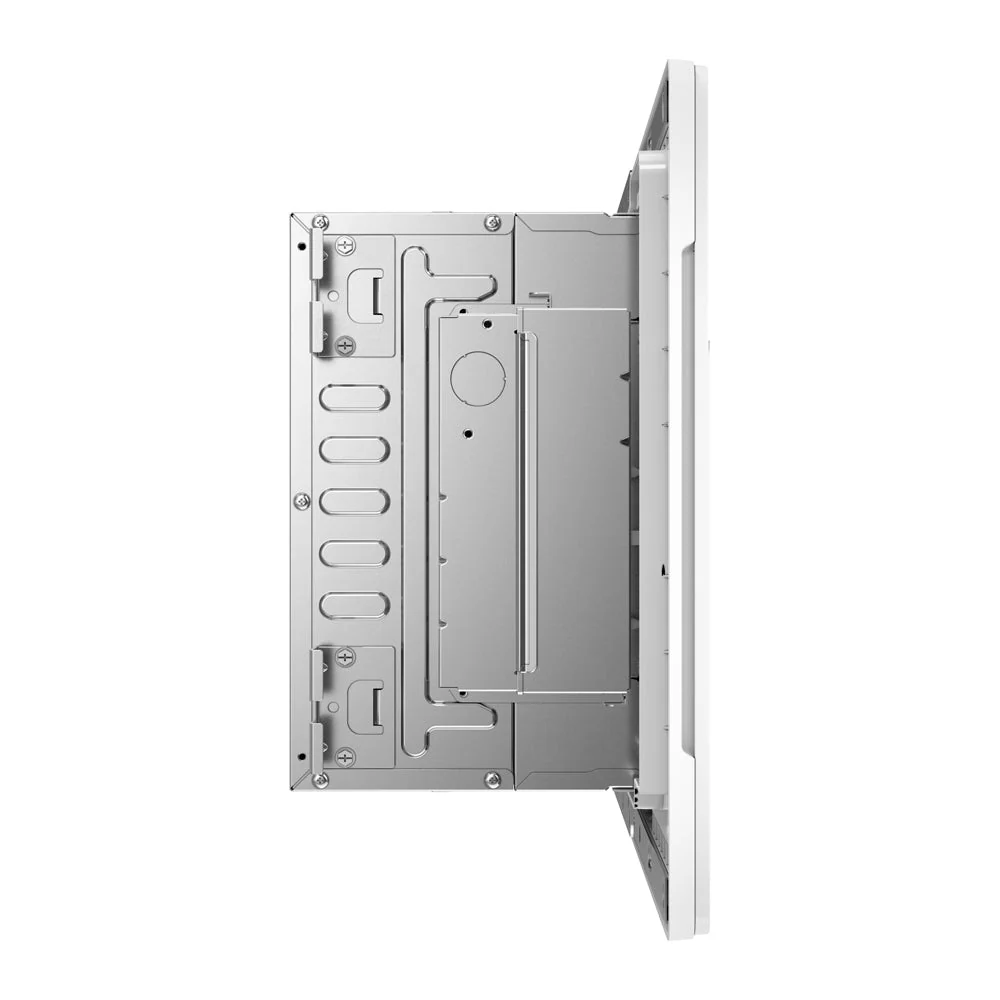

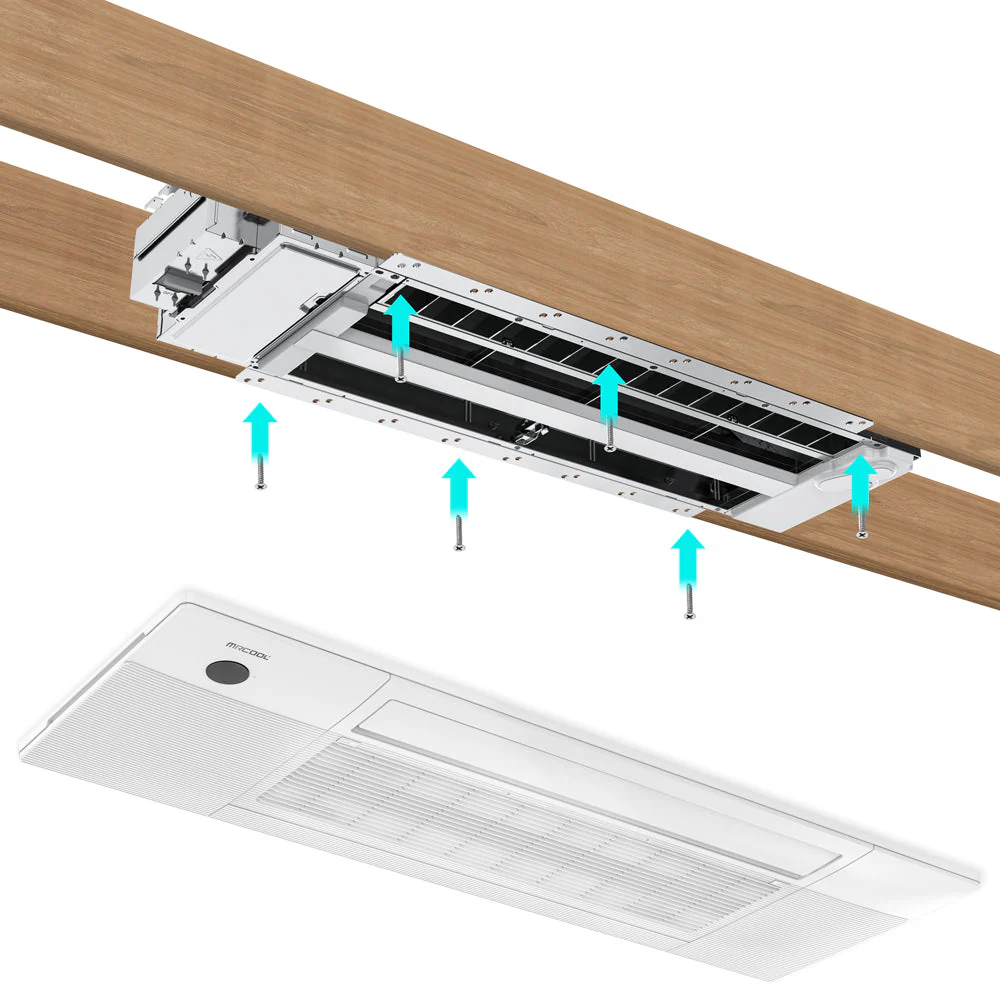

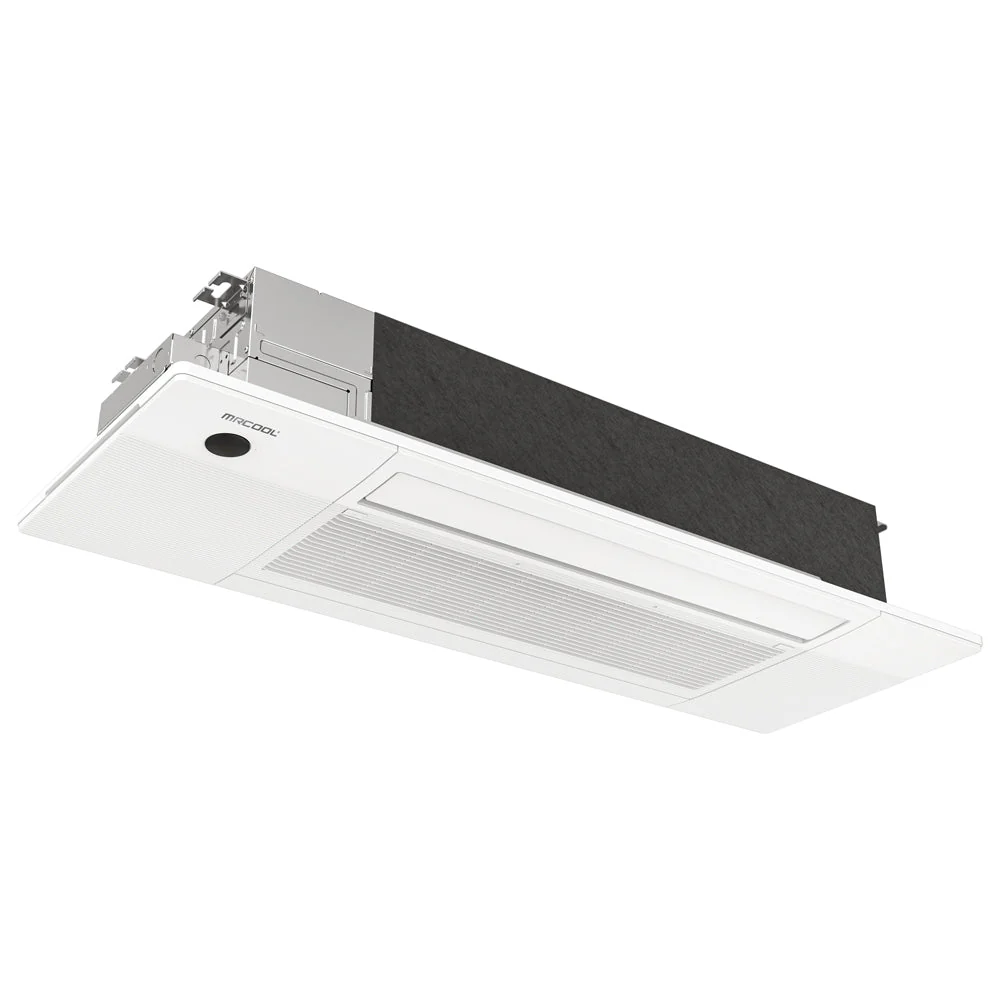

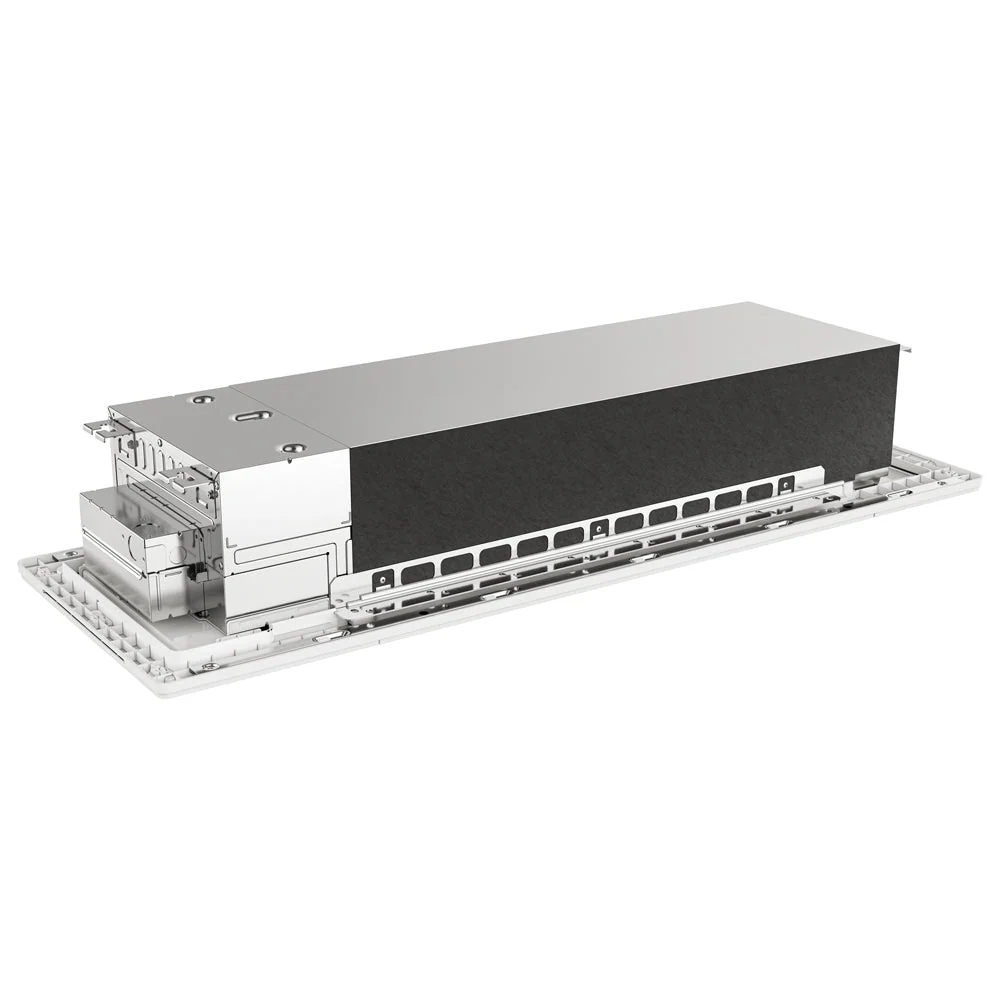

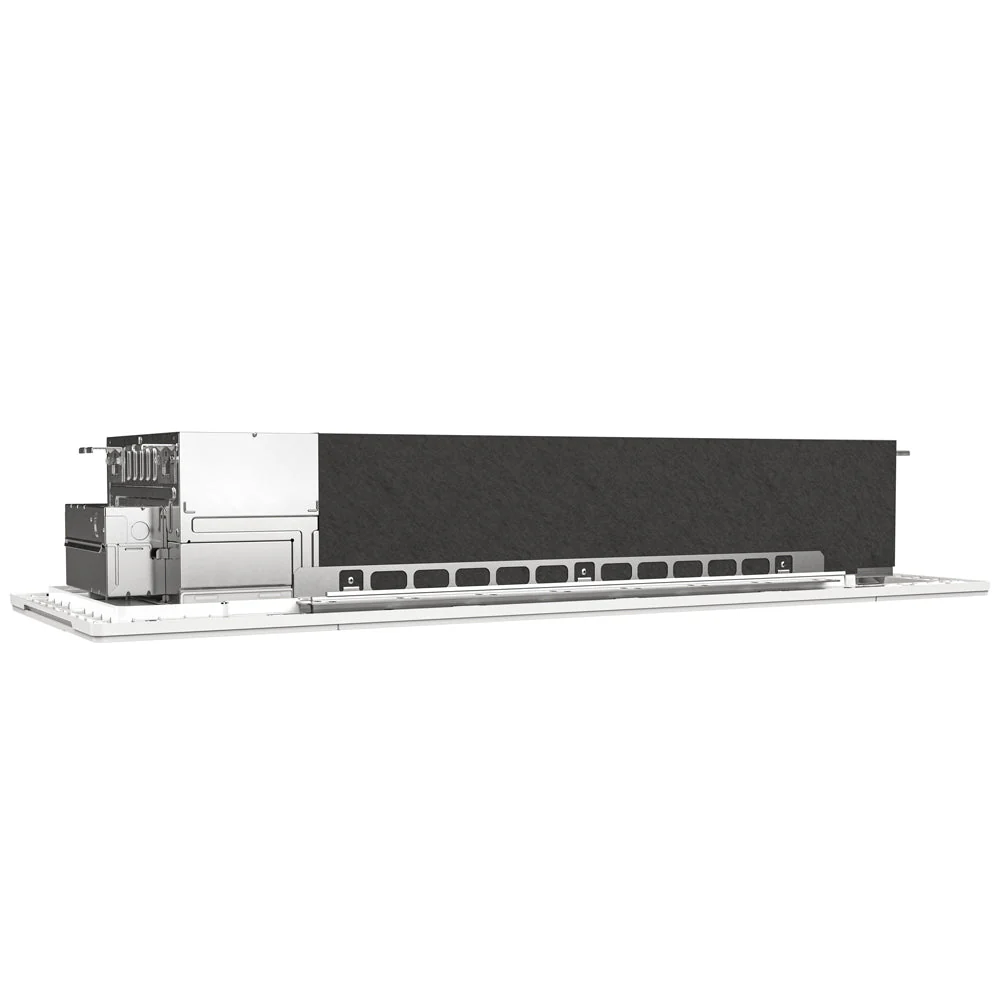

The 5th Generation MRCOOL® DIY® Series OuttaSight® 6K BTU 230V One-Way Ceiling Cassette is a powerful and efficient climate control solution for spaces up to 200 sq. ft. Engineered for easy DIY installation, this system eliminates the need for specialized tools, making setup simple, cost-effective, and hassle-free. Designed to integrate seamlessly into multi-zone configurations, the cassette fits neatly between 16” ceiling joists, including pre-manufactured I-joists, for a clean, flush-mounted appearance. Unlike traditional ceiling cassettes that require extensive ductwork or inconvenient wall space, rethis unit offers a flexible installation ideal for both new builds and retrofit projects.

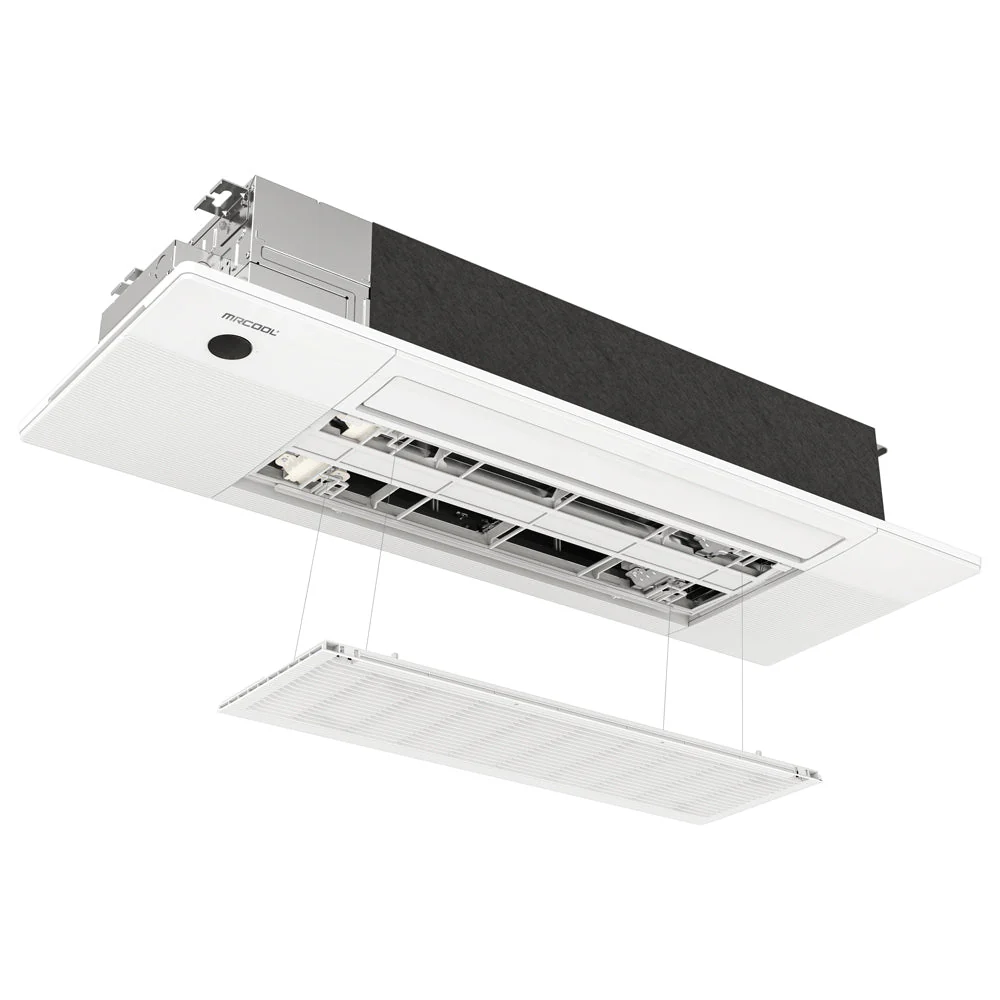

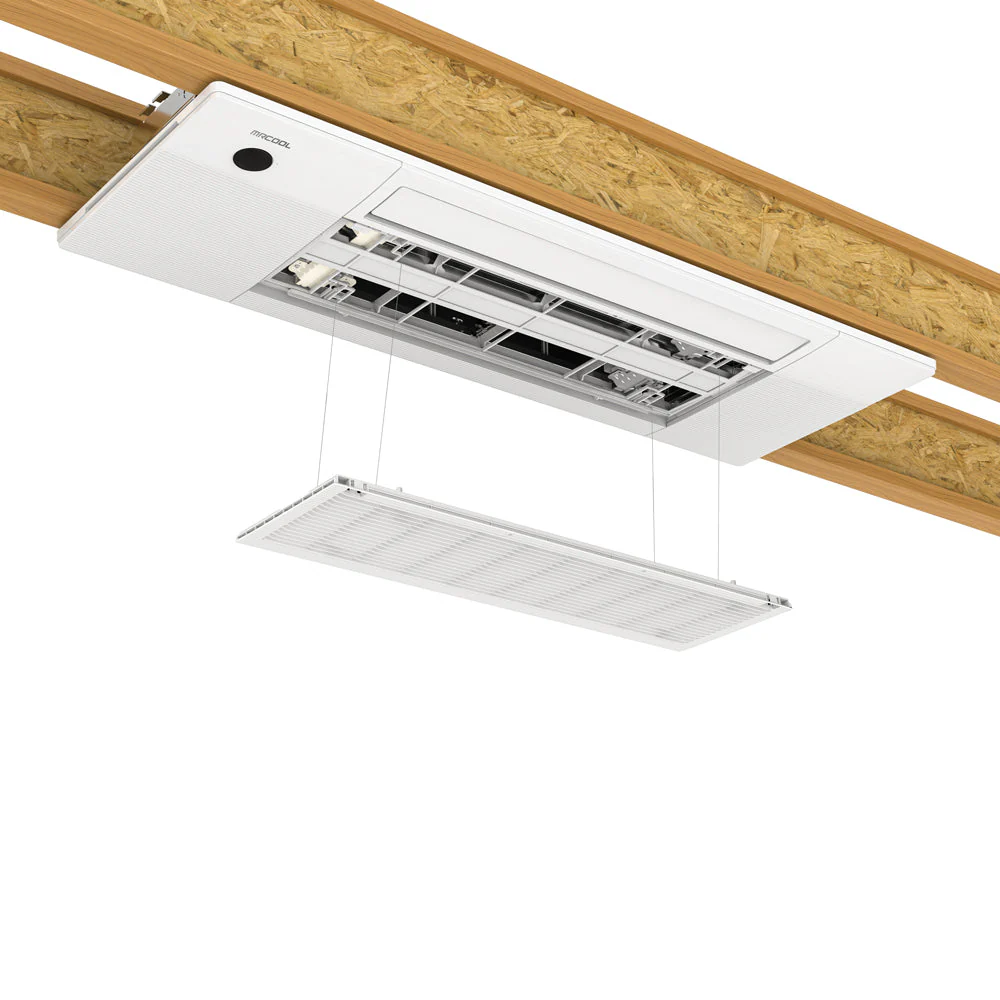

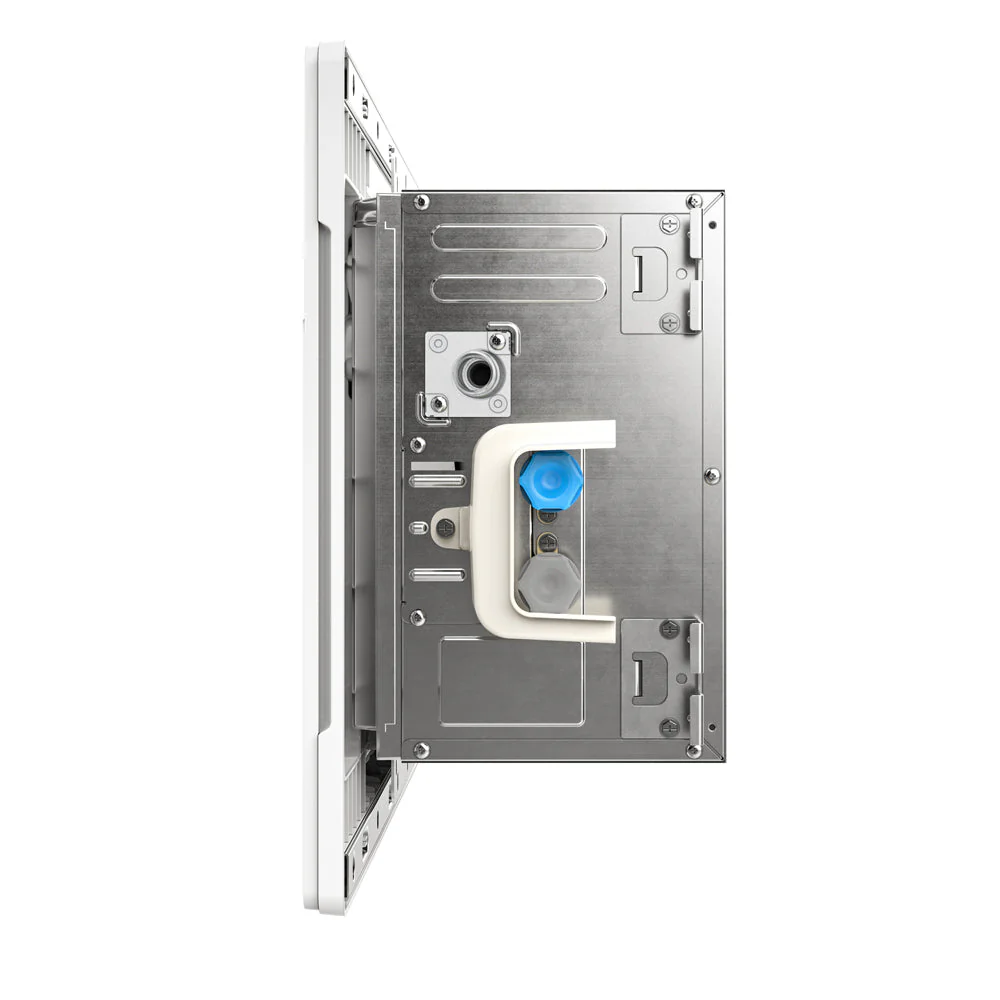

The cassette pairs effortlessly with the MRCOOL® DIY® Quick Connect® line set, which comes pre-charged with R-454B, an environmentally friendly refrigerant that eliminates the need for vacuuming. Advanced filtration enhances indoor air quality, while the Elevation function allows easy filter maintenance by lowering the panel for convenient access. With quiet operation and multiple control options—including a wireless remote, SmartHVAC app, and voice commands via Amazon Alexa and Google Assistant—this system offers personalized comfort. Backed by an industry-leading limited lifetime warranty, a 7-year compressor warranty, and a 5-year parts warranty, the MRCOOL® DIY® Outtasight® Ceiling Cassette delivers long-term reliability, advanced technology, and year-round comfort.

Features

• Low Profile Installation

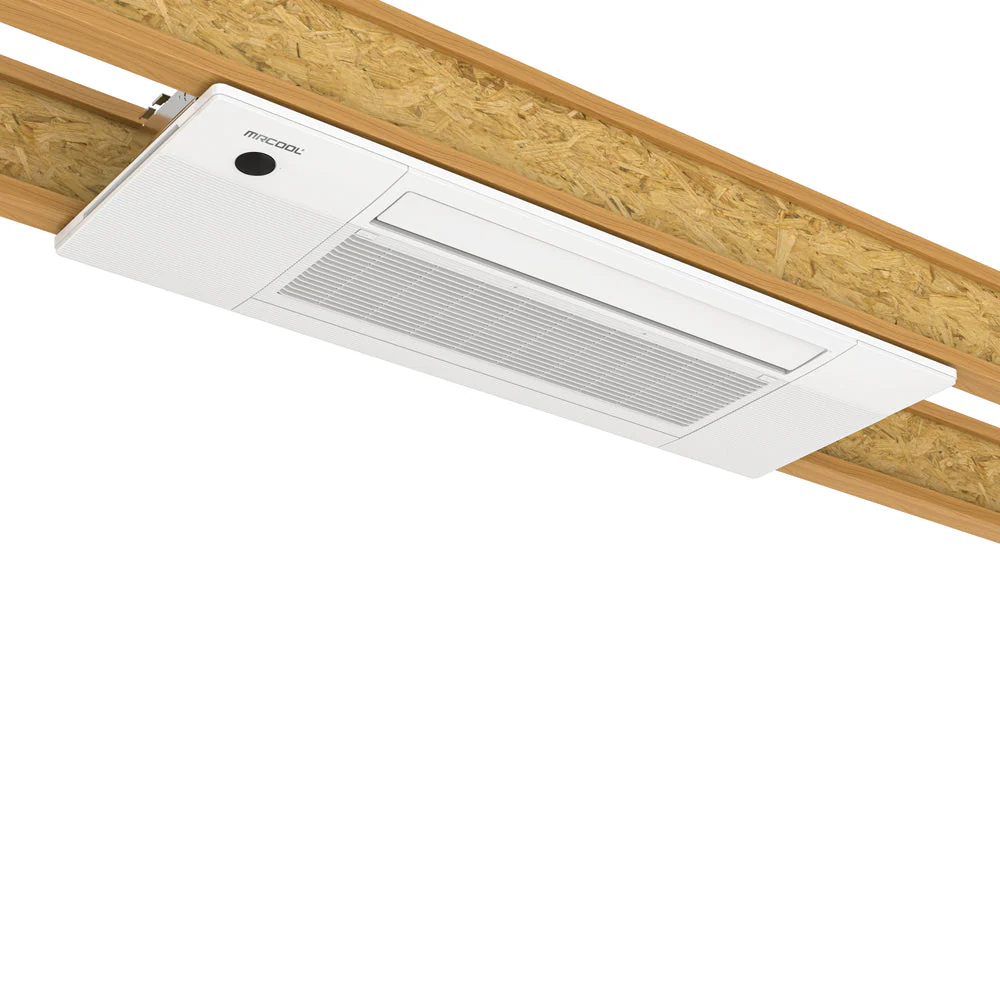

• Fits between 16" Ceiling Joists
• Works with Multi and Single Zone Systems
• Two-Stage DC motor
• Quiet Operation
• Multiple Operating Modes
• Remote Included
• Advanced Filtration
• Swing Technology

The 5th Generation MRCOOL® DIY® Series OuttaSight® 9K BTU 230V One-Way Ceiling Cassette provides a powerful and efficient climate control solution for areas up to 400 sq. ft. Designed for simple installation, this unit eliminates the need for specialized tools, making setup quick, cost-effective, and straightforward. Made for multi-zone configurations, the cassette is engineered to fit seamlessly between 16” ceiling joists, including pre-manufactured I-joists, ensuring a discreet, flush-mounted appearance. Unlike conventional ceiling cassettes that require bulky ductwork or dedicated wall space, this unit offers versatile installation, making it a perfect choice for new construction or retrofit applications.

This cassette works effortlessly with the MRCOOL® DIY® Quick Connect® line set, which is pre-charged with R-454B refrigerant, an eco-friendly solution that removes the need for vacuuming. It features advanced filtration to improve indoor air quality, while the Elevation function makes filter maintenance easy by lowering the panel for hassle-free access. With whisper-quiet operation and multiple control options—including a wireless remote, SmartHVAC app, and voice control via Amazon Alexa and Google Assistant—this system ensures customized comfort. Supported by an industry-leading warranty, including a limited lifetime warranty, 7-year compressor warranty, and 5-year parts warranty, the MRCOOL® Outtasight® Ceiling Cassette guarantees long-lasting performance, modern technology, and year-round climate control.

Features

• Low Profile Installation

• Fits between 16" Ceiling Joists

• Works with Multi and Single Zone Systems

• Two-Stage DC motor

• Quiet Operation

• Multiple Operating Modes

• Remote Included

• Advanced Filtration

• Swing Technology


The 5th Generation MRCOOL® DIY® Series OuttaSight® 12K BTU 230V One-Way Ceiling Cassette is a sleek, efficient, and space-saving climate solution for areas up to 550 sq. ft. Engineered for easy installation, it seamlessly integrates into multi-zone systems, making it ideal for both new constructions and retrofit projects without requiring ductwork or wall space.

Designed for discreet placement, this cassette mounts flush between 16” ceiling joists, including pre-manufactured I-joists, providing a clean, modern appearance while maximizing room layout flexibility. It connects effortlessly to the MRCOOL® DIY® Quick Connect® line set, which comes pre-charged with R-454B, a more environmentally friendly refrigerant, eliminating the need for vacuuming and reducing installation time. With advanced filtration technology, this unit enhances indoor air quality, while the Elevation function lowers the filter panel for easy maintenance and cleaning. It operates quietly, ensuring a comfortable and peaceful environment in any room.

The cassette is fully controllable through a wireless remote, SmartHVAC app, and voice commands via Amazon Alexa and Google Assistant, giving you ultimate convenience and customization. Backed by an industry-leading warranty, including a limited lifetime warranty, a 7-year compressor warranty, and a 5-year parts warranty, this system offers long-term dependability and year-round comfort.

Features

• Low Profile Installation

• Fits between 16" Ceiling Joists

• Works with Multi and Single Zone Systems

• Two-Stage DC motor

• Quiet Operation

• Multiple Operating Modes

• Remote Included

• Advanced Filtration

• Swing Technology

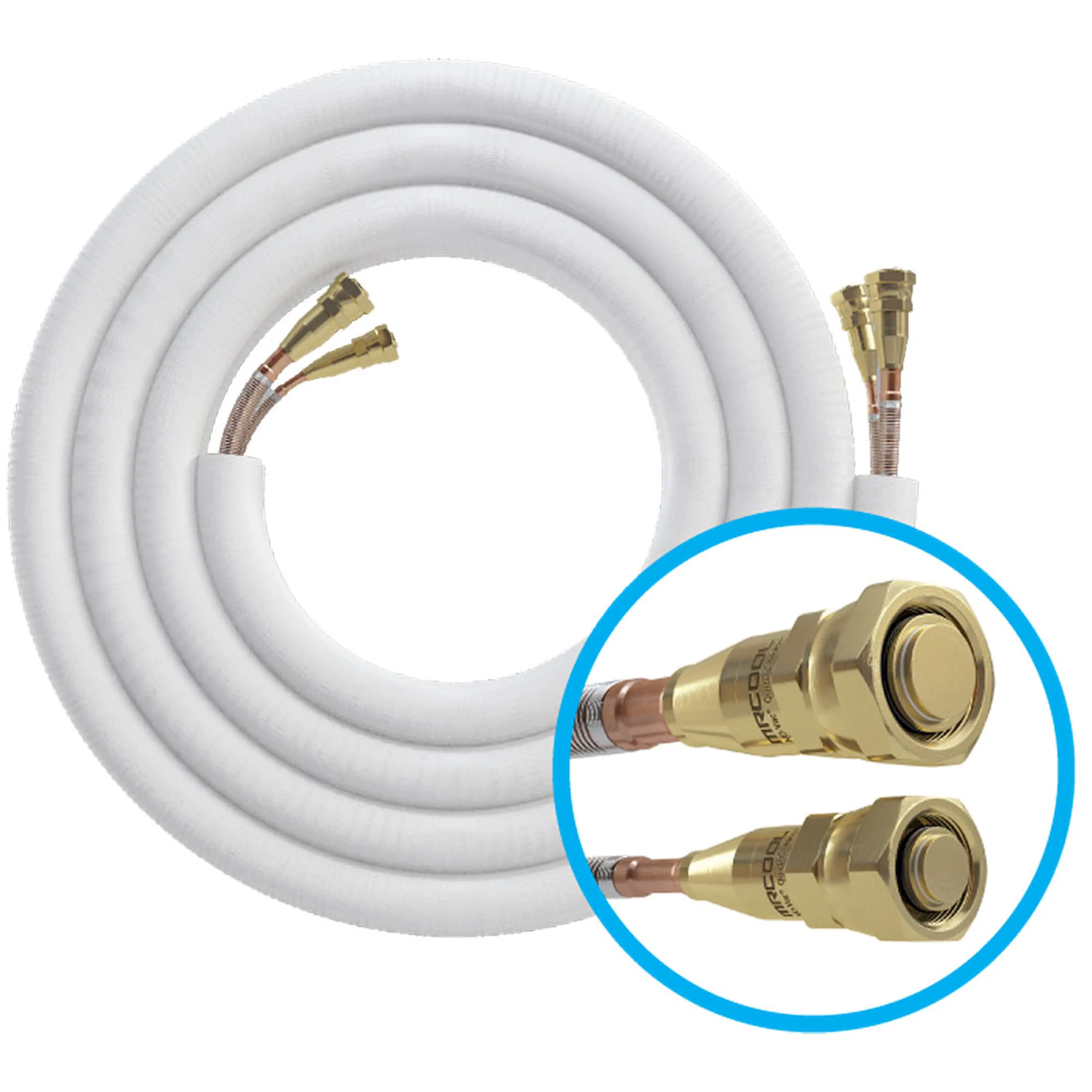

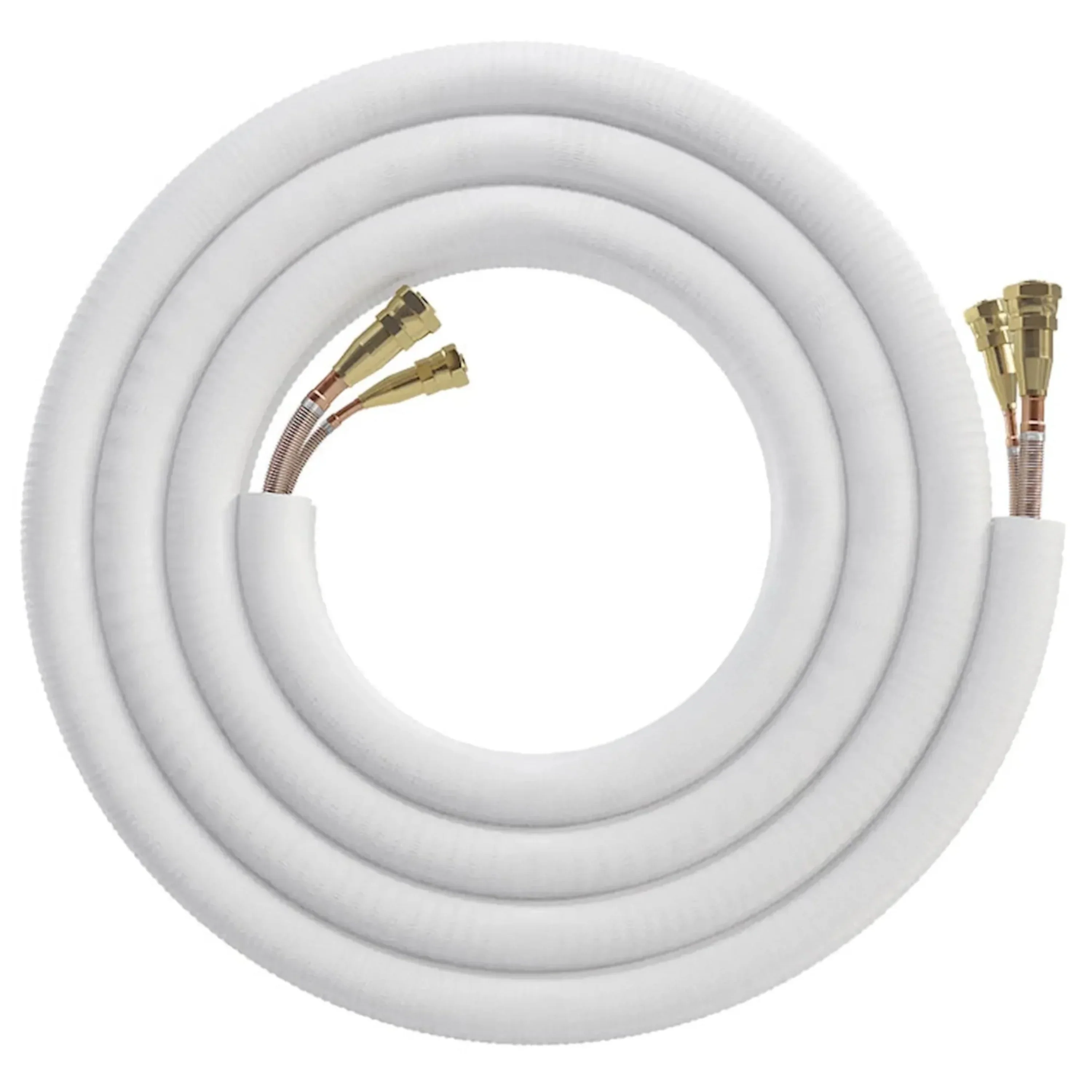

The MRCOOL 5th Gen DIY Line Set is a required component for installing your MRCOOL DIY ductless mini-split system. This 16-foot model is pre-charged with environmentally friendly R-454B refrigerant and works with MRCOOL's DIY 5th Gen 6K, 9K and 12K air handler units, featuring 1/4” liquid and 3/8” suction lines.

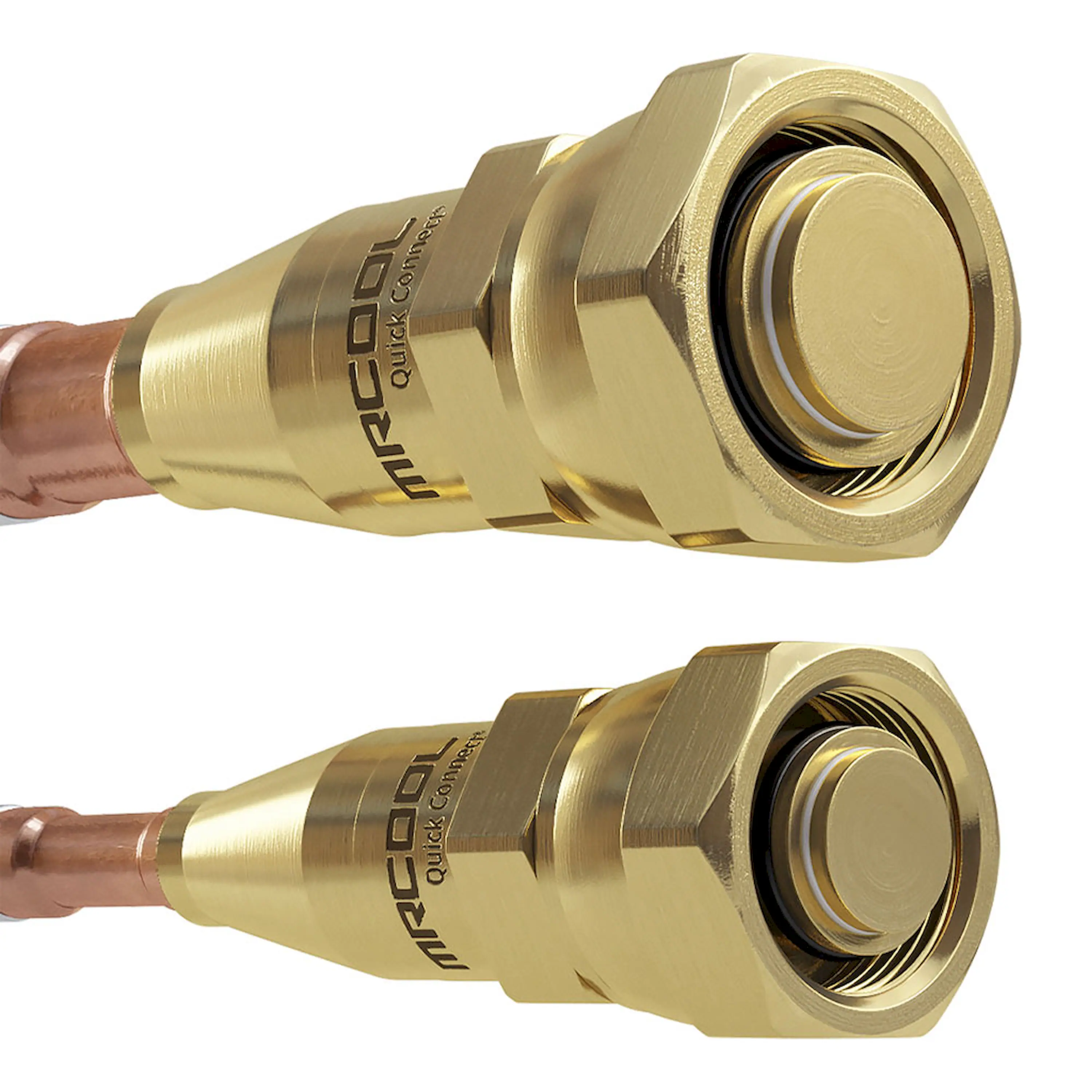

Equipped with Quick Connect fittings, the line set allows for fast, tool-free installation—no vacuuming, charging, or special certifications needed. Built with durable, kink-resistant materials and a leak-proof design, it ensures long-lasting, efficient performance. Available in multiple lengths, it’s the key to making your HVAC setup truly DIY-friendly.

The MRCOOL 5th Gen DIY Line Set is a required component for installing your MRCOOL DIY ductless mini-split system. This 16-foot model is pre-charged with environmentally friendly R-454B refrigerant and works with MRCOOL's DIY 5th Gen 6K, 9K and 12K air handler units, featuring 1/4” liquid and 3/8” suction lines.

Equipped with Quick Connect fittings, the line set allows for fast, tool-free installation—no vacuuming, charging, or special certifications needed. Built with durable, kink-resistant materials and a leak-proof design, it ensures long-lasting, efficient performance. Available in multiple lengths, it’s the key to making your HVAC setup truly DIY-friendly.

The MRCOOL 5th Gen DIY Line Set is a required component for installing your MRCOOL DIY ductless mini-split system. This 16-foot model is pre-charged with environmentally friendly R-454B refrigerant and works with MRCOOL's DIY 5th Gen 6K, 9K and 12K air handler units, featuring 1/4” liquid and 3/8” suction lines.

Equipped with Quick Connect fittings, the line set allows for fast, tool-free installation—no vacuuming, charging, or special certifications needed. Built with durable, kink-resistant materials and a leak-proof design, it ensures long-lasting, efficient performance. Available in multiple lengths, it’s the key to making your HVAC setup truly DIY-friendly.

This remote is included with each air handler in MRCOOL's 5th Generation DIY or Advantage Mini Split Systems.

This remote is included with each air handler in MRCOOL's 5th Generation DIY or Advantage Mini Split Systems.

This remote is included with each air handler in MRCOOL's 5th Generation DIY or Advantage Mini Split Systems.
