$5,830.00

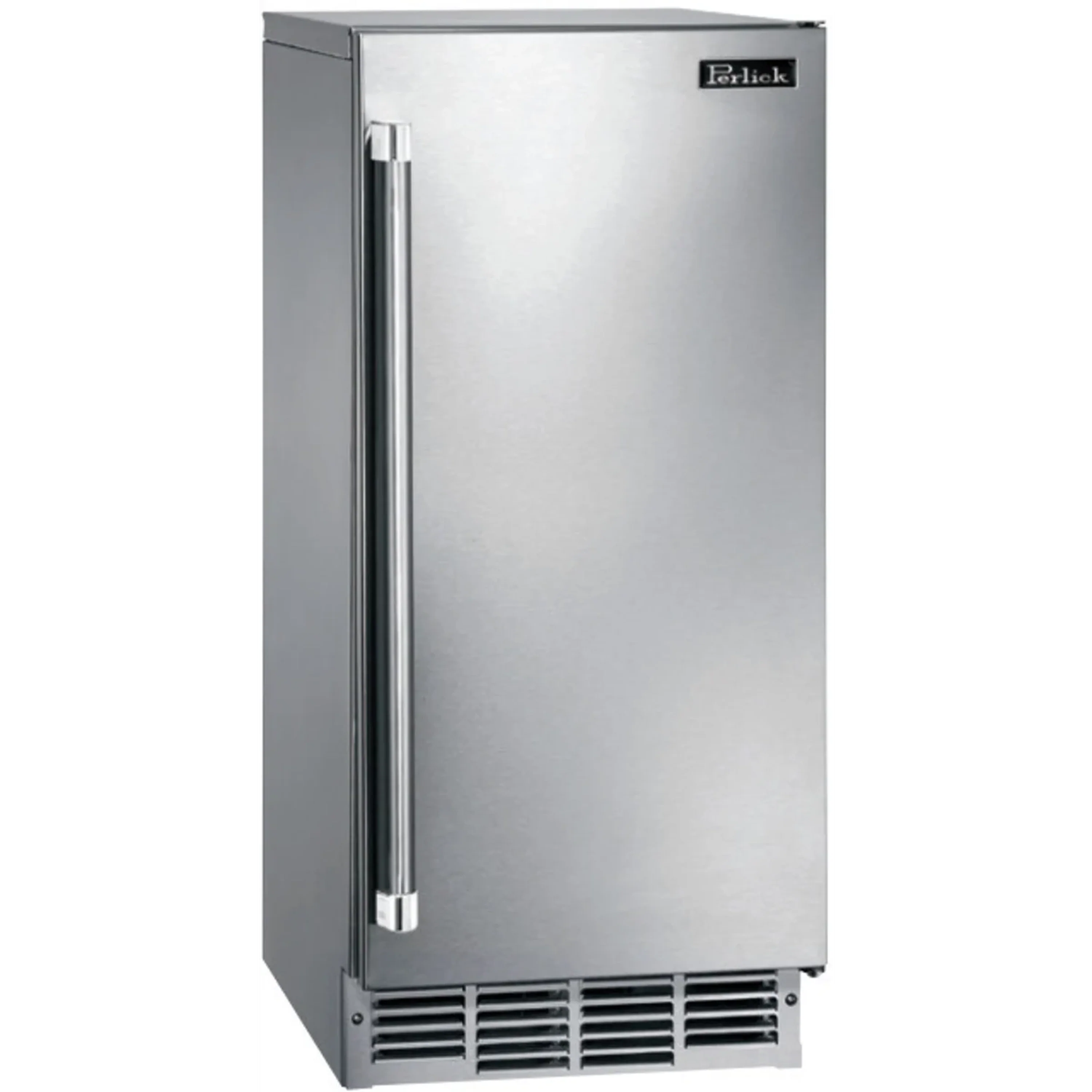

Perlick 15-Inch ADA-Compliant Cubelet Ice Maker in Stainless Steel Door, Right Hinge, R290 (HA15CU-R)—
$5,830.00
The Story
Perlick's ADA height compliant cubelet ice maker produces chewable, nugget-shaped ice. This ice is compacted to easily absorb the flavors of the beverages you pour over it and makes it easy to crunch. It's the perfect addition to any indoor or outdoor entertainment space.
Highlights
- Produces up to 80lbs of soft compacted ice per day with storage for up to 22lbs.
- ETL Sanitation Certified to NSF 12. Innovative ice making technology for clean hygienic ice
- UL Certified to NSF 372 low lead
- All models UL-rated for outdoor use
Features
- All models available with stainless steel or panel ready door. Panel ready doors come ready to accept customer-supplied overlay and handle
- Power switch accessible without panel removal
- Easily disassembled water circuit for easy cleaning
- R-290 Refrigerant
- ADA Height Compliant models available
- Full Two Year Warranty Factory installed drain pump on all models
- Available from factory in left or right hinge for use in any space
| Dimensions | |
|
Overall Dimensions
|
14 7/8" W x 22 9/16" D x31 1/2" H |
|
Opening Dimensions
|
15" W x 24 7/8" D x32 1/4" H |
|
Technical Information
|
|
| Product Series |
ADA Compliant
|
|
Commercial / Residential
|
Residential
|
|
Indoor / Outdoor
|
Both
|
|
Type
|
Freestanding/built-in
|
|
Top Finish
|
Stainless Steel
|
|
Interior Material
|
Stainless Steel
|
|
Sides Finish
|
Stainless Steel
|
|
Back Finish
|
Galvanized Steel
|
|
Undercounter
|
Yes
|
|
Hinge Side
|
Right Hinge
|
|
Field Reversible Door
|
No
|
|
Accepts Custom Panels
|
No
|
|
Daily Ice Production
|
80 lbs.
|
|
Type of Cubes
|
Nugget
|
|
Ice Storage
|
22 lbs.
|
|
Defrost
|
Automatic
|
|
Factory Installed Pump
|
Yes
|
|
UL
|
Yes
|
|
NSF Rated
|
Yes
|
|
Palletized
|
Yes
|
|
Leveling Legs
|
Yes
|
|
Number of doors
|
1 |
|
Interior Capacity cu. ft.
|
3.4
|
|
Door Swing Clearance
|
14"
|
|
Electrical Supply
|
115V/60 Hz/1 Ph
|
|
Running Load Amps
|
4.0 amps
|
|
Electrical Connection
|
15 amp dedicated circuit
|
|
Cord Plug Type
|
NEMA 3 Prong 5-15P
|
|
Cord length
|
6.5 ft
|
|
Refrigerant
|
R-290 Refrigerant
|
|
Plumbing
|
1/2" FTP water Inlet, 1/2" FTP Drain
|
|
Ambient Temp Range
|
45-100°F
|
|
Water Temp Range
|
45-90°F
|
|
Water Pressure
|
7-113 psig
|
|
Voltage Range
|
104-127V
|
|
Type
|
Freestanding/Built In |
|
Color
|
Stainless Steel |
|
Door Color
|
Stainless Steel |
|
Cabinet Color
|
Stainless Steel |
|
Undercounter
|
Yes |
|
Hinge Side
|
Right |
|
Field Reversible Door
|
No |
|
Accepts Custom Panels
|
No |
|
Clear Ice
|
No |
|
Daily Ice Production
|
80 Lbs. |
|
Type of Cubes
|
Nugget |
|
Ice Storage
|
22 Lbs. |
|
Defrost
|
Automatic |
|
Factory Installed Pump
|
Yes |
|
WiFi Connected
|
No |
|
nergy Star Rated
|
No |
|
ADA Compliant
|
Yes |
|
Drain Required
|
Yes |
|
Approved for Outdoor Use
|
Yes |
|
Approved For Commercial Use
|
No |
|
Warranty
|
|
| Parts and Labor |
2 Years
|
| Specs Sheet |
| Installation Guide |
|
Overlay Panel Template |
| ToeKIck Panel Template |
| Residential Design Guide |
| Residential Outdoor Brochure |
