Victory X2 36-Inch 700 CFM Insert Range Hood in Stainless Steel (X2-36)

Victory X2 36-Inch 700 CFM Insert Range Hood in Stainless Steel (X2-36)

Designed and assembled in Canada, this range hood insert is made with high quality stainless steel, an all metal blower and a stainless steel filter cover making this range hood insert efficient, easy to use and easy to clean.

The X2 range hood insert can be used with a standard 6" round duct or an 8" round duct for better performance and a quieter experience. The bright warm dimmable LED lights provide great visibility and the filters are dishwasher safe and reusable. This range hood insert's 15" depth gives you better coverage over your cooking surface while still having a sleek slim range hood insert design that makes it easy to build custom cabinets around. For a long-lasting and reliable range hood insert, choose VICTORY.

Highlights

• Quiet Operation – Enjoy the silence of clean air
• Lifetime Warranty – Lifetime motor & 5 year parts
• Powerful Internal Blower – Up to 700 CFM
• Washable Filters – Easy to replace filters

Features

• All-Metal Impeller with Lifetime Warranty – Reliable blower with a Lifetime Warranty; the ultimate choice for long-lasting performance. It's true that what’s inside matters most.
• Unmatched Perimeter Suction – Enjoy unbeatable suction with the efficient perimeter suction design. A powerful and elegant experience.
• Bright LED Lighting – Discover the long-lasting brilliance of X-Series LED Lighting. Illuminate your world for those special moments.
• Made in Canada

• Recessed Stainless Steel Door Cover

• 700 CFM with 8" Duct

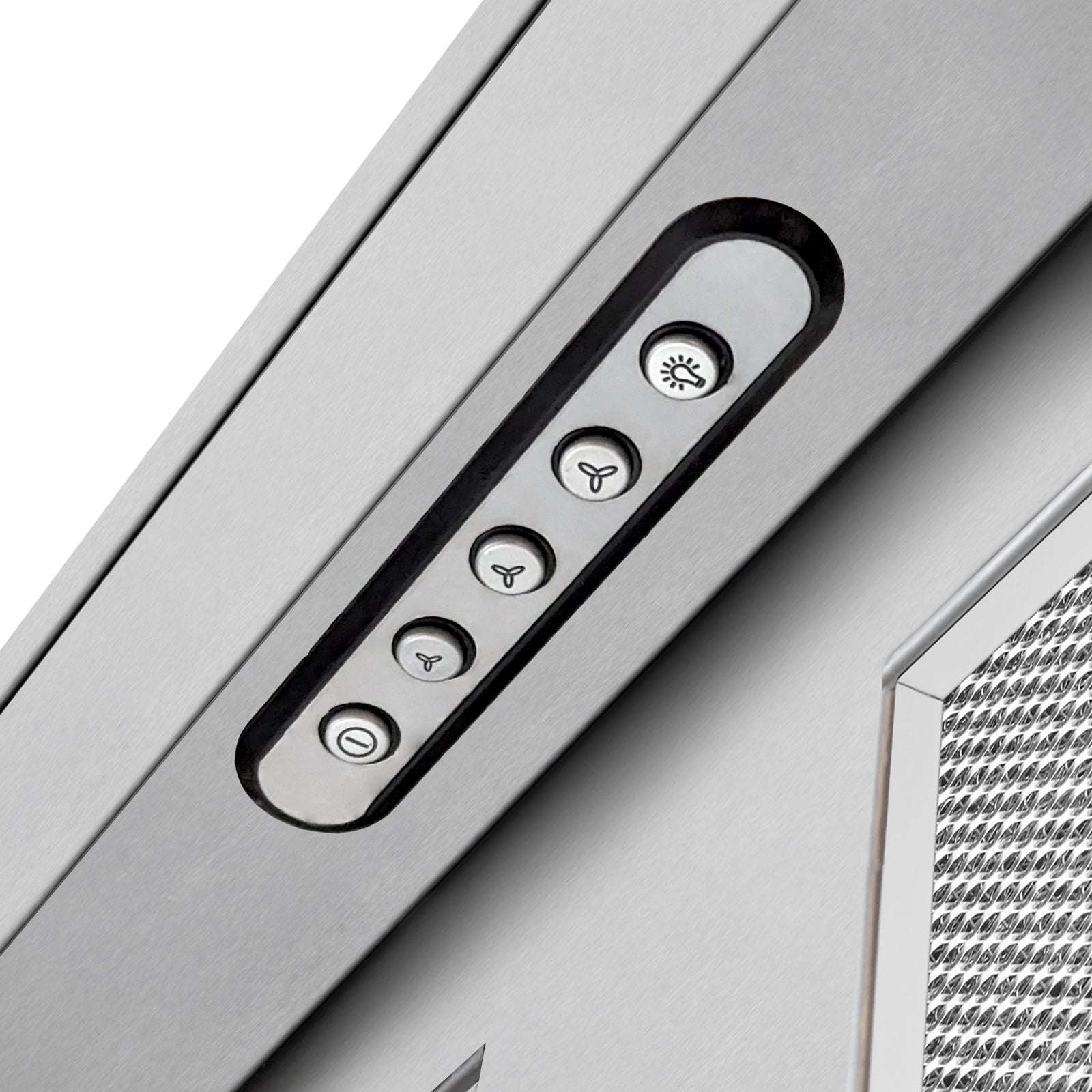

• Hidden Push-button Controls

• LED Lights (x 3)

• 1.0 - 5.5 Sones

• Hidden Aluminum Mesh Filters

• Made with 304 Stainless Steel
•  Designed for 15" depth cabinets
•  Lifetime Motor Warranty + 5 Year Parts

Dimensions	35 1/2" W x 14 7/8" D x 11 7/8" H
Body	Stainless Steel / Sheet Metal
Power Rating	120V/60Hz (USA & Canada standard)
General Input Power	190 W (180W + 2x5W)
Motor Input Power	180 W
Motor Revolution	800 RPM (±10%) to 1300 RPM (±10%)
Levels Of Speed Control	3 Levels
Maximum Airflow	600 CFM (700 CFM when 8” duct is used)
Air Pressure	150 Pa (200 Pa Maximum)
Noise Level (sone)	Approximately 1.0 to 5.5 (Lowest to highest Speed)
Motor Type	Single Chamber Ultra Quiet
Fan Type	Centrifugal
Control Type	Push-button Controls
Illumination	LED Lights (On/Off)
Venting Size	6" or 8" Duct size options
Filter Type	Aluminum Mesh

Installation Guide & User Manual

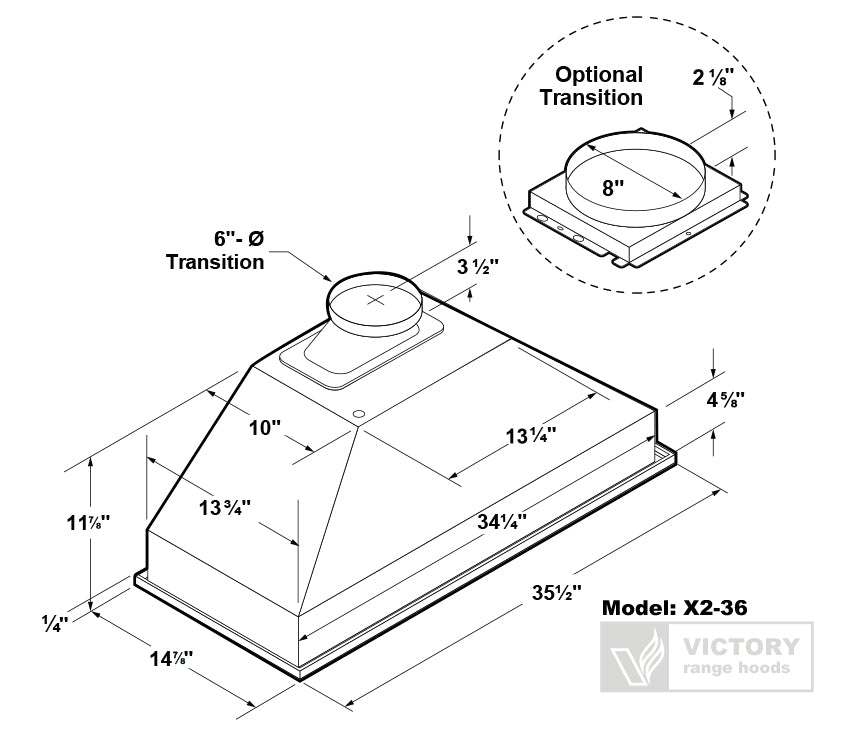

Dimensions Diagram
