Senville 24K BTU Central Split System with 18.3 SEER2 Heat Pump Condenser and Ducted Air Handler (SENDC-24HF)

Upgrade your home’s HVAC system with the Senville SENDC-24HF, a powerful 24,000 BTU central air conditioner and heat pump system designed for year-round performance. Featuring advanced inverter technology, this ducted unit delivers exceptional energy efficiency, whisper-quiet operation, and reliable heating and cooling—even in extreme temperatures down to -30°C (-22°F).

Highlights

• Inverter Technology – Optimizes energy use and maintains stable indoor temperatures.

• All-Season Comfort – Integrated heat pump provides efficient heating and cooling.

• Cold Climate Performance – Operates effectively in temperatures as low as -30°C (-22°F).

• Ultra-Quiet Operation – Ideal for bedrooms, offices, and living spaces.

• Eco-Friendly Refrigerant – Pre-charged with low-GWP R-454B refrigerant.
• Compact Coverage – Cools and heats up to 1,200 sq. ft., perfect for smaller homes or workspaces.

• Long-Term Warranty – 10-Year Compressor Warranty and 5-Year Parts Warranty included.

• Installation Kit Included – Comes with a 16 ft. pre-charged line set for simplified setup.

• Energy Efficient HVAC Performance - The SENDC-24HF utilizes variable-speed inverter compressor technology to reduce energy consumption and prevent temperature swings. This intelligent system delivers consistent climate control while helping lower monthly utility bills.
• Reliable Heating & Cooling in Any Season - Whether it's summer heat or winter chill, the Senville SENDC-24HF central heat pump ensures year-round indoor comfort. It’s engineered to perform in extreme cold, making it a smart HVAC solution for challenging climates.
• Whisper Quiet Operation - Designed for comfort and peace of mind, this central AC system runs with minimal noise—ideal for bedrooms, nurseries, and shared living spaces.
• Eco-Conscious Refrigerant - The SENDC-24HF is pre-filled with R-454B refrigerant, a more environmentally friendly option with significantly lower global warming potential (GWP) than older refrigerants.
• Advanced Self-Cleaning & Diagnostics - Equipped with self-cleaning mode, leak detection, and maintenance alerts, this unit offers hassle-free upkeep and optimal performance throughout its lifespan.

What’s Included

• Senville SENDC-24HF 24,000 BTU Central AC & Heat Pump Unit

• 16 ft. Pre-Charged Installation Kit

• 10-Year Compressor Warranty

• 5-Year Parts Warranty

Note: Professional installation is required for optimal performance and warranty validation.

Condenser
Dimensions (WxDxH) (in.)	37.48x16.14x31.89
Weight (lbs.)	136.69
Noise Level dB	62
Air flow (Max) CFM	3000

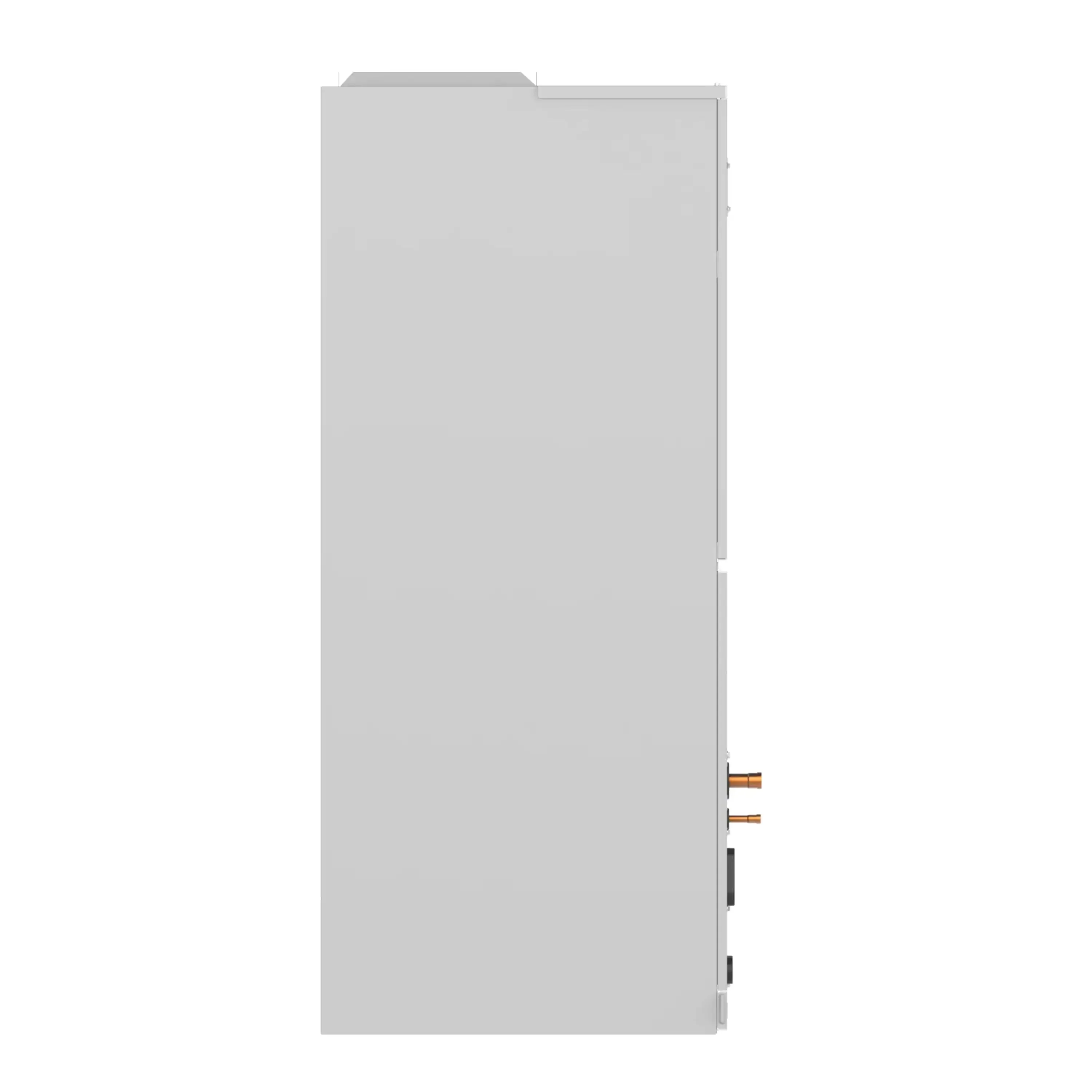

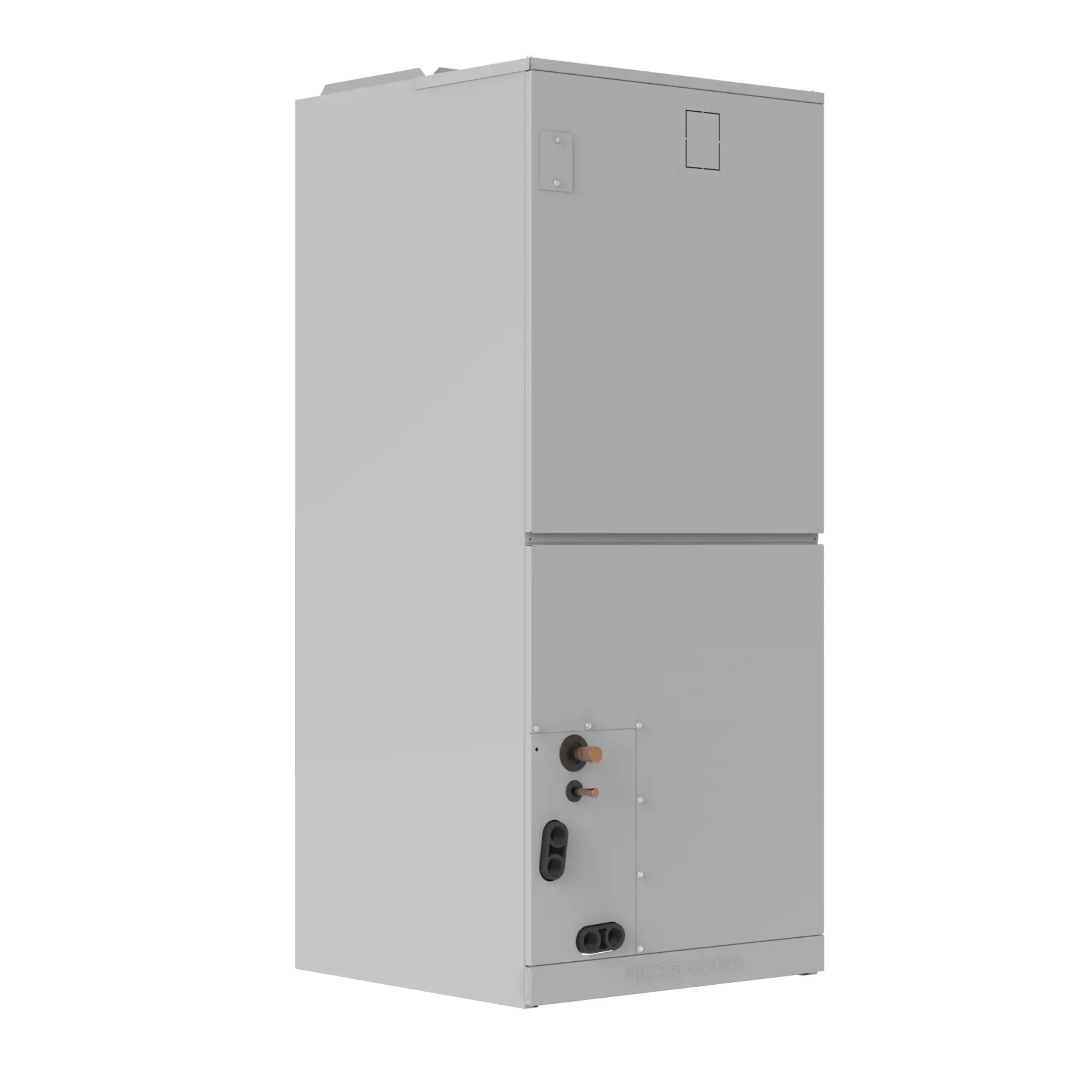

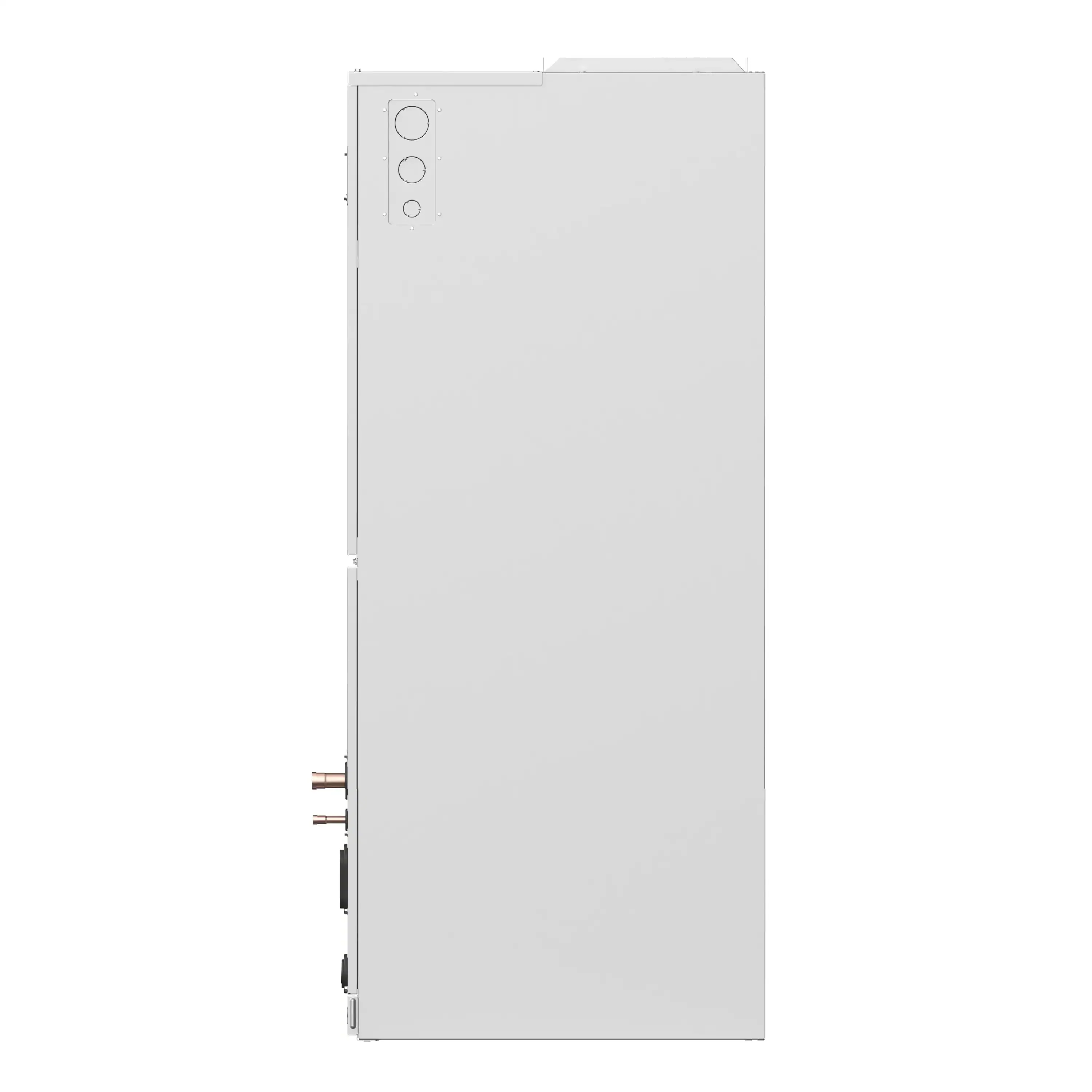

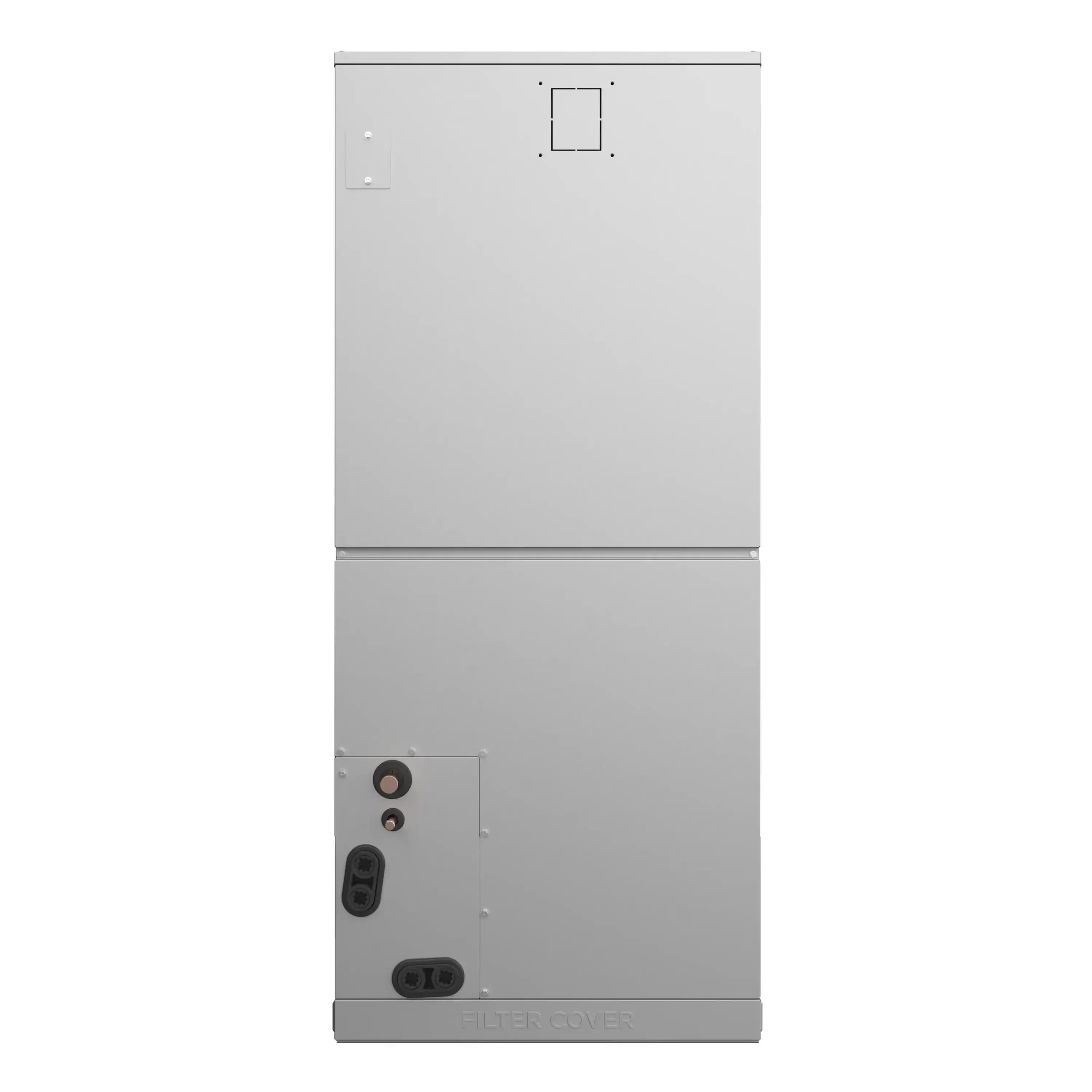

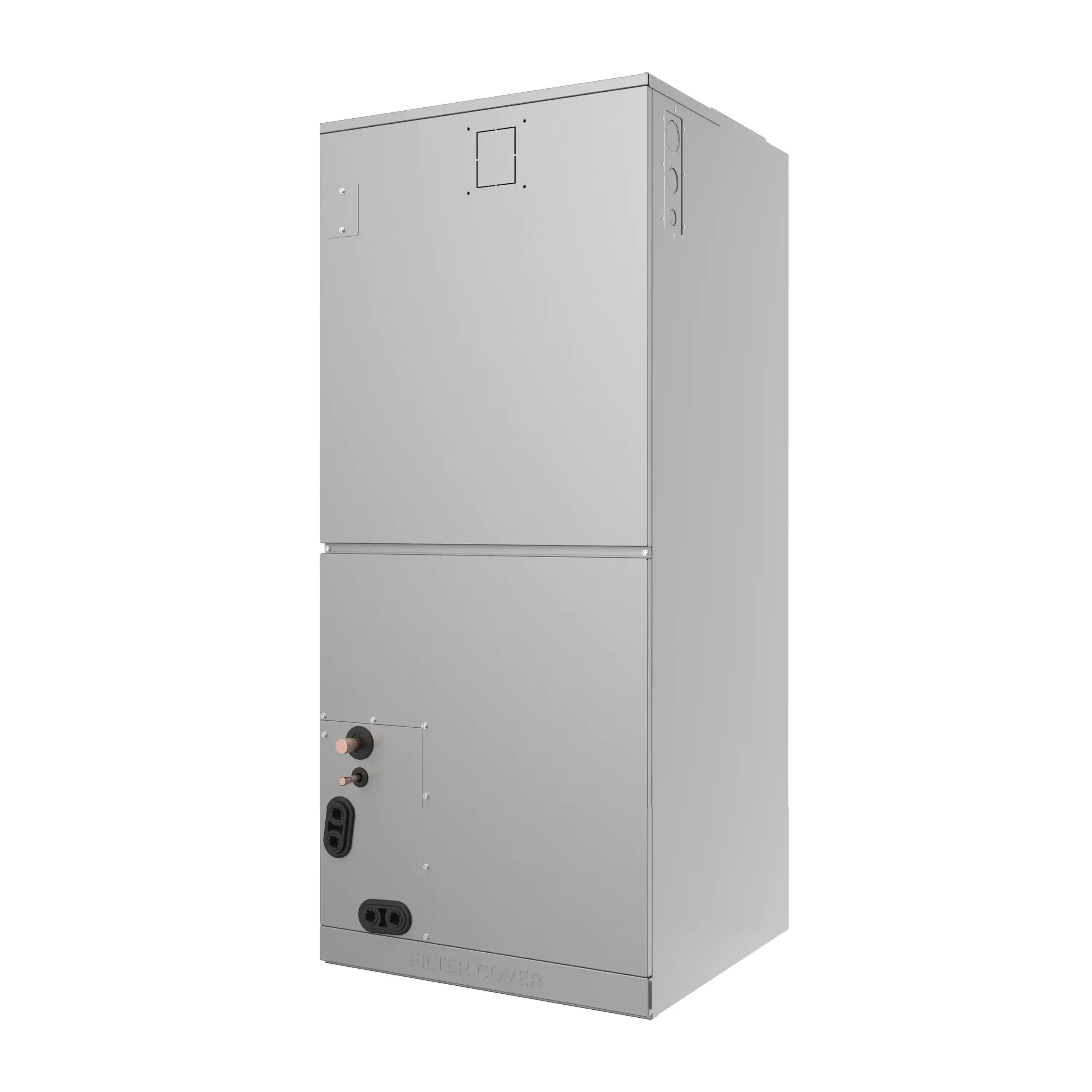

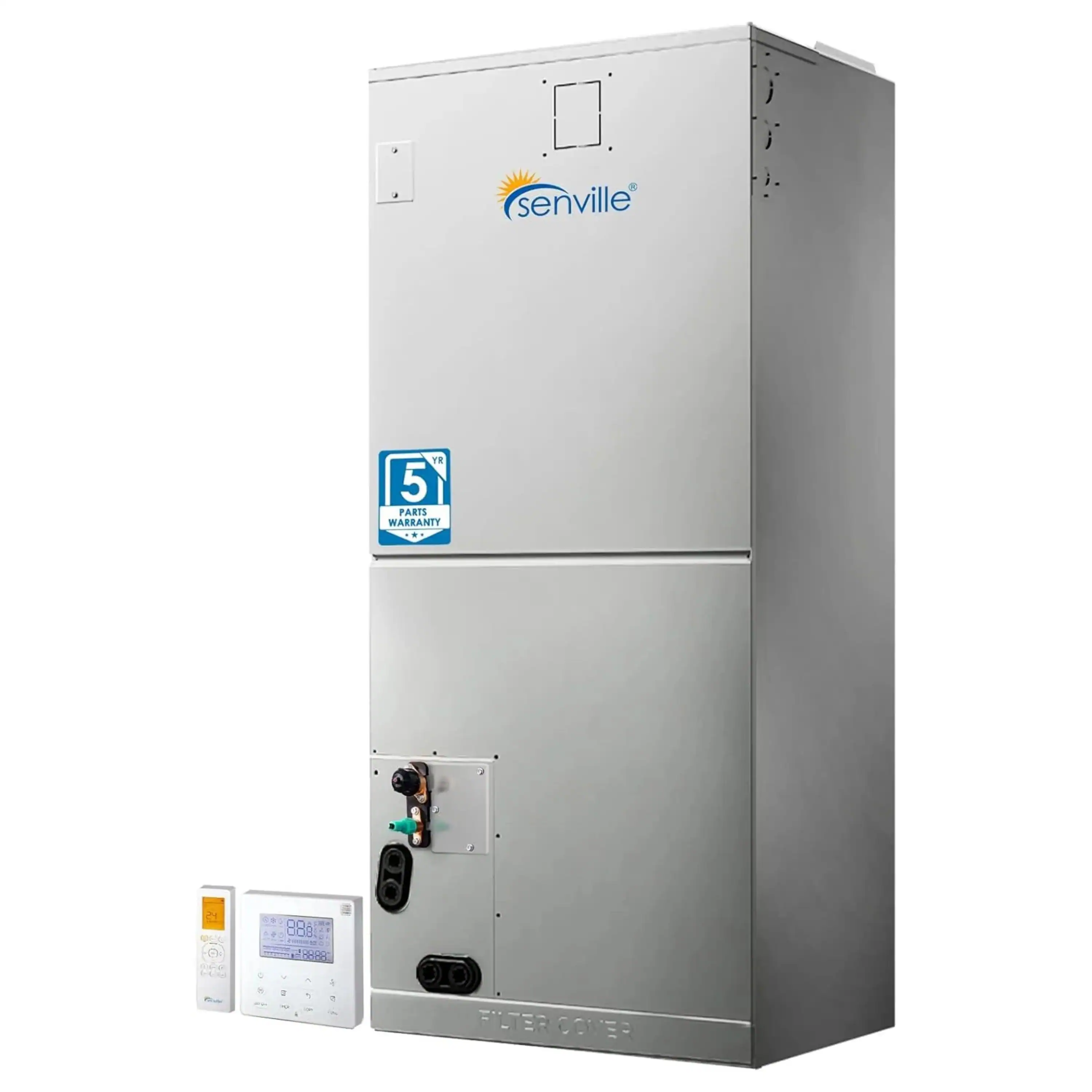

Air Handler
Dimensions (WxDxH) (in.)	21.02x17.52x45
Unit Weight (lbs.)	47.9
Air Flow (H/M/L) CFM	823/758/694
Noise Level (H/M/L) dB	39/36/33
Technical Specifications
Style	Central Air Conditioner with Heat Pump
Power Supply (V-Ph-Hz)	208/230V, 1Ph, 60Hz
Voltage Range	187-253
SEER2	18.3
EER2	11.7
Cooling (Range)	64000~27000
Input (W)	2050 (740-2450)
Rated current A	9.1
Heating (Range)	10100~31000
Input (W)	2100 (660-2900)
Rated Current (A)	9.3
HSPF2-4	10
HSPF2-5	8
COP W/W	3.35
Minimum Circuit Ampacity (A)	20.5
Max. Fuse (A)	35
Refrigerant Type	R410A / 102.32 Oz
Refrigerant Pre-charge	25 Ft.
Connection Wiring	14AWG*2 Stranded, Shielded
Thermostat Type	Wall Remote
Warranty	10 Years Compressor / 5 Years Parts
