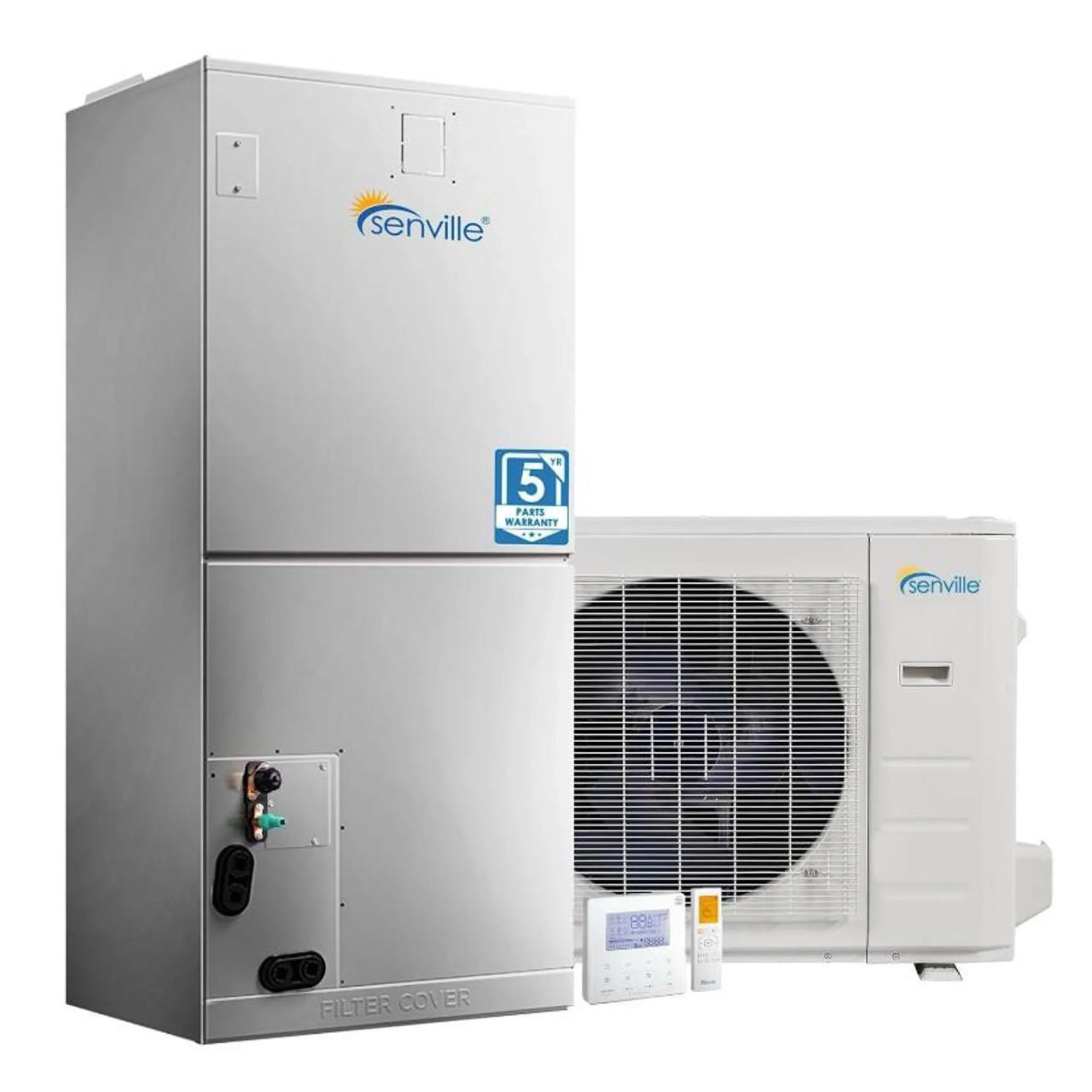

Senville 36K BTU Central Split System with 17.4 SEER2 Heat Pump Condenser and Ducted Air Handler (SENDC-36HF)

Enhance your current central air conditioning system by converting it into an ultra-efficient mini-split setup with our advanced variable-speed compressor powered by Inverter Technology. Say farewell to outdated, energy-wasting central AC units.

Features

• High-Performance Central Cooling - Enjoy powerful cooling with our 36,000 BTU unit, engineered to rapidly and effectively cool spaces up to 1,400 square feet. Perfect for both residential and commercial applications requiring a dependable central air conditioning solution.
• Reliable Heating in Extreme Cold - Stay warm even in freezing temperatures with our Inverter Heat Pump technology, providing efficient and consistent heating down to -22°F (-30°C). This system seamlessly integrates with your central air setup for year-round comfort.
• Built to Last with Extended Warranty - Constructed with high-quality materials for durability, this unit is designed for long-term reliability. It includes a 10-year warranty on the compressor and a 5-year warranty on parts, ensuring confidence in your central AC investment.
• Installation kit included. Professional Installation Required This system is recommended for professional installation only.

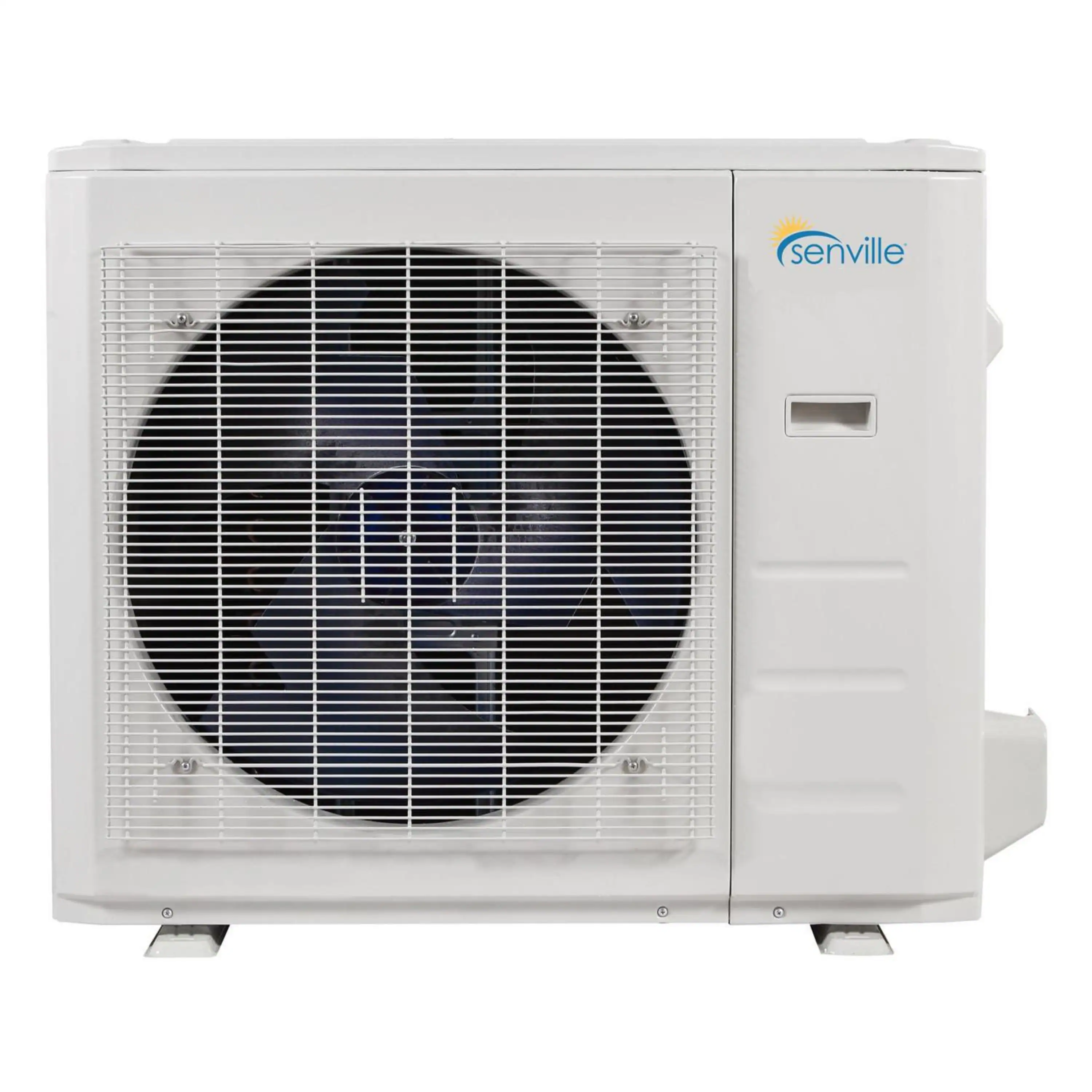

Condenser
Dimensions (WxDxH) (in.)	38.58x16.34x38.39
Weight (lbs.)	227
Noise Level dB	64
Air flow (Max) CFM	4500

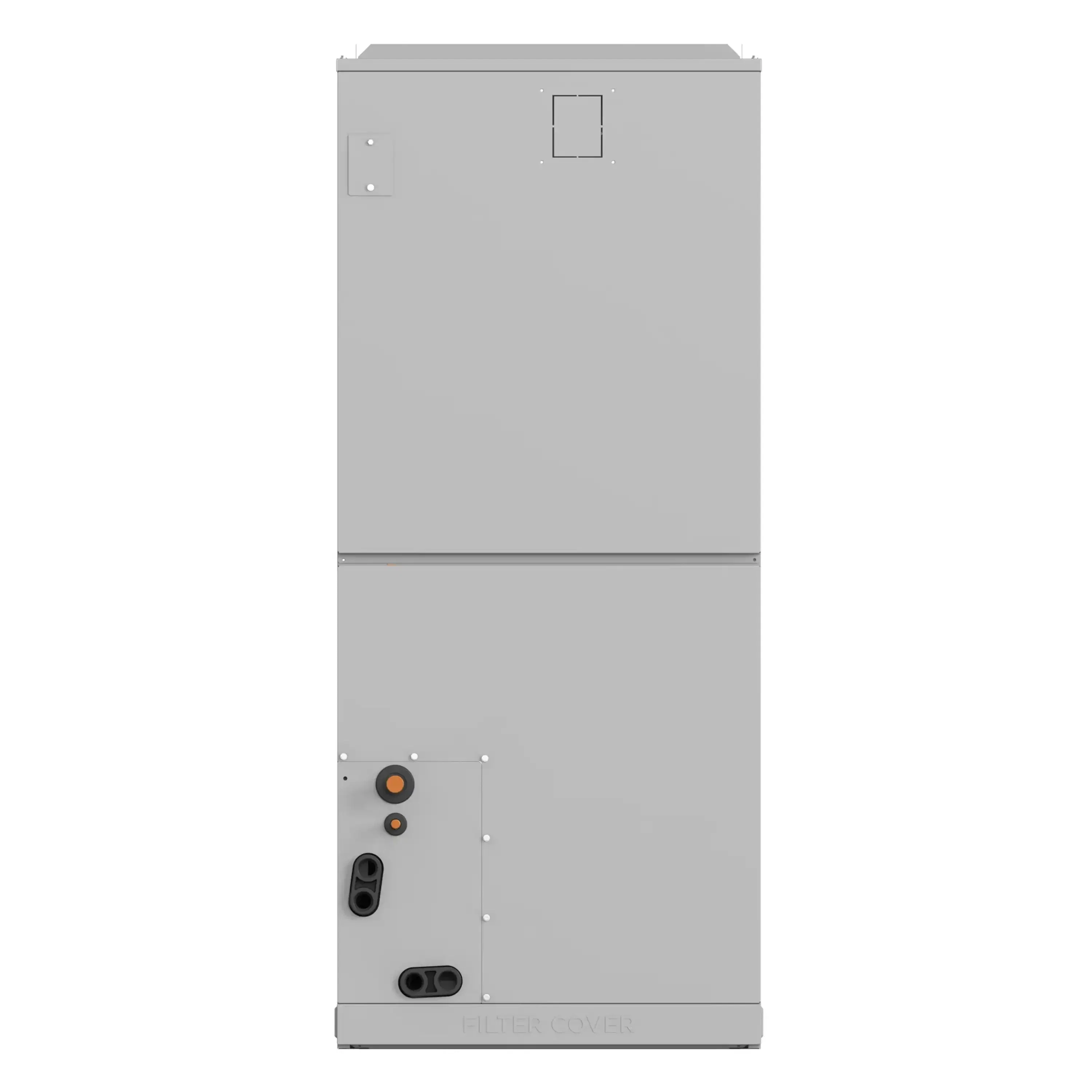

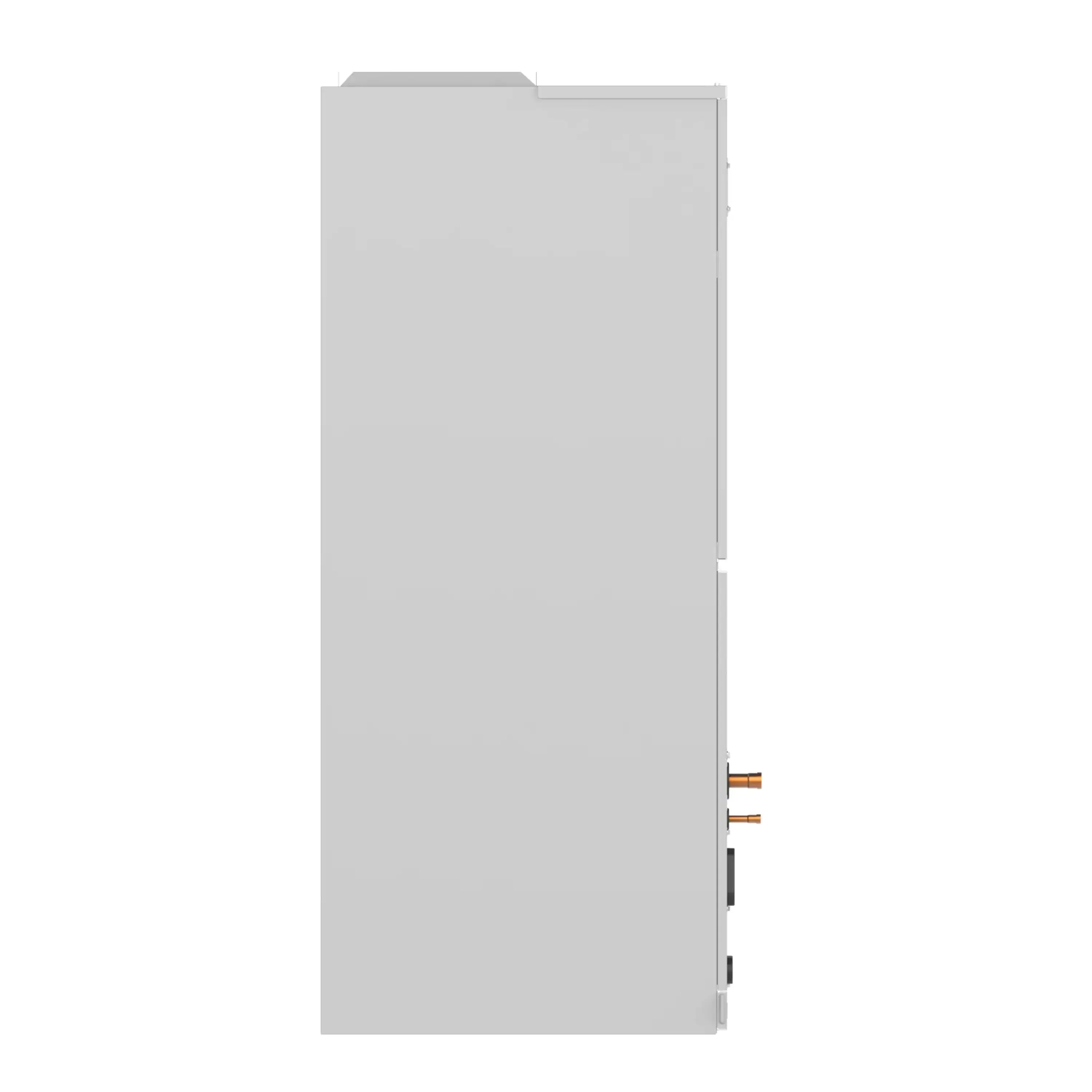

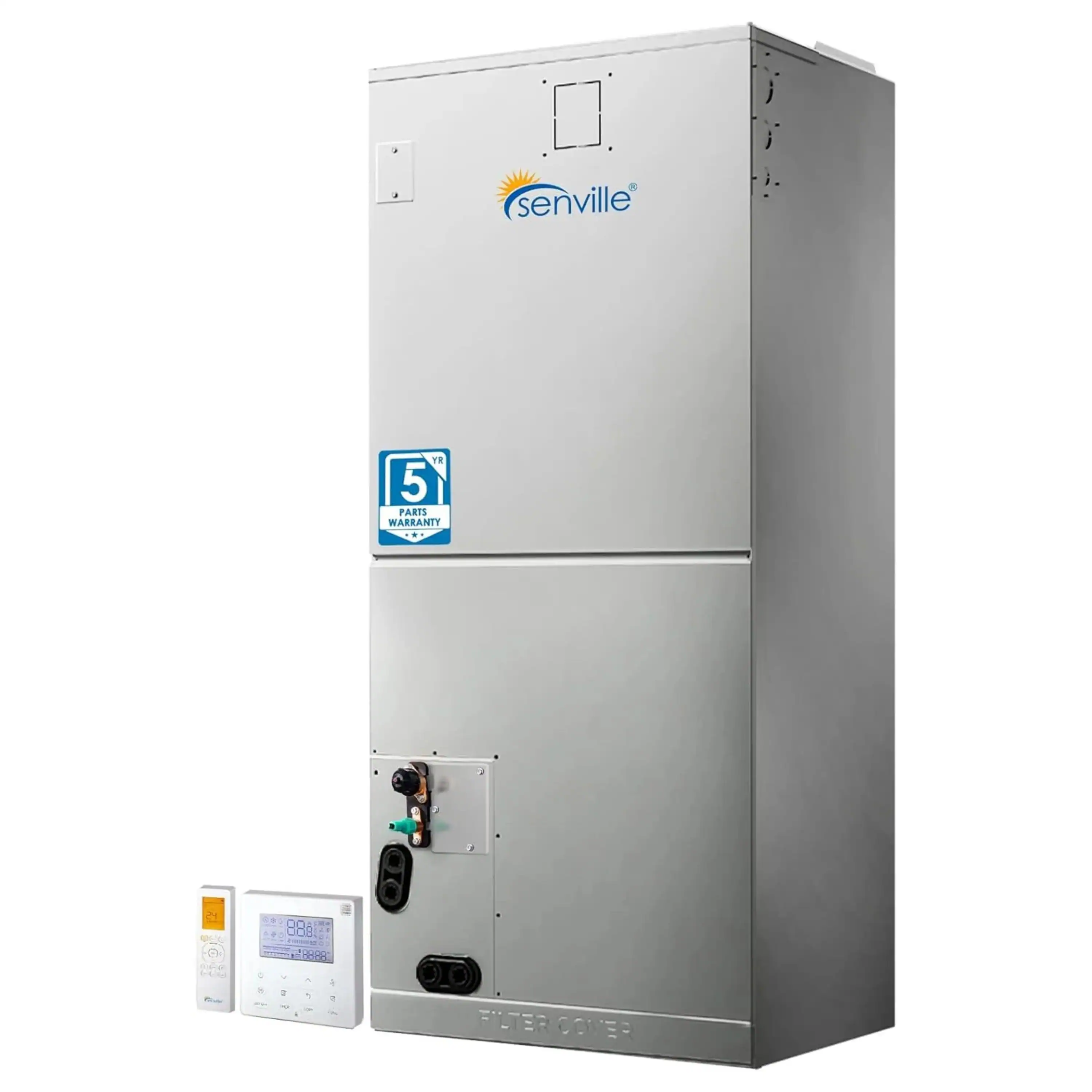

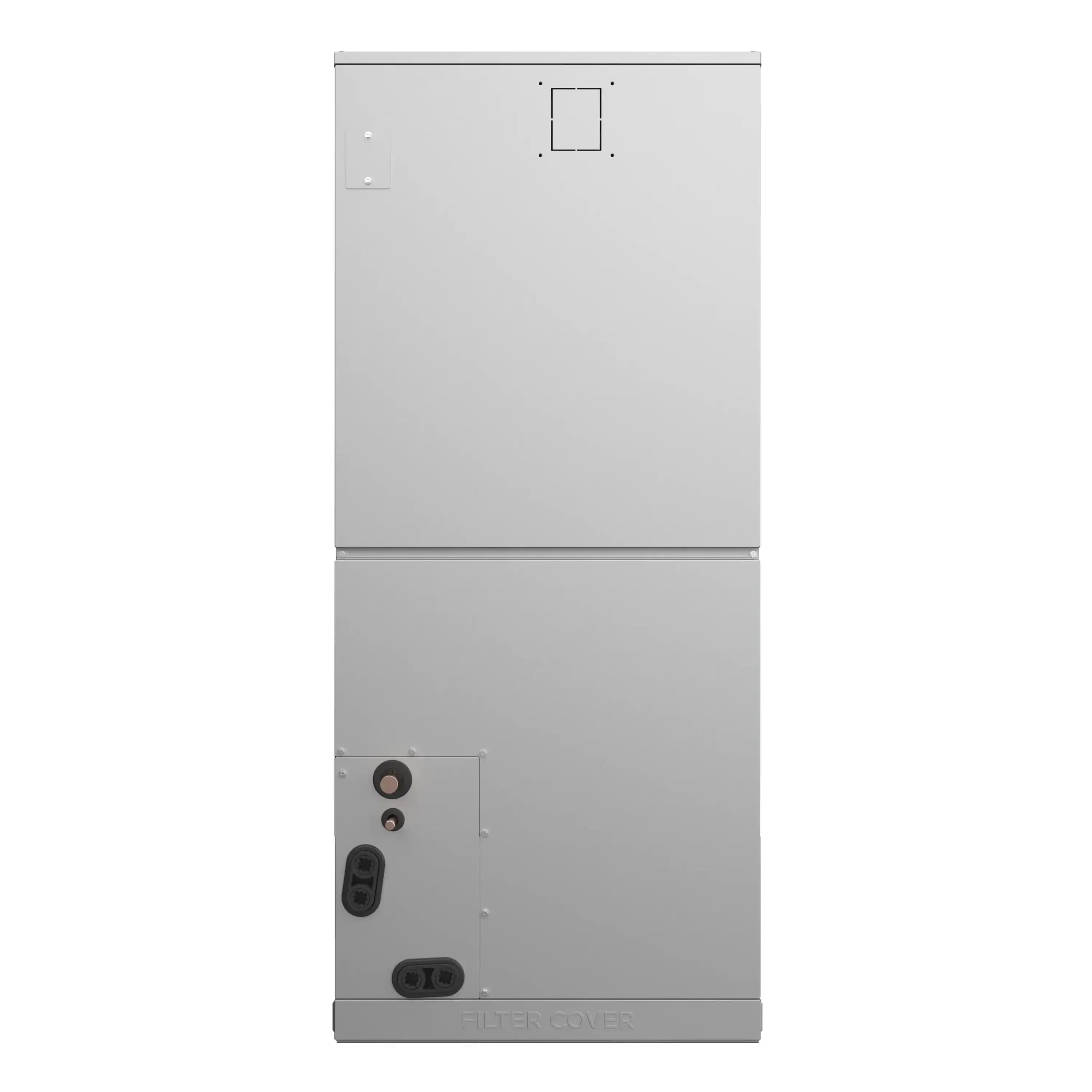

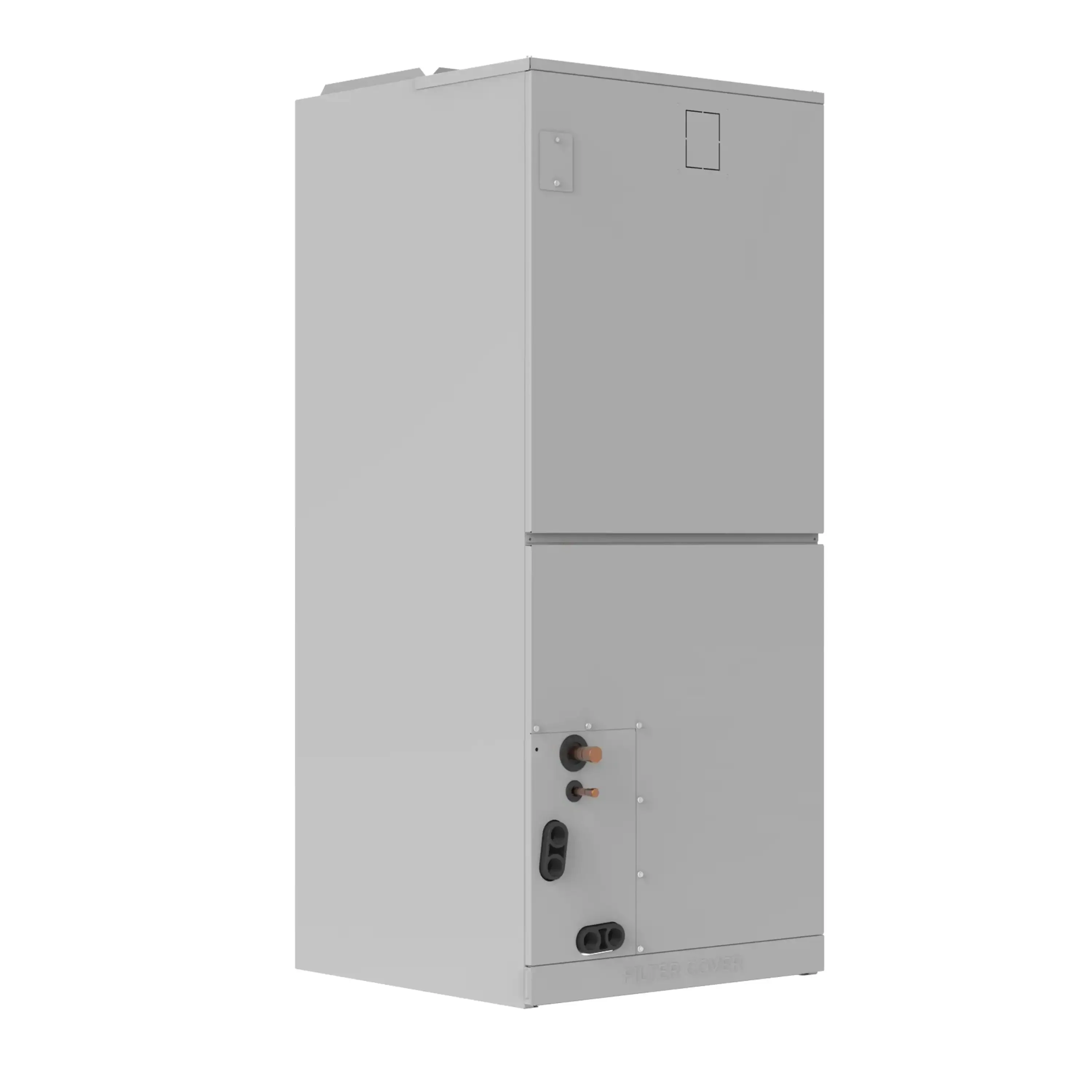

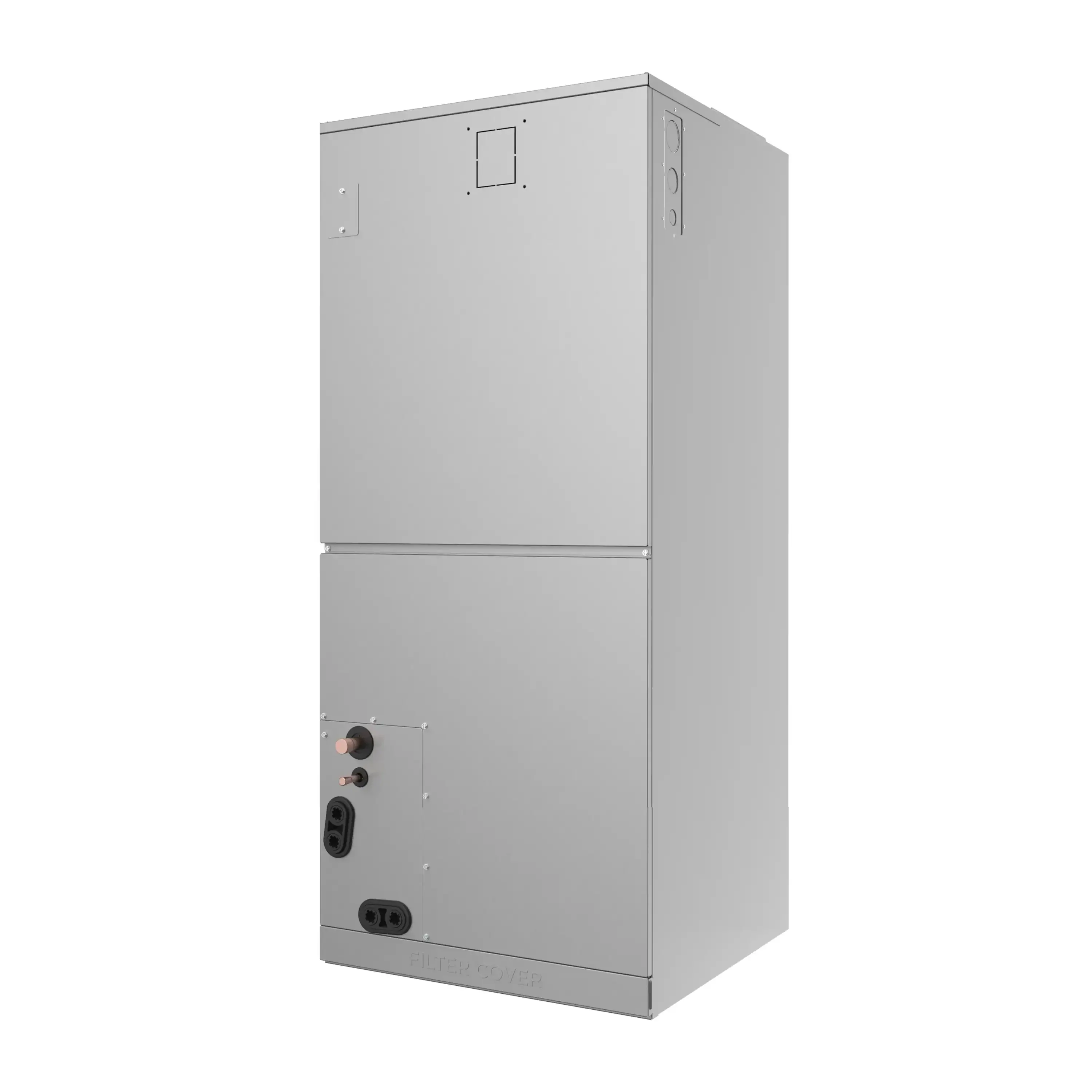

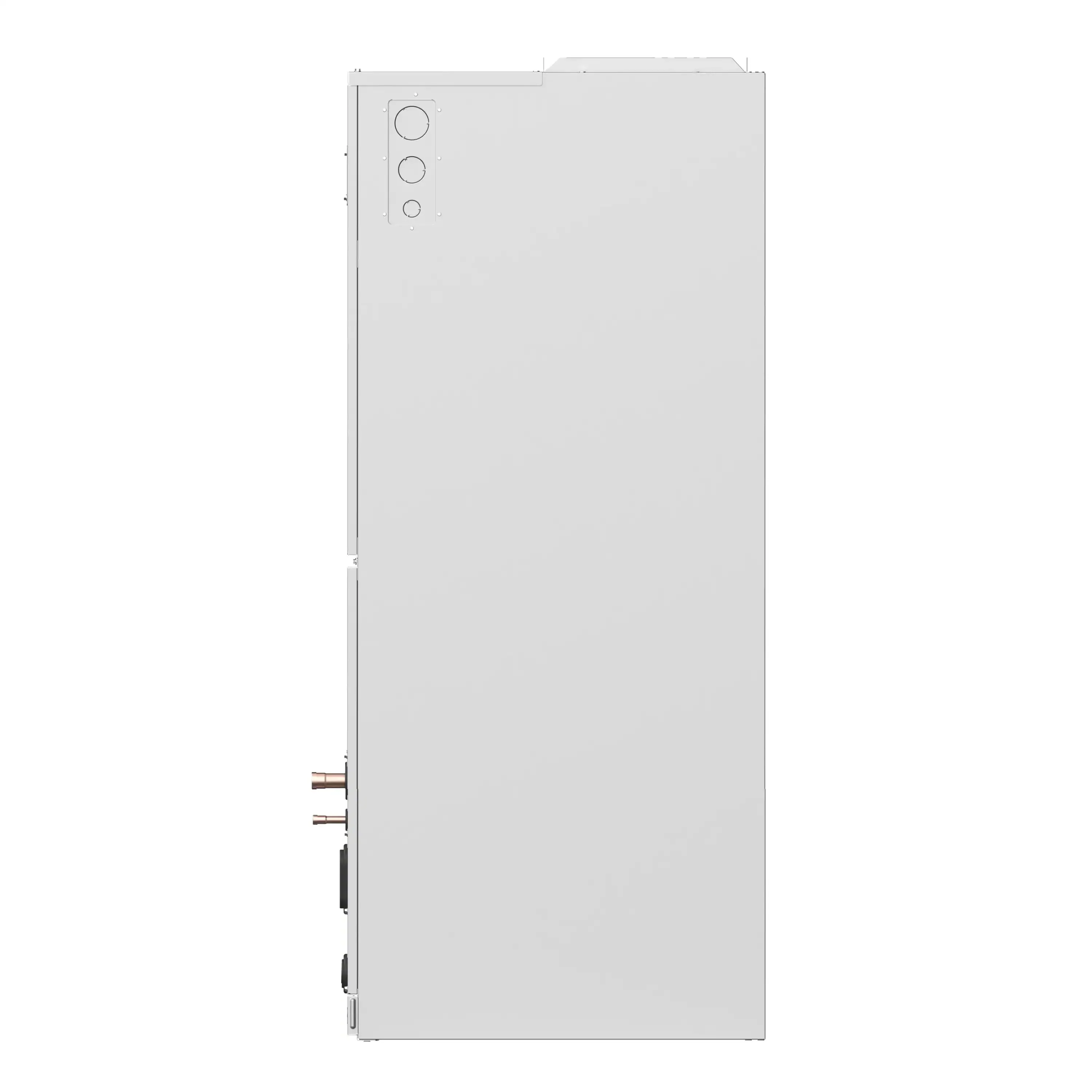

Air Handler
Dimensions (WxDxH) (in.)	21.02x21.02x49.02
Weight (lbs.)	129.19
Air Flow (H/M/L) CFM	1188/1082/970
Noise Level (H/M/L) dB	45/43/41
Technical Specification
Style	Central Air Conditioner with Heat Pump
Power Supply (V-Ph-Hz)	208/230V, 1Ph, 60Hz
Voltage Range	187-253
SEER2	17.4
EER2	11.7
Cooling (Range)	13000~47400
Input (W)	3673 (462-5700)
Rated current A	15.97
Heating (Range)	11000~57200
Input (W)	3448 (593-5700)
Rated Current (A)	15
HSPF2-4	10.3
HSPF2-5	7.8
COP W/W	3.36
Minimum Circuit Ampacity (A)	41
Max. Fuse (A)	50
Refrigerant Type	R454B / 165.79 Oz
Refrigerant Pre-charge	25 Ft.
Connection Wiring	14AWG*2 Stranded, Shielded
Thermostat Type	Wall Remote
Warranty	10 Years Compressor / 5 Years Parts
Certifications	Energy Star, UL, AHRI, NEEP
