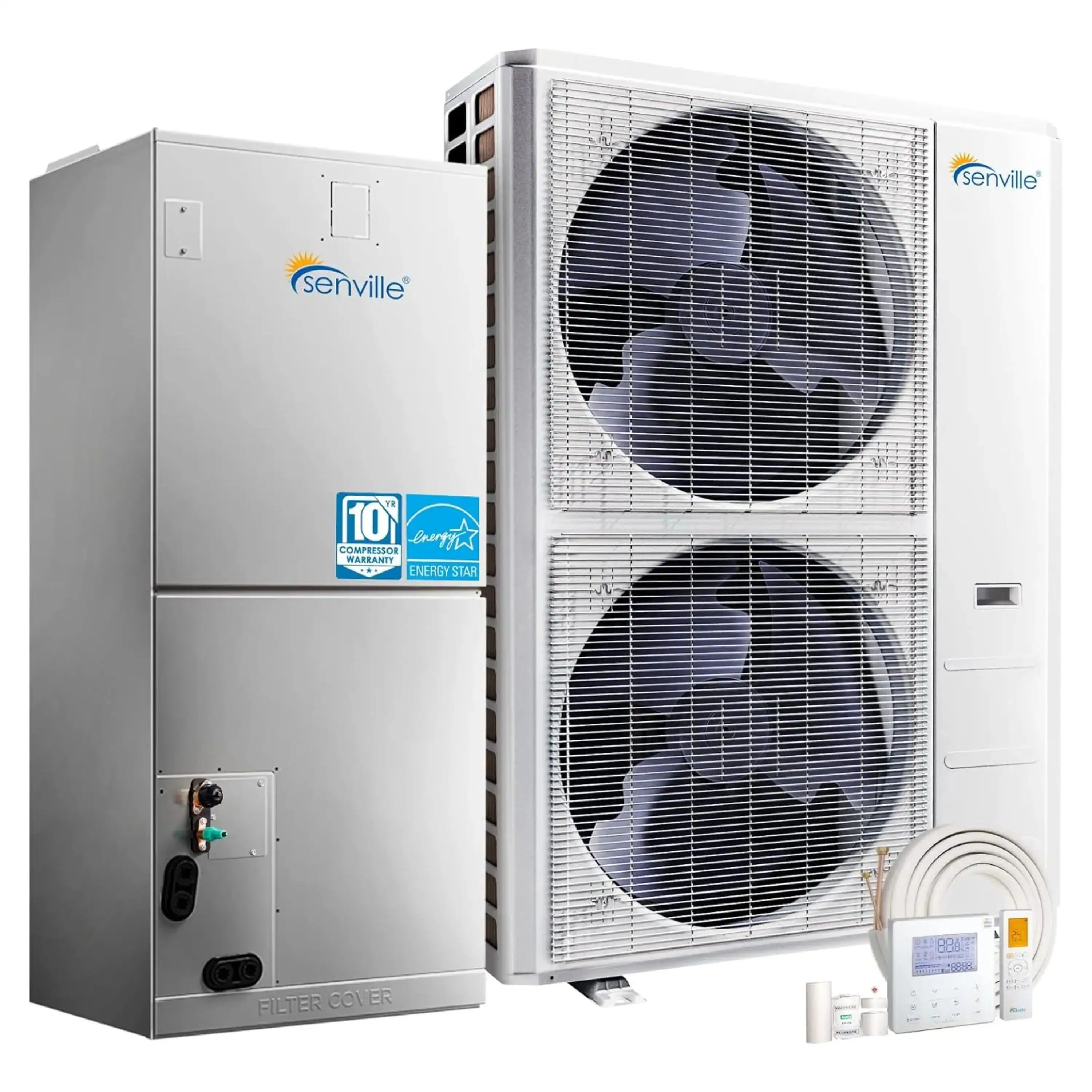

Senville 60K BTU Central Split System with 16 SEER2 Heat Pump Condenser and Ducted Air Handler (SENDC-60HF)

Enhance your current central air conditioning system by converting it into an ultra-efficient mini-split setup with our advanced variable-speed compressor powered by Inverter Technology. Say farewell to outdated, energy-wasting central AC units.

Features

• High-Performance Central Cooling - Enjoy powerful cooling with our 55,000 BTU unit, engineered to rapidly and effectively cool spaces up to 2,000 square feet. Perfect for both residential and commercial applications requiring a dependable central air conditioning solution.
• Reliable Heating in Extreme Cold - Stay warm even in freezing temperatures with our Inverter Heat Pump technology, providing efficient and consistent heating down to -22°F (-30°C). This system seamlessly integrates with your central air setup for year-round comfort.
• Built to Last with Extended Warranty - Constructed with high-quality materials for durability, this unit is designed for long-term reliability. It includes a 10-year warranty on the compressor and a 5-year warranty on parts, ensuring confidence in your central AC investment.
• Installation kit included - Professional Installation Required This system is recommended for professional installation only.

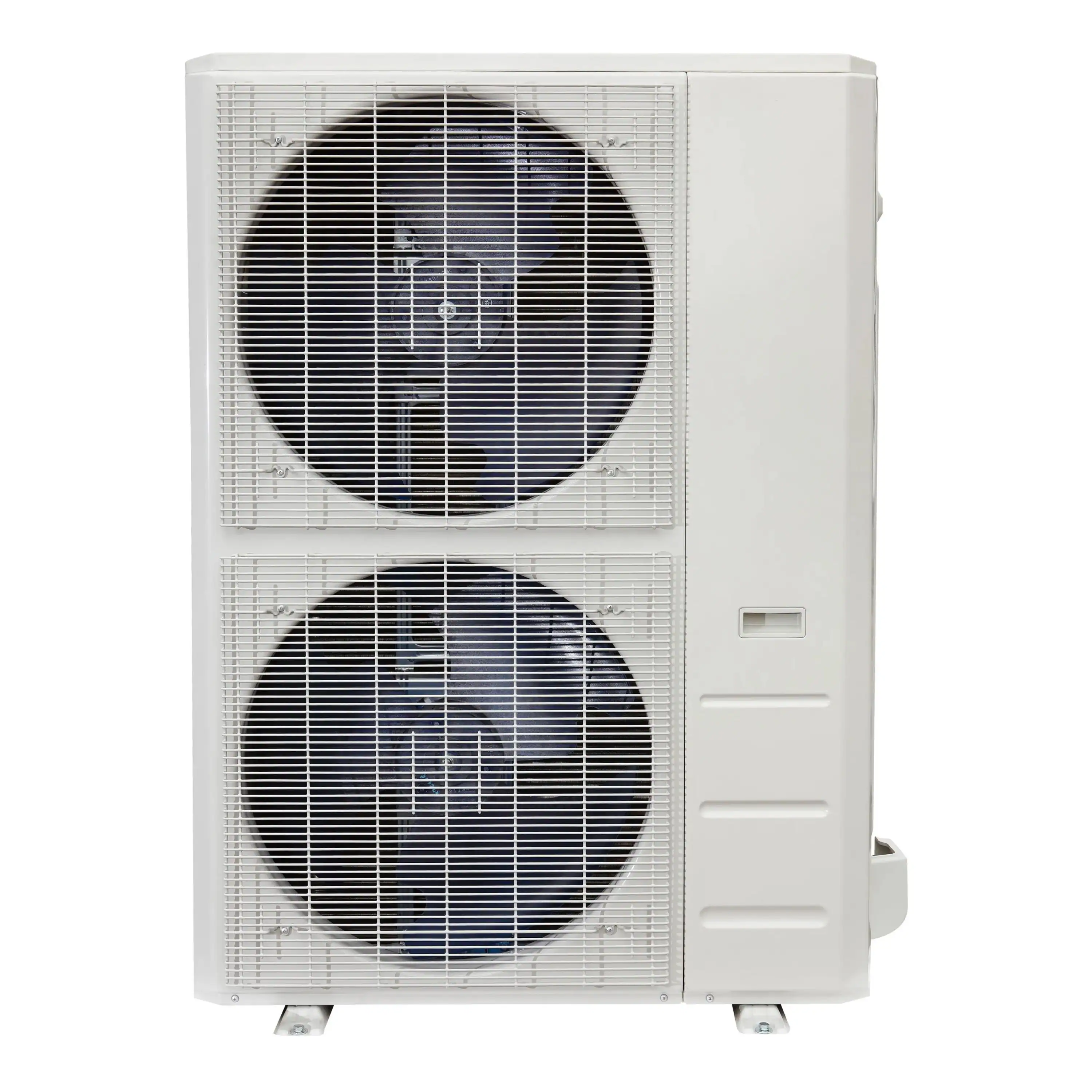

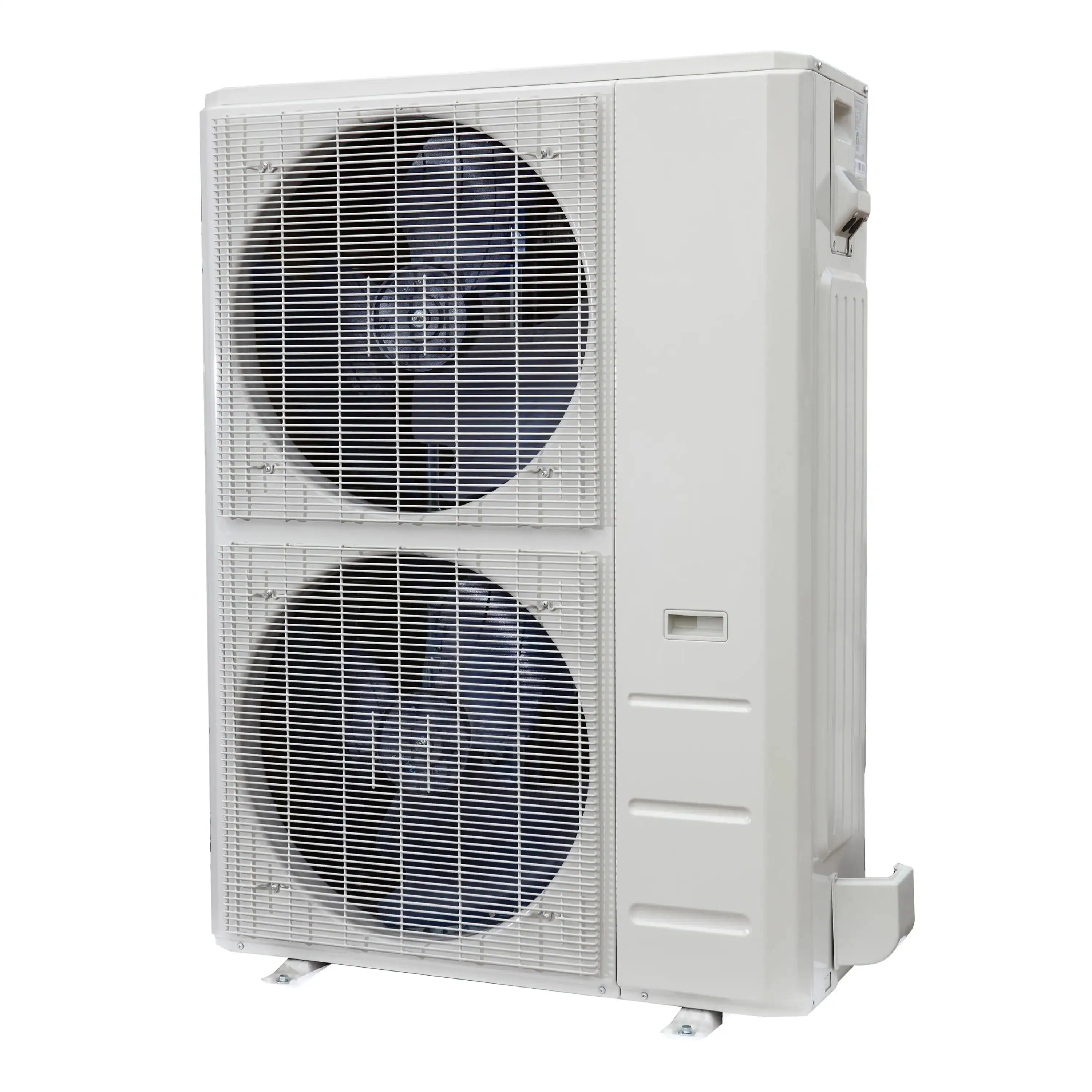

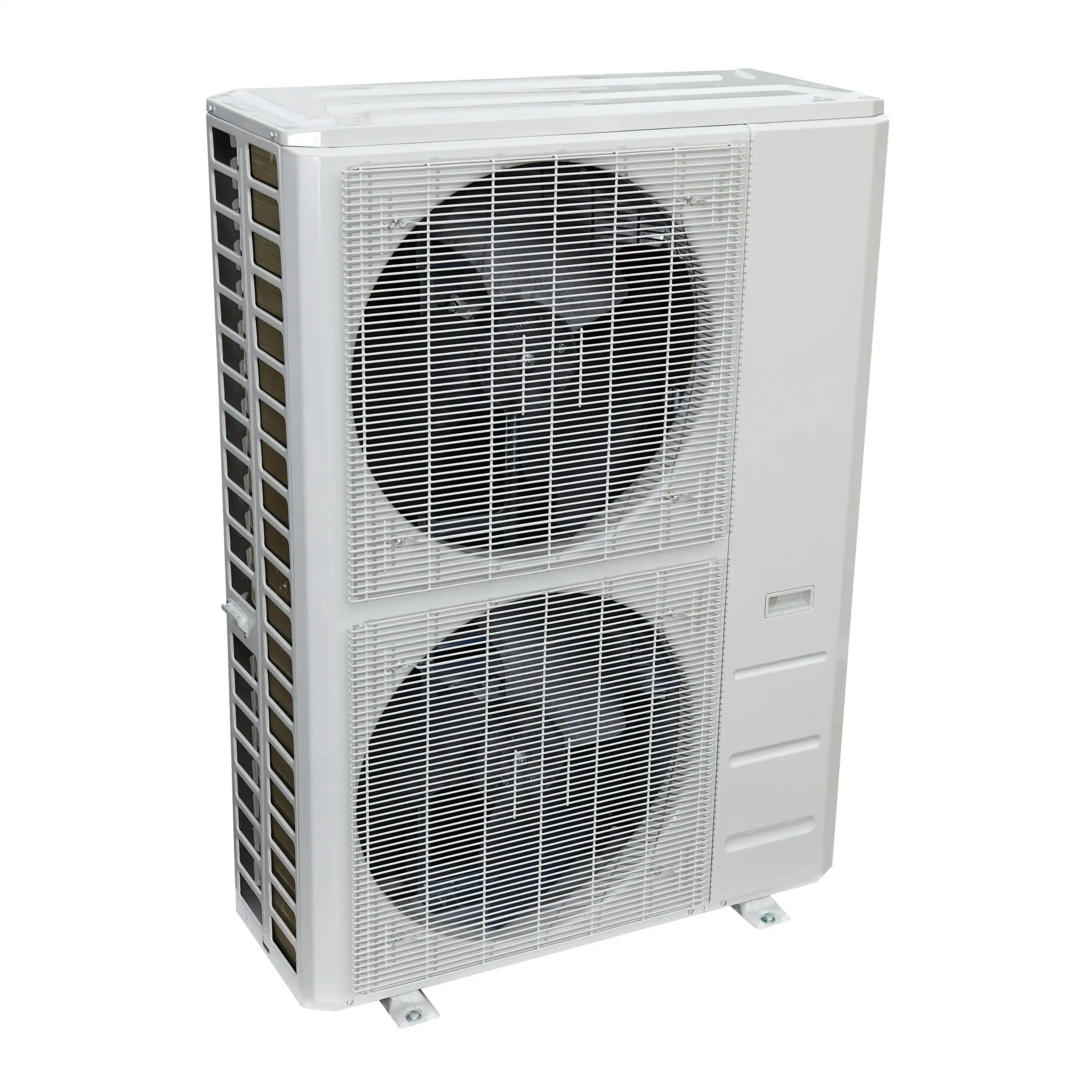

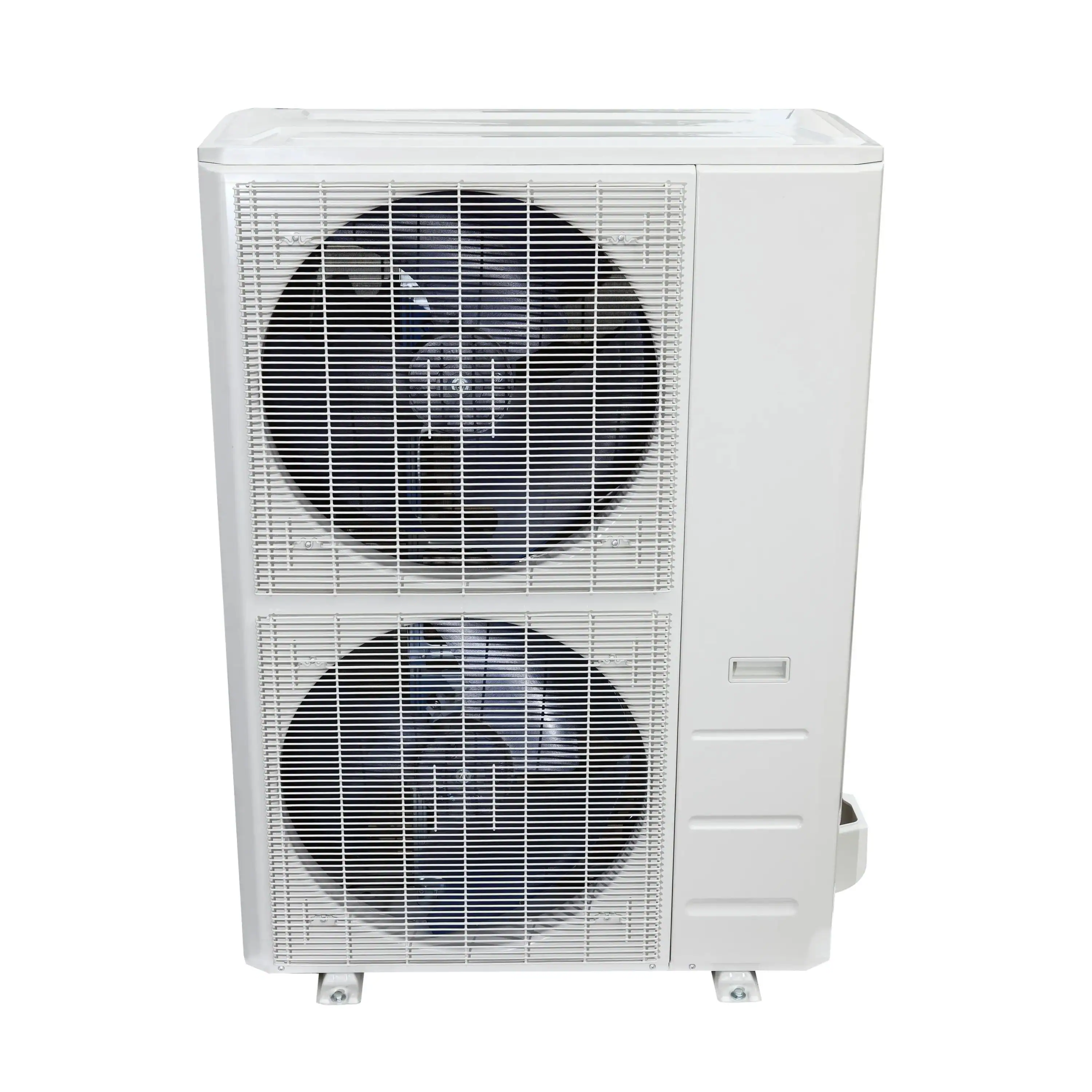

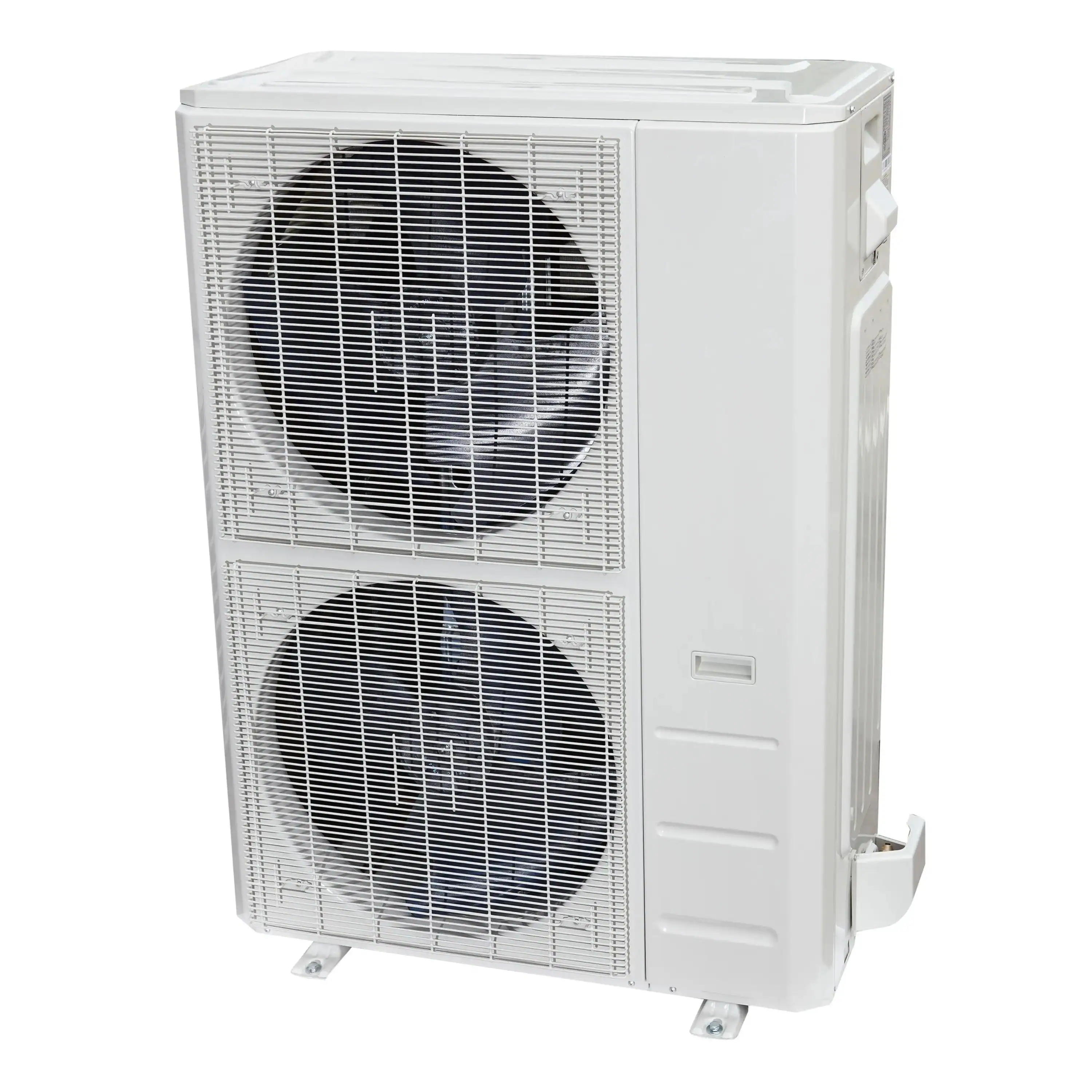

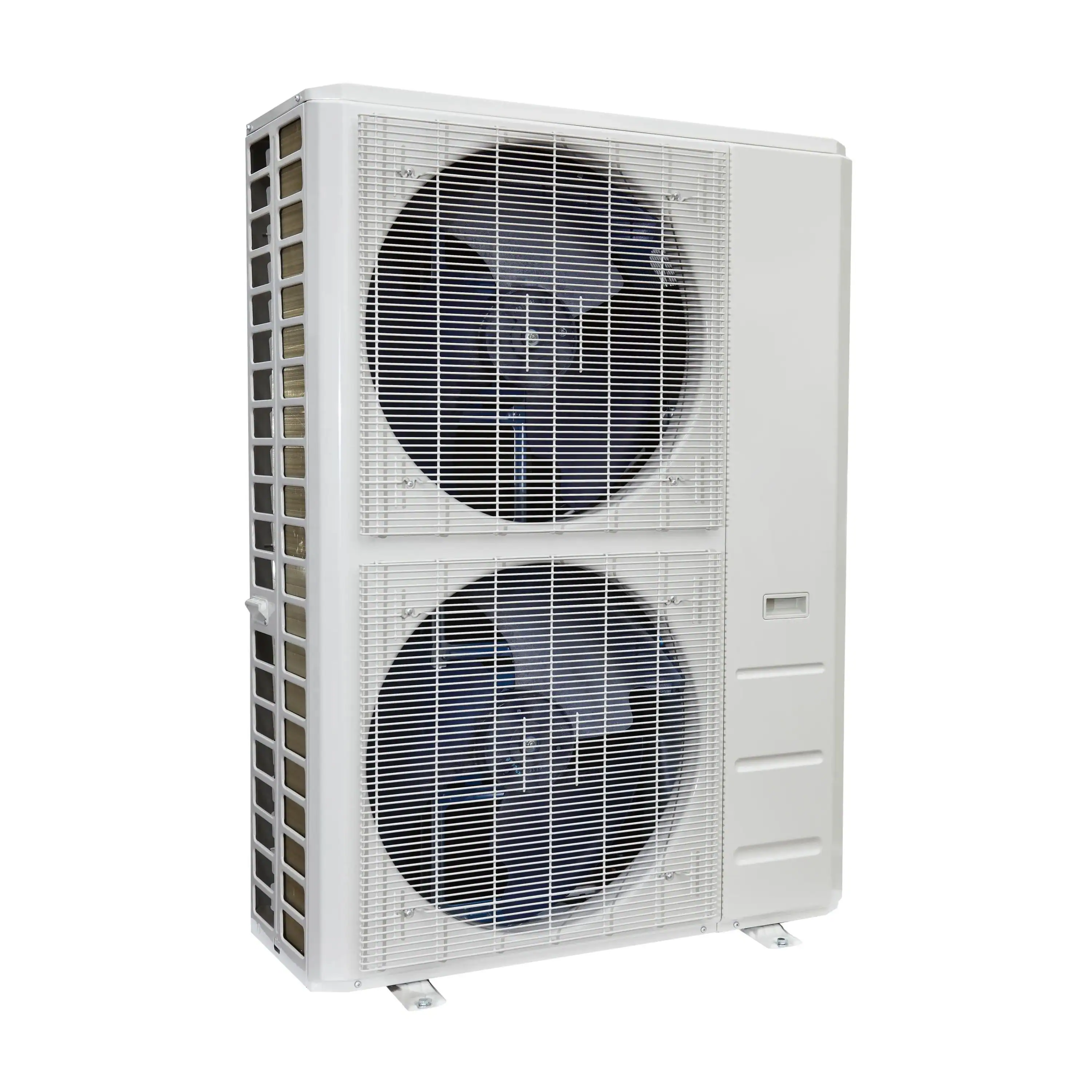

Condenser
Dimensions (WxDxH) (in.)	37.48 x 16.34 x 52.48
Air Flow (Max) CFM	2648.6
Noise Level dB	65
Weight	242.95 Lbs

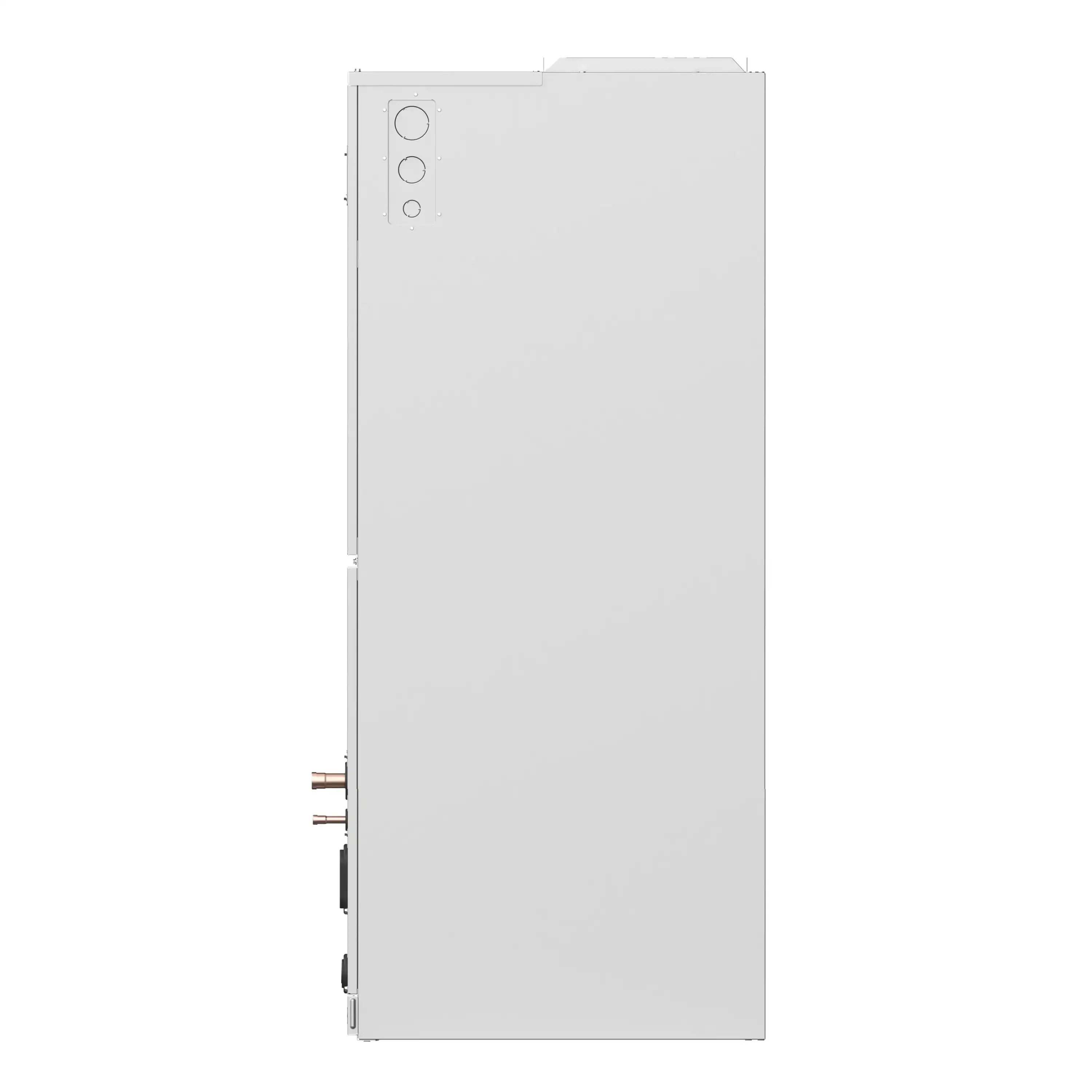

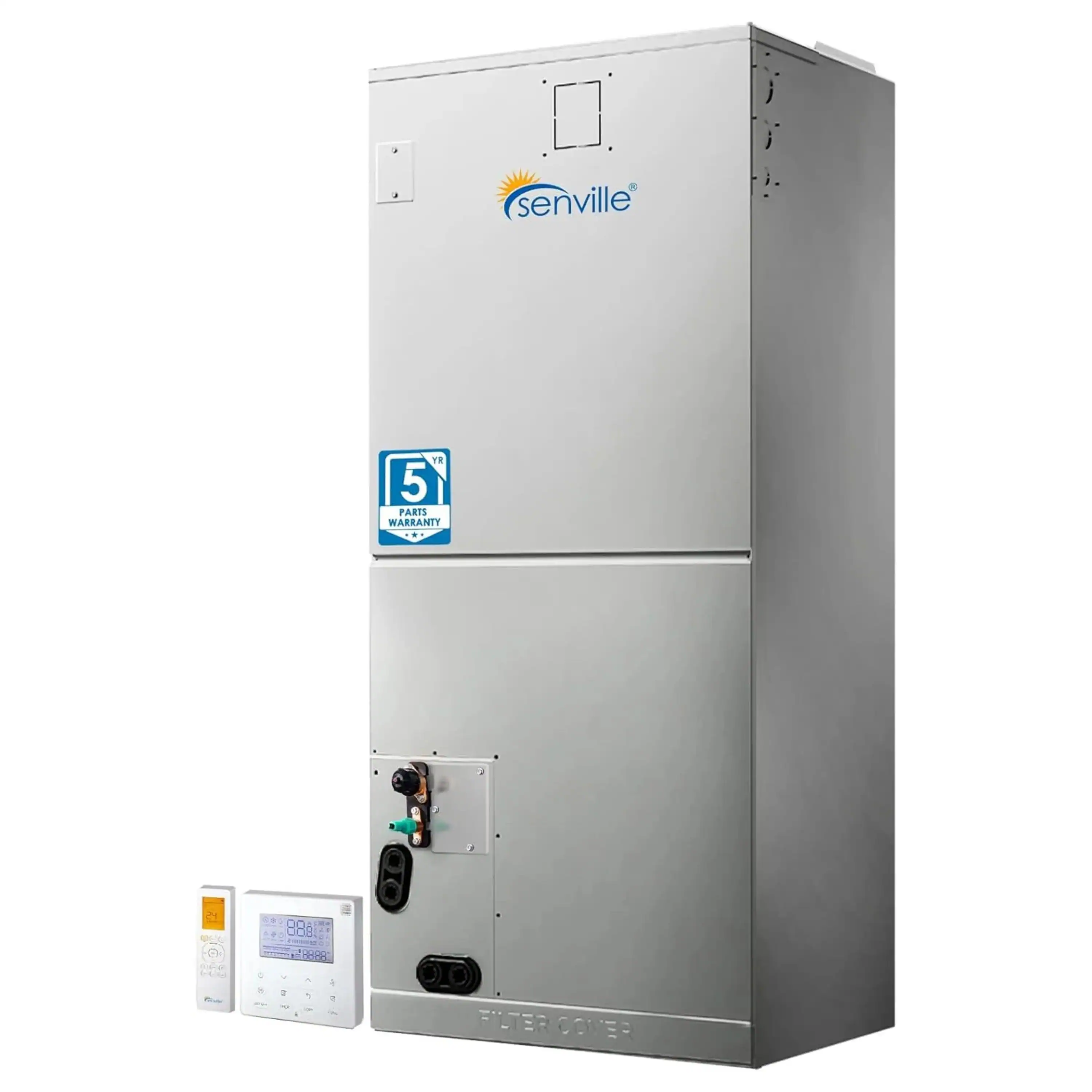

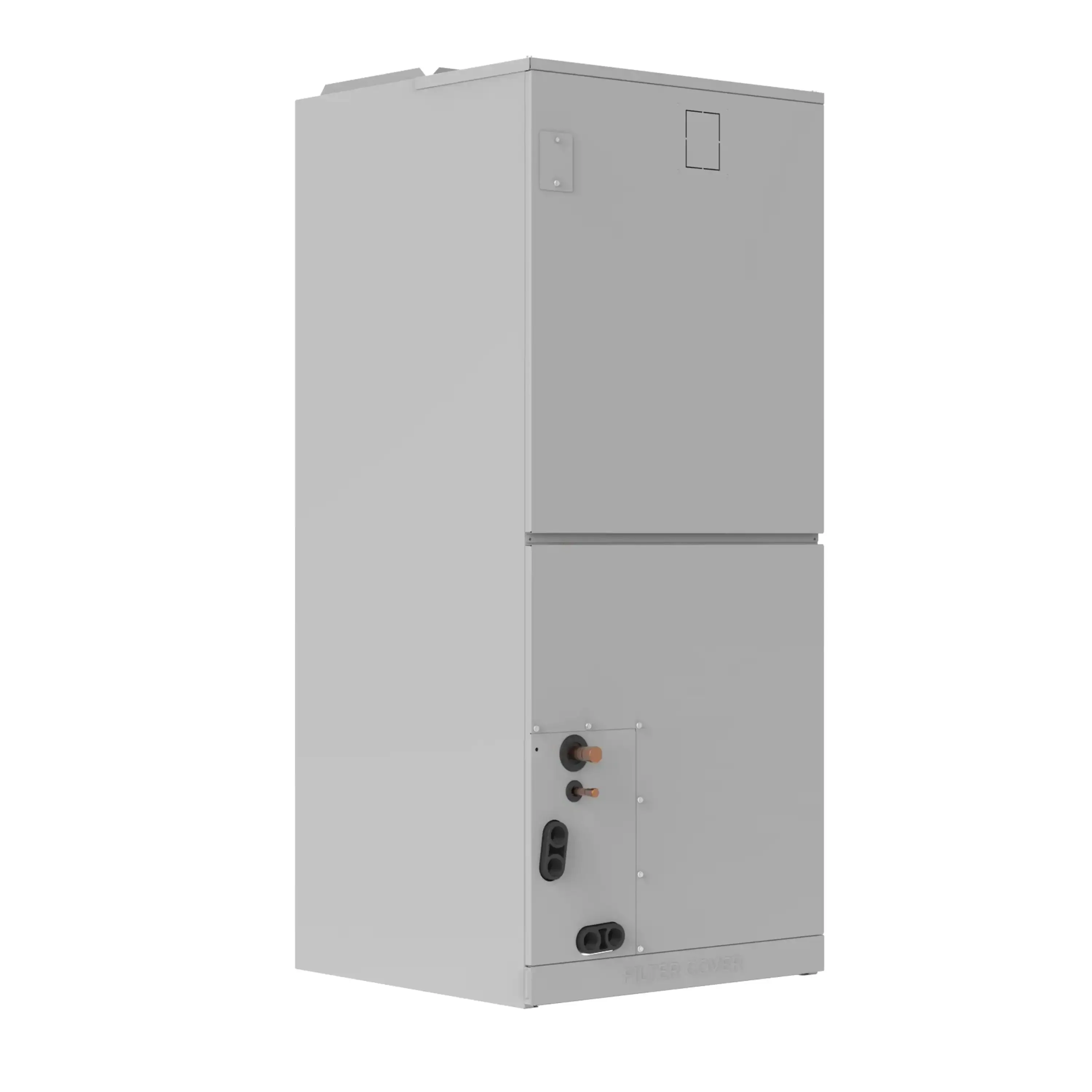

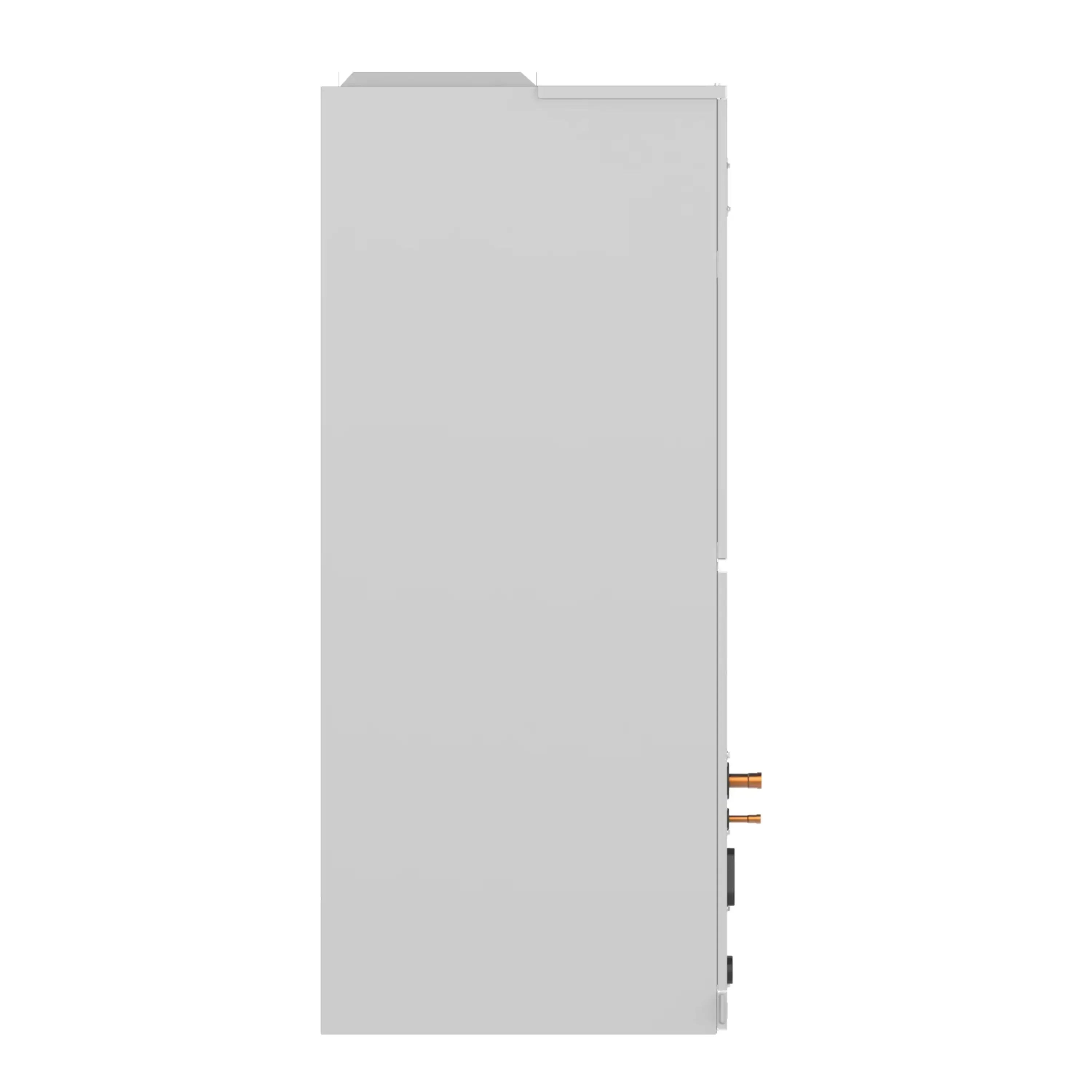

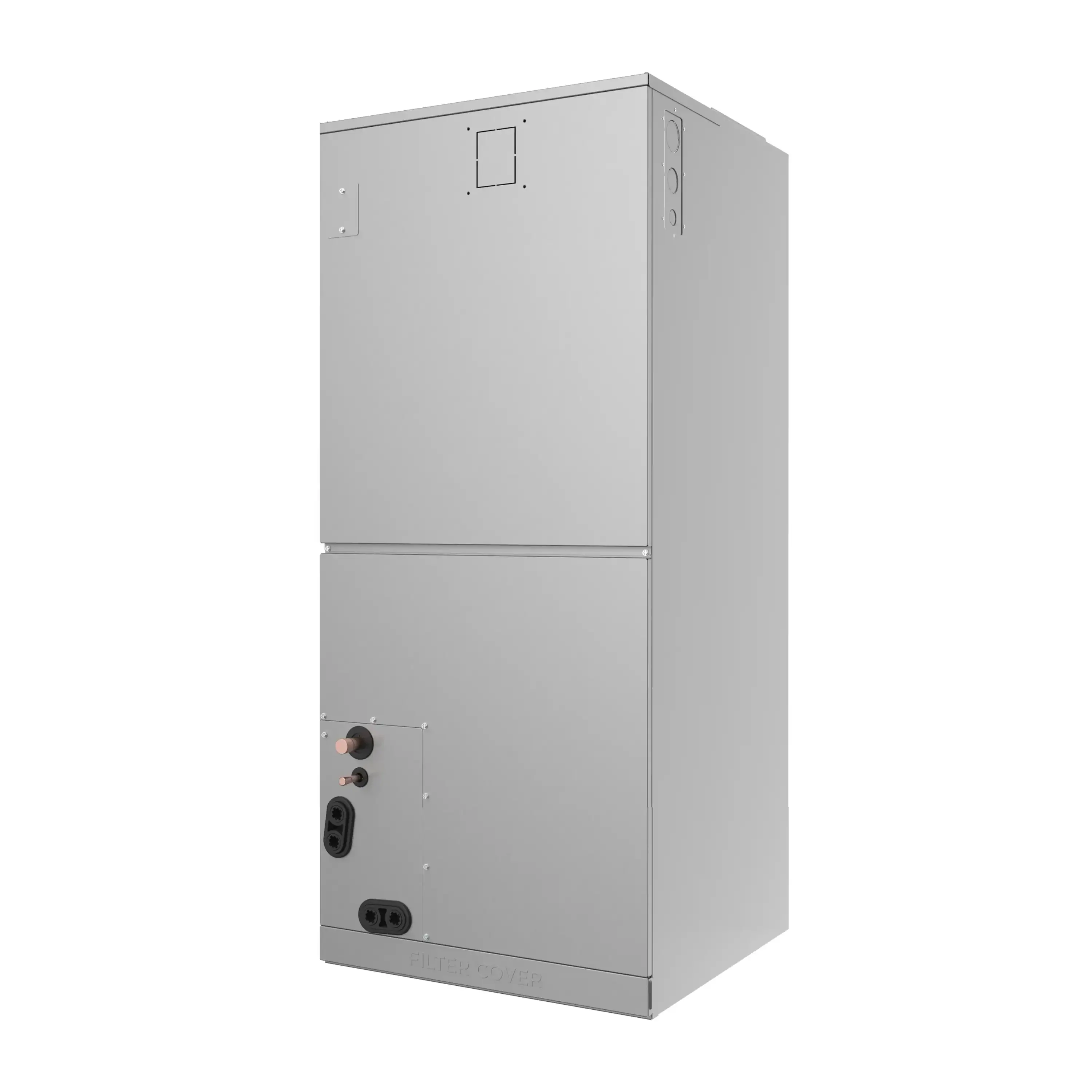

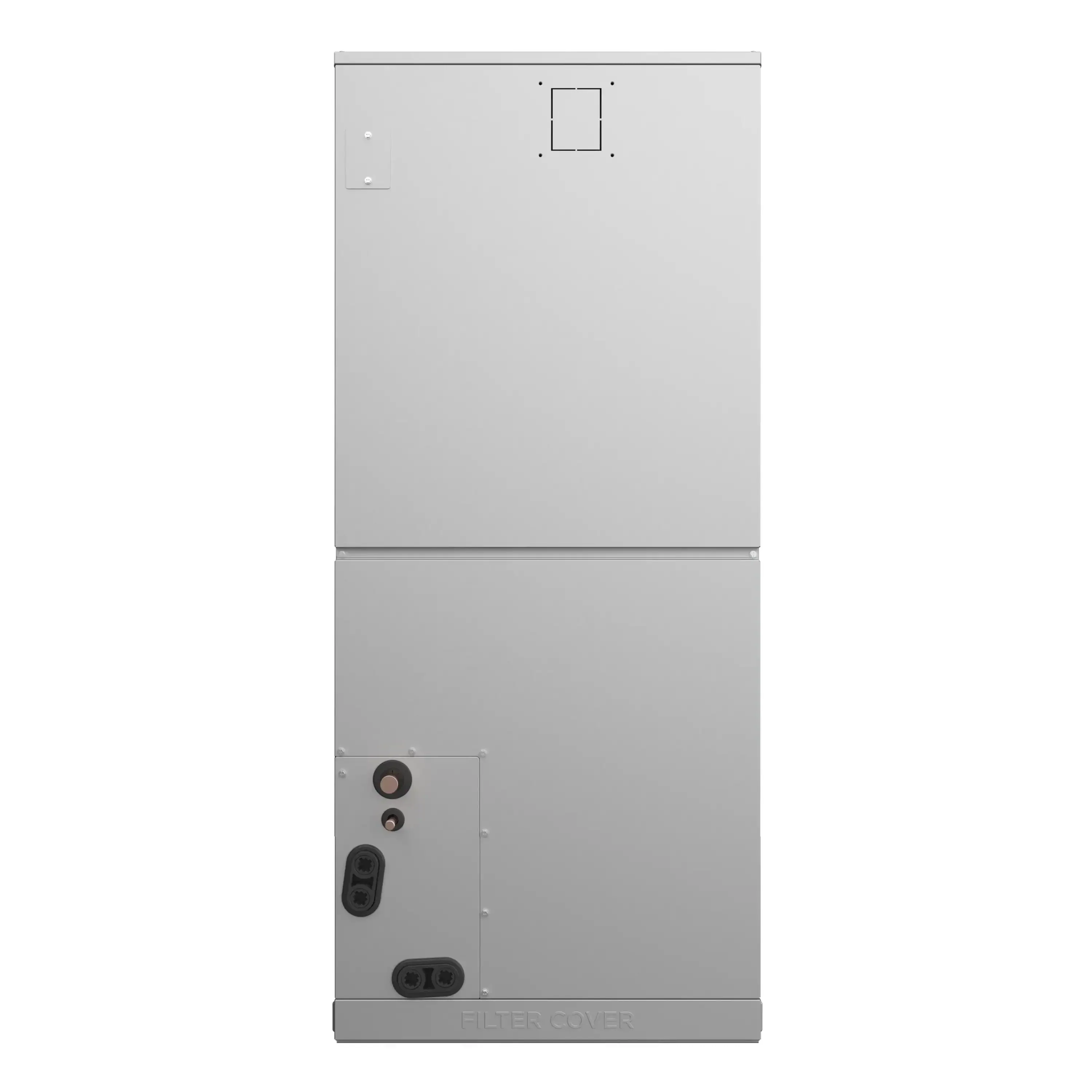

Air Handler
Dimensions (WxDxH) (in.)	21.02 x 24.49 x 52.99
Air Flow (Turbo/H/M/L) CFM	1807.0 / 1583.3 / 1359.7 / 1136.0
Noise Level (H/M/L) dB	54.5 / 52 / 49.5 / 34.5
Weight	162.92 Lbs.
Technical Specification
SEER2	16
EER2	10
Model Number	SENDC-60HF
Style	Central Air Conditioner with Heat Pump
Power Supply (V-Ph-Hz)	208/230V, 1Ph, 60Hz
Voltage Range	187-253
Cooling Capacity (BTU)	54000
Cooling Range (BTU)	11400~56300
Cooling Input Range (W)	1540~6430
Cooling Current Range (A)	7.2~28.4
Heating Capacity (BTU)	56000
Heating Range (BTU)	8100~64500
Heating Input Range (W)	725~5970
Heating Current Range (A)	4~30.6
HSPF2-4	9
HSPF2-5	8
COP W/W	3.1
Minimum Circuit Ampacity (A)	40
Max. Fuse (A)	40
Moisture Removal (L/H)	5.87
Minimum Outdoor Heating Temperature	-22°F / -30°C
Refrigerant Type / Charge oz	R454B / 183.42
Thermostat Type	Wall Remote Thermostat
Warranty	10 Years Compressor / 5 Years Parts
