Senville Mini Split - 3-Zone 28,000 BTU Ductless Air Conditioner and Heat Pump Condenser with Wall Mount Air Handlers (SENA-30HF/T)

Senville SENA-30HF/T is a high-efficiency 28000 BTU tri-zone ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It features enhanced multi-zone climate control and ultra-quiet operation, perfect for homes or businesses seeking year-round comfort and energy savings.

Features

• 23 SEER2 ENERGY STAR - Save up to 50% on energy costs annually.
• Heating down to -30°C (-22°F) - Reliable performance in extreme cold.

• Alexa Enabled Smart Control - Control via voice or app anywhere.
• Ultra-Quiet Operation - Whisper-quiet for bedrooms & offices.

• Recommended for 1300–1500 sq. ft. - Great for multiple zones or large spaces.
• Professional Installation - Required to maintain warranty coverage.
• Smart Home Integration with Alexa - Control your Senville system with Alexa or the app from anywhere. Create schedules, adjust settings, and enjoy convenience and energy savings remotely.
• ENERGY STAR Certified - Save up to 50% annually on energy costs with this ultra-efficient, ENERGY STAR certified system—ideal for eco-conscious homes and businesses.
• Cold Climate Heat Pump - Provides heating at -30°C (-22°F) with up to 75% efficiency, ensuring year-round comfort even in extreme climates.
• Diagnostics & Leak Detection - Built-in self-diagnostics and leak detection system help maintain peak efficiency and alert you of any issues for easier maintenance.
• 10-Year Warranty - Comes with a 10-year compressor warranty and 5-year parts warranty, backed by North American support.
• Installation Kit + Accessories Included - Includes a complimentary Installation kit. System is pre-charged with R454B refrigerant for up to 75 ft. Professional installation is required to maintain warranty coverage and optimal performance.

What's Included

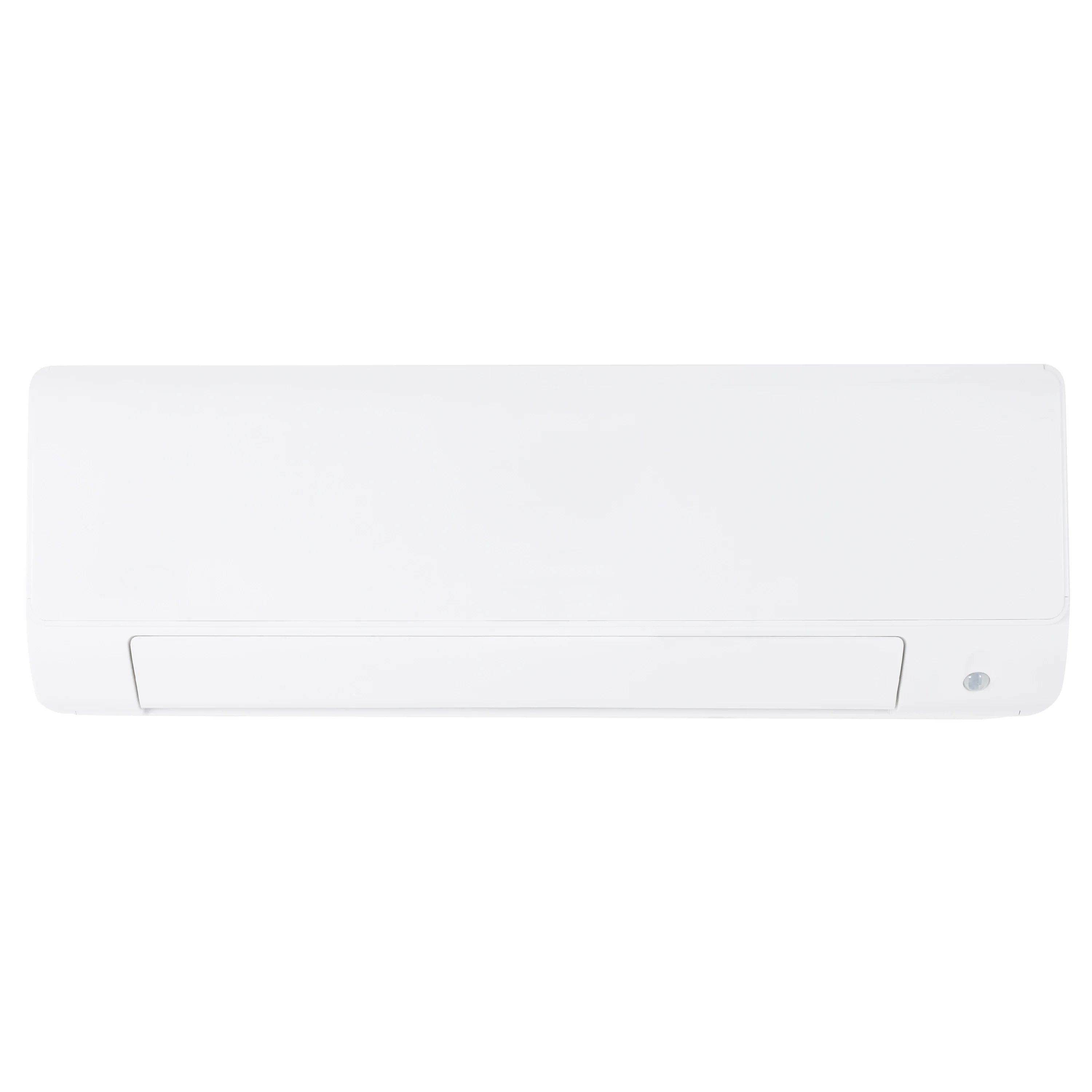

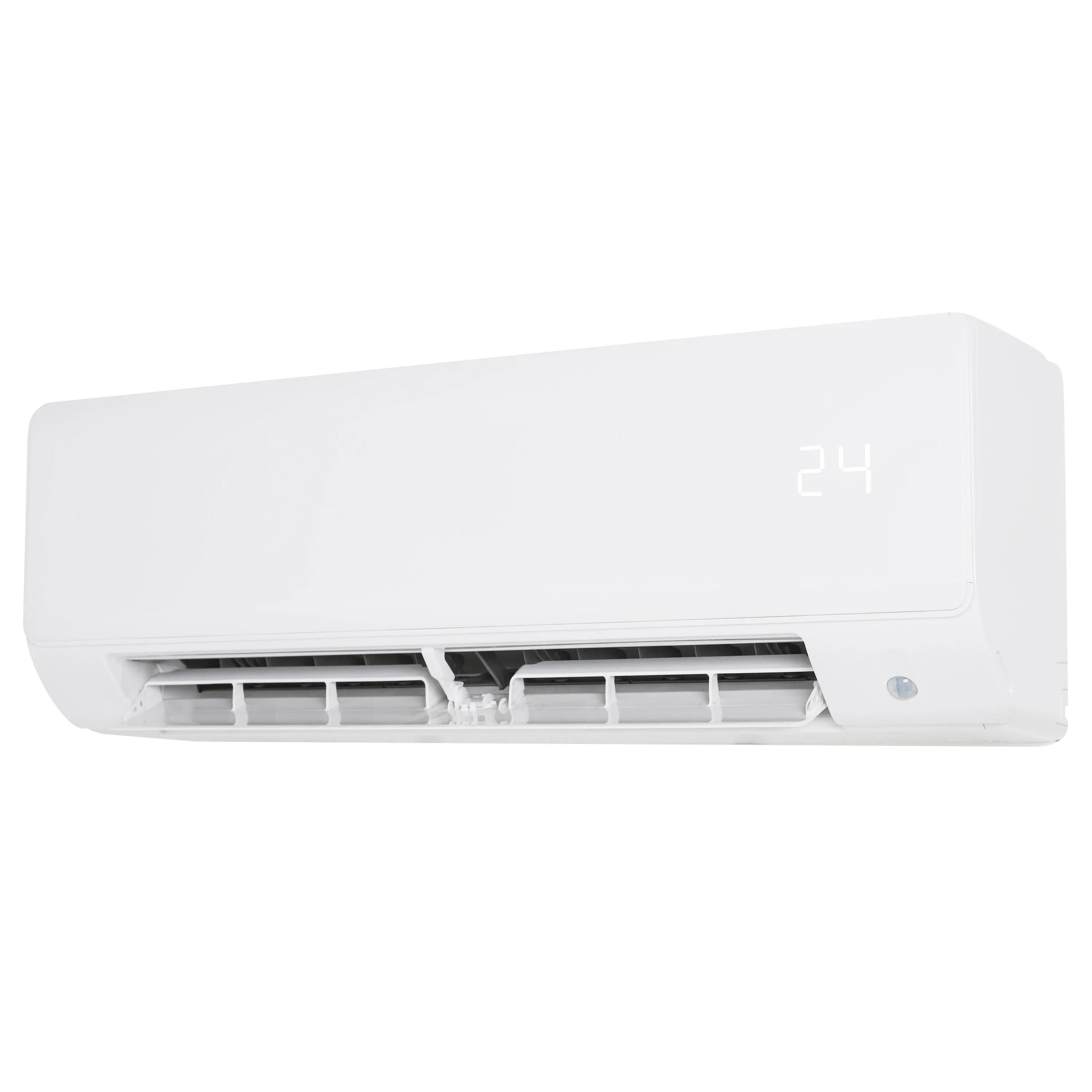

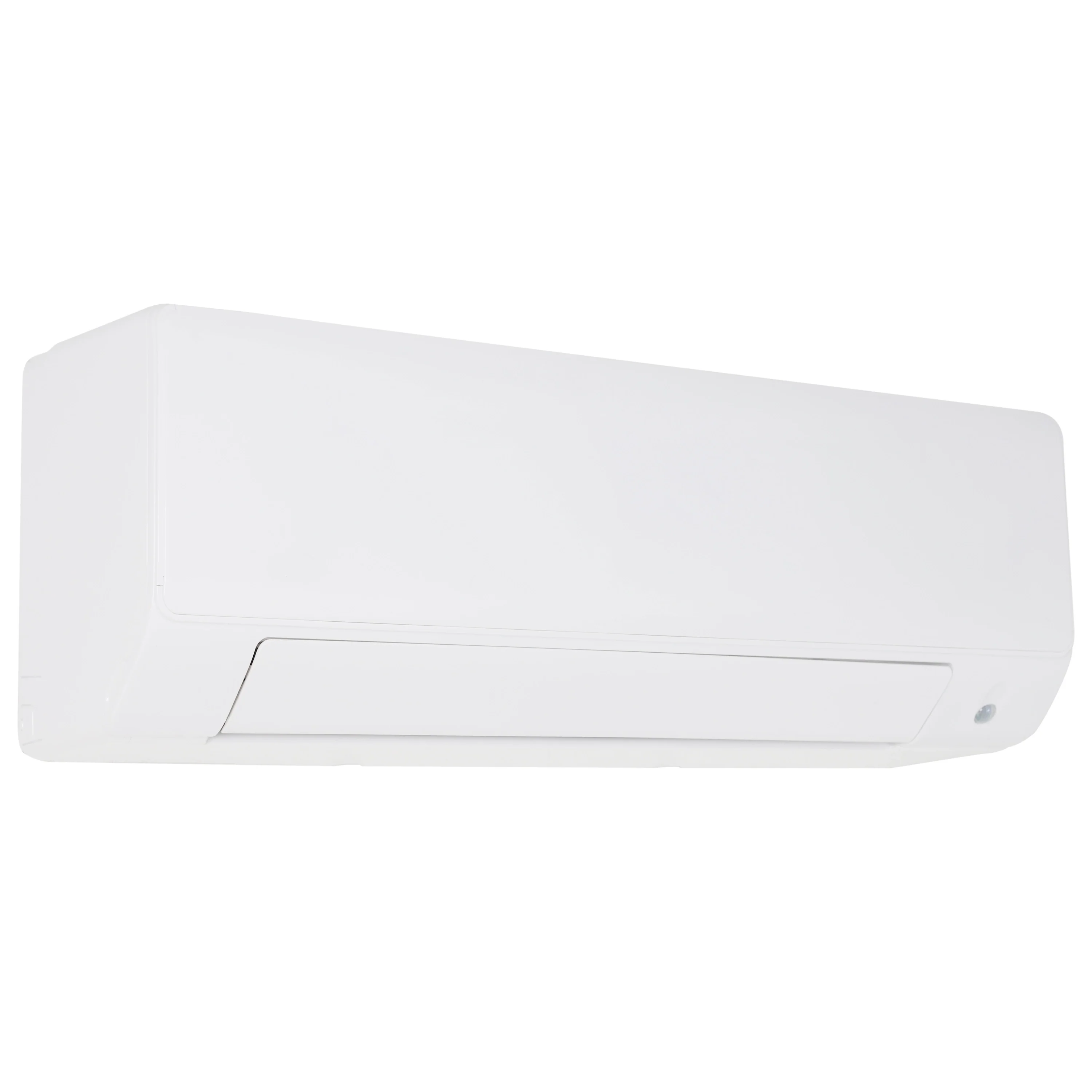

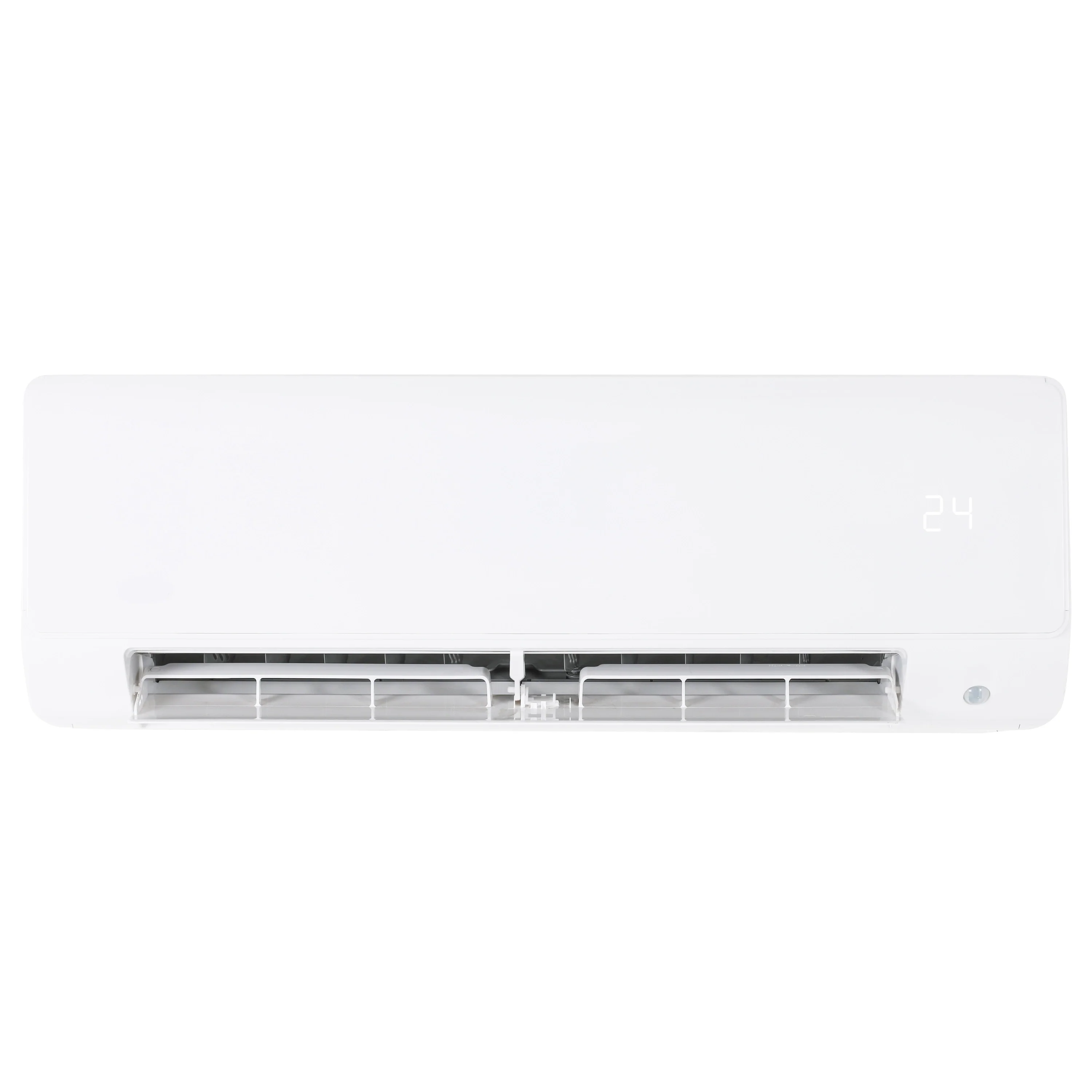

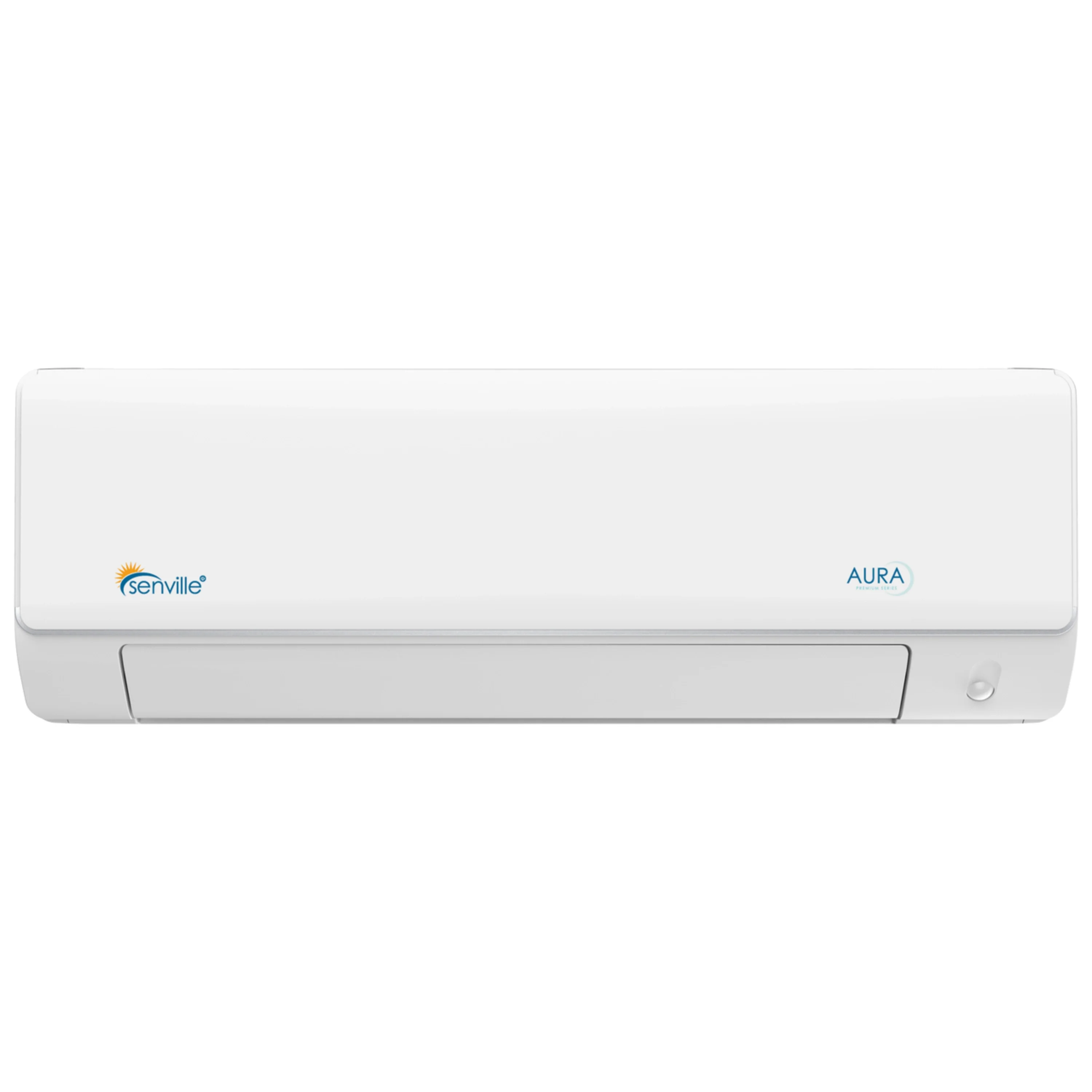

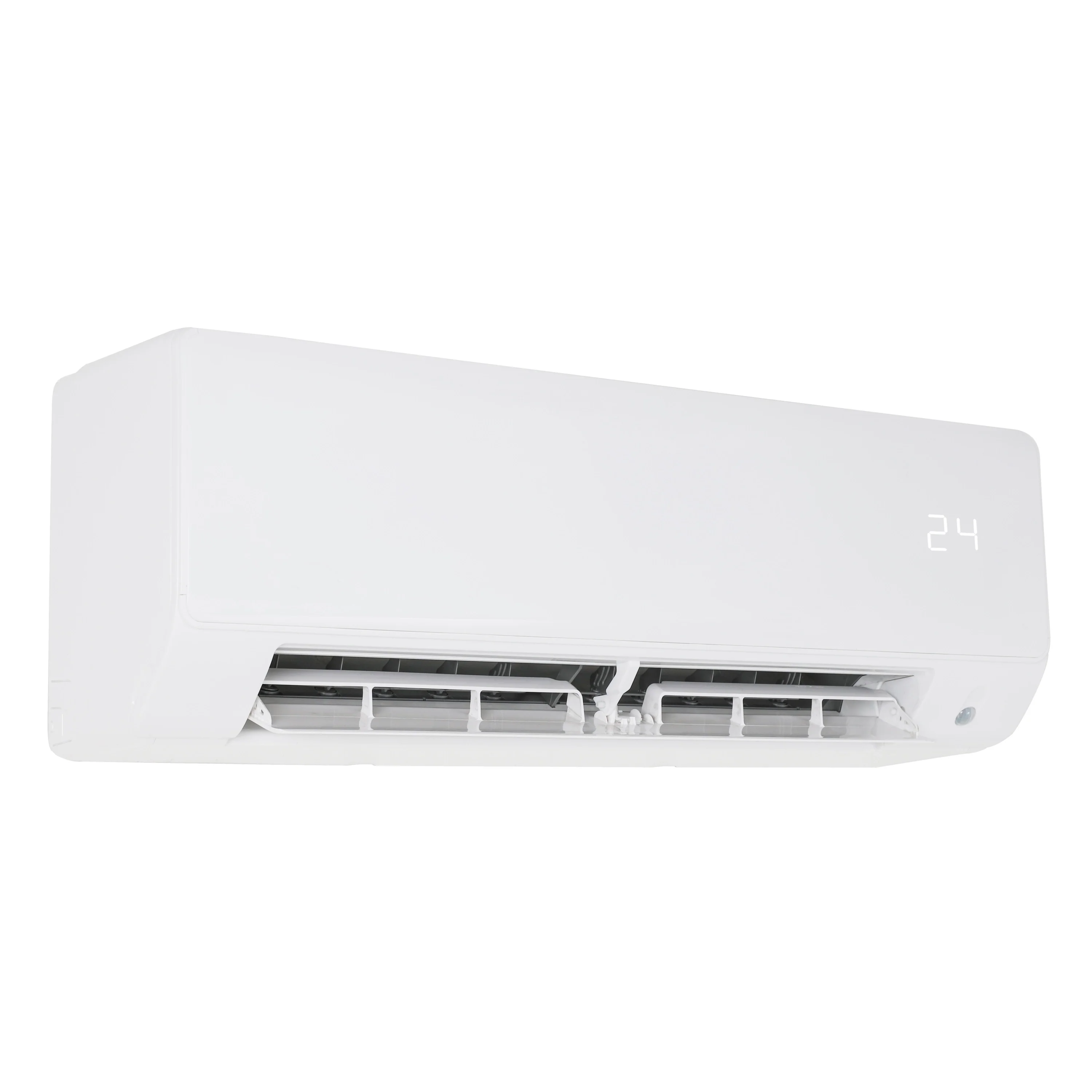

• 3 Indoor Units (various BTU combinations)

• Outdoor Unit

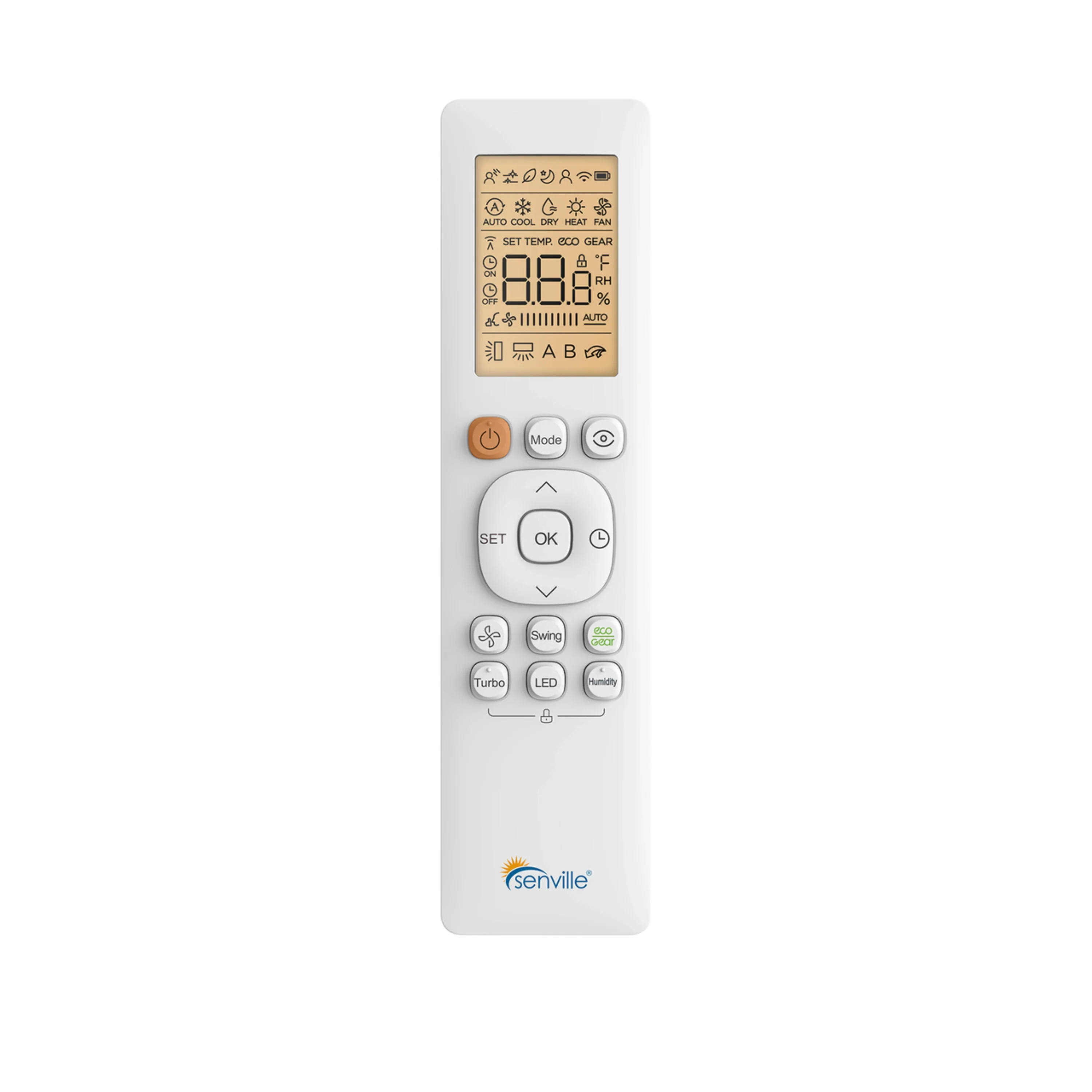

• Wireless Remote Controls

• Alexa USB Kit

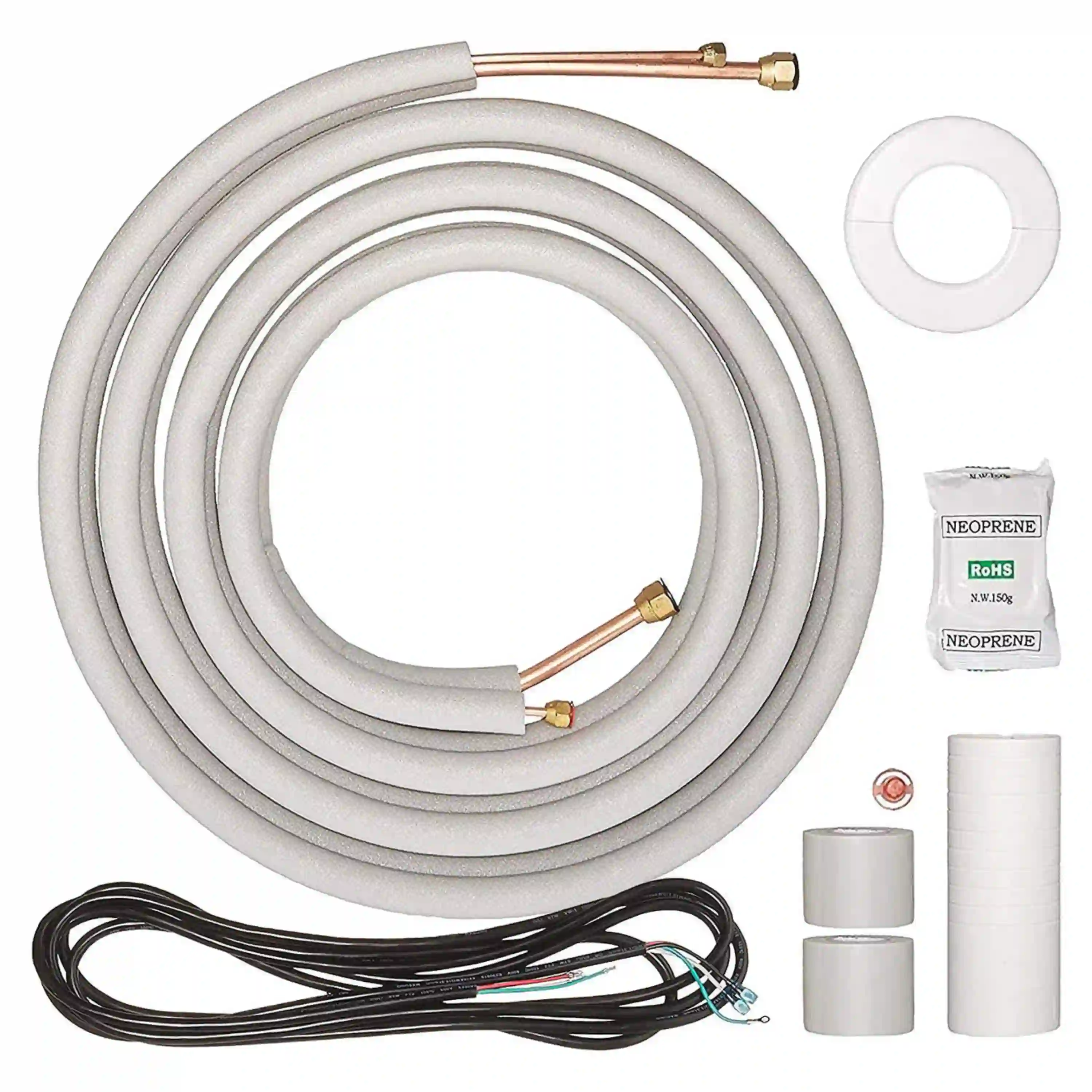

• Installation Kits (x3)

• Indoor-Outdoor Wiring Harness

• Installation Manual

• User’s Manual

• 10-Year Manufacturer Warranty

Condenser
Outdoor Dimensions (WxDxH) (in.)	37.24 x 16.14 x 31.89 in
Outdoor Weight	168.43 lbs
Outdoor Air Flow (Max) CFM	2148.4
Outdoor Noise Level dB	61
Technical Specifications
Model Number	SENA-30HF/T
Style	Ductless Mini Split AC With Heat Pump
Number of Zones	3
Power Supply (V-Ph-Hz)	208/230V, 1Ph, 60Hz
Voltage Range	187-253
SEER2	23
EER2	12.5
Cooling Capacity (BTU)	27000
Cooling Range (BTU)	7200~37000
Cooling Input Range (W)	500~3620
Cooling Current Range (A)	4~16
Heating Capacity (BTU)	27000
Heating Range (BTU)	8400~36000
Heating Input Range (W)	500~3400
Heating Current Range (A)	4~15
HSPF2-4	10.5
HSPF2-5	8.5
COP W/W	3.8
Minimum Circuit Ampacity (A)	30
Max. Fuse (A)	35
Minimum Outdoor Heating Temperature	-22°F / -30°C
Refrigerant Type / Charge	R454B / 120.61 oz
Refrigerant Pre-charge	75 ft
Thermostat Type	Remote Control
Alexa	Enabled
Warranty	10 Years Compressor / 5 Years Parts
