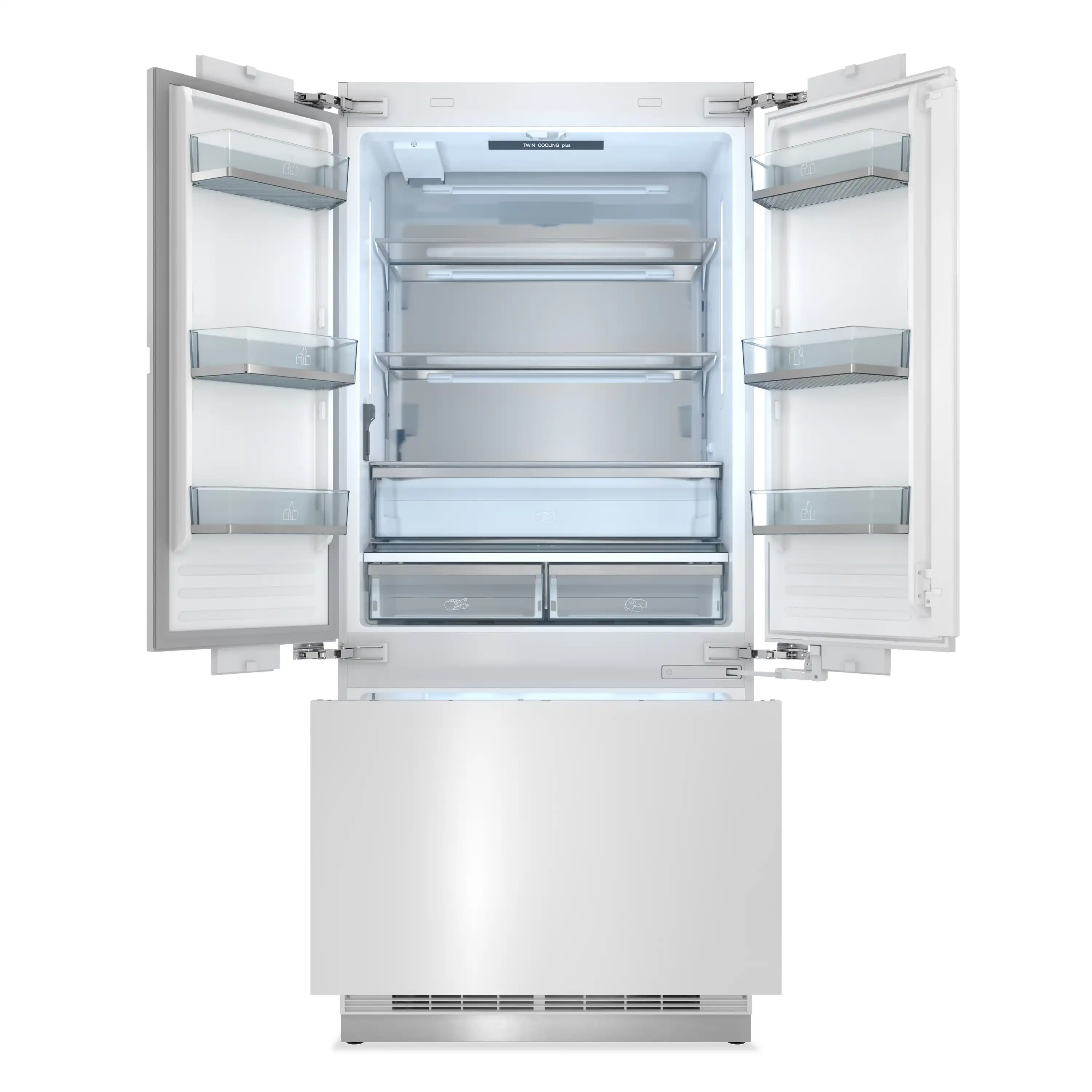

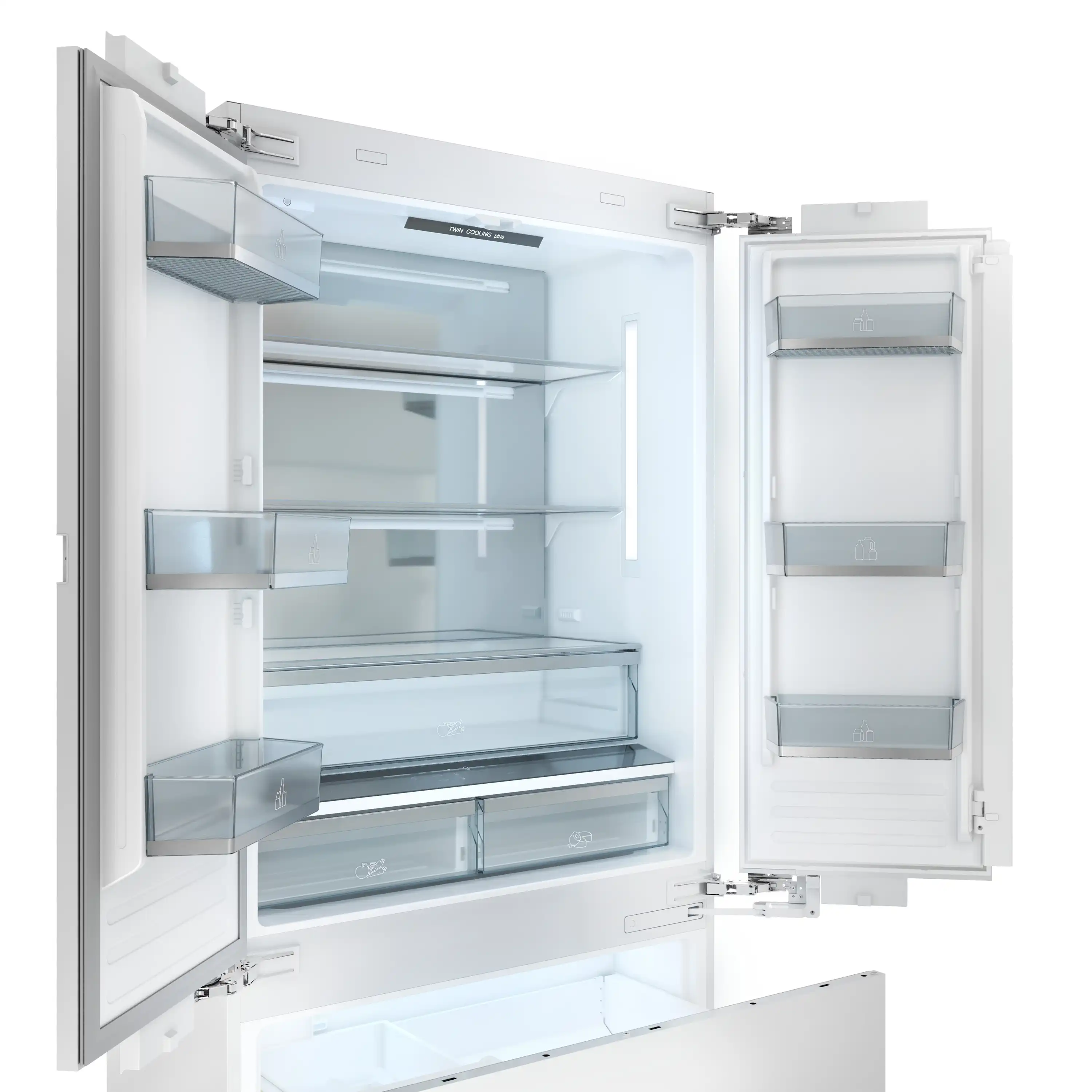

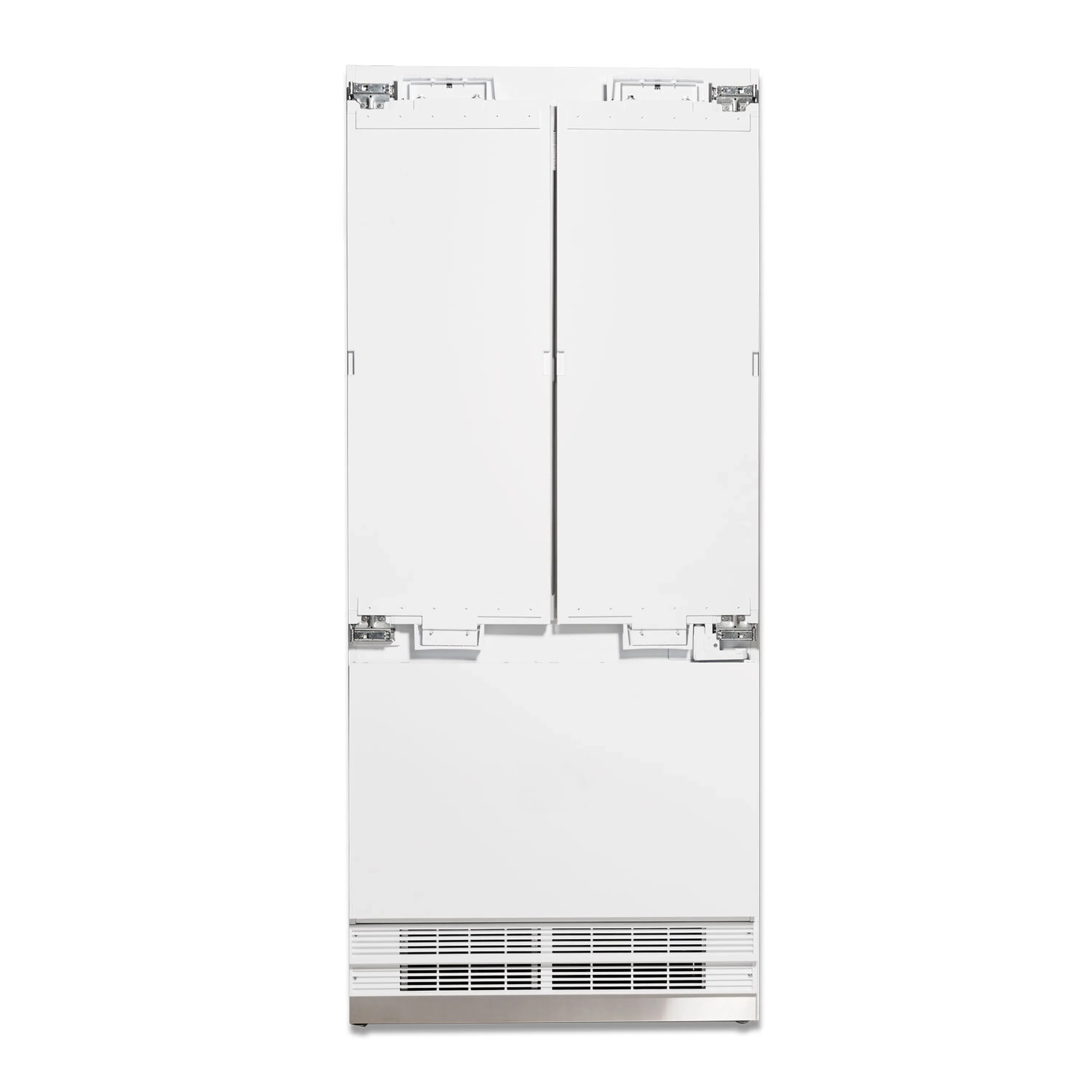

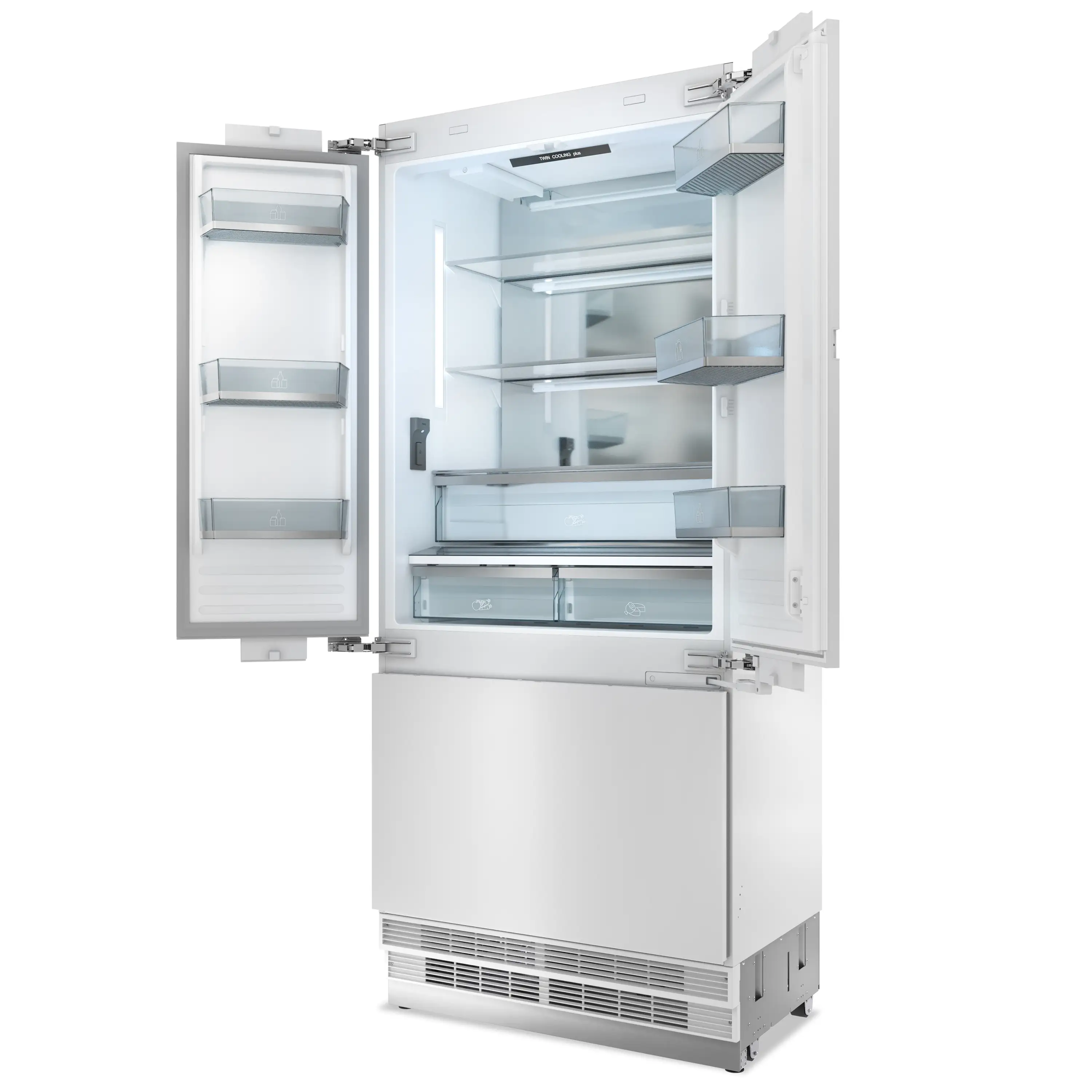

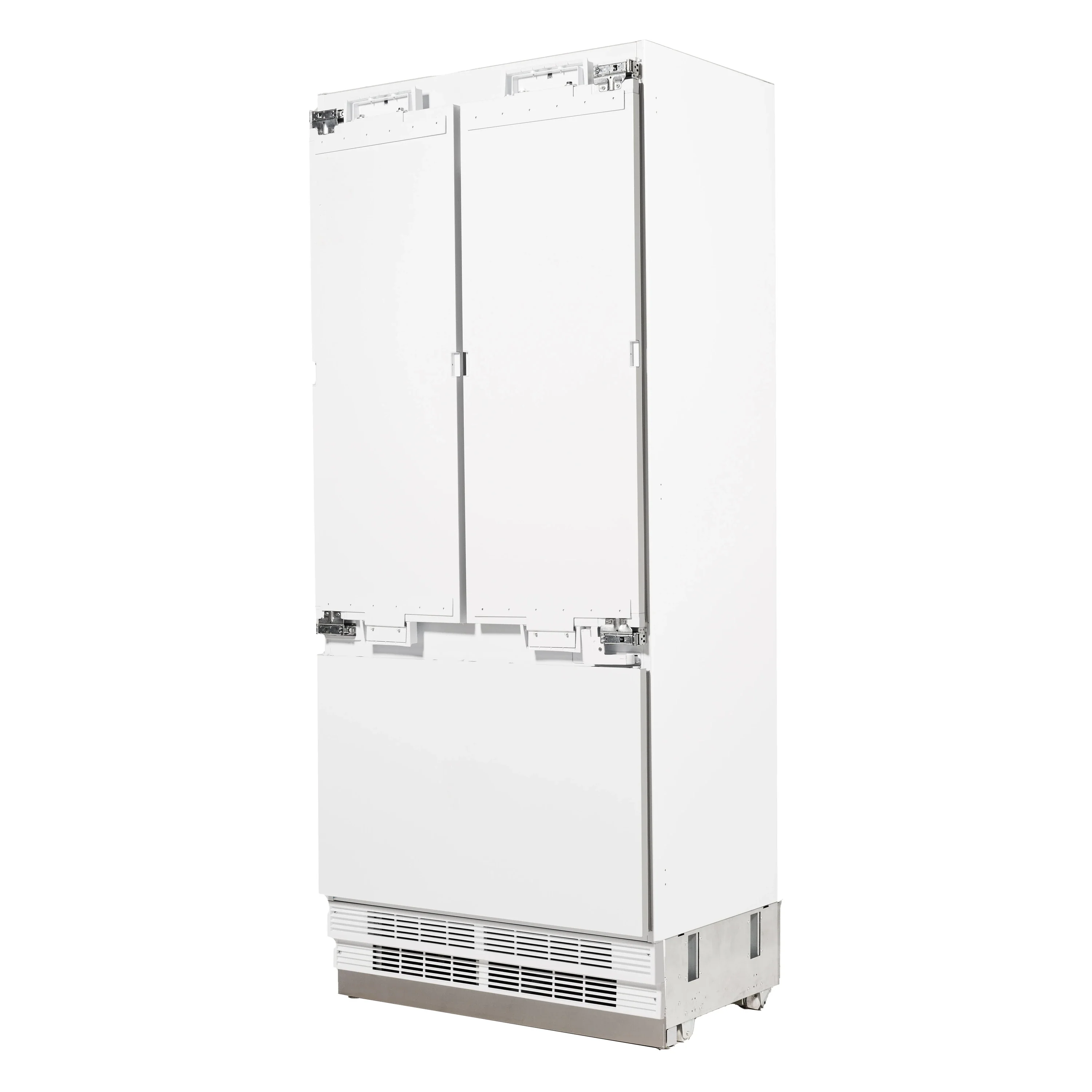

Thor Kitchen X-Series 36-Inch 19.6 Cu. Ft. Panel Ready Refrigerator with Bottom Freezer, Internal Water Dispenser and Ice Maker (XRF3619BFP)

THOR Kitchen offers the power and performance of a premium professional appliance at a practical price. With flexible storage space, super freezing and cooling functions and an in-door ice and water dispenser, THOR Kitchen's 36 Inch Counter-Depth Refrigerator with Exterior Ice and Water Dispenser keeps everything as cool, crisp, cold and/or frozen as the recipe calls for. The innovative Flex Drawer offers separate cooling modes for meats, veggies, beverages and even your favorite bottle of wine. Moisture, odor transfer and freezer burn? Gone. Compliments on meals? Way, way up. #cooklikeagod

Features

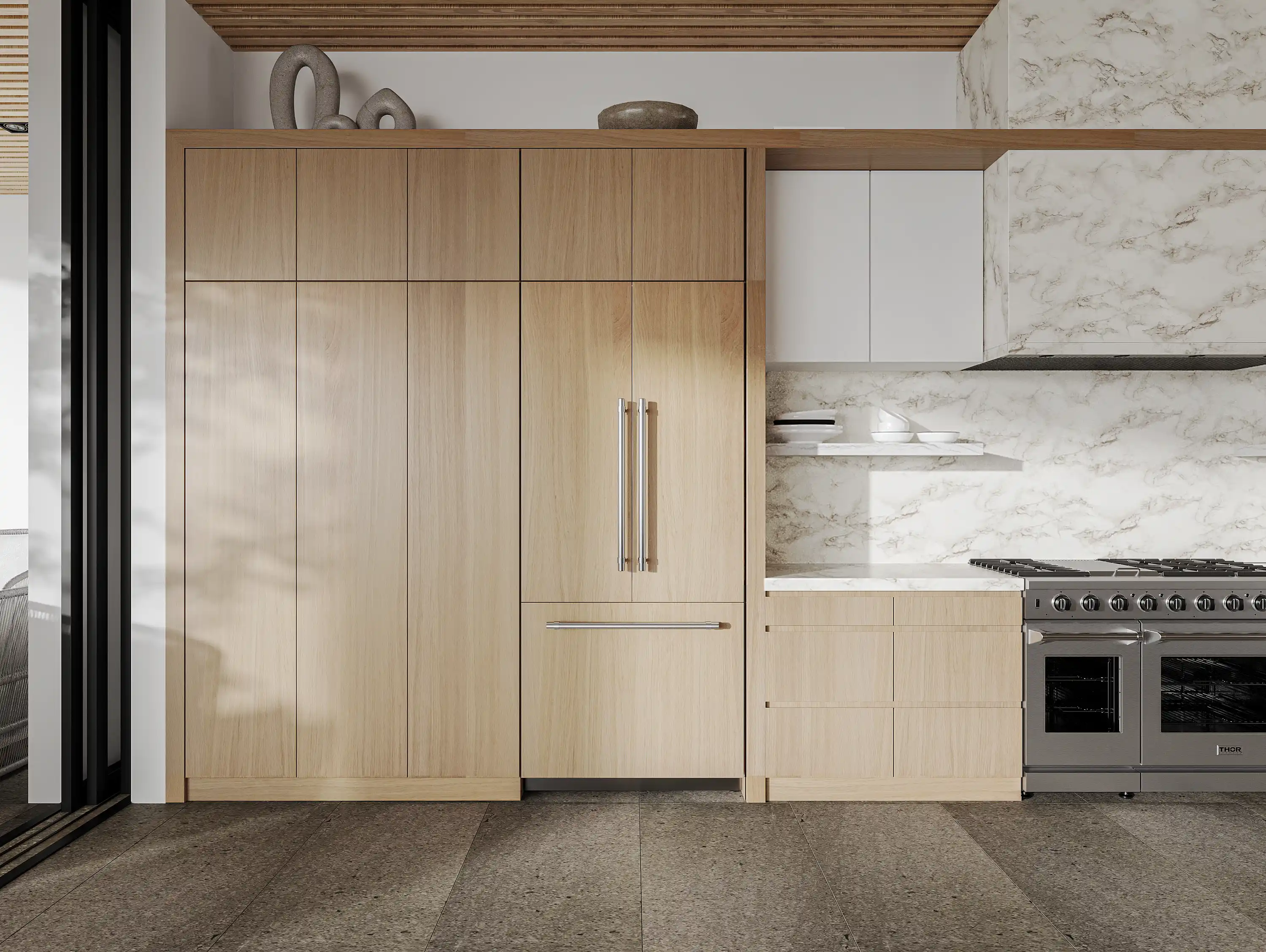

• Flush Hinge Installation Benefits: Seamlessly integrates with
  cabinetry for a polished look, enhancing kitchen aesthetics.

• Digital Display: Conveniently monitor settings and temperatures
  at a glance for precise control and food preservation.

• Soft-close Drawers: Ensures gentle and silent closing,
  preventing slamming and reducing wear and tear over time.

• Customized Modes: Tailor refrigerator operation with Sabbath,
  Holiday, and ECO modes, optimizing energy usage and functionality.

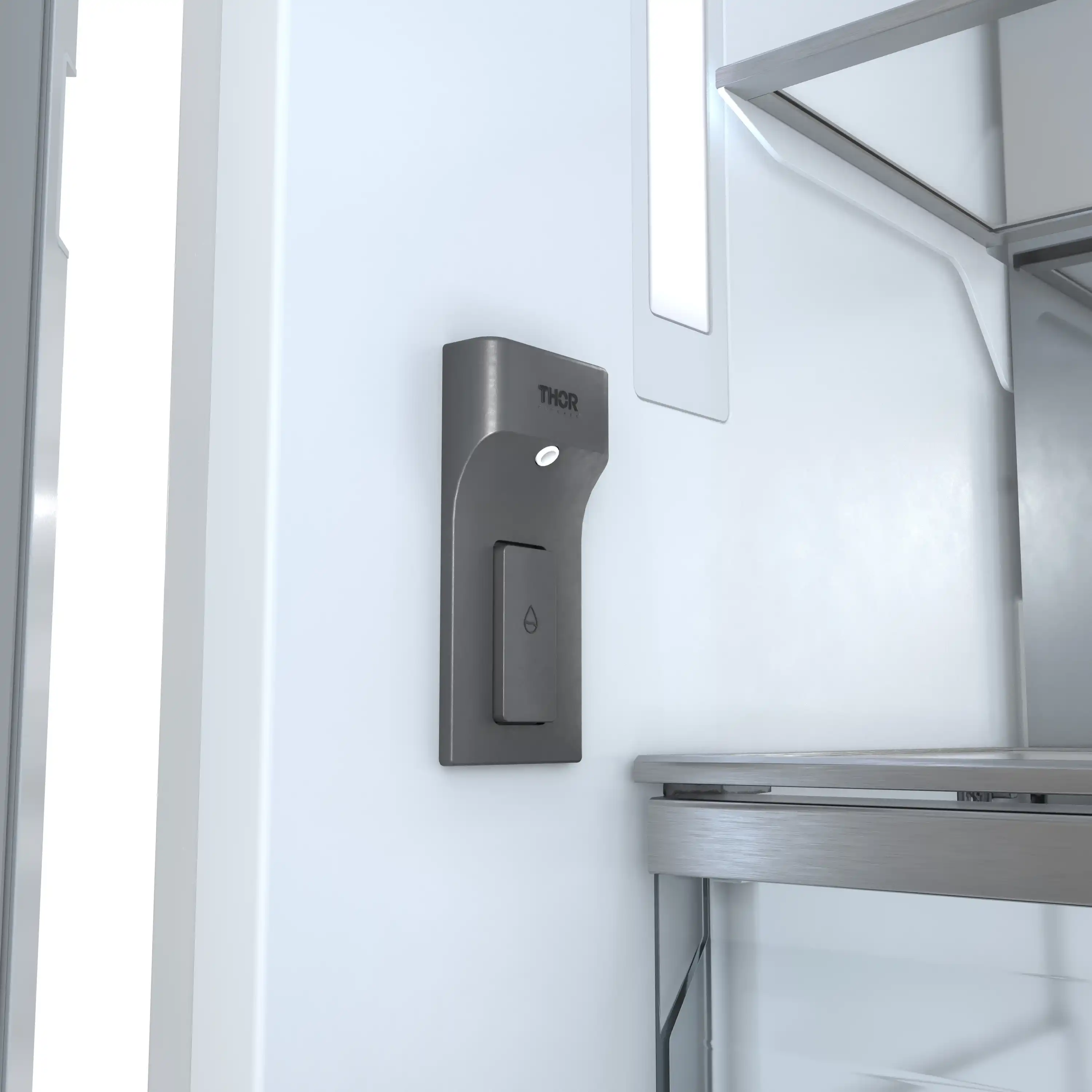

• Interior Water Dispenser: Provides easy access to clean and fresh
  water, especially convenient for units equipped with an ice maker.

• Height-adjustable Shelves: Offers flexibility in organizing storage
  space, accommodating items of various sizes with ease.

• Spill-proof Glass Shelves: Facilitates easy cleaning and maintenance,
  preventing spills from reaching other parts of the refrigerator.

• LED Interior Lighting: Illuminates the interior for
  better visibility, making it easier to locate items
  and enhancing the overall user experience.

• Ultra-quiet Operation: Operates at an ultra-quiet 43 dB(A) for a
  peaceful kitchen environment without compromising performance.

• Appliance Leveling Capability: Front-leveling
  capability ensures optimal stability and alignment,
  preventing issues related to uneven surfaces.

• Easy Door Panel Alignment: Simplifies the adjustment of door
  panels for a polished and cohesive appearance in the kitchen.

Product Dimensions	35-3/4" W x 23-5/16" D x 83-9/16" H
Product Extra Width Clearance with Door Open 90 Degrees	42"
Product Height to Top of Refrigerator	83-9/16" (+1)
Cutout Dimensions	36" W x 25" D x 84" H
Product Weight	355 lbs
Total Capacity	19.6 cu. ft.
Refrigerator Capacity	14 cu. ft.
Freezer Capacity	5.6 cu. ft.
Amperage or Current	3A
Volts	120V
Frequency	60Hz
Plug Type	3-Prong Grounding Plug
Power Cord Length	86.6″
Energy consumption	589 kwh/yr
Number Of Doors	3
Number Of Shelves	3
Number Of Freezer Baskets	2
Number of Door Bins	6 (5 + 1 Gallon Bin)
Adjustable Racks & Removable Shelves	3
Shelf Material	Glass
Reversible Door Swing	No
Soft Closing Drawer Feature	No

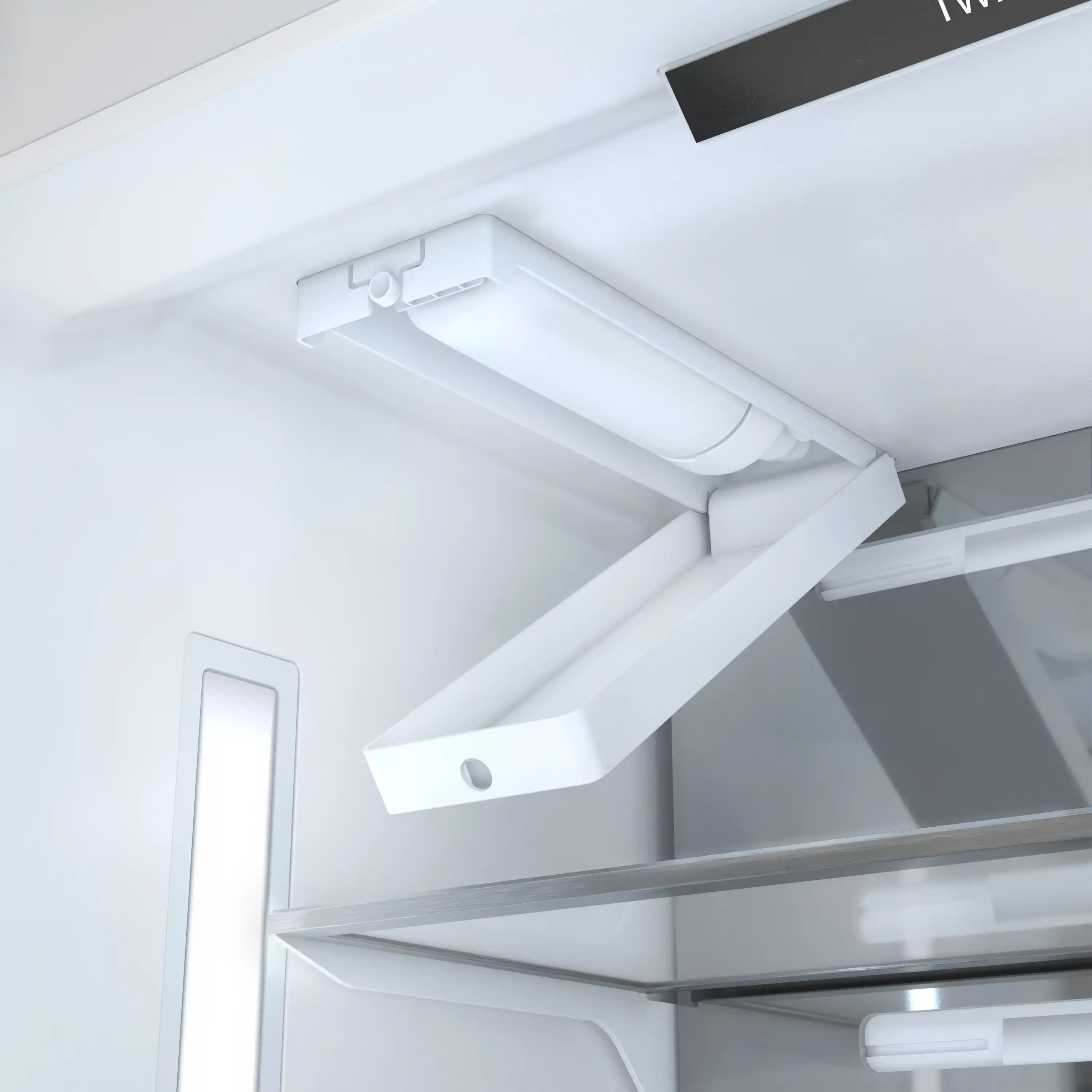

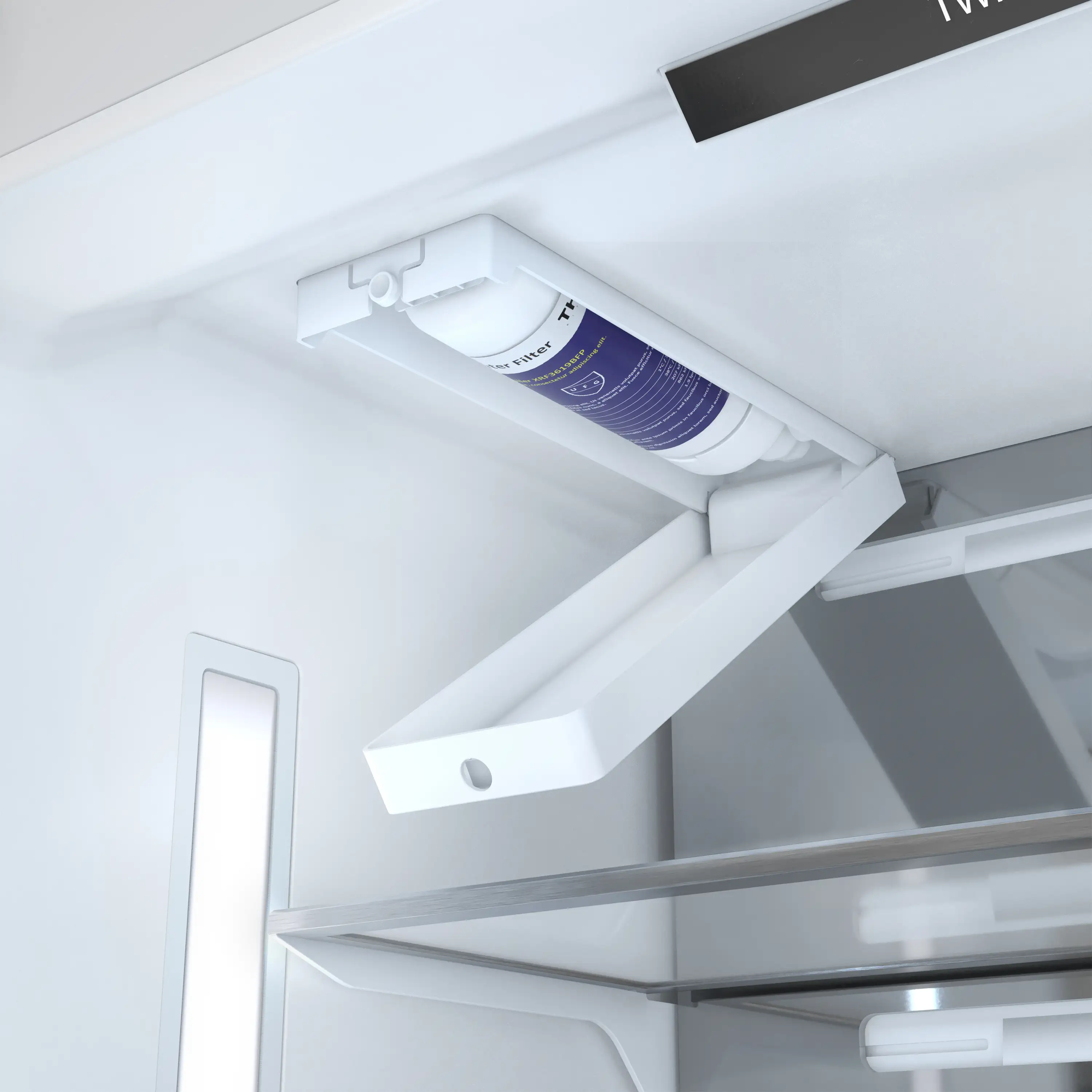

Water Filter	Yes
Lighting	LED
Freezer Defrost Process	Automated Defrosting
Refrigerator Adjustable Temp	+36°F(2°C) to +46°F(8°C)
Chiller Zone Adjustable Temp	+30°F(-1°C) to +41°F(5°C)
Freezer Adjustable Temp	+5°F(-15°C) to -11°F(-24°C)
