Thor Kitchen 36-Inch Professional Induction Range in Stainless Steel (XRI36E)

The THOR Kitchen X Series 36" 6.0 cu. ft. Professional Induction Range (XRI36E) combines sleek design with powerful performance for the modern kitchen. Featuring a smooth glass cooktop, advanced tilt panel touch control, and a versatile multi-function oven with air fry and self-clean capabilities, this range is designed for both everyday cooking and gourmet meals. With thoughtful details like LuxGlide™ telescopic racks, bridge element cooking, and a soft-close oven door, it delivers a premium experience that blends convenience, style, and efficiency.

Features

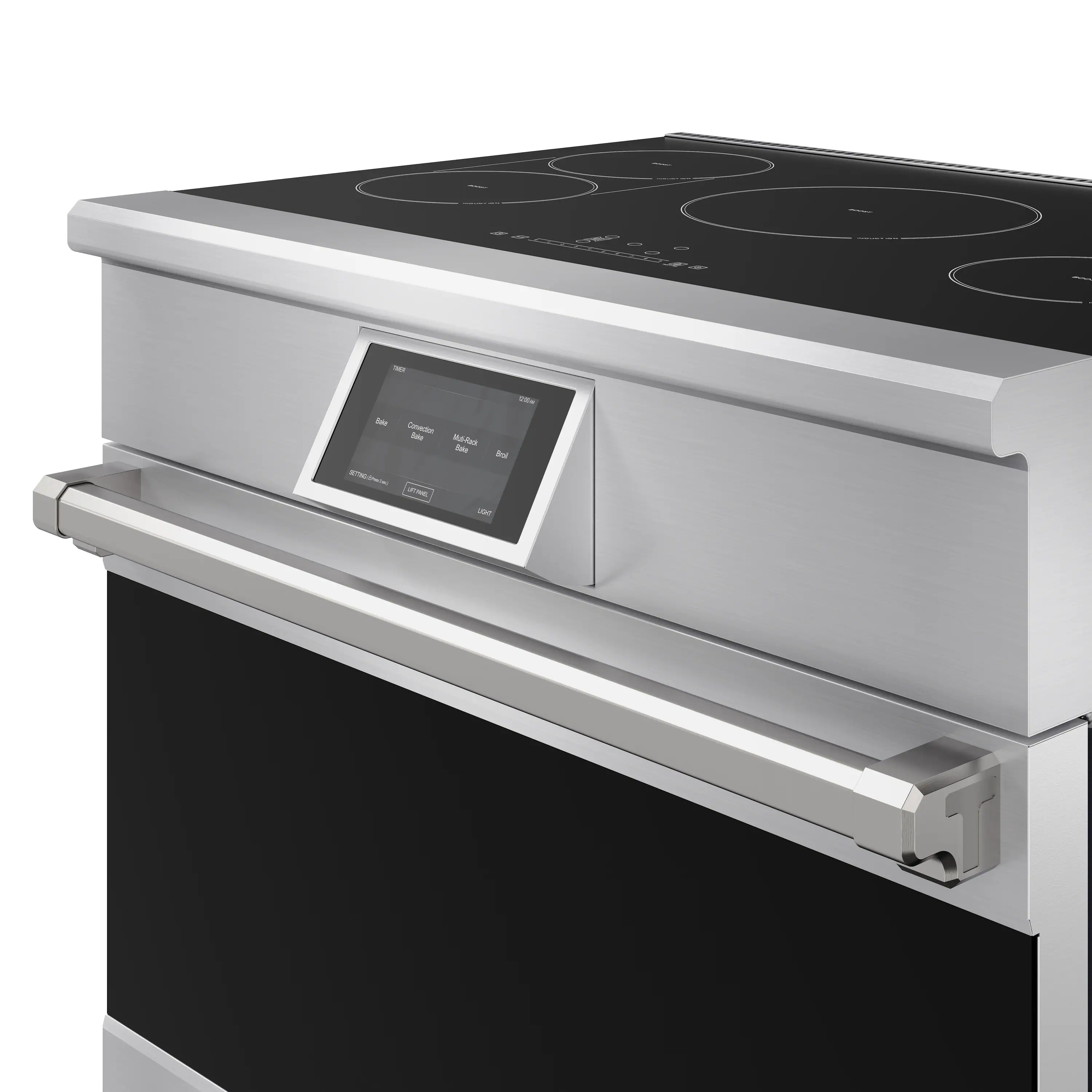

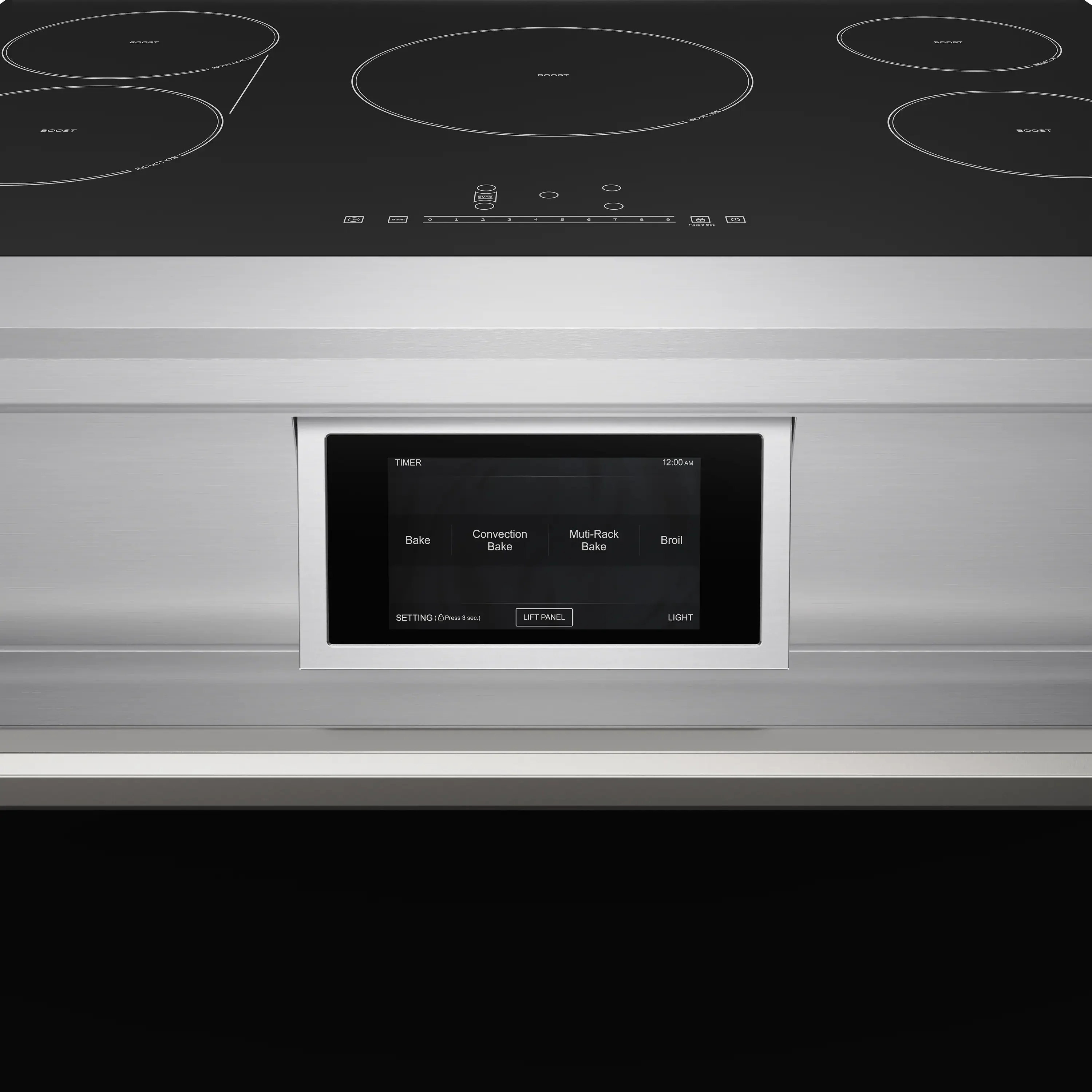

• Tilt Panel Touch Control - A tilt panel touch control is an adjustable control panel that tilts for optimal viewing and ease of use.

• 6.0 cu. ft. Oven Capacity – Spacious oven easily fits large baking sheets, roasting pans, and multiple dishes at once.

• Multi-Function Oven – Offers versatile cooking modes including Bake, Roast, Broil, Keep warm, Proof, Pizza, Self-Clean And Airfry

• LuxGlide™ Telescopic Racks: Telescopic racks use ball bearing rack guides for an effortless glide in and out of the oven. This luxury feature allows the rack to extend fully without tipping over for smooth, easy handling of even the heaviest dishes, and adjusts to fit different rack support levels.

• Soft-Close Oven Door – Gently closes for a quieter, more premium cooking experience.

• Built-In Casters and Leveling Legs – Easily reposition the range when needed, then level for a secure fit and seamless countertop alignment.

• Bridge Element Cooking – Enables expanded cooking flexibility by combining two zones into one for griddles, grill pans, oversized pots, and specialty cookware.

• True Convection Fan - The true convection fan blows heat from the 1300W heating element for more even heating and optimum cooking and baking results.

• Smooth Glass Top - Easy to fit in a 36-Inch space, this freestanding professional electric range features a frameless glass top that is flush with the countertop giving it a seamless look that is easy to clean.

Product Dimensions & Weights
Product Dimensions (HxWxD) (in.)	36-38'' x 35 7/8'' x 24 3/4''
Product Height (from bottom to top of back splash) (in.)	36”
Product Height (from bottom to top of side panel) (in.)	32-7/8”
Product Depth (from back panel to bullnose) (in.)	28-1/2”
Product Depth (from back panel to control panel) (in.)	27-1/4”
Product Depth (from back panel to side panel front) (in.)	24-3/4”
Packaging Dimensions (WxDxH) (in.)	36'' x 36'' x 24''
Adjustable Leg Sizes	3''
Net Weight (lbs.)	254
Gross Weight (lbs.)	304
Package Dimensions (HxWxD) (in.)	38-1/2” x 29-3/4” x 41”
Technical Details
Fuel Type	Electric
Installation Type	Freestanding
Required Circuit	50 amps
Volts (V)	240V
Frequency (Hz)	60Hz
Control Type	Touch Screen
Plug Type	nema 14-50p
Power Cord Length (in.)	Canada only. Not included in USA/Mexico

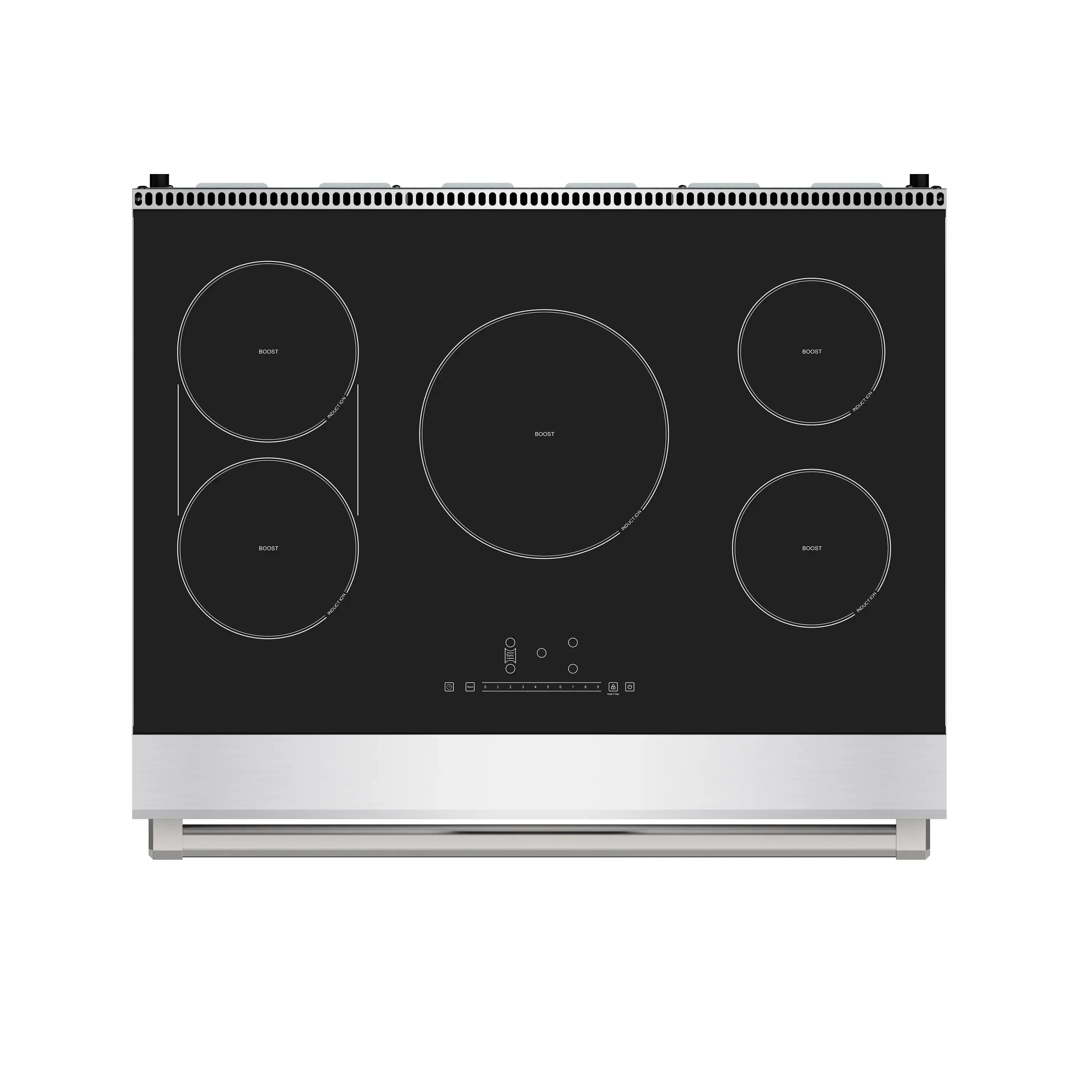

Cooking Zones Configuration
Total Number of Cooking Zones	5
Cooktop Element Style	Induction
(1) Front Left Zone (Bridge)	1800 Watt, Power Boost 2500 Watt
(2) Rear Left Zone (Bridge)	1800 Watt, Power Boost 2500 Watt
(3) Front Right Zone	1600 Watt, Power Boost 2000 Watt
(4) Rear Right Zone	1400 Watt, Power Boost 1800 Watt
(5) Center Zone	3000 Watt, Power Boost 4000 Watt
(6) Bridge Zone (Front Left + Rear Left)	3400 Watt, Power Boost 3600 Watt

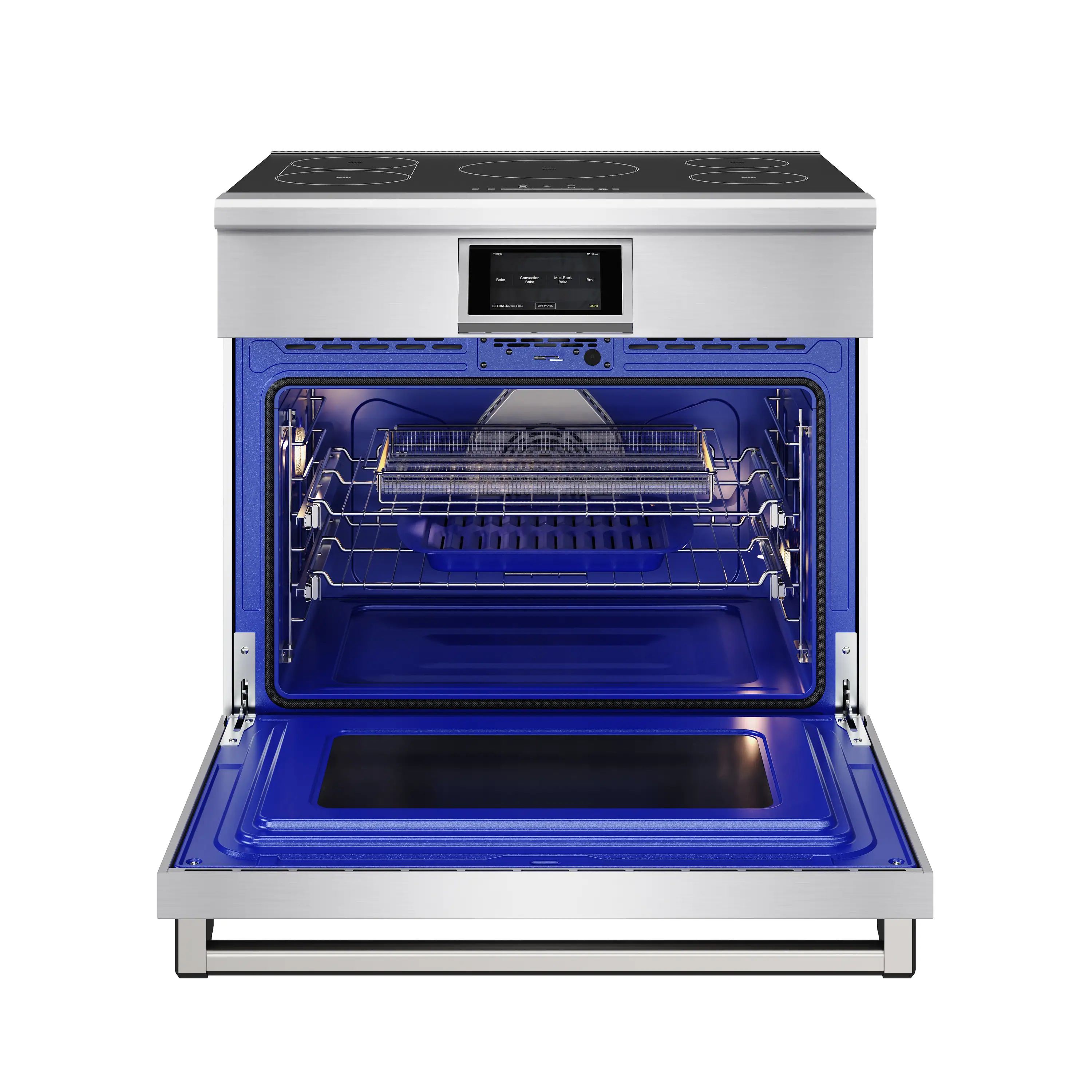

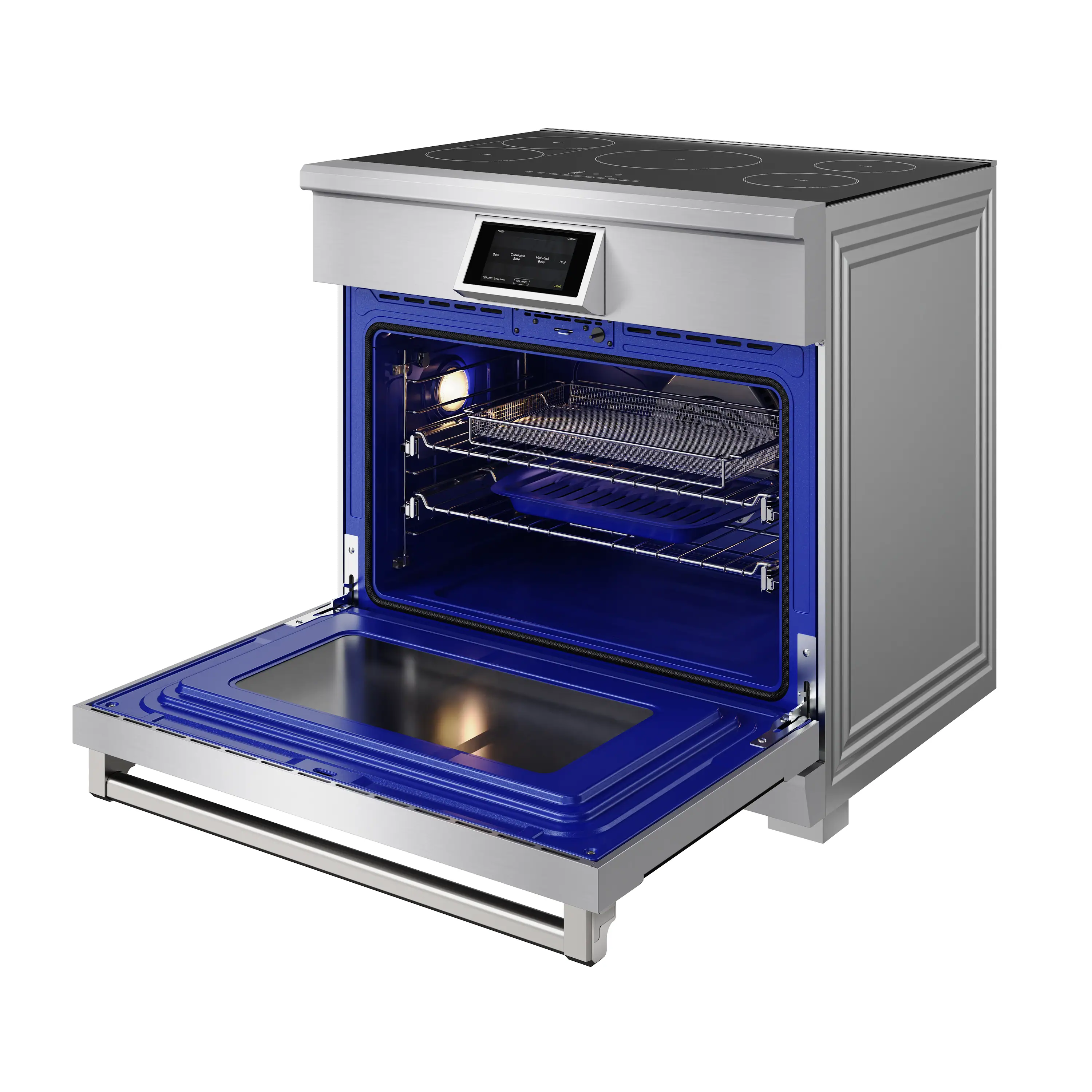

Oven
Oven Capacity (cu. Ft.)	6.0
Oven Control Features	Oven Light Control, Cook Time, Timer, Delay Start, Self Clean, Control Lock, Sabbath Mode, Temperature Unit
Cooking Modes	Bake, Convection Bake, Multi-Rack Bake, Broil, Convection Roast, Warm, Pizza, Air Fry, Proof, Meat Probe
Bake Burner Power	3500 Watt
Broil Burner Power	3500 Watt
Convention	True Convection
Convention Element Power：	800 Watt
Oven Lights	2
Oven Racks	Telescopic Racks x2
Oven Rack Material	Chrome Plated
Baking Sheet Size	Fits Standard Half Sheet Pan
Self Clean (Y/N)	Yes
Air Fry	Yes
Oven Internal Height	18''
Oven Internal Width	29-3/4”
Oven Internal Depth	19-1/2''
