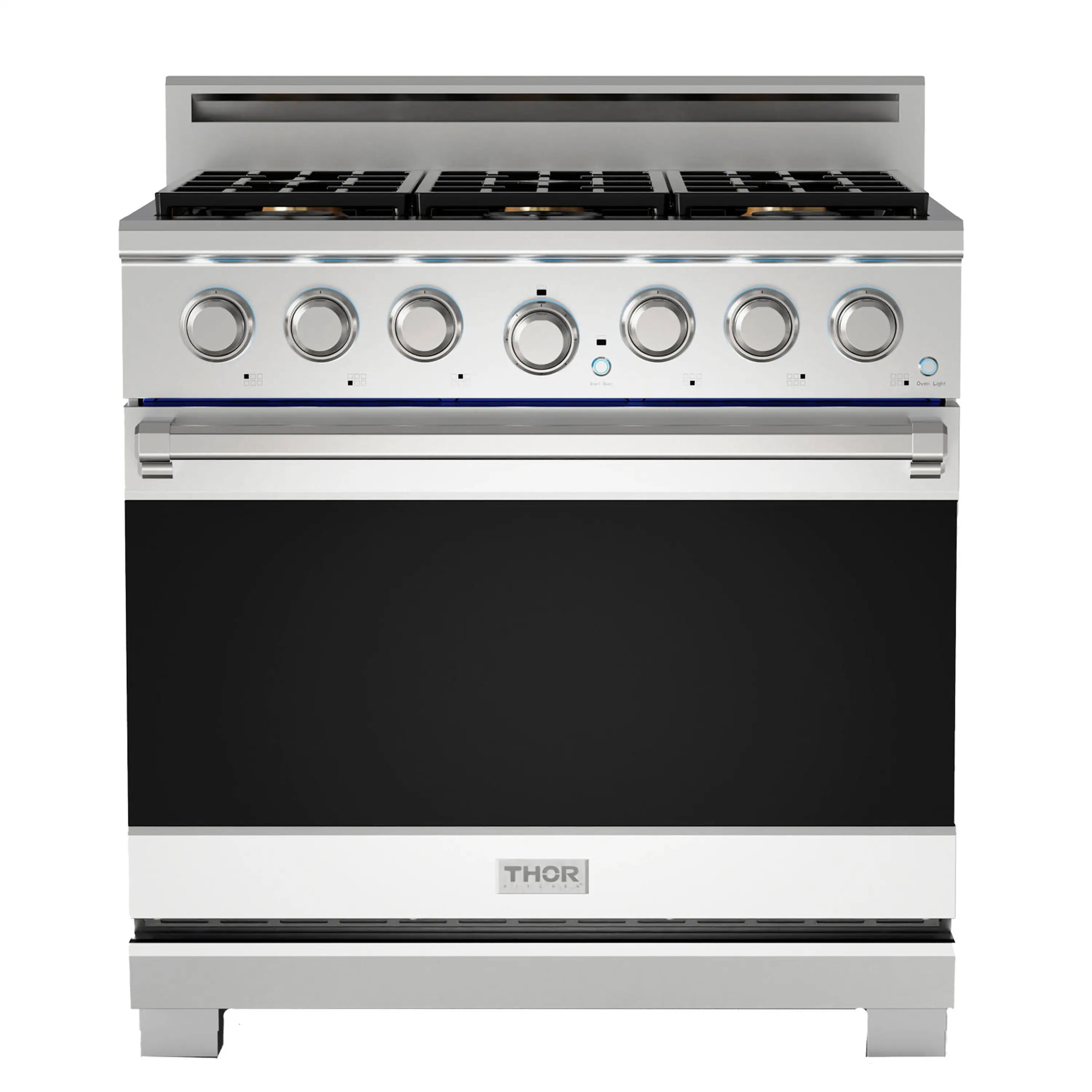

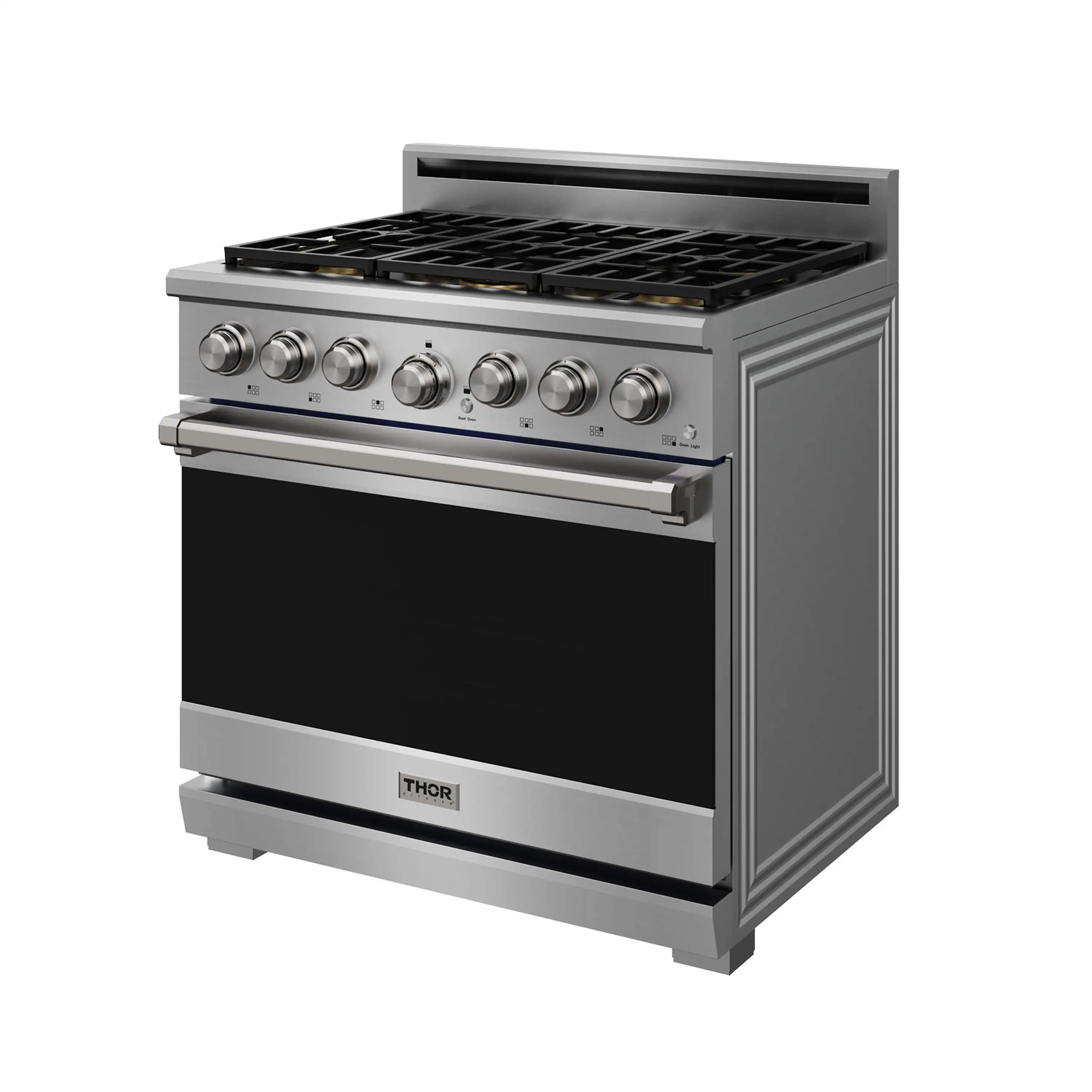

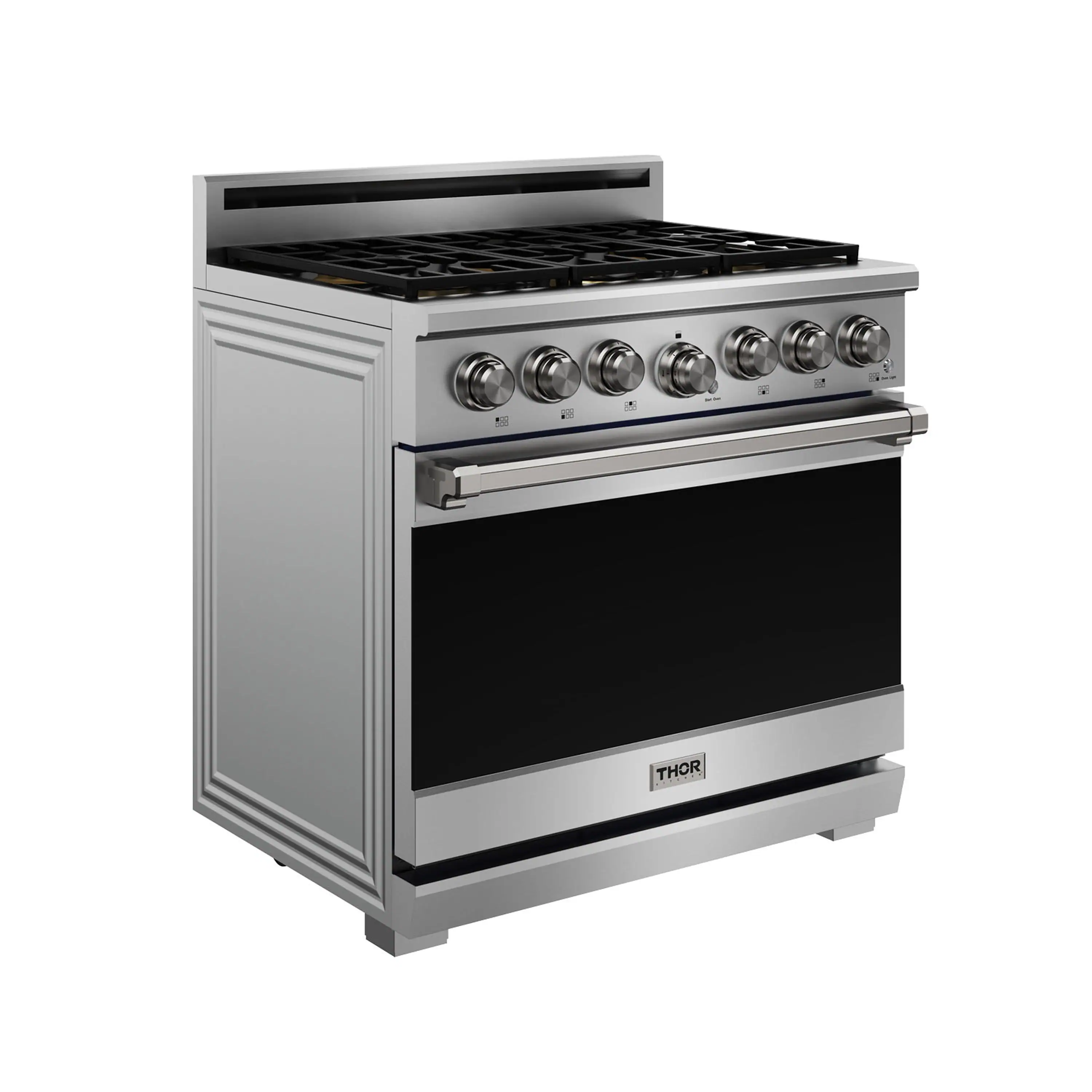

Thor Kitchen 36-Inch Professional Natural Gas Range in Stainless Steel (XRG36E)

Experience professional power and precision with our 36-inch freestanding gas range. The spacious 6.0 cu. ft. oven and multi-function cooking modes—including Bake, Conv. Bake, Roast, Conv. Roast, High & Low Broil, Keep Warm, Pizza, and Self-Clean—handle everything from everyday meals to gourmet feasts. LuxGlide™ telescopic racks, a soft-close oven door, and tilt panel touch controls make cooking effortless and convenient. Italian brass burners deliver up to 22,000 BTUs of precise heat, while continuous cast-iron grates, an infrared broiler, blue LED illuminated knobs, and automatic re-ignition combine durability, safety, and modern style for a truly elevated cooking experience. Built-in casters and leveling legs ensure easy installation and perfect alignment for any kitchen.

Features

• Italian Brass Burners with 22,000 BTU Dual Burner: Premium Italian brass burners deliver powerful heat up to 22,000 BTUs and gentle simmer control down to 1,000 BTUs.
• 6.0 cu. ft. Oven Capacity: Spacious oven easily fits large baking sheets, roasting pans, and multiple dishes at once.
• Multi-Function Oven: Dual Function Oven Control offers versatile cooking modes including Bake, Conv. Bake, Roast, Conv. Roast, High & Low Broil, Keep warm, Pizza, and Self-Clean

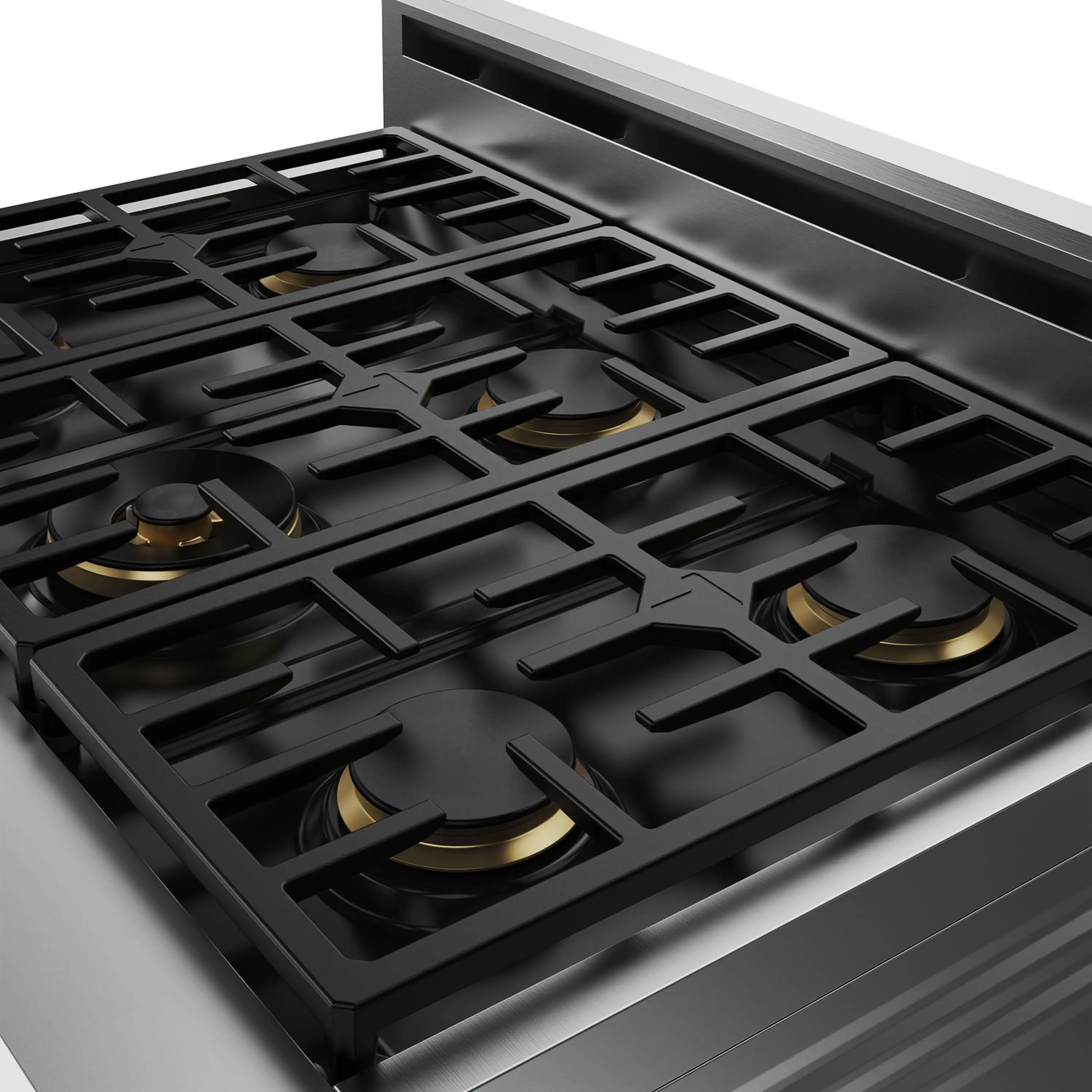

• Continuous Cast-Iron Grates: Heavy-duty grates provide a seamless surface for easy pan movement and pro-style durability.

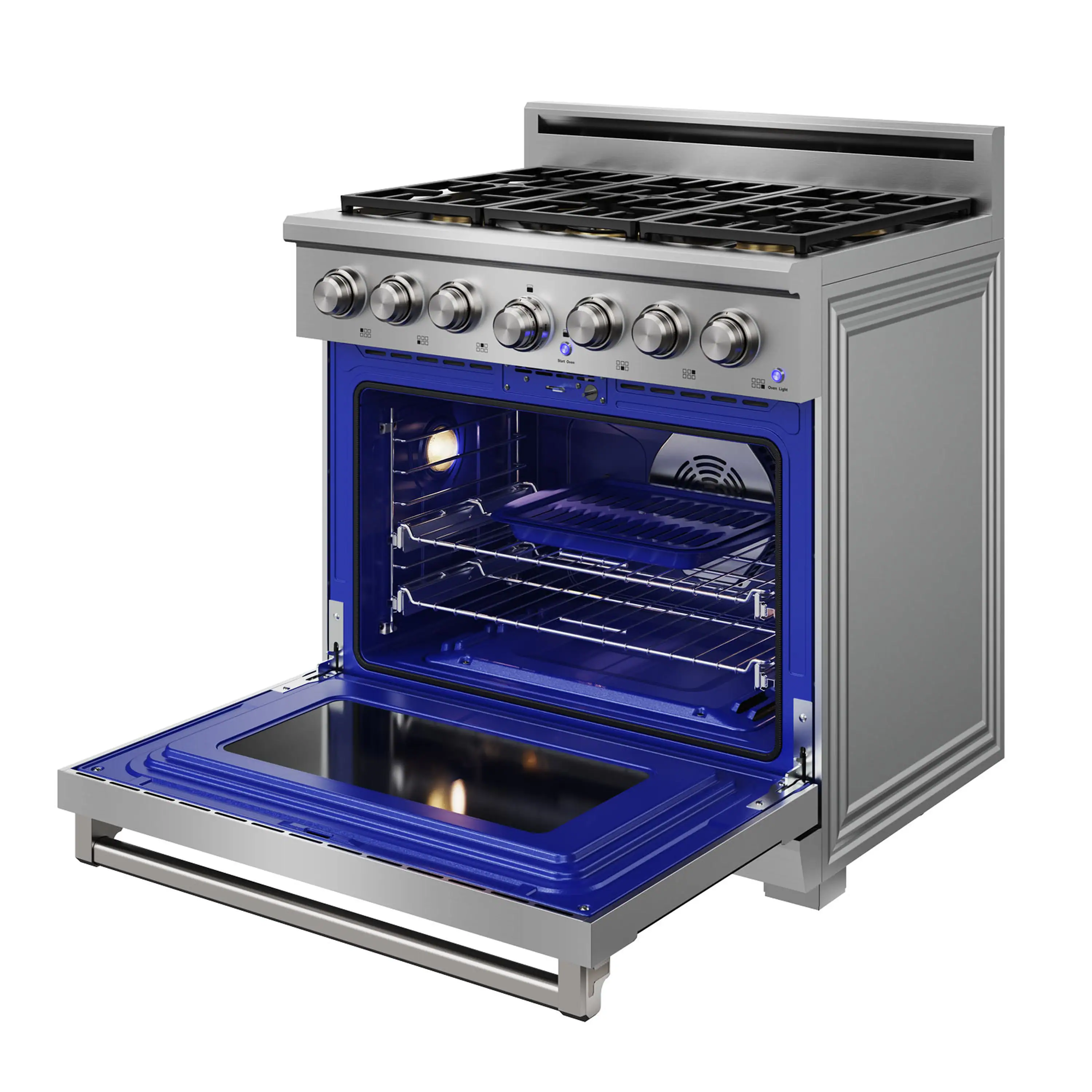

• LuxGlide™ Telescopic Racks: Telescopic racks use ball bearing rack guides for an effortless glide in and out of the oven. This luxury feature allows the rack to extend fully without tipping over for smooth, easy handling of even the heaviest dishes, and adjusts to fit different rack support levels.
• Soft-Close Oven Door: Gently closes for a quieter, more premium cooking experience.

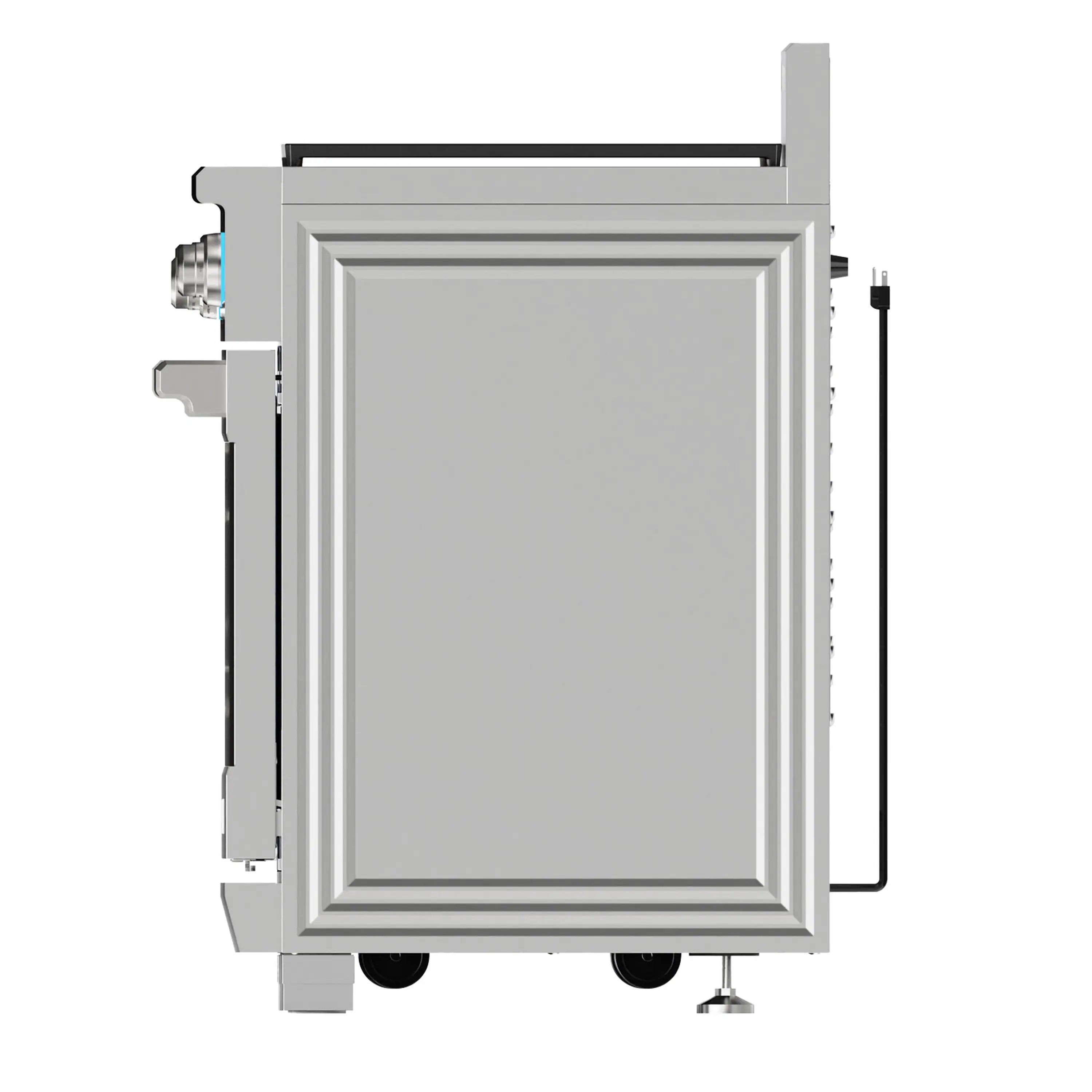

• Built-In Casters and Leveling Legs: Easily reposition the range when needed, then level for a secure fit and seamless countertop alignment.
• Infrared Broiler: Infrared gas flame broiler radiates heat evenly to sear your food and seal in the juices.

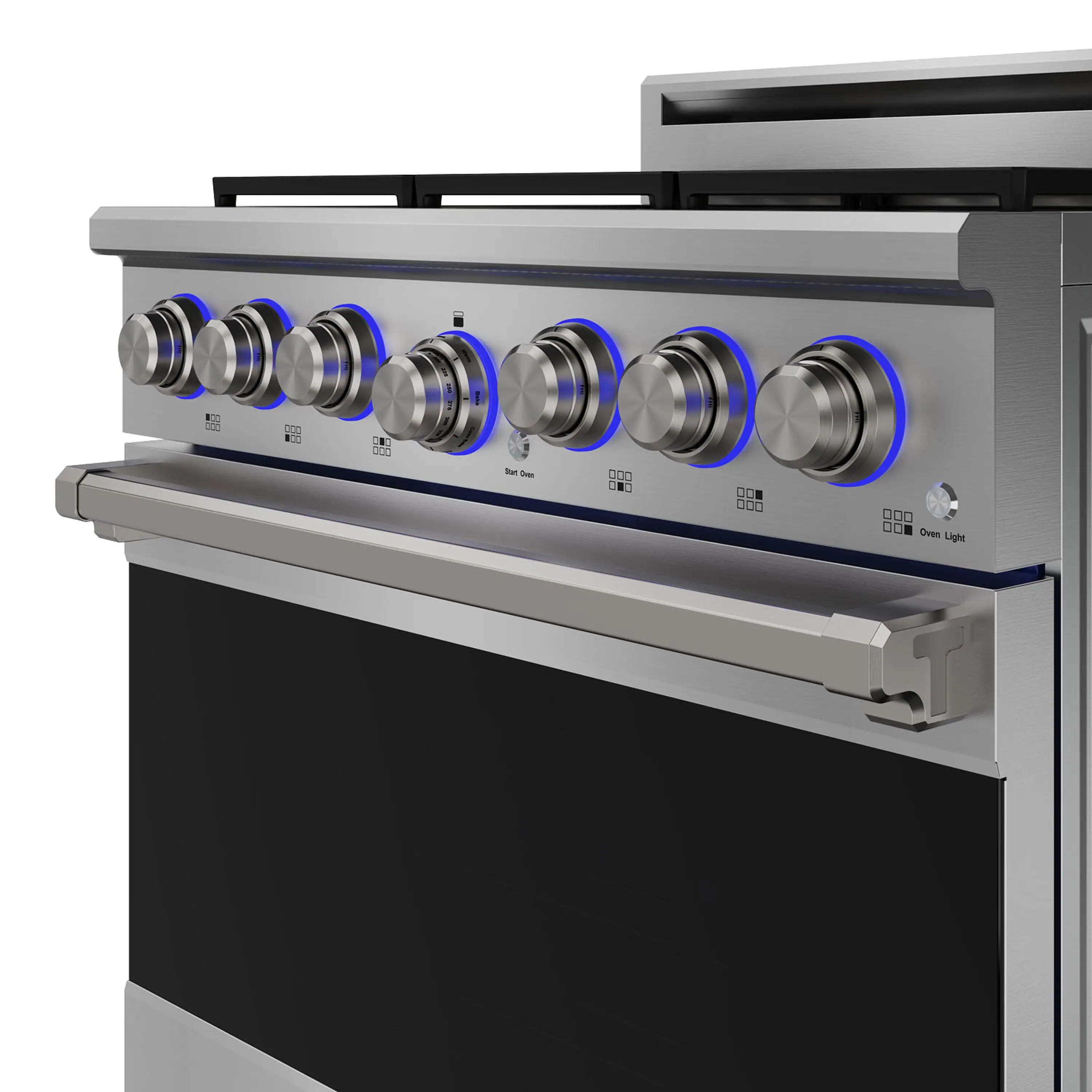

• Blue LED Illuminated Knobs: Sleek, backlit knobs provide a clear visual cue when burners are in use, enhancing safety and modern style—even visible from across the kitchen.
• Automatic Re-ignition Feature: Automatic re-ignition feature relights
  an extinguished flame for safer cooking.

Product Weight & Dimensions
Product Dimensions (WxDxH)	35-7/8” x 24-1/2” x 36-1/8”
Product Height (from bottom to top of back splash)	41-1/2”
Product Height (from bottom to top of side panel)	32-7/8”
Product Depth (from back panel to bullnose)	28-1/2”
Product Depth (from back panel to control panel)	27-1/8”
Product Depth (from back panel to side panel front	24-1/2”
Cutout Dimensions (WxDxH)	36”x 24” x 36”
Adjustable Leg Height	3"
Net Weight	280lbs
Gross Weight	340 lbs
Technical Details
Fuel Type	Natural gas or Liquid Propane
Installation Type	Freestanding
Burner Type	Sealed Burners
Type of Grate	Continuous
Max BTU	22000 BTU (Dual) Simmer1000 BTU
Required Circuit	15 Amp Dedicated Circuit
Max Current Draw	6 Amps
Volts	120V
Frequency	60Hz
Control Type	Knob
Plug Type Power Cord Length	59"

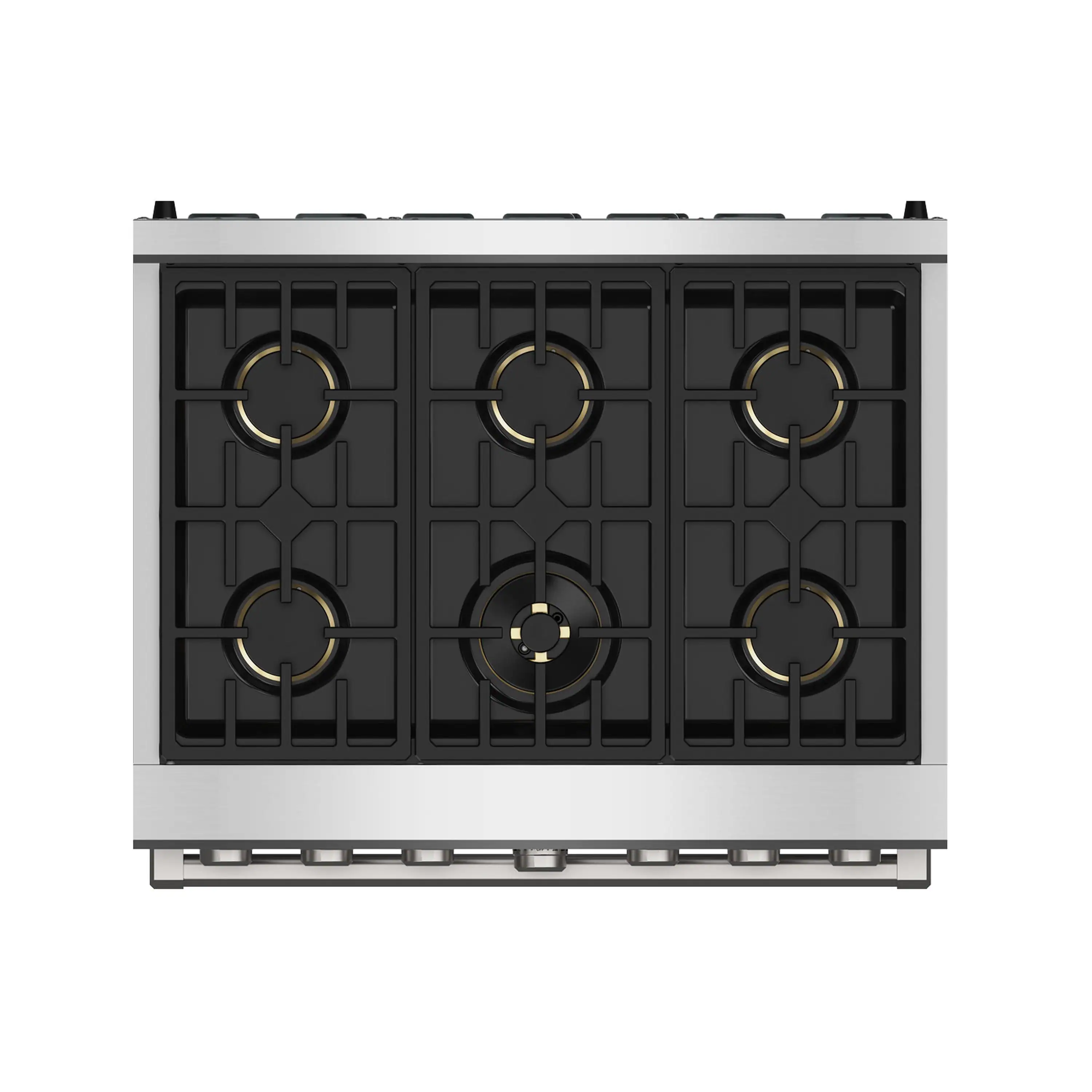

Cooking Burner Configuration
Total Number Of Cooktop Burners	6
[1] Front Left Burner	15000 BTU
[2] Rear Left Burner	12000 BTU
[3] Front Center Burner	22000 BTU (Dual) Simmer 1000 BTU
[4] Rear Center Burner	12000 BTU
[5] Front Right Burner	15000 BTU
[6] Rear Right Burner	12000 BTU
Oven Performance
Oven Capacity	6.0 cu. ft.
Oven Control Features	Light on/ Off
Cooking Modes	Bake, Conv. Bake, Roast, Conv. Roast, High & Low Broil, Keep warm, Pizza, Self-Clean
Bake Burner Power	22000 BTU
Broil Burner Power	16500 BTU Infrared Broiler
Convection	Standard
Oven Lights	2 (Side)
Oven Racks (telescopic)	2
Oven Rack Material	Chrome Plated
Baking Sheet Size	Fits Standard Three-Quarter Sheet Pan
Self Clean (Y/N)	YES
Oven Internal Height	18''
Oven Internal Width	29-3/4''
Oven Internal Depth	19-1/2''
Accessories (Included)	2 Telescopic Racks and 1 Broiler Pan
Accessories (Not Included)	LP Kit Island Trim (RG1022)
