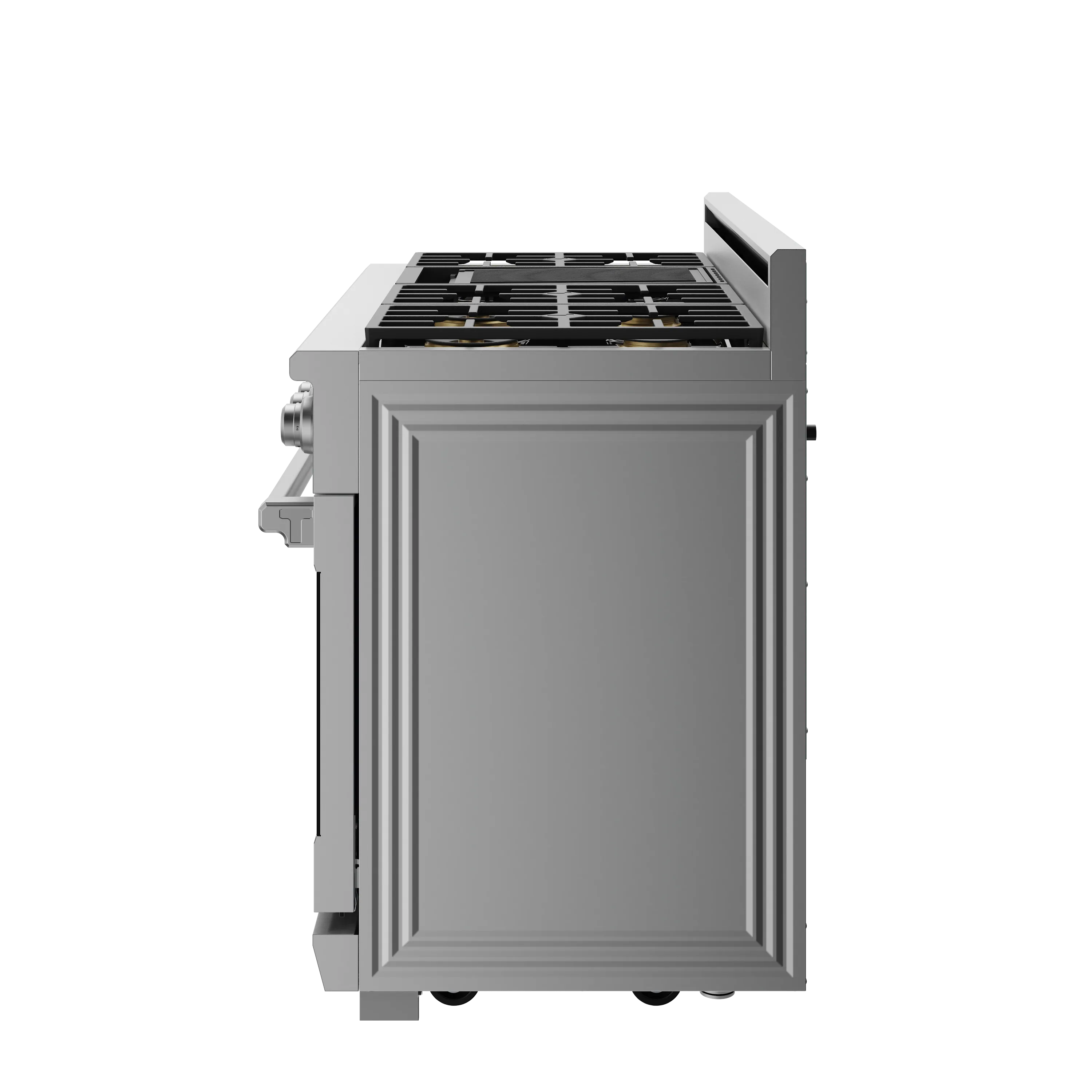

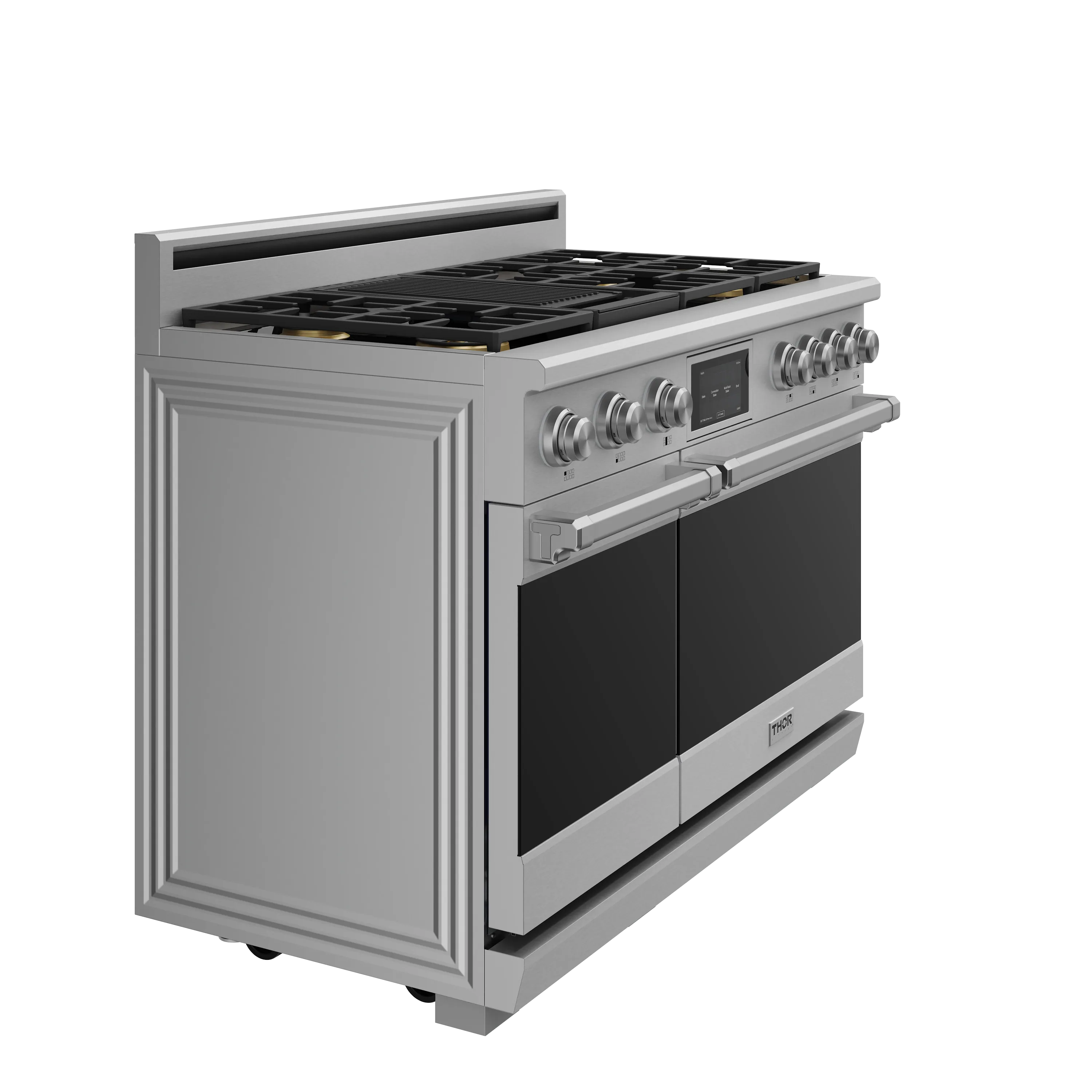

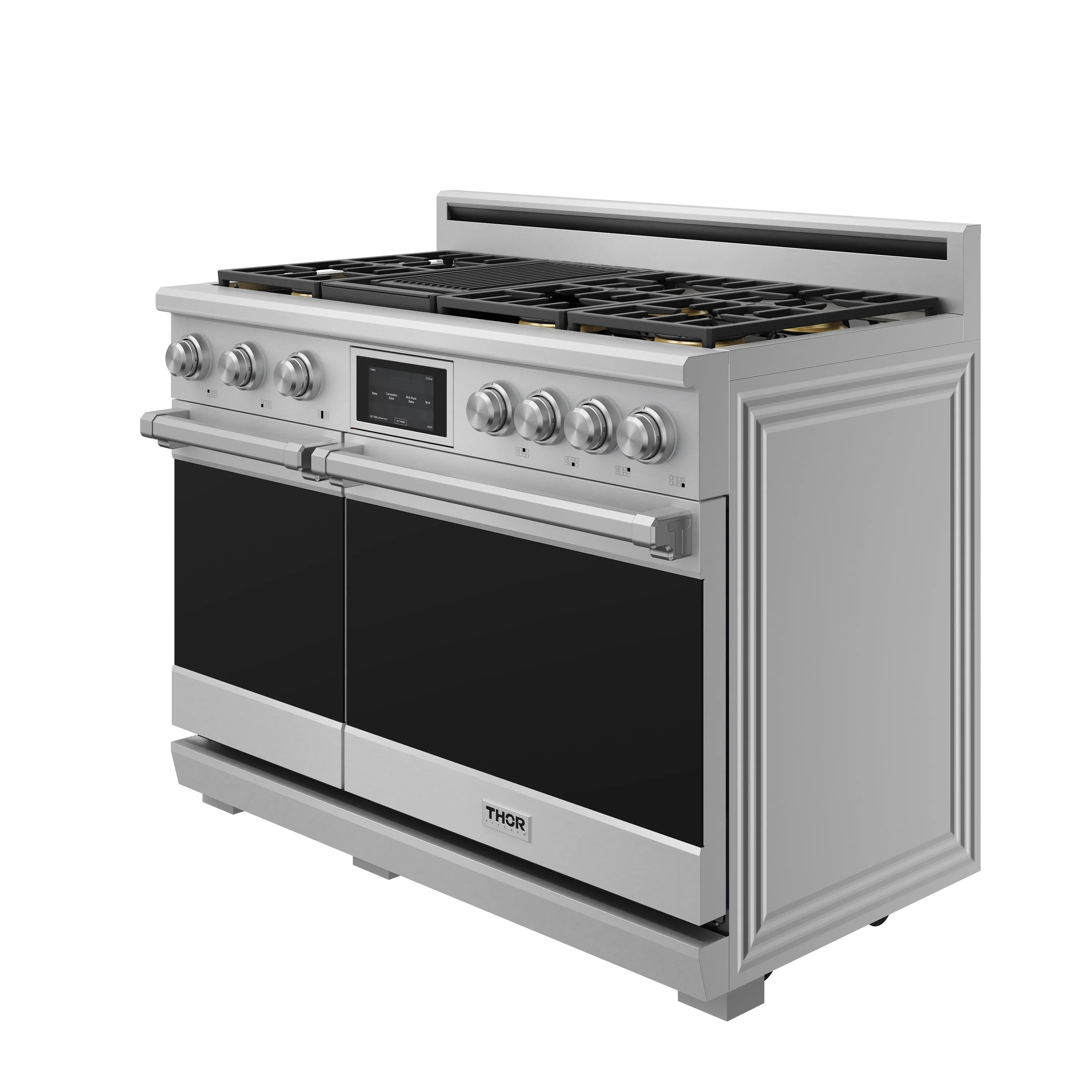

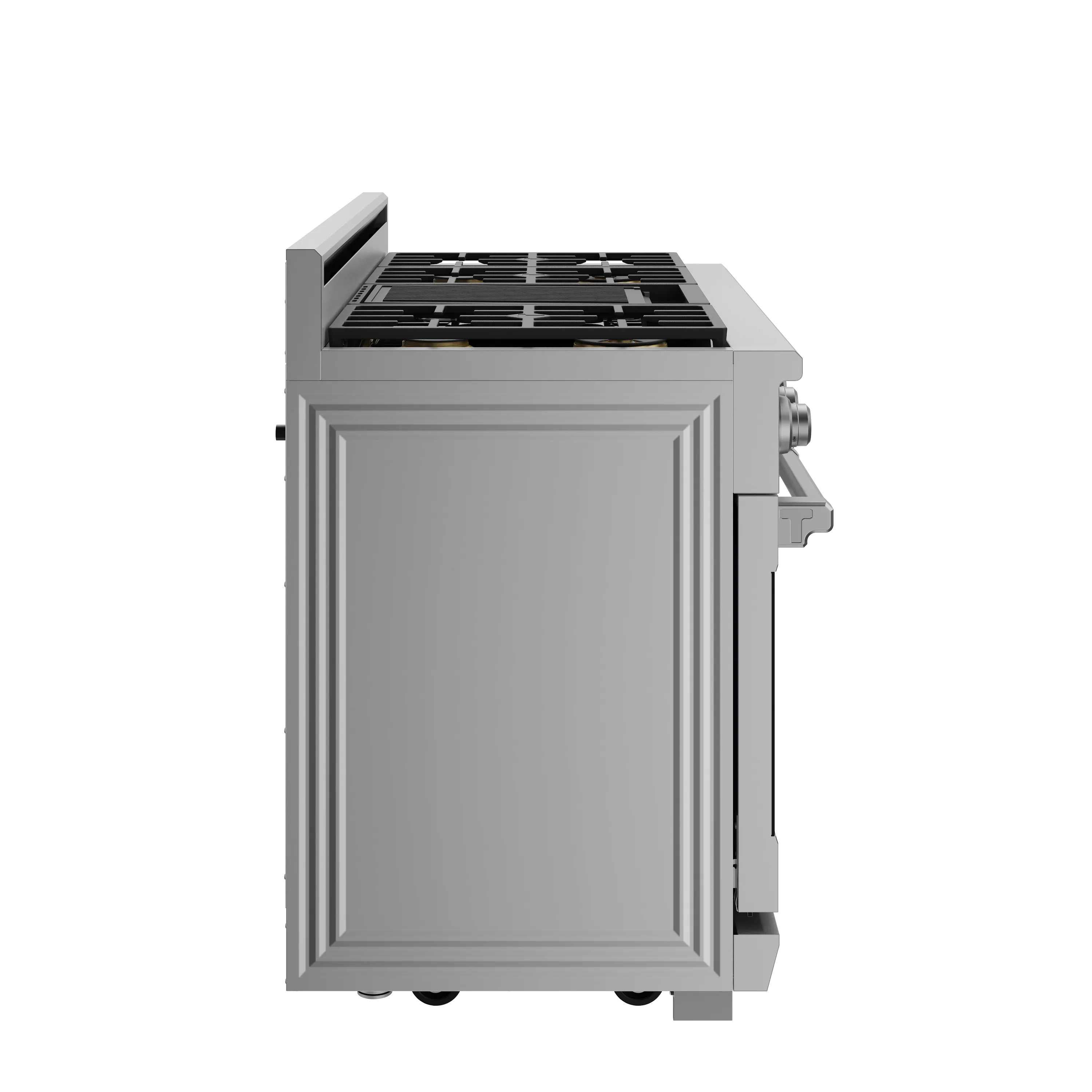

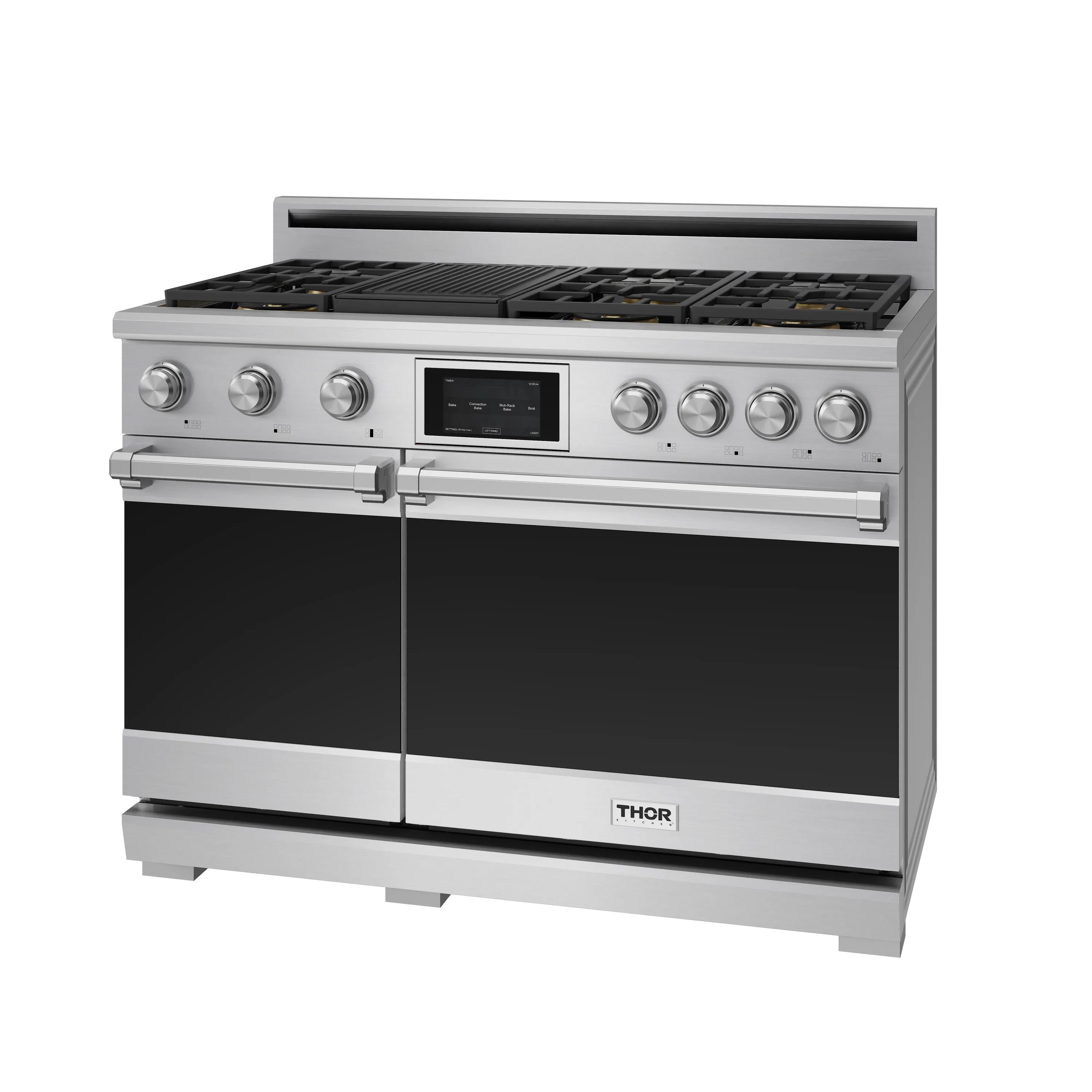

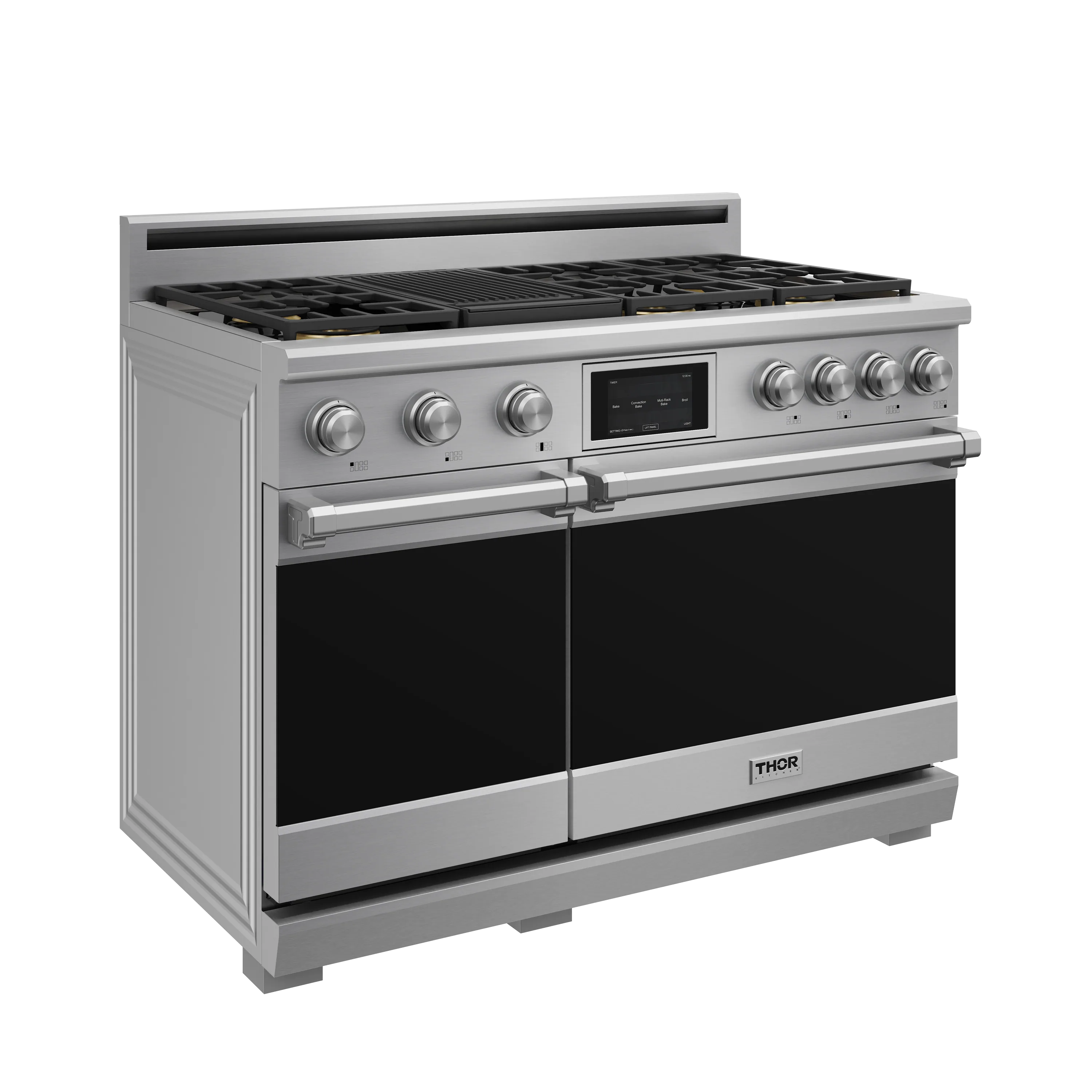

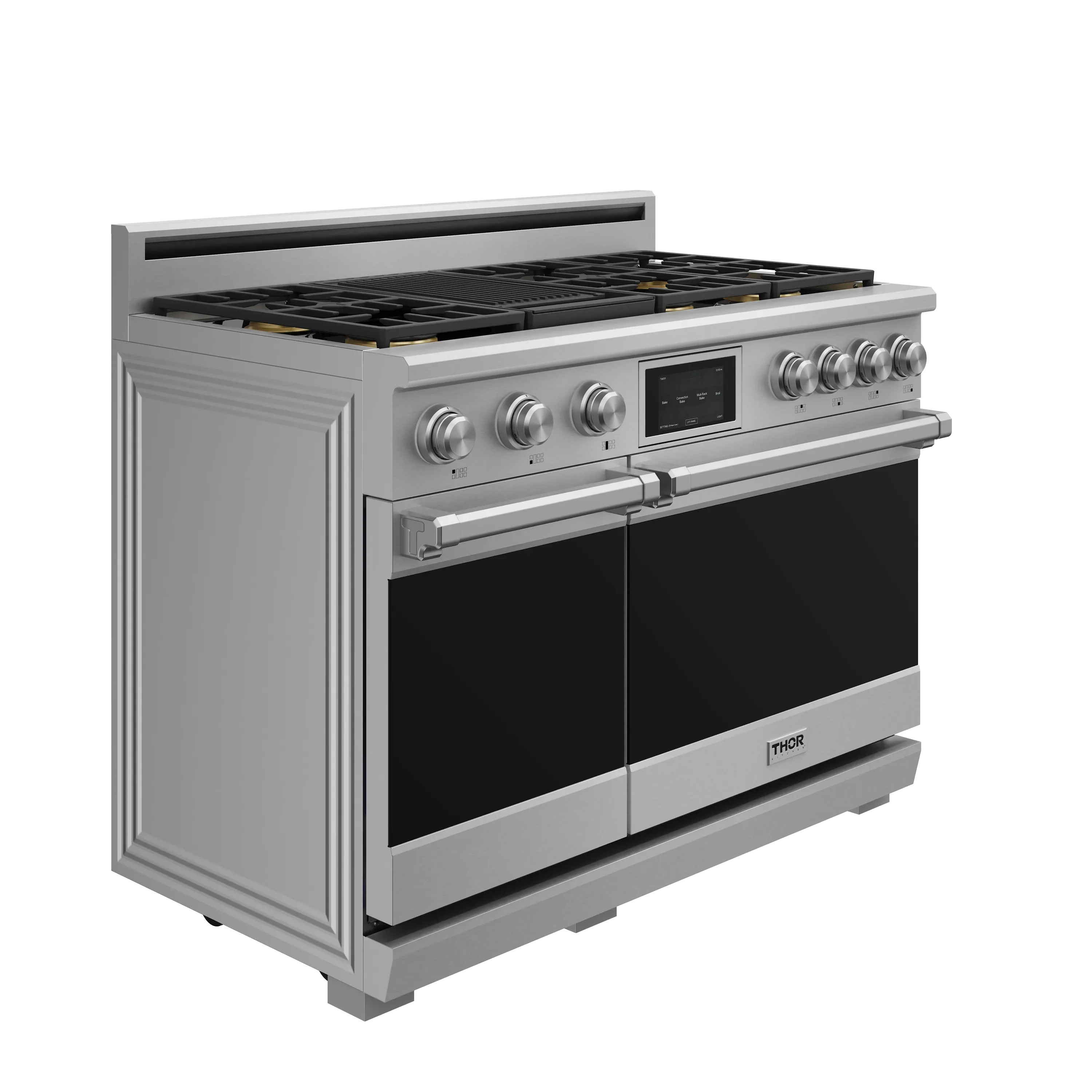

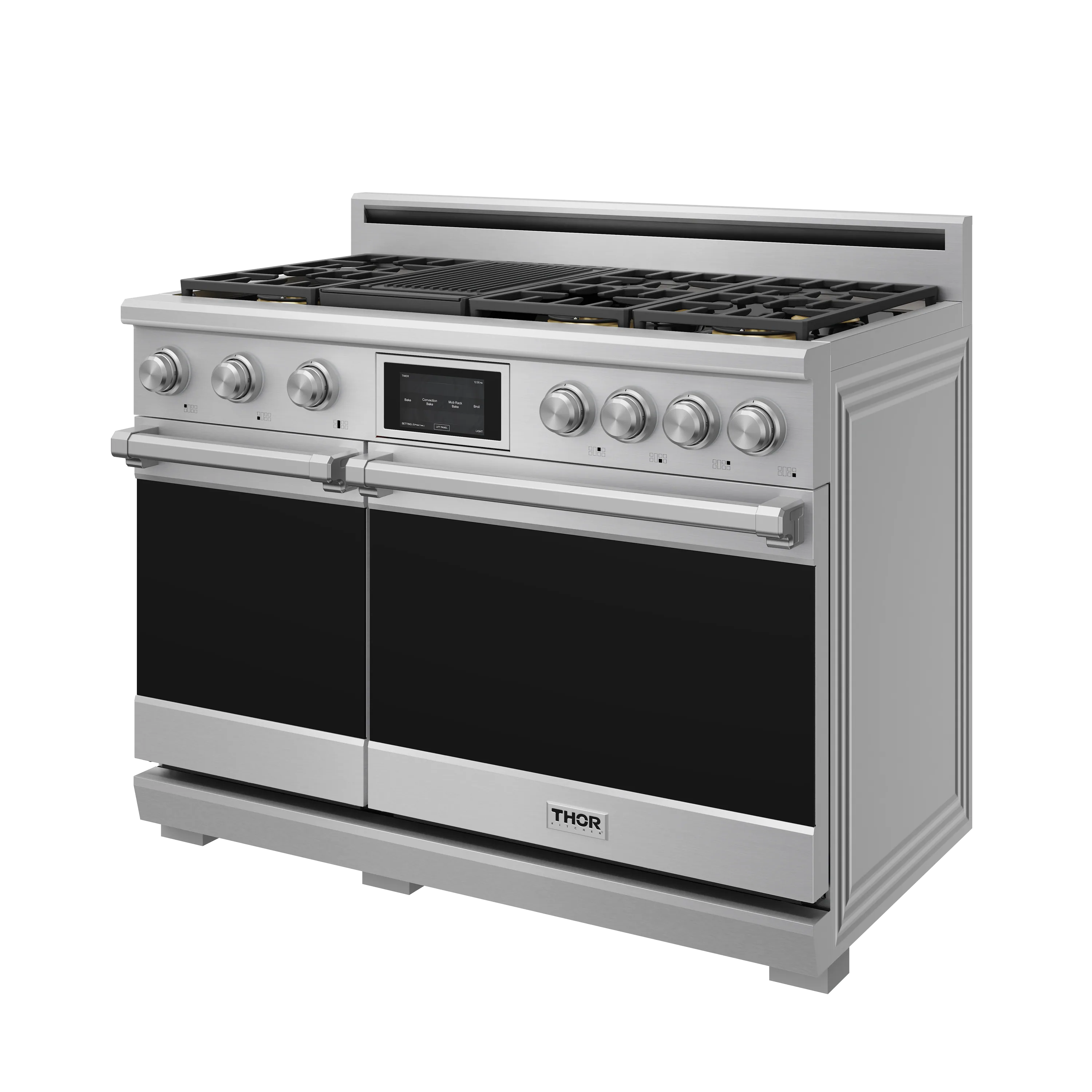

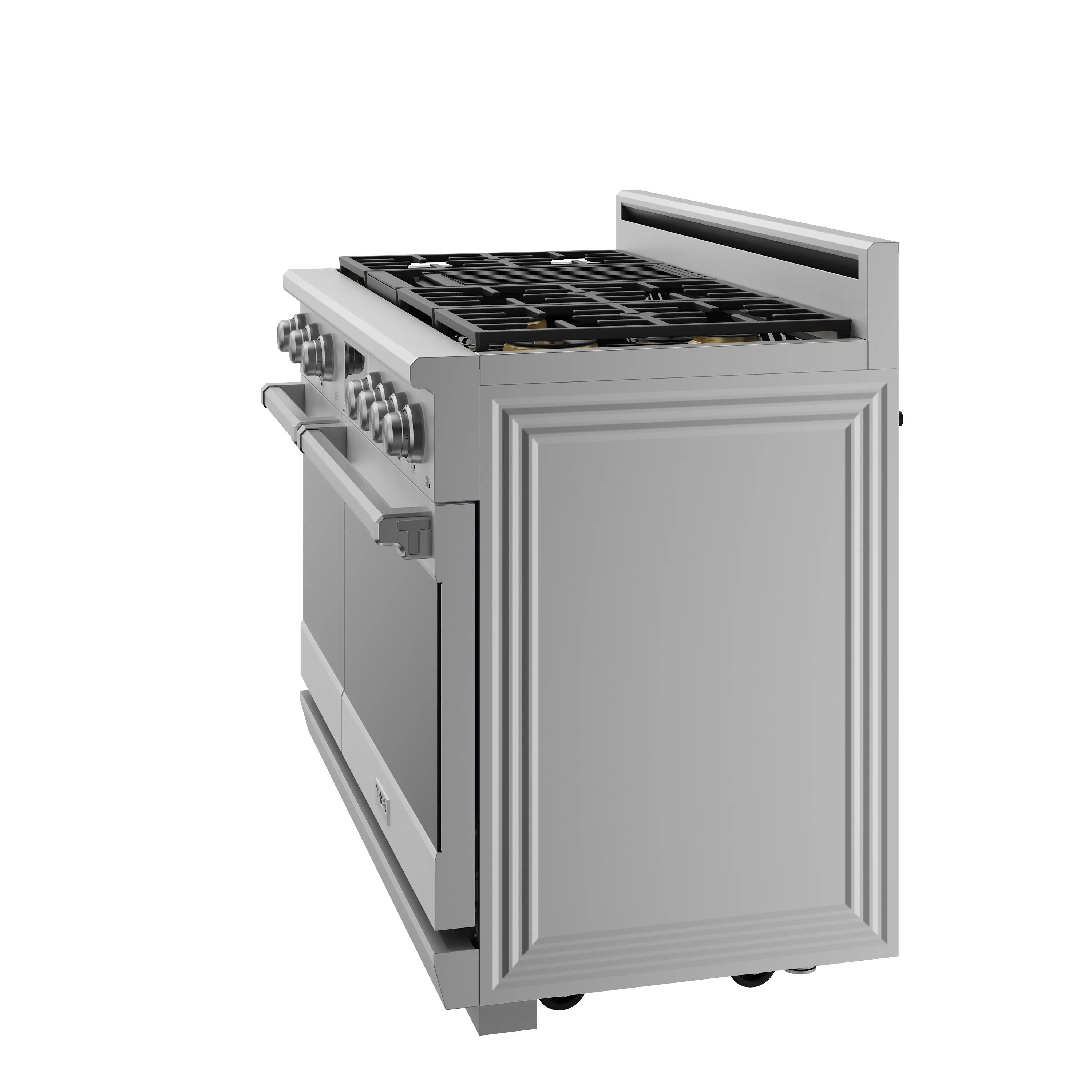

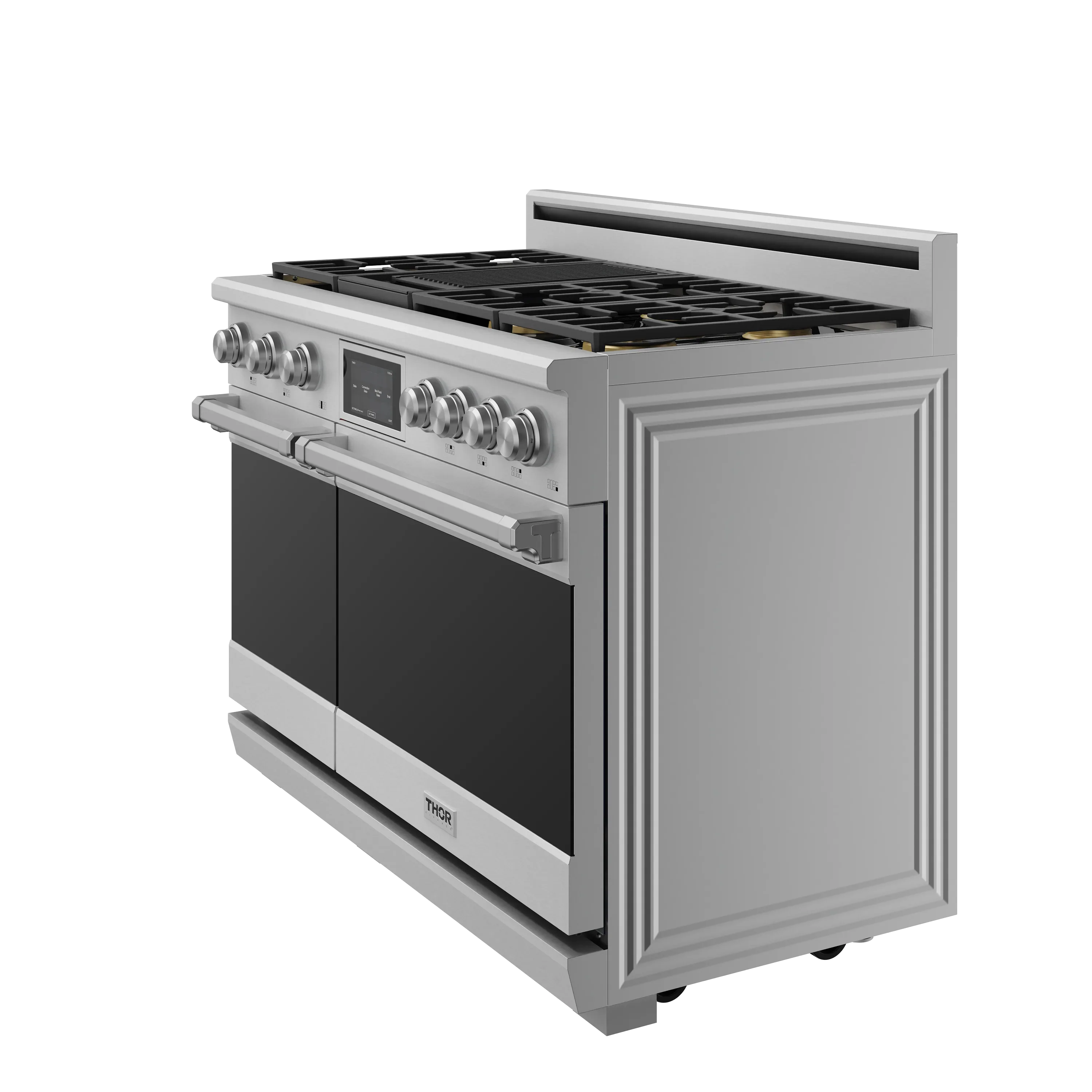

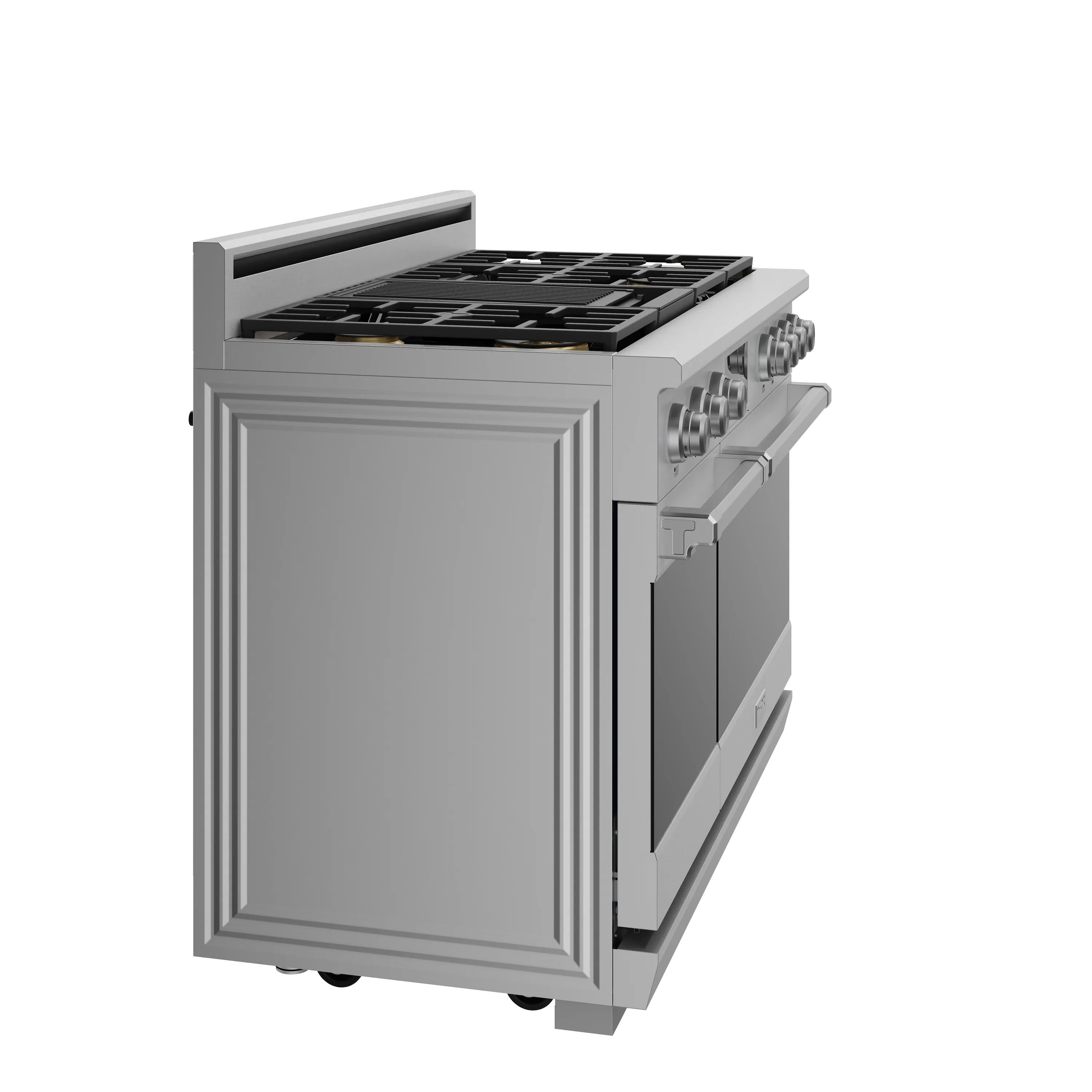

Thor Kitchen 48-Inch Professional Dual Fuel Range - Natural Gas Cooktop with Electric Convection Oven in Stainless Steel (XRD48E)

The 48-Inch Professional Dual Fuel Range (XRD48E) delivers commercial-style performance with refined design for serious home chefs. Featuring powerful Italian brass burners with up to 22,000 BTUs, this range offers exceptional heat for searing, along with precise low simmer control. Blue LED illuminated knobs, continuous cast-iron grates, and automatic re-ignition enhance safety, durability, and ease of use while adding a sleek, professional look to your kitchen.

Designed for versatility and convenience, the double oven configuration (4.8 cu. ft. + 2.8 cu. ft.) allows you to cook multiple dishes simultaneously with independent temperature control. The tilt panel touch control ensures optimal visibility, while multi-function oven modes—including Bake, Roast, Air Fry, Pizza, and Self-Clean—adapt to every cooking need. Luxury features like LuxGlide™ telescopic racks, a soft-close oven door, and built-in casters with leveling legs complete this premium range, delivering effortless operation, flexibility, and professional results every time.

Features

• Tilt Panel Touch Control: A tilt panel touch control is an adjustable control panel that tilts for optimal viewing and ease of use.

• Double Oven: 4.8 cu. ft. + 2.8 cu. ft. - Cook multiple dishes at once using separate large and small ovens, each with independent temperature control.

• Multi-Function Oven: Offers versatile cooking modes including Bake, Roast, Broil, Keep warm, Proof, Pizza, Self-Clean And Airfry

• LuxGlide™ Telescopic Racks: Telescopic racks use ball bearing rack guides for an effortless glide in and out of the oven. This luxury feature allows the rack to extend fully without tipping over for smooth, easy handling of even the heaviest dishes, and adjusts to fit different rack support levels.
• Soft-Close Oven Door: Gently closes for a quieter, more premium cooking experience.
• Built-In Casters and Leveling Legs: Easily reposition the range when needed, then level for a secure fit and seamless countertop alignment.
• Italian Brass Burners with 22,000 BTU Dual Burner: Premium Italian brass burners deliver powerful heat up to 22,000 BTUs and gentle simmer control down to 1,000 BTUs.
• Blue LED Illuminated Knobs: Sleek, backlit knobs provide a clear visual cue when burners are in use, enhancing safety and modern style—even visible from across the kitchen.
• Continuous Cast-Iron Grates: Heavy-duty grates provide a seamless surface for easy pan movement and pro-style durability.
• Automatic Re-ignition Feature: Automatic re-ignition feature relights an extinguished flame for safer cooking.

Dimensions
Product Dimensions (WxDxH) (in.)	48" x 24-3/4" x 36-1/8"
Product Height (from bottom to top of back splash) (in.)	41-3/8"
Product Height (from bottom to top of side panel) (in.)	32-7/8"
Product Depth (from back panel to bullnose) (in.)	28-1/2"
Product Depth (from back panel to control panel) (in.)	27-1/4"
Product Depth (from back panel to side panel front) (in.)	24-3/4"
Cutout Dimensions (WxDxH) (in.)	48" x 24" x 36"
Adjustable Leg Sizes	2"
Net Weight (lbs.)	398
Gross Weight (lbs.)	470
Package Dimensions (WxDxH) (in.)	51-3/8" x 30-1/8" x 49"
Cooktop Burner Configuration
Total Number of Cooktop Burners	7
(1) Front Left Burner	22000 BTU (Dual) Simmer 1000
(2) Front Right Burner	22000 BTU (Dual) 'Simmer 1000
(3) Front Center Burner	22000 BTU (Dual) Simmer 1000
(4) Griddle Burner	9000 BTU
(5) Rear Left Burner	15000 BTU
(6) Rear Right Burner	12000 BTU
(7) Rear Center Burner	15000 BTU
Oven Performance
Oven Capacity	4.8 cu. ft. and 2.2 cu. ft.
Oven Control Features	Oven Light Control, Cook Time, Timer, Delay Start, Self Clean, Control Lock, Sabbath Mode, Temperature Unit
Cooking Modes	Bake, Convection Bake, Multi-Rack Bake, Broil, Convection Roast, Warm, Pizza, Air Fry, Proof, Meat Probe
Bake Burner Power	30" Oven: 3000 Watt | 18" Oven: 2500 Watt
Broil Burner Power	30" Oven: 3000 Watt | 18" Oven: 2500 Watt
Convection	True Convection Fan
Convection Element Power	30" Oven: 1300 Watt | 18" Oven: 1300 Watt
Oven Lights	30" Oven: 2 | 18" Oven: 1
Oven Racks	30" Oven: Telescopic Racks x2 | 18" Oven: Standard Racks x2
Oven Rack Material	Chrome Plated
Baking Sheet Size	30": Fits Standard Half Sheet Pan | 18": Fits Standard Quarter Sheet Pan
Self Clean (Y/N)	Yes
Air Fry	Yes
Oven Internal Height	18"
Oven Internal Width	30" Oven: 23-3/4" | 18" Oven: 12-5/8"
Oven Internal Depth	19-1/2"
