Victory Jupiter Ductless Island Mount Range Hood in Stainless Steel (JUPITER)

Victory Jupiter Ductless Island Mount Range Hood in Stainless Steel (JUPITER)

The Victory Jupiter is a unique modern styled ductless range hood island range hood designed for kitchens that have no ducting. This ductless range hood has two charcoal filters attached to the motor to filter out smoke and odor before it exhausts out of the top back into your kitchen.

This ductless range hood comes equipped with a powerful 600CFM blower and is recommended for 30" cooktops, making it suitable for most kitchens. The mounting cables on this ductless range hood can also accommodate 8'-10' ceilings. For lighting the Victory Jupiter ductless range hood comes with two bright 5000K LED's.

Features

• Ductless Recirculating Range Hood

• 600 CFM Blower

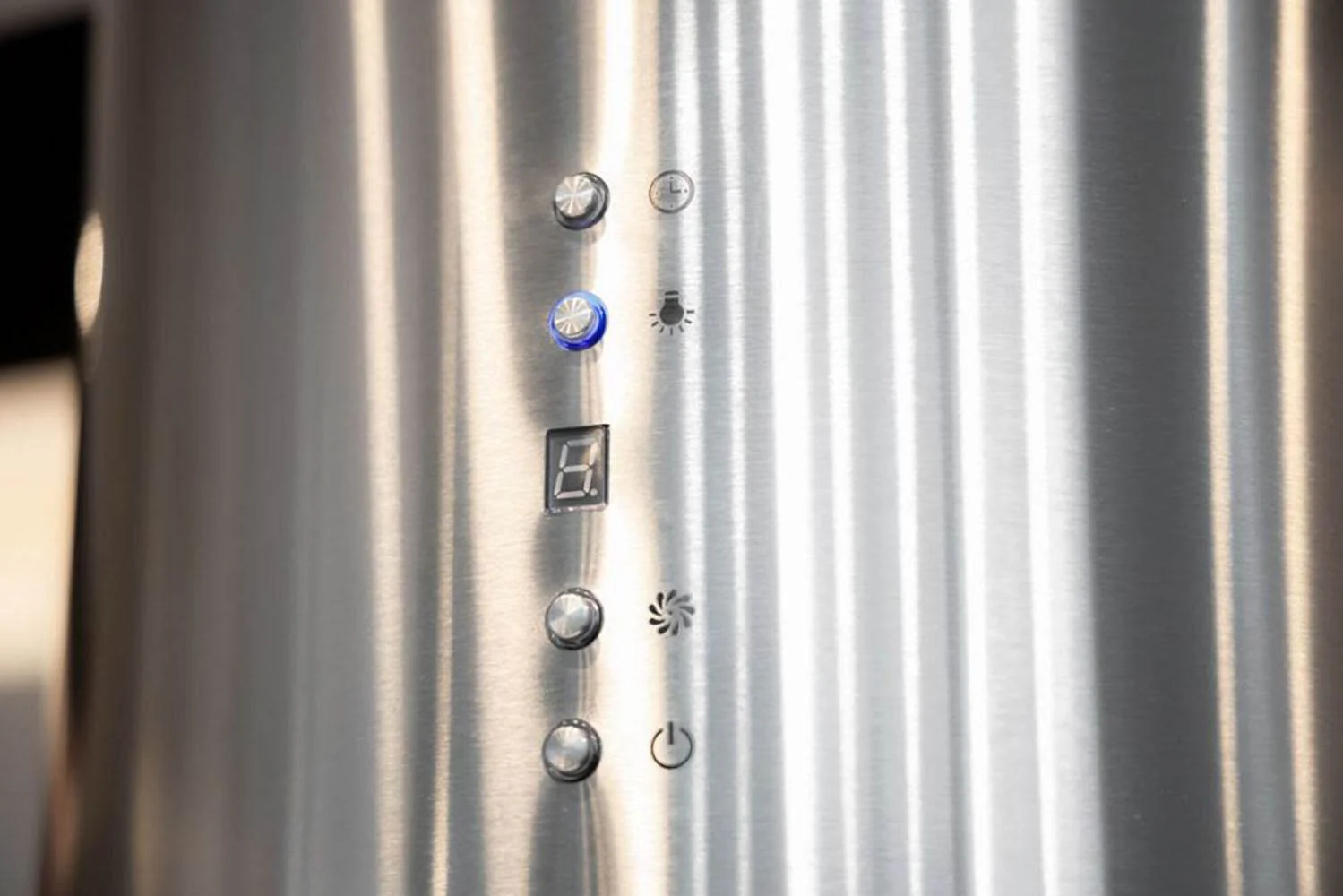

• 3 Speed Electronic Push Button Switch

• Auto Shut-off Timer

• 2 Bright LED Lights

• 6" Round Duct

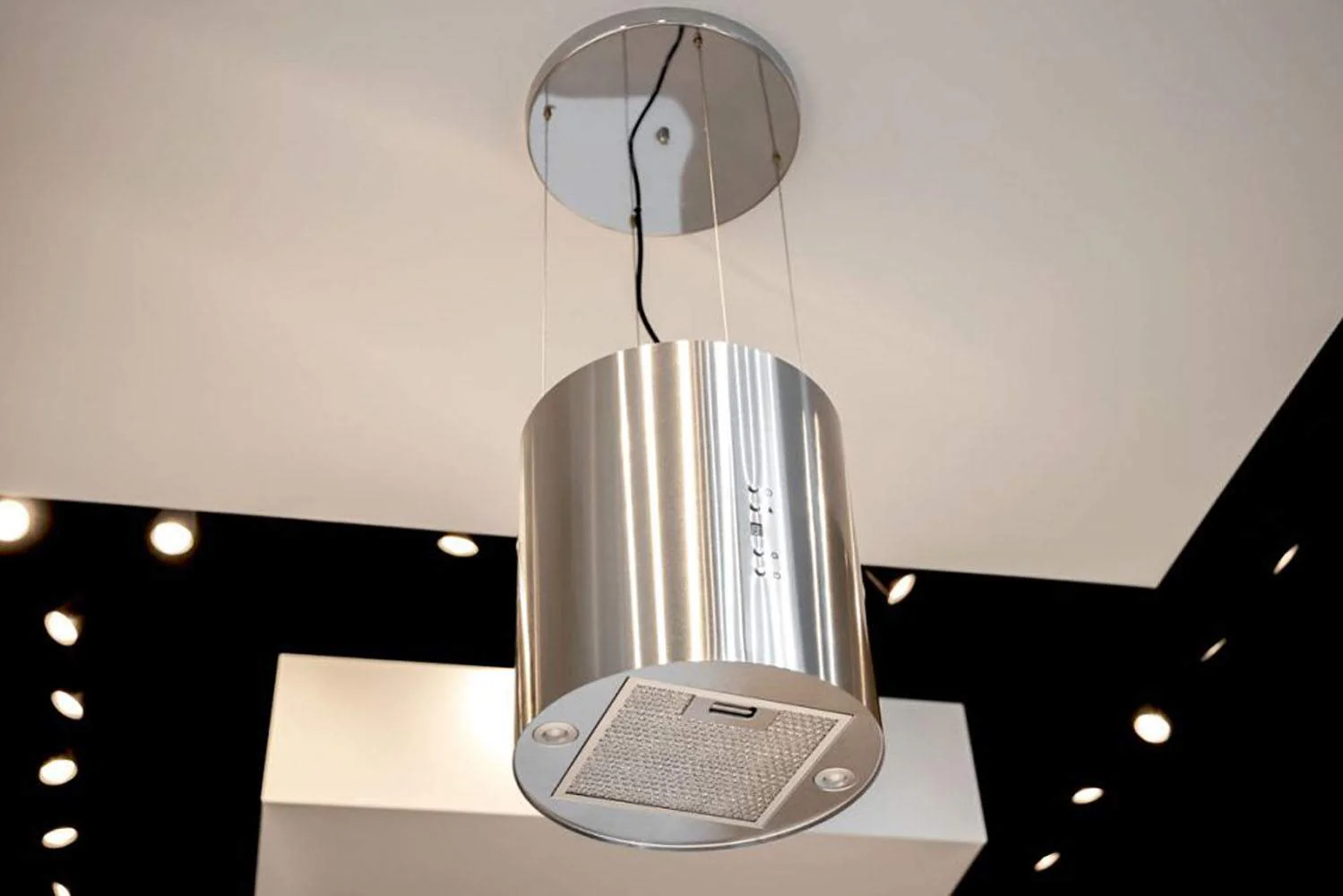

• Adjustable Mounting Cables for 8'-10' Ceilings

• Made with 19 Gauge Stainless Steel

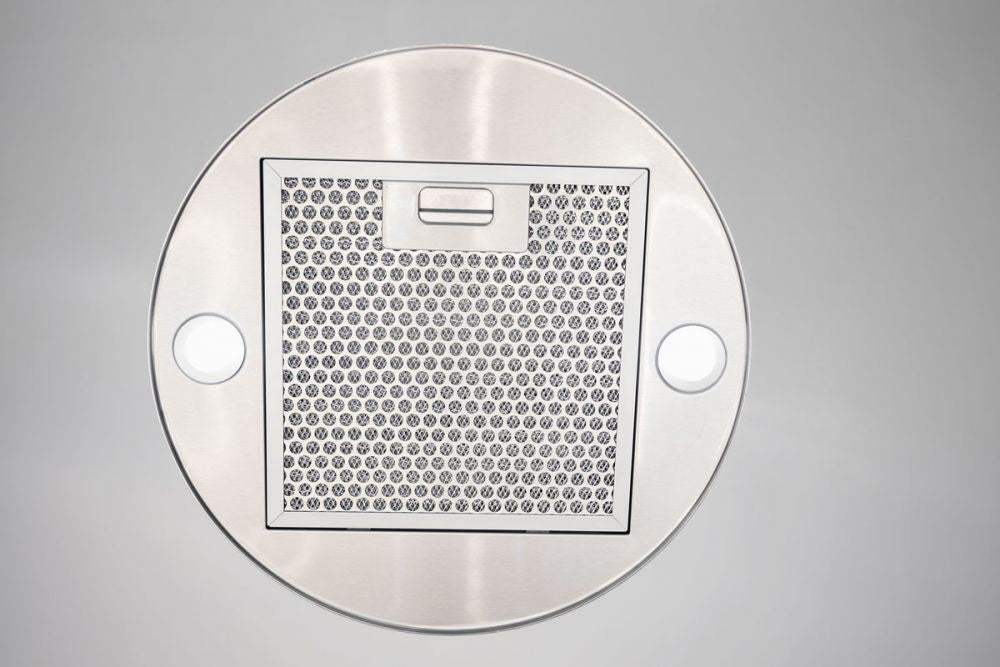

• Aluminum Mesh Filters with Stainless Steel Shield

• One Year Parts Warranty

Body	Design
Seamless	Stainless Steel, Brushed Finish
Power	Rating
120V/60Hz	(USA & Canada standard)
General	Input Power 122 W (120W +2 x 1W)
Motor	Input Power 120W
‘Ampere	4A
Levels	Of Speed Control 3 Levels
Airflow’	(Q/M/H) 200 CFM / 400 CFM / 600 CFM
Noise	Level (Q/M/H) 1.0 Sone /3.5 Sone /5.5 Sone
Number	Of Motors ‘Single Motor
Motor	Type ‘Single Chamber Ultra Quiet
Fan	Type Centrifugal Squirrel Cage
Control	Type Remote control and Electronic Control Panel
Filtration	Type 1 Aluminum Mesh Grease Filter and 2 Charcoal Filters
lilumination	2x LED 1W 12v
Venting	Type Recirculated

Installation Guide & User Manual

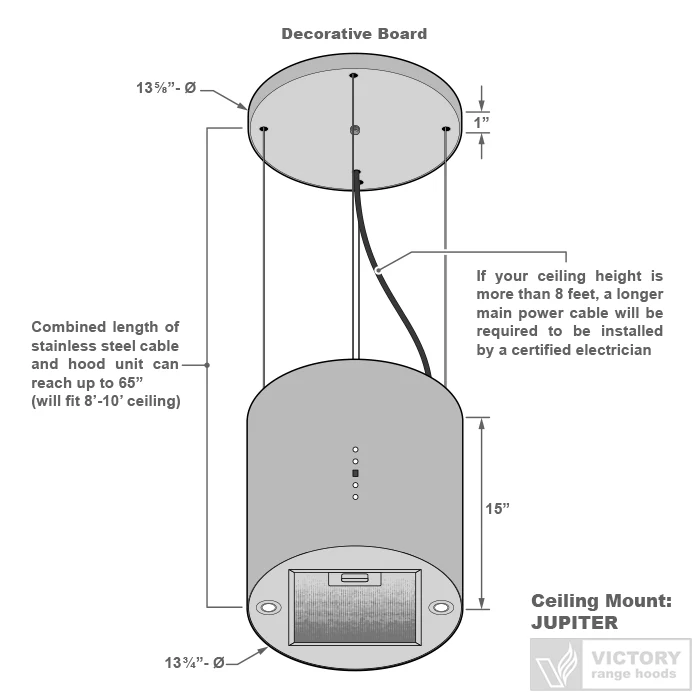

Dimensions Diagram
