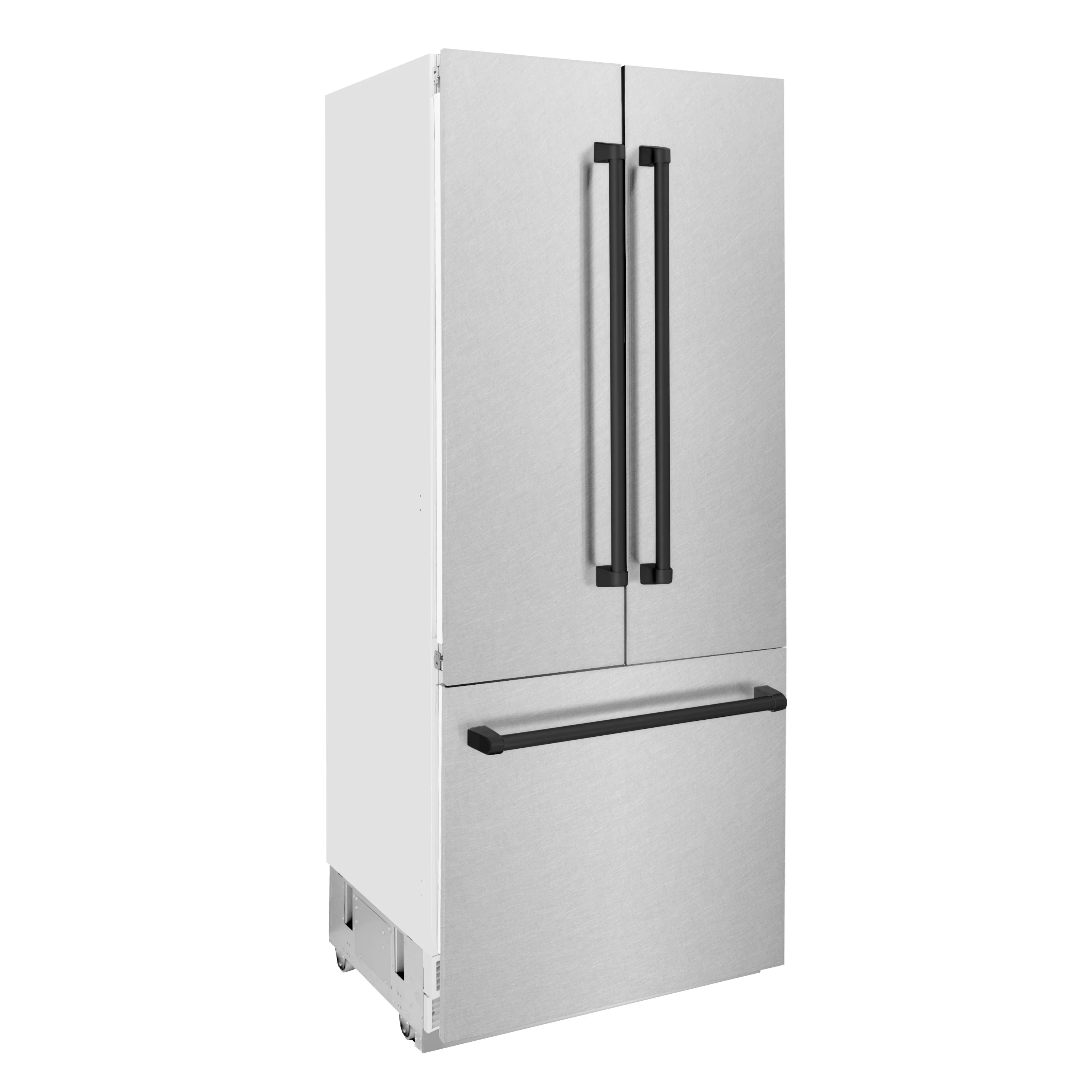

ZLINE 36-Inch Autograph Edition 19.6 cu. ft. Built-in 2-Door Bottom Freezer Refrigerator with Internal Water and Ice Dispenser in Satin Stainless Steel with Matte Black Accents (RBIVZ-SN-36-MB)

Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE Autograph Edition 36 in. 19.6 cu. ft. French Door Built-In Bottom Freezer Refrigerator with Water Dispenser and Ice Maker in Satin Stainless Steel with Matte Black Accents (RBIVZ-SN-36-MB) provides the ultimate upgrade to the center of your home by pairing premium dual cooling technology with enhanced storage capacity for multiple grocery items. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen’s cooling and freezing capability.



Features

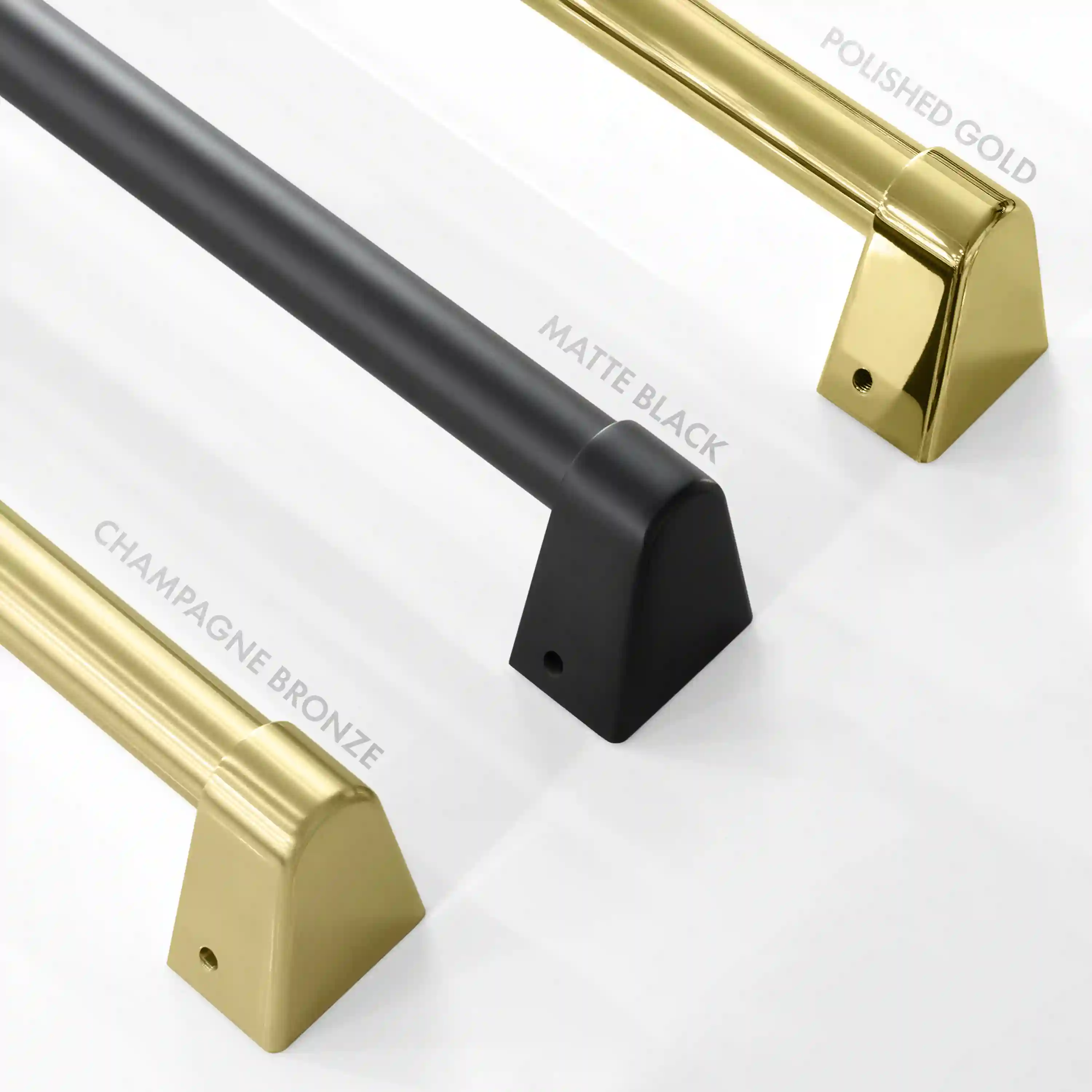

• Autograph Edition Series - Enjoy a timeless look with 3 luxurious Matte Black accent handles, giving your built-in refrigerator an elegant, unmatched style
• Custom Door Panel Finish - Create a timeless look in your kitchen with a true flush installation paired with elegant Satin Stainless Steel door panels that deliver superior durability

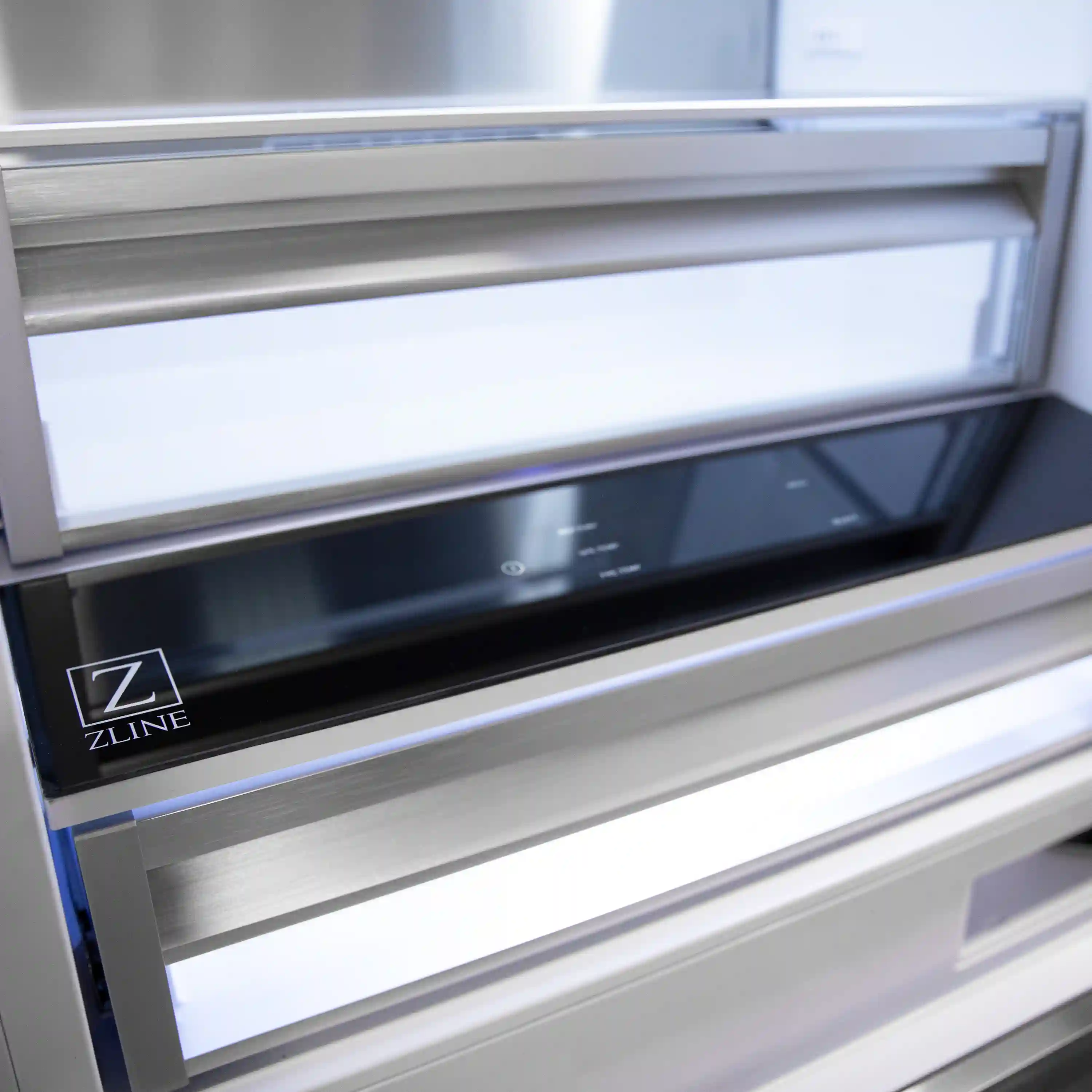

• Flex Drawer - A specialty flex drawer features 4 set temperature options between 30°F and 41°F, perfect for chilling wines, specialty meats, and other items for any occasion
• Spacious Storage - Comfortably organize multiple grocery items inside a 14.2 cu. ft. refrigeration compartment and 5.6 cu. ft. freezer compartment — totaling 19.8 cu. ft. of interior capacity
• Bright White Interior - Achieve ZLINE Attainable Luxury® excellence by pairing best-in-class freshness with Bright White interior units featuring exceptional dual cooling technology

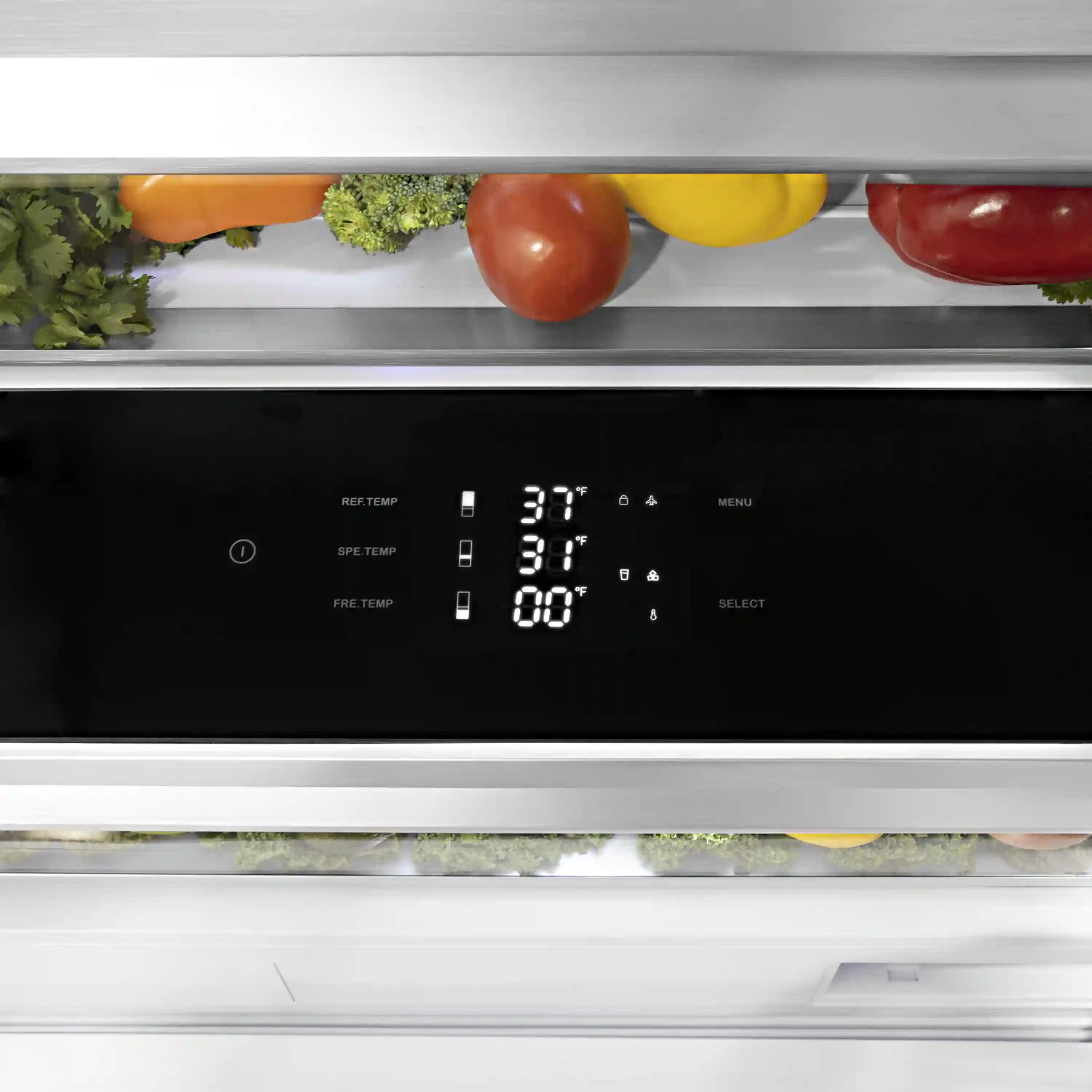

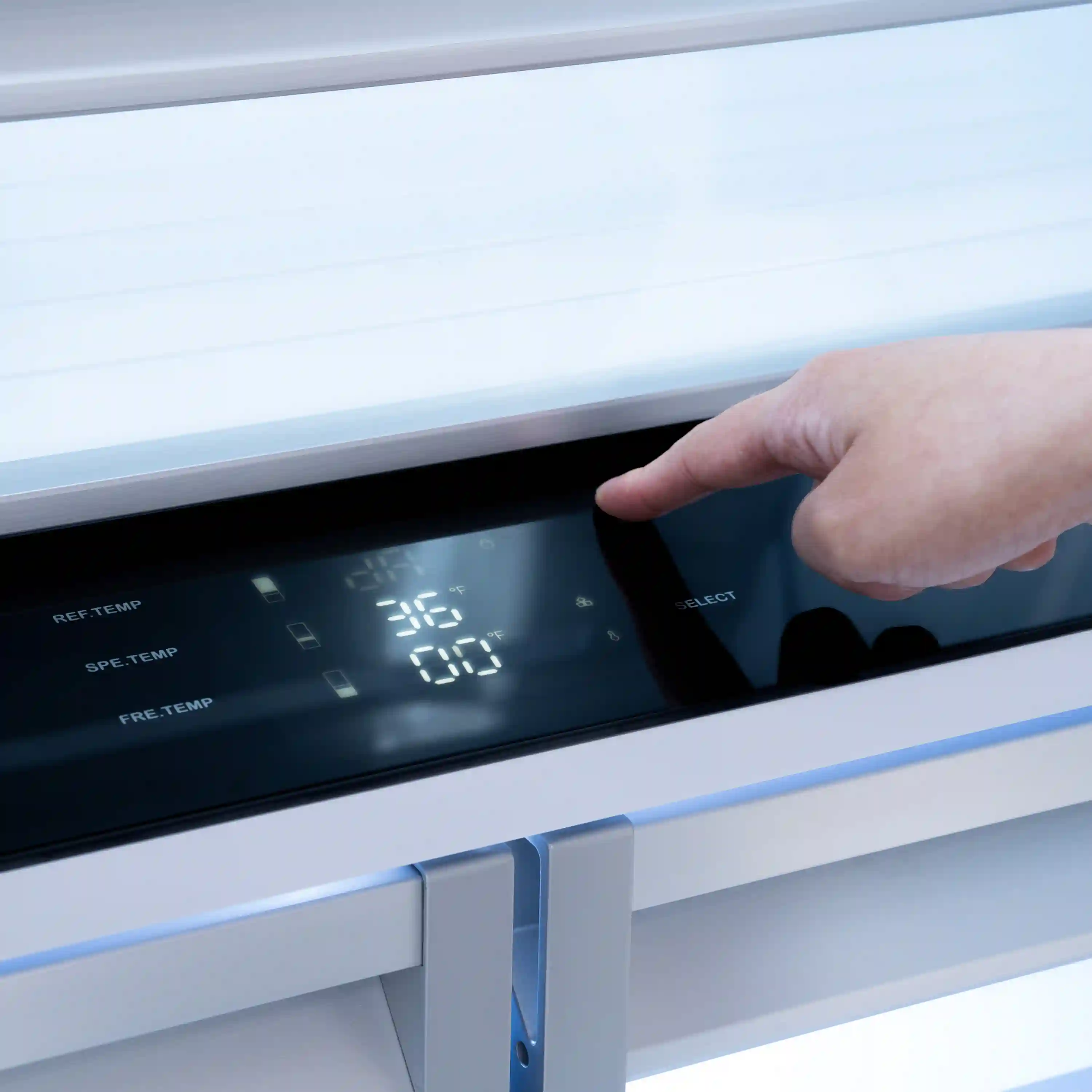

• Digital ChillControl - An ergonomic LED display allows you to quickly change temperatures and navigate menu options to change the appliance to vacation, sabbath, or eco modes
• Adjustable Temperatures - Create the perfect cooling environment with fridge temperatures ranging from 35°F to 46°F and freezer temperatures ranging from -11°F to 5°F

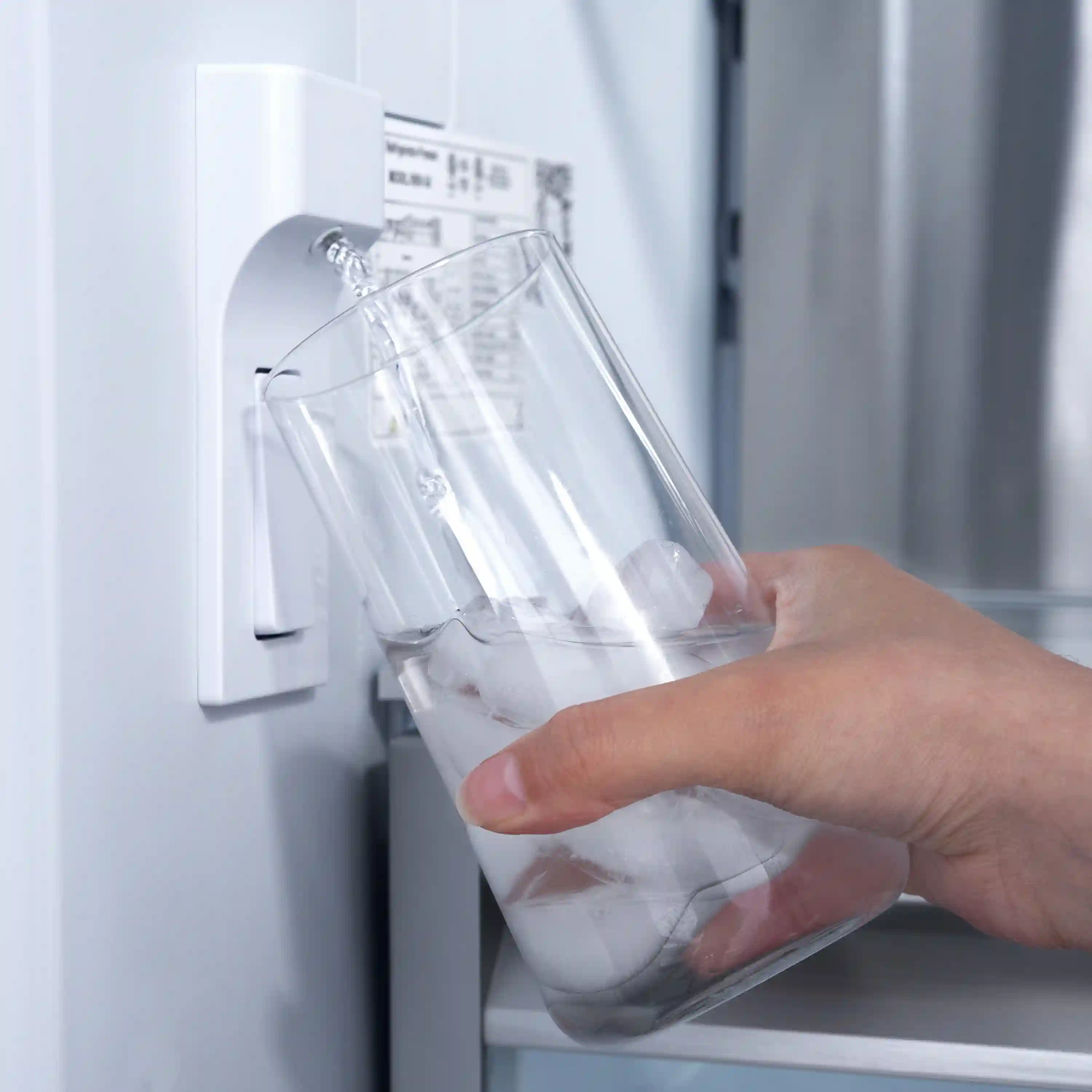

• Water Dispenser and Ice Maker - Deliver fresh, filtered water discreetly from a water dispenser in the fridge and produce up to 4 pounds of daily ice with an automatic ice maker in the freezer
• Soft-Shut Technology - Smooth-closing fridge drawers seamlessly open and close ensuring heavily used components are enjoyed for years to come
• Satin Stainless Steel - ZLINE's proprietary non-directional Satin Stainless Steel is an everlasting finish that is scratch-resistant and fingerprint-resistant

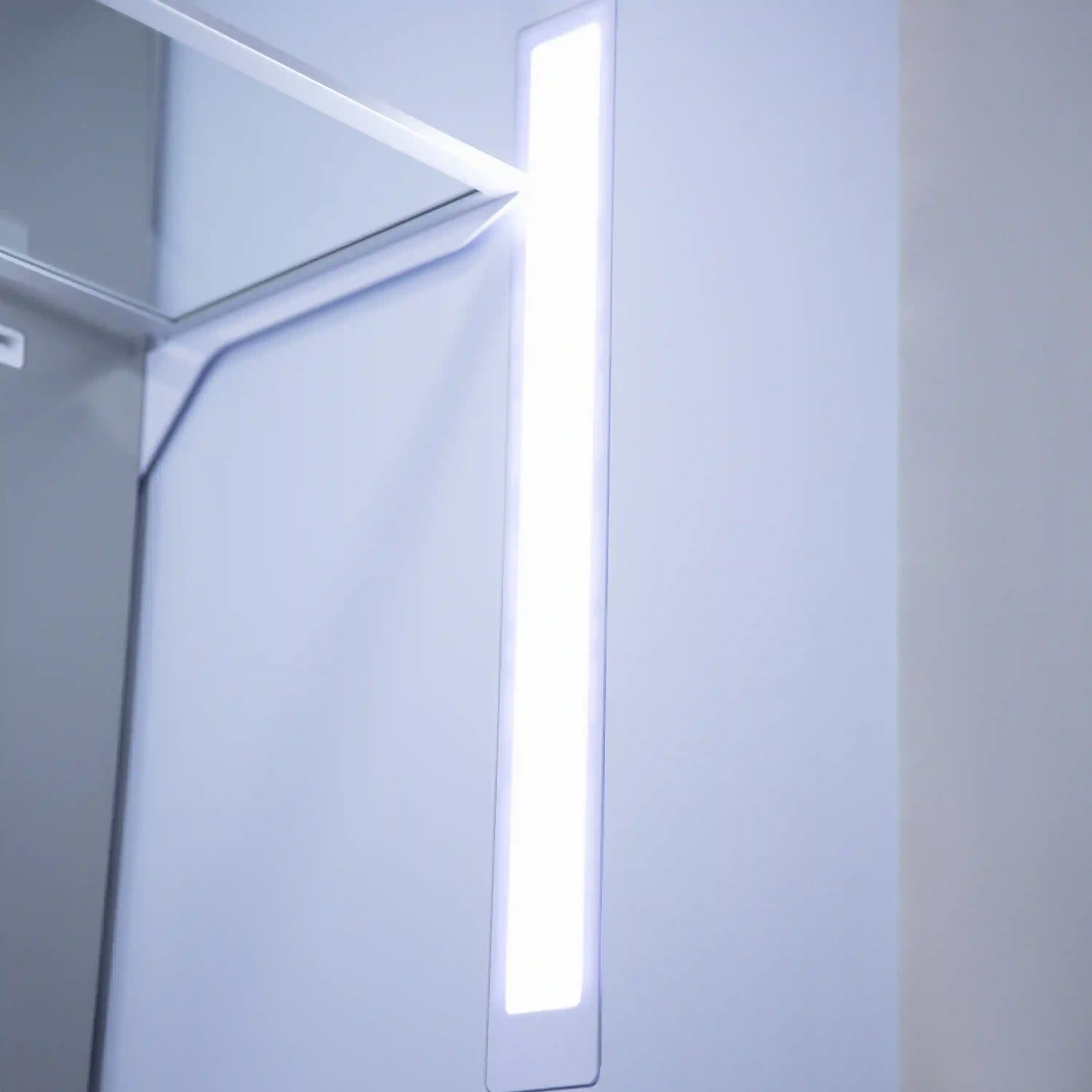

• LED Illumination - Easily spot items inside the fridge thanks to cool white LED interior lights along the walls and ceiling that illuminate when you open the door

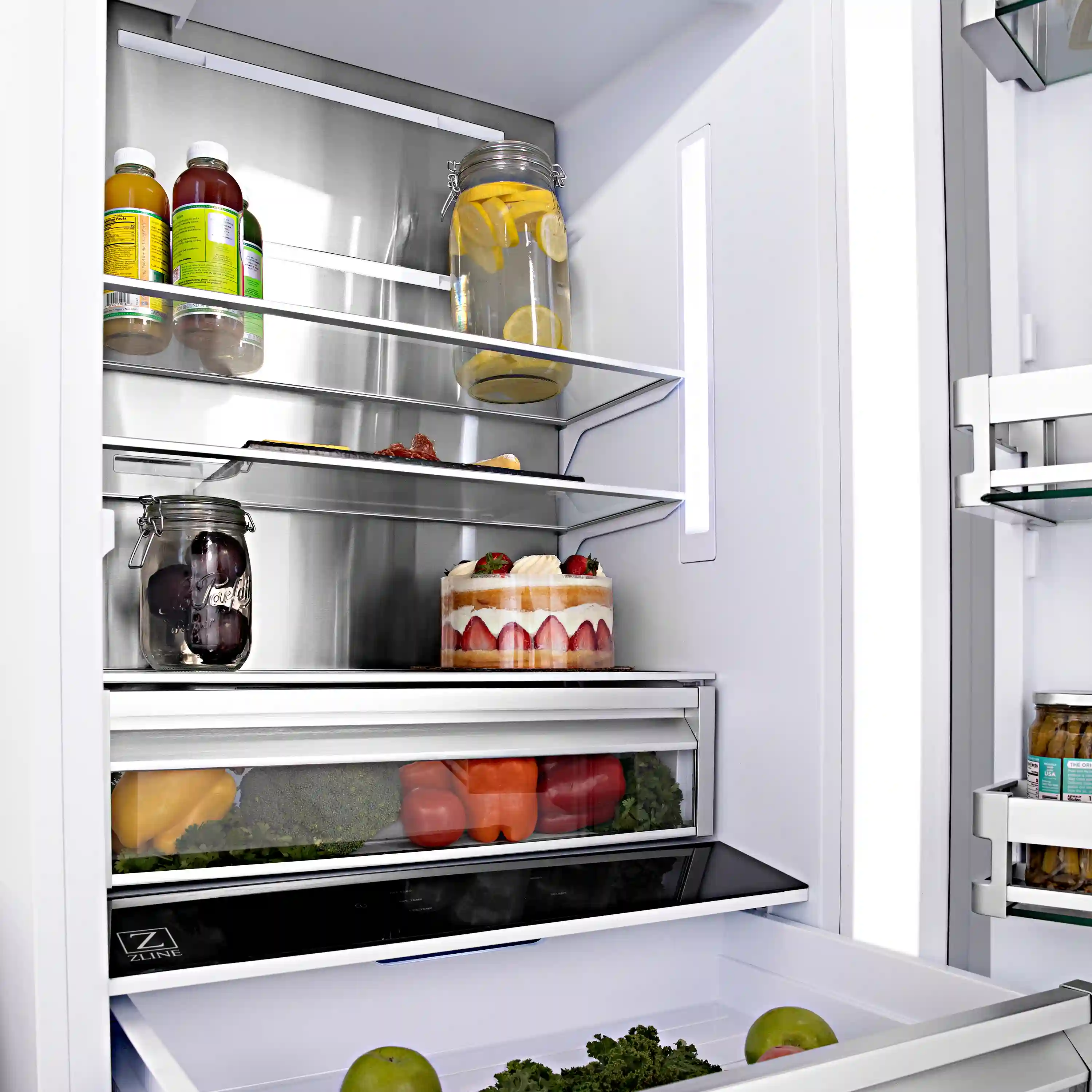

• Full-Width Pantry Drawer - A full-width pantry drawer provides substantial storage for fruits, vegetables, and other food items you want to keep fresher longer

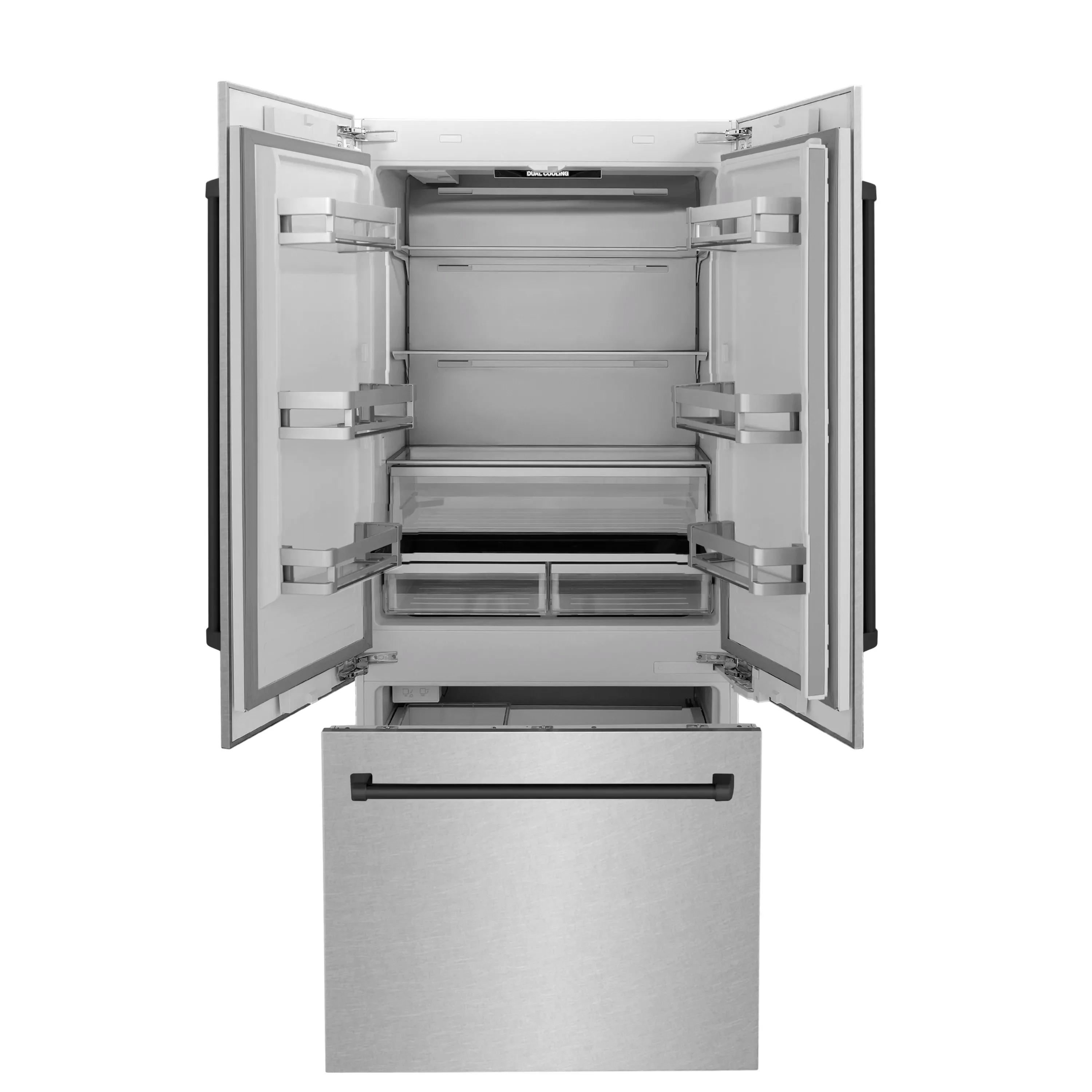

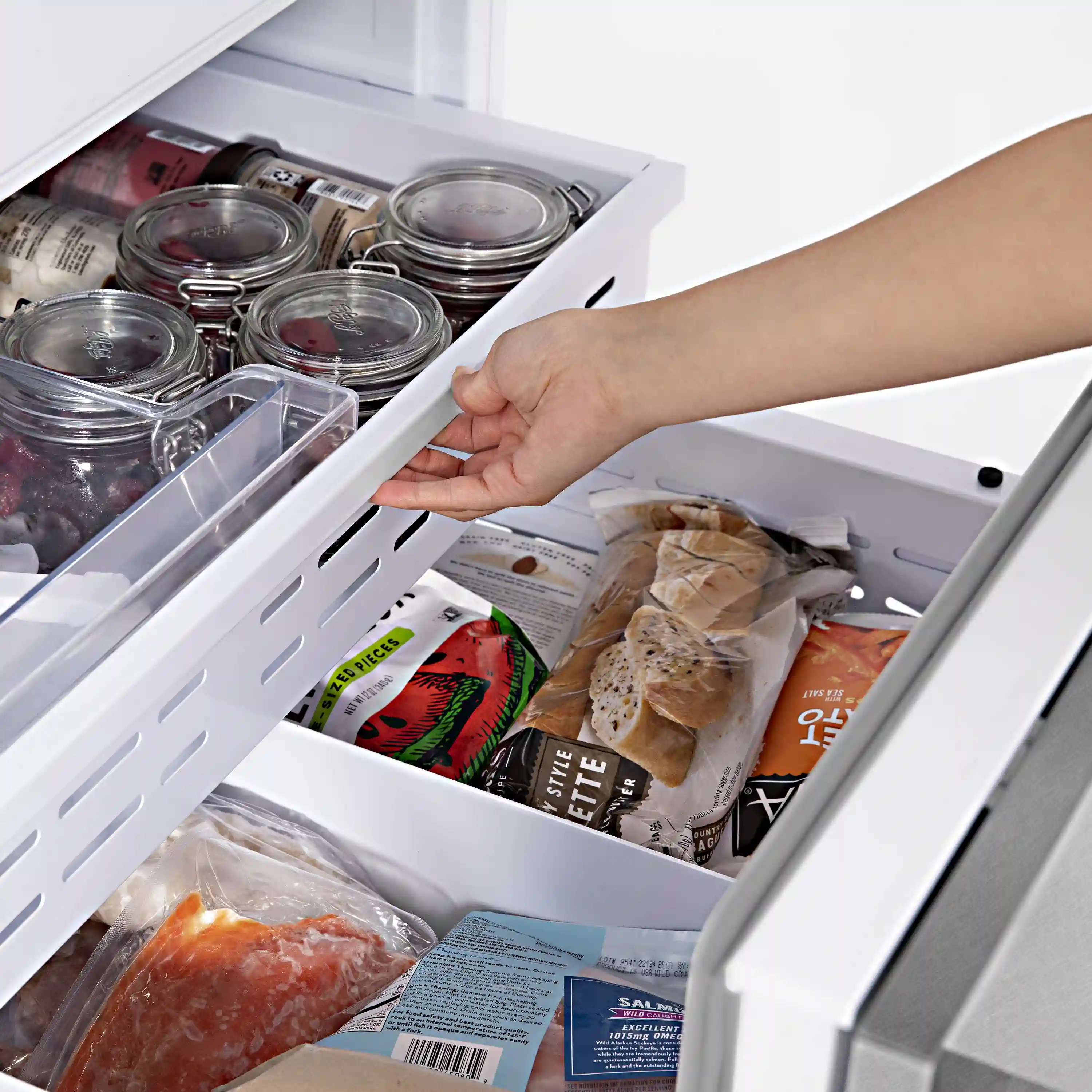

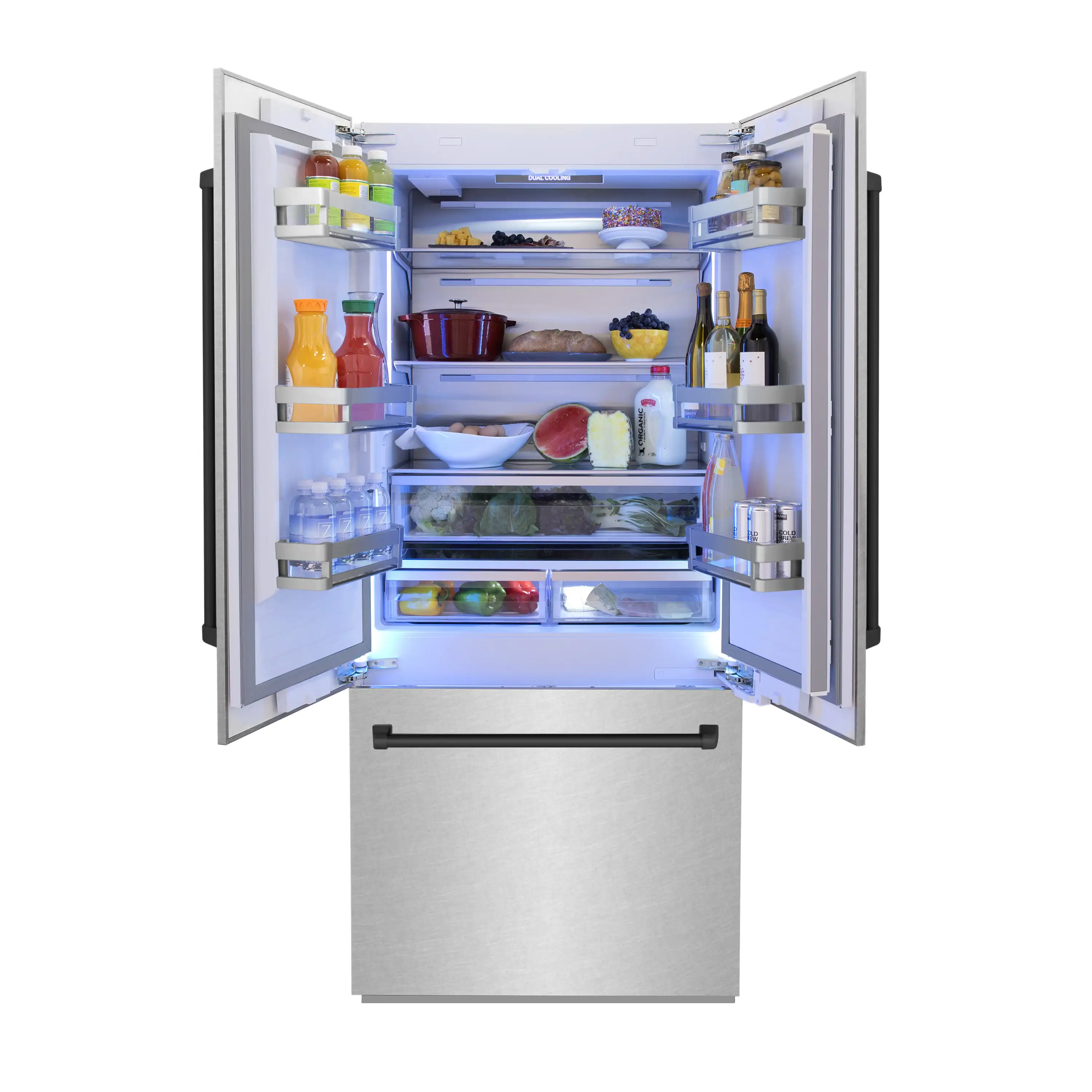

• Adjustable Shelves and Bins - Easily store larger items with 3 spill-resistant glass shelves and 3 door bins in the fridge, as well as 2 full-extension drawers in the freezer
• Super Cool and Super Freeze Modes - Save time and quickly chill food with unique functions that automatically set the fridge temperature to 35°F and freezer to -12°F

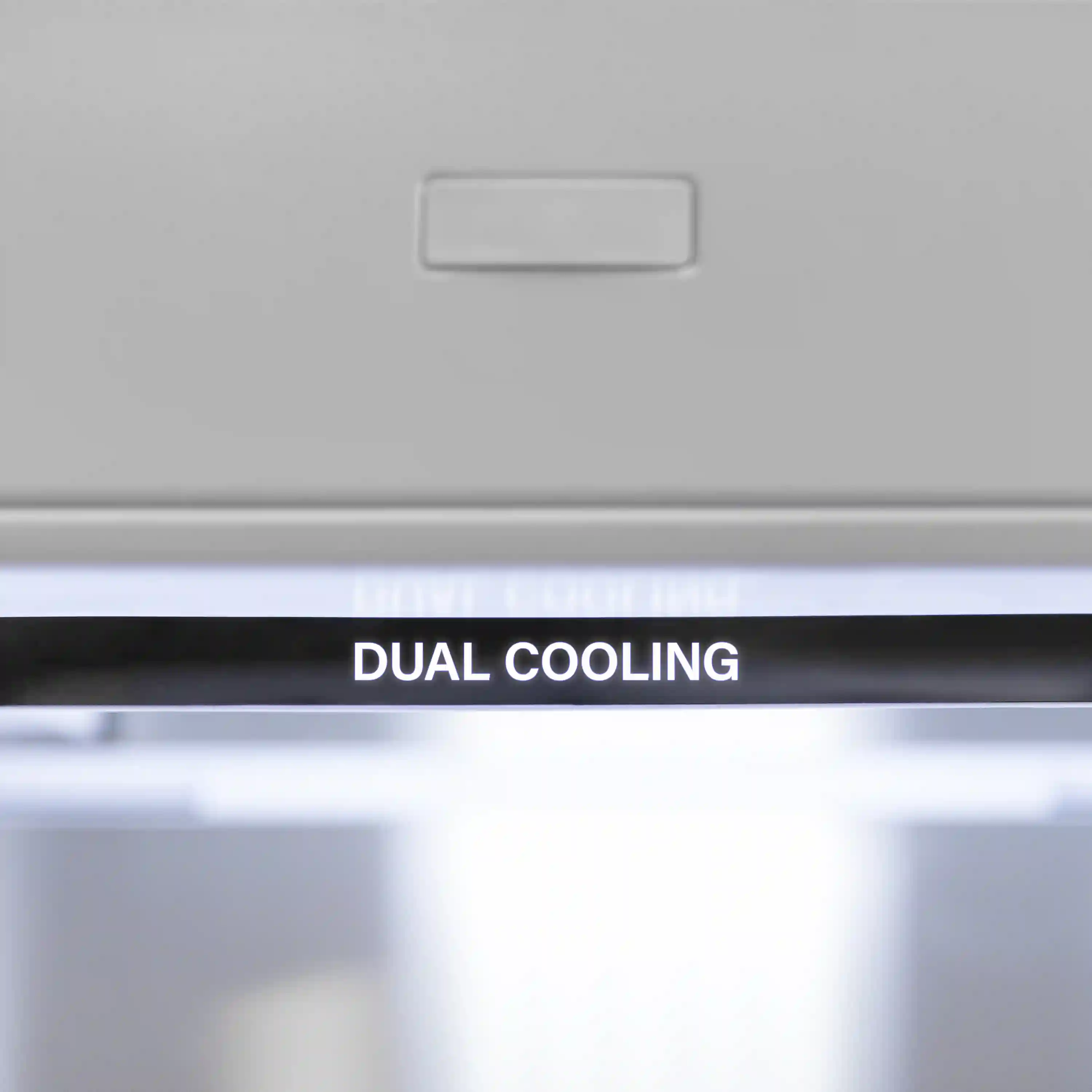

• Dual Cooling - Separate fridge and freezer cooling systems ensure air and odors are not mixed between compartments and provide fast and efficient cooling
• Water Filter Included - A simple-to-replace filter that eliminates impurities for crystal-clear drinking water is conveniently located in the fridge compartment
• ENERGY STAR® Rated - Enjoy energy savings while maintaining professional power with superior insulation and an energy-reducing cooling system
• Warranty - 2-year parts and labor warranty, 5-year parts-only sealed system warranty

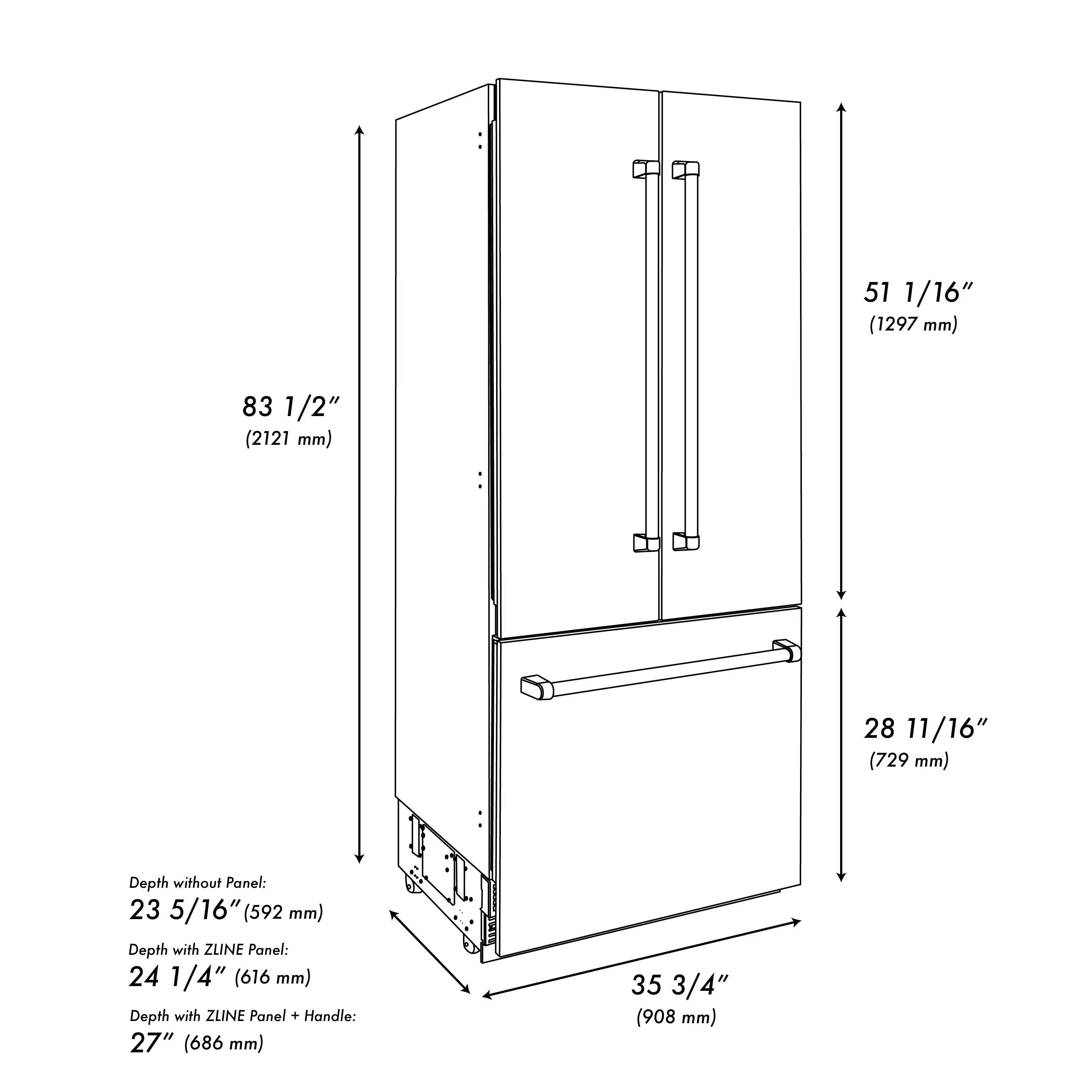

Dimensions	35.75 in. W x 23.31 in. D x 83.5 in. H
Cut Out Dimensions	36.19 in. W x 25 in. D x 84 in. H
Ice Maker	Yes
Water Dispenser	Yes
Flow Rate for Water Dispenser	0.5 GPM
Filter Water	NSF. ANSI 42
Capacity	19.6 cu. ft.
Fridge Capacity	14 cu. ft.
Freezer Capacity	5.6 cu. ft.
Flex Drawer Capacity	1.1 cu. ft.
Additional Temperature Zone Controls	30°F (-1°C) - 41°F (5°C)
Decibels	43 dBA
Supply Voltage	120V/60Hz
Dedicated Circuit	15A
Rated Current (Amps)	3A
ENERGYSTAR	Yes
Energy Consumption	587 kWh/year
Estimated Yearly Energy Cost	70
Door Alarm	Yes
Depth Type	Counter-Depth
Door Style	French Door
Freezer Drawer Bins	2
Freezer Door Style	Pull-Out Drawer
Door Bins	6
Number of Fridge Shelves	3
Height to Top of Door	83.56"
Ice Maker Type	Automatic
Ice Amount per Day	3.9 lbs / Day
Ice Tray Storage	8.4 lbs
Ice/Water Dispenser Location	Internal
Replacement Filter Model Number	RBIV-205A
Lights	4 LED (3 fridge, 1 freezer)
Installation Depth	25"
Certifications	ETL Listed, Energy Star Certified
Warranty	Manufacturing Warranty - 2-year parts and labor warranty, 5 years sealed system parts and labor
Weight	430.60 lbs
