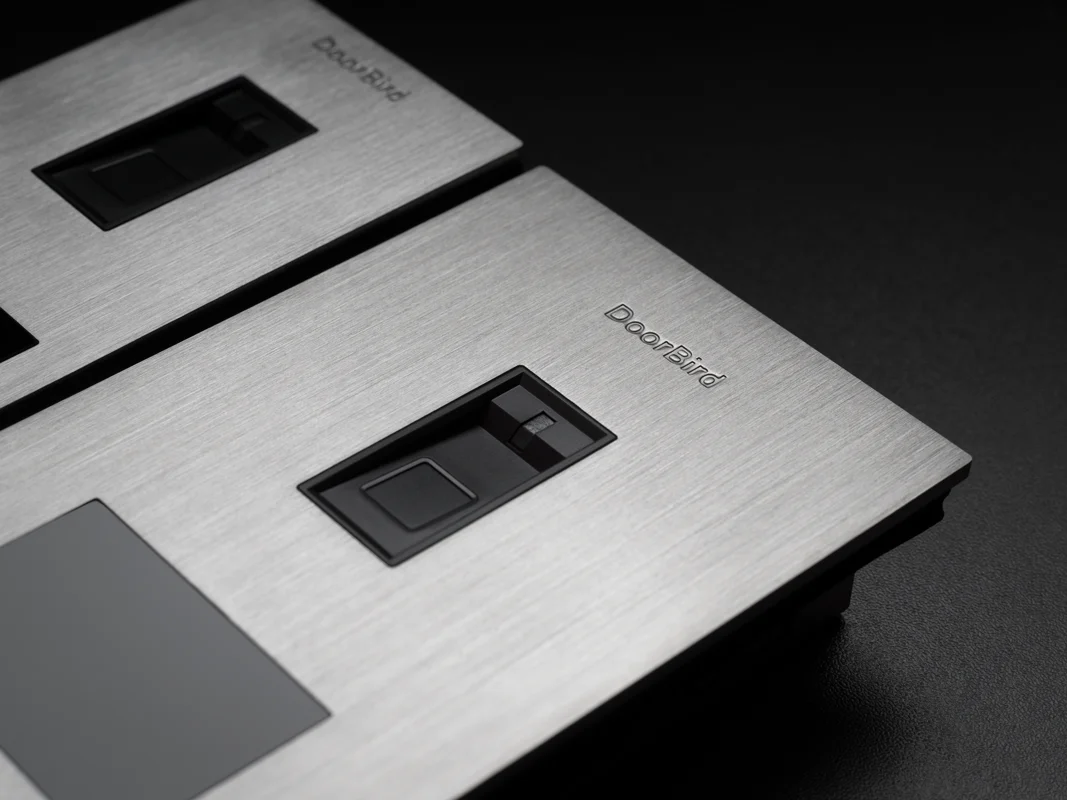

DoorBird A1122 Flush-Mount IP Access Control Device Fingerprint 50 in Titanium-Finish as PVD Coating, Stainless Steel, Brushed
Multi-technology access control system with fingerprint reader and stand-alone solution for back and side doors, garages, storage and packing rooms, bicycle and machine rooms
Titanium-finish as PVD coating, stainless steel, brushed(GTIN/EAN: 4260423912687, P/N: 423912687)
Highlights
- Flush-mount housing included
- WiFi / LAN connection (PoE capable)
- Fingerprint sensor by Fingerprint Cards AB
- 125 KHz and 13.56 MHz RFID reader
- 2 freely configurable bistable switching relays
- Tamper sensor
- Wiegand interface
Features
-
Three separate access control devices combined:
Fingerprint reader
RFID Reader
Bluetooth low Energy (BLE) -
Fingerprint reader
Supports up to 50 fingerprints
Integrated Status LED (RGB) and Touch sensor -
RFID sensor
125 KHz
13.56 MHZ -
Bluetooth low Energy (BLE)
Supports A8007 Bluetooth Remote Control
For access control, compatible external sensors and smart locks -
WiFi-capable - Works within a WiFi network, no LAN cable needed
-
Two freely configurable bistable switching relay
Control one door or one gate via App
Status configurable via App: temporary or permanent circuit - Wiegand interface
- Manipulation sensor
Quality Made In Germany
All DoorBird products are designed, developed and produced by Bird Home
Automation Group in Berlin, Germany. We manufacture all products with
the greatest care and precision, and deliver them to our customers all over
the world.
| Front panel | 3 mm (0.12 in) For more materials and colours see material board and Online Shop. |
|
Mounting housing (backbox) |
Stainless steel |
| Mounting type | Flush-mounted. Surface-mounted and retrofit version sold separately |
| Power supply | 15 - 48 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A) |
| Fingerprint Reader |
Configurable via App |
| Tamper Sensor | Integrated |
| Weight | 465 g |
| Connectors | • LAN/PoE (T+, T-, R+, R-) • 2 x Bistable latching relay (potential-free), max. 1-24 V DC/AC, 1 A, e.g. for electric door opener • 15 – 48 V DC input (+, -), max. 15 W • Wiegand |
| Weatherproof | Yes, IP65 |
| Yes, IP65 | IP65, CE, FCC, IC, RoHS, REACH, IEC/EN 62368 |
| Dimensions |
152 x 83 x 31 mm (H x W x D) 5.99 x 3.27 x 1.22 in (H x W x D) |
| Operating conditions | -25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing) |
| Scope of delivery | 1x Main Electrical Unit 1x Front panel 1x Flush-mounting housing (backbox) 1x Power supply unit (mains adaptor) with up to 4 country-specific outlet adaptors (110 - 240 V AC to 15 V DC) 1x RJ45 adapter 1x Screwdriver 1x Quickstart guide with Digital Passport 1x Installation manual 1x Small parts |
| Datasheet |
| Tender Document |
| App User Manual |
