$769.86
DoorBird A1122 Surface-Mount IP Access Control Device Fingerprint 50 in Bronze—
$769.86
The Story

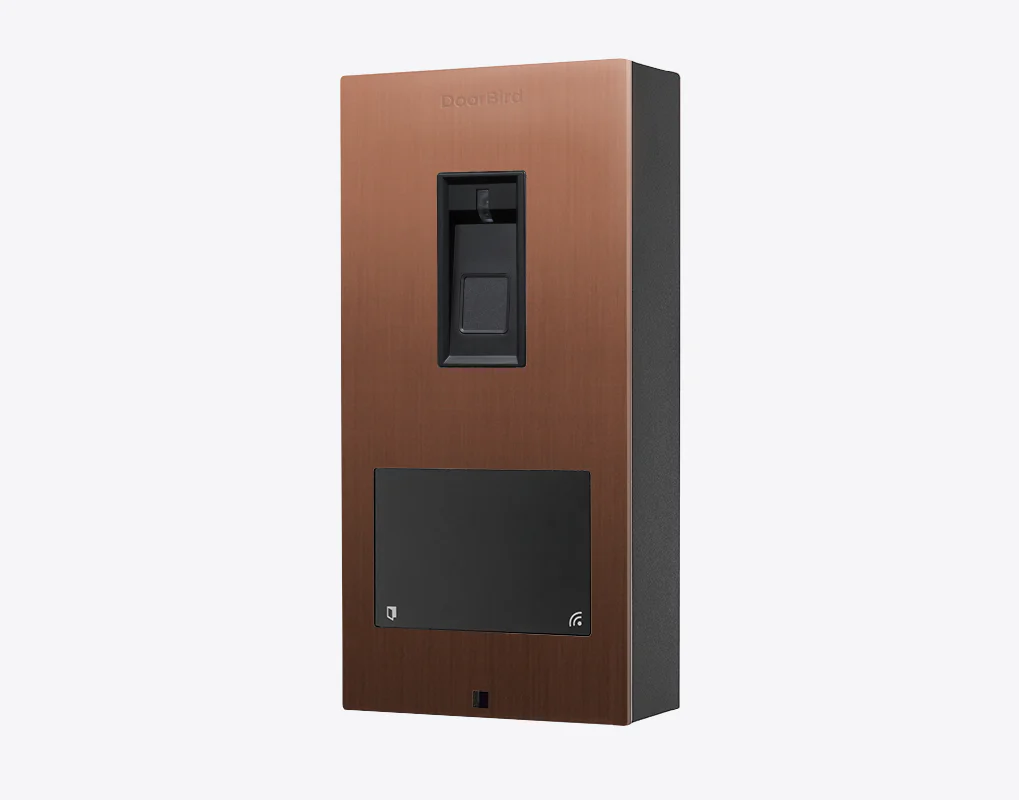

DoorBird A1122 Surface-Mount IP Access Control Device Fingerprint 50 in Bronze
Multi-technology access control system with fingerprint reader and stand-alone solution for back and side doors, garages, storage and packing rooms, bicycle and machine rooms
Bronze-finish as PVD coating, stainless steel, brushed
(GTIN/EAN: 4260423872745, P/N: 423872745)
Highlights
- Surface-mount housing included
- WiFi / LAN connection (PoE capable)
- Fingerprint sensor by Fingerprint Cards AB
- 125 KHz and 13.56 MHz RFID reader
- 2 freely configurable bistable switching relays
- Tamper sensor
- Wiegand interface
Features
-
Three separate access control devices combined:
Fingerprint reader
RFID Reader
Bluetooth low Energy (BLE) -
Fingerprint reader
Supports up to 50 fingerprints
Integrated Status LED (RGB) and Touch sensor -
RFID sensor
125 KHz
13.56 MHZ -
Bluetooth low Energy (BLE)
Supports A8007 Bluetooth Remote Control
For access control, compatible external sensors and smart locks -
WiFi-capable - Works within a WiFi network, no LAN cable needed
-
Two freely configurable bistable switching relay
Control one door or one gate via App
Status configurable via App: temporary or permanent circuit - Wiegand interface
- Manipulation sensor
| Front panel | 3 mm (0.12 in) For more materials and colours see material board and Online Shop. |
|
Mounting housing (backbox) |
Polycarbonate |
| Mounting type | Surface-mounted. Flush-mounted version sold separately |
| Power supply | 15 - 48 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A) |
| Fingerprint Reader | Configurable via App • Individual events (e.g. switch a relay, HTTP(s) request) • Individual schedules • 50 fingerprints manageable • Event history • Multicolored Status LED |
| Tamper Sensor | Integrated |
| Weight | 250 g |
| Connectors | • LAN/PoE (T+, T-, R+, R-) • 2 x Bistable latching relay (potential-free), max. 1-24 V DC/AC, 1 A, e.g. for electric door opener • 15 – 48 V DC input (+, -), max. 15 W • Wiegand |
| Weatherproof | Yes, IP65 |
| Approvals | IP65, CE, FCC, IC, RoHS, REACH, IEC/EN 62368 |
| Dimensions | 128 x 62 x 28 mm (H x W x D) 5.04 x 2.44 x 1.1 in (H x W x D) |
| Operating conditions | -25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing) |
| Scope of delivery | 1x Main Electrical Unit with front panel 1x Wall mounting bracket 1x Power supply unit (mains adaptor) with up to 4 country-specific outlet adaptors (110 - 240 V AC to 15 V DC) 1x RJ45 adapter 1x Screwdriver 1x Quickstart guide with Digital Passport 1x Installation manual 1x Small parts |
| App User Manual |
| Tender Document |
| DoorBird Support Page |
| Datasheet |
