Senville AURA 24K BTU Mini Split with 21 SEER2, 230V Ductless Air Conditioner and Heat Pump Condenser with Wall Mount Air Handler (SENA-24HF)

Senville SENA-24HF/G is a high-efficiency 24000 BTU ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It offers efficient, quiet, year-round climate control for your home or business.

Features

• 21 SEER2 ENERGY STAR - Save up to 50% on energy costs annually.
• Heating down to -30°C (-22°F) - Reliable performance in extreme cold.

• Alexa Enabled Smart Control - Control via voice or app anywhere.
• Ultra-Quiet Operation - Whisper-quiet for bedrooms & offices.

• Recommended for 1150–1350 sq. ft. - Great for large rooms or open spaces.
• Professional Installation - Required to maintain warranty coverage.
• Smart Home Integration with Alexa - Control your Senville system with Alexa or the app from anywhere. Create schedules, adjust settings, and enjoy convenience and energy savings remotely.
• ENERGY STAR Certified - Save up to 50% annually on energy costs with this ultra-efficient, ENERGY STAR certified system—ideal for eco-conscious homes and businesses.
• Cold Climate Heat Pump - Provides heating at -30°C (-22°F) with up to 75% efficiency, ensuring year-round comfort even in extreme climates.
• Diagnostics & Leak Detection - Built-in self-diagnostics and leak detection system help maintain peak efficiency and alert you of any issues for easier maintenance.
• 10-Year Warranty - Comes with a 10-year compressor warranty and 5-year parts warranty, backed by North American support.
• Installation Kit + Accessories Included - Includes a complimentary Installation kit. System is pre-charged with R454B refrigerant for up to 25 ft. Professional installation is required to maintain warranty coverage and optimal performance.

What's Included

• Indoor Unit

• Outdoor Unit

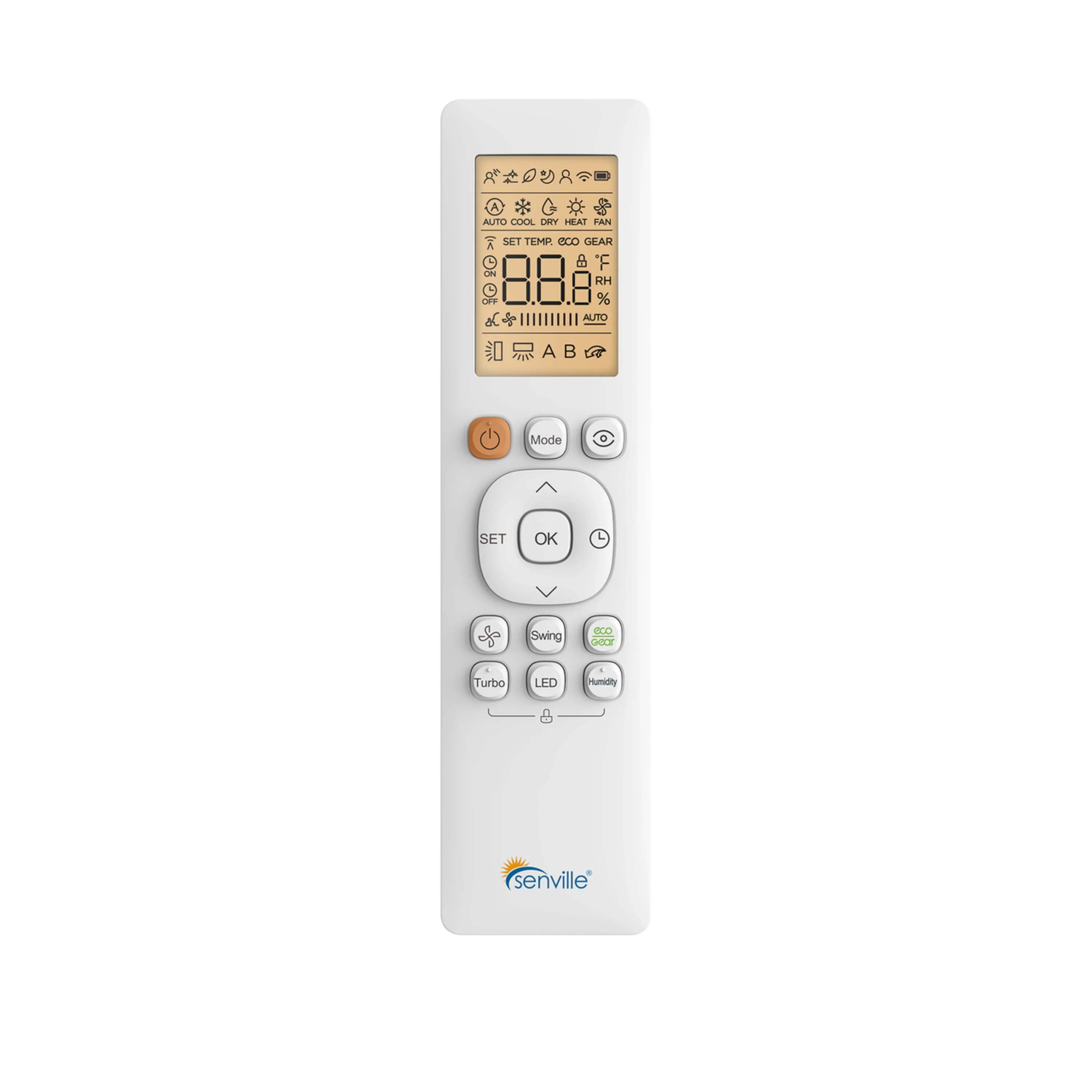

• Wireless Remote Control

• Alexa USB Kit

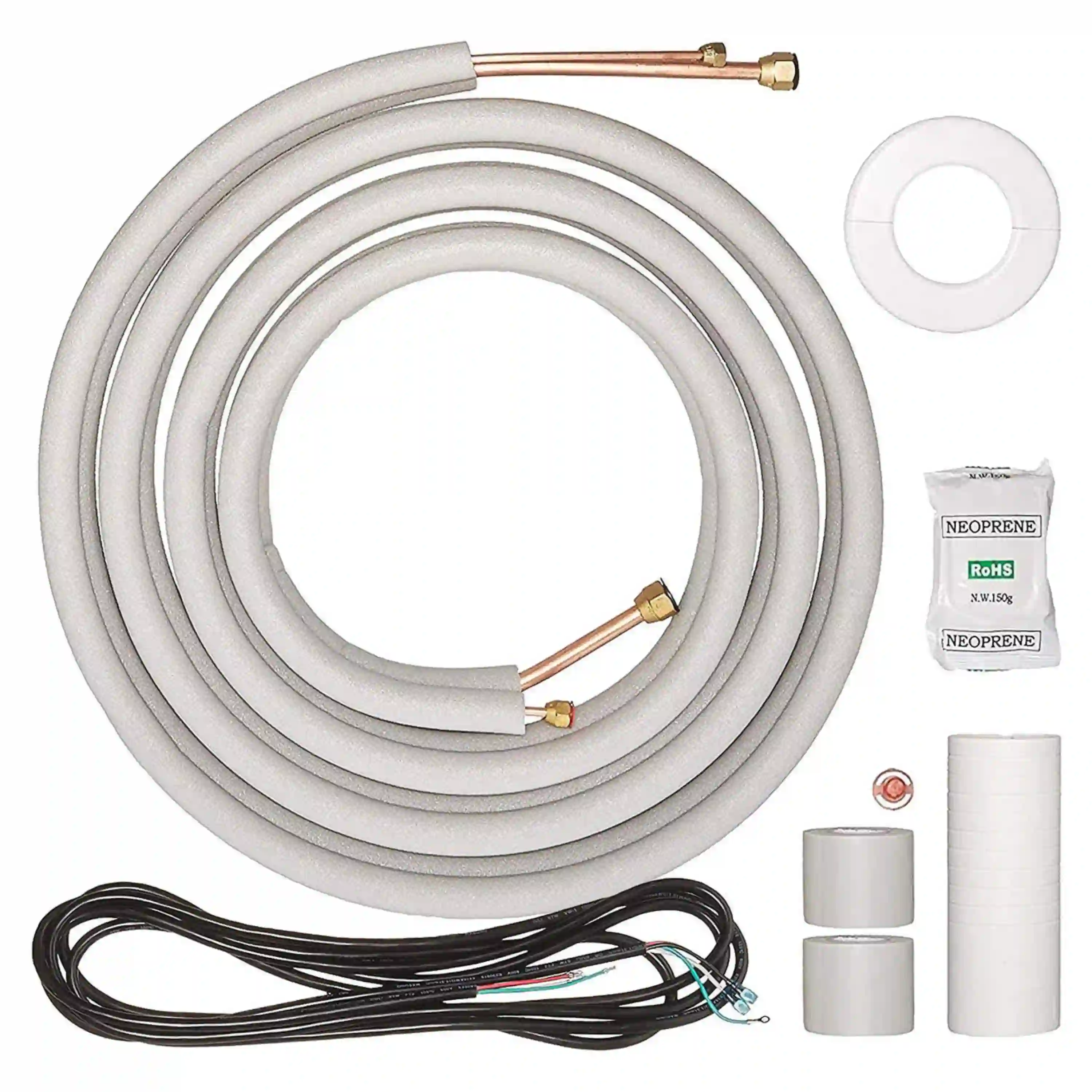

• Installation Kit

• Indoor-Outdoor Wiring Harness

• Installation Manual

• User’s Manual

• 10-Year Manufacturer Warranty

Condenser
Outdoor Dimensions (WxDxH)	37.24 x 16.14 x 31.89 in
Outdoor Weight	130.29 lbs
Outdoor Air Flow (Max) CFM	2235.3
Outdoor Noise Level dB	61.5

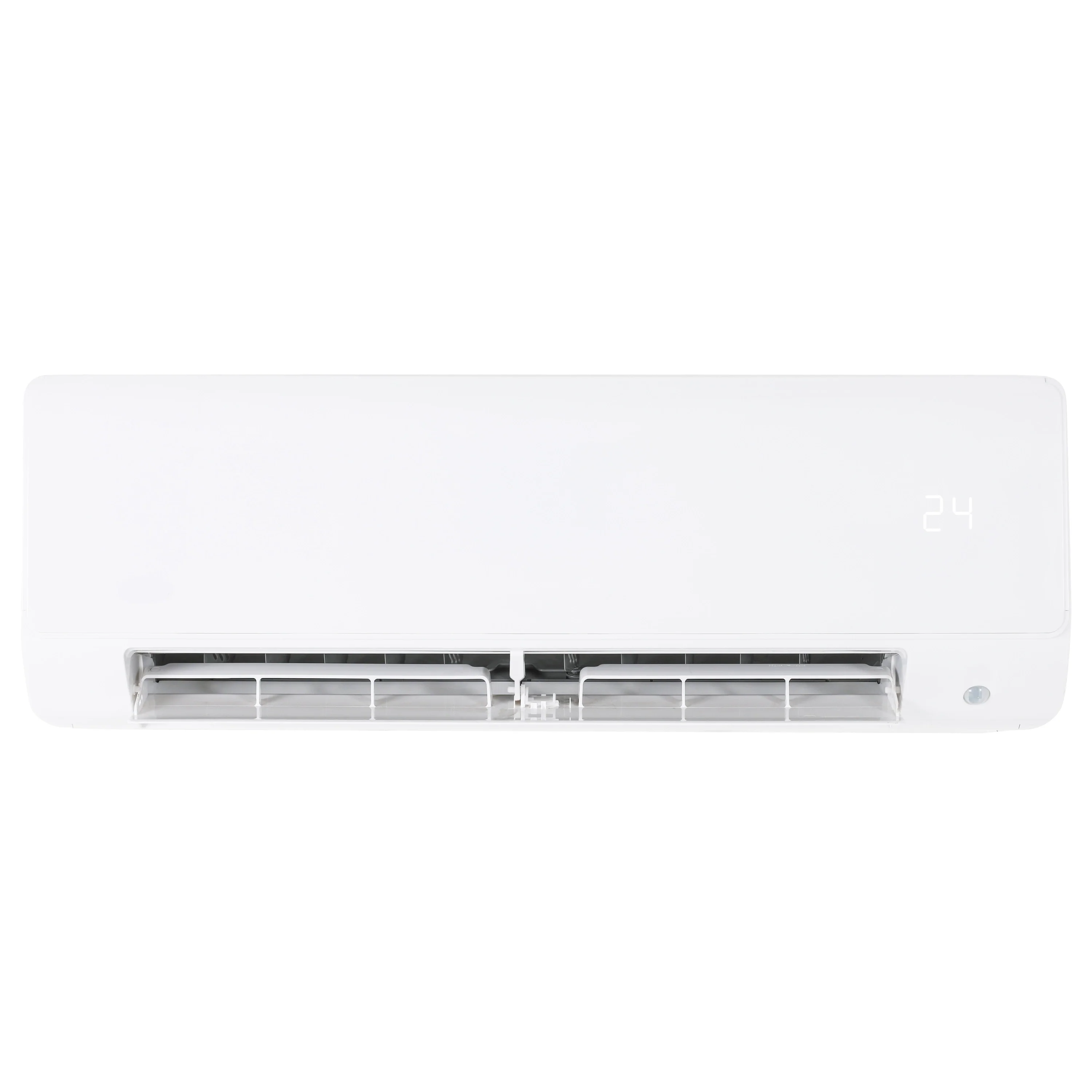

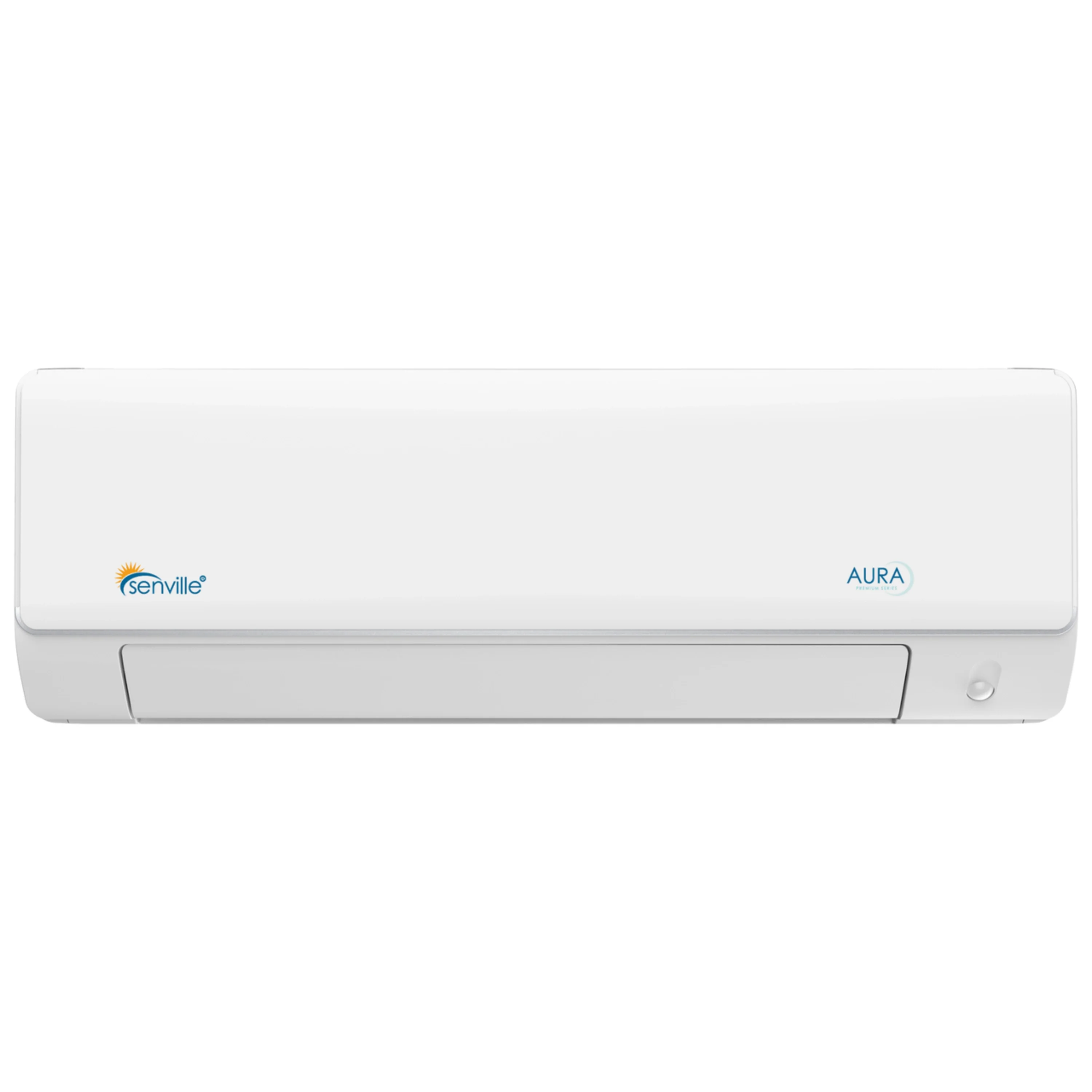

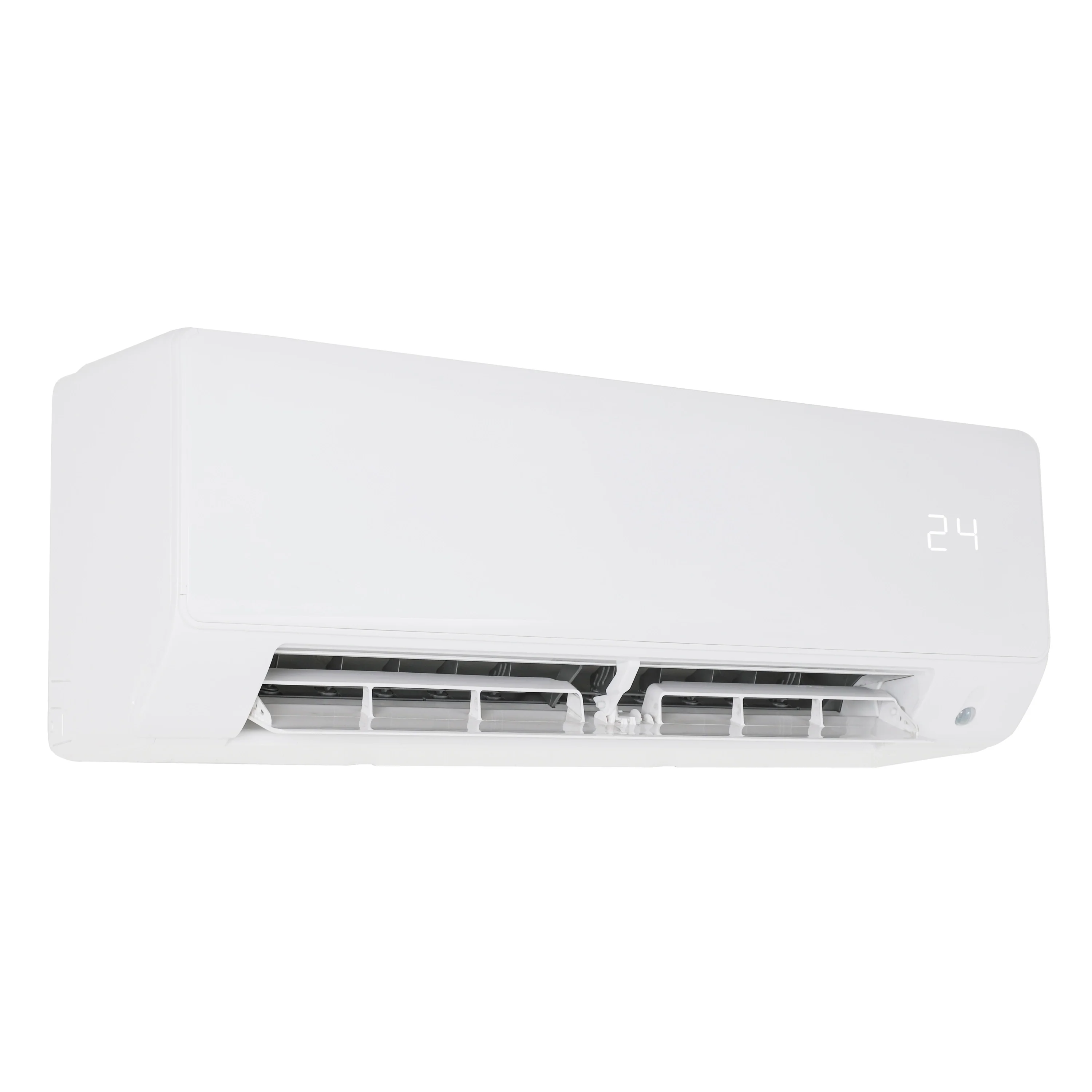

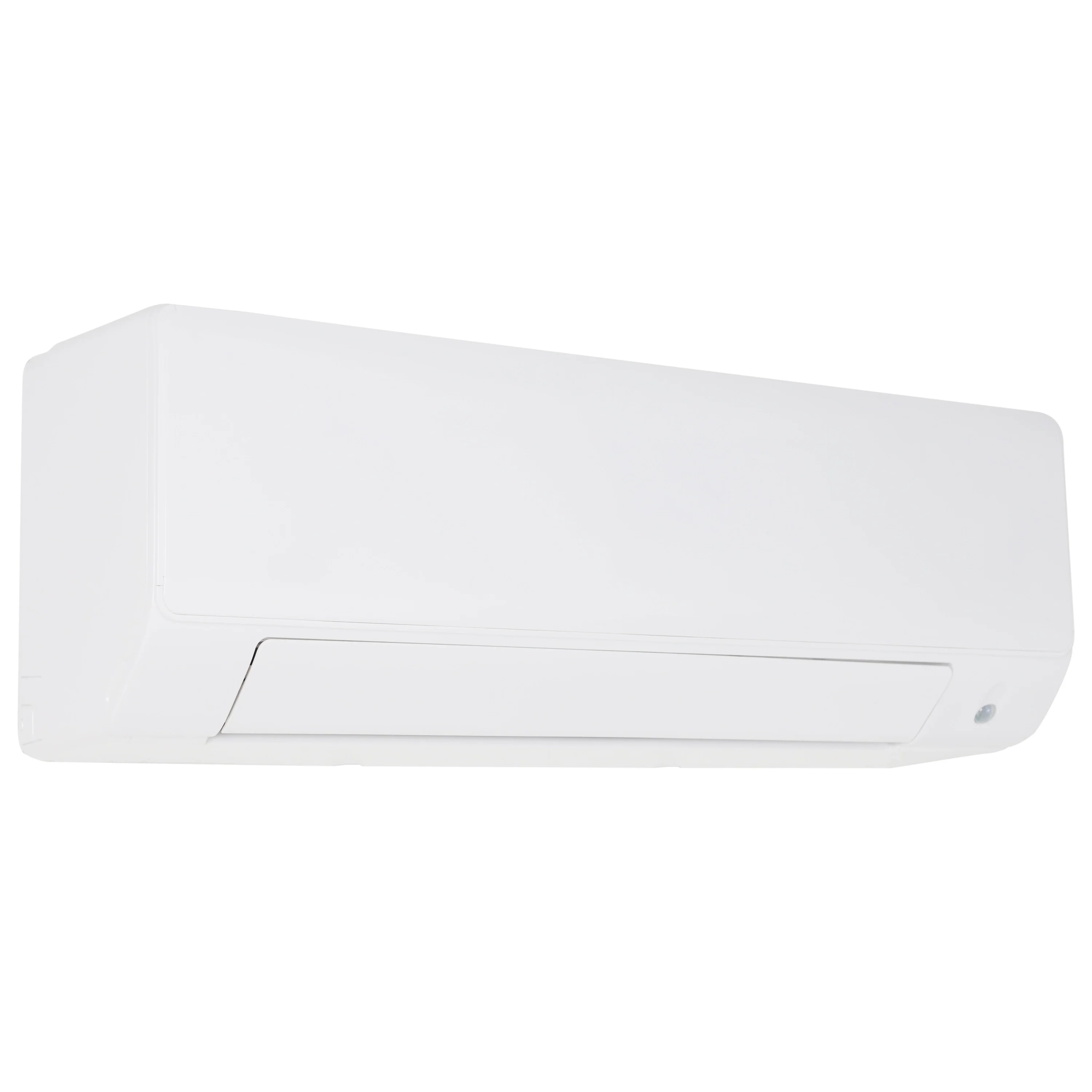

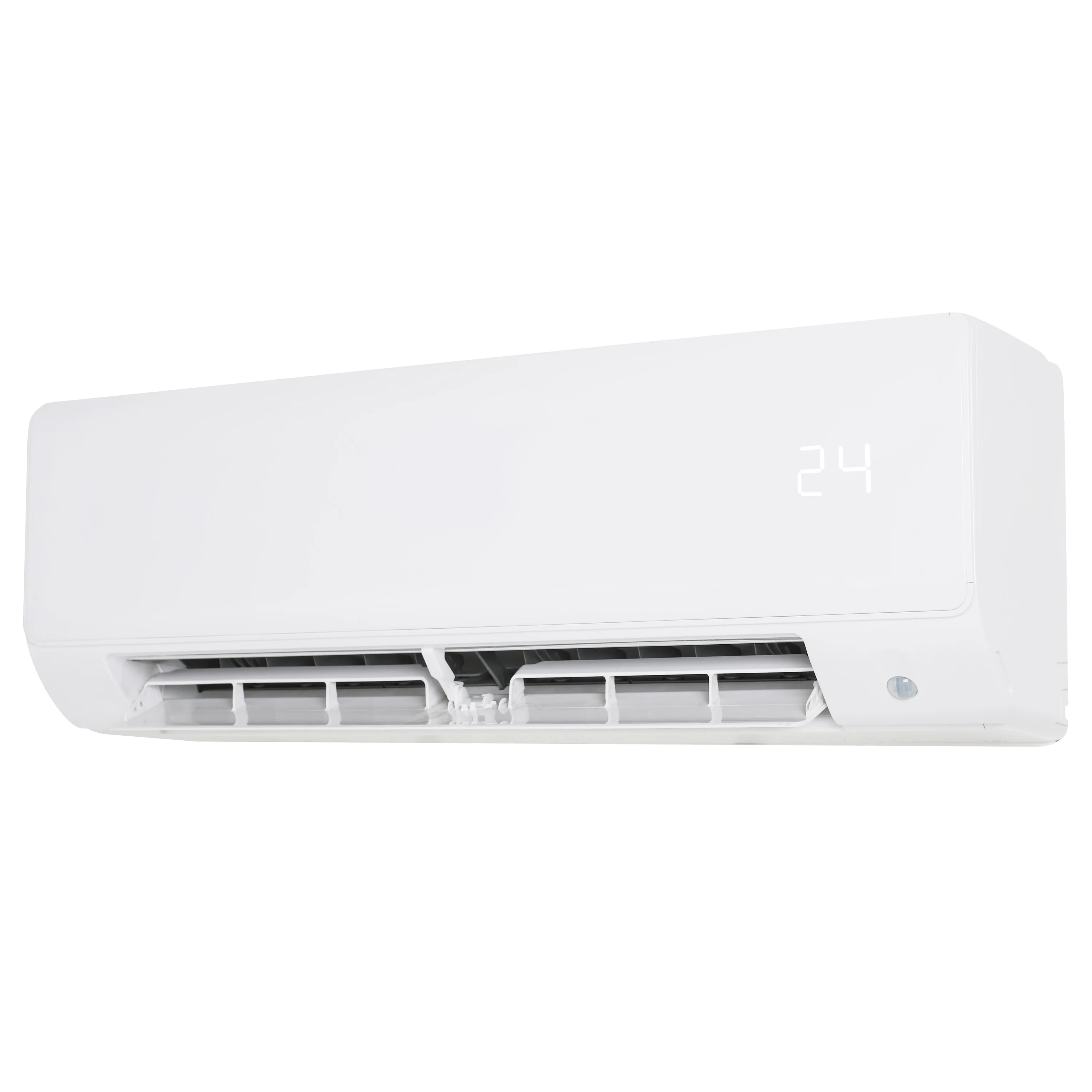

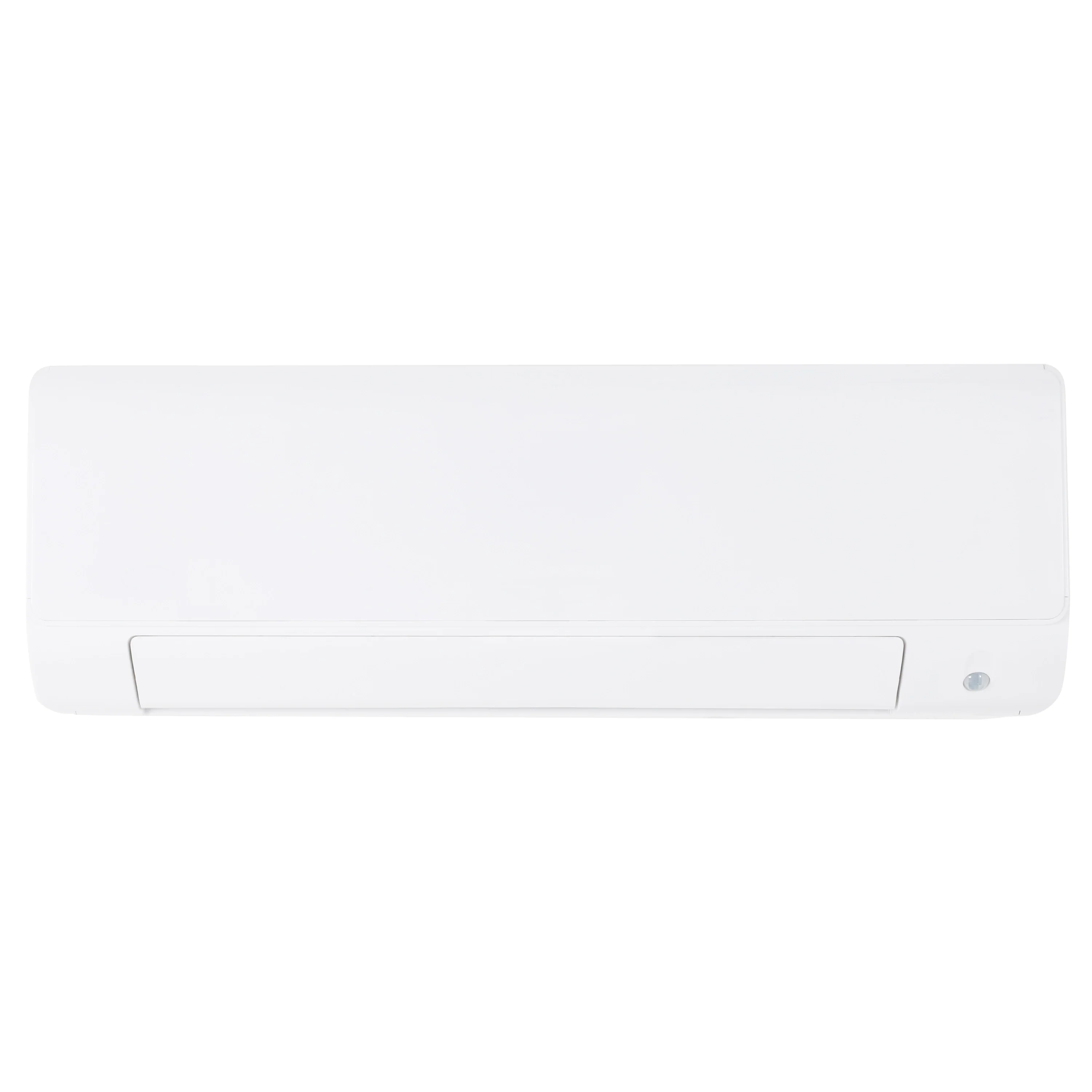

Air Handler
Indoor Dimensions (WxDxH)	46.85 x 11.20 x 14.59 in
Indoor Weight	43.65 lbs
Indoor Air Flow (Turbo/H/M/L) CFM	812.3 / 618.0 / 412.0 / 317.8
Indoor Noise Level (Turbo/H/M/L) dB	54.5 / 43.5 / 38.5 / 27
Technical Specification
Style	Ductless Mini Split AC With Heat Pump
Power Supply (V-Ph-Hz)	208/230V, 1Ph, 60Hz
Voltage Range	187-253
SEER2	21
EER2	13
Cooling Capacity (BTU)	24000
Cooling Range (BTU)	12600~27900
Cooling Input Range (W)	940~2280
Cooling Current Range (A)	4.3~10
Heating Capacity (BTU)	29000
Heating Range (BTU)	11800~29700
Heating Input Range (W)	675~2570
Heating Current Range (A)	3.7~11.3
HSPF2-4	13.5
HSPF2-5	9.5
COP W/W	3.42
Minimum Circuit Ampacity (A)	24.9
Max. Fuse (A)	25
Moisture Removal (L/H)	2.7
Minimum Outdoor Heating Temperature	-22°F / -30°C
Refrigerant Type / Charge	R454B / 63.49 oz
Refrigerant Pre-charge	25 ft
Connection Wiring	14*4 AWG
Thermostat Type	Remote Control
Alexa	Enabled
Warranty	10 Years Compressor / 5 Years Parts
